从零实现自动求导以及线性回归实例

一、定义自己的Tensor

这里为了方便起见，只支持float类型的数据，而且只支持标量，不支持向量：

class Tensor:
    def __init__(self, data, requires_grad=False):
        """
        初始化Tensor，只支持float类型的标量
        """
        if not type(data) is float:
            raise RuntimeError(f'invalid data type {type(data).__name__}')
        self.data = data
        self.requires_grad = requires_grad
        # 初始化梯度
        self.grad = None
        # 用于计算图的操作算子
        self._op = None

当清楚梯度时，直接将梯度设置为None

    def zero_grad(self):
        self.grad = None

为了方便调试，重写了__str__和__repr函数：

    def __str__(self):
        return f"kyTorch.Tensor({self.data:.4f}, requires_grad={self.requires_grad})"

    def __repr__(self) -> str:
        return f"Tensor({self.data:.4f}, requires_grad={self.requires_grad})"

测试：

a = Tensor(2., requires_grad=True)
print(a)	# kyTorch.Tensor(2.0000, requires_grad=True)
b = Tensor(4)
print(b)	# RuntimeError: invalid data type int

二、实现Tensor的加法和乘法

定义运算操作的基类，为了便于复用，并不直接使用forward做运算，而是使用apply。

class _Function:
    def __init__(self, *tensors):
        # 该操作所依赖的所有tensor
        self.depends = [tensor for tensor in tensors]
        # 需要在backward()中使用的Tensor的data
        self.save_tensors_data = []

    def save_for_backward(self, *data):
        self.save_tensors_data.extend(data)

    def forward(self, *args):
        """前向传播，进行真正的运算"""
        raise NotImplementedError('must implement the forward')

    def backward(self, grad):
        """反向传播，计算梯度"""
        raise NotImplementedError('must implement the forward')

    @staticmethod
    def apply(cls, *tensors):
        from kygrad.tensor import Tensor
        op = cls(*tensors)  # 实例化对象，cls是类，op是对象
        res = Tensor(op.forward(*[tensor.data for tensor in tensors]),
                     requires_grad=any([tensor.requires_grad for tensor in tensors]))

        if res.requires_grad:
            res._op = op
        return res

定义加法：

class Add(_Function):
    def forward(self, x, y):
        return x + y

    def backward(self, grad):
        """
        z = x + y
        ∂L/∂x = ∂L/∂z * ∂z/∂x
        ∂z/∂x等于1，这里的grad是指∂L/∂z
        """
        return grad, grad


class Sub(_Function):
    def forward(self, x, y):
        return x - y

    def backward(self, grad):
        return grad, -grad

定义乘法：

class Mul(_Function):
    def forward(self, x, y):
        self.save_for_backward(x, y)
        return x * y

    def backward(self, grad):
        """
        z = x * y
        ∂L/∂x = ∂L/∂z * ∂z/∂x
        ∂L/∂y = ∂L/∂z * ∂z/∂y
        ∂L/∂z是grad，∂z/∂x等于y，∂z/∂y等于x
        """
        x, y = self.save_tensors_data
        # 分别返回∂L/∂x 和 ∂L/∂y
        return grad * y, grad * x

在Tensor中重写__add__和__mul__函数：

    def __add__(self, other):
        # 都转成Tensor进行运算
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Add.apply(Add, self, other)

    def __mul__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Mul.apply(Mul, self, other)

测试：

a = Tensor(2., requires_grad=True)
b = Tensor(4., requires_grad=False)
print(a * b)	# kyTorch.Tensor(8.0000, requires_grad=True)
print((a + b) * (b + 1.0))	# kyTorch.Tensor(30.0000, requires_grad=True)

但是1.0 + a会报错TypeError: unsupported operand type(s) for +: 'float' and 'Tensor'，那就还需要重写__radd__和__rmul__函数，此外，为了实现a += 1.0这种原地操作，还需要重写__iadd__和__imul__：

    def __radd__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        # 注意这里other和self反过来传参了
        return Add.apply(Add, other, self)

    def __iadd__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Add.apply(Add, self, other)

    def __rmul__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Mul.apply(Mul, other, self)

    def __imul__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Mul.apply(Mul, self, other)

测试：

print(1.0 + a)	# kyTorch.Tensor(3.0000, requires_grad=True)
a *= 3.2
print(a)		# kyTorch.Tensor(6.4000, requires_grad=True)

但是这代码一点也不优雅，__add__、__radd__的代码都差不多，咱们的原则就是能让程序干的就让程序干，让其自动化重写魔法函数：

import inspect
import importlib

def _register(name, cls):
    def func(*tensors):
        tensors = [t if isinstance(t, Tensor) else Tensor(t) for t in tensors]
        return cls.apply(cls, *tensors)

    setattr(Tensor, name, func)
    setattr(Tensor, f"__{name}__", func)
    # 原地操作
    setattr(Tensor, f"__i{name}__", func)
    # other在操作符前，self在操作符后
    setattr(Tensor, f"__r{name}__", lambda self, x: func(x, self))


def overwriteOps():
    for name, cls in inspect.getmembers(importlib.import_module('kygrad.ops'), inspect.isclass):
        name = name.lower()
        if name in ['add', 'mul']:
            _register(name, cls)


overwriteOps()

测试，没毛病，haha

print(1.0 + a)	# kyTorch.Tensor(3.0000, requires_grad=True)
a *= 3.2
print(a)		# kyTorch.Tensor(6.4000, requires_grad=True)

三、实现Tensor的反向传播

首先使用深度优先遍历计算图，返回所有需要计算梯度的非叶子结点：

    # 遍历计算图
    def _rev_topo_sort(self):
        # 有_op的就是需要计算梯度的非叶子结点，它是由其他tensor一起计算得来的
        # 返回所有有_op的，也就是返回需要计算梯度的所有非叶子结点
        # dfs，被加入tensors数组的顺序是孩子（左 右） 根
        def visit(tensor, visited, tensors):
            # 标记为已访问
            visited.append(tensor)
            if tensor._op:
                [visit(depend_tensor, visited, tensors)
                 for depend_tensor in tensor._op.depends if depend_tensor not in visited]
                tensors.append(tensor)
            return tensors
        # 倒过来里面就是先是根 再是孩子（右 左）
        return reversed(visit(self, [], []))

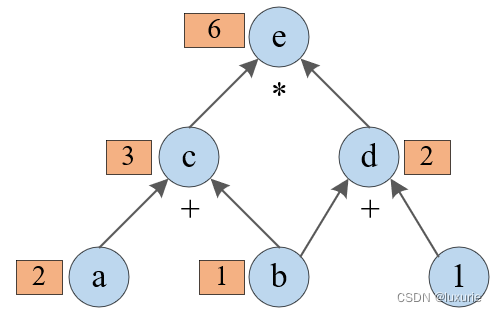

测试，以e = (a + b) * (b + 1)为例：

a, b = Tensor(2., requires_grad=True), Tensor(1., requires_grad=True)
e = (a + b) * (b + 1.)
print(list(e._rev_topo_sort()))	# [Tensor(6.0000, requires_grad=True), Tensor(2.0000, requires_grad=True), Tensor(3.0000, requires_grad=True)]

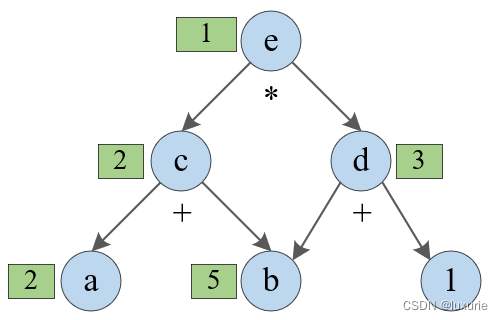

需要计算梯度的非叶子结点是e、d、c，基于该拓扑结构，实现Tensor的backward：

    def backward(self):
        """实现Tensor的反向传播"""
        # ∂L/∂L等于1
        self.grad = Tensor(1.)
        for t in self._rev_topo_sort():
            grads = t._op.backward(t.grad.data)
            for child, grad in zip(t._op.depends, grads):
                if child.requires_grad:
                    # 默认会累加梯度
                    child.grad = child.grad + Tensor(grad) if child.grad else Tensor(grad)

测试，以e = (a + b) * (b + 1)为例：

a, b = Tensor(2., requires_grad=True), Tensor(1., requires_grad=True)
e = (a + b) * (b + 1.)
e.backward()
print(a.grad)	# kyTorch.Tensor(2.0000, requires_grad=False)
print(b.grad)	# kyTorch.Tensor(5.0000, requires_grad=False)

$f(a,b)=(a+b)\ast (b+1)=ab+b^2+a+b$，那么$\frac{\partial f}{\partial a}=b+1$，$\frac{\partial f}{\partial b}=a+2b+1$，与自动算出来的相同。

四、实现线性回归

计算损失的时候还用到了Tensor的减法，所以再定义个减法：

class Sub(_Function):
    def forward(self, x, y):
        return x - y

    def backward(self, grad):
        return grad, -grad

为了训练模型，定义训练器，使用梯度下降：

class Optimizer:
    def __init__(self, params):
        self.params = params

    def zero_grad(self):
        for param in self.params:
            param.zero_grad()


class SGD(Optimizer):
    def __init__(self, params, lr=0.001):
        super().__init__(params)
        self.lr = lr

    def step(self):
        for param in self.params:
            param.data -= self.lr * param.grad.data

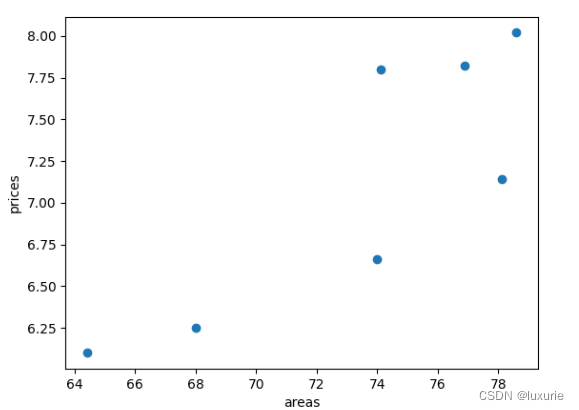

有这样一组数据，大致呈线性关系。

from kygrad.tensor import Tensor
from kygrad.optim import SGD

w = Tensor(1., requires_grad=True)
b = Tensor(0., requires_grad=True)


def linreg(X):
    """线性回归模型"""
    # y = w * x + b
    y = []
    for x in X:
        y.append(w * x + b)
    return y


def squared_loss(y_hat, y):
    loss = Tensor(0.)
    for i in range(len(y)):
        loss += (y[i] - y_hat[i]) * (y[i] - y_hat[i])
    return loss


areas = [64.4, 68., 74.1, 74., 76.9, 78.1, 78.6]
prices = [6.1, 6.25, 7.8, 6.66, 7.82, 7.14, 8.02]

epochs = 500
lr = 0.00001
optimizer = SGD([w, b], lr=lr)
train_loss = []
for epoch in range(epochs):
    y_hat = linreg(areas)
    l = squared_loss(y_hat, prices)
    optimizer.zero_grad()
    l.backward()
    optimizer.step()

    train_loss.append(l.data)
    if epoch % 10 == 0:
        print(f'epoch {epoch + 1}: loss={l.data:.4f}')

print(f"w: {w.data:.4f}, b: {b.data:.4f}")
print(train_loss[-1])

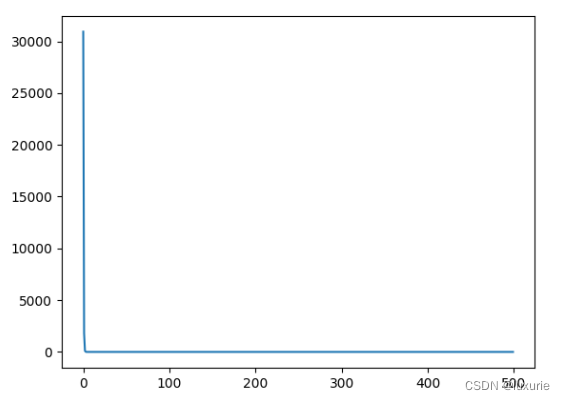

最后得到的w和b分别为0.0971和-0.0129，损失值为1.2595，损失值变化曲线如下：

画出线性回归拟合出来的直线：

给它加个特征，重新训练：

from kygrad.tensor import Tensor
from kygrad.optim import SGD

w1 = Tensor(1., requires_grad=True)
w2 = Tensor(1., requires_grad=True)
b = Tensor(0., requires_grad=True)


def linreg(X):
    """线性回归模型"""
    # y = w1 * x1 + w2 * x2 + b
    y = []
    for x1, x2 in X:
        y.append(w1 * x1 + w2 * x2 + b)
    return y


def squared_loss(y_hat, y):
    loss = Tensor(0.)
    for i in range(len(y)):
        loss += (y[i] - y_hat[i]) * (y[i] - y_hat[i])
    return loss


areas = [64.4, 68., 74.1, 74., 76.9, 78.1, 78.6]
ages = [31., 21., 10., 24., 17., 16., 17.]
prices = [6.1, 6.25, 7.8, 6.66, 7.82, 7.14, 8.02]

epochs = 500
lr = 0.00001
optimizer = SGD([w1, w2,  b], lr=lr)
train_loss = []
for epoch in range(epochs):
    y_hat = linreg(zip(areas, ages))
    l = squared_loss(y_hat, prices)
    optimizer.zero_grad()
    l.backward()
    optimizer.step()

    train_loss.append(l.data)
    if epoch % 10 == 0:
        print(f'epoch {epoch + 1}: loss={l.data:.4f}')

print(f"w1: {w1.data:.4f}, w2:{w2.data:.4f}, b: {b.data:.4f}")
print(train_loss[-1])

得到的结果为w1: 0.0992, w2:-0.0080, b: -0.0177，损失值为1.0956，与之前相比有所下降。

损失值变化曲线（没有画前四次的，初始的损失值太高了，画的话跟之前的一样，断崖式）如下：

五、总结

通过自己实现自动求导并应用到线性回归实例中，有助于深入理解深度学习框架的底层实现，而不是仅仅把它当作黑盒。

本文的Tensor只能支持浮点类型的标量，而且只有简单的加法、减法、乘法运算，还有许多功能没有实现，比如一元运算、矩阵运算、聚合运算等等，不过总体实现流程是相似的。

参考资料：
https://github.com/karpathy/micrograd
https://github.com/geohot/tinygrad
https://github.com/nlp-greyfoss/metagrad
