Java—多线程之LockSupport

1、简介

LockSupport是一个线程工具类，所有的方法都是静态方法，可以让线程在任意位置阻塞，也可以在任意位置唤醒。

它的内部其实两类主要的方法：park（停车阻塞线程）和unpark（启动唤醒线程）。

/**
 * Basic thread blocking primitives for creating locks and other
 * synchronization classes.
 *
 * <p>This class associates, with each thread that uses it, a permit
 * (in the sense of the {@link java.util.concurrent.Semaphore
 * Semaphore} class). A call to {@code park} will return immediately
 * if the permit is available, consuming it in the process; otherwise
 * it <em>may</em> block.  A call to {@code unpark} makes the permit
 * available, if it was not already available. (Unlike with Semaphores
 * though, permits do not accumulate. There is at most one.)
 */
public class LockSupport {

     /**
     * Makes available the permit for the given thread, if it
     * was not already available.  If the thread was blocked on
     * {@code park} then it will unblock.  Otherwise, its next call
     * to {@code park} is guaranteed not to block. This operation
     * is not guaranteed to have any effect at all if the given
     * thread has not been started.
     *
     * @param thread the thread to unpark, or {@code null}, in which case
     *        this operation has no effect
     */
    public static void unpark(Thread thread) {
        if (thread != null)
            UNSAFE.unpark(thread);
    }

    /**
     * Disables the current thread for thread scheduling purposes unless the
     * permit is available.
     *
     * <p>If the permit is available then it is consumed and the call
     * returns immediately; otherwise the current thread becomes disabled
     * for thread scheduling purposes and lies dormant until one of three
     * things happens:
     *
     * <ul>
     *
     * <li>Some other thread invokes {@link #unpark unpark} with the
     * current thread as the target; or
     *
     * <li>Some other thread {@linkplain Thread#interrupt interrupts}
     * the current thread; or
     *
     * <li>The call spuriously (that is, for no reason) returns.
     * </ul>
     *
     * <p>This method does <em>not</em> report which of these caused the
     * method to return. Callers should re-check the conditions which caused
     * the thread to park in the first place. Callers may also determine,
     * for example, the interrupt status of the thread upon return.
     */
    public static void park() {
        UNSAFE.park(false, 0L);
    }
}

我们知道wait/notify也是用来阻塞和唤醒线程的，那么与它相比，LockSupport有什么优点呢？



2、与wait/notify对比

（1）wait/notify代码

public class WaitNotifyTest {
    public static void main(String[] args){
        final Object lock = new Object();
        Thread t0 = new Thread(()->{
            synchronized (lock){
                System.out.println(Thread.currentThread().getName()+" wait");
                try {
                    lock.wait();
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }
                System.out.println(Thread.currentThread().getName()+" end");
            }
        });

        Thread t1 = new Thread(()->{
            synchronized (lock){
                System.out.println(Thread.currentThread().getName()+" notify");
                lock.notify();//执行notify，当前线程不会释放锁
                System.out.println(Thread.currentThread().getName()+" end");
            }
        });

        // 保证t0先启动，锁对象必须先执行wait后执行notify
        t0.start();
        t1.start();
    }
}

执行结果

Thread-0 wait
Thread-1 notify
Thread-1 end
Thread-0 end

（2）LockSupport代码

public class LockSupportTest {

    public static void main(String[] args){
        Thread t1 = new Thread(()->{
            System.out.println(Thread.currentThread().getName()+" start");
            System.out.println(Thread.currentThread().getName()+" park");
            LockSupport.park();
            System.out.println(Thread.currentThread().getName()+" unpark");
            System.out.println(Thread.currentThread().getName()+ " end");
        });
        t1.start();
        System.out.println(Thread.currentThread().getName()+" start");
        try {
            System.out.println(Thread.currentThread().getName()+" sleep");
            TimeUnit.SECONDS.sleep(1);
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
        System.out.println(Thread.currentThread().getName()+" end");
        LockSupport.unpark(t1);//唤醒指定线程
    }
}

执行结果

Thread-0 start
main sleep
Thread-0 park
----------------1s后执行下面的输出-------------------
main end
Thread-0 unpark
Thread-0 end

结论：

使用wait，notify来实现等待唤醒功能的特点如下：

1）wait和notify都是Object中的方法,在调用这两个方法前必须先获得锁对象，这限制了其使用场合:只能在同步代码块中。

2）当对象的等待队列中有多个线程时，notify只能随机选择一个线程唤醒，无法唤醒指定的线程。

而使用LockSupport的话，我们可以在任何场合使线程阻塞，同时也可以指定要唤醒的线程，相当的方便。



3、LockSupport的其他特点

（1）可以先唤醒线程，再阻塞线程。先unpark(),在park()

public static void main(String[] args) {
    Thread t = new Thread(()->{
        for (int i = 0; i < 10; i++) {
            System.out.println(i);
            if(i == 5) {
                LockSupport.park();
            }
            try {
                TimeUnit.SECONDS.sleep(1);
            } catch (InterruptedException e) {
                e.printStackTrace();
            }
        }
    });

    t.start();
    LockSupport.unpark(t);
}

程序功能：线程t每隔1s打印一个数字，当i==5时阻塞，等待唤醒继续执行。上面的线程在执行LockSupport.park();之前，先执行了 LockSupport.unpark(t);

运行结果如下：

0
1
2
3
4
5
6
7
8
9

i==5时并未阻塞而是继续执行

为什么？

线程阻塞需要消耗许可证(permit)，这个凭证最多只有1个。当调用park方法时，如果有许可证，则会直接消耗掉这个凭证继续执行；但是如果没有凭证，就必须阻塞等待许可证可用；

而unpark则相反，它会增加一个许可证，但凭证最多只能有1个。但是每次park都需要消耗一个许可证



原理浅析

class Parker : public os::PlatformParker {
private:
  volatile int _counter ;
  ...
public:
  void park(bool isAbsolute, jlong time);
  void unpark();
  ...
}
class PlatformParker : public CHeapObj<mtInternal> {
  protected:
    pthread_mutex_t _mutex [1] ;
    pthread_cond_t  _cond  [1] ;
    ...
}



LockSupport就是通过控制变量_counter来对线程阻塞唤醒进行控制的。原理有点类似于信号量机制。

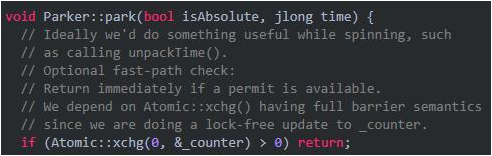

• 当调用park()方法时，先尝试直接能否直接拿到“许可”，即_counter>0时，如果成功，则把_counter设置为0,并返回。

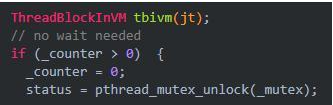

如果不成功，则构造一个ThreadBlockInVM，然后检查_counter是不是>0，如果是，则把_counter设置为0，unlock mutex并返回:

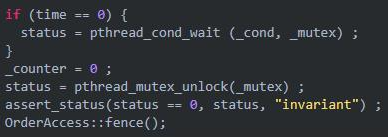

否则，再判断等待的时间，然后再调用pthread_cond_wait函数等待，如果等待返回，则把_counter设置为0，unlock mutex并返回：



这就是整个park的过程，总结来说就是消耗“许可”的过程

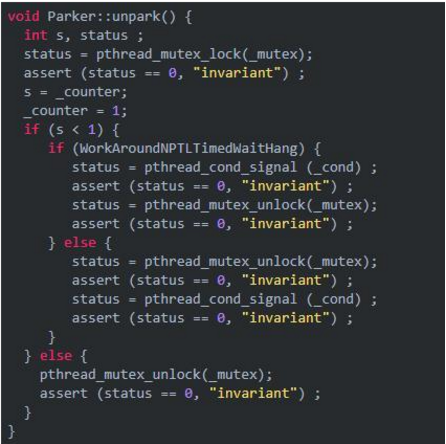

• 当调用unpark()方法时，会将_counter置为1，同时判断前值，小于1会进行线程唤醒，否则直接退出。
•



Q&A

（1）为什么可以先唤醒线程后阻塞线程？

因为unpark获得了一个许可证,之后调用park因为有许可证消费，故不会阻塞。

（2）为什么唤醒两次后阻塞两次会阻塞线程。

因为许可证的数量最多为1，连续调用两次unpark和调用一次unpark效果一样，只会增加一个许可证；而调用两次park却需要消费两个许可证。
