1.示例
criterion可以是信息熵，entropy，可以是基尼系数gini
# -*-coding:utf-8-*-
from sklearn import tree
from sklearn.datasets import load_wine
from sklearn.model_selection import train_test_split
wine=load_wine()
# print ( wine.feature_names )
#(178, 13)
print(wine.data.shape)
Xtrain,Xtest,Ytrain,Ytest=train_test_split(wine.data,wine.target,test_size=0.3)
#random_state=30:输入任意整数，会一直长同一棵树，让模型稳定下来
clf=tree.DecisionTreeClassifier(criterion="entropy",random_state=30,splitter="best")
# clf=tree.DecisionTreeClassifier(criterion="entropy")
clf=clf.fit(Xtrain,Ytrain)
#返回预测准确度accuracy
score=clf.score(Xtest,Ytest)
print( score )
import graphviz
dot_data=tree.export_graphviz(clf,
feature_names=wine.feature_names,
class_names=["wine1","wine2","wine3"],
filled=True,
rounded=True)
graph=graphviz.Source(dot_data)
#生成pdf文件
graph.render(view=True, format="pdf", filename="tree_pdf")
print ( graph )
#feature_importances_：每个特征在决策树中的重要成都
print(clf.feature_importances_)

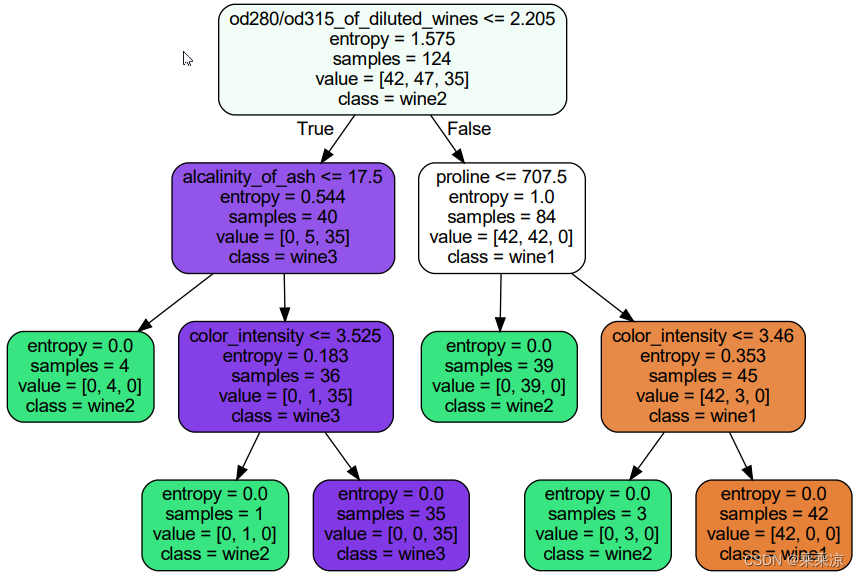

print ( [*zip(wine.feature_names,clf.feature_importances_)] )决策树生成的pdf
2.示例
max_depth:这参数用来控制决策树的最大深度。以下示例，构建1~10深度的决策时，看哪个深度的决策树的精确率（score）高
# -*-coding:utf-8-*-
from sklearn import tree
from sklearn.datasets import load_wine
from sklearn.model_selection import train_test_split
import matplotlib.pyplot as plt
plt.switch_backend("TkAgg")
wine=load_wine()
# print ( wine.feature_names )
#(178, 13)
print(wine.data.shape)
import pandas as pd
# print (pd.concat([pd.DataFrame(wine.data),pd.DataFrame(wine.target)],axis=1))
#所有的train，test必须是二维矩阵
Xtrain,Xtest,Ytrain,Ytest=train_test_split(wine.data,wine.target,test_size=0.3)
test=[]
bestScore=-1
bestClf=None
for i in range(10):
clf=tree.DecisionTreeClassifier(max_depth=i+1,
criterion="entropy",
random_state=30,
splitter="random")
clf=clf.fit(Xtrain,Ytrain)
score=clf.score(Xtest,Ytest)
test.append(score)
if score>bestScore:
bestScore=score
bestClf=clf
print(test)
print(test.index(bestScore))
#predict返回每个测试样本的分类/回归结果
predicted=bestClf.predict(Xtest)
print(predicted)
#返回每个测试样本的叶子节点的索引
leaf=bestClf.apply(Xtest)
print(leaf)

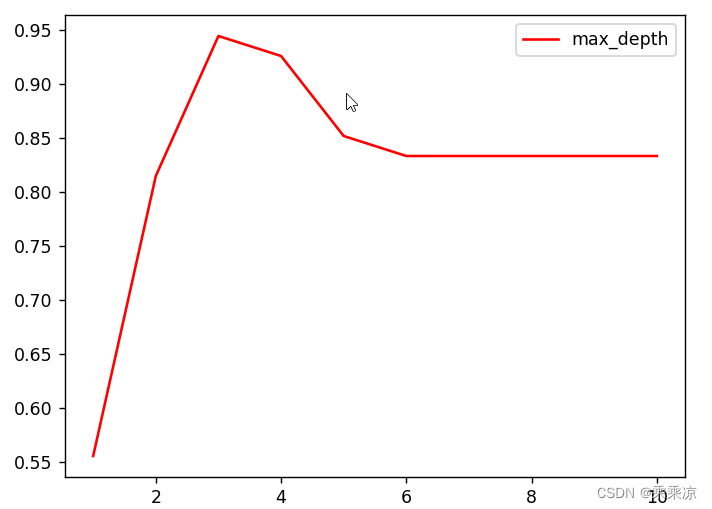

plt.plot(range(1,11),test,color="red",label="max_depth")
plt.legend()
plt.show()结果：
(178, 13)
[0.5555555555555556, 0.8148148148148148, 0.9444444444444444, 0.9259259259259259, 0.8518518518518519, 0.8333333333333334, 0.8333333333333334, 0.8333333333333334, 0.8333333333333334, 0.8333333333333334]
2
[0 1 0 1 2 0 1 1 1 2 2 0 0 2 0 1 1 0 0 0 0 1 1 0 2 1 0 2 2 1 2 1 1 1 1 0 1
2 2 0 1 1 2 0 2 1 1 0 1 1 2 1 2 2]
[12 7 12 11 3 12 7 7 4 3 3 12 12 3 12 9 7 12 12 12 12 7 9 12
3 9 12 3 3 4 3 4 7 7 7 12 7 3 3 12 9 9 3 12 3 7 7 12
7 7 3 7 3 3]
3.交叉熵验证的示例
# -*-coding:utf-8-*-
from sklearn.model_selection import cross_val_score
from sklearn.tree import DecisionTreeRegressor
import sklearn
from sklearn.datasets import fetch_california_housing
housing=fetch_california_housing()
# print(housing)
# print(housing.data)
# print(housing.target)
regressor=DecisionTreeRegressor(random_state=0)
#cv=10,10次交叉验证，default：cv=5
#scoring="neg_mean_squared_error",评价指标是负的均方误差
cross_res=cross_val_score(regressor,
housing.data,
housing.target,
scoring="neg_mean_squared_error",
cv=10)
print(cross_res)[-1.30551334 -0.78405711 -0.72809865 -0.50413232 -0.79683323 -0.83698199
-0.56591889 -1.03621067 -1.02786488 -0.51371889]4.Titanic生存者预测
数据来源：
Titanic - Machine Learning from Disaster | Kaggle
数据预处理
读取数据
import pandas as pd
from sklearn.tree import DecisionTreeClassifier
import matplotlib.pyplot as plt
from sklearn.model_selection import GridSearchCV
#---------设置pd，在pycharm中显示完全表格-------
pd.set_option('display.max_columns', 1000)
pd.set_option('display.width', 1000)
pd.set_option('display.max_colwidth', 1000)
#----------------------------------------
data=pd.read_csv("./data.csv")
print (data.head(5))
print(data.info())
PassengerId Survived Pclass Name Sex Age SibSp Parch Ticket Fare Cabin Embarked
0 1 0 3 Braund, Mr. Owen Harris male 22.0 1 0 A/5 21171 7.2500 NaN S
1 2 1 1 Cumings, Mrs. John Bradley (Florence Briggs Thayer) female 38.0 1 0 PC 17599 71.2833 C85 C
2 3 1 3 Heikkinen, Miss. Laina female 26.0 0 0 STON/O2. 3101282 7.9250 NaN S
3 4 1 1 Futrelle, Mrs. Jacques Heath (Lily May Peel) female 35.0 1 0 113803 53.1000 C123 S
4 5 0 3 Allen, Mr. William Henry male 35.0 0 0 373450 8.0500 NaN S
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 891 entries, 0 to 890
Data columns (total 12 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 PassengerId 891 non-null int64
1 Survived 891 non-null int64
2 Pclass 891 non-null int64
3 Name 891 non-null object
4 Sex 891 non-null object
5 Age 714 non-null float64
6 SibSp 891 non-null int64
7 Parch 891 non-null int64
8 Ticket 891 non-null object
9 Fare 891 non-null float64
10 Cabin 204 non-null object
11 Embarked 889 non-null object
dtypes: float64(2), int64(5), object(5)
memory usage: 83.7+ KB
None
Process finished with exit code 0
筛选特征
data.drop(["Cabin","Name","Ticket"],inplace=True,axis=1)
print(data.head())
print(data.info()) PassengerId Survived Pclass Sex Age SibSp Parch Fare Embarked
0 1 0 3 male 22.0 1 0 7.2500 S
1 2 1 1 female 38.0 1 0 71.2833 C
2 3 1 3 female 26.0 0 0 7.9250 S
3 4 1 1 female 35.0 1 0 53.1000 S
4 5 0 3 male 35.0 0 0 8.0500 S
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 891 entries, 0 to 890
Data columns (total 9 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 PassengerId 891 non-null int64
1 Survived 891 non-null int64
2 Pclass 891 non-null int64
3 Sex 891 non-null object
4 Age 714 non-null float64
5 SibSp 891 non-null int64
6 Parch 891 non-null int64
7 Fare 891 non-null float64
8 Embarked 889 non-null object
dtypes: float64(2), int64(5), object(2)
memory usage: 62.8+ KB
None
处理缺失值
#年龄用均值填补
data["Age"]=data["Age"].fillna(data["Age"].mean())
print(data.info())<class 'pandas.core.frame.DataFrame'>
RangeIndex: 891 entries, 0 to 890
Data columns (total 9 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 PassengerId 891 non-null int64
1 Survived 891 non-null int64
2 Pclass 891 non-null int64
3 Sex 891 non-null object
4 Age 891 non-null float64
5 SibSp 891 non-null int64
6 Parch 891 non-null int64
7 Fare 891 non-null float64
8 Embarked 889 non-null object
dtypes: float64(2), int64(5), object(2)
memory usage: 62.8+ KB
None
#删除有缺失值的行，Embarked缺了两行
data=data.dropna()
print(data.info())<class 'pandas.core.frame.DataFrame'>
Int64Index: 889 entries, 0 to 890
Data columns (total 9 columns):
# Column Non-Null Count Dtype
--- ------ -------------- -----
0 PassengerId 889 non-null int64
1 Survived 889 non-null int64
2 Pclass 889 non-null int64
3 Sex 889 non-null object
4 Age 889 non-null float64
5 SibSp 889 non-null int64
6 Parch 889 non-null int64
7 Fare 889 non-null float64
8 Embarked 889 non-null object
dtypes: float64(2), int64(5), object(2)
memory usage: 69.5+ KB
None
处理非数值的列
查看非数值列的所有值
print(data["Embarked"].unique())
print(data["Sex"].unique())
#------------结果如下----------
['S' 'C' 'Q']
['male' 'female']labels=data["Embarked"].unique().tolist()
#x代表data[Embarked]的每一行的值,S-->0,C-->1,Q-->2
data["Embarked"]=data["Embarked"].apply(lambda x:labels.index(x))
#把条件为True的转为int行
#也可以这样写：data.loc[:,"Sex"]=(data["Sex"]=="male").astype("int")
#male-->0,female-->1
data["Sex"]=(data["Sex"]=="male").astype("int")提取数据
x=data.iloc[:, data.columns!="Survived"]
y=data.iloc[:,data.columns=="Survived"]
#Xtrain:(622, 8)
#划分数据集和测试集
from sklearn.model_selection import train_test_split
Xtrain,Xtest,Ytrain,Ytest=train_test_split(x,y,test_size=0.3)
#把索引变为从0~622
for i in [Xtrain,Xtest,Ytrain,Ytest]:
i.index=range(i.shape[0])第一种方法构建决策树
# clf=DecisionTreeClassifier(random_state=25)
# clf=clf.fit(Xtrain,Ytrain)
# score=clf.score(Xtest,Ytest)
# print(score)
from sklearn.model_selection import cross_val_score
# clf=DecisionTreeClassifier(random_state=25)
# score=cross_val_score(clf,x,y,cv=10).mean()
# print(score)
tr=[]
te=[]
for i in range(10):
clf=DecisionTreeClassifier(random_state=25,
max_depth=i+1,
criterion="entropy"
)
clf=clf.fit(Xtrain,Ytrain)
score_tr=clf.score(Xtrain,Ytrain)
score_te=cross_val_score(clf,x,y,cv=10).mean()
tr.append(score_tr)
te.append(score_te)
print(max(te))

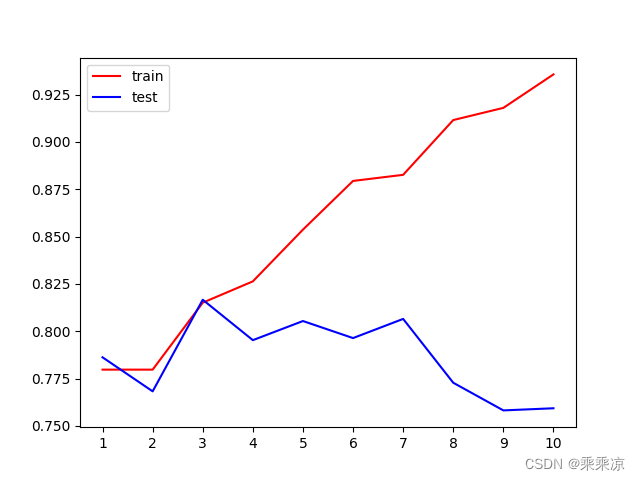

plt.plot(range(1,11),tr,color="red",label="train")
plt.plot(range(1,11),te,color="blue",label="test")
#1~10全部显示
plt.xticks(range(1,11))
plt.legend()
plt.show()不同深度的决策树的测试集和训练集的表现
第二种方法构建决策树
import pandas as pd
from sklearn.tree import DecisionTreeClassifier
import matplotlib.pyplot as plt
plt.switch_backend("TkAgg")
from sklearn.model_selection import GridSearchCV
import numpy as np
#---------设置pd，在pycharm中显示完全表格-------
pd.set_option('display.max_columns', 1000)
pd.set_option('display.width', 1000)
pd.set_option('display.max_colwidth', 1000)
#----------------------------------------
data=pd.read_csv("./data.csv")
# print (data.head(5))
# print(data.info())
#去掉姓名、Cabin、票号的特征
data.drop(["Cabin","Name","Ticket"],inplace=True,axis=1)
# print(data.head())
# print(data.info())
#处理缺失值
#年龄用均值填补
data["Age"]=data["Age"].fillna(data["Age"].mean())
# print(data.info())
#删除有缺失值的行，Embarked缺了两行，所有的数据去掉不完整的行
data=data.dropna()
# print(data.info())
# print(data["Embarked"].unique())
# print(data["Sex"].unique())
labels=data["Embarked"].unique().tolist()
#x代表data[Embarked]的每一行的值,S-->0,C-->1,Q-->2
data["Embarked"]=data["Embarked"].apply(lambda x:labels.index(x))
#把条件为True的转为int行
#也可以这样写：data.loc[:,"Sex"]=(data["Sex"]=="male").astype("int")
#male-->0,female-->1
data["Sex"]=(data["Sex"]=="male").astype("int")
x=data.iloc[:, data.columns!="Survived"]
y=data.iloc[:,data.columns=="Survived"]
#Xtrain:(622, 8)
#划分数据集和测试集
from sklearn.model_selection import train_test_split
Xtrain,Xtest,Ytrain,Ytest=train_test_split(x,y,test_size=0.3)
#把索引变为从0~622
for i in [Xtrain,Xtest,Ytrain,Ytest]:
i.index=range(i.shape[0])
from sklearn.model_selection import cross_val_score
clf=DecisionTreeClassifier(random_state=25)
#GridSearchCV:满足fit，score，交叉验证三个功能
#parameters:一串参数和这些参数对应的，我们希望网格搜索来搜索对应的参数的取值范围
parameters={
"criterion":("gini","entropy"),
"splitter":("best","random"),
"max_depth":[*range(1,10)],
"min_samples_leaf":[*range(1,50,5)],
"min_impurity_decrease":[*np.linspace(0,0.5,20)]
}
GS=GridSearchCV(clf,parameters,cv=10)
gs=GS.fit(Xtrain,Ytrain)
#从输入的参数和参数取值中，返回最佳组合
print(gs.best_params_)
#网格搜索后的模型的评判标准
print(gs.best_score_){'criterion': 'entropy', 'max_depth': 3, 'min_impurity_decrease': 0.0, 'min_samples_leaf': 1, 'splitter': 'best'}
0.8297235023041475这种方法构建的决策树的准确率比第一种的还低
