- 前面几篇文章已经对OpenLayers的交互、Draw控件的使用、图斑的删除和编辑有了基本的了解,下面将对OpenLayers的图斑平移和框选平移进行逐一介绍。
- GIS应用中拖动旋转和缩放是编辑中比较常见的功能,在OpenLayers中平移功能可以通过ol.interaction.Translate来实现,但是其他功能没有,所以要用的openlayers的一个扩展ol-ext。
一、ol-ext
1.基本介绍
- ol-ext是OpenLayers的扩展。主要包含控件,交互,弹出窗口等功能。类似于WEB前端的UI框架,是一个成熟的扩展,可以节省时间、避免问题。
2.安装
npm install ol-ext
3.链接
二、平移图斑
1.实现代码
<template>
<!-- 初始化一个地图容器 -->
<div id="map"></div>
<div style="position: absolute; right: 50px">
<button @click="moveFeatures()">平移</button>
</div>
</template>
<script setup>
// 引入需要的包
import TileLayer from "ol/layer/Tile";
import { OSM } from "ol/source";
import { Feature, View } from "ol";
import { Map } from "ol";
import { onMounted } from "vue";
import { Polygon } from "ol/geom";
import VectorLayer from "ol/layer/Vector";
import VectorSource from "ol/source/Vector";
import { Fill, Icon, Stroke, Style } from "ol/style";
import { DoubleClickZoom, Draw, Modify, Select } from "ol/interaction";
import CircleStyle from "ol/style/Circle";
import ExtTransform from "ol-ext/interaction/Transform";
/**
* 为了方便其他函数调用地图和图层,把变量定义成全局的
*/
let map; // 地图
let vectorLayer; // 存放Feataure的图层
let selectedFeature; // 选中的图斑
let select; // 选中控件
/**
* 初始化地图
*/
const initialMap = () => {
map = new Map({
target: "map", // 地图放到哪个容器中,值应该是div的id
layers: [
new TileLayer({
source: new OSM(), // 加载OSM底图
}),
new VectorLayer({
source: drawSource,
style: new Style({
fill: new Fill({
color: "rgba(255, 255, 255, 0.2)",
}),
stroke: new Stroke({
// color: "#ffcc33",
color: "#ff0033",
width: 2,
}),
image: new CircleStyle({
radius: 3,
fill: new Fill({
color: "#ffcc33",
}),
}),
}),
}),
],
// 以EPSG:4326为坐标系定义地图的视图中心和缩放级别
view: new View({
projection: "EPSG:4326",
center: [125.3574397847, 43.8865062907],
zoom: 18,
}),
});
addLayer();
// 选中事件
select = new Select({
style: new Style({
fill: new Fill({
color: "rgba(255,0,0,0)",
}),
stroke: new Stroke({
color: "rgba(0,0,255,1)",
}),
}),
});
map.addInteraction(select);
// 监听select选中事件
select.on("select", (evt) => {
selectedFeature = select.getFeatures().getArray();
});
};
const addLayer = () => {
vectorLayer = new VectorLayer({
source: new VectorSource(),
});
vectorLayer.getSource().addFeature(
// 添加面图层
new Feature({
geometry: new Polygon([
[
[125.3579180563, 43.888298024],
[125.3587389704, 43.887798338],
[125.3574397847, 43.8865062907],
[125.3579180563, 43.888298024],
],
]),
})
);
map.addLayer(vectorLayer);
map.getView().setCenter([125.3579180563, 43.888298024]);
};
const moveFeatures = () => {
const dblClickInteraction = map
.getInteractions()
.getArray()
.find((interaction) => {
return interaction instanceof DoubleClickZoom;
});
map.removeInteraction(dblClickInteraction); //移除双击缩放功能,使双击只用于关闭平移状态
let interactionDrag = new ExtTransform({
enableRotatedTransform: false, //地图旋转时启用变换
hitTolerance: 2, //偏移量
translate: true, // 拖拽
stretch: false, // 拉伸
scale: false, // 缩放
rotate: false, // 旋转
translateFeature: false, //true是不显示中心位置,false是显示中心位置
noFlip: false, //防止特征几何翻转,默认为 false
layers: [vectorLayer], //指定可以拖拽的图层
});
//添加交互
map.addInteraction(interactionDrag);
interactionDrag.on(["translatestart"], function (evt) {});
interactionDrag.on(["translating"], function (evt) {
//逻辑代码
});
interactionDrag.on(["translateend"], function (evt) {
//逻辑代码
});
map.on("dblclick", function () {
//双击移除控件,不再平移
map.removeInteraction(interactionDrag);
});
};
onMounted(() => {
// 立即执行初始化地图函数
initialMap();
});
</script>
<style scoped>
#map {
width: 100%;
height: 100%;
position: absolute;
top: 0;
left: 0;
}
:deep(.ol-attribution) {
display: none;
}
</style>
2.实现效果

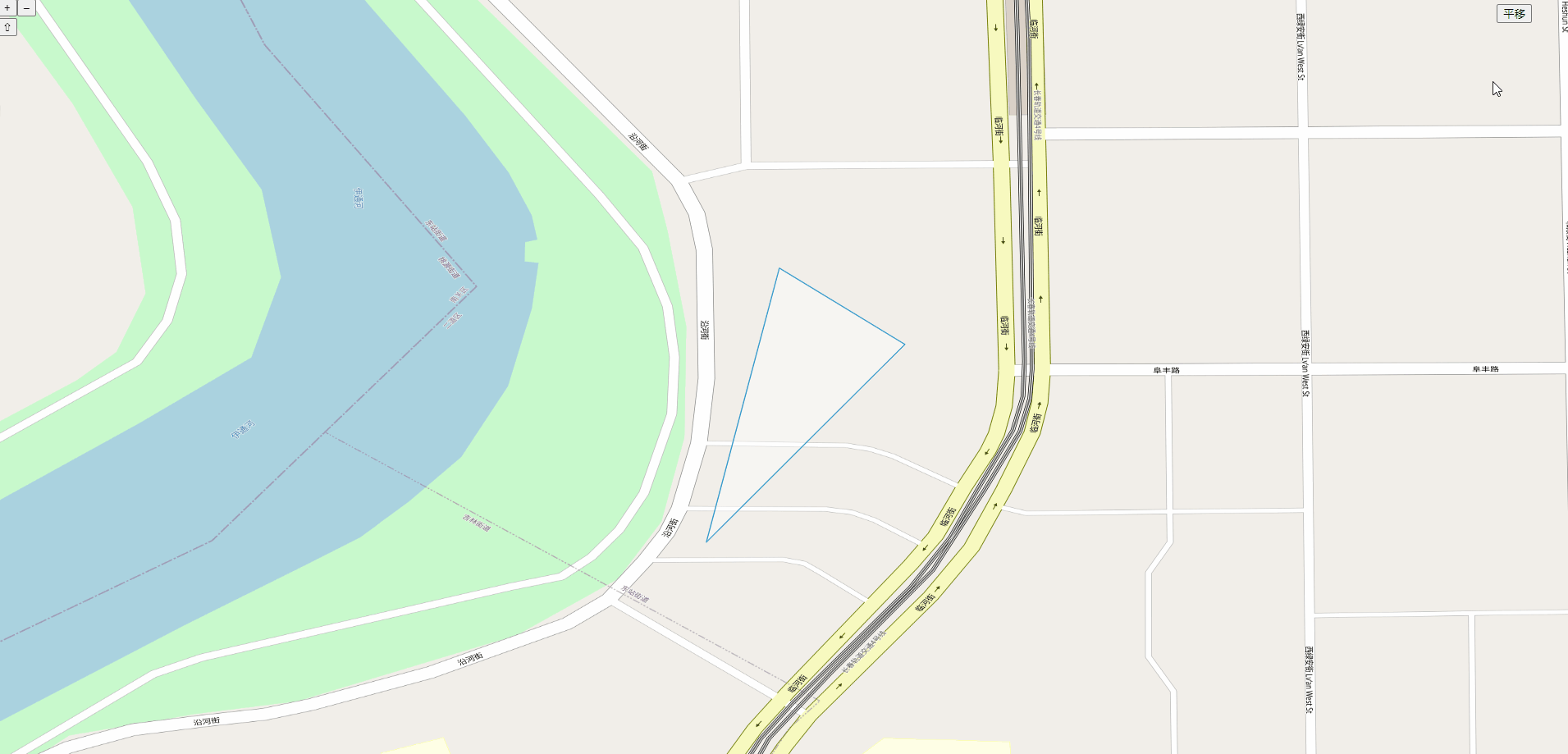

- 下面是平移图斑的效果
- 先点击按钮,再点击图斑,即可开始平移
