vue3实现验证码AJ-Captcha

滑动验证码和点选验证码

1.引入依赖

<!--        验证码-->
<dependency>
    <groupId>com.anji-plus</groupId>
    <artifactId>spring-boot-starter-captcha</artifactId>
    <version>1.3.0</version>
</dependency>

2.编写controller

    @Resource
    private CaptchaService captchaService;

    @PostMapping("/get") // 获取图片
    public ResponseModel get(@RequestBody CaptchaVO data, HttpServletRequest request) {
        assert request.getRemoteHost()!=null;
        data.setBrowserInfo(getRemoteId(request));
        return captchaService.get(data);
    }

    @PostMapping("/check") // 进行校验
    public ResponseModel check(@RequestBody CaptchaVO data, HttpServletRequest request) {
        data.setBrowserInfo(getRemoteId(request));
        return captchaService.check(data);
    }

    @PostMapping("/verify") // 二次校验
    public ResponseModel verify(@RequestBody CaptchaVO data, HttpServletRequest request) {
        return captchaService.verification(data);
    }

    public static final String getRemoteId(HttpServletRequest request) {
        String xfwd = request.getHeader("X-Forwarded-For");
        String ip = getRemoteIpFromXfwd(xfwd);
        String ua = request.getHeader("user-agent");
        if (StringUtils.isNotBlank(ip)) {
            return ip + ua;
        }
        return request.getRemoteAddr() + ua;
    }

    private static String getRemoteIpFromXfwd(String xfwd) {
        if (StringUtils.isNotBlank(xfwd)) {
            String[] ipList = xfwd.split(",");
            return StringUtils.trim(ipList[0]);
        }
        return null;
    }

3.编写CaptchaCacheServiceRedisImpl

@Slf4j
@Service
@RequiredArgsConstructor
public class CaptchaCacheServiceRedisImpl implements CaptchaCacheService {

    @Override
    public String type() {
        return "redis";
    }

    @Autowired
    private StringRedisTemplate stringRedisTemplate;

    @Override
    public void set(String key, String value, long expiresInSeconds) {
        stringRedisTemplate.opsForValue().set(key, value, expiresInSeconds, TimeUnit.SECONDS);
    }

    @Override
    public boolean exists(String key) {
        return stringRedisTemplate.hasKey(key);
    }

    @Override
    public void delete(String key) {
        stringRedisTemplate.delete(key);
    }

    @Override
    public String get(String key) {
        return stringRedisTemplate.opsForValue().get(key);
    }

    /*@Override
    public Long increment(String key, long val) {
        return stringRedisTemplate.opsForValue().increment(key,val);
    }*/
}

需要配置redis，这里不多说

4.配置文件

# aj 验证码
aj:
  captcha:
    # 自定义滑块背景图，原图尺寸为310*155，格式必须为png，
    resource/images/jigsaw/original目录下
    jigsaw: classpath:images/jigsaw
    # 存放点击验证码图片的目录，存放在lihua-captcha模块的resource/images/custom-pic-click目录下
    pic-click: classpath:images/custom-pic-click
    # 验证码缓存类型，支持 redis/local
    cache-type: redis
    # 实例化验证码类型
    type: default
    # 水印
    water-mark: '@mytime'
    # 误差值 5 像素
    slip-offset: 5
    # 坐标加密
    aes-status: true
    # 点选字体大小
    font-size: 30

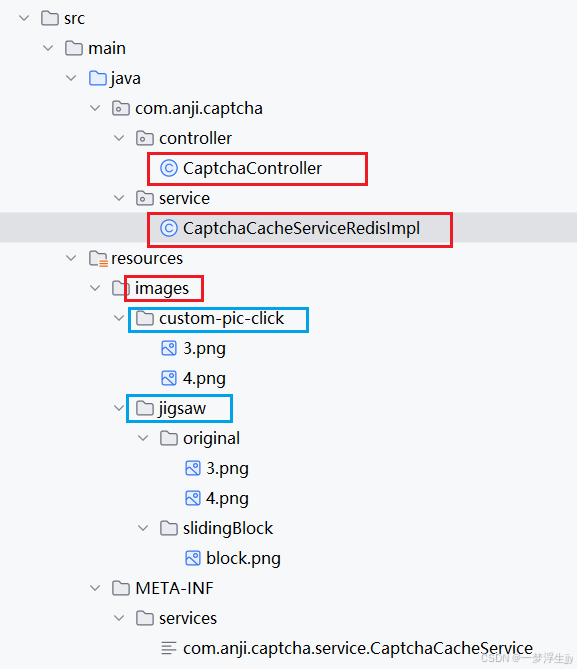

5.项目文件结构

其中，com.anji.captcha.service.CaptchaCacheService的内容是

com.anji.captcha.service.CaptchaCacheServiceRedisImpl的全限定名

com.anji.captcha.service.CaptchaCacheServiceRedisImpl

然后这里插一个小知识点，如果是分模块开发的，并且启动类不在该验证码模块中的话，记得去启动类上加@ComponentScan("com.anji.captcha")的注解，让spring容器能扫描到这些组件。

6.前端

6.1引入依赖

npm i --save-dev @types/crypto-js

6.2界面搭建

<div class="verify" v-if="enableCaptcha">
        <Verify @success="login"
                @error="loadVerify"
                ref="verifyRef"
                :mode="'pop'"
                :captchaType="captchaType"
                :imgSize="{ width: '330px', height: '155px' }">
        </Verify>

    </div>

<script setup lang="ts">
import Verify from '../components/verifition/Verify.vue';

const enableCaptcha = ref(false)
const verifyRef = useTemplateRef<InstanceType<typeof Verify>>("verifyRef")
const captchaType = ref<string>('blockPuzzle')
// 随机加载滑块/点击验证码
const loadVerify = () => {
    setTimeout(() => {
        captchaType.value = Math.random() < 0.5 ? 'blockPuzzle' : 'clickWord';
    }, 700)

}
// 显示验证码
const showVerify = () => {
    console.log('verifyRef.value:', verifyRef.value); // 添加日志
    if (verifyRef.value) {
        verifyRef.value.show();
    } else {
        console.error('verifyRef is undefined');
    }
}
showVerify();
</script>

6.3下载相关文件

然后去https://gitee.com/anji-plus/captcha/tree/master/view/vue3/src/components这个网址把verifition的文件夹下载下来，粘贴到components目录下，我们需要对里面的文件做一点修改

6.4修改

在其api目录下的index.js中代码修改成下面这个样子，其中axiosInstance 的路径替换成自己项目中封装的axios所在的路径。相比于原来的，这里返回的数据是response.data。源码中返回的是整个response 对象。

import axiosInstance from "../../../plugins/axios.ts"
// 获取验证图片以及token
export async function reqGet(data) {
    try {
        const response = await axiosInstance({
            url: '/captcha/get',
            method: 'post',
            data
        })
        return response.data
    } catch (error) {
        console.error("请求获取验证码出错：", error)
        throw error
    }
}

// 滑动或者点选验证
export async function reqCheck(data) {
    try {
        const response = await axiosInstance({
            url: '/captcha/check',
            method: 'post',
            data
        })
        return response.data
    } catch (error) {
        console.error("请求验证出错：", error)
        throw error
    }
}

可能该文件夹下面的其他组件还会出现路径引用问题，修改一下就行

6.5路径问题

如果遇到明明就在那个路径下，vscode好提示找不到文件的话，可以在根目录下的vite-env.d.ts文件中添加以下代码

declare module "*.vue" {

    import Vue from 'vue';

    export default Vue;

  }
