NavigationView的使用

情景

使用NavigationView实现侧滑菜单，并对里面的值进行相应的修改

自动生成

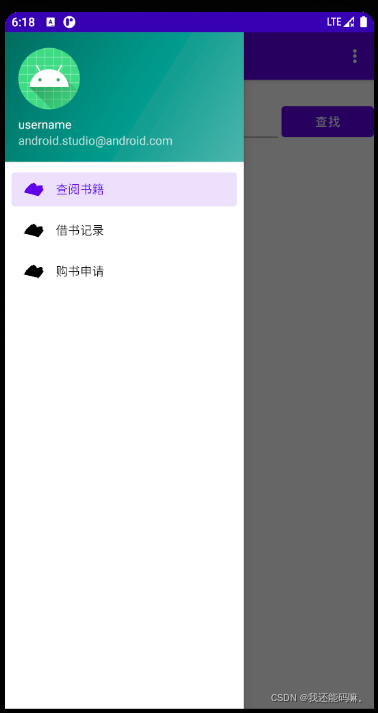

这样就可以实现一个侧滑菜单

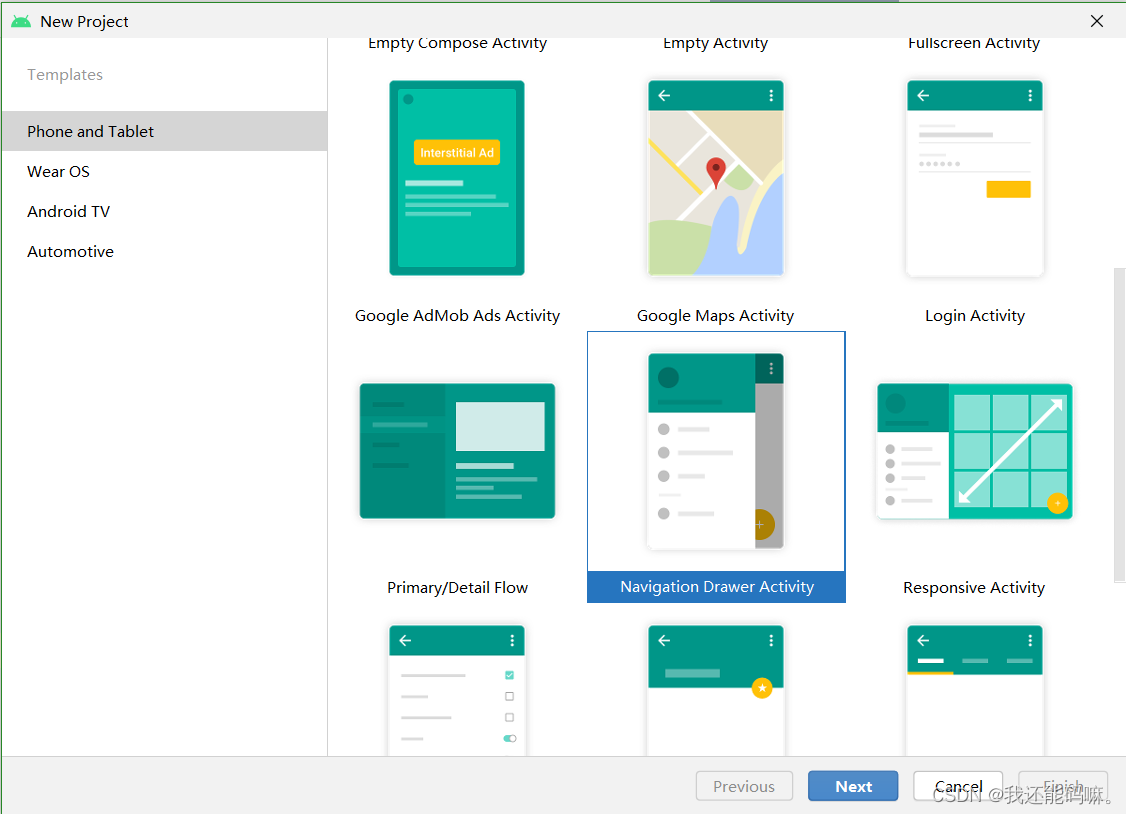

在android studio中选择新建Navigation Drawer Activity项目时会自动生成相关代码

具体使用

布局文件

主界面 activity_main.xml

<?xml version="1.0" encoding="utf-8"?>
<androidx.drawerlayout.widget.DrawerLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:id="@+id/drawer_layout"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:fitsSystemWindows="true"
    tools:openDrawer="start">

	<!--  主页面代码 -->
    <include
        android:id="@+id/app_bar_main"
        layout="@layout/app_bar_main"
        android:layout_width="match_parent"
        android:layout_height="match_parent" />

	<!--  侧滑菜单代码代码  -->
    <com.google.android.material.navigation.NavigationView
        android:id="@+id/nav_view"
        android:layout_width="wrap_content"
        android:layout_height="match_parent"
        android:layout_gravity="start"
        android:fitsSystemWindows="true"
        app:headerLayout="@layout/nav_header_main"
        app:menu="@menu/activity_main_drawer" />

</androidx.drawerlayout.widget.DrawerLayout>

侧滑菜单头部 nav_header_main.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    android:layout_width="match_parent"
    android:layout_height="@dimen/nav_header_height"
    android:background="@drawable/side_nav_bar"
    android:gravity="bottom"
    android:orientation="vertical"
    android:paddingLeft="@dimen/activity_horizontal_margin"
    android:paddingTop="@dimen/activity_vertical_margin"
    android:paddingRight="@dimen/activity_horizontal_margin"
    android:paddingBottom="@dimen/activity_vertical_margin"
    android:theme="@style/ThemeOverlay.AppCompat.Dark">

    <ImageView
        android:id="@+id/imageView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:contentDescription="@string/nav_header_desc"
        android:paddingTop="@dimen/nav_header_vertical_spacing"
        app:srcCompat="@mipmap/ic_launcher_round" />

    <TextView
        android:id="@+id/nav_username"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:paddingTop="@dimen/nav_header_vertical_spacing"
        android:text="@string/nav_header_title"
        android:textAppearance="@style/TextAppearance.AppCompat.Body1" />

    <TextView
        android:id="@+id/textView"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="@string/nav_header_subtitle" />
</LinearLayout>

菜单部分 activity_main_drawer.xml

注意 这个文件要放在res/menu路径下

<?xml version="1.0" encoding="utf-8"?>
<menu xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    tools:showIn="navigation_view">

    <group android:checkableBehavior="single">
        <item
            android:id="@+id/nav_home"
            android:icon="@drawable/book"
            android:title="@string/menu_home" />
        <item
            android:id="@+id/nav_gallery"
            android:icon="@drawable/book"
            android:title="@string/menu_gallery" />
        <item
            android:id="@+id/nav_slideshow"
            android:icon="@drawable/book"
            android:title="@string/menu_slideshow" />
    </group>

</menu>

MainActivity

class MainActivity : AppCompatActivity() {

    private lateinit var appBarConfiguration: AppBarConfiguration
    private lateinit var binding: ActivityMainBinding

    override fun onCreate(savedInstanceState: Bundle?) {
        super.onCreate(savedInstanceState)

        binding = ActivityMainBinding.inflate(layoutInflater)
        setContentView(binding.root)

        setSupportActionBar(binding.appBarMain.toolbar)

        val drawerLayout: DrawerLayout = binding.drawerLayout
        val navView: NavigationView = binding.navView //新建一个NavigationView的实例
        val navController = findNavController(R.id.nav_host_fragment_content_main)

        // Passing each menu ID as a set of Ids because each
        // menu should be considered as top level destinations.
        appBarConfiguration = AppBarConfiguration(
            setOf(
                R.id.nav_home, R.id.nav_gallery, R.id.nav_slideshow
            ), drawerLayout
        )
        setupActionBarWithNavController(navController, appBarConfiguration)
        navView.setupWithNavController(navController)

		//如果想改变NavigationView头部nav_username的内容时，就要根据刚刚新建的NavigationView
        val bundle = intent.extras;
        if (bundle != null) {
            val headerView: View = navView.getHeaderView(0);//得到头部
            val textName: TextView = headerView.findViewById(R.id.nav_username);
            textName.text = bundle.getString("username")
        }
    }

    override fun onCreateOptionsMenu(menu: Menu): Boolean {
        // Inflate the menu; this adds items to the action bar if it is present.
        menuInflater.inflate(R.menu.main, menu)
        return true
    }

    override fun onSupportNavigateUp(): Boolean {
        val navController = findNavController(R.id.nav_host_fragment_content_main)
        return navController.navigateUp(appBarConfiguration) || super.onSupportNavigateUp()
    }
}

补充：控制menu中的item是否可见

如果permission为0，nav_gallery和nav_slideshow不可见

val permission: Int = bundle.getInt("permission")
if (permission == 0){
    navView.menu.findItem(R.id.nav_gallery).isVisible = false
    navView.menu.findItem(R.id.nav_slideshow).isVisible = false
}
