一、激励函数

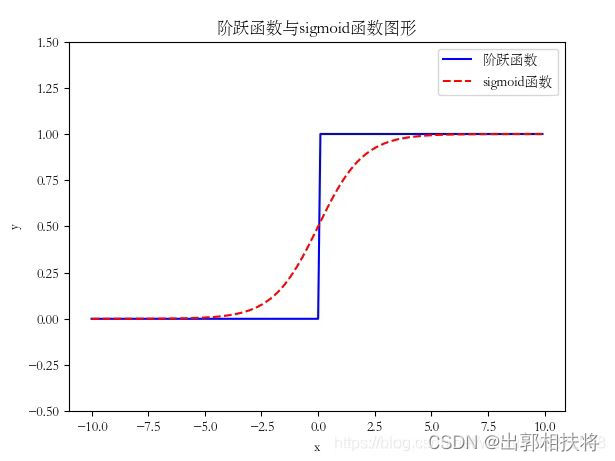

#阶跃函数
def step_function(x):
return (np.array(x > 0, dtype=np.int))
#sigmoid
def sigmoid(x):
return (1 / (1 + np.exp(-x)))
#ReLU
def relu(x):
return np.maximum(0, x)
#softmax
def softmax(a):
c = np.max(a)
exp_a = np.exp(a - c) # 防溢出对策
sum_exp_a = np.sum(exp_a)
y = exp_a / sum_exp_a
return y
softmax函数的输出是0.0到1.0之间的实数。
softmax函数的输出值的总和为1。
把多分类问题的结果以概率的形式展现出来。
二、梯度下降
梯度下降方法的视觉解释（动量，AdaGrad，RMSProp，Adam）
详情见机器学习
三、一些网络
网络类型分类
1.MLP（多层感知机）
多层感知机（一般三层）能解决单层不能解决的线性不可分问题，其原理是将原始问题在隐含层映射成线性可分问题。
#MLP 理解网络结构
import numpy as np
import matplotlib.pyplot as plt
import math
a = np.array([0.05, 0.1]) # a1,a2的输入值
w1 = np.array([[0.15, 0.25], [0.2, 0.3]]) # a1对b1,b2的权重，a2对b1，b2的权重
w2 = np.array([[0.4, 0.5], [0.45, 0.55]]) # b1对c1,c2的权重，b2对c1，c2的权重
target = np.array([0.01, 0.99])
d1 = 0.35 # 输入层的偏置（1）的权重
d2 = 0.6 # 隐藏层的偏置（1）的权重
β = 0.5 # 学习效率
# 一：前向传播
# 计算输入层到隐藏层的输入值，得矩阵netb1,netb2
netb = np.dot(a, w1) + d1
# 计算隐藏层的输出值,得到矩阵outb1,outb2
m = []
for i in range(len(netb)):
outb = 1.0 / (1.0 + math.exp(-netb[i]))#sigmoid
m.append(outb)
m = np.array(m)
# 计算隐藏层到输出层的输入值，得矩阵netc1,netc2
netc = np.dot(m, w2) + d2
# 计算隐藏层的输出值,得到矩阵outc1,outc2
n = []
for i in range(len(netc)):
outc = 1.0 / (1.0 + math.exp(-netc[i]))
n.append(outc)
n = np.array(n)
# 二：反向传播
count = 0 # 计数
e = 0 # 误差
E = [] # 统计误差
# 梯度下降
while True:
count += 1
# 总误差对w1-w4的偏导
pd1 = (-(target[0] - n[0]) * n[0] * (1 - n[0]) * w2[0][0] - (target[1] - n[1]) * n[1] * (1 - n[1]) *
w2[0][1]) * m[0] * (1 - m[0]) * a[0]
pd2 = (-(target[0] - n[0]) * n[0] * (1 - n[0]) * w2[0][0] - (target[1] - n[1]) * n[1] * (1 - n[1]) *
w2[0][1]) * m[0] * (1 - m[0]) * a[1]
pd3 = (-(target[0] - n[0]) * n[0] * (1 - n[0]) * w2[1][0] - (target[1] - n[1]) * n[1] * (1 - n[1]) *
w2[0][1]) * m[0] * (1 - m[0]) * a[0]
pd4 = (-(target[0] - n[0]) * n[0] * (1 - n[0]) * w2[1][1] - (target[1] - n[1]) * n[1] * (1 - n[1]) *
w2[0][1]) * m[0] * (1 - m[0]) * a[1]
w1[0][0] = w1[0][0] - β * pd1
w1[1][0] = w1[1][0] - β * pd2
w1[0][1] = w1[0][1] - β * pd3
w1[1][1] = w1[1][1] - β * pd4
# 总误差对w5-w8的偏导
pd5 = -(target[0] - n[0]) * n[0] * (1 - n[0]) * m[0]
pd6 = -(target[0] - n[0]) * n[0] * (1 - n[0]) * m[1]
pd7 = -(target[1] - n[1]) * n[1] * (1 - n[1]) * m[0]
pd8 = -(target[1] - n[1]) * n[1] * (1 - n[1]) * m[1]
w2[0][0] = w2[0][0] - β * pd5
w2[1][0] = w2[1][0] - β * pd6
w2[0][1] = w2[0][1] - β * pd7
w2[1][1] = w2[1][1] - β * pd8
netb = np.dot(a, w1) + d1
m = []
for i in range(len(netb)):
outb = 1.0 / (1.0 + math.exp(-netb[i]))
m.append(outb)
m = np.array(m)
netc = np.dot(m, w2) + d2
n = []
for i in range(len(netc)):
outc = 1.0 / (1.0 + math.exp(-netc[i]))
n.append(outc)
n = np.array(n)
# 计算总误差
for j in range(len(n)):
e += (target[j] - n[j]) ** 2 / 2
E.append(e)
# 判断
if e < 0.0000001:
break
else:
e = 0
print(count)
print(e)
print(n)
plt.plot(range(len(E)), E, label='error')
plt.legend()
plt.xlabel('time')
plt.ylabel('error')
plt.show()

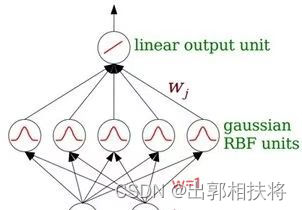

2.RBFNN（径向基神经网络）
- 理论支撑：三维线性可分（类）
它的隐层为径向基神经元结构。径向基神经元的净输⼊采⽤距离函数（如欧式距离）乘以偏置 ，即使⽤径向基函数作为激活函数。
⽤RBF作为“隐”单元的基构成隐含层空间，将输⼊⽮量直接(即不需要经过权连接)映射隐空间，再将低维空间样本点投影到高维。
#RBFNN
import numpy as np
x=np.loadtxt("Experiments-2022-4-24/circle data/X.txt")
y=np.loadtxt("Experiments-2022-4-24/circle data/y.txt")
mu=[0.1,0.2,0.3,0.4]
sigma=[0.5,0.6,0.7,0.8]
w=np.array([0.01,0.02,0.03,0.04])
# print(x)
def guass(x,mu,sigma):
G=np.ones((len(x),len(mu)))
for i in range(len(x)):
for j in range(len(mu)):
G[i][j]=np.exp(-(np.linalg.norm(x[i]-mu[j])**2)/(2*(sigma[j]**2)))
return G
G=guass(x,mu,sigma)
# print(G)
def error_loss(y,w,G):
y_=[]
loss=0
error=[0]*len(y)
for i in range(len(G)):
y_.append(np.dot(w.T,G[i]))
y_sum=np.sum(y_)
for j in range(len(y)):
loss+=y[j]-y_sum
error[j]=y[j]-y_[j]
loss=loss/2
return [error,loss]
G=guass(x,mu,sigma)
error=error_loss(y,w,G)[0]
loss=error_loss(y,w,G)[1]
# print(error)
# print(loss)
def update(error,w,mu,sigma,G,x,alpha):
s=len(w)
grad_w=[0]*s
grad_mu=[0]*s
grad_sigma=[0]*s
n=len(error)
for i in range(n):
for j in range(s):
grad_w[j] += -error[i]*G[i][j]
grad_mu[j] += -(w[j]/np.square(sigma[j]))*error[i]*G[i][j]*(x[i]-mu[j])
grad_sigma[j] += -(w[j]/np.power(sigma[j],3))*error[i]*G[i][j]*((np.linalg.norm(x[i]-mu[j]))**2)
for k in range(s):
w[k] += alpha*grad_w[k]
mu[k] += alpha*grad_mu[k]
sigma[k] += alpha*grad_sigma[k]
return [w,mu,sigma]
w_new=update(error,w,mu,sigma,G,x,0.1)[0]
mu_new=update(error,w,mu,sigma,G,x,0.1)[1]
sigma_new=update(error,w,mu,sigma,G,x,0.1)[2]
print("w："+str(w_new))
print("mu："+str(mu_new))
print("σ："+str(sigma_new))
MLP和RBFNN的异同
- RBFNN输入层到隐藏层的权重固定为1，激励函数不同。
- MLP和RBFNN均为前馈网络,网络结构一样。由于多层前馈网络经常用反向传播算法（BP），提到的两种网络均有使用，所以人们也常将其称为BP网络。

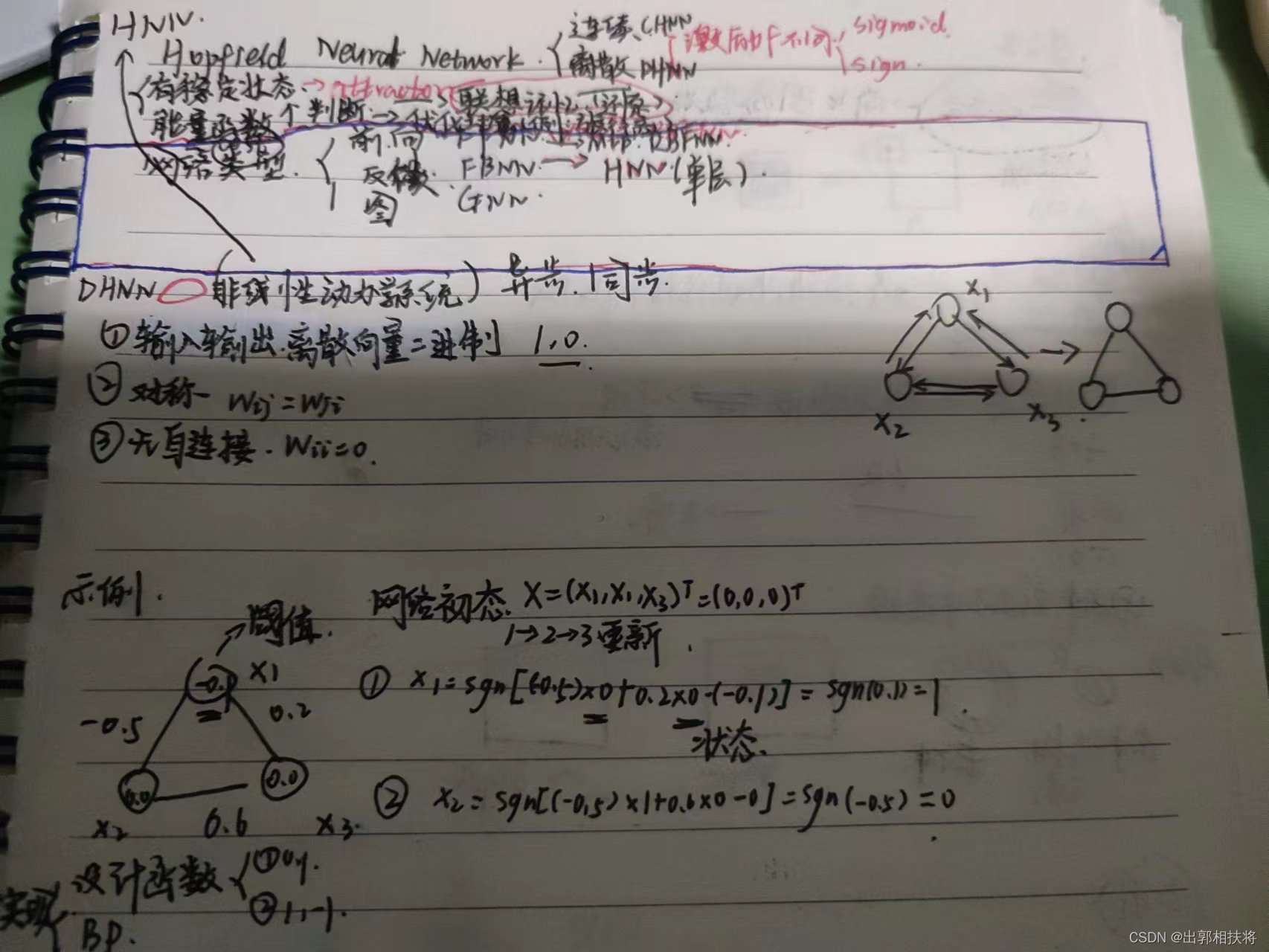

3.HNN
'''
Hopfield Improved Algorithm
'''
import numpy as np
################################### Global Parameters ###################################
# Data Type
uintType = np.uint8
floatType = np.float32
################################### Global Parameters ###################################
# Hopfield Class
class HOP(object):
def __init__(self, N):
# Bit Dimension
self.N = N
# Weight Matrix
self.W = np.zeros((N, N), dtype = floatType)
# Calculate Kronecker Square Product of [factor] itself OR use np.kron()
def kroneckerSquareProduct(self, factor):
ksProduct = np.zeros((self.N, self.N), dtype = floatType)
# Calculate
for i in range(0, self.N):
ksProduct[i] = factor[i] * factor
return ksProduct
# Training a single stableState once a time, mainly to train [W]
def trainOnce(self, inputArray):
# Learn with normalization
mean = float(inputArray.sum()) / inputArray.shape[0]
self.W = self.W + self.kroneckerSquareProduct(inputArray - mean) / (self.N * self.N) / mean / (1 - mean)
# Erase diagonal self-weight
index = range(0, self.N)
self.W[index, index] = 0.
# Overall training function
def hopTrain(self, stableStateList):
# Preprocess List to Array type
stableState = np.asarray(stableStateList, dtype = uintType)
# Exception
if np.amin(stableState) < 0 or np.amax(stableState) > 1:
print('Vector Range ERROR!')
return
# Train
if len(stableState.shape) == 1 and stableState.shape[0] == self.N:
print('stableState count: 1')
self.trainOnce(stableState)
elif len(stableState.shape) == 2 and stableState.shape[1] == self.N:
print('stableState count: ' + str(stableState.shape[0]))
for i in range(0, stableState.shape[0]):
self.trainOnce(stableState[i])
else:
print('SS Dimension ERROR! Training Aborted.')
return
print('Hopfield Training Complete.')
# Run HOP to output
def hopRun(self, inputList):
# Preprocess List to Array type
inputArray = np.asarray(inputList, dtype = floatType)
# Exception
if len(inputArray.shape) != 1 or inputArray.shape[0] != self.N:
print('Input Dimension ERROR! Runing Aborted.')
return
# Run
matrix = np.tile(inputArray, (self.N, 1))
matrix = self.W * matrix
ouputArray = matrix.sum(1)
# Normalize
m = float(np.amin(ouputArray))
M = float(np.amax(ouputArray))
ouputArray = (ouputArray - m) / (M - m)
# Binary
''' \SWITCH/ : 1/-1 OR 1/0
ouputArray[ouputArray < 0.5] = -1.
''' # \Division/
ouputArray[ouputArray < 0.5] = 0.
# ''' # \END/
ouputArray[ouputArray > 0] = 1.
return np.asarray(ouputArray, dtype = uintType)
# Reset HOP to initialized state
def hopReset(self):
# Weight Matrix RESET
self.W = np.zeros((self.N, self.N), dtype = floatType)
# Utility routine for printing the input vector: [NperGroup] numbers each piece
def printFormat(vector, NperGroup):
string = ''
for index in range(len(vector)):
if index % NperGroup == 0:
''' \SWITCH/ : Single-Row OR Multi-Row
string += ' '
''' # \Division/
string += '\n'
# ''' # \END/
# ''' \SWITCH/ : Image-Matrix OR Raw-String
if str(vector[index]) == '0':
string += ' '
elif str(vector[index]) == '1':
string += ' * '
else:
string += str(vector[index])
''' # \Division/
string += str(vector[index])
# ''' # \END/
string += '\n'
print(string)
# DEMO of Hopfield Net
def HOP_demo():
ten = [0, 0, 1,0, 0,
0, 0, 1, 0, 0,
1, 1, 1, 1, 1,
0, 0, 1, 0, 0,
0, 0, 1, 0, 0]
X = [1, 0, 0, 0, 1,
0, 1, 0, 1, 0,
0, 0, 1, 0, 0,
0, 1, 0, 1, 0,
1, 0, 0, 0, 1]
hop = HOP(5 * 5)
hop.hopTrain([ten, X])
half_ten = [0, 0, 0, 0, 0,
0, 0, 0, 0, 0,
1, 1, 1, 1, 1,
0, 0, 0, 0, 0,
0, 0, 0, 0, 0]
print('Half-Ten:')
printFormat(half_ten, 5)
result = hop.hopRun(half_ten)
print('Recovered:')
printFormat(result, 5)
half_X = [1, 0, 0, 0, 0,
0, 0, 0, 0, 0,
0, 0, 1, 0, 0,
0, 0, 0, 0, 0,
0, 0, 0, 0, 0]
print('Half-X:')
printFormat(half_X, 5)
result = hop.hopRun(half_X)
print('Recovered:')
printFormat(result, 5)
##########################
if __name__ == '__main__':
HOP_demo()
4.CNN（卷积神经网络）
卷积神经网络包括卷积层、池化层、全连接层。
详情待续
