图数据,有向图,给定起点和终点,返回所有可能到达的路径,java.

1.需求及实现目标

需求

图数据,有向图,给定起点和终点,返回所有可能到达的路径

实现目标

输入:图数据邻接表,起点,终点
输出:起点 到 终点所有可能的路径

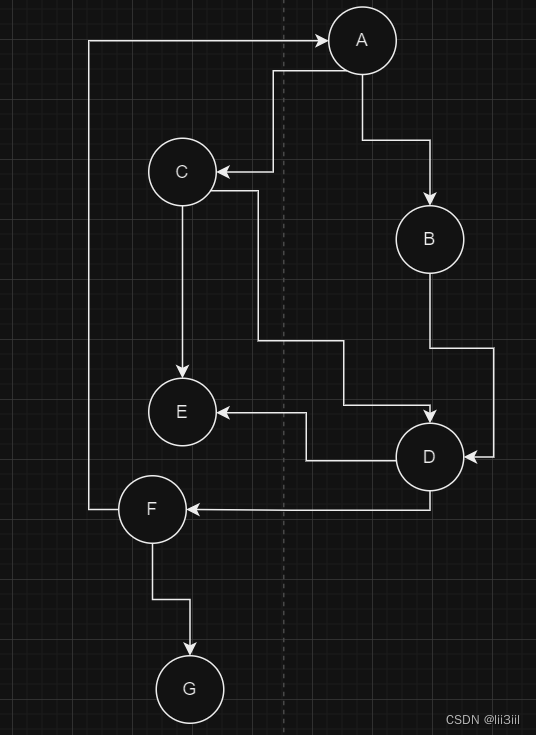

举例 关系图如上 输入 start = A ,end = E
输出

我这边业务中最后需要将数据中所有的顶点单独取出,拼成前端G6需要的json,这里就只简单写个demo;

还有一些情况

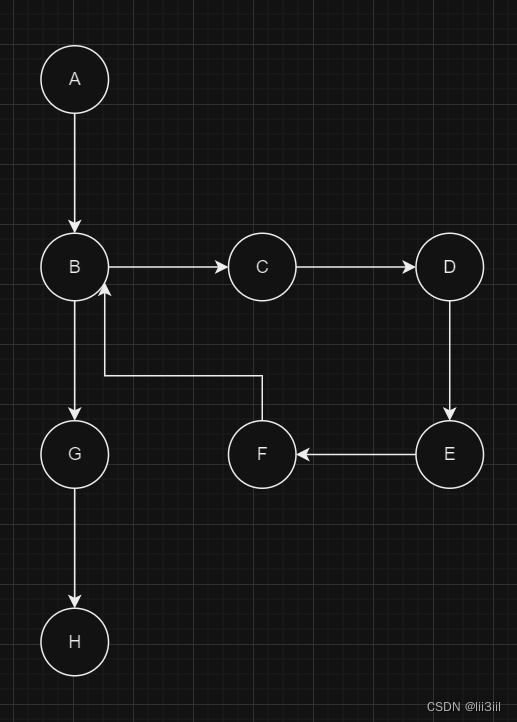

上图有B 点这种环的情况 start = A ,end=H 的话, 需要将这个环也输出出来,即所有可能到达的路径.

2.代码实现

思路

使用图的遍历,从起点开始,查找终点.
只用广度遍历没实现明白.只能找一种路径.
只用深度遍历,想找所有可能的路径就需要深度的时候往回退,关系多了的时候巨慢.
两者结合
在广度遍历的时候,进行深度遍历,深度遍历只要能查到一种到达终点的方式便记录该顶点.

public class TestGraph {

    public static void main(String[] args) {
        Graph graph = new Graph();
        addData(graph);
        Map<String, List<Edge>> adjacencyList = graph.getAdjacencyList();

        String start = "A";
        String end = "E";

        List<Edge> re = findAllPathBFS(adjacencyList, start, end);
        for (Edge edge : re) {
            System.out.println(edge.getSource() + "-->" + edge.getDestination());
        }
    }
	//核心查找方法
    private static List<Edge> findAllPathBFS(Map<String, List<Edge>> adjacencyList, String start, String end) {
        List<Edge> re = new ArrayList<>();
        Queue<String> queue = new LinkedList<>();
        List<String> vz = new ArrayList<>();
        queue.offer(start);
        vz.add(start);
        while (!queue.isEmpty()) {
            String poll = queue.poll();
            List<Edge> edges = adjacencyList.get(poll);
            //防止到达终点继续广度遍历
            if (!poll.equals(end)){
                for (Edge edge : edges) {
                    if (!vz.contains(edge.getDestination())) {
                        queue.offer(edge.getDestination());
                        vz.add(edge.getDestination());
                    }
                    if (findPathDFS(adjacencyList, edge.getDestination(), end)) {
                        re.add(new Edge(poll, edge.getDestination()));
                    }
                }
            }
        }
        return re;
    }

    private static boolean findPathDFS(Map<String, List<Edge>> adjacencyList, String start, String end) {
        return dfsStack(adjacencyList, start, end);
    }

    private static boolean dfsStack(Map<String, List<Edge>> adjacencyList, String start, String end) {
        Stack<String> data = new Stack<>();
        List<String> visited = new ArrayList<>();
        data.push(start);
        while (!data.isEmpty()) {
            String pop = data.pop();
            if (pop.equals(end)){
                return true;
            }
            if (!visited.contains(pop)) {
                visited.add(pop);
                for (Edge neighbor : adjacencyList.get(pop)) {
                    if (!visited.contains(neighbor.getDestination())) {
                        data.push(neighbor.getDestination());
                    }
                }
            }
        }
        return false;
    }


    // 深度优先搜索递归函数
    private static boolean dfsD(Map<String, List<Edge>> adjacencyList, String start, String end, List<String> visited, boolean b) {
        visited.add(start);
        if (start.equals(end)) {
            b = true;
        } else {
            for (Edge neighbor : adjacencyList.get(start)) {
                if (!visited.contains(neighbor.getDestination())) {
                    dfsD(adjacencyList, neighbor.getDestination(), end, visited, b);
                }
            }
        }
        visited.remove(start); // 重置当前顶点的访问状态
        return b;
    }

    private static void addData(Graph graph) {
        graph.addVertex("A");
        graph.addVertex("B");
        graph.addVertex("C");
        graph.addVertex("D");
        graph.addVertex("E");
        graph.addVertex("F");
        graph.addVertex("G");

        graph.addEdge("A", "B");
        graph.addEdge("A", "C");
        graph.addEdge("B", "D");
        graph.addEdge("C", "D");
        graph.addEdge("C", "E");
        graph.addEdge("D", "E");
        graph.addEdge("D", "F");
        graph.addEdge("F", "A"); // 添加一个环
        graph.addEdge("F", "G");
    }
    static class Graph {
        private int V; // 顶点数
        private Map<String, List<Edge>> adjacencyList; // 邻接表

        public Graph() {
            V = 0;
            adjacencyList = new HashMap<>();
        }

        // 添加顶点
        public void addVertex(String vertex) {
            adjacencyList.put(vertex, new ArrayList<>());
            V++;
        }

        // 添加边
        public void addEdge(String source, String destination) {
            Edge edge = new Edge(source, destination);
            adjacencyList.get(source).add(edge);
        }

        public int getV() {
            return V;
        }

        public Map<String, List<Edge>> getAdjacencyList() {
            return adjacencyList;
        }
    }

    static class Edge {
        private String source;
        private String destination;

        public Edge(String source, String destination) {
            this.source = source;
            this.destination = destination;
        }

        public String getSource() {
            return source;
        }

        public String getDestination() {
            return destination;
        }
    }
}

代码融合到业务中目前看实现的没啥问题,发出来也是看看有没有大佬帮忙指点一下,看看有没有错误,或者更好的方式.
