音频 音波 视频 处理库

1 音频处理库

Howler.js

Howler.js是一个专注于Web音频处理的开源JS库
主要用于解决浏览器间音频处理的兼容性问题，并提供高级功能如音效、3D空间音频和跨源音频加载等‌

英文官网

中文官网

GitHub

安装

npm install howler --save

案列

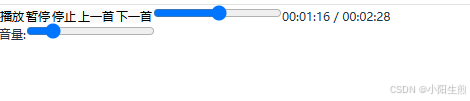

播放 暂停 停止 上一首 下一首 进度条 控制音量功能
如下所示:vue3

<template>
  <div>
    <!-- 控制按钮 -->
    <button @click="play">播放</button>
    <button @click="pause">暂停</button>
    <button @click="stop">停止</button>
    <button @click="prev">上一首</button>
    <button @click="next">下一首</button>

    <!-- 进度条 -->
    <input type="range" min="0" :max="duration" v-model="currentTime" @input="seek">
    <span>{{ formatTime(currentTime) }} / {{ formatTime(duration) }}</span>

    <!-- 音量控制 -->
    <br>
    <label for="volume">音量:</label>
    <input id="volume" type="range" min="0" max="1" step="0.01" v-model="volume" @input="setVolume">
  </div>
</template>

<script lang="ts">
import { ref, onMounted, watch, onUnmounted } from 'vue';
import { Howl, Howler } from 'howler';

export default {
  setup() {
    // 定义音频文件路径数组
    const audioFiles = ref([
      '../src/audio/0.mp3',
      '../src/audio/01.wav',
      '../src/audio/0.mp3'
    ]);

    // 当前播放曲目索引
    let currentTrackIndex = ref(0);

    // Howl 实例引用
    const sound = ref<Howl | null>(null);

    // 播放进度相关变量
    const currentTime = ref(0); // 当前时间（秒）
    const duration = ref(0); // 总时长（秒）

    // 播放状态标志
    const isPlaying = ref(false);

    // 音量控制
    const volume = ref(0.5); // 默认音量设置为50%

    // 加载指定索引的音频文件
    const loadTrack = (index: number) => {
      if (sound.value) {
        sound.value.unload(); // 卸载当前音频
      }

      // 创建新的 Howl 实例
      sound.value = new Howl({
        src: [audioFiles.value[index]], // 设置音频源
        html5: true, // 强制使用 HTML5 <audio> 元素
        volume: volume.value, // 设置初始音量
        onload: () => {
          console.log('Track loaded');
          // 在音频加载完成后设置总时长
          duration.value = sound.value.duration();
        },
        onplay: () => {
          isPlaying.value = true;
          updateProgress(); // 开始更新进度
        },
        onpause: () => {
          isPlaying.value = false;
        },
        onstop: () => {
          isPlaying.value = false;
        },
        onend: () => {
          next(); // 播放结束自动切换到下一首
        },
        onplayerror: (id, error) => {
          console.error('Play error:', error);
        },
        onloaderror: (id, error) => {
          console.error('Load error:', error);
        }
      });
    };

    // 播放音频
    const play = () => {
      if (sound.value && !isPlaying.value) {
        sound.value.play();
      }
    };

    // 暂停音频
    const pause = () => {
      if (sound.value) {
        sound.value.pause();
      }
    };

    // 停止音频
    const stop = () => {
      if (sound.value) {
        sound.value.stop();
        currentTime.value = 0; // 重置当前时间
      }
    };

    // 切换至上一首
    const prev = () => {
      currentTrackIndex.value = (currentTrackIndex.value - 1 + audioFiles.value.length) % audioFiles.value.length;
      loadTrack(currentTrackIndex.value);
      play();
    };

    // 切换至下一首
    const next = () => {
      currentTrackIndex.value = (currentTrackIndex.value + 1) % audioFiles.value.length;
      loadTrack(currentTrackIndex.value);
      play();
    };

    // 根据用户拖动进度条调整播放位置
    const seek = () => {
      if (sound.value) {
        sound.value.seek(currentTime.value);
      }
    };

    // 根据用户输入调整音量
    const setVolume = () => {
      if (sound.value) {
        sound.value.volume(volume.value);
      }
    };

    // 更新播放进度
    const updateProgress = () => {
      if (sound.value && isPlaying.value) {
        const seekPosition = sound.value.seek();
        if (typeof seekPosition === 'number') {
          currentTime.value = seekPosition;
        }
        requestAnimationFrame(updateProgress); // 下一帧继续更新
      }
    };

    // 格式化时间显示
    const formatTime = (seconds: number) => {
      const date = new Date(seconds * 1000);
      return date.toISOString().substr(11, 8);
    };

    // 组件挂载时加载第一首歌曲
    onMounted(() => {
      loadTrack(currentTrackIndex.value);
    });

    // 组件卸载时清理 Howl 实例
    onUnmounted(() => {
      if (sound.value) {
        sound.value.unload();
      }
    });

    // 监视 currentTime 确保其不会超过 duration
    watch(currentTime, (newVal) => {
      if (newVal > duration.value) {
        currentTime.value = duration.value;
      }
    });

    // 返回所有需要暴露给模板的方法和变量
    return {
      play,
      pause,
      stop,
      prev,
      next,
      currentTime,
      duration,
      seek,
      formatTime,
      volume,
      setVolume
    };
  }
};
</script>

<style scoped>
/* Add your styles here */
</style>

需要处理滑动条样式的话 css里处理 如下链接
自定义音频播放样式

2 音波处理库

自定义音波效果

Wavesurfer.js

官网地址

wavesurfer.js是一个用于在Web浏览器中实时可视化音频波形的JavaScript库‌
支持多种音频文件格式，包括MP3、WAV、AAC和Ogg等，
并且可以通过调用相应的加载方法加载任何支持的音频文件‌
支持播放、暂停、跳转、缩放、选择和剪切等操作
允许用户自定义波形的外观和样式，包括颜色、阴影效果、进度条和标记

npm install wavesurfer.js --save

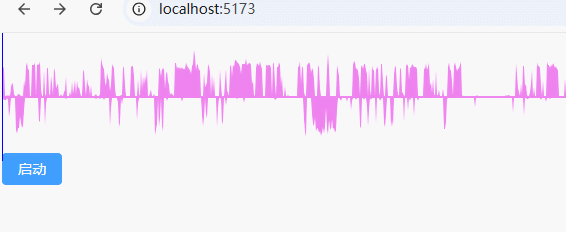

初始化展示常规音波

初始化展示音波 点击启动对应音波滚动 点击暂时停止滚动

<template>
  <div>
    <div id="waveform" style="width:800px;height:120px" ></div>
    <el-button type="primary" @click="playPause" :loading="isLoading">
      {{ isLoading ? 'Loading...' : isPlaying ? '暂停' : '启动' }}
    </el-button>
    <p v-if="error">{{ error }}</p>
  </div>
</template>
<script setup lang="ts">
import { ref, onMounted, onBeforeUnmount } from 'vue';
import WaveSurfer from 'wavesurfer.js';
let wavesurfer: WaveSurfer | null = null;
const isLoading = ref(false);
const isPlaying = ref(false);
const error = ref<string | null>(null);

function initWaveSurfer() {
  isLoading.value = true;
  error.value = null;

  wavesurfer = WaveSurfer.create({
    container: '#waveform', // 绑定容器
    url: '../public/01.wav', // 音频地址，使用的是 Vite，将文件放到根目录 public 下才有用!!!
    autoCenter: false, // 不自动播放
    // waveColor: '#4F4A85',
    // progressColor: '#383351',
    waveColor: 'violet',
    progressColor: 'blue',
    backend: 'MediaElement', // 使用 MediaElement 后端来确保兼容性
    responsive: true,
  });

  wavesurfer.on('ready', () => {
    isLoading.value = false;
  });

  wavesurfer.on('error', (err) => {
    isLoading.value = false;
    error.value = `Failed to load audio: ${err.message}`;
  });

  wavesurfer.on('play', () => {
    isPlaying.value = true;
  });

  wavesurfer.on('pause', () => {
    isPlaying.value = false;
  });
}

// 播放暂停方法
const playPause = () => {
  if (wavesurfer) {
    wavesurfer.playPause();
  }
};

onMounted(() => {
  initWaveSurfer();
});

onBeforeUnmount(() => {
  if (wavesurfer) {
    wavesurfer.destroy();
    wavesurfer = null;
  }
});
</script>

<style scoped>
/* Add any styles you need here */
</style>

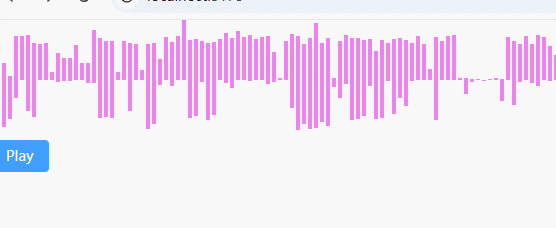

初始化柱状展示音波

<template>
  <div>
    <div id="waveform" style="width:800px;height:120px"></div>
    <el-button type="primary" @click="playPause" :loading="isLoading">
      {{ isLoading ? 'Loading...' : isPlaying ? 'Pause' : 'Play' }}
    </el-button>
    <p v-if="error">{{ error }}</p>
  </div>
</template>

<script setup lang="ts">
import { ref, onMounted, onBeforeUnmount } from 'vue';
import WaveSurfer from 'wavesurfer.js';

let wavesurfer: WaveSurfer | null = null;
const isLoading = ref(false);
const isPlaying = ref(false);
const error = ref<string | null>(null);

function initWaveSurfer() {
  isLoading.value = true;
  error.value = null;
  // 初始化 Wavesurfer 并设置 renderer 为 bar
  wavesurfer = WaveSurfer.create({
    container: '#waveform', // 绑定容器
    url: '/01.wav', // 音频地址，使用的是 Vite，将文件放到根目录 public 下才有用!!!
    backend: 'MediaElement', // 使用 MediaElement 后端来确保兼容性
    waveColor: 'violet',
    progressColor: 'blue',
    cursorWidth: 1,
    responsive: true,
    height: 120,
    barWidth: 4, // 柱子宽度
    barGap: 2, // 柱子之间的间距
    normalize: true, // 归一化音频数据
    hideScrollbar: true,
    render: 'bar' // 设置渲染模式为 bar
  });

  wavesurfer.on('ready', () => {
    isLoading.value = false;
  });

  wavesurfer.on('error', (err) => {
    isLoading.value = false;
    error.value = `Failed to load audio: ${err.message}`;
  });

  wavesurfer.on('play', () => {
    isPlaying.value = true;
  });

  wavesurfer.on('pause', () => {
    isPlaying.value = false;
  });
}

// 播放暂停方法
const playPause = () => {
  if (wavesurfer) {
    wavesurfer.playPause();
  }
};

onMounted(() => {
  initWaveSurfer();
});

onBeforeUnmount(() => {
  if (wavesurfer) {
    wavesurfer.destroy();
    wavesurfer = null;
  }
});
</script>

<style scoped>
/* Add any styles you need here */
#waveform {
  width: 800px;
  height: 120px;
}
</style>

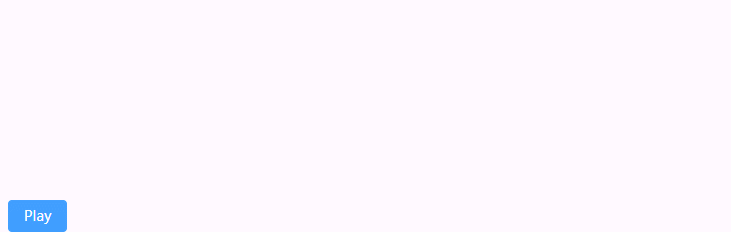

交互点击启动音波

<template>
  <div>
    <div id="waveform" style="width:800px;height:200px"></div>
    <el-button type="primary" @click="initializeAndPlay" :loading="isLoading">
      {{ isLoading ? 'Loading...' : isPlaying ? 'Pause' : 'Play' }}
    </el-button>
    <p v-if="error">{{ error }}</p>
  </div>
</template>

<script setup lang="ts">
import { ref, onMounted, onBeforeUnmount } from 'vue';
import WaveSurfer from 'wavesurfer.js';

let wavesurfer: WaveSurfer | null = null;
const isLoading = ref(false);
const isPlaying = ref(false);
const error = ref<string | null>(null);

function initWaveSurfer() {
  // 初始化 Wavesurfer
  wavesurfer = WaveSurfer.create({
    container: '#waveform', // 绑定容器
    url: '/01.wav', // 音频地址，使用的是 Vite，将文件放到根目录 public 下才有用!!!
    backend: 'MediaElement', // 使用 MediaElement 后端来确保兼容性
    waveColor: 'violet',
    progressColor: 'blue',
    cursorWidth: 1,
    responsive: true,
    height: 100, // 增加高度以适应纵向柱状图
    normalize: true, // 归一化音频数据
    hideScrollbar: true,
    barWidth: 4, // 柱子宽度
    barGap: 2, // 柱子之间的间距
    render: 'bar' // 设置渲染模式为 bar
  });

  wavesurfer.on('ready', async () => {
    isLoading.value = false;

    // 尝试恢复 AudioContext
    const audioContext = wavesurfer.backend.getAudioContext();
    if (audioContext && audioContext.state === 'suspended') {
      try {
        await audioContext.resume(); // 等待恢复完成
      } catch (err) {
        console.error('Failed to resume AudioContext:', err);
      }
    }

    drawVerticalWaveform();
  });

  wavesurfer.on('error', (err) => {
    isLoading.value = false;
    error.value = `Failed to load audio: ${err.message}`;
  });

  wavesurfer.on('play', () => {
    isPlaying.value = true;
  });

  wavesurfer.on('pause', () => {
    isPlaying.value = false;
  });
}

function drawVerticalWaveform() {
  if (!wavesurfer || !wavesurfer.backend) return;

  const peaks = wavesurfer.backend.getPeaks(800); // 获取波峰数据
  const canvasHeight = 400; // 与 #waveform 的高度一致
  const canvasWidth = 800;
  const barHeight = canvasHeight / peaks.length; // 每个柱子的高度
  const spacing = 1; // 柱子之间的间距

  const canvas = document.createElement('canvas');
  canvas.width = barHeight;
  canvas.height = canvasWidth;
  canvas.style.position = 'absolute';
  canvas.style.left = '0';
  canvas.style.top = '0';
  canvas.style.transform = 'rotate(-90deg)'; // 旋转 canvas 以实现纵向柱状图
  canvas.style.transformOrigin = 'top left';
  document.getElementById('waveform')?.appendChild(canvas);

  const ctx = canvas.getContext('2d');

  if (ctx) {
    ctx.clearRect(0, 0, canvas.width, canvas.height);

    for (let i = 0; i < peaks.length; i++) {
      const peak = peaks[i];
      const barWidth = Math.abs(peak) * canvasWidth / 2;
      const x = canvasHeight - (i + 1) * barHeight + spacing;
      const y = canvasWidth / 2 - barWidth / 2;

      ctx.fillStyle = `rgb(${Math.abs(peak * 255)}, 50, 50)`; // 根据峰值调整颜色
      ctx.fillRect(x, y, barHeight - spacing * 2, barWidth); // 绘制柱子
    }
  }
}

// 播放暂停方法
const initializeAndPlay = async () => {
  if (!wavesurfer) {
    initWaveSurfer();
  }
  if (wavesurfer) {
    wavesurfer.playPause();
  }
};

onBeforeUnmount(() => {
  if (wavesurfer) {
    wavesurfer.destroy();
    wavesurfer = null;
  }
});
</script>

<style scoped>
/* Add any styles you need here */
#waveform {
  position: relative;
  width: 800px;
  height: 400px;
}
</style>

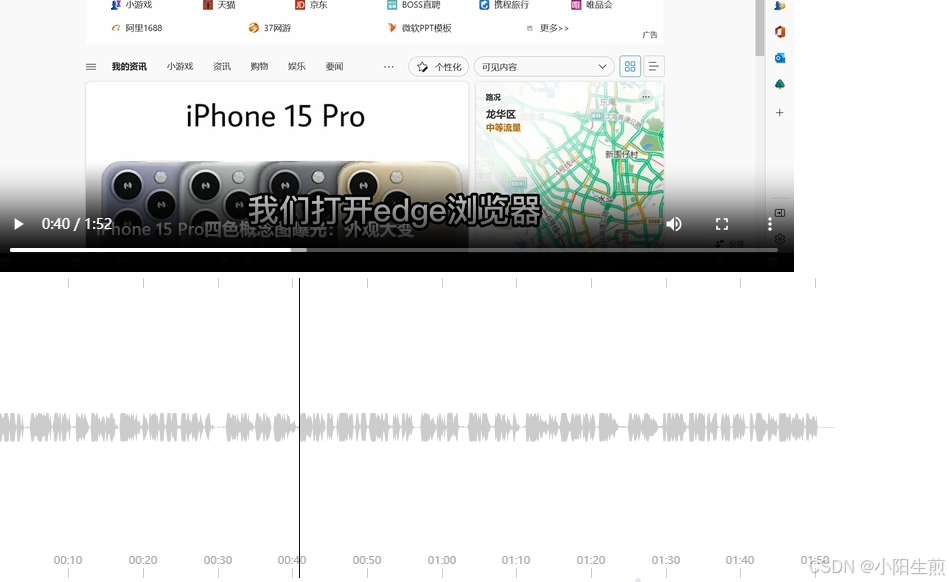

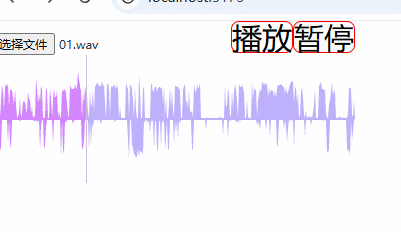

上传文件后显示常规音波

<template>
  <div id="app">
    <input type="file" @change="onFileChange" />
    <button @click="playAudio" class="audio-button">播放</button>
    <button @click="pauseAudio" class="audio-button">暂停</button>
    <div id="waveform"></div>
  </div>
</template>
<script>
import Wavesurfer from "wavesurfer.js";

export default {
  data() {
    return {
      file: null,
      waveform: null,
      wavesurfer: null,
      isPlaying: false,
    };
  },
  methods: {
    onFileChange(e) {
      this.file = e.target.files[0];
      this.loadWaveform();
    },
    loadWaveform() {
      if (this.wavesurfer) {
        this.wavesurfer.destroy();
      }
      const reader = new FileReader();
      reader.onload = (e) => {
        this.wavesurfer = Wavesurfer.create({
          container: document.getElementById("waveform"),
          waveHeight: 100,
          progressColor: "#d384fe", // 这将设置进度条的颜色为播放按钮的颜色
          cursorColor: "#d0bdda",
          hideScrollbar: true,
          responsive: true,
          waveColor: "#bfb0fb", // 这将设置音量图的颜色为按钮的颜色
        });
        this.wavesurfer.load(e.target.result);
      };
      reader.readAsDataURL(this.file);
    },
    playAudio() {
      if (!this.isPlaying) {
        this.wavesurfer.play();
        this.isPlaying = true;
      }
    },
    pauseAudio() {
      if (this.isPlaying) {
        this.wavesurfer.pause();
        this.isPlaying = false;
      }
    },
  },
};
</script>
<style scoped>
.audio-button {
font-size: 30px;
 border: 1px solid red;
}
</style>

录音并展示音频波形效果

wavesurfer.js必须在https下进行使用，不然浏览器不会申请麦克风权限
wavesurfer.js+Record插件(包含在wavesurfer的里面插件)

<template>
    <div>
    <div ref="waveform"></div>
    <button @click="startRecording">开始录音</button>
    <button @click="stopRecording">停止录音</button>
   </div>
</template>
 <script>
  import WaveSurfer from 'wavesurfer.js';
 import RecordPlugin from 'wavesurfer.js/dist/plugins/record.esm';
//
 export default {
   data() {
    return {
      wavesurfer: null,
       record: null,
       recordedUrl: '',
        recordedBlobType: '',
    };
   },
   mounted() {
     this.init();
   },
   beforeDestroy() {
     if (this.wavesurfer) {
      this.wavesurfer.destroy();
     }
    },
   methods: {
     async init() {
       this.wavesurfer = WaveSurfer.create({
       container: this.$refs.waveform,
       waveColor: '#FCB28F', // 设置波形颜色
       progressColor: '#FCB28F', // 设置进度条颜色
        height: 150, // 设置波形图高度
        barWidth: 10, // 设置条形宽度
         barRadius: 2, // 设置条形圆角
        cursorWidth: 0, // 设置光标宽度
      });
      // 设置录音选项
      this.record = this.wavesurfer.registerPlugin(
        RecordPlugin.create({
         scrollingWaveform: false,
        })
      );
      this.record.on('record-end', (blob) => {
        this.recordedUrl = URL.createObjectURL(blob);
       this.recordedBlobType = blob.type.split(';')[0].split('/')[1] || 'webm';
       });

      this.record.on('record-progress', (time) => {
         console.log('更新进度条', time);
       });
    },
    // 开始录音
    startRecording() {
       this.record.startRecording().then(() => {
         console.log('开始录音');
      });
    },
    // 停止结束录音
      stopRecording() {
        this.record.stopRecording();
     },
   },
 };
 </script>

 <style>
 .waveform {
  width: 100%;
  height: 128px;
 }
 </style>

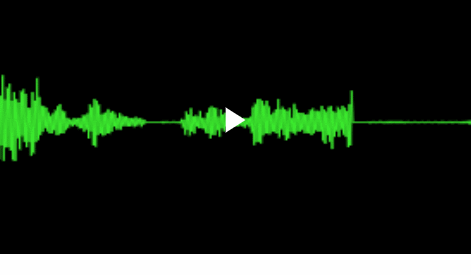

audio+wavesurfer.js

<template>
  <div id="waveform" ref="waveform"></div>
  <audio
    :src="audioSrc1"
    controls
    class="audio4"
    @play="handlePlay"
    @pause="handlePause"
    @seeking="handleSeeking"
    controlsList="noplaybackrate nodownload"
  ></audio>
</template>

<script setup>
import { ref, onMounted, onBeforeUnmount } from 'vue';
import WaveSurfer from 'wavesurfer.js';

const waveform = ref(null);
const audioSrc1 = ref('../20250109.wav'); // 确保这里是你音频文件的真实URL

let wavesurfer = null;

onMounted(() => {
  wavesurfer = WaveSurfer.create({
    container: waveform.value,// 需要的容器盒子
    scrollParent: false, // 是否出现滚动条
    cursorColor: '#fff',// 播放进行时线条颜色
    cursorWidth: 2, // 播放进行时线条宽度
    waveColor: '#ccc',    // 未播放的波纹颜色
    progressColor: '#50f0a6',  // 已播放的波纹颜色
     backgroundColor: "#000",// 背景色
    height: 130,  //频谱的高度
    audioRate: 1, //频谱的高度
  });

  wavesurfer.load(audioSrc1.value);   // 加载音频文件
});
 // 播放音频
const handlePlay = () => {
  const audioElement = document.querySelector('.audio4');
  audioElement.muted = true;
  wavesurfer.play();
};
// 暂停
const handlePause = () => {
  wavesurfer.pause();
};
// 拖动进度条时触发
const handleSeeking = () => {
  const audioElement = document.querySelector('.audio4');
//使wavesurfer跳到进度条拖动的位置（audio当前时间 - wavesurfer当前时间 = 需要跳转的时间）
  wavesurfer.skip(audioElement.currentTime - wavesurfer.getCurrentTime());
};
// 关闭
const handleClose = () => {
  const audioElement = document.querySelector('.audio4');
  audioElement.currentTime = 0;
  audioElement.pause();
  wavesurfer.destroy();//停止播放并回到起始点
};

onBeforeUnmount(() => {
  if (wavesurfer) {
    wavesurfer.destroy();
  }
});
</script>

<style scoped>
#waveform {
  width: 100%;
  background: #1e221f;
  pointer-events: none;
}
</style>

peaks.js

npm install --save peaks.js
npm install --save konva
npm install --save waveform-data

初始化option中，只需要修改mediaElement中的dom就可以展示音频或视频波形图

<template>
  <div>
    <!-- <video
      ref="video"
      id="video"
      width="100%"
      height="100%"
      crossOrigin="Anonymous"
      src=""
    /> -->
    <div id="peak-container">
      <div id="zoomview-container" ref="zoomview"></div>
      <div id="overview-container" ref="overview"></div>
    </div>
    <div id="demo-controls">
      <audio ref="audio" id="audio" controls="controls">
        <source src="../public/01.wav" type="audio/mpeg" />
      </audio>
    </div>

    <div>
      <el-button @click="delel">销毁</el-button>
      <el-button @click="play">播放/暂停</el-button>
      缩略图展示的时间区间
      <el-button @click="big" id="big" ref="big">收起</el-button>
      <el-button @click="small" id="small" ref="small">展开</el-button>
      <el-button id="seek" ref="resetPaly" @click="resetPaly">重置</el-button>
      波幅调节
      <el-slider
        vertical
        height="200px"
        @input="input"
        v-model="scaleValue"
        id="amplitude-scale"
        :format-tooltip="formatTooltip"
        :step="10"
      ></el-slider>
      <el-button @click="zoomable">显示/隐藏可缩放波形图</el-button>
    </div>
  </div>
</template>

  <script>
import Peaks from "peaks.js";
const amplitudeScales = {
  0: 0.0,
  1: 0.1,
  2: 0.25,
  3: 0.5,
  4: 0.75,
  5: 1.0,
  6: 1.5,
  7: 2.0,
  8: 2.5,
  9: 3.0,
  10: 3.5,
};
export default {
  data() {
    return {
      playPause: true, //true 播放 false 暂停
      peaks: "",
      //  只能将其隐藏，dom元素需要保留
      dispaly: false,
      scaleValue: 50,
    };
  },
  created() {
    this.$nextTick(() => {
      const options = {
        zoomview: {
          container: this.$refs.zoomview,
        },
        overview: {
          container: this.$refs.overview,
        },
        // 只需要修改dom就可以展示音频或视频波形图
        mediaElement: this.$refs.audio,
        webAudio: {
          audioContext: new AudioContext(),
        },
        emitCueEvents: true,
        //  //显示轴标签
        showAxisLabels: true,
      };
      Peaks.init(options, (err, peaks) => {
        if (err) {
          console.log("messge " + err);
          return;
        }
        this.peaks = peaks;
      });
    });
  },
  methods: {
    delel() {
      this.peaks.destroy();
      //必须将其src清空或audio销毁，不然音频任可以播放
      this.$refs.audio.src = "";
    },
    play() {
      if (this.playPause) {
        this.peaks.player.play();
        this.playPause = false;
      } else {
        this.peaks.player.pause();
        this.playPause = true;
      }
    },
    big() {
      console.log(this.peaks);
      this.peaks.zoom.zoomIn();
      console.log("收起");
    },
    small() {
      this.peaks.zoom.zoomOut();
      console.log("展开");
    },
    resetPaly() {
      this.peaks.player.seek(0.0);
      console.log("重置");
      // }
    },
    input(value) {
      let scale = amplitudeScales[value / 10];
      // 隐藏缩略图时候进行处理
      if (this.peaks.views.getView("zoomview")) {
        this.peaks.views.getView("zoomview").setAmplitudeScale(scale);
      }
      this.peaks.views.getView("overview").setAmplitudeScale(scale);
    },
    formatTooltip(val) {
      return val / 10;
    },
    zoomable() {
      let container = document.getElementById("zoomview-container");
      let zoomview = this.peaks.views.getView("zoomview");

      if (zoomview) {
        this.peaks.views.destroyZoomview();
        container.style.display = "none";
      } else {
        container.style.display = "block";
        this.peaks.views.createZoomview(container);
      }
    },
  },
};
</script>

  <style>
#zoomview-container {
  height: 300px;
}
#overview-container {
  height: 300px;
}
</style>


canvas

实现点击显示音波效果

vue3+ts

<template>
  <div class="audioPage" ref="audioPageRef" @click="palyMusic()">
    <canvas ref="canvasRef" width="100" height="100"></canvas>
    <audio ref="audioRef">
      <source src="../public/01.wav" />
    </audio>
  </div>
</template>
<script setup lang="ts">
import { onMounted, ref } from "vue";
const audioRef = ref();
const canvasRef = ref();
const audioPageRef = ref();
//需要可视化的数据
let audioArr: Uint8Array = new Uint8Array();
//我们需要一个音乐播放器和一个canvas进行显示
const radius = 20; // 圆的半径
let analyser: any = null;
//初始化
let isInit = false;

onMounted(() => {
  drawGradientCircle(); // 绘制圆形
  // 当音乐播放
  audioRef.value.onplay = () => {
    if (!isInit) {
      isInit = true;
    }

    const audioContext = new AudioContext(); // 创建音频上下文
    const audioSrc = audioContext.createMediaElementSource(audioRef.value); // 创建音频源
    analyser = audioContext.createAnalyser(); // 创建分析器
    analyser.fftSize = 64; // 设置傅里叶变换的大小,影响线条密度
    audioArr = new Uint8Array(analyser.frequencyBinCount); // 创建一个无符号字节数组存储频率数据，该API参考ES6文档
    audioSrc.connect(analyser); // 连接音频源和分析器
    analyser.connect(audioContext.destination); // 连接分析器和音频目的地

    //动画开始
    animate();
  };
});

// 绘制圆形
const drawGradientCircle = () => {
  const ctx = canvasRef.value.getContext("2d");
  const centerX = canvasRef.value.width / 2;
  const centerY = canvasRef.value.height / 2;
  ctx.beginPath();
  // 创建一个从中心点向外的径向渐变
  const grd = ctx.createLinearGradient(
    centerX - radius,
    centerY - radius,
    centerX + radius,
    centerY + radius
  );
  grd.addColorStop("0", "purple");
  grd.addColorStop("0.3", "magenta");
  grd.addColorStop("0.5", "blue");
  grd.addColorStop("0.6", "green");
  grd.addColorStop("0.8", "yellow");
  grd.addColorStop(1, "red");

  ctx.strokeStyle = grd;

  ctx.arc(centerX, centerY, radius - 2, 0, Math.PI * 2); // 绘制一个完整的圆

  ctx.stroke(); // 画圆复制代码
};

//绘制线条
const drawLinesFromCircle = () => {
  const ctx = canvasRef.value.getContext("2d");
  const centerX = canvasRef.value.width / 2;
  const centerY = canvasRef.value.height / 2;
  ctx.lineWidth = 2;

  //使用音频的频率数据绘制线条
  //为了美观，我们绘制两条线，一条是频率数据，另一条是对称的
  //也可以去使用其它的方式绘制线条
  audioArr.forEach((value, index) => {
    const baseAngle = (index / audioArr.length) * Math.PI * 2; // 基础角度
    const angle1 = baseAngle; // 第一条线的角度
    const angle2 = baseAngle + Math.PI; // 对称线的角度，相差π(180度)

    // 绘制第一条线
    {
      const endX1 = centerX + radius * Math.cos(angle1);
      const endY1 = centerY + radius * Math.sin(angle1);
      const startX1 = centerX + (radius + value * 0.1) * Math.cos(angle1); // 使用value控制长度
      const startY1 = centerY + (radius + value * 0.1) * Math.sin(angle1);

      ctx.beginPath();
      ctx.moveTo(startX1, startY1);
      ctx.lineTo(endX1, endY1);
      ctx.strokeStyle = `hsl(${index * 3.6}, 100%, 50%)`;
      ctx.stroke();
    }

    // 绘制对称的第二条线
    {
      const endX2 = centerX + radius * Math.cos(angle2);
      const endY2 = centerY + radius * Math.sin(angle2);
      const startX2 = centerX + (radius + value * 0.1) * Math.cos(angle2);
      const startY2 = centerY + (radius + value * 0.1) * Math.sin(angle2);

      ctx.beginPath();
      ctx.moveTo(startX2, startY2);
      ctx.lineTo(endX2, endY2);
      ctx.strokeStyle = `hsl(${
        (index + audioArr.length / 2) * 3.6
      }, 100%, 50%)`; // 调整颜色以保持对称性且有所区别
      ctx.stroke();
    }
  });
};

//播放动画
const animate = () => {
  const ctx = canvasRef.value.getContext("2d");
  ctx.clearRect(0, 0, canvasRef.value.width, canvasRef.value.height); // 清除画布
  if (!isInit) return;
  analyser.getByteFrequencyData(audioArr); // 获取频率数据
  drawGradientCircle(); // 绘制圆形
  drawLinesFromCircle(); // 绘制伸展的线条
  requestAnimationFrame(animate); // 重复绘制以创建动画效果
};

const palyMusic = () => {
  if (audioRef.value.paused) {
    audioRef.value.play();
  } else {
    audioRef.value.pause();
  }
};
</script>
<style scoped lang="scss">
.audioPage {
  width: 100%;
  height: 100%;
  display: flex;
  justify-content: center;
  align-items: center;

  cursor: pointer;
}
</style>

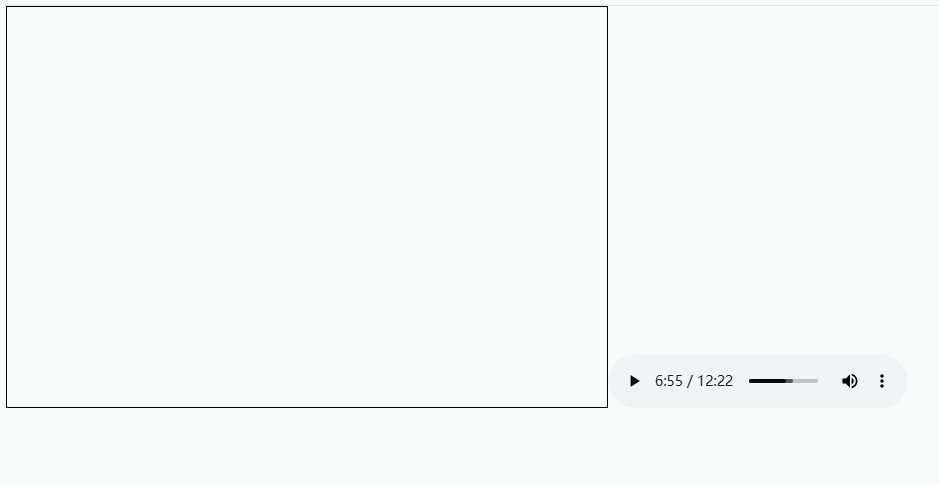

vue+canvas音频音波可视化

引入本地音频文件需放在public文件夹下
public文件夹与src文件夹同级

Vue2 + canvas

<template>
    <div class="subGuide">
        <canvas id="canvas"></canvas>
        <br>
        <audio id="audio" src="../public/01.wav" controls></audio>
        //src对应你的目录音频文件 (使用本地文件要创建public文件夹对应文件放在里面引入)
    </div>
</template>
<script>
export default {
    name: 'subGuide',
    data() {
        return {
        }
    },
    mounted() {
        const audioEle = document.querySelector('audio')
        const cvs = document.querySelector('canvas')
        const ctx = cvs.getContext('2d')
        function initCvs() {
            cvs.width = (window.innerWidth / 2) * devicePixelRatio
            cvs.height = (window.innerHeight / 3) * devicePixelRatio
        }
        initCvs()

        let isInit = false
        let dateArray = null
        let analyser = null

        audioEle.addEventListener('play', function (e) {
            if (isInit) return
            const audCtx = new AudioContext()
            const source = audCtx.createMediaElementSource(audioEle)
            analyser = audCtx.createAnalyser()
            analyser.fftSize = 512
            dateArray = new Uint8Array(256)
            source.connect(analyser)
            analyser.connect(audCtx.destination)
            isInit = true
        })

        function draw() {
            requestAnimationFrame(draw)
            const { width, height } = cvs
            ctx.clearRect(0, 0, width, height)
            if (!isInit) return
            analyser.getByteFrequencyData(dateArray)
            const len = dateArray.length / 2.5
            ctx.fillStyle = '#266fff'
            const barWidth = width / len / 2
            for (let i = 0; i < len; i++) {
                const data = dateArray[i]
                const barHeight = (data / 255) * height
                const x1 = i * barWidth + width / 2
                const x2 = width / 2 - (i + 1) * barWidth
                const y = height - barHeight
                ctx.fillRect(x1, y, barWidth - 2, barHeight)
                ctx.fillRect(x2, y, barWidth - 2, barHeight)
            }
        }
        draw()
    },
    methods: {

    }
}
</script>

<style lang="scss" scoped></style>

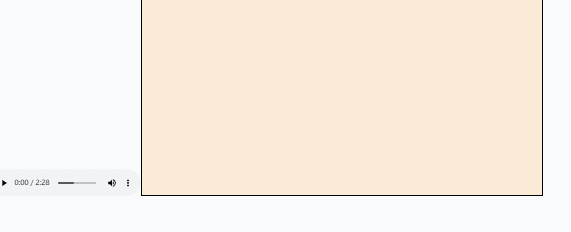

Vue3 + canvas

<template>
  <div class="audio">
    <canvas ref="canvasRef"></canvas>
    <audio ref="aduioRef" controls @play="playAudio">
      <!-- <source src="../src/audio/0.mp3" type="audio/mp3" /> -->
      <source src="../public/01.wav" type="audio/ogg" />
      <p>你的浏览器不支持该音频</p>
    </audio>
  </div>
</template>
//
<script setup lang="ts">
import { ref, onMounted, Ref } from 'vue';
const canvasRef: Ref<HTMLCanvasElement> = ref(document.getElementsByTagName('canvas')[0]);
const aduioRef = ref<HTMLAudioElement | null>(null);
const ctx = ref<any>(null);
const audioContext = ref<any>(null);
const source = ref<any>(null);
const analyser = ref<any>(null);
const dataArray = ref<Uint8Array>(new Uint8Array());

onMounted(() => {
  ctx.value = canvasRef.value && canvasRef.value.getContext('2d');
  initCanvas();
});

// 初始化canvas
const initCanvas = () => {
  canvasRef.value.width = 600;
  canvasRef.value.height = 400;
}
const playAudio = () => {
  // 音频源->音频节点->分析节点(输出到canvas里面)->输出节点（播放）
  audioContext.value = new AudioContext();
  source.value = audioContext.value.createMediaElementSource(aduioRef.value);
  analyser.value = new AnalyserNode(audioContext.value);
  source.value.connect(analyser.value);
  analyser.value.connect(audioContext.value.destination);
  analyser.value.fftSize = 512;
  const bufferLength = analyser.value.fftSize;
  dataArray.value = new Uint8Array(bufferLength / 2);
  draw();
}

const draw = () => {
  requestAnimationFrame(draw);
  ctx.value.clearRect(0, 0, canvasRef.value.width, canvasRef.value.height);
  analyser.value.getByteFrequencyData(dataArray.value);
  const len=dataArray.value.length/3;
  const barW = canvasRef.value.width / len;
  for (var i = 0; i < len; i++) {
    const x = i * barW;
    const barH = dataArray.value[i] / 255 * canvasRef.value.height;
    const y = canvasRef.value.height - barH;
    ctx.value.fillStyle = 'rgb(200, 200, 200)';
    ctx.value.fillRect(x, y, barW-2, barH);
  }

}
</script>

<style scoped>
.audio {
  height: 100%;
  width: 100%;
}

canvas {
  border: 1px solid black;
}
</style>

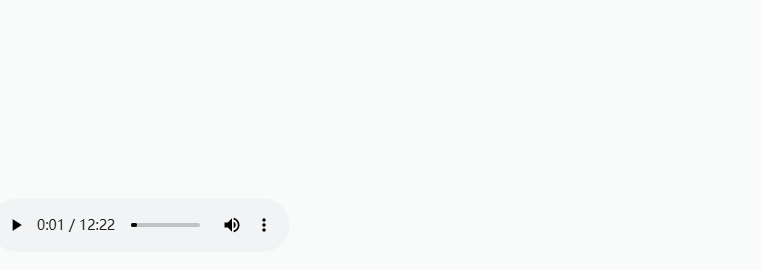

Vue3 + canvas 包含动态颜色效果

<template>
  <div>
    <audio ref="audioElement" :src="audioSrc" controls></audio>
    <canvas ref="canvasElement" width="800" height="400" style="background-color: antiquewhite;"></canvas>
  </div>
</template>

<script setup lang="ts">
import { onMounted, ref, onUnmounted } from "vue";
import audioSrc from "../audio/0.mp3";//对应音频文件

const audioElement = ref<HTMLAudioElement | null>(null);
const canvasElement = ref<HTMLCanvasElement | null>(null);

onMounted(() => {
  const audio = audioElement.value;
  if (!audio) {
    console.error("Audio element not found");
    return;
  }

  const audioCtx = new (window.AudioContext || window.webkitAudioContext)();
  if (!audioCtx) {
    console.error("Audio context not supported");
    return;
  }
  const source = audioCtx.createMediaElementSource(audio);
  const analyser = audioCtx.createAnalyser();
  analyser.fftSize = 2048; // 设置FFT大小，影响频率分辨率
  source.connect(analyser);
  analyser.connect(audioCtx.destination);

  const bufferLength = analyser.frequencyBinCount;
  const dataArray = new Uint8Array(bufferLength);

  const canvas = canvasElement.value;
  if (!canvas) {
    console.error("Canvas element not found");
    return;
  }

  const canvasCtx = canvas.getContext("2d");
  if (!canvasCtx) {
    console.error("Canvas context not found");
    return;
  }

  function draw() {
    requestAnimationFrame(draw);
    analyser.getByteFrequencyData(dataArray); // 使用频率数据而不是时间域数据

    canvasCtx.clearRect(0, 0, canvas.width, canvas.height); // 清除画布

    const barWidth = (canvas.width / bufferLength) * 2.5; // 设置条宽度
    let barHeight;
    let x = 0;

    for (let i = 0; i < bufferLength; i++) {
      barHeight = dataArray[i];

      const color = `rgb(${barHeight + 50}, 50, ${200 - barHeight})`; // 动态颜色
      canvasCtx.fillStyle = color;
      canvasCtx.fillRect(x, canvas.height - barHeight / 2, barWidth, barHeight / 2);

      x += barWidth + 1;
    }
  }

  audio.addEventListener("play", draw); // 当音频播放时开始绘制

  // 清理资源
  onUnmounted(() => {
    audio.removeEventListener("play", draw);
    source.disconnect(analyser);
    analyser.disconnect(audioCtx.destination);
    audioCtx.close().then(() => console.log("Audio context closed"));
  });
});
</script>

<style scoped>
canvas {
  border: 1px solid #000; /* 添加边框 */
  margin-top: 10px; /* 添加顶部外边距 */
}
</style>

siriwave.js

SiriWave 是一个开源的JavaScript库，它完美地复刻了苹果Siri在屏幕上的动态波纹动画
实现了两种风格的波形：经典的iOS样式和iOS9引入的荧光风格。
通过调整速度、振幅、频率等参数，你可以定制出适合各种场景的波纹效果。
此外，该项目还支持自定义颜色、曲线定义和随机范围

IOS当中Siri波形效果

npm install siriwave --save

<template>
  <div>
    <!-- 音频标签 -->
    <audio ref="audio" controls @play="onPlay" @pause="onPause" @timeupdate="onTimeUpdate">
      <source src="../audio/0.mp3" type="audio/mpeg">
      Your browser does not support the audio element.
    </audio>
    <!-- 画布容器 -->
    <div ref="siriwaveContainer" class="siriwave-container"></div>

    <!-- 控制按钮 -->
    <button @click="togglePlay">{{ isPlaying ? '暂停' : '播放' }}</button>
  </div>
</template>

<script>
import SiriWave from 'siriwave';

export default {
  name: 'AudioWithSiriWave',
  data() {
    return {
      siriWave: null,
      isPlaying: false, // 播放状态标志
    };
  },
  mounted() {
    this.initSiriWave();
  },
  methods: {
    initSiriWave() {
      this.siriWave = new SiriWave({
        container: this.$refs.siriwaveContainer,
        width: window.innerWidth,
        height: 200,
        style: 'ios', // 'ios' 或者 'ios9'
        amplitude: 1,
        speed: 0.05,
        frequency: 3,
        color: '#ffffff',
        cover: true,
        autostart: false,
      });
    },
    onPlay() {
      this.isPlaying = true;
      this.siriWave.start();
    },
    onPause() {
      this.isPlaying = false;
      this.siriWave.stop();
    },
    onTimeUpdate() {
      // 可以在这里根据音频的播放进度调整 SiriWave 的参数，例如振幅
      const audioElement = this.$refs.audio;
      const volume = audioElement.volume; // 获取当前音量
      this.siriWave.setAmplitude(volume); // 设置振幅
    },
    togglePlay() {
      const audioElement = this.$refs.audio;
      if (this.isPlaying) {
        audioElement.pause();
      } else {
        audioElement.play();
      }
    },
  },
  beforeDestroy() {
    if (this.siriWave) this.siriWave.stop();
  },
};
</script>

<style scoped>
.siriwave-container {
  width: 30%;
  height: 200px;
  background-color: #000;
}

button {
  margin-top: 10px;
}
</style>

3 视频处理库

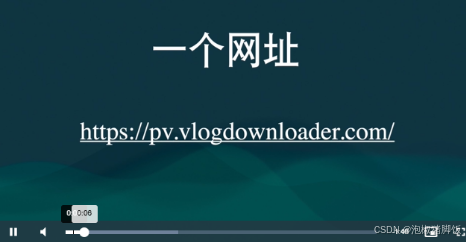

video.js

video.js处理简单视频 支持h5和Flash的视频播放器

npm install -s video.js

<template>
  <div class="video_text">
    <video
      id="myVideo"
      class="video-js">
      <source
        :src="videoUrl"
        type="video/mp4"
      >
    </video>
  </div>
</template>
<script>
import Video from 'video.js'
import 'video.js/dist/video-js.css'
  export default {
    name: "Video",
    data() {
      return {
        videoUrl:'../src/audio/11.mp4',//视频地址
      };
    },
    mounted() {
      this.initVideo();  //初始化视频播放器
    },
    methods: {
      initVideo() {
        //初始化视频方法
        let myPlayer = Video(myVideo, {
          //是否显示控制栏
          controls: true,
          //是否自动播放,muted:静音播放
          autoplay: false,
          //是否静音播放
          muted:false,
          //是否流体自适应容器宽高
          fluid:true,
          //设置视频播放器的显示宽度（以像素为单位）
          width: "800px",
          //设置视频播放器的显示高度（以像素为单位）
          height: "400px"
        });
      }
    }
  };
</script>

<style lang="less">
  .video_text{
    width: 500px;
    margin: 0 auto;
  }
  video:focus{
    outline: 0;      //去掉选中蓝框
  }
  .video-js .vjs-big-play-button{
    /*对播放按钮的样式进行设置*/
    width: 100px;
    height: 60px;
    position: absolute;
    top: 50%;
    left: 50%;
    transform: translate3d(-50%,-50%,0);
  }
</style>

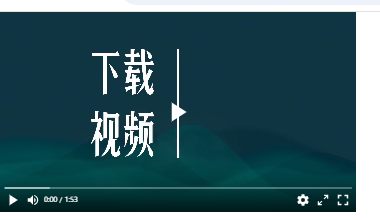

vue-video-player

vue-video-player 是一个基于 video.js 的 Vue 组件封装，
支持多种流媒体协议（如 HLS、DASH 等)

首先你需要同时安装以下:
npm install video.js vue-video-player

如加载本地视频要放在public文件下内引用

<template>
  <div>
    <video-player ref="videoPlayerRef" :options="playerOptions"  @player-ready="onPlayerReady"></video-player>
  </div>
</template>

<script>
export default {
  data() {
    return {
      playerOptions: {
        autoplay: false, // 是否自动播放
        controls: true, // 是否显示控制条
        preload: 'auto', // 预加载模式
        loop: false, // 是否循环播放
        width: 640, // 视频宽度
        height: 360, // 视频高度
        fluid: false, // 是否自适应宽度
        sources: [
          {
            type: 'video/mp4',
            src: '../public/11.mp4' // 本地加载视频放在public里面
          }
        ]
      }
    }
  },

   methods: {
    onPlayerReady(player) {
      // 播放器准备好后，在这里进行操作
      player.on('play', () => {
        console.log('视频开始播放');
      });
      player.on('pause', () => {
        console.log('视频暂停播放');
      });
      player.on('ended', () => {
        console.log('视频播放结束');
      });
    }}
}
</script>

<style scoped>
/* 可以在这里添加自定义样式 */
</style>

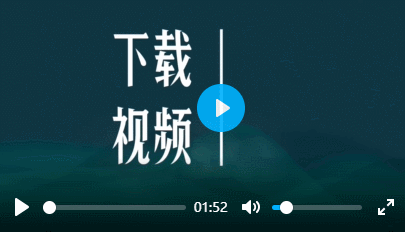

Dplayer

Dplayer同提供了播放与弹幕功能

npm i dplayer -S

npm i dplayer -S // 视频播放器插件
npm i hls.js -S  // 播放hls流插件
npm i flv.js -S  // 播放flv流插件

<template>
  <div class="main">
    <div id="dplayer" class="dplayer video-box"></div>
  </div>
</template>

<script lang='ts'>
import { reactive, toRefs, onMounted } from 'vue';
// import Hls from 'hls.js'  //用于播放hlv格式
// import Flv from 'flv.js'  //用于播放m3u8格式
import DPlayer from 'dplayer';

export default {
  name: 'VideoPlayer',
  setup() {
    const data = reactive({
      // 这里可以定义响应式数据
    });
    const loadVideo = () => {
      const dp = new DPlayer({
        container: document.getElementById('dplayer'), // 使用正确的容器 ID
        autoplay: false,//自动播放视频
        live: false, //是否直播
        muted: false, // 是否静音播放，默认情况下将会消除任何音频。
        theme: '#b7daff',//主题颜色
        loop: false,//循环播放音乐
        lang: 'zh-cn',//语言，`zh'用于中文，`en'用于英语
        screenshot: true,//启用截图功能
        hotkey: true,//绑定热键，包括左右键和空格
        preload: 'auto',//预加载的方式可以是'none''metadata''auto'，默认值：'auto'
        volume: 0,//初始化音量
        playbackSpeed: [0.5, 1, 2, 4, 8],//播放速度
        mutex: false,//互斥，阻止多个播放器同时播放，当前播放器播放时暂停其他播放器
        preventClickToggle: false,//阻止点击播放器时候自动切换播放/暂停
        logo: '',
        video: {
          pic: '../src/assets/1.png',//封面地址
          url: '../src/audio/11.mp4', //视频地址
          type: 'auto',
          notSupportedMessage: '此视频暂无法播放，请稍后再试。', // 不支持播放的消息
          // customType: {
          //   //自定义播放类型文件《type需要设置为'customHls'》
          //   customHls: function (video, player) {
          //     const hls = new Hls();
          //     hls.loadSource(video.src);
          //     hls.attachMedia(video);
          //   },
          //   customFlv: function (video, player) {
          //      //自定义播放类型文件《type需要设置为'customFlv'》
          //     const flvPlayer = FlvJs.createPlayer({
          //       type: 'flv',
          //       url: video.src,
          //     });
          //     flvPlayer.attachMediaElement(video);
          //     flvPlayer.load();
          //   },
          // },
        },
      });

      dp.volume(0, true, true); // 设置音量为0

      dp.on('loadedmetadata', () => {
        dp.play();
      });
     //视频流出问题时触发
      dp.on('error', () => {
        if (document.getElementById('dplayer')) {
          let time = Number(Math.round(dp.video.currentTime + 1));
          loadVideo();
          dp.seek(time);
        }
      });

      return dp; // 返回 DPlayer 实例
    };

    onMounted(() => {
      loadVideo(); // 确保在组件挂载后加载视频
    });

    const refData = toRefs(data);

    return {
      ...refData,
      loadVideo,
    };
  },
};
</script>

<style lang="scss" scoped>
.main{
 width: 500px;
  height: 300px;
}
.video-box {
  width: 100%;
  height: 100%;
}
// 禁用视频右键菜单
:deep(.dplayer-menu),
:deep(.dplayer-mask) {
  display: none !important;
}
// //隐藏底部操作栏
//  :deep(.dplayer-controller) {  display: none;   }
//   //隐藏底部操作栏动画
//   :deep(.dplayer-controller-mask) {  display: none;   }
</style>

easy-player

支持摄像头各种格式视频
支持对外开启录像功能
不是 npm 的官方包，通常你需要从 GitHub 或其他来源获取其源码，并手动引入到你的项目中

plyr

官网地址

支持h5音视频, YouTube 视频,Vimeo 视频,支持直播流(HLS, Dash等)
支持字幕和画中画，倍速播放，预览缩略图，快捷键控制
全屏播放，清晰度切换

npm install plyr --save

<template>
  <div>
    <!-- 视频播放器容器 -->
    <video ref="playerRef" playsinline controls style="width:450px;height:250px">
      <source src="./audio/11.mp4" type="video/mp4" />
    </video>
  </div>
</template>
<script setup>
import { onMounted, ref } from 'vue';
import Plyr from 'plyr';
import 'plyr/dist/plyr.css';

const playerRef = ref(null);

onMounted(() => {
  if (playerRef.value) {
    // 初始化 Plyr 播放器
    const player = new Plyr(playerRef.value, {
      controls: [
        'play-large', // 大播放按钮
        'play', // 播放/暂停按钮
        'progress',// 进度条
        'current-time',// 当前播放时间
        'mute',// 静音按钮
        'volume',// 音量控制
        'captions',// 字幕
        // 'settings',// 设置
        'fullscreen',// 全屏按钮
        'pip' // 开启画中画按钮
      ],
      // 缩略图配置
      seekThumbnails: {
        enabled: true,
        src: '' // 替换为实际的缩略图文件路径
      }
    });

     // 监听播放事件
    player.on('play', () => {
      console.log('视频开始播放');
    });

    // 监听暂停事件
    player.on('pause', () => {
      console.log('视频暂停播放');
    });

    // 监听播放结束事件
    player.on('ended', () => {
      console.log('视频播放结束');
    });
    // 监听画中画事件
    player.on('enterpictureinpicture', () => {
      console.log('进入画中画模式');
    });

    player.on('leavepictureinpicture', () => {
      console.log('离开画中画模式');
    });
  }
});
</script>

<style scoped>
/* 可根据需要添加自定义样式 */
</style>

NPlayer

支持任何流媒体和 B 站弹幕体验的视频播放器

官网地址

pnpm i -S nplayer @nplayer/vue

mian.ts

import {createApp} from 'vue'
import NPlayer from "@nplayer/vue";
const app = createApp(App)
app.use(NPlayer)
app.mount('#app')

简单配置

<template>
  <div id="app">
    <div id="player-container"></div>
  </div>
</template>

<script>
import { onMounted } from 'vue';
import Player from 'nplayer';

export default {
  name: 'App',
  setup() {
    onMounted(() => {
      const player = new Player({
        src: '../src/audio/11.mp4'
      });
      player.mount('#player-container'); // 将播放器挂载到 #player-container 元素上
    });

    return {};
  }
};
</script>

<style>
#player-container {
  width: 100%;
  height: 400px; /* 根据需要调整高度 */
}
</style>

弹幕功能

要实现NPlayer弹幕功能，需要安装插件@nplayer/danmaku
npm i -S @nplayer/danmaku

存储静态的弹幕列表1.ts

src/utils/1.ts

export default [
    {
        text: "口技 ",
        time: 0
    },
    {
        text: "傻袍子 ",
        time: 0,
        color: "#2196F3"
    },
    {
        text: "233真的是摔啊 ",
        time: 1,
        color: "#2196F3"
    },
    {
        text: "同时出土可以减少被吃的数量 ",
        time: 1,
        color: "#673AB7"
    },
    {
        text: "女孩子可以养一只 ",
        time: 1
    },
    {
        text: "真正的黑恶势力 ",
        time: 1,
        color: "#2196F3"
    },
    {
        text: "你 ",
        time: 1,
        color: "#673AB7"
    },
    {
        text: "开学前一天的我 ",
        time: 2,
        color: "#E91E63"
    },
    {
        text: "好灵活啊 ",
        time: 3
    },
    {
        text: "猞猁尾巴很短的 这个尾巴长 ",
        time: 4
    },
    {
        text: "碰到贝爷。。。 ",
        time: 4
    },
    {
        text: "啊啊啊啊啊啊啊啊啊啊啊 ",
        time: 4,
        color: "#673AB7"
    },
    {
        text: "非主流发型 ",
        time: 4
    },
    {
        text: "carcass。。 ",
        time: 5,
        color: "#E91E63"
    },
    {
        text: "好久沒見到老虎了啊…… ",
        time: 6,
        color: "#2196F3"
    },
    {
        text: "前面说黄鸡宠物的别跑 ",
        time: 6
    },
    {
        text: "哇 大猫 ",
        time: 6,
        color: "#2196F3"
    },
    {
        text: "鸳鸯戏水就是这么来的 ",
        time: 7
    },
    {
        text: "落叶这一幕，是梁思成与林徽因里面的！ ",
        time: 7
    },
    {
        text: "口技了得 ",
        time: 7
    },
    {
        text: "不追求难道要坐等灭绝吗。。。 ",
        time: 8
    },
    {
        text: "爪子毛茸茸的 ",
        time: 8,
        color: "#E91E63"
    },
    {
        text: "还弹起来了 ",
        time: 9
    },
    {
        text: "30厘米 ",
        time: 9
    },
    {
        text: "又被对面打野抓了 ",
        time: 10,
        color: "#673AB7"
    }
];

页面使用

<template>
  <div id="app">
    <div id="player-container"></div>
  </div>
</template>

<script>
import { onMounted } from 'vue';
import Player from 'nplayer';
import Danmaku from '@nplayer/danmaku';
import '../src/assets/styles/bilibil.css';
import items from '../src/utils/1.ts';

export default {
  name: 'App',
  setup() {
    onMounted(() => {
      // 弹幕插件配置
      const danmakuPlugin = new Danmaku({
        items,
        autoInsert: true
      });

      // 弹幕插件事件
      const danmakuEvent = {
        apply(player) {
          player.on('DanmakuSend', (opts) => {
            console.log(opts);
          });
          player.on(player.danmaku.DANMAKU_UPDATE_OPTIONS, () => {
            console.log(player.danmaku.opts);
          });
        }
      };

      // 播放器配置
      const options = {
  // 视频源文件路径
  src: '../src/audio/11.mp4',
  // 快进/快退的时间步长（秒）
  seekStep: 5,
  // 是否启用垂直音量条
  volumeVertical: true,
  // 音量条的长度
  volumeBarLength: '120px',
  // 是否启用封面
  posterEnable: true,
  // 封面图片路径
  poster: '../src/audio/1.png',
  // 插件列表，包含通用事件插件、弹幕插件和弹幕事件插件
  plugins: [
    {
      // 通用事件插件，监听播放器挂载和播放事件
      apply(player) {
        player.on('Mounted', () => console.log('mounted'));
        player.on('Play', () => console.log('play'));
      }
    },
    danmakuPlugin, // 弹幕插件实例
    danmakuEvent   // 弹幕事件处理
  ],
  // 控制栏配置，定义了控制栏中显示的按钮和组件
  controls: [
    ['play', 'volume', 'time', 'spacer', 'danmaku-settings', 'airplay', 'settings', 'web-fullscreen', 'fullscreen'], // 主控制栏
    ['progress'] // 进度条控制栏
  ]
};

      const player = new Player(options);
      player.mount('#player-container');
    });

    return {};
  }
};
</script>

<style>
#player-container {
  width: 100%;
  height: 400px; /* 根据需要调整高度 */
}

/* 自定义 Bilibili 主题样式 */
#player-container {
  background-color: #000;
  position: relative;
}

.nplayer {
  background-color: #000;
}

.nplayer__controls {
  background-color: rgba(0, 0, 0, 0.7);
}

.nplayer__controls__time {
  color: #fff;
}

.nplayer__controls__progress {
  background-color: #fff;
}

.nplayer__controls__progress__buffer {
  background-color: rgba(255, 255, 255, 0.3);
}

.nplayer__controls__progress__played {
  background-color: #fff;
}

.nplayer__controls__button {
  color: #fff;
}

.nplayer__controls__volume__slider {
  background-color: #fff;
}

.nplayer__controls__volume__slider__played {
  background-color: #fff;
}

.nplayer__controls__fullscreen {
  color: #fff;
}

.nplayer__poster {
  background-color: #000;
}

.nplayer__poster__img {
  object-fit: cover;
}

/* 弹幕样式 */
.nplayer__danmaku {
  position: absolute;
  top: 0;
  left: 0;
  width: 100%;
  height: 100%;
  pointer-events: none;
}

.nplayer__danmaku__item {
  position: absolute;
  color: #fff;
  font-size: 16px;
  white-space: nowrap;
}
</style>

海康监控H5视频播放

海康开放平台

参考

视频播放同步音波

peaks.js

npm install --save peaks.js
npm install --save konva
npm install --save waveform-data

初始化option中，只需要修改mediaElement中的dom就可以展示音频或视频波形图

<template>
  <div>
    <video ref="video" controls style="width: 800px;">
      <source src="../src/audio/11.mp4" type="video/mp4">
      Your browser does not support the video tag.
    </video>
    <div id="peak-container">
      <div id="zoomview-container" ref="zoomview"></div>
      <div id="overview-container" ref="overview"></div>
    </div>
    <!-- <div id="demo-controls">
      <audio ref="audio" id="audio" controls="controls">
        <source src="../public/01.wav" type="audio/mpeg" />
      </audio>
    </div> -->
    <div>
      <el-button @click="delel">销毁</el-button>
      <el-button @click="play">播放/暂停</el-button>
      缩略图展示的时间区间
      <el-button @click="big" id="big" ref="big">收起</el-button>
      <el-button @click="small" id="small" ref="small">展开</el-button>
      <el-button id="seek" ref="resetPaly" @click="resetPaly">重置</el-button>
      波幅调节
      <el-slider
        vertical
        height="200px"
        @input="input"
        v-model="scaleValue"
        id="amplitude-scale"
        :format-tooltip="formatTooltip"
        :step="10"
      ></el-slider>
      <el-button @click="zoomable">显示/隐藏可缩放波形图</el-button>
    </div>
  </div>
</template>
  <script>
import Peaks from "peaks.js";
const amplitudeScales = {
  0: 0.0,
  1: 0.1,
  2: 0.25,
  3: 0.5,
  4: 0.75,
  5: 1.0,
  6: 1.5,
  7: 2.0,
  8: 2.5,
  9: 3.0,
  10: 3.5,
};
export default {
  data() {
    return {
      playPause: true, //true 播放 false 暂停
      peaks: "",
      //  只能将其隐藏，dom元素需要保留
      dispaly: false,
      scaleValue: 50,
    };
  },
  created() {
    this.$nextTick(() => {
      const options = {
        zoomview: {
          container: this.$refs.zoomview,
        },
        overview: {
          container: this.$refs.overview,
        },
        // 只需要修改dom就可以展示音频或视频波形图
        mediaElement: this.$refs.video,
        webAudio: {
          audioContext: new AudioContext(),
        },
        emitCueEvents: true,
        //  //显示轴标签
        showAxisLabels: true,
      };
      Peaks.init(options, (err, peaks) => {
        if (err) {
          console.log("messge " + err);
          return;
        }
        this.peaks = peaks;
      });
    });
  },
  methods: {
    delel() {
      this.peaks.destroy();
      //必须将其src清空或video销毁，不然音频任可以播放
      this.$refs.video.src = "";
    },
    play() {
      if (this.playPause) {
        this.peaks.player.play();
        this.playPause = false;
      } else {
        this.peaks.player.pause();
        this.playPause = true;
      }
    },
    big() {
      console.log(this.peaks);
      this.peaks.zoom.zoomIn();
      console.log("收起");
    },
    small() {
      this.peaks.zoom.zoomOut();
      console.log("展开");
    },
    resetPaly() {
      this.peaks.player.seek(0.0);
      console.log("重置");
      // }
    },
    input(value) {
      let scale = amplitudeScales[value / 10];
      // 隐藏缩略图时候进行处理
      if (this.peaks.views.getView("zoomview")) {
        this.peaks.views.getView("zoomview").setAmplitudeScale(scale);
      }
      this.peaks.views.getView("overview").setAmplitudeScale(scale);
    },
    formatTooltip(val) {
      return val / 10;
    },
    zoomable() {
      let container = document.getElementById("zoomview-container");
      let zoomview = this.peaks.views.getView("zoomview");

      if (zoomview) {
        this.peaks.views.destroyZoomview();
        container.style.display = "none";
      } else {
        container.style.display = "block";
        this.peaks.views.createZoomview(container);
      }
    },
  },
};
</script>

  <style>
#zoomview-container {
  height: 300px;
}
#overview-container {
  height: 300px;
}
</style>

Wavesurfer.js

<template>
  <div>
    <div ref="waveform" style="height: 100px;"></div>
    <video
      ref="video"
      controls
      playsinline
      style="width: 100%; max-width: 600px; margin: 0 auto; display: block;">
      <source :src="audioSrc" type="video/mp4">
      Your browser does not support the video tag.
    </video>
  </div>
</template>
<script setup>
import { ref, onMounted, onBeforeUnmount, watch } from 'vue';
import WaveSurfer from 'wavesurfer.js';
// Data
const waveform = ref(null);
const video = ref(null);
const audioSrc = new URL('../src/audio/11.mp4', import.meta.url).href;
let wavesurfer = null;
// Methods
const initWaveform = () => {
  wavesurfer = WaveSurfer.create({
    container: waveform.value,
    waveColor: '#36b050',
    progressColor: '#009688',
    cursorColor: 'black',
    backend: 'MediaElement', // 使用 MediaElement 后端来支持视频元素
    mediaControls: true, // 如果您希望 WaveSurfer 控制媒体控件，请设为 true
    media: video.value, // 直接传递视频元素
  });

  // 监听 ready 事件确保 WaveSurfer 已经准备好
  wavesurfer.on('ready', () => {
    console.log('WaveSurfer is ready');
  });

  // 设置同步逻辑
  const syncVideoAndWaveSurfer = () => {
    video.value.addEventListener('play', () => wavesurfer.play());
    video.value.addEventListener('pause', () => wavesurfer.pause());
    video.value.addEventListener('seeked', () => wavesurfer.seekTo(video.value.currentTime / video.value.duration));
    wavesurfer.on('seek', (pos) => {
      video.value.currentTime = pos * video.value.duration;
    });
    wavesurfer.on('finish', () => {
      video.value.pause();
      video.value.currentTime = 0; // 可选：回到视频开始位置
    });
  };

  // 确保视频已经加载元数据后再进行同步
  watch(() => video.value.readyState, (newVal) => {
    if (newVal >= 2 && wavesurfer.isReady) {
      syncVideoAndWaveSurfer();
    }
  }, { immediate: true });

  wavesurfer.load(audioSrc); // 加载音频文件
};

// Lifecycle hooks
onMounted(() => {
  initWaveform();
});

onBeforeUnmount(() => {
  if (wavesurfer) {
    wavesurfer.destroy(); // 清理 WaveSurfer 实例
  }

  // 移除所有事件监听器以防止内存泄漏
  if (video.value) {
    video.value.removeEventListener('play', wavesurfer.play.bind(wavesurfer));
    video.value.removeEventListener('pause', wavesurfer.pause.bind(wavesurfer));
    video.value.removeEventListener('seeked', wavesurfer.seekTo.bind(wavesurfer));
  }
});
</script>

<style scoped>
/* 在这里添加样式 */
</style>
