SpringBoot操作前端传的Geojson进行空间查询

SpringBoot操作前端传的Geojson进行空间查询

项目说明:

项目技术栈:SpringBoot+MybatisPlus+postgresql

先上查询SQL

SELECT *
FROM demo
WHERE ST_Intersects(geom, ST_GeomFromGeoJSON('放geojson类型数据'));

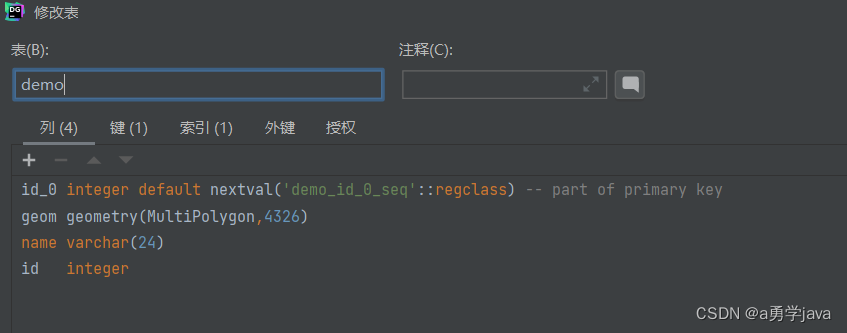

表结构

Controller层

package com.itcy.postgresql.controller;


import com.itcy.postgresql.model.Demo;
import com.itcy.postgresql.service.DemoService;
import org.locationtech.jts.geom.Geometry;
import org.springframework.beans.factory.annotation.Autowired;


import java.util.List;

/**
 * @BelongsProject: cyspring
 * @BelongsPackage: com.itcy.postgresql.controller
 * @Author: cuiYong
 * @CreateTime: 2023-08-07  09:25
 * @Description: TODO
 * @Version: 1.0
 */
@RestController
@RequestMapping("/demo")
public class DemoController {

    @Autowired
    private DemoService demoService;


    /**
     * 传入geojson数据类型查询相交情况*/
    @PostMapping("/getByGeoJson")
    public List<Demo> getByGeoJson(@RequestBody String geoJson){
        return demoService.getByGeoJson(geoJson);
    }

Service层

package com.itcy.postgresql.service;


import com.itcy.postgresql.model.Demo;
import org.locationtech.jts.geom.Geometry;
import java.util.List;

/**
 * @author 176
 */
public interface DemoService {

    /**
     * 传入geojson数据类型查询相交情况*/
    List<Demo> getByGeoJson(String geoJson);
}

ServiceImpl层

package com.itcy.postgresql.service.impl;

import com.itcy.postgresql.mapper.DemoMapper;
import com.itcy.postgresql.model.Demo;
import com.itcy.postgresql.service.DemoService;
import org.locationtech.jts.geom.Geometry;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;

/**
 * @author 176
 */
@Service
public class DemoServiceImpl implements DemoService {


    @Override
    public List<Demo> getByGeoJson(String geoJson) {
        return demoMapper.getByGeoJson(geoJson);
    }
}

Mapper层

package com.itcy.postgresql.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.itcy.postgresql.model.Demo;
import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;
import org.locationtech.jts.geom.Geometry;

import java.util.List;

@Mapper
public interface DemoMapper extends BaseMapper<China> {
    List<Demo> getByGeoJson(String geoJson);
}

DemoMapper.xml

<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.itcy.postgresql.mapper.DemoMapper">

<!--传入geojson查询数据库-->
    <select id="getByGeoJson" resultType="com.itcy.postgresql.model.Demo">
        SELECT *
        FROM demo
        WHERE ST_Intersects(geom, ST_GeomFromGeoJSON('${geoJson}'));
    </select>
</mapper>

pom.xml

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

<!--        springboot 整合junit-->
        <dependency>
            <groupId>junit</groupId>
            <artifactId>junit</artifactId>
            <version>4.12</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
            <scope>compile</scope>
        </dependency>

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.4.2</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
        </dependency>

<!--    json数据的转换的工具    -->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.76</version>
        </dependency>

        <dependency>
            <groupId>commons-lang</groupId>
            <artifactId>commons-lang</artifactId>
            <version>2.6</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>

        <!-- postgresql -->
        <dependency>
            <groupId>org.postgresql</groupId>
            <artifactId>postgresql</artifactId>
        </dependency>
        <!-- PostGis -->
        <dependency>
            <groupId>net.postgis</groupId>
            <artifactId>postgis-jdbc</artifactId>
            <version>2.5.0</version>
        </dependency>
        <!-- 引入 Geometry 相关类 -->
        <dependency>
            <groupId>org.locationtech.jts</groupId>
            <artifactId>jts-core</artifactId>
            <version>1.16.1</version>
        </dependency>
        <dependency>
            <groupId>org.locationtech.spatial4j</groupId>
            <artifactId>spatial4j</artifactId>
            <version>0.7</version>
        </dependency>
        <!-- Geometry 转 JSON 需要 -->
        <dependency>
            <groupId>com.graphhopper.external</groupId>
            <artifactId>jackson-datatype-jts</artifactId>
            <version>1.0-2.7</version>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>1.1.23</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>

    </dependencies>
    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>2.4.5</version>
            </plugin>
        </plugins>
    </build>
