一、 微信公众号
1、详情网址
微信开发平台(微信公众平台)
微信官方文档(微信官方文档 | 微信开放文档)
微信公众平台接口调试工具(微信公众平台接口调试工具)
内网穿透工具(几款免费内网穿透工具测评使用 - 哔哩哔哩)
2、使用测试号
①、微信公众平台

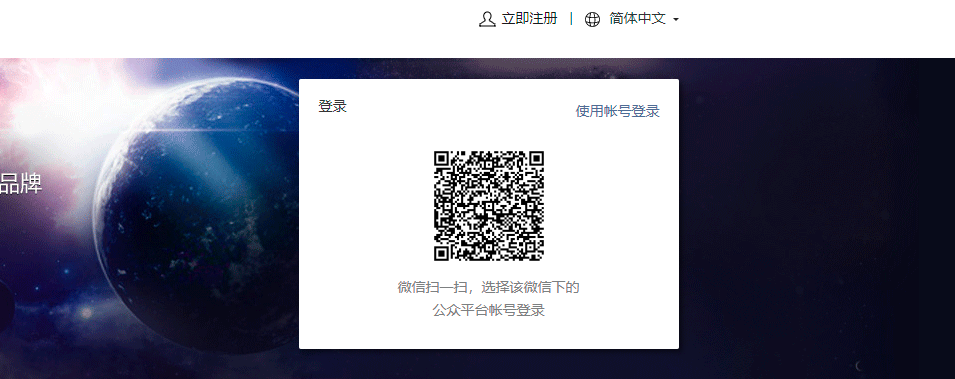

可以进行登录或注册:

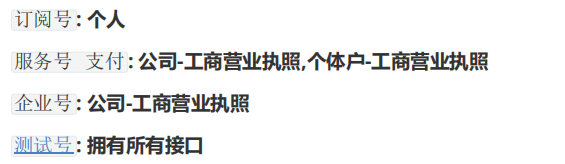

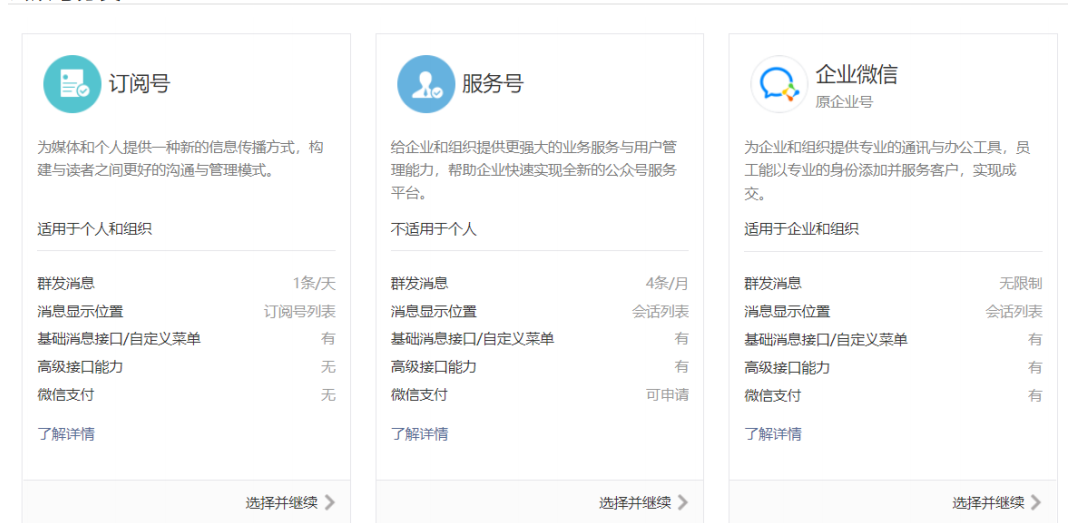

公众号分类

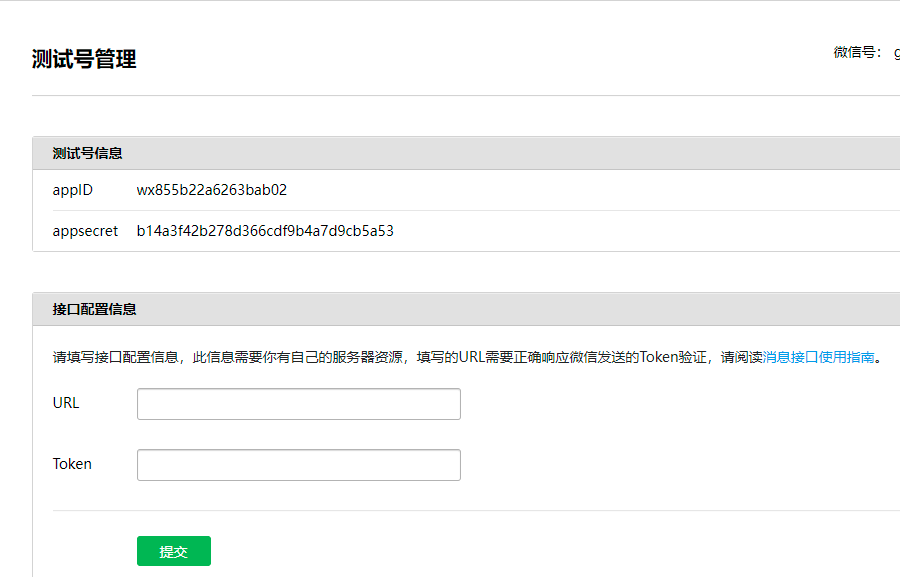

使用微信测试号登陆

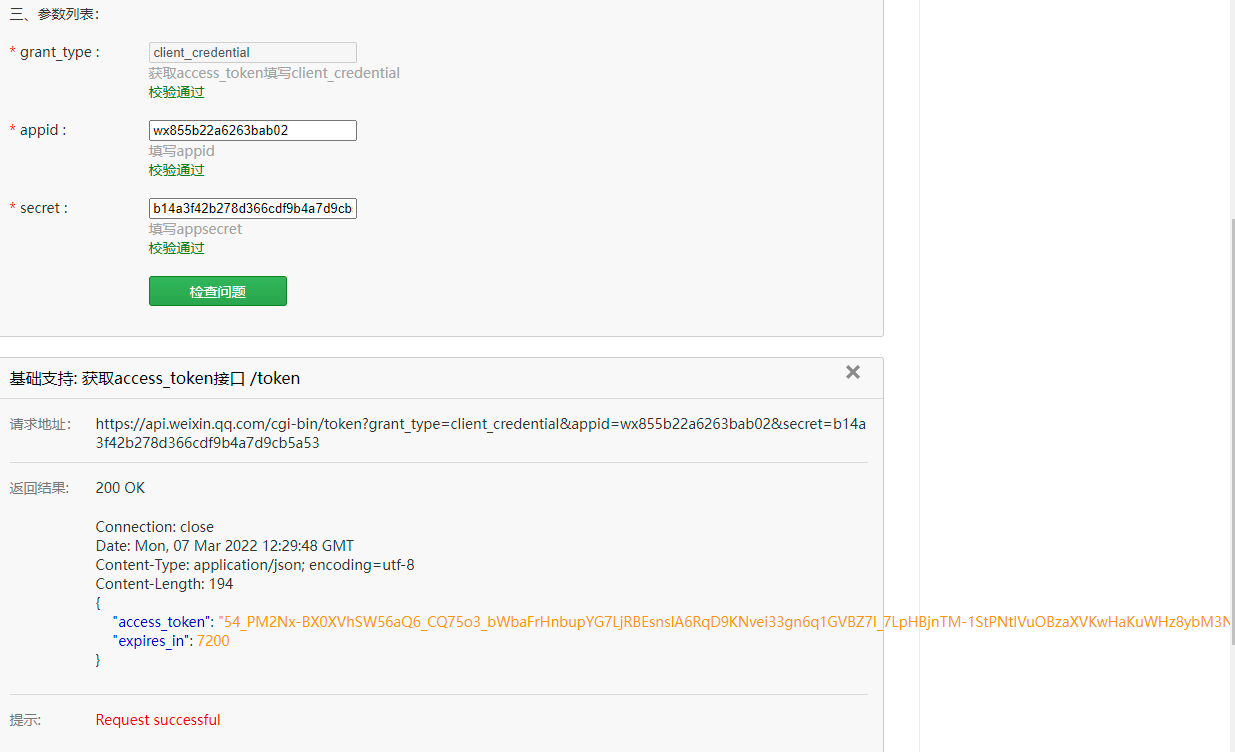

获取令牌access_token
access_token是公众号的全局唯一接口调用凭据,公众号调用各接口时都需使用access_token。开发者需要进行妥善保存。access_token的存储至少要保留512个字符空间。access_token的有效期目前为2个小时,需定时刷新,重复获取将导致上次获取的access_token失效。
使用网页调试工具
生成的令牌不要存在数据里面因为它只会存在俩小时

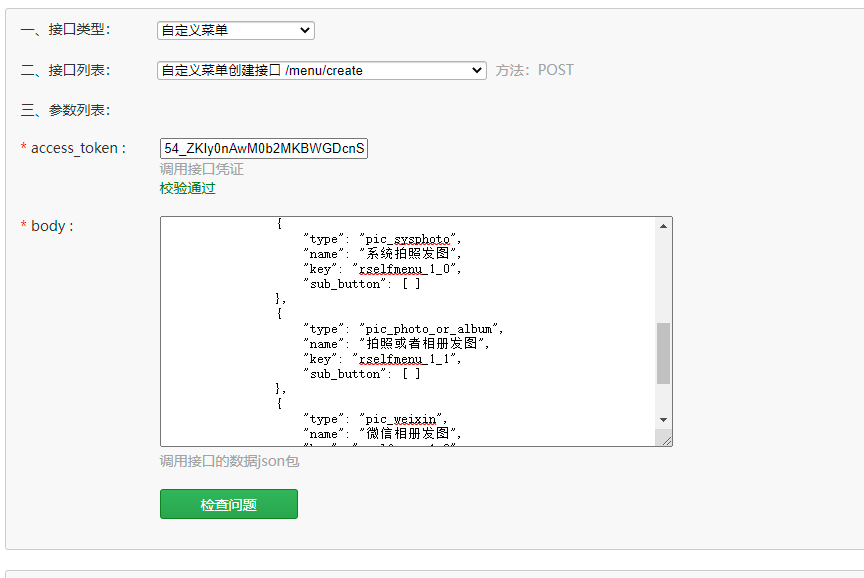

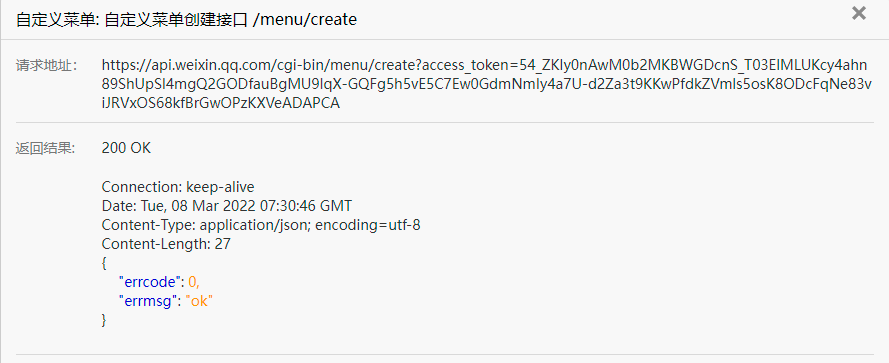

生成菜单栏
请注意:
- 自定义菜单最多包括3个一级菜单,每个一级菜单最多包含5个二级菜单。
- 一级菜单最多4个汉字,二级菜单最多8个汉字,多出来的部分将会以“...”代替。
- 创建自定义菜单后,菜单的刷新策略是,在用户进入公众号会话页或公众号profile页时,如果发现上一次拉取菜单的请求在5分钟以前,就会拉取一下菜单,如果菜单有更新,就会刷新客户端的菜单。测试时可以尝试取消关注公众账号后再次关注,则可以看到创建后的效果。
内容body
{
"button": [
{
"name": "扫码",
"sub_button": [
{
"type": "scancode_waitmsg",
"name": "扫码带提示",
"key": "rselfmenu_0_0",
"sub_button": [ ]
},
{
"type": "scancode_push",
"name": "扫码推事件",
"key": "rselfmenu_0_1",
"sub_button": [ ]
}
]
},
{
"name": "发图",
"sub_button": [
{
"type": "pic_sysphoto",
"name": "系统拍照发图",
"key": "rselfmenu_1_0",
"sub_button": [ ]
},
{
"type": "pic_photo_or_album",
"name": "拍照或者相册发图",
"key": "rselfmenu_1_1",
"sub_button": [ ]
},
{
"type": "pic_weixin",
"name": "微信相册发图",
"key": "rselfmenu_1_2",
"sub_button": [ ]
}
]
}
]
}

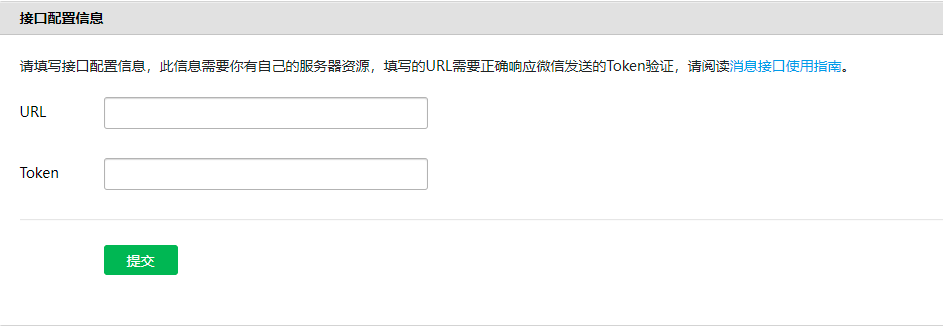

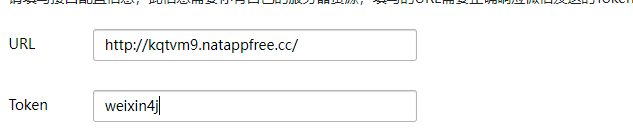

接口配置信息
URL:ip需要与域名绑定,并且需要到公安/网上备案
所以此处不支持IP的,将它变成域名,我使用了内网穿透工具:NATAPP-内网穿透 基于ngrok的国内高速内网映射工具

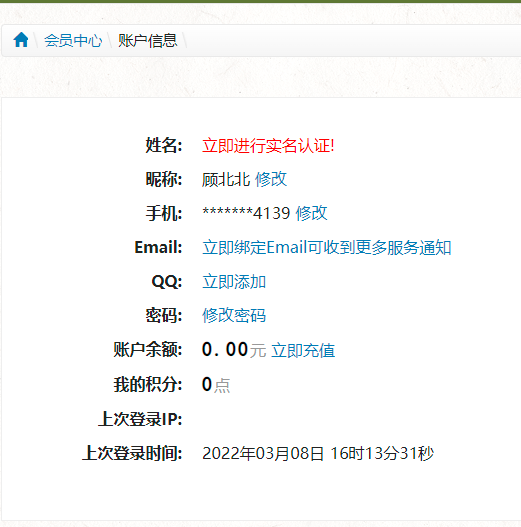

注册一个账号 记得实名不然用不了

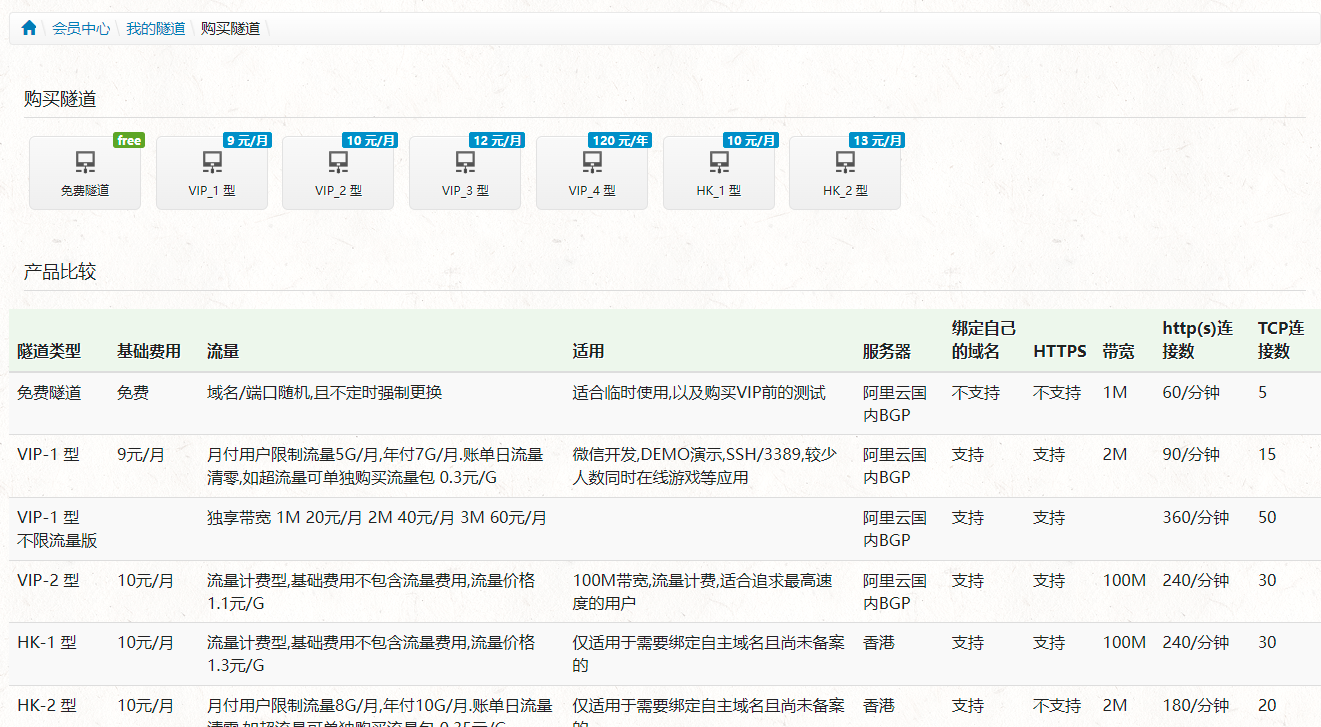

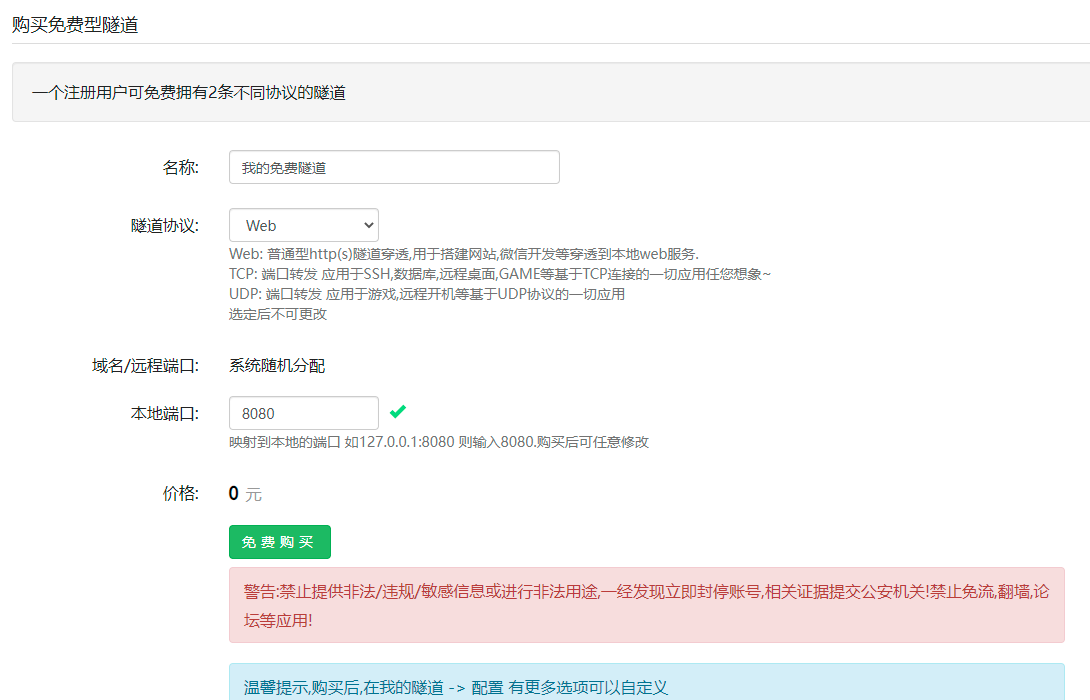

可以购买免费的隧道

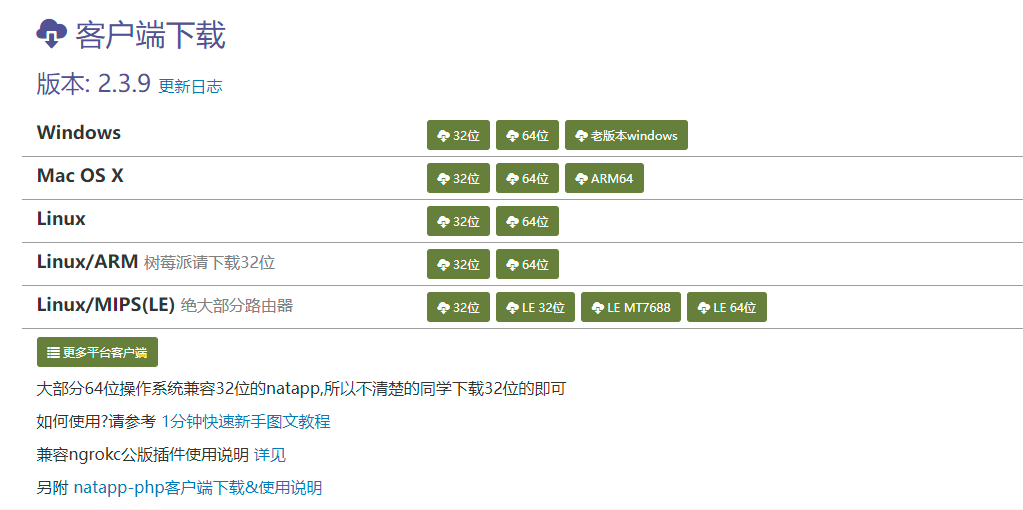

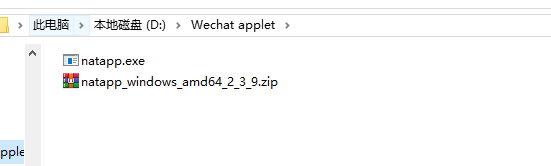

下载客户端然后解压
需要找到兼容特殊编码的config.ini文件
#将本文件放置于natapp同级目录 程序将读取 [default] 段
#在命令行参数模式如 natapp -authtoken=xxx 等相同参数将会覆盖掉此配置
#命令行参数 -config= 可以指定任意config.ini文件
[default]
authtoken=2d435010b1baff62 #对应一条隧道的authtoken
clienttoken= #对应客户端的clienttoken,将会忽略authtoken,若无请留空,
log=none #log 日志文件,可指定本地文件, none=不做记录,stdout=直接屏幕输出 ,默认为none
loglevel=ERROR #日志等级 DEBUG, INFO, WARNING, ERROR 默认为 DEBUG
http_proxy= #代理设置 如 http10.123.10.103128 非代理上网用户请务必留空

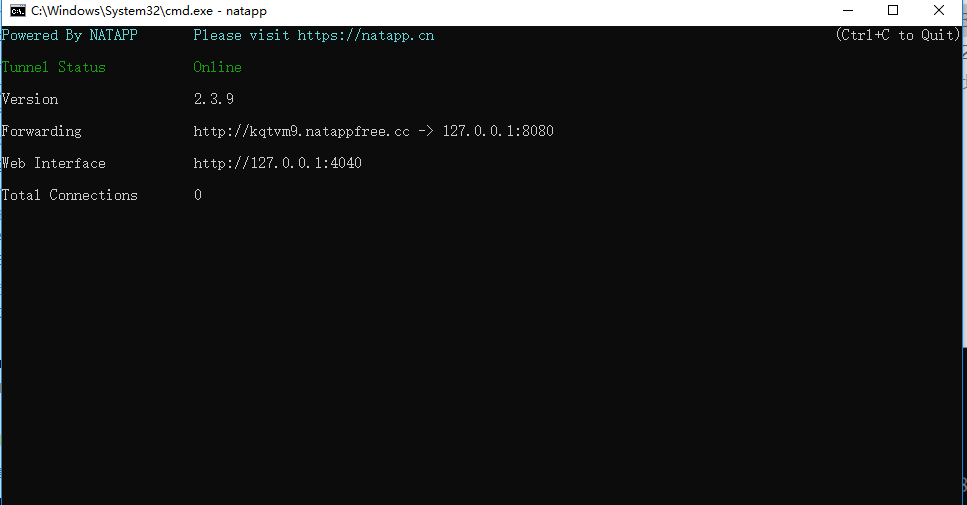

进入cmd 输入natapp

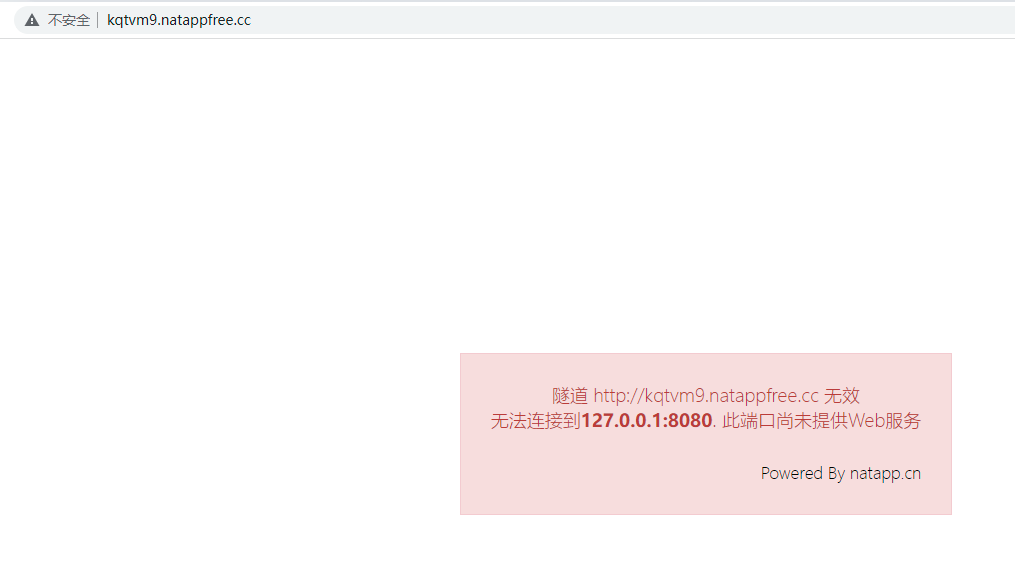

本地还没有开8080端口
配置后台,开启8080端口

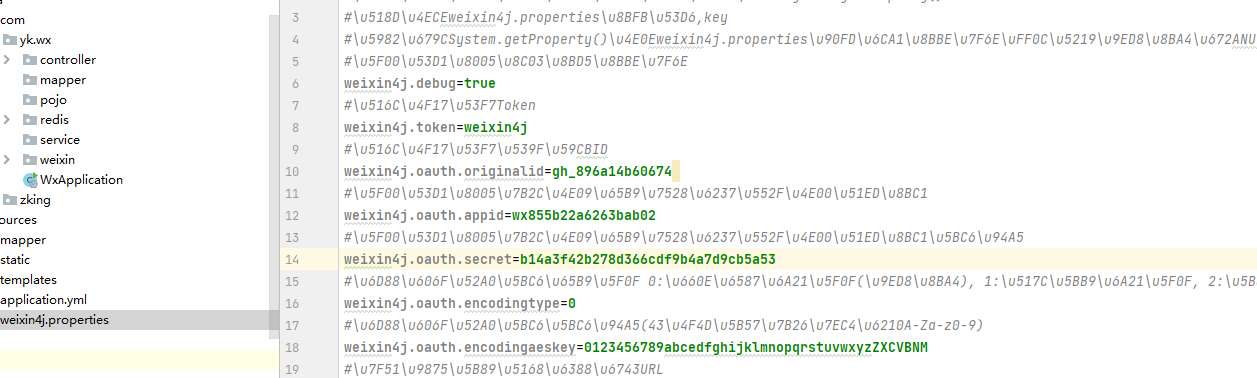

token要保持一致
开启redis,在yml文件中配置
server:
port: 8080
spring:
datasource:
driver-class-name: com.mysql.cj.jdbc.Driver
url: jdbc:mysql://localhost:3306/wx?useUnicode=true&characterEncoding=utf8&serverTimezone=GMT%2B8&useSSL=false
username: root
password: root123
redis:
database: 0 # Redis数据库索引(默认为0 redis有16个库)
host: 47.100.191.44 # Redis服务器地址
port: 6379 # Redis服务器连接端口
password: xiaoli_redis # Redis服务器连接密码(默认为空)
jedis:
pool:
max-active: 100 # 连接池最大连接数(使用负值表示没有限制)
max-idle: 10 # 连接池中的最大空闲连接
min-idle: 0 # 连接池中的最小空闲连接
max-wait: -1 # 连接池最大阻塞等待时间(使用负值表示没有限制)
timeout: 5000 # 连接超时时间(毫秒),不能设置为0,时间太短连接不上会报错
freemarker:
allow-request-override: false
request-context-attribute: req
suffix: .ftl
content-type: text/html;charset=UTF-8
enabled: true
cache: false
template-loader-path: classpath:/templates/
charset: UTF-8
application:
name: wx
导入依赖
<dependency>
<groupId>org.weixin4j.spring.boot</groupId>
<artifactId>weixin4j-spring-boot-starter</artifactId>
<version>1.0.0</version>
</dependency>
后台文件:
package com.yk.wx.controller;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.weixin4j.spring.web.WeixinJieruController;
/**
* 微信开发者接入
*/
@Controller
@RequestMapping("/jieru")
@SuppressWarnings("all")
public class JieruController extends WeixinJieruController {
}
在url后面加上jieru

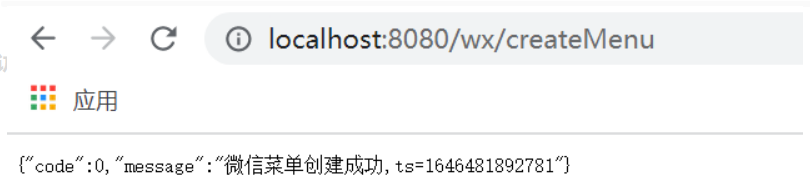

创建菜单:
package com.yk.wx.controller;
import lombok.extern.slf4j.Slf4j;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.weixin4j.Configuration;
import org.weixin4j.Weixin;
import org.weixin4j.component.MenuComponent;
import org.weixin4j.model.base.Token;
import org.weixin4j.model.menu.Menu;
import org.weixin4j.model.menu.SingleButton;
import org.weixin4j.model.menu.ViewButton;
import org.weixin4j.spring.WeixinTemplate;
import javax.servlet.http.HttpServletRequest;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
@Controller
@RequestMapping("/wx")
@Slf4j
@SuppressWarnings("all")
public class WeixinController {
private WeixinTemplate weixinTemplate;
@Autowired
public WeixinController(WeixinTemplate weixinTemplate) {
this.weixinTemplate = weixinTemplate;
}
public static void main(String[] args) throws Exception {
Weixin weixin = new Weixin();
weixin.base().token();
Token token = weixin.getToken();
System.out.println(token);
}
@RequestMapping("/createMenu")
@ResponseBody
public Map<String, Object> createMenu(Model model, HttpServletRequest request) {
log.info("WeixinController.createMenu");
String ctx = request.getScheme() + "://" + request.getServerName() + ":" + request.getServerPort() + request.getContextPath();
log.info("ctx=" + ctx);
Map<String, Object> jsonData = new HashMap<String, Object>();
jsonData.put("code", 0);
jsonData.put("message", "微信菜单创建成功,ts=" + System.currentTimeMillis());
try {
Menu menu = new Menu();
//创建菜单按钮
List<SingleButton> buttons = new ArrayList<SingleButton>();
menu.setButton(buttons);
SingleButton btn1 = new ViewButton("主界面", ctx + "/toMain");
buttons.add(btn1);
SingleButton btn2 = new ViewButton("更多", ctx + "/toHello");
buttons.add(btn2);
SingleButton btn3 = new ViewButton("还想要", ctx + "/toHello");
buttons.add(btn3);
//设置子菜单
System.out.println(menu.toJSONObject().toString());
//创建自定义菜单
Weixin weixin = weixinTemplate.getWeixinFactory().getWeixin();
MenuComponent menu1 = weixin.menu();
menu1.create(menu);
model.addAttribute("message", "微信菜单创建成功");
} catch (Exception e) {
log.error(e.getMessage());
jsonData.put("code", -1);
jsonData.put("message", "微信菜单创建失败,原因:" + e.getMessage());
}
return jsonData;
}
@RequestMapping("/test1")
@ResponseBody
public Map<String, Object> test1() {
log.info("WeixinController.test1");
Map<String, Object> jsonData = new HashMap<String, Object>();
System.out.println("test");
String s1 = Configuration.getProperty("weixin4j.message.handler.normal");
String s2 = Configuration.getProperty("weixin4j.message.handler.event");
jsonData.put("weixin4j.message.handler.normal", s1);
jsonData.put("weixin4j.message.handler.event", s2);
return jsonData;
}
}
