mpls ldp实验（一）

实验需求

R1、R2、R3和R4之间运行了IGP协议，已经实现了IP层面的互联互通。

需求：通过配置MPLS以及LDP，使得192.168.10.0/24网段和192.168.20.0/24网段，可以通过标签交换的方式实现互访

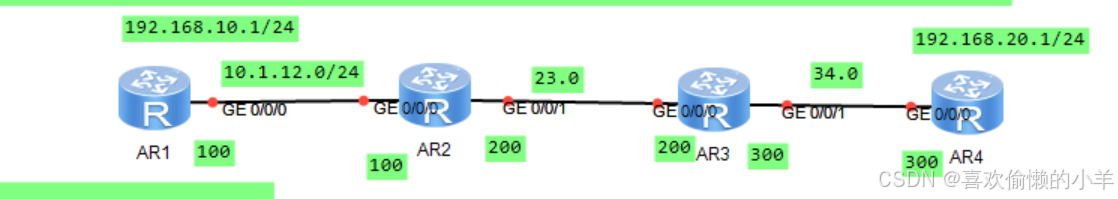

组网图

实验思路

1、基本链路通信以及配置IGP协议

2、配置mpls  ldp

基本链路通信以及配置IGP协议

R1

[R1]int  g0/0/0
[R1-GigabitEthernet0/0/0]ip ad 10.1.12.1  24
[R1-GigabitEthernet0/0/0]int  loo0
[R1-LoopBack0]ip ad 192.168.10.1  24
[R1-LoopBack0]ospf
[R1-ospf-1]area 0
[R1-ospf-1-area-0.0.0.0]net 10.1.12.1  0.0.0.0
[R1-ospf-1-area-0.0.0.0]net 192.168.10.0  0.0.0.255
[R1-ospf-1-area-0.0.0.0]q
[R1-ospf-1]q

R2

[R2]int  g0/0/0
[R2-GigabitEthernet0/0/0]ip ad 10.1.12.2  24
[R2-GigabitEthernet0/0/0]int g0/0/1
[R2-GigabitEthernet0/0/1]ip ad 10.1.23.1  24
[R2-GigabitEthernet0/0/1]int  loo0
[R2-LoopBack0]ip ad 22.1.1.1  24
[R2-LoopBack0]q
[R2]ospf
[R2-ospf-1]area 0
[R2-ospf-1-area-0.0.0.0]net 10.1.12.2  0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 22.1.1.1  0.0.0.0
[R2-ospf-1-area-0.0.0.0]net 10.1.23.1 0.0.0.0
[R2-ospf-1-area-0.0.0.0]q
[R2-ospf-1]q

R3

[R3]int  g0/0/0
[R3-GigabitEthernet0/0/0]ip ad 10.1.23.2  24
[R3-GigabitEthernet0/0/0]int g0/0/1
[R3-GigabitEthernet0/0/1]ip ad 10.1.34.1  24
[R3-GigabitEthernet0/0/1]int  loo0
[R3-LoopBack0]ip ad 33.1.1.1  24
[R3-LoopBack0]q
[R3]ospf
[R3-ospf-1]area 0
[R3-ospf-1-area-0.0.0.0]net 10.1.23.2  0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 33.1.1.1  0.0.0.0
[R3-ospf-1-area-0.0.0.0]net 10.1.34.1 0.0.0.0
[R3-ospf-1-area-0.0.0.0]q
[R3-ospf-1]q

R4

[R4]int  g0/0/0
[R4-GigabitEthernet0/0/0]ip ad 10.1.34.2  24
[R4-GigabitEthernet0/0/0]int  loo0
[R4-LoopBack0]ip ad 192.168.20.1  24
[R4-LoopBack0]ospf
[R4-ospf-1]area 0
[R4-ospf-1-area-0.0.0.0]net 10.1.34.2  0.0.0.0
[R4-ospf-1-area-0.0.0.0]net 192.168.20.0  0.0.0.255
[R4-ospf-1-area-0.0.0.0]q
[R4-ospf-1]q

mpls  ldp配置

R1

[R1]mpls lsr-id  192.168.10.1
[R1]mpls
Info: Mpls starting, please wait... OK!
[R1-mpls]q
[R1]mpls ldp
[R1-mpls-ldp]q
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]mpls
[R1-GigabitEthernet0/0/0]mpls ldp
[R1-GigabitEthernet0/0/0]q
[R1]mpls ldp remote-peer r4
[R1-mpls-ldp-remote-r4]remote-ip 192.168.20.1
[R1-mpls-ldp-remote-r4]dis th
[V200R003C00]
#
mpls ldp remote-peer r4
 remote-ip 192.168.20.1
#
return
[R1-mpls-ldp-remote-r4]q

R4

[R4]mpls lsr-id 192.168.20.1
[R4]mpls
Info: Mpls starting, please wait... OK!
[R4-mpls]q
[R4]mpls ldp
[R4-mpls-ldp]q
[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]mpls
[R4-GigabitEthernet0/0/0]mpls ldp
[R4-GigabitEthernet0/0/0]q
[R4]mpls ldp remote-peer r1
[R4-mpls-ldp-remote-r1]remote-ip 192.168.10.1
[R4-mpls-ldp-remote-r1]dis th
[V200R003C00]
#
mpls ldp remote-peer r1
 remote-ip 192.168.10.1
#
return
[R4-mpls-ldp-remote-r1]q
[R4]dis mpls ldp peer

 LDP Peer Information in Public network
 A '*' before a peer means the peer is being deleted.
 ------------------------------------------------------------------------------
 PeerID                 TransportAddress   DiscoverySource
 ------------------------------------------------------------------------------
 192.168.10.1:0         192.168.10.1       Remote Peer : r1
 ------------------------------------------------------------------------------
 TOTAL: 1 Peer(s) Found.

[R4]

mpls配置

R1

[R1]static-lsp ingress 1-4 destination 192.168.20.0 24 nexthop 10.1.12.2 outgoin
g-interface g0/0/0 out-label 100

R2

[R2]mpls lsr-id 22.1.1.1
[R2]mp
[R2]mpls
Info: Mpls starting, please wait... OK!
[R2-mpls]q
[R2]int g0/0/01
[R2-GigabitEthernet0/0/1]mp
[R2-GigabitEthernet0/0/1]mpls
[R2-GigabitEthernet0/0/1]int g0/0/0
[R2-GigabitEthernet0/0/0]mp
[R2-GigabitEthernet0/0/0]mpls
[R2-GigabitEthernet0/0/0]q
[R2]static-lsp  transit 1-4 incoming-interface g0/0/0 in-label 100 nexthop 10.1.
23.2  outgoing-interface g0/0/1 out-label 200

R3

[R3]mpls
Info: Mpls starting, please wait... OK!
[R3-mpls]
[R3-mpls]q
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]mpls
[R3-GigabitEthernet0/0/0]int g0/0/1
[R3-GigabitEthernet0/0/1]mpls
[R3-GigabitEthernet0/0/1]q
[R3]static-lsp  transit  1-4 incoming-interface  g0/0/0 in-label 200 nexthop 10.
1.34.2 outgoing-interface g0/0/1 out-label 300

R4

[R4]static-lsp  egress 1-4 incoming-interface g0/0/0 in-label 300

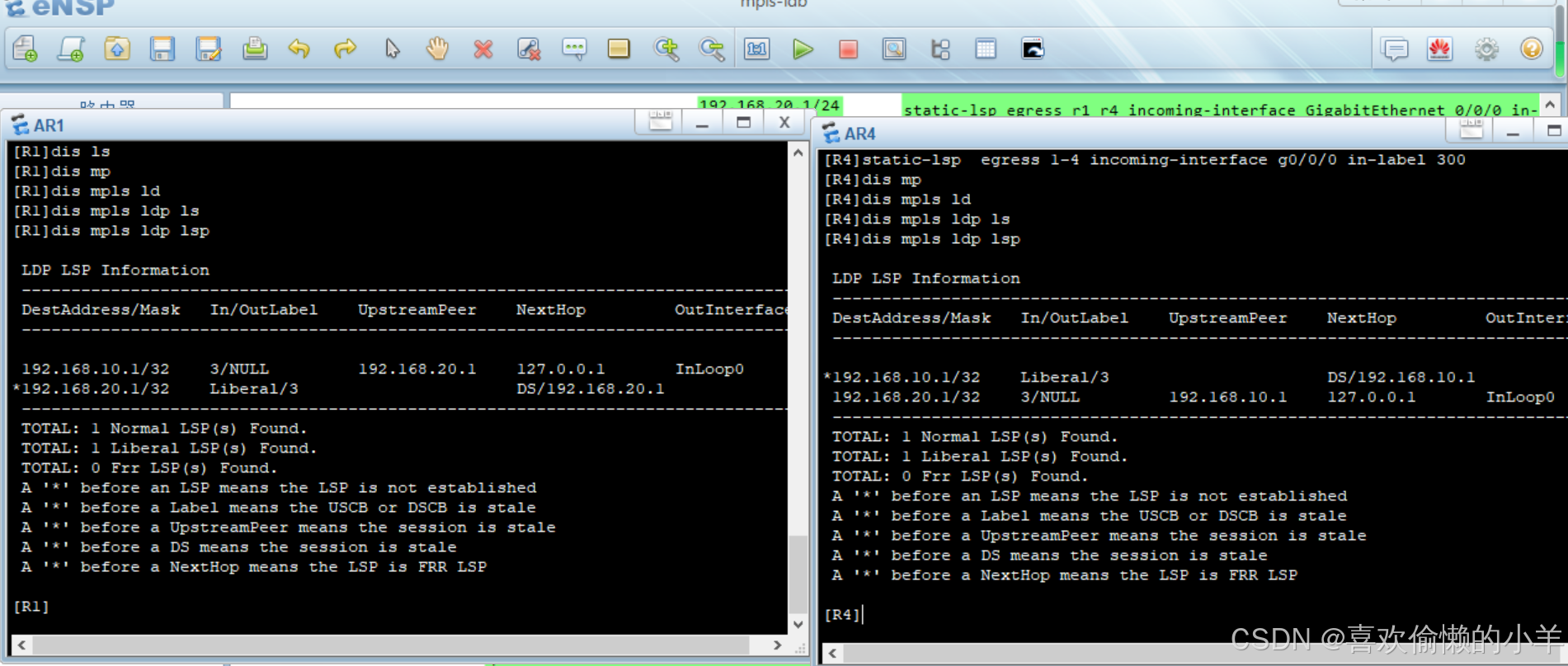

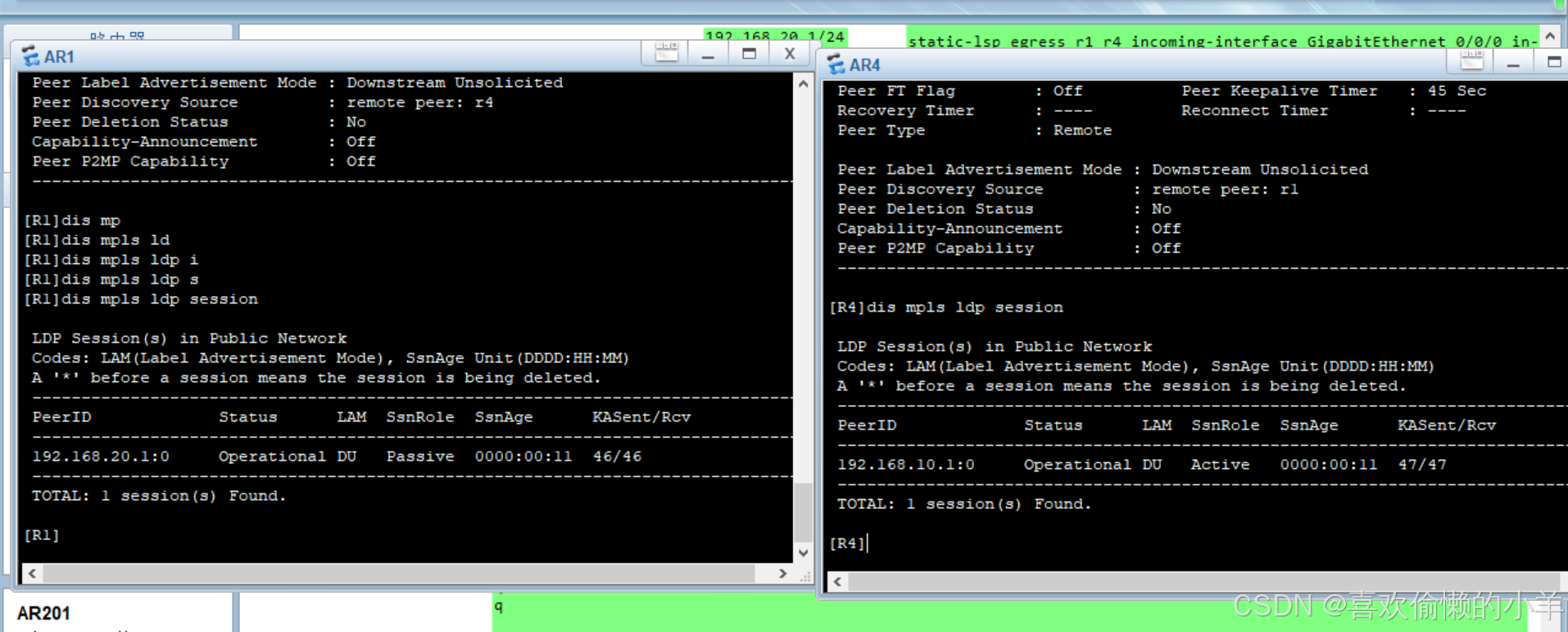

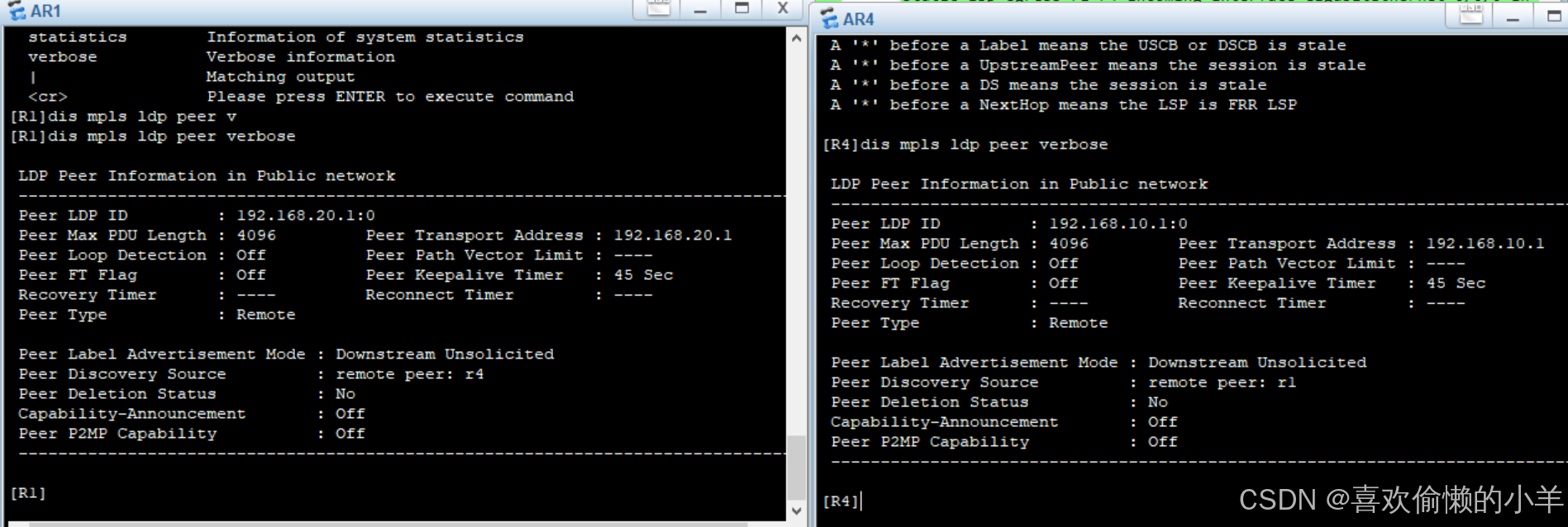

查看结果

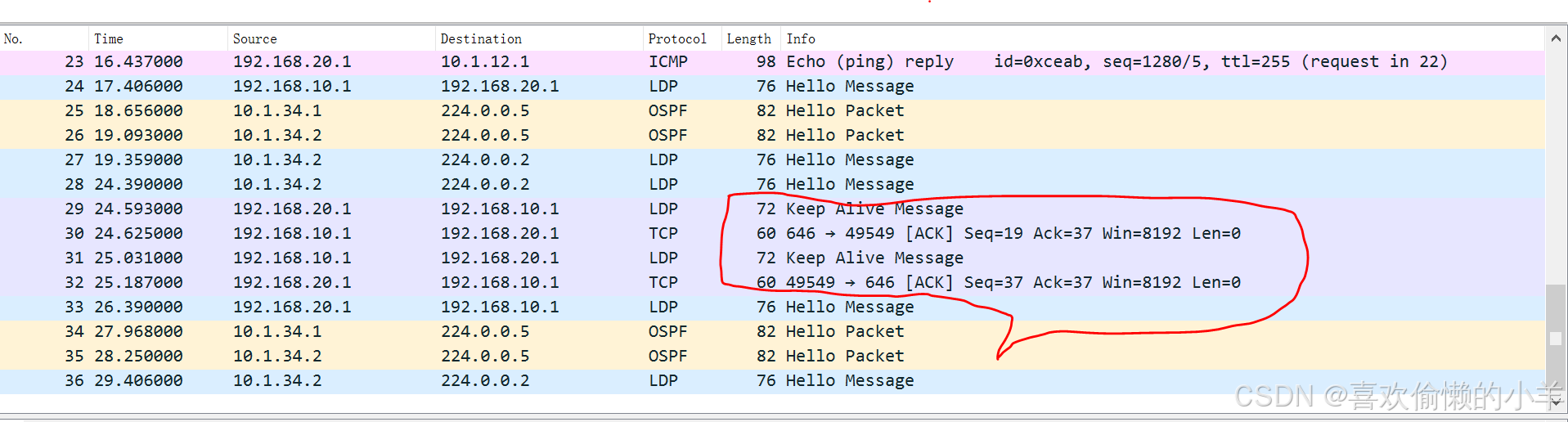

抓包查看

没问题，实验成功
