【动物识别】基于飞桨Paddle的动物分类识别软件设计

【动物识别】基于飞桨Paddle的动物分类识别软件设计

动物识别 猫狗识别

1.1实验内容

1. 了解深度学习的基本原理；
2. 能够使用 PaddleHub 深度学习开源工具进行图像识别和分类；
3. 能够使用 PaddlePaddle 项目完成动物分类实验；
4. 能够使用 Pycharm 完成 Paddle 项目的移植，并完成动物分类实验；
5. 能够使用 Pyqt5 设计软件的可视化界面并调用移植后的动物分类程序。




1.2实验方法及步骤

先创建虚拟环境

conda create --name dw python=3.8

安装需要的库

conda activate dw
pip install PyQt5
pip install PyQt5-tools
pip install PyQt5 PyQtWebEngine
conda install matplotlib
pip install paddlepaddle
pip install paddlehub
pip install opencv-python

如果速度慢可以自行换源，就是缺什么安装什么
创建一个python 文件 recognize.py

import sys
from PyQt5.QtWidgets import QApplication, QMainWindow
from tes1 import Ui_MainWindow

from PyQt5 import QtCore, QtGui, QtWidgets
from PyQt5.QtWidgets import QGraphicsWidget, QApplication, QFileDialog
from PyQt5.QtGui import *
from PyQt5.QtCore import *

class MyMainWin(QMainWindow, Ui_MainWindow):

    def __init__(self, parent=None):
        super(MyMainWin, self).__init__(parent)
        self.setupUi(self)
        self.Select.clicked.connect(self.openfile)
        self.ClassButton.clicked.connect(self.recongonise)

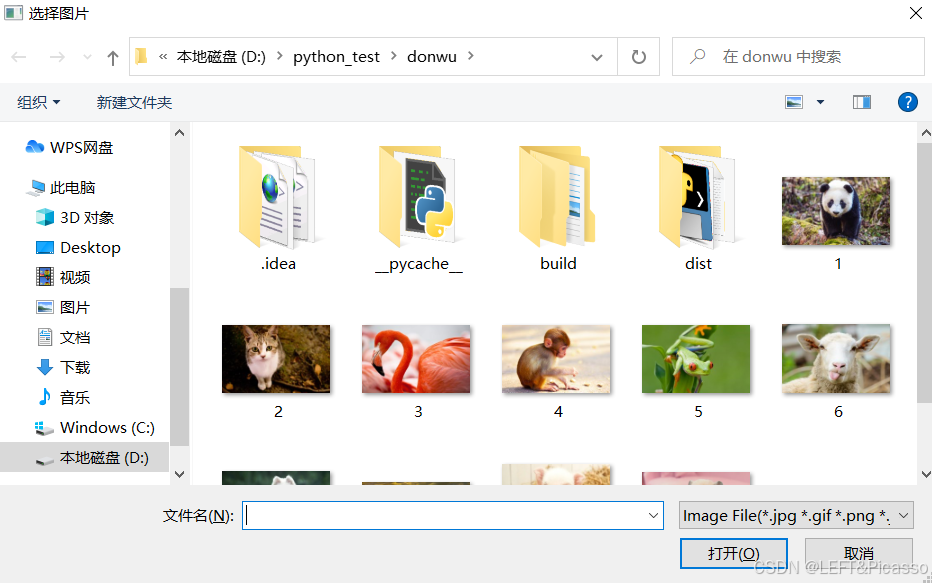

    def openfile(self):
        self.download_path = QFileDialog.getOpenFileName(self.centralwidget, "选择图片", "D:\python_test\donwu","Image File(*.jpg *.gif *.png *.jpeg)")
        print(self.download_path[0])
        if not self.download_path[0].strip():
            pass
        else:
            scarePixmap = QtGui.QPixmap(self.download_path[0]).scaled(self.tupian.width(), self.tupian.height())
            self.tupian.setPixmap(scarePixmap)
        with open('test.txt', 'w') as f:
            f.write(self.download_path[0])


    def  recongonise(self):
        import matplotlib.pyplot as plt
        import matplotlib.image as mpimg
        with open('test.txt', 'r') as f:
            test_img_path = []
            for line in f:
                test_img_path.append(line.strip())

        with open('test.txt', 'r') as f:
            test_img_path = []
            for line in f:
                test_img_path.append(line.strip())

        import paddlehub as hub
        module = hub.Module(name="mobilenet_v2_animals")
        import cv2
        image_path= test_img_path
        np_images =[cv2.imread(test_img_path[0]) ]
        results = module.classification(images=np_images)
        #for result in results:

        for result in results:
            str1=str(list(result.keys()))
            str2=str(list(result.values()))

            self.b.setText(str2)
            self.c.setText(str1)





if __name__ == '__main__':
    app = QApplication(sys.argv)
    mywindow = MyMainWin()
    mywindow.show()
    app.exec()

再创建一个test1.py文件

# -*- coding: utf-8 -*-

# Form implementation generated from reading ui file 'tes1.ui'
#
# Created by: PyQt5 UI code generator 5.15.4
#
# WARNING: Any manual changes made to this file will be lost when pyuic5 is
# run again.  Do not edit this file unless you know what you are doing.


from PyQt5 import QtCore, QtGui, QtWidgets


class Ui_MainWindow(object):
    def setupUi(self, MainWindow):
        MainWindow.setObjectName("MainWindow")
        MainWindow.resize(800, 600)
        self.centralwidget = QtWidgets.QWidget(MainWindow)
        self.centralwidget.setObjectName("centralwidget")
        self.Select = QtWidgets.QPushButton(self.centralwidget)
        self.Select.setGeometry(QtCore.QRect(100, 430, 121, 51))
        self.Select.setObjectName("Select")
        self.ClassButton = QtWidgets.QPushButton(self.centralwidget)
        self.ClassButton.setGeometry(QtCore.QRect(370, 430, 121, 51))
        self.ClassButton.setObjectName("ClassButton")
        self.dongwuzhonglei = QtWidgets.QTextBrowser(self.centralwidget)
        self.dongwuzhonglei.setGeometry(QtCore.QRect(540, 70, 201, 51))
        self.dongwuzhonglei.setStyleSheet("background-color: rgb(170, 255, 127);")
        self.dongwuzhonglei.setObjectName("dongwuzhonglei")
        self.zhengquelv = QtWidgets.QTextEdit(self.centralwidget)
        self.zhengquelv.setGeometry(QtCore.QRect(540, 220, 201, 51))
        self.zhengquelv.setStyleSheet("background-color: rgb(170, 255, 127);")
        self.zhengquelv.setObjectName("zhengquelv")
        self.textEdit = QtWidgets.QTextEdit(self.centralwidget)
        self.textEdit.setGeometry(QtCore.QRect(250, 10, 251, 51))
        self.textEdit.setObjectName("textEdit")
        self.tupian = QtWidgets.QLabel(self.centralwidget)
        self.tupian.setGeometry(QtCore.QRect(60, 100, 381, 291))
        self.tupian.setStyleSheet("background-color: rgb(255, 255, 255);")
        self.tupian.setText("")
        self.tupian.setObjectName("tupian")
        self.b = QtWidgets.QTextBrowser(self.centralwidget)
        self.b.setGeometry(QtCore.QRect(490, 330, 281, 41))
        self.b.setObjectName("b")
        self.c = QtWidgets.QTextBrowser(self.centralwidget)
        self.c.setGeometry(QtCore.QRect(490, 150, 281, 31))
        self.c.setObjectName("c")
        MainWindow.setCentralWidget(self.centralwidget)
        self.menubar = QtWidgets.QMenuBar(MainWindow)
        self.menubar.setGeometry(QtCore.QRect(0, 0, 800, 26))
        self.menubar.setObjectName("menubar")
        MainWindow.setMenuBar(self.menubar)
        self.statusbar = QtWidgets.QStatusBar(MainWindow)
        self.statusbar.setObjectName("statusbar")
        MainWindow.setStatusBar(self.statusbar)

        self.retranslateUi(MainWindow)
        QtCore.QMetaObject.connectSlotsByName(MainWindow)

    def retranslateUi(self, MainWindow):
        _translate = QtCore.QCoreApplication.translate
        MainWindow.setWindowTitle(_translate("MainWindow", "动物识别软件"))
        self.Select.setText(_translate("MainWindow", "Select"))
        self.ClassButton.setText(_translate("MainWindow", "ClassButton"))
        self.dongwuzhonglei.setHtml(_translate("MainWindow", "<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 4.0//EN\" \"http://www.w3.org/TR/REC-html40/strict.dtd\">\n"
"<html><head><meta name=\"qrichtext\" content=\"1\" /><style type=\"text/css\">\n"
"p, li { white-space: pre-wrap; }\n"
"</style></head><body style=\" font-family:\'SimSun\'; font-size:9pt; font-weight:400; font-style:normal;\">\n"
"<p style=\" margin-top:0px; margin-bottom:0px; margin-left:0px; margin-right:0px; -qt-block-indent:0; text-indent:0px;\"><span style=\" font-size:14pt;\">动物种类：</span></p></body></html>"))
        self.zhengquelv.setHtml(_translate("MainWindow", "<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 4.0//EN\" \"http://www.w3.org/TR/REC-html40/strict.dtd\">\n"
"<html><head><meta name=\"qrichtext\" content=\"1\" /><style type=\"text/css\">\n"
"p, li { white-space: pre-wrap; }\n"
"</style></head><body style=\" font-family:\'SimSun\'; font-size:9pt; font-weight:400; font-style:normal;\">\n"
"<p style=\" margin-top:0px; margin-bottom:0px; margin-left:0px; margin-right:0px; -qt-block-indent:0; text-indent:0px;\"><span style=\" font-size:14pt;\">正确率：</span></p></body></html>"))
        self.textEdit.setHtml(_translate("MainWindow", "<!DOCTYPE HTML PUBLIC \"-//W3C//DTD HTML 4.0//EN\" \"http://www.w3.org/TR/REC-html40/strict.dtd\">\n"
"<html><head><meta name=\"qrichtext\" content=\"1\" /><style type=\"text/css\">\n"
"p, li { white-space: pre-wrap; }\n"
"</style></head><body style=\" font-family:\'SimSun\'; font-size:9pt; font-weight:400; font-style:normal;\">\n"
"<p align=\"center\" style=\" margin-top:12px; margin-bottom:12px; margin-left:0px; margin-right:0px; -qt-block-indent:0; text-indent:0px;\"><span style=\" font-size:18pt;\">动物分类软件</span></p></body></html>"))

再在同目录下面创建一个孔空白的文本文件 test.txt
并在这个文件夹里面放入你需要检测的图片

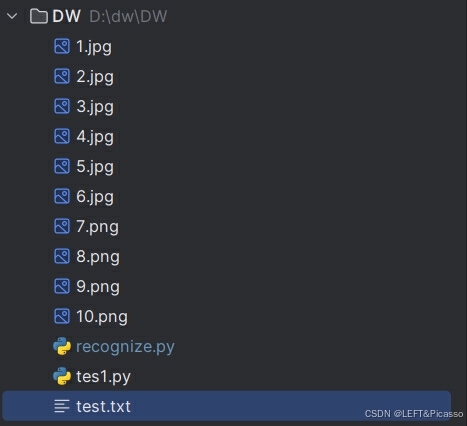

格式如下：

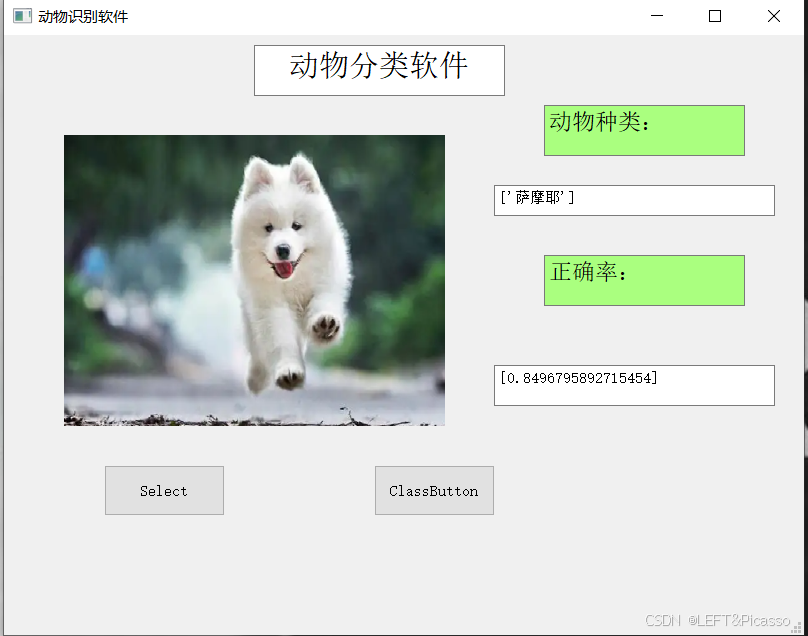

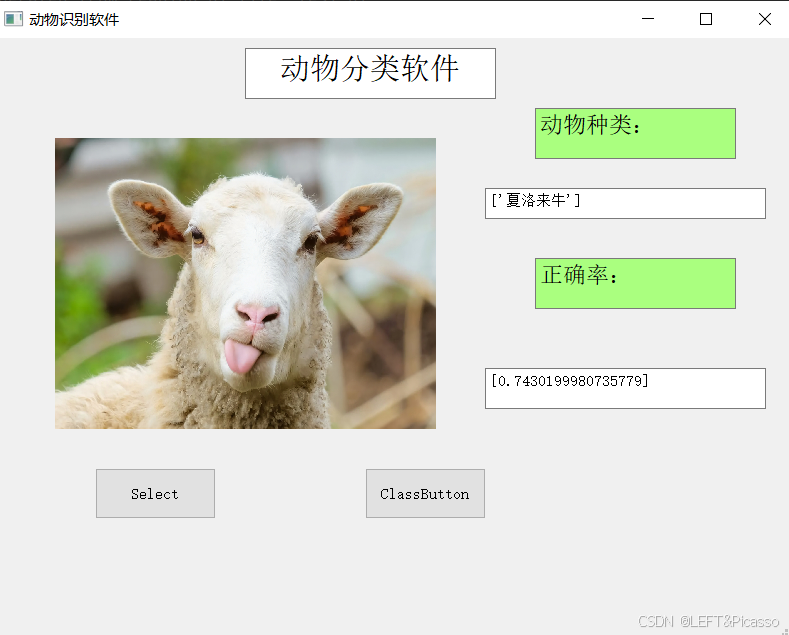

然后运行recognize.py 即可弹出.ui界面。

python recognize.py

或者直接点击运行
test.txt是用来存路径的，当然也可以使用其余方式！

最后也可以打包成.exe程序

pip install Pyinstaller
Pyinstaller -F -w recognize.py

欢迎留言
