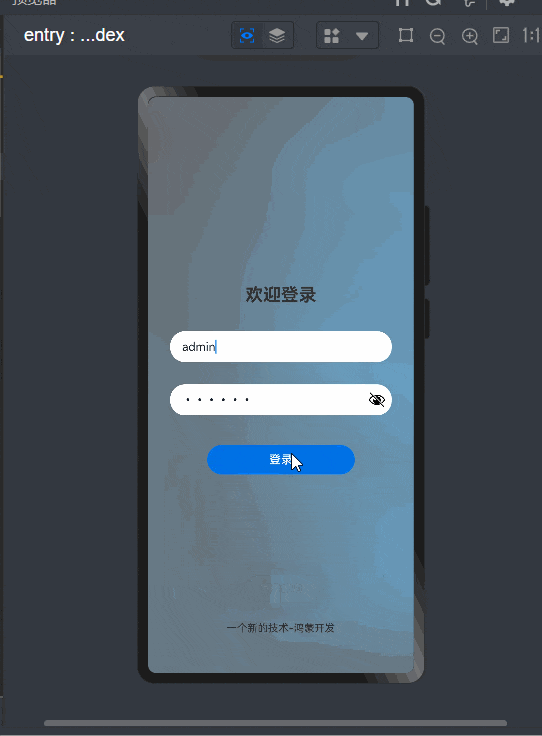

效果图展示
就是简单的两个页面,一个登录页,一个首页。登录做了账号密码判断,首页包含了常用的轮播图片,搜索框,toast,以及页面生命周期函数,其他的就是页面样式(当然在这叫组件属性)。

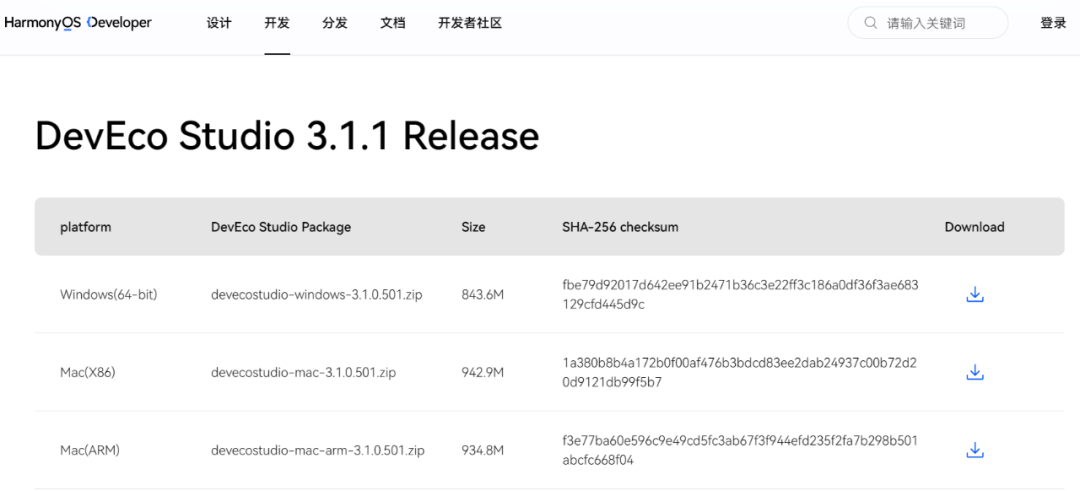

1. 下载安装开发工具:
HUAWEI DevEco Studio和SDK下载和升级 | HarmonyOS开发者
进入此网址下载好工具,安装。关于安装教程网上很多,此处不再赘述。

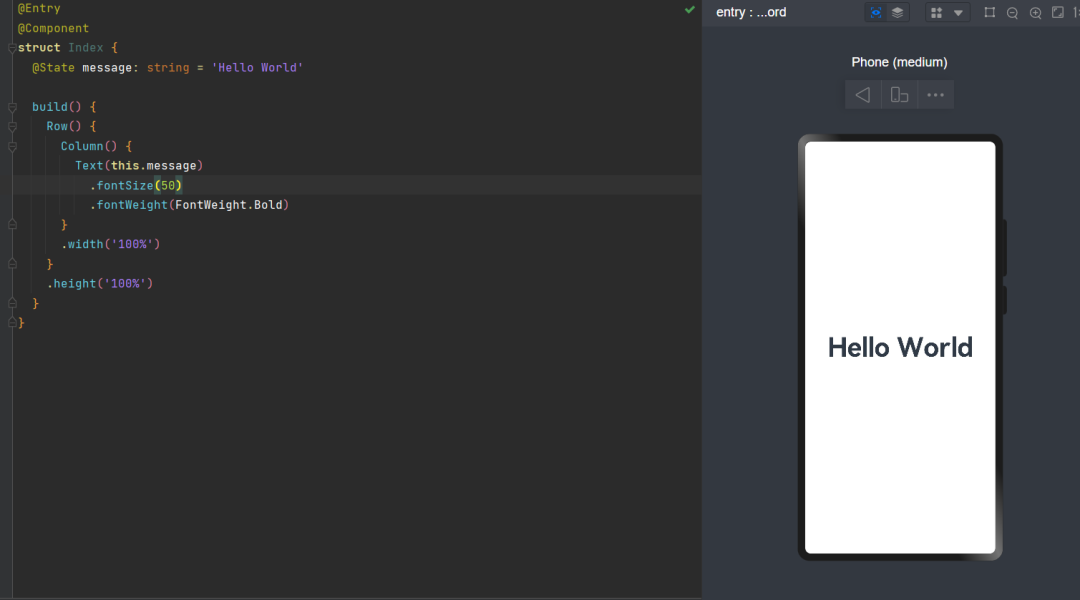

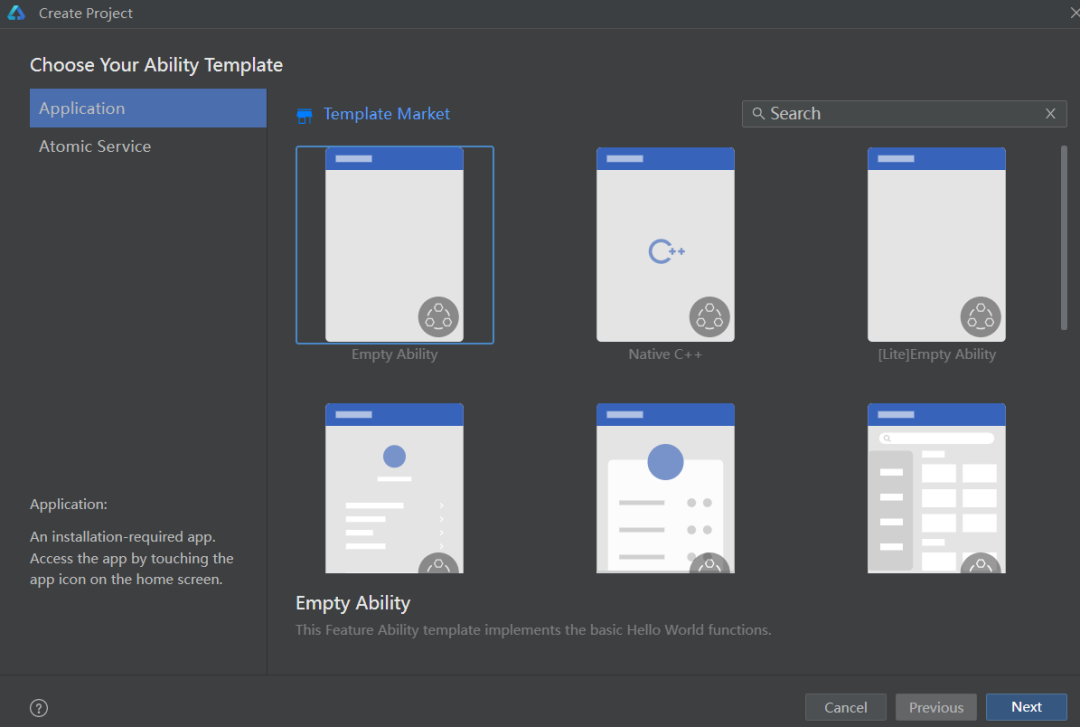

2. 打开工具新建一个示例项目,运行在右侧模拟器。
安装好工具,新建一个项目,首次打开,如下所示:此时可以修改下源码看看效果,然后就可以打开文档开搞了。

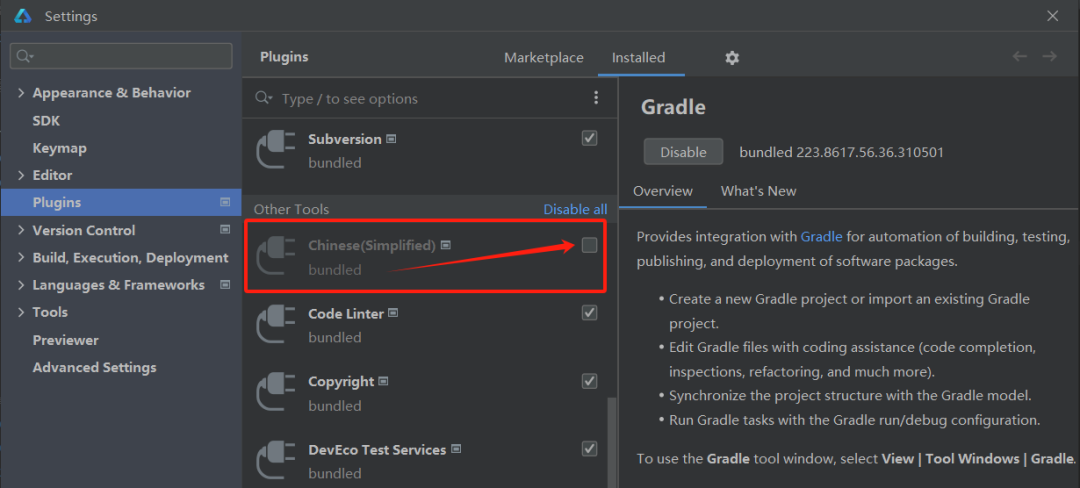

由于工具默认是英文,看起来不方便,那就改成中文,网上有很多说安装插件,但是这个现在的版本好像已经自带了,毕竟是华为的,怎么能没有中文呢。

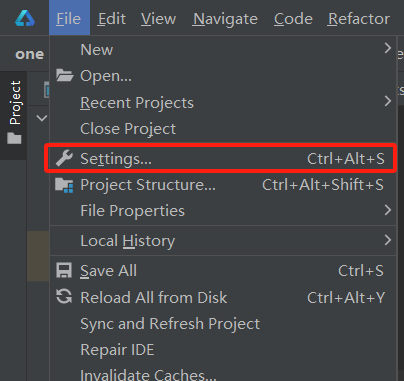

可以如下操作直接改成中文:
file -- setting -- 勾选chinese插件 -- 重启 -- ok
3. 删除hello world原本的这个text组件,然后自己写:
登录页:
Text('一个新的技术-鸿蒙开发')
.margin({top:200})
.fontColor("#333")
.fontSize(14)
input输入框:
TextInput({placeholder:'请输入账号',text:'1'})
.backgroundColor("#fff")
.margin({ top:35,left:30,bottom:30,right:30 })
.height(42)
.onChange(e=>{
console.log(e)
})
按钮:
Button('登录')
.width(200)
.margin({top:40})
.onClick(()=>{
console.log('login信息')
})
除此之外,还有toast,路由,还有页面布局,以及其他东西下期再说
登录页完整源码:(案例所用图片来源网络)
//引用路由
import router from '@ohos.router';
// toast组件引入
import prompt from '@ohos.prompt';
import promptAction from '@ohos.promptAction';
@Entry
@Component
struct Index {
@State username: string = 'admin'
@State pwd: string = '123456'
build() {
Row() {
Column() {
Text('欢迎登录')
.fontColor("#333")
.fontSize(24)
.fontWeight(700)
TextInput({placeholder:'请输入账号',text:this.username})
.backgroundColor("#fff")
.margin({ top:35,left:30,bottom:30,right:30 })
.height(42)
.onChange(e=>{
console.log(e)
this.username = e
})
TextInput({placeholder:'请输入密码',text:this.pwd})
.backgroundColor("#fff")
.type(InputType.Password)
.margin({top:0,left:30,right:30})
.height(42)
.onChange(e=>{
console.log(e)
this.pwd = e
})
Button('登录')
.width(200)
.margin({top:40})
.onClick(()=>{
console.log('login信息',this.username,this.pwd)
if(this.username == 'admin' && this.pwd == '123456'){
// 提示框
promptAction.showToast({
message: "登录成功", // 显示文本
duration: 5000, // 显示时长
bottom: 100 // 距离底部的距离
})
// 跳转到首页
setTimeout(()=>{
router.pushUrl({
url: "pages/home",
params: {
data: "跳转路径带的参数"
}
})
},1000)
}else{
promptAction.showToast({
message: "登录失败", // 显示文本
duration: 5000, // 显示时长
bottom: 100 // 距离底部的距离
})
}
})
Text('一个新的技术-鸿蒙开发')
.margin({top:200})
.fontColor("#333")
.fontSize(14)
}
.width('100%')
.height("40%")
.margin({top:0,left:0,right:0})
.padding({top:20})
}
.height('100%')
.backgroundImage("https://img1.baidu.com/it/u=2594795564,4151566141&fm=253&fmt=auto&app=138&f=JPEG?w=800&h=500")
.backgroundImageSize(1)
.backgroundBlurStyle(1.5)
}
}
首页:
搜索框:
Search({ value: '1', placeholder: '请输入...', controller: this.controller })
.searchButton('搜索')
.width(350)
.height(40)
.backgroundColor('#eee')
.margin({ top:10,left:30,right:30,bottom:10 })
.placeholderColor(Color.Grey)
.placeholderFont({ size: 14, weight: 400 })
.textFont({ size: 14, weight: 400 })
.onSubmit((value: string) => {
console.log('搜索')
})
轮播图(案例所用图片来源网络):
Swiper(this.swiperController) {
Image('https://img0.baidu.com/it/u=466438817,3329235077&fm=253&fmt=auto&app=138&f=JPEG?w=1600&h=500') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
Image('https://img1.baidu.com/it/u=3064475494,731318675&fm=253&fmt=auto&app=138&f=JPEG?w=570&h=273') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
Image('https://img1.baidu.com/it/u=975901616,246178223&fm=253&fmt=auto&app=138&f=JPEG?w=1280&h=500') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
}
.width(340)
.height(130)
.borderRadius(8)
.loop(true)
.autoPlay(true)
.interval(3000)
.indicatorStyle({
size: 30,
// left: 0, // 小点显示在左侧
color: Color.White
})
首页完整源码:(案例所用图片来源网络)
//引用路由
import router from '@ohos.router';
// toast组件引入
import promptAction from '@ohos.promptAction';
@Entry
@Component
struct Home {
@State submitValue: string = '华为手机'
@State changeValue: string = '华为手机'
controller: SearchController = new SearchController()
private swiperController: SwiperController = new SwiperController()
private lists: Object[] = [
{name:'1华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'https://img0.baidu.com/it/u=466438817,3329235077&fm=253&fmt=auto&app=138&f=JPEG?w=1600&h=500'},
{name:'2华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'http://t13.baidu.com/it/u=4192552773,677025305&fm=224&app=112&f=PNG?w=500&h=500'},
{name:'3华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'https://img2.baidu.com/it/u=3496610832,3575732030&fm=253&fmt=auto&app=138&f=JPEG?w=379&h=290'},
{name:'4华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'https://img0.baidu.com/it/u=78605798,3909076364&fm=253&fmt=auto&app=120&f=JPEG?w=640&h=454'},
{name:'5华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'https://img2.baidu.com/it/u=3117903967,2722093213&fm=253&fmt=auto&app=138&f=JPEG?w=667&h=500'},
{name:'6华为手机P60',price:6999,desc:'洛可可白,每一支都独一无二',image:'https://img1.baidu.com/it/u=3064475494,731318675&fm=253&fmt=auto&app=138&f=JPEG?w=570&h=273'},
]
// 接收上一页穿过来的参数
@State loginCan:string = router.getParams()?.['data']
//生命周期函数 页面每次显示时触发
onPageShow() {
promptAction.showToast({
message:"路径参数为:"+this.loginCan, // 显示文本
duration: 1000, // 显示时长
bottom: 300 // 距离底部的距离
})
}
build() {
Row() {
// 页面自上而下排列 所以使用column
Column() {
// 搜索
Search({ value: this.changeValue, placeholder: '请输入...', controller: this.controller })
.searchButton('搜索')
.width(350)
.height(40)
.backgroundColor('#eee')
.margin({ top:10,left:30,right:30,bottom:10 })
.placeholderColor(Color.Grey)
.placeholderFont({ size: 14, weight: 400 })
.textFont({ size: 14, weight: 400 })
.onSubmit((value: string) => {
this.submitValue = value
promptAction.showToast({
message:"搜索:"+this.submitValue, // 显示文本
duration: 1000, // 显示时长
bottom: 300 // 距离底部的距离
})
})
// 轮播 可循环 为了看的清楚先不循环
Swiper(this.swiperController) {
Image('https://img0.baidu.com/it/u=466438817,3329235077&fm=253&fmt=auto&app=138&f=JPEG?w=1600&h=500') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
Image('https://img1.baidu.com/it/u=3064475494,731318675&fm=253&fmt=auto&app=138&f=JPEG?w=570&h=273') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
Image('https://img1.baidu.com/it/u=975901616,246178223&fm=253&fmt=auto&app=138&f=JPEG?w=1280&h=500') // 实际使用时请替换为真实地址
.width('90%')
.height('100%')
}
.width(340)
.height(130)
.borderRadius(8)
.loop(true)
.autoPlay(true)
.interval(3000)
.indicatorStyle({
size: 30,
// left: 0, // 小点显示在左侧
color: Color.White
})
// menu
Row(){
Column(){
Image('http://t13.baidu.com/it/u=4192552773,677025305&fm=224&app=112&f=PNG?w=500&h=500') // 实际使用时请替换为真实地址
.width('44')
.height('44')
Text('华为手机').margin({top:10}).fontSize(15)
}.margin({left:12})
Column(){
Image('http://t13.baidu.com/it/u=4192552773,677025305&fm=224&app=112&f=PNG?w=500&h=500') // 实际使用时请替换为真实地址
.width('44')
.height('44')
Text('荣耀手机').margin({top:10}).fontSize(15)
}.margin({left:22})
Column(){
Image('http://t13.baidu.com/it/u=4192552773,677025305&fm=224&app=112&f=PNG?w=500&h=500') // 实际使用时请替换为真实地址
.width('44')
.height('44')
Text('华为电脑').margin({top:10}).fontSize(15).textAlign(TextAlign.Center)
}.margin({left:22})
Column(){
Image('http://t13.baidu.com/it/u=4192552773,677025305&fm=224&app=112&f=PNG?w=500&h=500') // 实际使用时请替换为真实地址
.width('44')
.height('44')
Text('华为平板').margin({top:10}).fontSize(15)
}.margin({left:22})
}
.width(340)
.height(100)
.margin({top:10,bottom:10})
// 标题
Row(){
Text('商品列表').fontSize(15).textAlign(TextAlign.Start).fontWeight('700').width(340)
}.width(340).height(40).margin({top:0,bottom:10})
// list
List({space: 10}) {
ForEach(
this.lists,
(item) => {
ListItem() {
Row({ space: 3 }) {
// 左侧
Image(item.image)
.width(90)
.height(70)
.margin({ left: 20,right:20 })
.padding({ left: 0})
.borderRadius(5)
// 右侧
Column(){
Text(item.name)
.fontSize(16)
.fontColor("#333333")
.fontWeight(700)
.height(30)
.width(280)
.padding({top:10})
Text(item.desc)
.fontSize(14)
.fontColor("#777777")
.height(30)
.width(280)
Text('¥' + item.price)
.fontSize(14)
.textAlign(TextAlign.Start)
.fontColor("#FF0000")
.height(30)
.width(280)
}.height('100%')
}.height(100)
.backgroundColor('#f5f5f5')
.borderRadius(10)
}
.width('100%')
.onClick(()=>{
promptAction.showToast({
message:"点击:"+item.name, // 显示文本
duration: 1000, // 显示时长
bottom: 300 // 距离底部的距离
})
})
}
)
}
.width('340')
.layoutWeight(1)
}
.height('100%')
}
.height('100%')
.backgroundColor('#fff')
}
}
