实验六：实现VLAN间互访解决方案二，VLANIF虚接口，最受欢迎的解决方案

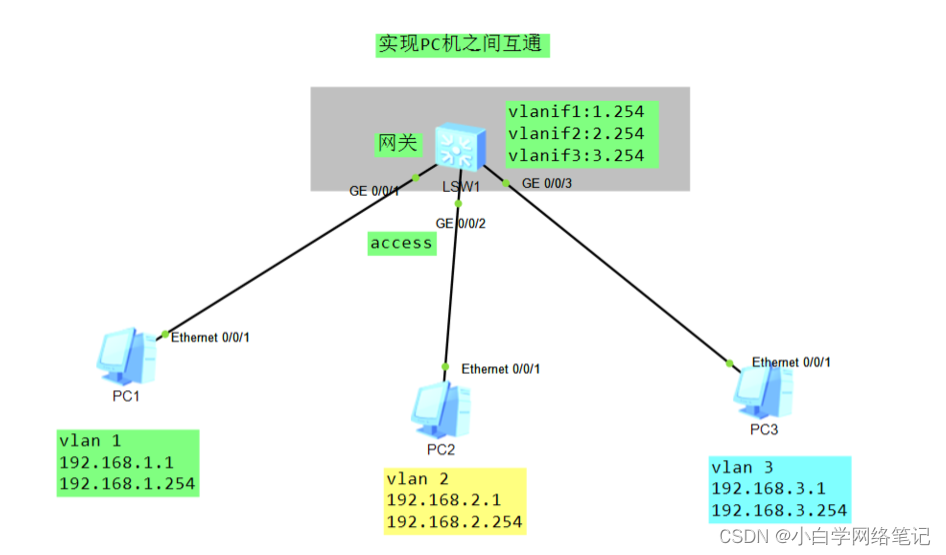

拓扑图

需求

实现VLAN间的通信

配置思路

PC机上配置地址

交换机上换分VLAN

创建虚接口作为PC的网关

配置命令

SW1配置：
[SW1]vlan batch  1 to 3

[SW1]interface  g0/0/1
[SW1-g0/0/1]port  link-type access
[SW1-g0/0/1]port  default  vlan 1
[SW1-g0/0/1]interface  g0/0/2
[SW1-g0/0/2]port  link-type access
[SW1-g0/0/2]port  default  vlan 2
[SW1-g0/0/2]interface  g0/0/3
[SW1-g0/0/3]port  link-type access
[SW1-g0/0/3]port  default  vlan 3

[SW1]interface vlanif 1
[SW1-vlanif1] ip address  192.168.1.254  24
[SW1-vlanif1]interface vlanif 2
[SW1-vlanif2]ip address  192.168.2.254  24
[SW1-vlanif2]interface vlanif 3
[SW1-vlanif3]ip address  192.168.3.254  24

测试与验证

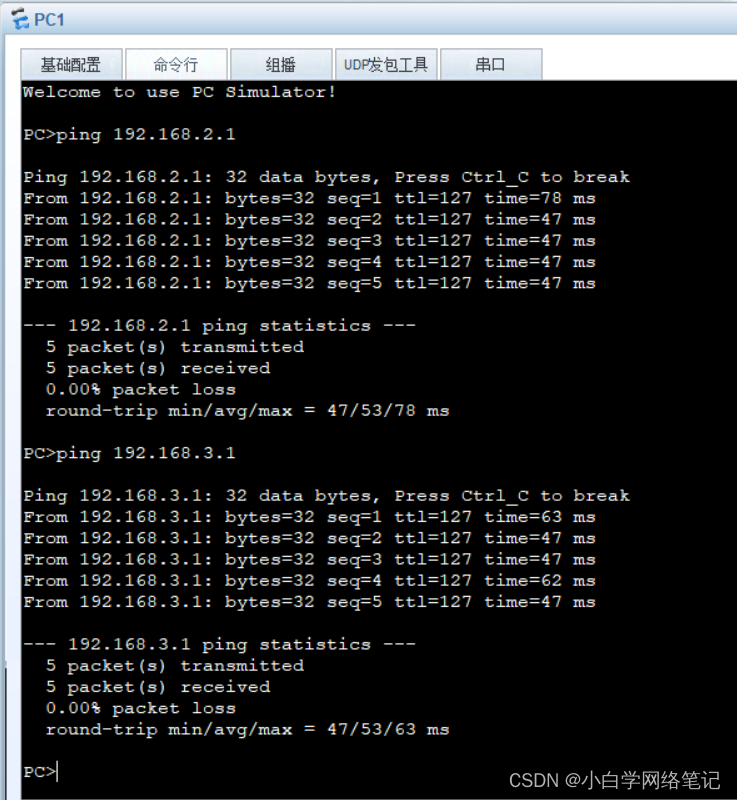

PC1可以ping通PC2和PC3
