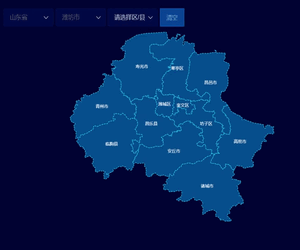

实现效果图:
使用geo地图需要获取地理位置的geoJson数据,geoJson数据可以通过DataV.GeoAtlas地理小工具系列来获取,主要实现的功能是通过下拉选择框动态改变地图选中状态
代码:
data(){
return{
mapChart:null,
option:null
}
},
created(){
this.$nextTick(()=>{{
this.initMap();
})
},
methods:{
initMap(){
this.mapChart = echarts.init(document.getElementById('mapEchart'));
echarts.registerMap('weifang', geoJson);
this.option = {
//触发事件 不取消全局地图事件
silent: false,
//要显示纹理要关闭这个属性--图例
visualMap: {
show: false,
},
// 进行相关配置
tooltip: {
// 鼠标移到图里面不弹出浮动提示框
show: false,
position: 'top',
backgroundColor: 'rgba(0, 119, 239, 0.8)', //提示框背景色
borderColor: '#057DD9', //边框颜色
borderWidth: 2,
textStyle: {
color: '#ffffff', //文字颜色
},
// //自定义提示框自动调用函数
// formatter: function (params) {
// return `哈哈哈`;
// },
},
// 一些地图设置
geo: {
map: 'weifang',
left:'160',
aspectScale: 1,
roam: false,
zoom: 1,
label: {
normal: {
show: true, //省份名展示
fontSize: '10',
color: '#fff',
},
emphasis: {
show: true, //省份名展示
fontSize: '10',
color: '#fff',
},
},
itemStyle: {
//容器外边框设置
normal: {
borderColor: '#33ddff',
areaColor:'#064e8c',//地图背景色
borderWidth: 1, //设置外层边框
shadowColor: '#0953c2',
borderType:'dashed'
},
// 鼠标滑过高亮状态
emphasis: {
borderColor: '#29bbd8',
areaColor: '#3bb8f7' ,//'rgba(59, 184, 247, 1)',
shadowBlur: 3,
borderWidth: 1,
shadowOffsetX: 2,
shadowOffsetY: 2,
shadowColor: '#3bb8f7',
opacity: 0.8,
},
},
selectedMode:'single', //选择模式,单选,只能选中一个地市
//这个就是鼠标点击后高亮状态,地图想要展示的配置
select:{
disabled:false,//可以被选中
label:{
show:true,
color:'#fff'
},
//相关配置项很多,可以参考echarts官网
itemStyle:{
borderColor: '#29bbd8',
areaColor: '#3bb8f7' ,//'rgba(59, 184, 247, 1)',
shadowBlur: 3,
borderWidth: 1,
shadowOffsetX: 2,
shadowOffsetY: 2,
shadowColor: '#3bb8f7',
opacity: 0.8,
}
},
},
series: [
{
name: '潍坊市',
type: 'map',
mapType: 'weifang',
coordinateSystem: 'geo',
geoIndex: 0,
animationDuration: 1200,
rippleEffect: {
brushType: 'stroke',
},
label: {
// 显示地图省名称
normal: {
color: '#389dff',
formatter: '{b}',
position: [-12, -1],
show: true,
},
emphasis: {
show: true,
color: '#fff',
},
},
itemStyle: {
normal: {
areaColor: '#0d0059',
borderColor: '#389dff',
borderWidth: 0.5,
},
emphasis: {
areaColor: '#59D5F5',
shadowOffsetX: 8,
shadowOffsetY: 8,
shadowBlur: 5,
borderWidth: 0,
shadowColor: '#0074BC',
},
},
data: this.mapDataList,
},
],
};
this.mapChart.setOption(this.option);
this.mapChart.on('click',(e)=>{
this.$emit('selectdistrict',e.name)
})
},
// 指定高亮区域
cancelActive(name){
this.mapChart && this.mapChart.dispatchAction({
type: 'select',
// geo 中名称。
name
})
},
}
