一、引言

本文旨在分享单片机对OLED显示模块的驱动方法和驱动代码。与此同时，本文还会分享如何使用取模软件进行取模，包括汉字取模、图片取模、英文取模。文末附驱动的代码工程和模块资料链接。

二、模块概述

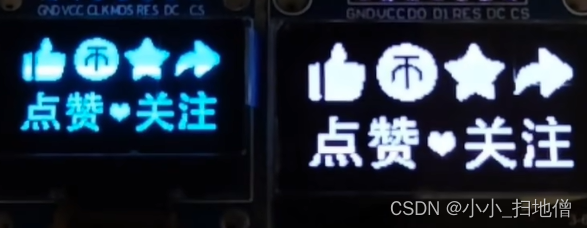

1、OLED显示屏模块

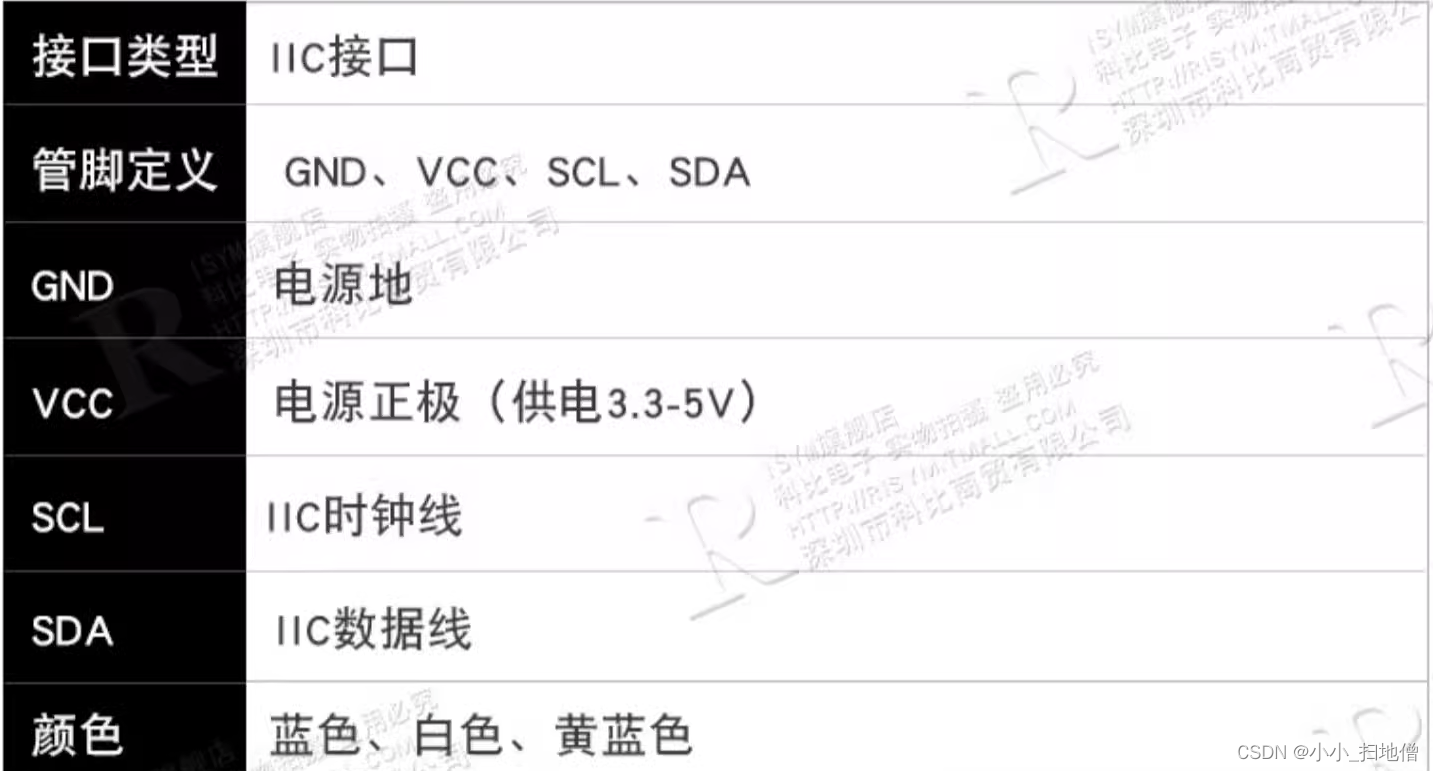

2、引脚定义

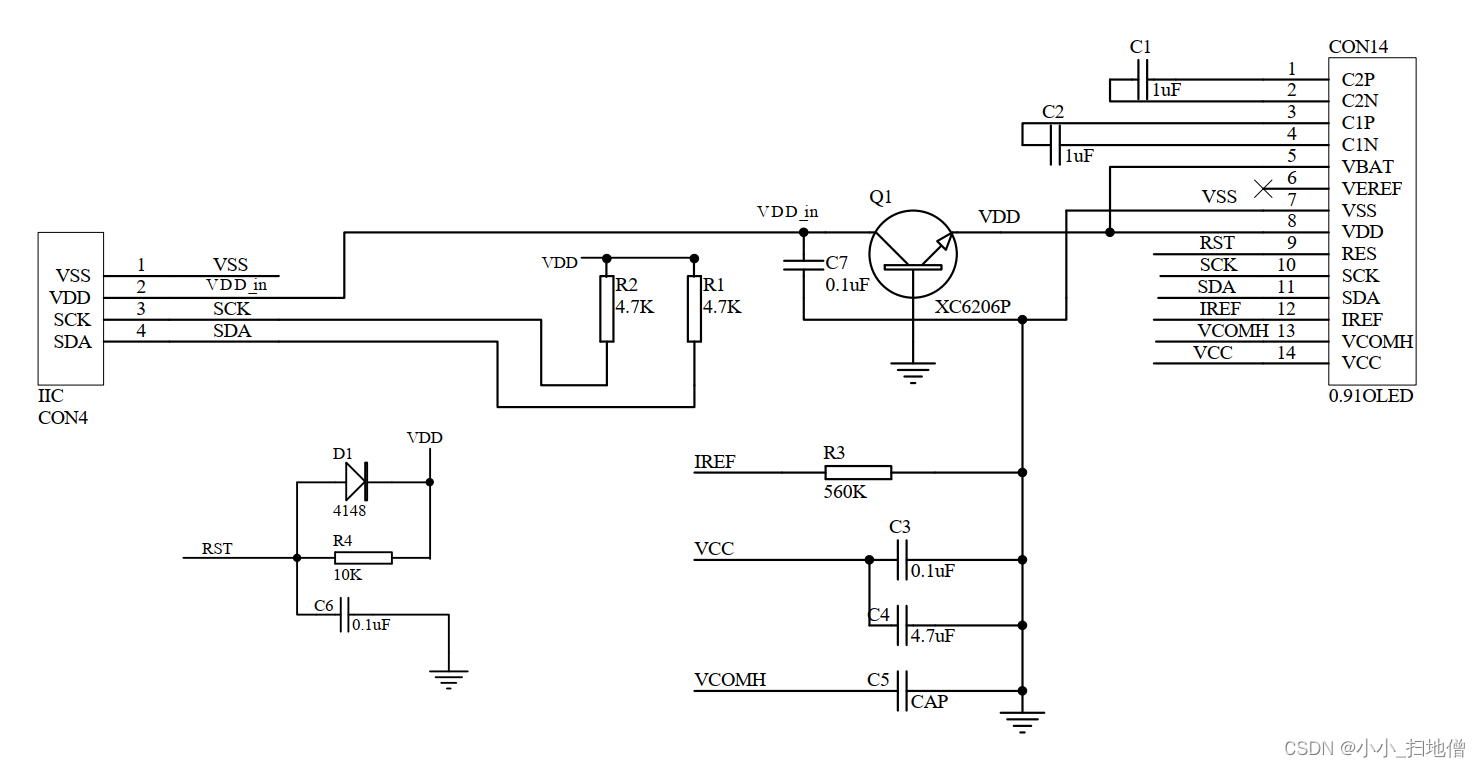

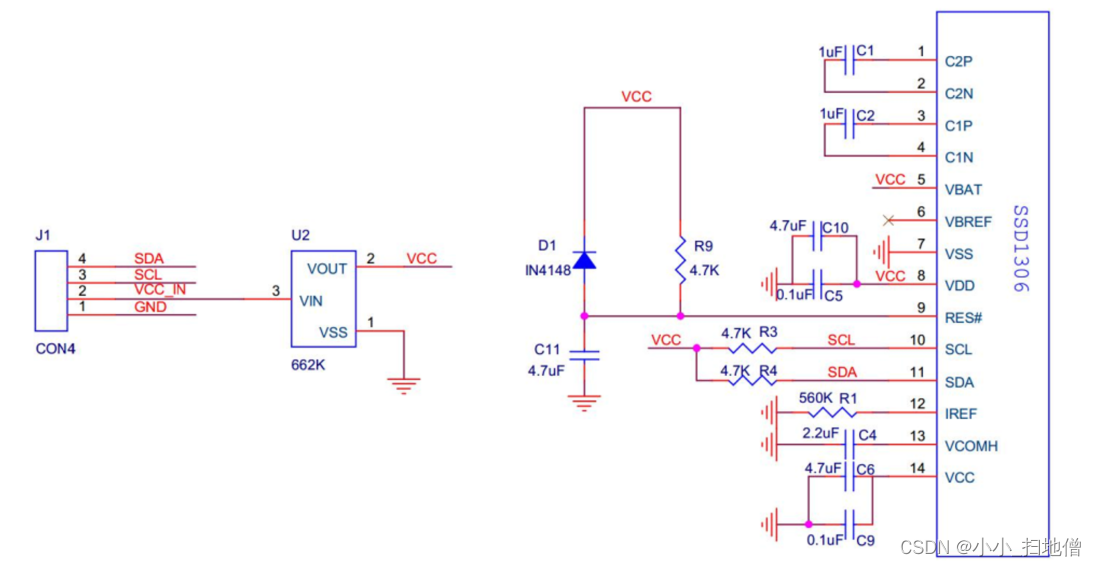

3、原理图

三、模块驱动

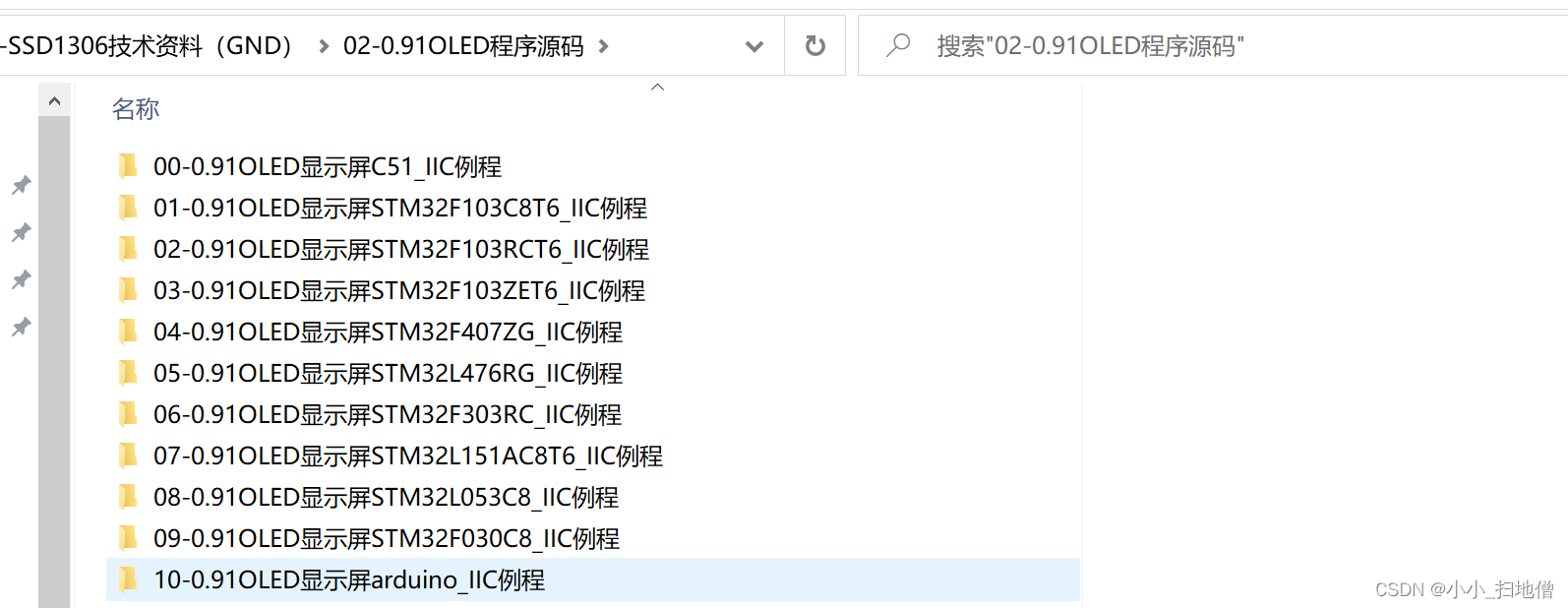

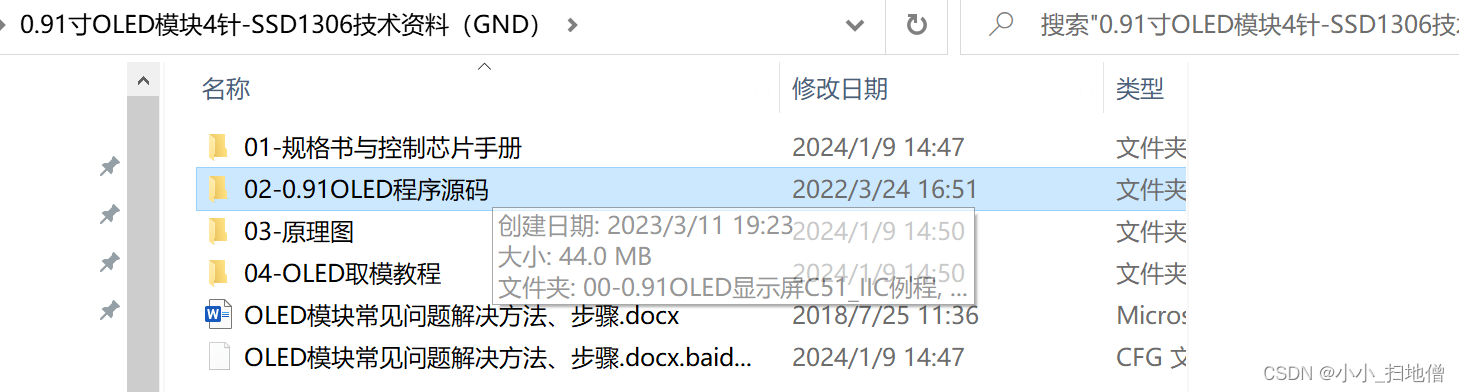

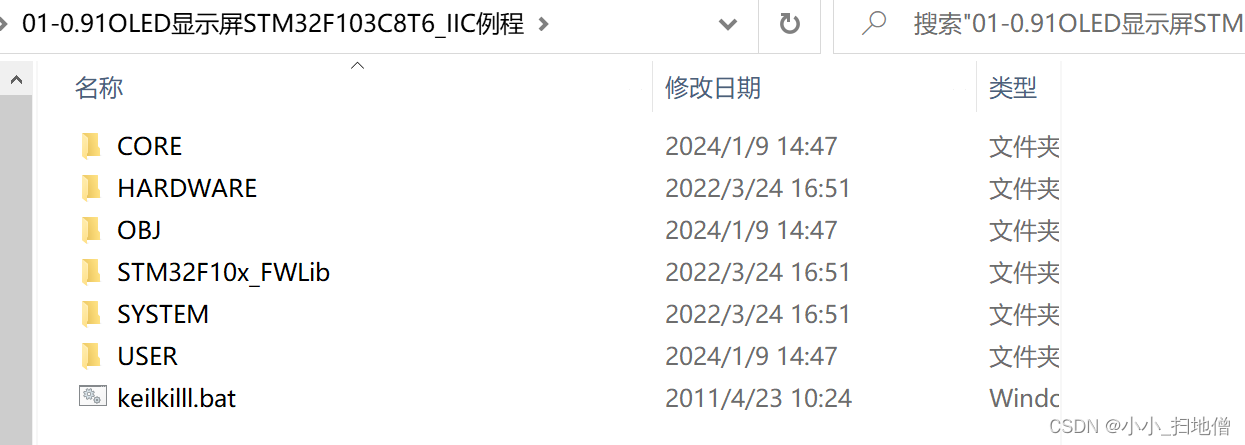

这里分享一些有关各类单片机对该模块的驱动方法以及完整的驱动代码。

1、OLED显示屏C51_IIC

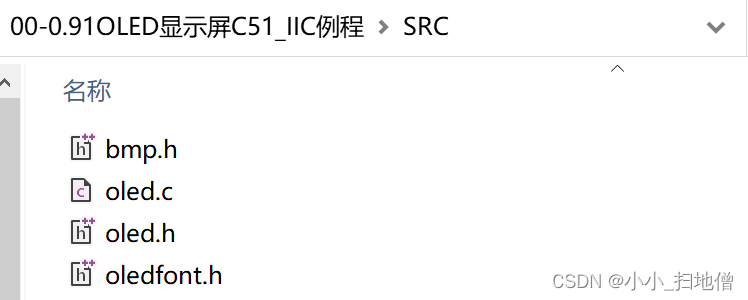

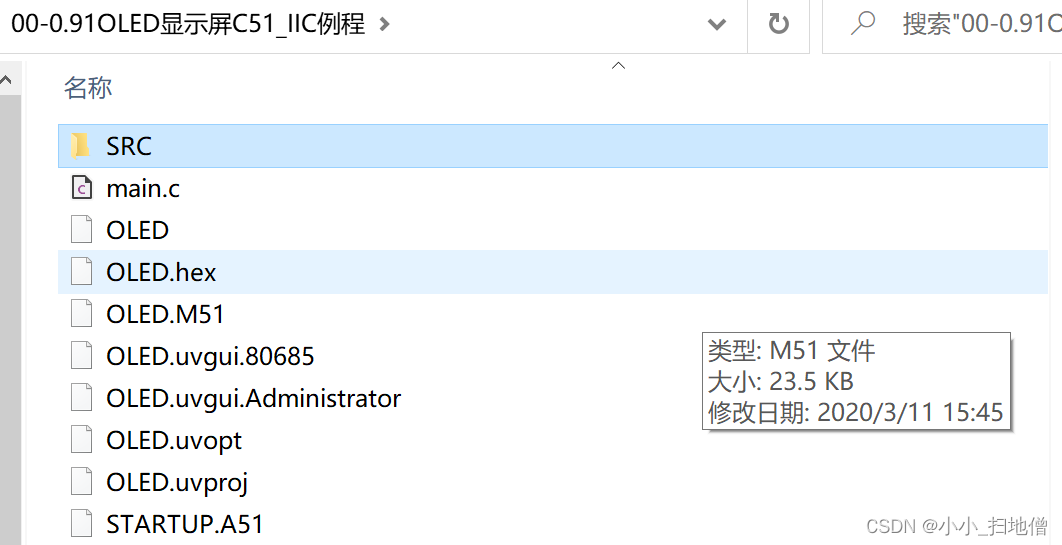

这是完整的代码工程：

链接：https://pan.baidu.com/s/1mRWOLfutchLg7WyIPbkXtw?pwd=zxf1
提取码：zxf1
--来自百度网盘超级会员V3的分享

核心驱动代码分析：

OLED.h

#ifndef __OLED_H
#define __OLED_H

#include "REG51.h"

#define  u8 unsigned char
#define  u16 unsigned int
#define  u32 unsigned int

#define OLED_CMD  0	//写命令
#define OLED_DATA 1	//写数据

sbit OLED_SCL=P1^0;//SCL
sbit OLED_SDA=P1^1;//SDA
sbit OLED_RES =P1^2;//RES

//-----------------OLED端口定义----------------

#define OLED_SCL_Clr() OLED_SCL=0
#define OLED_SCL_Set() OLED_SCL=1

#define OLED_SDA_Clr() OLED_SDA=0
#define OLED_SDA_Set() OLED_SDA=1

#define OLED_RES_Clr() OLED_RES=0
#define OLED_RES_Set() OLED_RES=1



//OLED控制用函数
void delay_ms(unsigned int ms);
void OLED_ColorTurn(u8 i);
void OLED_DisplayTurn(u8 i);
void OLED_WR_Byte(u8 dat,u8 cmd);
void OLED_Set_Pos(u8 x, u8 y);
void OLED_Display_On(void);
void OLED_Display_Off(void);
void OLED_Clear(void);
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 sizey);
u32 oled_pow(u8 m,u8 n);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 sizey);
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 sizey);
void OLED_ShowChinese(u8 x,u8 y,u8 no,u8 sizey);
void OLED_DrawBMP(u8 x,u8 y,u8 sizex, u8 sizey,u8 BMP[]);
void OLED_Init(void);

#endif

OLED.c


#include "oled.h"
#include "oledfont.h"
//OLED的显存
//存放格式如下.
//[0]0 1 2 3 ... 127
//[1]0 1 2 3 ... 127
//[2]0 1 2 3 ... 127
//[3]0 1 2 3 ... 127
//[4]0 1 2 3 ... 127
//[5]0 1 2 3 ... 127
//[6]0 1 2 3 ... 127
//[7]0 1 2 3 ... 127
void delay_ms(unsigned int ms)
{
	unsigned int a;
	while(ms)
	{
		a=1800;
		while(a--);
		ms--;
	}
	return;
}

//反显函数
void OLED_ColorTurn(u8 i)
{
	if(i==0)
		{
			OLED_WR_Byte(0xA6,OLED_CMD);//正常显示
		}
	if(i==1)
		{
			OLED_WR_Byte(0xA7,OLED_CMD);//反色显示
		}
}

//屏幕旋转180度
void OLED_DisplayTurn(u8 i)
{
	if(i==0)
		{
			OLED_WR_Byte(0xC8,OLED_CMD);//正常显示
			OLED_WR_Byte(0xA1,OLED_CMD);
		}
	if(i==1)
		{
			OLED_WR_Byte(0xC0,OLED_CMD);//反转显示
			OLED_WR_Byte(0xA0,OLED_CMD);
		}
}


//延时
void IIC_delay(void)
{
	u8 t=1;
	while(t--);
}

//起始信号
void I2C_Start(void)
{
	OLED_SDA_Set();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SDA_Clr();
	IIC_delay();
	OLED_SCL_Clr();

}

//结束信号
void I2C_Stop(void)
{
	OLED_SDA_Clr();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SDA_Set();
}

//等待信号响应
void I2C_WaitAck(void) //测数据信号的电平
{
	OLED_SDA_Set();
	IIC_delay();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SCL_Clr();
	IIC_delay();
}

//写入一个字节
void Send_Byte(u8 dat)
{
	u8 i;
	for(i=0;i<8;i++)
	{
		OLED_SCL_Clr();//将时钟信号设置为低电平
		if(dat&0x80)//将dat的8位从最高位依次写入
		{
			OLED_SDA_Set();
    }
		else
		{
			OLED_SDA_Clr();
    }
		IIC_delay();
		OLED_SCL_Set();
		IIC_delay();
		OLED_SCL_Clr();
		dat<<=1;
  }
}

//发送一个字节
//向SSD1306写入一个字节。
//mode:数据/命令标志 0,表示命令;1,表示数据;
void OLED_WR_Byte(u8 dat,u8 mode)
{
	I2C_Start();
	Send_Byte(0x78);
	I2C_WaitAck();
	if(mode){Send_Byte(0x40);}
  else{Send_Byte(0x00);}
	I2C_WaitAck();
	Send_Byte(dat);
	I2C_WaitAck();
	I2C_Stop();
}

//坐标设置

void OLED_Set_Pos(u8 x, u8 y)
{
	OLED_WR_Byte(0xb0+y,OLED_CMD);
	OLED_WR_Byte(((x&0xf0)>>4)|0x10,OLED_CMD);
	OLED_WR_Byte((x&0x0f),OLED_CMD);
}
//开启OLED显示
void OLED_Display_On(void)
{
	OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
	OLED_WR_Byte(0X14,OLED_CMD);  //DCDC ON
	OLED_WR_Byte(0XAF,OLED_CMD);  //DISPLAY ON
}
//关闭OLED显示
void OLED_Display_Off(void)
{
	OLED_WR_Byte(0X8D,OLED_CMD);  //SET DCDC命令
	OLED_WR_Byte(0X10,OLED_CMD);  //DCDC OFF
	OLED_WR_Byte(0XAE,OLED_CMD);  //DISPLAY OFF
}
//清屏函数,清完屏,整个屏幕是黑色的!和没点亮一样!!!
void OLED_Clear(void)
{
	u8 i,n;
	for(i=0;i<4;i++)
	{
		OLED_WR_Byte (0xb0+i,OLED_CMD);    //设置页地址（0~7）
		OLED_WR_Byte (0x00,OLED_CMD);      //设置显示位置—列低地址
		OLED_WR_Byte (0x10,OLED_CMD);      //设置显示位置—列高地址
		for(n=0;n<128;n++)OLED_WR_Byte(0,OLED_DATA);
	} //更新显示
}

//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//sizey:选择字体 6x8  8x16
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 sizey)
{
	u8 c=0,sizex=sizey/2;
	u16 i=0,size1;
	if(sizey==8)size1=6;
	else size1=(sizey/8+((sizey%8)?1:0))*(sizey/2);
	c=chr-' ';//得到偏移后的值
	OLED_Set_Pos(x,y);
	for(i=0;i<size1;i++)
	{
		if(i%sizex==0&&sizey!=8) OLED_Set_Pos(x,y++);
		if(sizey==8) OLED_WR_Byte(asc2_0806[c][i],OLED_DATA);//6X8字号
		else if(sizey==16) OLED_WR_Byte(asc2_1608[c][i],OLED_DATA);//8x16字号
//		else if(sizey==xx) OLED_WR_Byte(asc2_xxxx[c][i],OLED_DATA);//用户添加字号
		else return;
	}
}
//m^n函数
u32 oled_pow(u8 m,u8 n)
{
	u32 result=1;
	while(n--)result*=m;
	return result;
}
//显示数字
//x,y :起点坐标
//num:要显示的数字
//len :数字的位数
//sizey:字体大小
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 sizey)
{
	u8 t,temp,m=0;
	u8 enshow=0;
	if(sizey==8)m=2;
	for(t=0;t<len;t++)
	{
		temp=(num/oled_pow(10,len-t-1))%10;
		if(enshow==0&&t<(len-1))
		{
			if(temp==0)
			{
				OLED_ShowChar(x+(sizey/2+m)*t,y,' ',sizey);
				continue;
			}else enshow=1;
		}
	 	OLED_ShowChar(x+(sizey/2+m)*t,y,temp+'0',sizey);
	}
}
//显示一个字符号串
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 sizey)
{
	u8 j=0;
	while (chr[j]!='\0')
	{
		OLED_ShowChar(x,y,chr[j++],sizey);
		if(sizey==8)x+=6;
		else x+=sizey/2;
	}
}
//显示汉字
void OLED_ShowChinese(u8 x,u8 y,u8 no,u8 sizey)
{
	u16 i,size1=(sizey/8+((sizey%8)?1:0))*sizey;
	for(i=0;i<size1;i++)
	{
		if(i%sizey==0) OLED_Set_Pos(x,y++);
		if(sizey==16) OLED_WR_Byte(Hzk[no][i],OLED_DATA);//16x16字号
//		else if(sizey==xx) OLED_WR_Byte(xxx[c][i],OLED_DATA);//用户添加字号
		else return;
	}
}


//显示图片
//x,y显示坐标
//sizex,sizey,图片长宽
//BMP：要显示的图片
void OLED_DrawBMP(u8 x,u8 y,u8 sizex, u8 sizey,u8 BMP[])
{
  u16 j=0;
	u8 i,m;
	sizey=sizey/8+((sizey%8)?1:0);
	for(i=0;i<sizey;i++)
	{
		OLED_Set_Pos(x,i+y);
    for(m=0;m<sizex;m++)
		{
			OLED_WR_Byte(BMP[j++],OLED_DATA);
		}
	}
}



//初始化
void OLED_Init(void)
{
	OLED_RES_Clr();
  delay_ms(200);
	OLED_RES_Set();

	OLED_WR_Byte(0xAE,OLED_CMD); /*display off*/
	OLED_WR_Byte(0x00,OLED_CMD); /*set lower column address*/
	OLED_WR_Byte(0x10,OLED_CMD); /*set higher column address*/
	OLED_WR_Byte(0x00,OLED_CMD); /*set display start line*/
	OLED_WR_Byte(0xB0,OLED_CMD); /*set page address*/
	OLED_WR_Byte(0x81,OLED_CMD); /*contract control*/
	OLED_WR_Byte(0xff,OLED_CMD); /*128*/
	OLED_WR_Byte(0xA1,OLED_CMD); /*set segment remap*/
	OLED_WR_Byte(0xA6,OLED_CMD); /*normal / reverse*/
	OLED_WR_Byte(0xA8,OLED_CMD); /*multiplex ratio*/
	OLED_WR_Byte(0x1F,OLED_CMD); /*duty = 1/32*/
	OLED_WR_Byte(0xC8,OLED_CMD); /*Com scan direction*/
	OLED_WR_Byte(0xD3,OLED_CMD); /*set display offset*/
	OLED_WR_Byte(0x00,OLED_CMD);
	OLED_WR_Byte(0xD5,OLED_CMD); /*set osc division*/
	OLED_WR_Byte(0x80,OLED_CMD);
	OLED_WR_Byte(0xD9,OLED_CMD); /*set pre-charge period*/
	OLED_WR_Byte(0x1f,OLED_CMD);
	OLED_WR_Byte(0xDA,OLED_CMD); /*set COM pins*/
	OLED_WR_Byte(0x00,OLED_CMD);
	OLED_WR_Byte(0xdb,OLED_CMD); /*set vcomh*/
	OLED_WR_Byte(0x40,OLED_CMD);
	OLED_WR_Byte(0x8d,OLED_CMD); /*set charge pump enable*/
	OLED_WR_Byte(0x14,OLED_CMD);
	OLED_Clear();
	OLED_WR_Byte(0xAF,OLED_CMD); /*display ON*/
}

字符模

oledfont.h

#ifndef __OLEDFONT_H
#define __OLEDFONT_H

/************************************6*8的点阵************************************/
unsigned char code asc2_0806[][6] ={
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00},// sp
{0x00, 0x00, 0x00, 0x2f, 0x00, 0x00},// !
{0x00, 0x00, 0x07, 0x00, 0x07, 0x00},// "
{0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14},// #
{0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12},// $
{0x00, 0x62, 0x64, 0x08, 0x13, 0x23},// %
{0x00, 0x36, 0x49, 0x55, 0x22, 0x50},// &
{0x00, 0x00, 0x05, 0x03, 0x00, 0x00},// '
{0x00, 0x00, 0x1c, 0x22, 0x41, 0x00},// (
{0x00, 0x00, 0x41, 0x22, 0x1c, 0x00},// )
{0x00, 0x14, 0x08, 0x3E, 0x08, 0x14},// *
{0x00, 0x08, 0x08, 0x3E, 0x08, 0x08},// +
{0x00, 0x00, 0x00, 0xA0, 0x60, 0x00},// ,
{0x00, 0x08, 0x08, 0x08, 0x08, 0x08},// -
{0x00, 0x00, 0x60, 0x60, 0x00, 0x00},// .
{0x00, 0x20, 0x10, 0x08, 0x04, 0x02},// /
{0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E},// 0
{0x00, 0x00, 0x42, 0x7F, 0x40, 0x00},// 1
{0x00, 0x42, 0x61, 0x51, 0x49, 0x46},// 2
{0x00, 0x21, 0x41, 0x45, 0x4B, 0x31},// 3
{0x00, 0x18, 0x14, 0x12, 0x7F, 0x10},// 4
{0x00, 0x27, 0x45, 0x45, 0x45, 0x39},// 5
{0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30},// 6
{0x00, 0x01, 0x71, 0x09, 0x05, 0x03},// 7
{0x00, 0x36, 0x49, 0x49, 0x49, 0x36},// 8
{0x00, 0x06, 0x49, 0x49, 0x29, 0x1E},// 9
{0x00, 0x00, 0x36, 0x36, 0x00, 0x00},// :
{0x00, 0x00, 0x56, 0x36, 0x00, 0x00},// ;
{0x00, 0x08, 0x14, 0x22, 0x41, 0x00},// <
{0x00, 0x14, 0x14, 0x14, 0x14, 0x14},// =
{0x00, 0x00, 0x41, 0x22, 0x14, 0x08},// >
{0x00, 0x02, 0x01, 0x51, 0x09, 0x06},// ?
{0x00, 0x32, 0x49, 0x59, 0x51, 0x3E},// @
{0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C},// A
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x36},// B
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x22},// C
{0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C},// D
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x41},// E
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x01},// F
{0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A},// G
{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F},// H
{0x00, 0x00, 0x41, 0x7F, 0x41, 0x00},// I
{0x00, 0x20, 0x40, 0x41, 0x3F, 0x01},// J
{0x00, 0x7F, 0x08, 0x14, 0x22, 0x41},// K
{0x00, 0x7F, 0x40, 0x40, 0x40, 0x40},// L
{0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F},// M
{0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F},// N
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E},// O
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x06},// P
{0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E},// Q
{0x00, 0x7F, 0x09, 0x19, 0x29, 0x46},// R
{0x00, 0x46, 0x49, 0x49, 0x49, 0x31},// S
{0x00, 0x01, 0x01, 0x7F, 0x01, 0x01},// T
{0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F},// U
{0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F},// V
{0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F},// W
{0x00, 0x63, 0x14, 0x08, 0x14, 0x63},// X
{0x00, 0x07, 0x08, 0x70, 0x08, 0x07},// Y
{0x00, 0x61, 0x51, 0x49, 0x45, 0x43},// Z
{0x00, 0x00, 0x7F, 0x41, 0x41, 0x00},// [
{0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55},// 55
{0x00, 0x00, 0x41, 0x41, 0x7F, 0x00},// ]
{0x00, 0x04, 0x02, 0x01, 0x02, 0x04},// ^
{0x00, 0x40, 0x40, 0x40, 0x40, 0x40},// _
{0x00, 0x00, 0x01, 0x02, 0x04, 0x00},// '
{0x00, 0x20, 0x54, 0x54, 0x54, 0x78},// a
{0x00, 0x7F, 0x48, 0x44, 0x44, 0x38},// b
{0x00, 0x38, 0x44, 0x44, 0x44, 0x20},// c
{0x00, 0x38, 0x44, 0x44, 0x48, 0x7F},// d
{0x00, 0x38, 0x54, 0x54, 0x54, 0x18},// e
{0x00, 0x08, 0x7E, 0x09, 0x01, 0x02},// f
{0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C},// g
{0x00, 0x7F, 0x08, 0x04, 0x04, 0x78},// h
{0x00, 0x00, 0x44, 0x7D, 0x40, 0x00},// i
{0x00, 0x40, 0x80, 0x84, 0x7D, 0x00},// j
{0x00, 0x7F, 0x10, 0x28, 0x44, 0x00},// k
{0x00, 0x00, 0x41, 0x7F, 0x40, 0x00},// l
{0x00, 0x7C, 0x04, 0x18, 0x04, 0x78},// m
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x78},// n
{0x00, 0x38, 0x44, 0x44, 0x44, 0x38},// o
{0x00, 0xFC, 0x24, 0x24, 0x24, 0x18},// p
{0x00, 0x18, 0x24, 0x24, 0x18, 0xFC},// q
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x08},// r
{0x00, 0x48, 0x54, 0x54, 0x54, 0x20},// s
{0x00, 0x04, 0x3F, 0x44, 0x40, 0x20},// t
{0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C},// u
{0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C},// v
{0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C},// w
{0x00, 0x44, 0x28, 0x10, 0x28, 0x44},// x
{0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C},// y
{0x00, 0x44, 0x64, 0x54, 0x4C, 0x44},// z
{0x14, 0x14, 0x14, 0x14, 0x14, 0x14},// horiz lines

};


//16*16 ASCII字符集点阵
unsigned char code asc2_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
unsigned char code Hzk[][32]={
{0x00,0x00,0xF0,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0xF0,0x00,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x0F,0x00,0x00,0x00},/*"中",0*/
{0x40,0x40,0x40,0x5F,0x55,0x55,0x55,0x75,0x55,0x55,0x55,0x5F,0x40,0x40,0x40,0x00,0x00,0x40,0x20,0x0F,0x09,0x49,0x89,0x79,0x09,0x09,0x09,0x0F,0x20,0x40,0x00,0x00},/*"景",1*/
{0x00,0xFE,0x02,0x42,0x4A,0xCA,0x4A,0x4A,0xCA,0x4A,0x4A,0x42,0x02,0xFE,0x00,0x00,0x00,0xFF,0x40,0x50,0x4C,0x43,0x40,0x40,0x4F,0x50,0x50,0x5C,0x40,0xFF,0x00,0x00},/*"园",2*/
{0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x88,0xF8,0x00,0x00,0x00,0x00,0x00,0x1F,0x08,0x08,0x08,0x08,0x7F,0x88,0x88,0x88,0x88,0x9F,0x80,0xF0,0x00},/*"电",3*/
{0x80,0x82,0x82,0x82,0x82,0x82,0x82,0xE2,0xA2,0x92,0x8A,0x86,0x82,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"子",4*/
{0x10,0x10,0x10,0xFF,0x10,0x90,0x08,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x08,0x00,0x04,0x44,0x82,0x7F,0x01,0x80,0x80,0x40,0x43,0x2C,0x10,0x28,0x46,0x81,0x80,0x00},/*"技",5*/
{0x00,0x10,0x10,0x10,0x10,0xD0,0x30,0xFF,0x30,0xD0,0x12,0x1C,0x10,0x10,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0xFF,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"术",6*/

};

#endif

bmp.h

#ifndef __BMP_H
#define __BMP_H
unsigned char code BMP1[] =
{
	0x00,0x06,0x0A,0xFE,0x0A,0xC6,0x00,0xE0,0x00,0xF0,0x00,0xF8,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0xFC,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0xF0,0xB0,0xB0,0xB0,0xB0,
	0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xF8,0xF8,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xF8,0xF8,0x30,0x30,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,
	0xB0,0xB0,0xB0,0xB0,0xB0,0x30,0x30,0x30,0xF8,0xF8,0x00,0x00,0x00,0x00,0x78,0x48,
	0xFE,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xFE,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x06,0x06,0x06,0x06,0x06,0x06,
	0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x60,0x60,0x60,0x60,0x60,0x6F,0xEF,0xEF,0x67,0x67,0x67,0x67,
	0x7F,0x7F,0x7F,0x67,0x67,0x67,0xE7,0xEF,0xEF,0x6F,0x60,0x60,0x60,0x60,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFF,0xFF,0x30,0x30,0x31,0x31,0x31,0xF1,0xF1,0x31,0x31,0x31,
	0xF1,0xF1,0x31,0x31,0x31,0x30,0x30,0x30,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x24,0xA4,0x2E,0x24,0xE4,0x24,0x2E,0xA4,0x24,0x00,0x00,0x00,0xF8,0x4A,0x4C,
	0x48,0xF8,0x48,0x4C,0x4A,0xF8,0x00,0x1F,0x1F,0x0F,0x06,0x06,0x06,0x06,0x06,0x06,
	0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x1F,0x1F,0x1F,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xBF,0xFF,0xF3,0xF3,0x33,0x33,
	0xF3,0xF3,0xF3,0x33,0x33,0xF3,0xFF,0xBF,0xBF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x80,0xC0,0xF0,0x7E,0x3F,0x0F,0x00,0x00,0x00,
	0xFF,0xFF,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xFF,0xFF,0x00,0x00,0xC0,0x20,0x10,0x10,
	0x10,0x10,0x20,0xC0,0x00,0x00,0xC0,0x20,0x10,0x10,0x10,0x10,0x20,0xC0,0x00,0x00,
	0x00,0x12,0x0A,0x07,0x02,0x7F,0x02,0x07,0x0A,0x12,0x00,0x00,0x00,0x0B,0x0A,0x0A,
	0x0A,0x7F,0x0A,0x0A,0x0A,0x0B,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x3F,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x18,0x1C,0x0C,0x0E,0x07,0x07,0x03,0x01,0x0D,0x0C,0x1C,0x3C,
	0x3F,0x1F,0x0F,0x00,0x00,0x00,0x01,0x03,0x03,0x07,0x0F,0x1E,0x1E,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x1F,0x1F,0x0F,0x0F,0x0D,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,
	0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x1F,0x1F,0x00,0x00,0x1F,0x20,0x40,0x40,
	0x40,0x50,0x20,0x5F,0x80,0x00,0x1F,0x20,0x40,0x40,0x40,0x50,0x20,0x5F,0x80,0x00,
};

#endif

main.c

//  文 件 名   : main.c
//  版 本 号   : v2.0
//  作    者   : 小小_扫地僧
//  生成日期   : 2014-0101
//  最近修改   :
//  功能描述   : OLED 4接口演示例程(51系列)
//              说明:
//              ----------------------------------------------------------------
//              GND    电源地
//              VCC  接5V或3.3v电源
//              SCL  P10（SCL）
//              SDA  P11（SDA）
//              RES  P12 注：SPI接口显示屏改成IIC接口时需要接RES引脚
//                           IIC接口显示屏用户请忽略
//              ----------------------------------------------------------------
#include "REG51.h"
#include "oled.h"
#include "bmp.h"

int main(void)
{
	u8 t=' ';
	OLED_Init();//初始化OLED
	OLED_ColorTurn(0);//0正常显示，1 反色显示
  OLED_DisplayTurn(0);//0正常显示 1 屏幕翻转显示
	while(1)
	{
		OLED_DrawBMP(0,0,128,32,BMP1);
		delay_ms(500);
		OLED_Clear();
		OLED_ShowChinese(0,0,0,16);//中
		OLED_ShowChinese(18,0,1,16);//景
		OLED_ShowChinese(36,0,2,16);//园
		OLED_ShowChinese(54,0,3,16);//电
		OLED_ShowChinese(72,0,4,16);//子
		OLED_ShowChinese(90,0,5,16);//科
		OLED_ShowChinese(108,0,6,16);//技
		OLED_ShowString(8,2,"ZHONGJINGYUAN",16);
		delay_ms(500);
		OLED_Clear();
		OLED_ShowString(20,0,"2014/05/01",16);
		OLED_ShowString(0,2,"ASCII:",16);
		OLED_ShowString(63,2,"CODE:",16);
		OLED_ShowChar(48,2,t,16);//显示ASCII字符
		t++;
		if(t>'~')t=' ';
		OLED_ShowNum(103,2,t,3,16);
		delay_ms(500);
		OLED_Clear();
	}

}

2、OLED显示屏STM32F103C8T6_IIC

完整代码工程：

链接：https://pan.baidu.com/s/1wTbRfibZRrE2Tp8u_gH_KQ?pwd=zxf1
提取码：zxf1
--来自百度网盘超级会员V3的分享

核心代码分析：

oled.c

#include "oled.h"
#include "stdlib.h"
#include "oledfont.h"
#include "delay.h"

u8 OLED_GRAM[144][4];

//反显函数
void OLED_ColorTurn(u8 i)
{
	if(i==0)
		{
			OLED_WR_Byte(0xA6,OLED_CMD);//正常显示
		}
	if(i==1)
		{
			OLED_WR_Byte(0xA7,OLED_CMD);//反色显示
		}
}

//屏幕旋转180度
void OLED_DisplayTurn(u8 i)
{
	if(i==0)
		{
			OLED_WR_Byte(0xC8,OLED_CMD);//正常显示
			OLED_WR_Byte(0xA1,OLED_CMD);
		}
	if(i==1)
		{
			OLED_WR_Byte(0xC0,OLED_CMD);//反转显示
			OLED_WR_Byte(0xA0,OLED_CMD);
		}
}

//延时
void IIC_delay(void)
{
	u8 t=3;
	while(t--);
}

//起始信号
void I2C_Start(void)
{
	OLED_SDA_Set();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SDA_Clr();
	IIC_delay();
	OLED_SCL_Clr();
	IIC_delay();
}

//结束信号
void I2C_Stop(void)
{
	OLED_SDA_Clr();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SDA_Set();
}

//等待信号响应
void I2C_WaitAck(void) //测数据信号的电平
{
	OLED_SDA_Set();
	IIC_delay();
	OLED_SCL_Set();
	IIC_delay();
	OLED_SCL_Clr();
	IIC_delay();
}

//写入一个字节
void Send_Byte(u8 dat)
{
	u8 i;
	for(i=0;i<8;i++)
	{
		if(dat&0x80)//将dat的8位从最高位依次写入
		{
			OLED_SDA_Set();
    }
		else
		{
			OLED_SDA_Clr();
    }
		IIC_delay();
		OLED_SCL_Set();
		IIC_delay();
		OLED_SCL_Clr();//将时钟信号设置为低电平
		dat<<=1;
  }
}

//发送一个字节
//mode:数据/命令标志 0,表示命令;1,表示数据;
void OLED_WR_Byte(u8 dat,u8 mode)
{
	I2C_Start();
	Send_Byte(0x78);
	I2C_WaitAck();
	if(mode){Send_Byte(0x40);}
  else{Send_Byte(0x00);}
	I2C_WaitAck();
	Send_Byte(dat);
	I2C_WaitAck();
	I2C_Stop();
}

//开启OLED显示
void OLED_DisPlay_On(void)
{
	OLED_WR_Byte(0x8D,OLED_CMD);//电荷泵使能
	OLED_WR_Byte(0x14,OLED_CMD);//开启电荷泵
	OLED_WR_Byte(0xAF,OLED_CMD);//点亮屏幕
}

//关闭OLED显示
void OLED_DisPlay_Off(void)
{
	OLED_WR_Byte(0x8D,OLED_CMD);//电荷泵使能
	OLED_WR_Byte(0x10,OLED_CMD);//关闭电荷泵
	OLED_WR_Byte(0xAE,OLED_CMD);//关闭屏幕
}

//更新显存到OLED
void OLED_Refresh(void)
{
	u8 i,n;
	for(i=0;i<4;i++)
	{
		OLED_WR_Byte(0xb0+i,OLED_CMD); //设置行起始地址
		OLED_WR_Byte(0x00,OLED_CMD);   //设置低列起始地址
		OLED_WR_Byte(0x10,OLED_CMD);   //设置高列起始地址
		I2C_Start();
		Send_Byte(0x78);
		I2C_WaitAck();
		Send_Byte(0x40);
		I2C_WaitAck();
		for(n=0;n<128;n++)
		{
			Send_Byte(OLED_GRAM[n][i]);
			I2C_WaitAck();
		}
		I2C_Stop();
  }
}
//清屏函数
void OLED_Clear(void)
{
	u8 i,n;
	for(i=0;i<4;i++)
	{
	   for(n=0;n<128;n++)
			{
			 OLED_GRAM[n][i]=0;//清除所有数据
			}
  }
	OLED_Refresh();//更新显示
}

//画点
//x:0~127
//y:0~63
//t:1 填充 0,清空
void OLED_DrawPoint(u8 x,u8 y,u8 t)
{
	u8 i,m,n;
	i=y/8;
	m=y%8;
	n=1<<m;
	if(t){OLED_GRAM[x][i]|=n;}
	else
	{
		OLED_GRAM[x][i]=~OLED_GRAM[x][i];
		OLED_GRAM[x][i]|=n;
		OLED_GRAM[x][i]=~OLED_GRAM[x][i];
	}
}

//画线
//x1,y1:起点坐标
//x2,y2:结束坐标
void OLED_DrawLine(u8 x1,u8 y1,u8 x2,u8 y2,u8 mode)
{
	u16 t;
	int xerr=0,yerr=0,delta_x,delta_y,distance;
	int incx,incy,uRow,uCol;
	delta_x=x2-x1; //计算坐标增量
	delta_y=y2-y1;
	uRow=x1;//画线起点坐标
	uCol=y1;
	if(delta_x>0)incx=1; //设置单步方向
	else if (delta_x==0)incx=0;//垂直线
	else {incx=-1;delta_x=-delta_x;}
	if(delta_y>0)incy=1;
	else if (delta_y==0)incy=0;//水平线
	else {incy=-1;delta_y=-delta_x;}
	if(delta_x>delta_y)distance=delta_x; //选取基本增量坐标轴
	else distance=delta_y;
	for(t=0;t<distance+1;t++)
	{
		OLED_DrawPoint(uRow,uCol,mode);//画点
		xerr+=delta_x;
		yerr+=delta_y;
		if(xerr>distance)
		{
			xerr-=distance;
			uRow+=incx;
		}
		if(yerr>distance)
		{
			yerr-=distance;
			uCol+=incy;
		}
	}
}
//x,y:圆心坐标
//r:圆的半径
void OLED_DrawCircle(u8 x,u8 y,u8 r)
{
	int a, b,num;
    a = 0;
    b = r;
    while(2 * b * b >= r * r)
    {
        OLED_DrawPoint(x + a, y - b,1);
        OLED_DrawPoint(x - a, y - b,1);
        OLED_DrawPoint(x - a, y + b,1);
        OLED_DrawPoint(x + a, y + b,1);

        OLED_DrawPoint(x + b, y + a,1);
        OLED_DrawPoint(x + b, y - a,1);
        OLED_DrawPoint(x - b, y - a,1);
        OLED_DrawPoint(x - b, y + a,1);

        a++;
        num = (a * a + b * b) - r*r;//计算画的点离圆心的距离
        if(num > 0)
        {
            b--;
            a--;
        }
    }
}



//在指定位置显示一个字符,包括部分字符
//x:0~127
//y:0~63
//size1:选择字体 6x8/6x12/8x16/12x24
//mode:0,反色显示;1,正常显示
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 size1,u8 mode)
{
	u8 i,m,temp,size2,chr1;
	u8 x0=x,y0=y;
	if(size1==8)size2=6;
	else size2=(size1/8+((size1%8)?1:0))*(size1/2);  //得到字体一个字符对应点阵集所占的字节数
	chr1=chr-' ';  //计算偏移后的值
	for(i=0;i<size2;i++)
	{
		if(size1==8)
			  {temp=asc2_0806[chr1][i];} //调用0806字体
		else if(size1==12)
        {temp=asc2_1206[chr1][i];} //调用1206字体
		else if(size1==16)
        {temp=asc2_1608[chr1][i];} //调用1608字体
		else if(size1==24)
        {temp=asc2_2412[chr1][i];} //调用2412字体
		else return;
		for(m=0;m<8;m++)
		{
			if(temp&0x01)OLED_DrawPoint(x,y,mode);
			else OLED_DrawPoint(x,y,!mode);
			temp>>=1;
			y++;
		}
		x++;
		if((size1!=8)&&((x-x0)==size1/2))
		{x=x0;y0=y0+8;}
		y=y0;
  }
}


//显示字符串
//x,y:起点坐标
//size1:字体大小
//*chr:字符串起始地址
//mode:0,反色显示;1,正常显示
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 size1,u8 mode)
{
	while((*chr>=' ')&&(*chr<='~'))//判断是不是非法字符!
	{
		OLED_ShowChar(x,y,*chr,size1,mode);
		if(size1==8)x+=6;
		else x+=size1/2;
		chr++;
  }
}

//m^n
u32 OLED_Pow(u8 m,u8 n)
{
	u32 result=1;
	while(n--)
	{
	  result*=m;
	}
	return result;
}

//显示数字
//x,y :起点坐标
//len :数字的位数
//size:字体大小
//mode:0,反色显示;1,正常显示
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size1,u8 mode)
{
	u8 t,temp,m=0;
	if(size1==8)m=2;
	for(t=0;t<len;t++)
	{
		temp=(num/OLED_Pow(10,len-t-1))%10;
			if(temp==0)
			{
				OLED_ShowChar(x+(size1/2+m)*t,y,'0',size1,mode);
      }
			else
			{
			  OLED_ShowChar(x+(size1/2+m)*t,y,temp+'0',size1,mode);
			}
  }
}

//显示汉字
//x,y:起点坐标
//num:汉字对应的序号
//mode:0,反色显示;1,正常显示
void OLED_ShowChinese(u8 x,u8 y,u8 num,u8 size1,u8 mode)
{
	u8 m,temp;
	u8 x0=x,y0=y;
	u16 i,size3=(size1/8+((size1%8)?1:0))*size1;  //得到字体一个字符对应点阵集所占的字节数
	for(i=0;i<size3;i++)
	{
		if(size1==16)
				{temp=Hzk1[num][i];}//调用16*16字体
		else if(size1==24)
				{temp=Hzk2[num][i];}//调用24*24字体
		else if(size1==32)
				{temp=Hzk3[num][i];}//调用32*32字体
		else if(size1==64)
				{temp=Hzk4[num][i];}//调用64*64字体
		else return;
		for(m=0;m<8;m++)
		{
			if(temp&0x01)OLED_DrawPoint(x,y,mode);
			else OLED_DrawPoint(x,y,!mode);
			temp>>=1;
			y++;
		}
		x++;
		if((x-x0)==size1)
		{x=x0;y0=y0+8;}
		y=y0;
	}
}

//num 显示汉字的个数
//space 每一遍显示的间隔
//mode:0,反色显示;1,正常显示
void OLED_ScrollDisplay(u8 num,u8 space,u8 mode)
{
	u8 i,n,t=0,m=0,r;
	while(1)
	{
		if(m==0)
		{
	    OLED_ShowChinese(128,8,t,16,mode); //写入一个汉字保存在OLED_GRAM[][]数组中
			t++;
		}
		if(t==num)
			{
				for(r=0;r<16*space;r++)      //显示间隔
				 {
					for(i=1;i<144;i++)
						{
							for(n=0;n<4;n++)
							{
								OLED_GRAM[i-1][n]=OLED_GRAM[i][n];
							}
						}
           OLED_Refresh();
				 }
        t=0;
      }
		m++;
		if(m==16){m=0;}
		for(i=1;i<144;i++)   //实现左移
		{
			for(n=0;n<4;n++)
			{
				OLED_GRAM[i-1][n]=OLED_GRAM[i][n];
			}
		}
		OLED_Refresh();
	}
}

//x,y：起点坐标
//sizex,sizey,图片长宽
//BMP[]：要写入的图片数组
//mode:0,反色显示;1,正常显示
void OLED_ShowPicture(u8 x,u8 y,u8 sizex,u8 sizey,u8 BMP[],u8 mode)
{
	u16 j=0;
	u8 i,n,temp,m;
	u8 x0=x,y0=y;
	sizey=sizey/8+((sizey%8)?1:0);
	for(n=0;n<sizey;n++)
	{
		 for(i=0;i<sizex;i++)
		 {
				temp=BMP[j];
				j++;
				for(m=0;m<8;m++)
				{
					if(temp&0x01)OLED_DrawPoint(x,y,mode);
					else OLED_DrawPoint(x,y,!mode);
					temp>>=1;
					y++;
				}
				x++;
				if((x-x0)==sizex)
				{
					x=x0;
					y0=y0+8;
				}
				y=y0;
     }
	 }
}
//OLED的初始化
void OLED_Init(void)
{
	GPIO_InitTypeDef  GPIO_InitStructure;
 	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA, ENABLE);	 //使能A端口时钟
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_0|GPIO_Pin_1;
 	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_OD; 		 //推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;//速度50MHz
 	GPIO_Init(GPIOA, &GPIO_InitStructure);	  //初始化PA0,1
 	GPIO_SetBits(GPIOA,GPIO_Pin_0|GPIO_Pin_1);

	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_2;
 	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP; 		 //推挽输出
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;//速度50MHz
 	GPIO_Init(GPIOA, &GPIO_InitStructure);	  //初始化PA2
 	GPIO_SetBits(GPIOA,GPIO_Pin_2);

	OLED_RES_Clr();
	delay_ms(200);
	OLED_RES_Set();

	OLED_WR_Byte(0xAE,OLED_CMD); /*display off*/
	OLED_WR_Byte(0x00,OLED_CMD); /*set lower column address*/
	OLED_WR_Byte(0x10,OLED_CMD); /*set higher column address*/
	OLED_WR_Byte(0x00,OLED_CMD); /*set display start line*/
	OLED_WR_Byte(0xB0,OLED_CMD); /*set page address*/
	OLED_WR_Byte(0x81,OLED_CMD); /*contract control*/
	OLED_WR_Byte(0xff,OLED_CMD); /*128*/
	OLED_WR_Byte(0xA1,OLED_CMD); /*set segment remap*/
	OLED_WR_Byte(0xA6,OLED_CMD); /*normal / reverse*/
	OLED_WR_Byte(0xA8,OLED_CMD); /*multiplex ratio*/
	OLED_WR_Byte(0x1F,OLED_CMD); /*duty = 1/32*/
	OLED_WR_Byte(0xC8,OLED_CMD); /*Com scan direction*/
	OLED_WR_Byte(0xD3,OLED_CMD); /*set display offset*/
	OLED_WR_Byte(0x00,OLED_CMD);
	OLED_WR_Byte(0xD5,OLED_CMD); /*set osc division*/
	OLED_WR_Byte(0x80,OLED_CMD);
	OLED_WR_Byte(0xD9,OLED_CMD); /*set pre-charge period*/
	OLED_WR_Byte(0x1f,OLED_CMD);
	OLED_WR_Byte(0xDA,OLED_CMD); /*set COM pins*/
	OLED_WR_Byte(0x00,OLED_CMD);
	OLED_WR_Byte(0xdb,OLED_CMD); /*set vcomh*/
	OLED_WR_Byte(0x40,OLED_CMD);
	OLED_WR_Byte(0x8d,OLED_CMD); /*set charge pump enable*/
	OLED_WR_Byte(0x14,OLED_CMD);
	OLED_Clear();
	OLED_WR_Byte(0xAF,OLED_CMD); /*display ON*/
}

oled.h

#ifndef __OLED_H
#define __OLED_H

#include "sys.h"
#include "stdlib.h"

//-----------------OLED端口定义----------------

#define OLED_SCL_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_0)//SCL
#define OLED_SCL_Set() GPIO_SetBits(GPIOA,GPIO_Pin_0)

#define OLED_SDA_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_1)//DIN
#define OLED_SDA_Set() GPIO_SetBits(GPIOA,GPIO_Pin_1)

#define OLED_RES_Clr() GPIO_ResetBits(GPIOA,GPIO_Pin_2)//RES
#define OLED_RES_Set() GPIO_SetBits(GPIOA,GPIO_Pin_2)


#define OLED_CMD  0	//写命令
#define OLED_DATA 1	//写数据

void OLED_ClearPoint(u8 x,u8 y);
void OLED_ColorTurn(u8 i);
void OLED_DisplayTurn(u8 i);
void I2C_Start(void);
void I2C_Stop(void);
void I2C_WaitAck(void);
void Send_Byte(u8 dat);
void OLED_WR_Byte(u8 dat,u8 mode);
void OLED_DisPlay_On(void);
void OLED_DisPlay_Off(void);
void OLED_Refresh(void);
void OLED_Clear(void);
void OLED_DrawPoint(u8 x,u8 y,u8 t);
void OLED_DrawLine(u8 x1,u8 y1,u8 x2,u8 y2,u8 mode);
void OLED_DrawCircle(u8 x,u8 y,u8 r);
void OLED_ShowChar(u8 x,u8 y,u8 chr,u8 size1,u8 mode);
void OLED_ShowChar6x8(u8 x,u8 y,u8 chr,u8 mode);
void OLED_ShowString(u8 x,u8 y,u8 *chr,u8 size1,u8 mode);
void OLED_ShowNum(u8 x,u8 y,u32 num,u8 len,u8 size1,u8 mode);
void OLED_ShowChinese(u8 x,u8 y,u8 num,u8 size1,u8 mode);
void OLED_ScrollDisplay(u8 num,u8 space,u8 mode);
void OLED_ShowPicture(u8 x,u8 y,u8 sizex,u8 sizey,u8 BMP[],u8 mode);
void OLED_Init(void);

#endif

oledfont.h

#ifndef __OLEDFONT_H
#define __OLEDFONT_H
const unsigned char asc2_0806[][6] =
{
{0x00, 0x00, 0x00, 0x00, 0x00, 0x00},// sp
{0x00, 0x00, 0x00, 0x2f, 0x00, 0x00},// !
{0x00, 0x00, 0x07, 0x00, 0x07, 0x00},// "
{0x00, 0x14, 0x7f, 0x14, 0x7f, 0x14},// #
{0x00, 0x24, 0x2a, 0x7f, 0x2a, 0x12},// $
{0x00, 0x62, 0x64, 0x08, 0x13, 0x23},// %
{0x00, 0x36, 0x49, 0x55, 0x22, 0x50},// &
{0x00, 0x00, 0x05, 0x03, 0x00, 0x00},// '
{0x00, 0x00, 0x1c, 0x22, 0x41, 0x00},// (
{0x00, 0x00, 0x41, 0x22, 0x1c, 0x00},// )
{0x00, 0x14, 0x08, 0x3E, 0x08, 0x14},// *
{0x00, 0x08, 0x08, 0x3E, 0x08, 0x08},// +
{0x00, 0x00, 0x00, 0xA0, 0x60, 0x00},// ,
{0x00, 0x08, 0x08, 0x08, 0x08, 0x08},// -
{0x00, 0x00, 0x60, 0x60, 0x00, 0x00},// .
{0x00, 0x20, 0x10, 0x08, 0x04, 0x02},// /
{0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E},// 0
{0x00, 0x00, 0x42, 0x7F, 0x40, 0x00},// 1
{0x00, 0x42, 0x61, 0x51, 0x49, 0x46},// 2
{0x00, 0x21, 0x41, 0x45, 0x4B, 0x31},// 3
{0x00, 0x18, 0x14, 0x12, 0x7F, 0x10},// 4
{0x00, 0x27, 0x45, 0x45, 0x45, 0x39},// 5
{0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30},// 6
{0x00, 0x01, 0x71, 0x09, 0x05, 0x03},// 7
{0x00, 0x36, 0x49, 0x49, 0x49, 0x36},// 8
{0x00, 0x06, 0x49, 0x49, 0x29, 0x1E},// 9
{0x00, 0x00, 0x36, 0x36, 0x00, 0x00},// :
{0x00, 0x00, 0x56, 0x36, 0x00, 0x00},// ;
{0x00, 0x08, 0x14, 0x22, 0x41, 0x00},// <
{0x00, 0x14, 0x14, 0x14, 0x14, 0x14},// =
{0x00, 0x00, 0x41, 0x22, 0x14, 0x08},// >
{0x00, 0x02, 0x01, 0x51, 0x09, 0x06},// ?
{0x00, 0x32, 0x49, 0x59, 0x51, 0x3E},// @
{0x00, 0x7C, 0x12, 0x11, 0x12, 0x7C},// A
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x36},// B
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x22},// C
{0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C},// D
{0x00, 0x7F, 0x49, 0x49, 0x49, 0x41},// E
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x01},// F
{0x00, 0x3E, 0x41, 0x49, 0x49, 0x7A},// G
{0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F},// H
{0x00, 0x00, 0x41, 0x7F, 0x41, 0x00},// I
{0x00, 0x20, 0x40, 0x41, 0x3F, 0x01},// J
{0x00, 0x7F, 0x08, 0x14, 0x22, 0x41},// K
{0x00, 0x7F, 0x40, 0x40, 0x40, 0x40},// L
{0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F},// M
{0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F},// N
{0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E},// O
{0x00, 0x7F, 0x09, 0x09, 0x09, 0x06},// P
{0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E},// Q
{0x00, 0x7F, 0x09, 0x19, 0x29, 0x46},// R
{0x00, 0x46, 0x49, 0x49, 0x49, 0x31},// S
{0x00, 0x01, 0x01, 0x7F, 0x01, 0x01},// T
{0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F},// U
{0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F},// V
{0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F},// W
{0x00, 0x63, 0x14, 0x08, 0x14, 0x63},// X
{0x00, 0x07, 0x08, 0x70, 0x08, 0x07},// Y
{0x00, 0x61, 0x51, 0x49, 0x45, 0x43},// Z
{0x00, 0x00, 0x7F, 0x41, 0x41, 0x00},// [
{0x00, 0x55, 0x2A, 0x55, 0x2A, 0x55},// 55
{0x00, 0x00, 0x41, 0x41, 0x7F, 0x00},// ]
{0x00, 0x04, 0x02, 0x01, 0x02, 0x04},// ^
{0x00, 0x40, 0x40, 0x40, 0x40, 0x40},// _
{0x00, 0x00, 0x01, 0x02, 0x04, 0x00},// '
{0x00, 0x20, 0x54, 0x54, 0x54, 0x78},// a
{0x00, 0x7F, 0x48, 0x44, 0x44, 0x38},// b
{0x00, 0x38, 0x44, 0x44, 0x44, 0x20},// c
{0x00, 0x38, 0x44, 0x44, 0x48, 0x7F},// d
{0x00, 0x38, 0x54, 0x54, 0x54, 0x18},// e
{0x00, 0x08, 0x7E, 0x09, 0x01, 0x02},// f
{0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C},// g
{0x00, 0x7F, 0x08, 0x04, 0x04, 0x78},// h
{0x00, 0x00, 0x44, 0x7D, 0x40, 0x00},// i
{0x00, 0x40, 0x80, 0x84, 0x7D, 0x00},// j
{0x00, 0x7F, 0x10, 0x28, 0x44, 0x00},// k
{0x00, 0x00, 0x41, 0x7F, 0x40, 0x00},// l
{0x00, 0x7C, 0x04, 0x18, 0x04, 0x78},// m
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x78},// n
{0x00, 0x38, 0x44, 0x44, 0x44, 0x38},// o
{0x00, 0xFC, 0x24, 0x24, 0x24, 0x18},// p
{0x00, 0x18, 0x24, 0x24, 0x18, 0xFC},// q
{0x00, 0x7C, 0x08, 0x04, 0x04, 0x08},// r
{0x00, 0x48, 0x54, 0x54, 0x54, 0x20},// s
{0x00, 0x04, 0x3F, 0x44, 0x40, 0x20},// t
{0x00, 0x3C, 0x40, 0x40, 0x20, 0x7C},// u
{0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C},// v
{0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C},// w
{0x00, 0x44, 0x28, 0x10, 0x28, 0x44},// x
{0x00, 0x1C, 0xA0, 0xA0, 0xA0, 0x7C},// y
{0x00, 0x44, 0x64, 0x54, 0x4C, 0x44},// z
{0x14, 0x14, 0x14, 0x14, 0x14, 0x14},// horiz lines
};
//12*12 ASCII字符集点阵
const unsigned char asc2_1206[95][12]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0xFC,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"!",1*/
{0x00,0x0C,0x02,0x0C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x90,0xD0,0xBC,0xD0,0xBC,0x90,0x00,0x03,0x00,0x03,0x00,0x00},/*"#",3*/
{0x18,0x24,0xFE,0x44,0x8C,0x00,0x03,0x02,0x07,0x02,0x01,0x00},/*"$",4*/
{0x18,0x24,0xD8,0xB0,0x4C,0x80,0x00,0x03,0x00,0x01,0x02,0x01},/*"%",5*/
{0xC0,0x38,0xE4,0x38,0xE0,0x00,0x01,0x02,0x02,0x01,0x02,0x02},/*"&",6*/
{0x08,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xF8,0x04,0x02,0x00,0x00,0x00,0x01,0x02,0x04},/*"(",8*/
{0x00,0x02,0x04,0xF8,0x00,0x00,0x00,0x04,0x02,0x01,0x00,0x00},/*")",9*/
{0x90,0x60,0xF8,0x60,0x90,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"*",10*/
{0x20,0x20,0xFC,0x20,0x20,0x00,0x00,0x00,0x01,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x06,0x00,0x00,0x00,0x00},/*",",12*/
{0x20,0x20,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x80,0x60,0x1C,0x02,0x00,0x04,0x03,0x00,0x00,0x00,0x00},/*"/",15*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"0",16*/
{0x00,0x08,0xFC,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"1",17*/
{0x18,0x84,0x44,0x24,0x18,0x00,0x03,0x02,0x02,0x02,0x02,0x00},/*"2",18*/
{0x08,0x04,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"3",19*/
{0x40,0xB0,0x88,0xFC,0x80,0x00,0x00,0x00,0x00,0x03,0x02,0x00},/*"4",20*/
{0x3C,0x24,0x24,0x24,0xC4,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"5",21*/
{0xF8,0x24,0x24,0x2C,0xC0,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"6",22*/
{0x0C,0x04,0xE4,0x1C,0x04,0x00,0x00,0x00,0x03,0x00,0x00,0x00},/*"7",23*/
{0xD8,0x24,0x24,0x24,0xD8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"8",24*/
{0x38,0x44,0x44,0x44,0xF8,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"9",25*/
{0x00,0x00,0x10,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x20,0x00,0x00,0x00,0x00,0x00,0x06,0x00,0x00,0x00},/*";",27*/
{0x00,0x20,0x50,0x88,0x04,0x02,0x00,0x00,0x00,0x00,0x01,0x02},/*"<",28*/
{0x90,0x90,0x90,0x90,0x90,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x02,0x04,0x88,0x50,0x20,0x00,0x02,0x01,0x00,0x00,0x00},/*">",30*/
{0x18,0x04,0xC4,0x24,0x18,0x00,0x00,0x00,0x02,0x00,0x00,0x00},/*"?",31*/
{0xF8,0x04,0xE4,0x94,0xF8,0x00,0x01,0x02,0x02,0x02,0x02,0x00},/*"@",32*/
{0x00,0xE0,0x9C,0xF0,0x80,0x00,0x02,0x03,0x00,0x00,0x03,0x02},/*"A",33*/
{0x04,0xFC,0x24,0x24,0xD8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"B",34*/
{0xF8,0x04,0x04,0x04,0x0C,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"C",35*/
{0x04,0xFC,0x04,0x04,0xF8,0x00,0x02,0x03,0x02,0x02,0x01,0x00},/*"D",36*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"E",37*/
{0x04,0xFC,0x24,0x74,0x0C,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"F",38*/
{0xF0,0x08,0x04,0x44,0xCC,0x40,0x00,0x01,0x02,0x02,0x01,0x00},/*"G",39*/
{0x04,0xFC,0x20,0x20,0xFC,0x04,0x02,0x03,0x00,0x00,0x03,0x02},/*"H",40*/
{0x04,0x04,0xFC,0x04,0x04,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"I",41*/
{0x00,0x04,0x04,0xFC,0x04,0x04,0x06,0x04,0x04,0x03,0x00,0x00},/*"J",42*/
{0x04,0xFC,0x24,0xD0,0x0C,0x04,0x02,0x03,0x02,0x00,0x03,0x02},/*"K",43*/
{0x04,0xFC,0x04,0x00,0x00,0x00,0x02,0x03,0x02,0x02,0x02,0x03},/*"L",44*/
{0xFC,0x3C,0xC0,0x3C,0xFC,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"M",45*/
{0x04,0xFC,0x30,0xC4,0xFC,0x04,0x02,0x03,0x02,0x00,0x03,0x00},/*"N",46*/
{0xF8,0x04,0x04,0x04,0xF8,0x00,0x01,0x02,0x02,0x02,0x01,0x00},/*"O",47*/
{0x04,0xFC,0x24,0x24,0x18,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"P",48*/
{0xF8,0x84,0x84,0x04,0xF8,0x00,0x01,0x02,0x02,0x07,0x05,0x00},/*"Q",49*/
{0x04,0xFC,0x24,0x64,0x98,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"R",50*/
{0x18,0x24,0x24,0x44,0x8C,0x00,0x03,0x02,0x02,0x02,0x01,0x00},/*"S",51*/
{0x0C,0x04,0xFC,0x04,0x0C,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"T",52*/
{0x04,0xFC,0x00,0x00,0xFC,0x04,0x00,0x01,0x02,0x02,0x01,0x00},/*"U",53*/
{0x04,0x7C,0x80,0xE0,0x1C,0x04,0x00,0x00,0x03,0x00,0x00,0x00},/*"V",54*/
{0x1C,0xE0,0x3C,0xE0,0x1C,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"W",55*/
{0x04,0x9C,0x60,0x9C,0x04,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"X",56*/
{0x04,0x1C,0xE0,0x1C,0x04,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"Y",57*/
{0x0C,0x84,0x64,0x1C,0x04,0x00,0x02,0x03,0x02,0x02,0x03,0x00},/*"Z",58*/
{0x00,0x00,0xFE,0x02,0x02,0x00,0x00,0x00,0x07,0x04,0x04,0x00},/*"[",59*/
{0x00,0x0E,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x00},/*"\",60*/
{0x00,0x02,0x02,0xFE,0x00,0x00,0x00,0x04,0x04,0x07,0x00,0x00},/*"]",61*/
{0x00,0x04,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x08,0x08,0x08,0x08,0x08,0x08},/*"_",63*/
{0x00,0x00,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x40,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"a",65*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x00,0x03,0x02,0x02,0x01,0x00},/*"b",66*/
{0x00,0xC0,0x20,0x20,0x60,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"c",67*/
{0x00,0xC0,0x20,0x24,0xFC,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"d",68*/
{0x00,0xC0,0xA0,0xA0,0xC0,0x00,0x00,0x01,0x02,0x02,0x02,0x00},/*"e",69*/
{0x00,0x20,0xF8,0x24,0x24,0x04,0x00,0x02,0x03,0x02,0x02,0x00},/*"f",70*/
{0x00,0x40,0xA0,0xA0,0x60,0x20,0x00,0x07,0x0A,0x0A,0x0A,0x04},/*"g",71*/
{0x04,0xFC,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"h",72*/
{0x00,0x20,0xE4,0x00,0x00,0x00,0x00,0x02,0x03,0x02,0x00,0x00},/*"i",73*/
{0x00,0x00,0x20,0xE4,0x00,0x00,0x08,0x08,0x08,0x07,0x00,0x00},/*"j",74*/
{0x04,0xFC,0x80,0xE0,0x20,0x20,0x02,0x03,0x02,0x00,0x03,0x02},/*"k",75*/
{0x04,0x04,0xFC,0x00,0x00,0x00,0x02,0x02,0x03,0x02,0x02,0x00},/*"l",76*/
{0xE0,0x20,0xE0,0x20,0xC0,0x00,0x03,0x00,0x03,0x00,0x03,0x00},/*"m",77*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x02,0x03,0x02,0x00,0x03,0x02},/*"n",78*/
{0x00,0xC0,0x20,0x20,0xC0,0x00,0x00,0x01,0x02,0x02,0x01,0x00},/*"o",79*/
{0x20,0xE0,0x20,0x20,0xC0,0x00,0x08,0x0F,0x0A,0x02,0x01,0x00},/*"p",80*/
{0x00,0xC0,0x20,0x20,0xE0,0x00,0x00,0x01,0x02,0x0A,0x0F,0x08},/*"q",81*/
{0x20,0xE0,0x40,0x20,0x20,0x00,0x02,0x03,0x02,0x00,0x00,0x00},/*"r",82*/
{0x00,0x60,0xA0,0xA0,0x20,0x00,0x00,0x02,0x02,0x02,0x03,0x00},/*"s",83*/
{0x00,0x20,0xF8,0x20,0x00,0x00,0x00,0x00,0x01,0x02,0x02,0x00},/*"t",84*/
{0x20,0xE0,0x00,0x20,0xE0,0x00,0x00,0x01,0x02,0x02,0x03,0x02},/*"u",85*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x00,0x00,0x03,0x01,0x00,0x00},/*"v",86*/
{0x60,0x80,0xE0,0x80,0x60,0x00,0x00,0x03,0x00,0x03,0x00,0x00},/*"w",87*/
{0x20,0x60,0x80,0x60,0x20,0x00,0x02,0x03,0x00,0x03,0x02,0x00},/*"x",88*/
{0x20,0xE0,0x20,0x80,0x60,0x20,0x08,0x08,0x07,0x01,0x00,0x00},/*"y",89*/
{0x00,0x20,0xA0,0x60,0x20,0x00,0x00,0x02,0x03,0x02,0x02,0x00},/*"z",90*/
{0x00,0x00,0x20,0xDE,0x02,0x00,0x00,0x00,0x00,0x07,0x04,0x00},/*"{",91*/
{0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x0F,0x00,0x00},/*"|",92*/
{0x00,0x02,0xDE,0x20,0x00,0x00,0x00,0x04,0x07,0x00,0x00,0x00},/*"}",93*/
{0x02,0x01,0x02,0x04,0x04,0x02,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//16*16 ASCII字符集点阵
const unsigned char asc2_1608[][16]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x33,0x30,0x00,0x00,0x00},/*"!",1*/
{0x00,0x10,0x0C,0x06,0x10,0x0C,0x06,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x40,0xC0,0x78,0x40,0xC0,0x78,0x40,0x00,0x04,0x3F,0x04,0x04,0x3F,0x04,0x04,0x00},/*"#",3*/
{0x00,0x70,0x88,0xFC,0x08,0x30,0x00,0x00,0x00,0x18,0x20,0xFF,0x21,0x1E,0x00,0x00},/*"$",4*/
{0xF0,0x08,0xF0,0x00,0xE0,0x18,0x00,0x00,0x00,0x21,0x1C,0x03,0x1E,0x21,0x1E,0x00},/*"%",5*/
{0x00,0xF0,0x08,0x88,0x70,0x00,0x00,0x00,0x1E,0x21,0x23,0x24,0x19,0x27,0x21,0x10},/*"&",6*/
{0x10,0x16,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0xE0,0x18,0x04,0x02,0x00,0x00,0x00,0x00,0x07,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x02,0x04,0x18,0xE0,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x07,0x00,0x00,0x00},/*")",9*/
{0x40,0x40,0x80,0xF0,0x80,0x40,0x40,0x00,0x02,0x02,0x01,0x0F,0x01,0x02,0x02,0x00},/*"*",10*/
{0x00,0x00,0x00,0xF0,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x1F,0x01,0x01,0x01,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xB0,0x70,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x01,0x01,0x01,0x01,0x01},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x80,0x60,0x18,0x04,0x00,0x60,0x18,0x06,0x01,0x00,0x00,0x00},/*"/",15*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x0F,0x10,0x20,0x20,0x10,0x0F,0x00},/*"0",16*/
{0x00,0x10,0x10,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"1",17*/
{0x00,0x70,0x08,0x08,0x08,0x88,0x70,0x00,0x00,0x30,0x28,0x24,0x22,0x21,0x30,0x00},/*"2",18*/
{0x00,0x30,0x08,0x88,0x88,0x48,0x30,0x00,0x00,0x18,0x20,0x20,0x20,0x11,0x0E,0x00},/*"3",19*/
{0x00,0x00,0xC0,0x20,0x10,0xF8,0x00,0x00,0x00,0x07,0x04,0x24,0x24,0x3F,0x24,0x00},/*"4",20*/
{0x00,0xF8,0x08,0x88,0x88,0x08,0x08,0x00,0x00,0x19,0x21,0x20,0x20,0x11,0x0E,0x00},/*"5",21*/
{0x00,0xE0,0x10,0x88,0x88,0x18,0x00,0x00,0x00,0x0F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"6",22*/
{0x00,0x38,0x08,0x08,0xC8,0x38,0x08,0x00,0x00,0x00,0x00,0x3F,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x70,0x88,0x08,0x08,0x88,0x70,0x00,0x00,0x1C,0x22,0x21,0x21,0x22,0x1C,0x00},/*"8",24*/
{0x00,0xE0,0x10,0x08,0x08,0x10,0xE0,0x00,0x00,0x00,0x31,0x22,0x22,0x11,0x0F,0x00},/*"9",25*/
{0x00,0x00,0x00,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x30,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x60,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x80,0x40,0x20,0x10,0x08,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x20,0x00},/*"<",28*/
{0x40,0x40,0x40,0x40,0x40,0x40,0x40,0x00,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x00},/*"=",29*/
{0x00,0x08,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x20,0x10,0x08,0x04,0x02,0x01,0x00},/*">",30*/
{0x00,0x70,0x48,0x08,0x08,0x08,0xF0,0x00,0x00,0x00,0x00,0x30,0x36,0x01,0x00,0x00},/*"?",31*/
{0xC0,0x30,0xC8,0x28,0xE8,0x10,0xE0,0x00,0x07,0x18,0x27,0x24,0x23,0x14,0x0B,0x00},/*"@",32*/
{0x00,0x00,0xC0,0x38,0xE0,0x00,0x00,0x00,0x20,0x3C,0x23,0x02,0x02,0x27,0x38,0x20},/*"A",33*/
{0x08,0xF8,0x88,0x88,0x88,0x70,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x11,0x0E,0x00},/*"B",34*/
{0xC0,0x30,0x08,0x08,0x08,0x08,0x38,0x00,0x07,0x18,0x20,0x20,0x20,0x10,0x08,0x00},/*"C",35*/
{0x08,0xF8,0x08,0x08,0x08,0x10,0xE0,0x00,0x20,0x3F,0x20,0x20,0x20,0x10,0x0F,0x00},/*"D",36*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x20,0x23,0x20,0x18,0x00},/*"E",37*/
{0x08,0xF8,0x88,0x88,0xE8,0x08,0x10,0x00,0x20,0x3F,0x20,0x00,0x03,0x00,0x00,0x00},/*"F",38*/
{0xC0,0x30,0x08,0x08,0x08,0x38,0x00,0x00,0x07,0x18,0x20,0x20,0x22,0x1E,0x02,0x00},/*"G",39*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x20,0x3F,0x21,0x01,0x01,0x21,0x3F,0x20},/*"H",40*/
{0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"I",41*/
{0x00,0x00,0x08,0x08,0xF8,0x08,0x08,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00,0x00},/*"J",42*/
{0x08,0xF8,0x88,0xC0,0x28,0x18,0x08,0x00,0x20,0x3F,0x20,0x01,0x26,0x38,0x20,0x00},/*"K",43*/
{0x08,0xF8,0x08,0x00,0x00,0x00,0x00,0x00,0x20,0x3F,0x20,0x20,0x20,0x20,0x30,0x00},/*"L",44*/
{0x08,0xF8,0xF8,0x00,0xF8,0xF8,0x08,0x00,0x20,0x3F,0x00,0x3F,0x00,0x3F,0x20,0x00},/*"M",45*/
{0x08,0xF8,0x30,0xC0,0x00,0x08,0xF8,0x08,0x20,0x3F,0x20,0x00,0x07,0x18,0x3F,0x00},/*"N",46*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x10,0x20,0x20,0x20,0x10,0x0F,0x00},/*"O",47*/
{0x08,0xF8,0x08,0x08,0x08,0x08,0xF0,0x00,0x20,0x3F,0x21,0x01,0x01,0x01,0x00,0x00},/*"P",48*/
{0xE0,0x10,0x08,0x08,0x08,0x10,0xE0,0x00,0x0F,0x18,0x24,0x24,0x38,0x50,0x4F,0x00},/*"Q",49*/
{0x08,0xF8,0x88,0x88,0x88,0x88,0x70,0x00,0x20,0x3F,0x20,0x00,0x03,0x0C,0x30,0x20},/*"R",50*/
{0x00,0x70,0x88,0x08,0x08,0x08,0x38,0x00,0x00,0x38,0x20,0x21,0x21,0x22,0x1C,0x00},/*"S",51*/
{0x18,0x08,0x08,0xF8,0x08,0x08,0x18,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"T",52*/
{0x08,0xF8,0x08,0x00,0x00,0x08,0xF8,0x08,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"U",53*/
{0x08,0x78,0x88,0x00,0x00,0xC8,0x38,0x08,0x00,0x00,0x07,0x38,0x0E,0x01,0x00,0x00},/*"V",54*/
{0xF8,0x08,0x00,0xF8,0x00,0x08,0xF8,0x00,0x03,0x3C,0x07,0x00,0x07,0x3C,0x03,0x00},/*"W",55*/
{0x08,0x18,0x68,0x80,0x80,0x68,0x18,0x08,0x20,0x30,0x2C,0x03,0x03,0x2C,0x30,0x20},/*"X",56*/
{0x08,0x38,0xC8,0x00,0xC8,0x38,0x08,0x00,0x00,0x00,0x20,0x3F,0x20,0x00,0x00,0x00},/*"Y",57*/
{0x10,0x08,0x08,0x08,0xC8,0x38,0x08,0x00,0x20,0x38,0x26,0x21,0x20,0x20,0x18,0x00},/*"Z",58*/
{0x00,0x00,0x00,0xFE,0x02,0x02,0x02,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x0C,0x30,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x06,0x38,0xC0,0x00},/*"\",60*/
{0x00,0x02,0x02,0x02,0xFE,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x7F,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x04,0x02,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x02,0x02,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x19,0x24,0x22,0x22,0x22,0x3F,0x20},/*"a",65*/
{0x08,0xF8,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x3F,0x11,0x20,0x20,0x11,0x0E,0x00},/*"b",66*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x00,0x00,0x00,0x0E,0x11,0x20,0x20,0x20,0x11,0x00},/*"c",67*/
{0x00,0x00,0x00,0x80,0x80,0x88,0xF8,0x00,0x00,0x0E,0x11,0x20,0x20,0x10,0x3F,0x20},/*"d",68*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x22,0x22,0x22,0x22,0x13,0x00},/*"e",69*/
{0x00,0x80,0x80,0xF0,0x88,0x88,0x88,0x18,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"f",70*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x6B,0x94,0x94,0x94,0x93,0x60,0x00},/*"g",71*/
{0x08,0xF8,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"h",72*/
{0x00,0x80,0x98,0x98,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x80,0x98,0x98,0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x7F,0x00,0x00},/*"j",74*/
{0x08,0xF8,0x00,0x00,0x80,0x80,0x80,0x00,0x20,0x3F,0x24,0x02,0x2D,0x30,0x20,0x00},/*"k",75*/
{0x00,0x08,0x08,0xF8,0x00,0x00,0x00,0x00,0x00,0x20,0x20,0x3F,0x20,0x20,0x00,0x00},/*"l",76*/
{0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x20,0x3F,0x20,0x00,0x3F,0x20,0x00,0x3F},/*"m",77*/
{0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x3F,0x21,0x00,0x00,0x20,0x3F,0x20},/*"n",78*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x00,0x1F,0x20,0x20,0x20,0x20,0x1F,0x00},/*"o",79*/
{0x80,0x80,0x00,0x80,0x80,0x00,0x00,0x00,0x80,0xFF,0xA1,0x20,0x20,0x11,0x0E,0x00},/*"p",80*/
{0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x00,0x00,0x0E,0x11,0x20,0x20,0xA0,0xFF,0x80},/*"q",81*/
{0x80,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x20,0x20,0x3F,0x21,0x20,0x00,0x01,0x00},/*"r",82*/
{0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x33,0x24,0x24,0x24,0x24,0x19,0x00},/*"s",83*/
{0x00,0x80,0x80,0xE0,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x1F,0x20,0x20,0x00,0x00},/*"t",84*/
{0x80,0x80,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x1F,0x20,0x20,0x20,0x10,0x3F,0x20},/*"u",85*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x00,0x01,0x0E,0x30,0x08,0x06,0x01,0x00},/*"v",86*/
{0x80,0x80,0x00,0x80,0x00,0x80,0x80,0x80,0x0F,0x30,0x0C,0x03,0x0C,0x30,0x0F,0x00},/*"w",87*/
{0x00,0x80,0x80,0x00,0x80,0x80,0x80,0x00,0x00,0x20,0x31,0x2E,0x0E,0x31,0x20,0x00},/*"x",88*/
{0x80,0x80,0x80,0x00,0x00,0x80,0x80,0x80,0x80,0x81,0x8E,0x70,0x18,0x06,0x01,0x00},/*"y",89*/
{0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x00,0x00,0x21,0x30,0x2C,0x22,0x21,0x30,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x80,0x7C,0x02,0x02,0x00,0x00,0x00,0x00,0x00,0x3F,0x40,0x40},/*"{",91*/
{0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00},/*"|",92*/
{0x00,0x02,0x02,0x7C,0x80,0x00,0x00,0x00,0x00,0x40,0x40,0x3F,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x06,0x01,0x01,0x02,0x02,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/
};
//24*24 ASICII字符集点阵
const unsigned char asc2_2412[][36]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*" ",0*/
{0x00,0x00,0x00,0x00,0x00,0xF0,0xF0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x7F,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*"!",1*/
{0x00,0x00,0x80,0x60,0x30,0x1C,0x8C,0x60,0x30,0x1C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*""",2*/
{0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x00,0x00,0xE0,0x00,0x00,0x00,0x86,0xE6,0x9F,0x86,0x86,0x86,0x86,0xE6,0x9F,0x86,0x00,0x00,0x01,0x1F,0x01,0x01,0x01,0x01,0x01,0x1F,0x01,0x01,0x00},/*"#",3*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0xF8,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x03,0x07,0x0C,0x18,0xFF,0x70,0xE1,0x81,0x00,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x7F,0x10,0x0F,0x07,0x00,0x00},/*"$",4*/
{0x80,0x60,0x20,0x60,0x80,0x00,0x00,0x00,0xE0,0x20,0x00,0x00,0x0F,0x30,0x20,0x30,0x9F,0x70,0xDC,0x37,0x10,0x30,0xC0,0x00,0x00,0x00,0x10,0x0E,0x03,0x00,0x07,0x18,0x10,0x18,0x07,0x00},/*"%",5*/
{0x00,0x00,0xC0,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x1F,0x38,0xE8,0x87,0x03,0xC4,0x3C,0x04,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x0B,0x07,0x0D,0x10,0x10,0x08,0x00},/*"&",6*/
{0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"'",7*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xE0,0x30,0x08,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x18,0x20,0x40,0x00},/*"(",8*/
{0x00,0x04,0x08,0x30,0xE0,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x20,0x18,0x0F,0x03,0x00,0x00,0x00,0x00,0x00,0x00},/*")",9*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x42,0x66,0x66,0x3C,0x18,0xFF,0x18,0x3C,0x66,0x66,0x42,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"*",10*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0x00,0x00},/*"+",11*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x8C,0x4C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*",",12*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"-",13*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*".",14*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0x38,0x0C,0x00,0x00,0x00,0x00,0x00,0x80,0x70,0x1C,0x03,0x00,0x00,0x00,0x00,0x00,0x60,0x38,0x0E,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"/",15*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0E,0x07,0x01,0x00},/*"0",16*/
{0x00,0x00,0x80,0x80,0x80,0xC0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"1",17*/
{0x00,0x80,0x40,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x03,0x03,0x00,0x80,0x40,0x20,0x38,0x1F,0x07,0x00,0x00,0x00,0x1C,0x1A,0x19,0x18,0x18,0x18,0x18,0x18,0x1F,0x00,0x00},/*"2",18*/
{0x00,0x80,0xC0,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0x00,0x03,0x03,0x00,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x00,0x00,0x07,0x0F,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00,0x00},/*"3",19*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xC0,0xE0,0xF0,0x00,0x00,0x00,0x00,0xC0,0xB0,0x88,0x86,0x81,0x80,0xFF,0xFF,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00},/*"4",20*/
{0x00,0x00,0xE0,0x60,0x60,0x60,0x60,0x60,0x60,0x60,0x00,0x00,0x00,0x00,0x3F,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x00,0x07,0x0B,0x10,0x10,0x10,0x10,0x1C,0x0F,0x03,0x00,0x00},/*"5",21*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0xE0,0xC0,0x00,0x00,0x00,0xFC,0xFF,0x21,0x10,0x08,0x08,0x08,0x18,0xF0,0xE0,0x00,0x00,0x01,0x07,0x0C,0x18,0x10,0x10,0x10,0x08,0x0F,0x03,0x00},/*"6",22*/
{0x00,0x00,0xC0,0xE0,0x60,0x60,0x60,0x60,0x60,0xE0,0x60,0x00,0x00,0x00,0x03,0x00,0x00,0x00,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x00,0x00,0x00,0x00,0x00},/*"7",23*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x87,0xEF,0x2C,0x18,0x18,0x30,0x30,0x68,0xCF,0x83,0x00,0x00,0x07,0x0F,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"8",24*/
{0x00,0x00,0xC0,0xC0,0x20,0x20,0x20,0x20,0xC0,0x80,0x00,0x00,0x00,0x1F,0x3F,0x60,0x40,0x40,0x40,0x20,0x10,0xFF,0xFE,0x00,0x00,0x00,0x0C,0x1C,0x10,0x10,0x10,0x08,0x0F,0x03,0x00,0x00},/*"9",25*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x0E,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00},/*":",26*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x0C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x58,0x38,0x00,0x00,0x00,0x00,0x00},/*";",27*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x40,0x20,0x10,0x00,0x00,0x00,0x10,0x28,0x44,0x82,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"<",28*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x84,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"=",29*/
{0x00,0x00,0x10,0x20,0x40,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x82,0x44,0x28,0x10,0x00,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0x00,0x00,0x00},/*">",30*/
{0x00,0xC0,0x20,0x20,0x10,0x10,0x10,0x10,0x30,0xE0,0xC0,0x00,0x00,0x03,0x03,0x00,0x00,0xF0,0x10,0x08,0x0C,0x07,0x03,0x00,0x00,0x00,0x00,0x00,0x1C,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00},/*"?",31*/
{0x00,0x00,0x00,0xC0,0x40,0x60,0x20,0x20,0x20,0x40,0xC0,0x00,0x00,0xFC,0xFF,0x01,0xF0,0x0E,0x03,0xC1,0xFE,0x03,0x80,0x7F,0x00,0x01,0x07,0x0E,0x08,0x11,0x11,0x10,0x11,0x09,0x04,0x02},/*"@",32*/
{0x00,0x00,0x00,0x00,0x80,0xE0,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x7C,0x43,0x40,0x47,0x7F,0xF8,0x80,0x00,0x00,0x10,0x18,0x1F,0x10,0x00,0x00,0x00,0x00,0x13,0x1F,0x1C,0x10},/*"A",33*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x18,0x2F,0xE7,0x80,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"B",34*/
{0x00,0x00,0x80,0xC0,0x40,0x20,0x20,0x20,0x20,0x60,0xE0,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x08,0x04,0x03,0x00},/*"C",35*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x40,0xC0,0x80,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFE,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x18,0x08,0x0E,0x07,0x01,0x00},/*"D",36*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x20,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"E",37*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0x60,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x7C,0x00,0x00,0x01,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"F",38*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x40,0xE0,0x00,0x00,0x00,0xFC,0xFF,0x01,0x00,0x00,0x40,0x40,0xC0,0xC1,0x40,0x40,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x10,0x0F,0x0F,0x00,0x00},/*"G",39*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x20,0xE0,0xE0,0x20,0x00,0xFF,0xFF,0x10,0x10,0x10,0x10,0x10,0x10,0xFF,0xFF,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10},/*"H",40*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"I",41*/
{0x00,0x00,0x00,0x00,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x60,0xE0,0x80,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"J",42*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x20,0xA0,0x60,0x20,0x20,0x00,0x00,0xFF,0xFF,0x30,0x18,0x7C,0xE3,0xC0,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x01,0x13,0x1F,0x1C,0x18,0x10},/*"K",43*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x10,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"L",44*/
{0x20,0xE0,0xE0,0xE0,0x00,0x00,0x00,0x00,0xE0,0xE0,0xE0,0x20,0x00,0xFF,0x01,0x3F,0xFE,0xC0,0xE0,0x1E,0x01,0xFF,0xFF,0x00,0x10,0x1F,0x10,0x00,0x03,0x1F,0x03,0x00,0x10,0x1F,0x1F,0x10},/*"M",45*/
{0x20,0xE0,0xE0,0xC0,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0x00,0x03,0x07,0x1C,0x78,0xE0,0x80,0x00,0xFF,0x00,0x10,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x03,0x0F,0x1F,0x00},/*"N",46*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x18,0x10,0x10,0x18,0x0C,0x07,0x01,0x00},/*"O",47*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x20,0x20,0x20,0x20,0x20,0x30,0x1F,0x0F,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"P",48*/
{0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0x00,0xFE,0xFF,0x01,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x00,0x00,0x01,0x07,0x0E,0x11,0x11,0x13,0x3C,0x7C,0x67,0x21,0x00},/*"Q",49*/
{0x20,0xE0,0xE0,0x20,0x20,0x20,0x20,0x20,0x60,0xC0,0x80,0x00,0x00,0xFF,0xFF,0x10,0x10,0x30,0xF0,0xD0,0x08,0x0F,0x07,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x03,0x0F,0x1C,0x10,0x10},/*"R",50*/
{0x00,0x80,0xC0,0x60,0x20,0x20,0x20,0x20,0x40,0x40,0xE0,0x00,0x00,0x07,0x0F,0x0C,0x18,0x18,0x30,0x30,0x60,0xE0,0x81,0x00,0x00,0x1F,0x0C,0x08,0x10,0x10,0x10,0x10,0x18,0x0F,0x07,0x00},/*"S",51*/
{0x80,0x60,0x20,0x20,0x20,0xE0,0xE0,0x20,0x20,0x20,0x60,0x80,0x01,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x01,0x00,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x00,0x00},/*"T",52*/
{0x20,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0x20,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x07,0x0F,0x18,0x10,0x10,0x10,0x10,0x10,0x08,0x07,0x00},/*"U",53*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x07,0x7F,0xF8,0x80,0x00,0x80,0x7C,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0x1F,0x1C,0x07,0x00,0x00,0x00,0x00},/*"V",54*/
{0x20,0xE0,0xE0,0x20,0x00,0xE0,0xE0,0x20,0x00,0x20,0xE0,0x20,0x00,0x07,0xFF,0xF8,0xE0,0x1F,0xFF,0xFC,0xE0,0x1F,0x00,0x00,0x00,0x00,0x03,0x1F,0x03,0x00,0x01,0x1F,0x03,0x00,0x00,0x00},/*"W",55*/
{0x00,0x20,0x60,0xE0,0xA0,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x00,0x00,0x03,0x8F,0x7C,0xF8,0xC6,0x01,0x00,0x00,0x00,0x00,0x10,0x18,0x1E,0x13,0x00,0x01,0x17,0x1F,0x18,0x10,0x00},/*"X",56*/
{0x20,0x60,0xE0,0xE0,0x20,0x00,0x00,0x00,0x20,0xE0,0x60,0x20,0x00,0x00,0x01,0x07,0x3E,0xF8,0xE0,0x18,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x00,0x00,0x00},/*"Y",57*/
{0x00,0x80,0x60,0x20,0x20,0x20,0x20,0xA0,0xE0,0xE0,0x20,0x00,0x00,0x00,0x00,0x00,0xC0,0xF0,0x3E,0x0F,0x03,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x10,0x10,0x10,0x10,0x18,0x06,0x00},/*"Z",58*/
{0x00,0x00,0x00,0x00,0x00,0xFC,0x04,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x40,0x40,0x40,0x40,0x40,0x00},/*"[",59*/
{0x00,0x00,0x10,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x1C,0x60,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x0C,0x70,0x80,0x00},/*"\",60*/
{0x00,0x00,0x04,0x04,0x04,0x04,0x04,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x40,0x40,0x40,0x40,0x7F,0x00,0x00,0x00,0x00},/*"]",61*/
{0x00,0x00,0x00,0x10,0x08,0x0C,0x04,0x0C,0x08,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"^",62*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0x80},/*"_",63*/
{0x00,0x00,0x00,0x04,0x04,0x08,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"`",64*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x98,0xD8,0x44,0x64,0x24,0x24,0xFC,0xF8,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x10,0x08,0x1F,0x1F,0x10,0x18},/*"a",65*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x18,0x08,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x00,0x1F,0x0F,0x18,0x10,0x10,0x10,0x18,0x0F,0x03,0x00},/*"b",66*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x18,0x04,0x04,0x04,0x3C,0x38,0x00,0x00,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x08,0x06,0x00,0x00},/*"c",67*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xFF,0xFF,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"d",68*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x48,0x44,0x44,0x44,0x4C,0x78,0x70,0x00,0x00,0x00,0x03,0x0F,0x0C,0x18,0x10,0x10,0x10,0x08,0x04,0x00},/*"e",69*/
{0x00,0x00,0x00,0x00,0x80,0xC0,0x60,0x20,0x20,0xE0,0xC0,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00},/*"f",70*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0xF8,0x8C,0x04,0x04,0x8C,0xF8,0x74,0x04,0x0C,0x00,0x70,0x76,0xCF,0x8D,0x8D,0x8D,0x89,0xC8,0x78,0x70,0x00},/*"g",71*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x08,0x04,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"h",72*/
{0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"i",73*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x60,0x60,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0xC0,0xC0,0x80,0x80,0xC0,0x7F,0x3F,0x00,0x00,0x00},/*"j",74*/
{0x00,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x80,0xC0,0xF4,0x1C,0x04,0x04,0x00,0x00,0x00,0x10,0x1F,0x1F,0x11,0x00,0x03,0x1F,0x1C,0x10,0x10,0x00},/*"k",75*/
{0x00,0x00,0x20,0x20,0x20,0xE0,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00},/*"l",76*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x08,0x04,0xFC,0xFC,0x00,0x10,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10,0x00,0x1F,0x1F,0x10},/*"m",77*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x08,0x04,0x04,0xFC,0xF8,0x00,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00,0x00,0x10,0x1F,0x1F,0x10,0x00},/*"n",78*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF0,0x18,0x0C,0x04,0x04,0x0C,0x18,0xF0,0xE0,0x00,0x00,0x03,0x0F,0x0C,0x10,0x10,0x10,0x10,0x0C,0x0F,0x03,0x00},/*"o",79*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFC,0x08,0x04,0x04,0x04,0x0C,0xF8,0xF0,0x00,0x00,0x80,0xFF,0xFF,0x88,0x90,0x10,0x10,0x1C,0x0F,0x03,0x00},/*"p",80*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xE0,0xF8,0x1C,0x04,0x04,0x04,0x08,0xF8,0xFC,0x00,0x00,0x00,0x03,0x0F,0x18,0x10,0x10,0x90,0x88,0xFF,0xFF,0x80,0x00},/*"q",81*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFC,0xFC,0x10,0x08,0x04,0x04,0x0C,0x0C,0x00,0x10,0x10,0x10,0x1F,0x1F,0x10,0x10,0x10,0x00,0x00,0x00,0x00},/*"r",82*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x30,0x78,0xCC,0xC4,0x84,0x84,0x84,0x0C,0x1C,0x00,0x00,0x00,0x1E,0x18,0x10,0x10,0x10,0x11,0x19,0x0F,0x06,0x00},/*"s",83*/
{0x00,0x00,0x00,0x00,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0x1F,0x10,0x10,0x10,0x0C,0x00,0x00},/*"t",84*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x04,0xFC,0xFE,0x00,0x00,0x00,0x00,0x0F,0x1F,0x18,0x10,0x10,0x08,0x1F,0x0F,0x08,0x00},/*"u",85*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0x00,0xC4,0x3C,0x0C,0x04,0x00,0x00,0x00,0x00,0x01,0x0F,0x1E,0x0E,0x01,0x00,0x00,0x00},/*"v",86*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x3C,0xFC,0xC4,0x00,0xE4,0x7C,0xFC,0x84,0x80,0x7C,0x04,0x00,0x00,0x07,0x1F,0x07,0x00,0x00,0x07,0x1F,0x07,0x00,0x00},/*"w",87*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x04,0x1C,0x7C,0xE4,0xC0,0x34,0x1C,0x04,0x04,0x00,0x00,0x10,0x10,0x1C,0x16,0x01,0x13,0x1F,0x1C,0x18,0x10,0x00},/*"x",88*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x04,0x0C,0x3C,0xFC,0xC4,0x00,0xC4,0x3C,0x04,0x04,0x00,0x00,0x00,0xC0,0x80,0xC1,0x37,0x0E,0x01,0x00,0x00,0x00,0x00},/*"y",89*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1C,0x04,0x04,0xC4,0xF4,0x7C,0x1C,0x04,0x00,0x00,0x00,0x00,0x10,0x1C,0x1F,0x17,0x11,0x10,0x10,0x18,0x0E,0x00},/*"z",90*/
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0x0C,0x04,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x10,0x28,0xEF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x60,0x40,0x00,0x00},/*"{",91*/
{0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x00,0x00,0x00,0x00,0x00},/*"|",92*/
{0x00,0x00,0x04,0x0C,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xEF,0x28,0x10,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x60,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"}",93*/
{0x00,0x18,0x06,0x02,0x02,0x04,0x08,0x10,0x20,0x20,0x30,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"~",94*/



};
const unsigned char Hzk1[][32]={
{0x00,0x00,0xF0,0x10,0x10,0x10,0x10,0xFF,0x10,0x10,0x10,0x10,0xF0,0x00,0x00,0x00,0x00,0x00,0x0F,0x04,0x04,0x04,0x04,0xFF,0x04,0x04,0x04,0x04,0x0F,0x00,0x00,0x00},/*"中",0*/
{0x40,0x40,0x40,0x5F,0x55,0x55,0x55,0x75,0x55,0x55,0x55,0x5F,0x40,0x40,0x40,0x00,0x00,0x40,0x20,0x0F,0x09,0x49,0x89,0x79,0x09,0x09,0x09,0x0F,0x20,0x40,0x00,0x00},/*"景",1*/
{0x00,0xFE,0x02,0x42,0x4A,0xCA,0x4A,0x4A,0xCA,0x4A,0x4A,0x42,0x02,0xFE,0x00,0x00,0x00,0xFF,0x40,0x50,0x4C,0x43,0x40,0x40,0x4F,0x50,0x50,0x5C,0x40,0xFF,0x00,0x00},/*"园",2*/
{0x00,0x00,0xF8,0x88,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x88,0xF8,0x00,0x00,0x00,0x00,0x00,0x1F,0x08,0x08,0x08,0x08,0x7F,0x88,0x88,0x88,0x88,0x9F,0x80,0xF0,0x00},/*"电",3*/
{0x80,0x82,0x82,0x82,0x82,0x82,0x82,0xE2,0xA2,0x92,0x8A,0x86,0x82,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x40,0x80,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"子",4*/
{0x10,0x10,0x10,0xFF,0x10,0x90,0x08,0x88,0x88,0x88,0xFF,0x88,0x88,0x88,0x08,0x00,0x04,0x44,0x82,0x7F,0x01,0x80,0x80,0x40,0x43,0x2C,0x10,0x28,0x46,0x81,0x80,0x00},/*"技",5*/
{0x00,0x10,0x10,0x10,0x10,0xD0,0x30,0xFF,0x30,0xD0,0x12,0x1C,0x10,0x10,0x00,0x00,0x10,0x08,0x04,0x02,0x01,0x00,0x00,0xFF,0x00,0x00,0x01,0x02,0x04,0x08,0x10,0x00},/*"术",6*/
{0x04,0x04,0x04,0x84,0xE4,0x3C,0x27,0x24,0x24,0x24,0x24,0xE4,0x04,0x04,0x04,0x00,0x04,0x02,0x01,0x00,0xFF,0x09,0x09,0x09,0x09,0x49,0x89,0x7F,0x00,0x00,0x00,0x00},/*"有",7*/
{0x00,0xFE,0x22,0x5A,0x86,0x00,0xFE,0x92,0x92,0x92,0x92,0x92,0xFE,0x00,0x00,0x00,0x00,0xFF,0x04,0x08,0x07,0x00,0xFF,0x40,0x20,0x03,0x0C,0x14,0x22,0x41,0x40,0x00},/*"限",8*/
{0x00,0x80,0x40,0x20,0x18,0x06,0x80,0x00,0x07,0x18,0x20,0x40,0x80,0x00,0x00,0x00,0x01,0x00,0x20,0x70,0x28,0x26,0x21,0x20,0x20,0x24,0x38,0x60,0x00,0x01,0x01,0x00},/*"公",9*/
{0x00,0x10,0x12,0x92,0x92,0x92,0x92,0x92,0x92,0x12,0x12,0x02,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0x10,0x10,0x10,0x10,0x3F,0x00,0x40,0x80,0x7F,0x00,0x00,0x00},/*"司",10*/



};
const unsigned char Hzk2[][72]={
{0x00,0x00,0x00,0xC0,0x80,0x80,0x80,0x80,0x80,0x80,0x80,0xFC,0x84,0x80,0x80,0x80,0x80,0x80,0x80,0xC0,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0x7F,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x40,0x40,0x40,0x40,0x40,0x40,0x40,0xFF,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/

};
const unsigned char Hzk3[][128]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFC,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFE,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xFF,0xFF,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0x02,0xFF,0x03,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0xFF,0xFF,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x04,0x1F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/


};

const unsigned char Hzk4[][512]={
{0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0xF0,0xF0,0x70,0x20,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0xFF,0x07,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0xFF,0xFF,0xFF,0xFF,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0x18,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x02,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x01,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0x1F,0x0F,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00},/*"中",0*/

};
#endif

bmp.h

#ifndef __BMP_H
#define __BMP_H
unsigned char BMP1[] =
{
	0x00,0x06,0x0A,0xFE,0x0A,0xC6,0x00,0xE0,0x00,0xF0,0x00,0xF8,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0xFC,0xFC,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF8,0xF8,0xF0,0xB0,0xB0,0xB0,0xB0,
	0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xF8,0xF8,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xF8,0xF8,0x30,0x30,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,0xB0,
	0xB0,0xB0,0xB0,0xB0,0xB0,0x30,0x30,0x30,0xF8,0xF8,0x00,0x00,0x00,0x00,0x78,0x48,
	0xFE,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xBA,0xBA,0x82,0xFE,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x06,0x06,0x06,0x06,0x06,0x06,
	0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0xFF,0xFF,0xFF,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x60,0x60,0x60,0x60,0x60,0x6F,0xEF,0xEF,0x67,0x67,0x67,0x67,
	0x7F,0x7F,0x7F,0x67,0x67,0x67,0xE7,0xEF,0xEF,0x6F,0x60,0x60,0x60,0x60,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFF,0xFF,0x30,0x30,0x31,0x31,0x31,0xF1,0xF1,0x31,0x31,0x31,
	0xF1,0xF1,0x31,0x31,0x31,0x30,0x30,0x30,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x24,0xA4,0x2E,0x24,0xE4,0x24,0x2E,0xA4,0x24,0x00,0x00,0x00,0xF8,0x4A,0x4C,
	0x48,0xF8,0x48,0x4C,0x4A,0xF8,0x00,0x1F,0x1F,0x0F,0x06,0x06,0x06,0x06,0x06,0x06,
	0xFF,0xFF,0xFF,0x06,0x06,0x06,0x06,0x06,0x06,0x06,0x1F,0x1F,0x1F,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x80,0xBF,0xFF,0xF3,0xF3,0x33,0x33,
	0xF3,0xF3,0xF3,0x33,0x33,0xF3,0xFF,0xBF,0xBF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0xFF,0xFF,0x00,0x80,0xC0,0xF0,0x7E,0x3F,0x0F,0x00,0x00,0x00,
	0xFF,0xFF,0xC0,0xC0,0xC0,0xC0,0xC0,0xC0,0xFF,0xFF,0x00,0x00,0xC0,0x20,0x10,0x10,
	0x10,0x10,0x20,0xC0,0x00,0x00,0xC0,0x20,0x10,0x10,0x10,0x10,0x20,0xC0,0x00,0x00,
	0x00,0x12,0x0A,0x07,0x02,0x7F,0x02,0x07,0x0A,0x12,0x00,0x00,0x00,0x0B,0x0A,0x0A,
	0x0A,0x7F,0x0A,0x0A,0x0A,0x0B,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x3F,0x3F,0x3F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x18,0x1C,0x0C,0x0E,0x07,0x07,0x03,0x01,0x0D,0x0C,0x1C,0x3C,
	0x3F,0x1F,0x0F,0x00,0x00,0x00,0x01,0x03,0x03,0x07,0x0F,0x1E,0x1E,0x00,0x00,0x00,
	0x00,0x00,0x00,0x00,0x1F,0x1F,0x0F,0x0F,0x0D,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,
	0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x0C,0x1F,0x1F,0x00,0x00,0x1F,0x20,0x40,0x40,
	0x40,0x50,0x20,0x5F,0x80,0x00,0x1F,0x20,0x40,0x40,0x40,0x50,0x20,0x5F,0x80,0x00,
};

#endif

main.c

#include "delay.h"
#include "sys.h"
#include "oled.h"
#include "bmp.h"

int main(void)
{
	u8 t=' ';
	delay_init();
	OLED_Init();
	OLED_ColorTurn(0);//0正常显示，1 反色显示
  OLED_DisplayTurn(0);//0正常显示 1 屏幕翻转显示
	while(1)
	{
		OLED_ShowPicture(0,0,128,32,BMP1,1);
		OLED_Refresh();
		delay_ms(500);
		OLED_Clear();
		OLED_ShowChinese(0,0,0,16,1);//中
		OLED_ShowChinese(18,0,1,16,1);//景
		OLED_ShowChinese(36,0,2,16,1);//园
		OLED_ShowChinese(54,0,3,16,1);//电
		OLED_ShowChinese(72,0,4,16,1);//子
		OLED_ShowChinese(90,0,5,16,1);//科
		OLED_ShowChinese(108,0,6,16,1);//技
		OLED_ShowString(8,16,"ZHONGJINGYUAN",16,1);
		OLED_Refresh();
		delay_ms(500);
		OLED_Clear();
		OLED_ShowString(20,0,"2014/05/01",16,1);
		OLED_ShowString(0,16,"ASCII:",16,1);
		OLED_ShowString(63,16,"CODE:",16,1);
		OLED_ShowChar(48,16,t,16,1);//显示ASCII字符
		t++;
		if(t>'~')t=' ';
		OLED_ShowNum(103,16,t,3,16,1);
		OLED_Refresh();
		delay_ms(500);
		OLED_Clear();
		OLED_ShowChinese(0,0,0,16,1); //16*16 中
		OLED_ShowChinese(16,0,0,24,1);//24*24 中
		OLED_ShowChinese(40,0,0,32,1);//32*32 中
		OLED_Refresh();
	  delay_ms(500);
  	OLED_Clear();
		OLED_ShowString(0,7,"A",8,1);
		OLED_ShowString(18,4,"B",12,1);
		OLED_ShowString(36,2,"C",16,1);
		OLED_ShowString(56,0,"D",24,1);
	  OLED_Refresh();
		delay_ms(500);
		OLED_ScrollDisplay(11,4,1);
	}
}

3、OLED显示屏STM32F103RCT6_IIC例程

链接：https://pan.baidu.com/s/1l58lHtI4rls3u77ZE9ANdQ?pwd=zxf1
提取码：zxf1
--来自百度网盘超级会员V3的分享

四、OLED取字模的方式分享

关于OLED模块取字模的详细方式和步骤，以及相关软件的分享，我已经重新整理了一篇文章，大家感兴趣的可以看一看。



OLED模块取模方式详解（汉字取模、英文取模、图片取模）-CSDN博客OLED显示模块取模软件的使用和学习，以及OLED显示模块驱动https://blog.csdn.net/m0_73931287/article/details/135482118?csdn_share_tail=%7B%22type%22%3A%22blog%22%2C%22rType%22%3A%22article%22%2C%22rId%22%3A%22135482118%22%2C%22source%22%3A%22m0_73931287%22%7D

五、结语

本文我只详细分享三类常见的单片机对OLED模块的驱动方式。关于OLED模块的资料以及其他单片机对OLED模块的驱动工程，读者可以私信我或者下方评论留言，收到后我会第一时间回复。

这是资料的免费下载链接，白嫖的同时可不能忘了点赞收藏！！！！https://download.csdn.net/download/m0_73931287/88720199
