在R1ospf进程中下发缺省路由，以确保内网中的设备能寻址到外网

配置easy IP

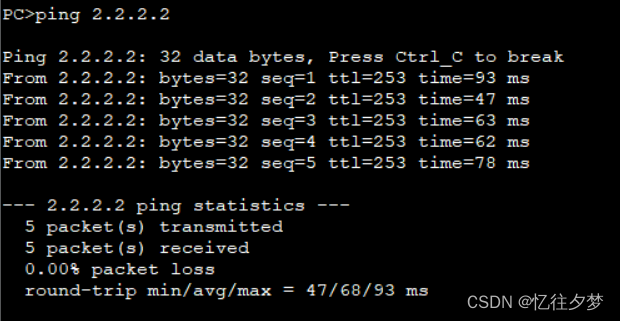

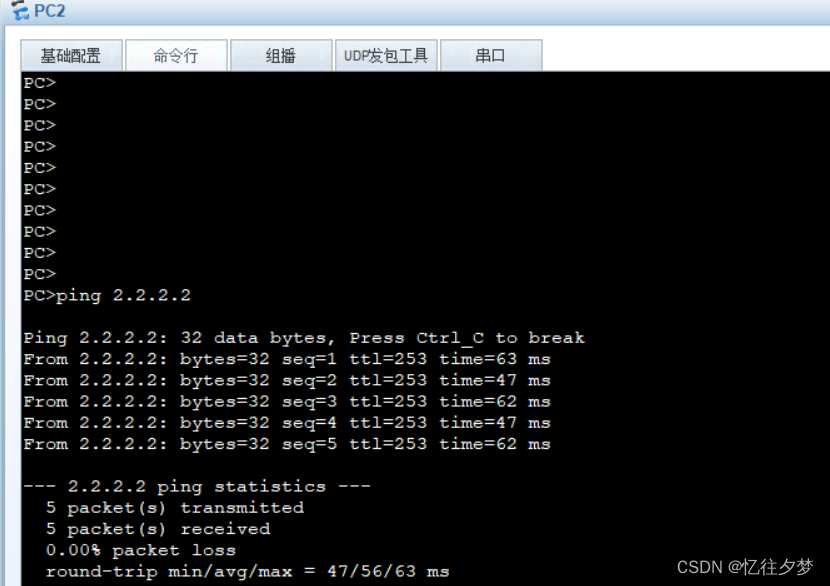

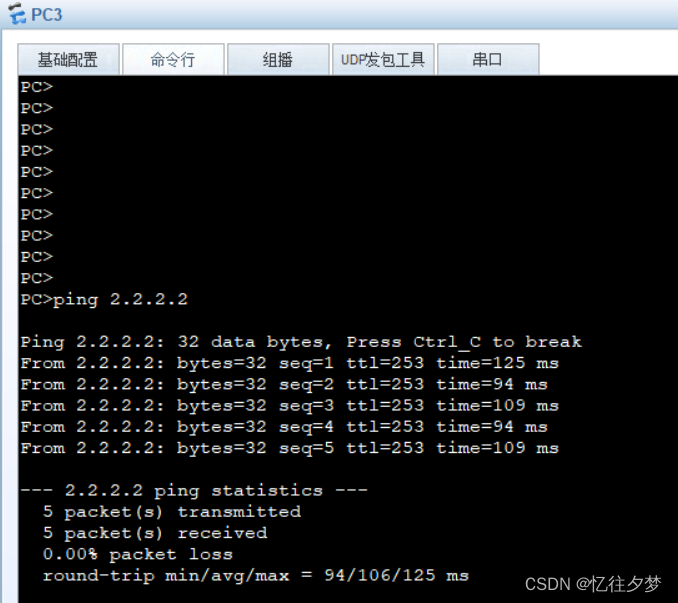

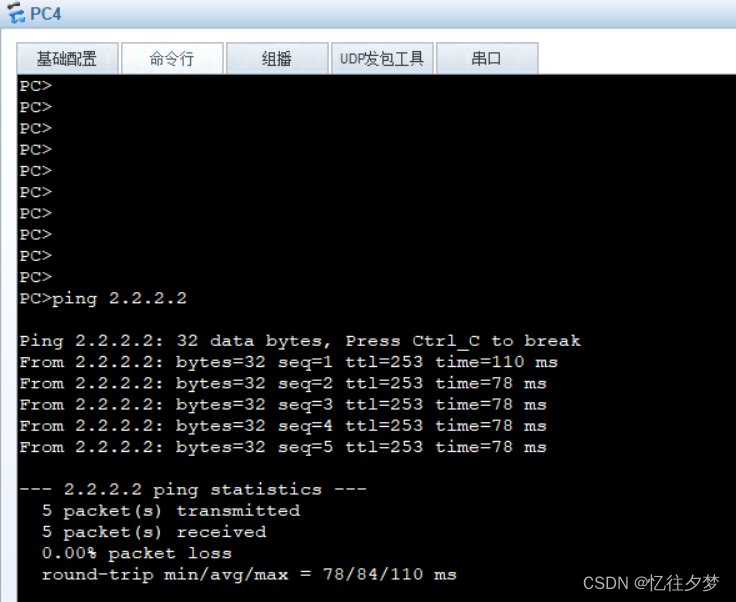

检测

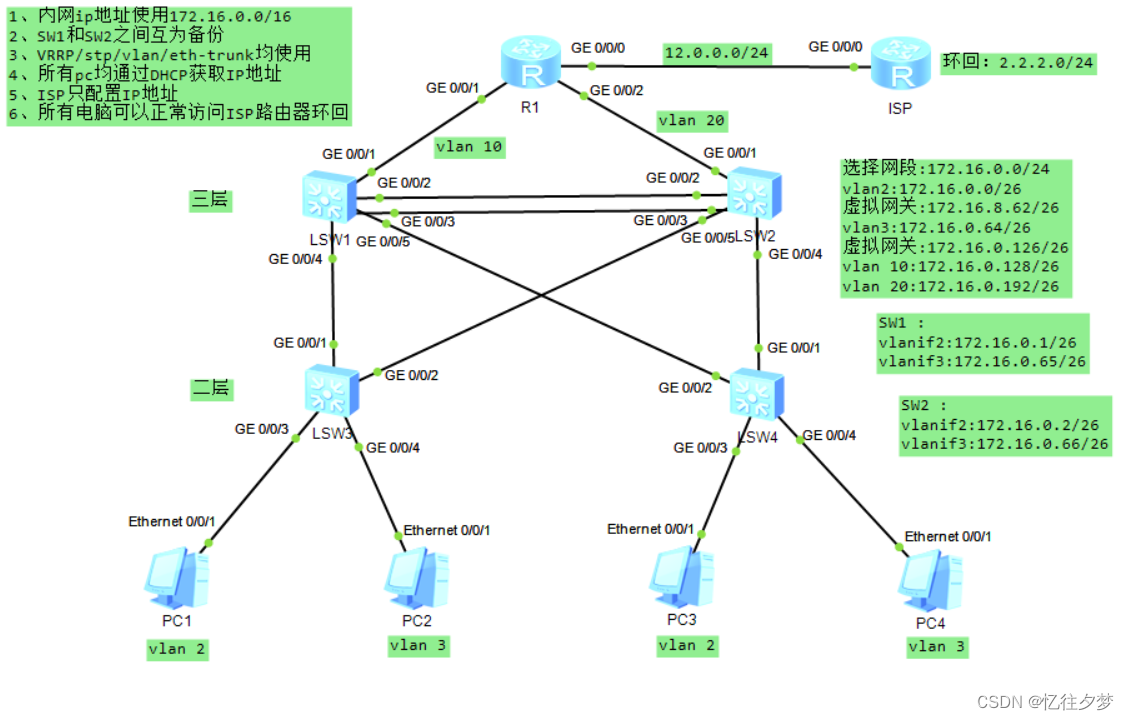

实验要求

1、内网ip地址使用172.16.0.0/16
2、SW1和SW2之间互为备份
3、VRRP/stp/vlan/eth-trunk均使用
4、所有pc均通过DHCP获取IP地址
5、ISP只配置IP地址
6、所有电脑可以正常访问ISP路由器环回

IP配置

以LSW1和LSW2作为网关，需要使用vlanif接口。

LSW1：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW1
[LSW1]
[LSW1]vlan 2
[LSW1-vlan2]vlan 3
[LSW1-vlan3]vlan 10
[LSW1-vlan10]
[LSW1-vlan10]q
[LSW1]int Vlanif 2
[LSW1-Vlanif2]ip add 172.16.0.1 26
[LSW1-Vlanif2]q
[LSW1]int Vlanif 3
[LSW1-Vlanif3]ip add 172.16.0.65 26
[LSW1-Vlanif3]q
[LSW1]int Vlanif 10
[LSW1-Vlanif10]ip add 172.16.0.129 26
[LSW1-Vlanif10]q
[LSW1]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 2
The number of interface that is DOWN in Physical is 4
The number of interface that is UP in Protocol is 1
The number of interface that is DOWN in Protocol is 5

Interface                         IP Address/Mask      Physical   Protocol
MEth0/0/1                         unassigned           down       down
NULL0                             unassigned           up         up(s)
Vlanif1                           unassigned           up         down
Vlanif2                           172.16.0.1/26        down       down
Vlanif3                           172.16.0.65/26       down       down
Vlanif10                          172.16.0.129/26      down       down
[LSW1]

LSW2：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW2
[LSW2]vlan 2
[LSW2-vlan2]vlan 3
[LSW2-vlan3]vlan 20
[LSW2-vlan20]q
[LSW2]int Vlanif 2
[LSW2-Vlanif2]ip add 172.16.0.2 26
[LSW2-Vlanif2]q
[LSW2]int Vlanif 3
[LSW2-Vlanif3]ip add 172.16.0.66 26
[LSW2-Vlanif3]q
[LSW2]int Vlanif 20
[LSW2-Vlanif20]ip add 172.16.0.193 26
[LSW2-Vlanif20]q
[LSW2]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 2
The number of interface that is DOWN in Physical is 4
The number of interface that is UP in Protocol is 1
The number of interface that is DOWN in Protocol is 5

Interface                         IP Address/Mask      Physical   Protocol
MEth0/0/1                         unassigned           down       down
NULL0                             unassigned           up         up(s)
Vlanif1                           unassigned           up         down
Vlanif2                           172.16.0.2/26        down       down
Vlanif3                           172.16.0.66/26       down       down
Vlanif20                          172.16.0.193/26      down       down
[LSW2]

R1：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname R1
[R1]int g0/0/1
[R1-GigabitEthernet0/0/1]ip add 172.16.0.130 26
[R1-GigabitEthernet0/0/1]int g0/0/2
[R1-GigabitEthernet0/0/2]ip add 172.16.0.194 26
[R1-GigabitEthernet0/0/2]int g0/0/0
[R1-GigabitEthernet0/0/0]ip add 12.0.0.1 24
[R1-GigabitEthernet0/0/0]q
[R1]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 4
The number of interface that is DOWN in Physical is 0
The number of interface that is UP in Protocol is 4
The number of interface that is DOWN in Protocol is 0

Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              12.0.0.1/24          up         up
GigabitEthernet0/0/1              172.16.0.130/26      up         up
GigabitEthernet0/0/2              172.16.0.194/26      up         up
NULL0                             unassigned           up         up(s)
[R1]

ISP：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname ISP
[ISP]int g0/0/0
[ISP-GigabitEthernet0/0/0]ip add 12.0.0.2 24
[ISP-GigabitEthernet0/0/0]int l0
[ISP-LoopBack0]ip add 2.2.2.2 24
[ISP-LoopBack0]q
[ISP]dis ip int b
*down: administratively down
^down: standby
(l): loopback
(s): spoofing
The number of interface that is UP in Physical is 3
The number of interface that is DOWN in Physical is 2
The number of interface that is UP in Protocol is 3
The number of interface that is DOWN in Protocol is 2

Interface                         IP Address/Mask      Physical   Protocol
GigabitEthernet0/0/0              12.0.0.2/24          up         up
GigabitEthernet0/0/1              unassigned           down       down
GigabitEthernet0/0/2              unassigned           down       down
LoopBack0                         2.2.2.2/24           up         up(s)
NULL0                             unassigned           up         up(s)
[ISP]

划分接口类型

LSW3：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW3
[LSW3]
[LSW3]vlan 2
[LSW3-vlan2]vlan 3
[LSW3-vlan3]q
[LSW3]int g0/0/3
[LSW3-GigabitEthernet0/0/3]port link-type access
[LSW3-GigabitEthernet0/0/3]port default vlan 2
[LSW3-GigabitEthernet0/0/3]int g0/0/4
[LSW3-GigabitEthernet0/0/4]port link-type access
[LSW3-GigabitEthernet0/0/4]port default vlan 3
[LSW3-GigabitEthernet0/0/4]q
[LSW3]port-group group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/2
[LSW3-port-group]port link-type trunk
[LSW3-GigabitEthernet0/0/1]port link-type trunk
[LSW3-GigabitEthernet0/0/2]port link-type trunk
[LSW3-port-group]port trunk allow-pass vlan 2 3
[LSW3-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3
[LSW3-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 3

LSW4：

<Huawei>sys
Enter system view, return user view with Ctrl+Z.
[Huawei]sysname LSW4
[LSW4]vlan 2
[LSW4-vlan2]vlan 3
[LSW4-vlan3]q
[LSW4]int g0/0/3
[LSW4-GigabitEthernet0/0/3]port link-type access
[LSW4-GigabitEthernet0/0/3]port default vlan 2
[LSW4-GigabitEthernet0/0/3]int g0/0/4
[LSW4-GigabitEthernet0/0/4]port link-type access
[LSW4-GigabitEthernet0/0/4]port default vlan 3
[LSW4-GigabitEthernet0/0/4]q
[LSW4]port-group group-member GigabitEthernet 0/0/1 to GigabitEthernet 0/0/2
[LSW4-port-group]port link-type trunk
[LSW4-GigabitEthernet0/0/1]port link-type trunk
[LSW4-GigabitEthernet0/0/2]port link-type trunk
[LSW4-port-group]port trunk allow-pass vlan 2 3
[LSW4-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3
[LSW4-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 3

LSW1：

[LSW1]int g0/0/4
[LSW1-GigabitEthernet0/0/4]port link-type trunk
[LSW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3
[LSW1-GigabitEthernet0/0/4]int g0/0/1
[LSW1-GigabitEthernet0/0/1]port link-type access
[LSW1-GigabitEthernet0/0/1]port default vlan 10
[LSW1-GigabitEthernet0/0/1]
[LSW1-GigabitEthernet0/0/1]q
[LSW1]int Eth-Trunk 0
[LSW1-Eth-Trunk0]trunkport GigabitEthernet 0/0/2 to 0/0/3
[LSW1-Eth-Trunk0]port link-type trunk
[LSW1-Eth-Trunk0]port trunk allow-pass vlan 2 3
[LSW1]int g0/0/5
[LSW1-GigabitEthernet0/0/5]port link-type trunk
[LSW1-GigabitEthernet0/0/5]port trunk allow-pass vlan 2 3

LSW2：

[LSW2]int g0/0/4
[LSW2-GigabitEthernet0/0/4]port link-type trunk
[LSW2-GigabitEthernet0/0/4]port trunk allow-pass vlan 2 3
[LSW2-GigabitEthernet0/0/4]int g0/0/1
[LSW2-GigabitEthernet0/0/1]port link-type access
[LSW2-GigabitEthernet0/0/1]port default vlan 20
[LSW2-GigabitEthernet0/0/1]q
[LSW2]int Eth-Trunk 0
[LSW2-Eth-Trunk0]trunkport GigabitEthernet 0/0/2 to 0/0/3
[LSW2-Eth-Trunk0]port link-type trunk
[LSW2-Eth-Trunk0]port trunk allow-pass vlan 2 3
[LSW2]int g0/0/5
[LSW2-GigabitEthernet0/0/5]port link-type trunk
[LSW2-GigabitEthernet0/0/5]port trunk allow-pass vlan 2 3

配置MSTP服务

配置

LSW1：

[LSW1]stp enable
[LSW1]stp mode mstp //定义类型
[LSW1]stp region-configuration
[LSW1-mst-region]region-name a
[LSW1-mst-region]instance 2 vlan 2	//将实例2对应到vlan 2
[LSW1-mst-region]instance 3 vlan 3  //实例3对应到vlan 3
[LSW1-mst-region]active region-configuration  //确认配置并激活
[LSW1-mst-region]q
[LSW1]stp instance 2 root primary 	//该路由器为实例2的主路由器
[LSW1]stp instance 3 root secondary  //为实例3备用路由器

LSW2：

[LSW2]stp enable
[LSW2]stp mode mstp
[LSW2]stp region-configuration
[LSW2-mst-region]instance 2 vlan 2
[LSW2-mst-region]instance 3 vlan 3
[LSW2-mst-region]active region-configuration
[LSW2-mst-region]q
[LSW2]stp instance 2 root secondary
[LSW2]stp instance 3 root primary

配置边缘设备

LSW3：

[LSW3]port-group group-member GigabitEthernet 0/0/3 to GigabitEthernet 0/0/4
[LSW3-port-group]stp edged-port enable //配置为边缘路由器
[LSW3-GigabitEthernet0/0/3]stp edged-port enable
[LSW3-GigabitEthernet0/0/4]stp edged-port enable
[LSW3-port-group]q
[LSW3]stp bpdu-protection  //开启BPDU保护机制

LSW4：

[LSW4]port-group group-member GigabitEthernet 0/0/3 to GigabitEthernet 0/0/4
[LSW4-port-group]stp edged-port enable
[LSW4-GigabitEthernet0/0/3]stp edged-port enable
[LSW4-port-group]q
[LSW4]stp bpdu-protection

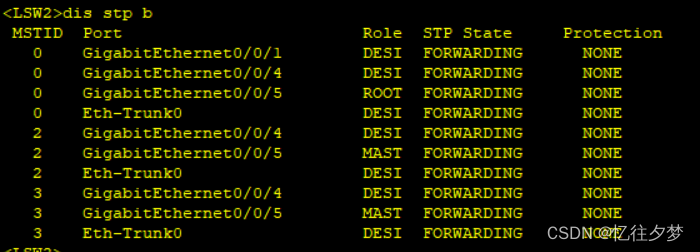

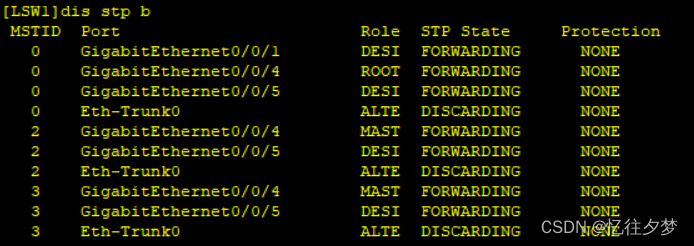

查询

LSW1：

LSW2：

VRRP配置

配置

LSW1：

[LSW1]int Vlanif 2
[LSW1-Vlanif2]vrrp vrid 1 virtual-ip 172.16.0.62  //配置虚拟网关IP
[LSW1-Vlanif2]vrrp vrid 1 priority 120  //将其优先级设置为120，表示为vlan 2的主网关
[LSW1-Vlanif2]q
[LSW1]int Vlanif 3
[LSW1-Vlanif3]vrrp vrid 2 virtual-ip 172.16.0.126
[LSW1-Vlanif3]q
[LSW1]int Vlanif 2
[LSW1-Vlanif2]vrrp vrid 1 track interface GigabitEthernet 0/0/1 reduced 30  //监视接口的状态实现主备快速切换的功能

LSW2：

[LSW2]int Vlanif 2
[LSW2-Vlanif2]vrrp vrid 1 virtual-ip 172.16.0.62
[LSW2-Vlanif2]q
[LSW2]int Vlanif 3
[LSW2-Vlanif3]vrrp vrid 2 virtual-ip 172.16.0.126
[LSW2-Vlanif3]vrrp vrid 2 priority 120
[LSW2-Vlanif3]vrrp vrid 2 track interface GigabitEthernet 0/0/1 reduced 30

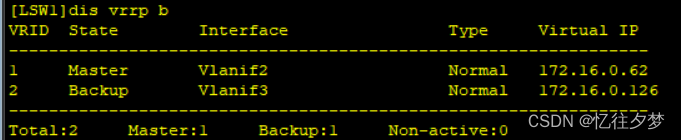

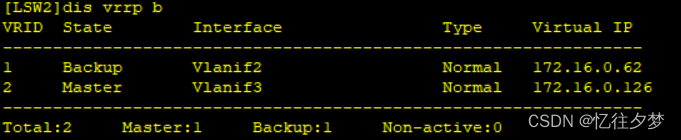

查询

LSW1：

LSW2：

DHCP配置

配置

LSW1：

[LSW1]dhcp enable
[LSW1]ip pool a
[LSW1-ip-pool-a]network 172.16.0.0 mask 26
[LSW1-ip-pool-a]gateway-list 172.16.0.1
[LSW1-ip-pool-a]dns-list 8.8.8.8
[LSW1-ip-pool-a]q
[LSW1]int Vlanif 2
[LSW1-Vlanif2]dhcp select global
[LSW1-Vlanif2]q
[LSW1]ip pool b
[LSW1-ip-pool-b]network 172.16.0.64 mask 26
[LSW1-ip-pool-b]gateway-list 172.16.0.65
[LSW1-ip-pool-b]dns-list 8.8.8.8
[LSW1-ip-pool-b]q
[LSW1]int Vlanif 3
[LSW1-Vlanif3]dhcp select global

LSW2：

[LSW2]dhcp enable
[LSW2]ip pool a
[LSW2-ip-pool-a]network 172.16.0.0 mask 26
[LSW2-ip-pool-a]gateway-list 172.16.0.2
[LSW2-ip-pool-a]dns-list 8.8.8.8
[LSW2-ip-pool-a]q
[LSW2]int Vlanif 2
[LSW2-Vlanif2]dhcp select global
[LSW2-Vlanif2]q
[LSW2]ip pool b
[LSW2-ip-pool-b]network 172.16.0.64 mask 26
[LSW2-ip-pool-b]gateway-list 172.16.0.66
[LSW2-ip-pool-b]dns-list 8.8.8.8
[LSW2-ip-pool-b]q
[LSW2]int Vlanif 3
[LSW2-Vlanif3]dhcp select global

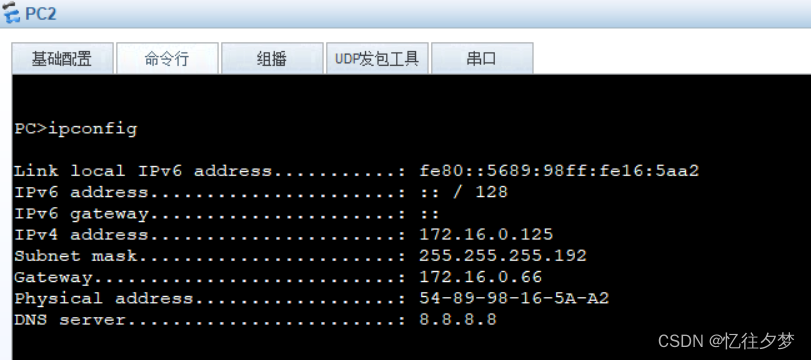

检测

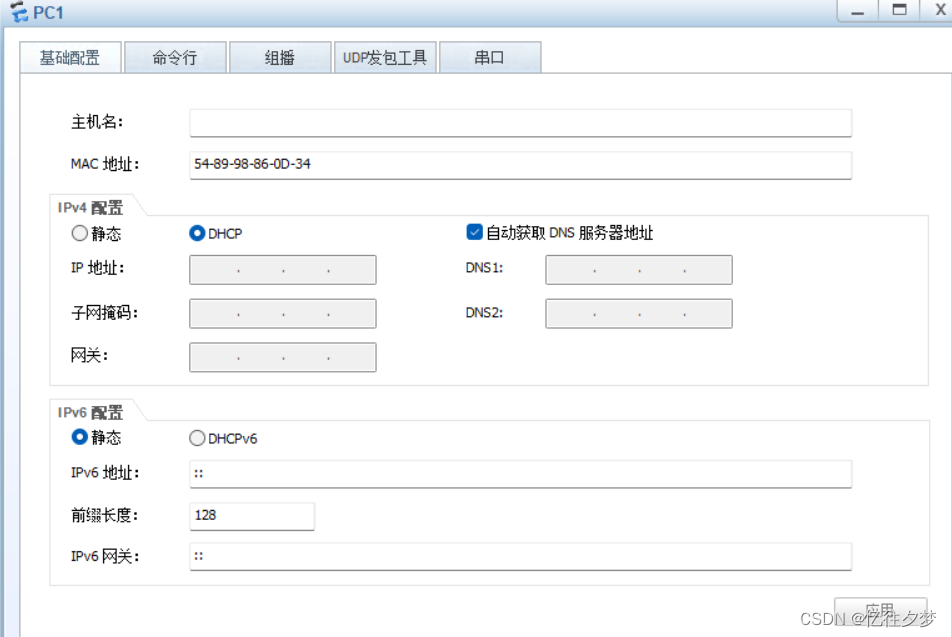

先将PC获取IP的方式修改为DHCP：

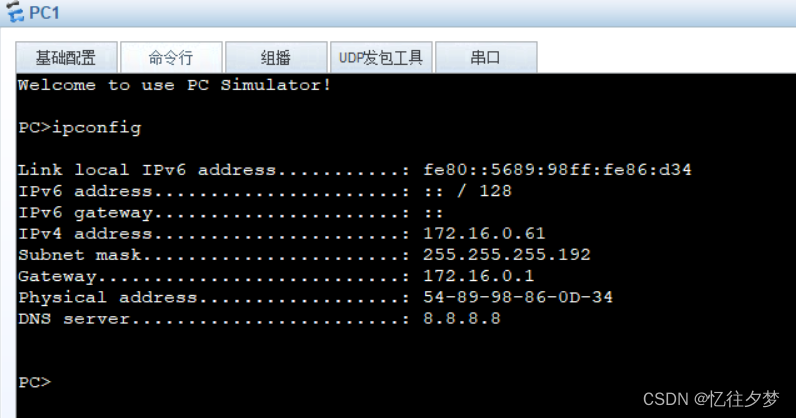

PC1：

PC2：

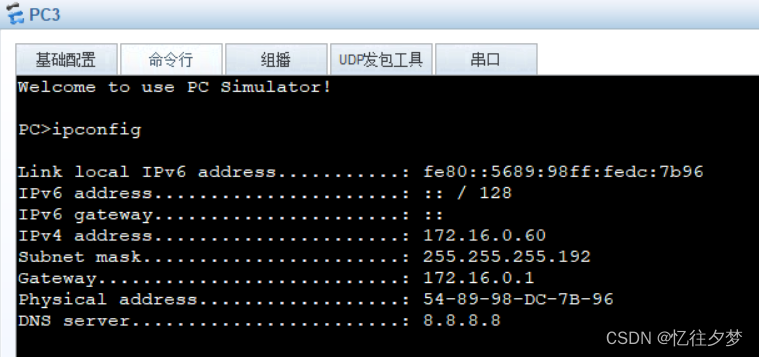

PC3：

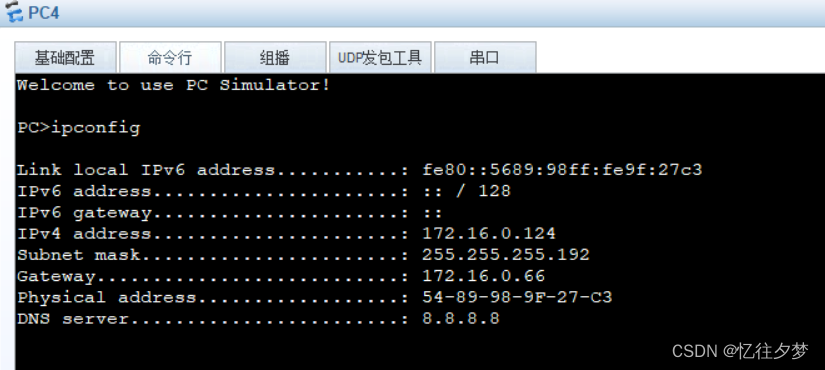

PC4：

全部PC均能正常获取IP地址。

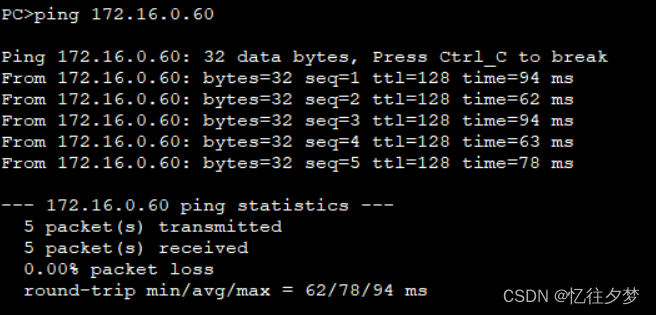

达成全网通

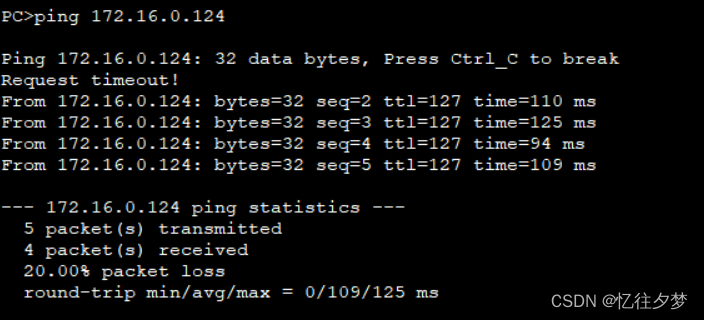

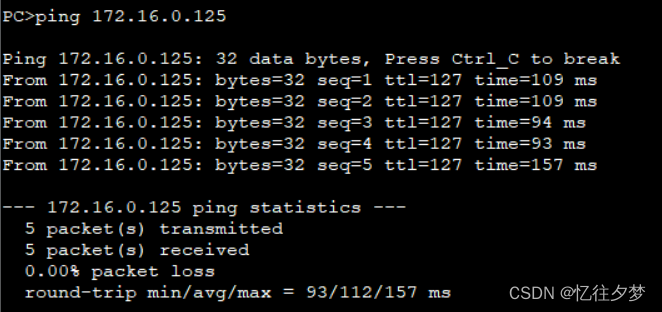

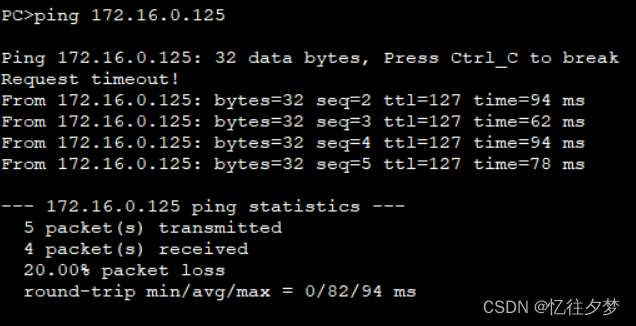

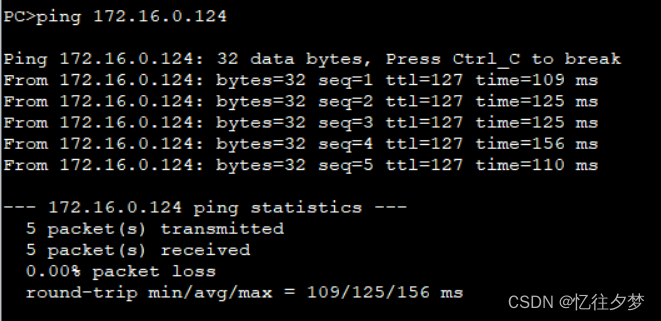

内网全网通

这里采用ospf协议动态传递路由信息

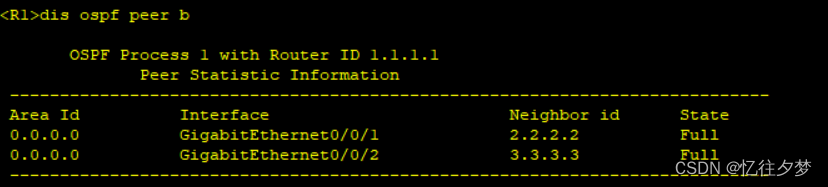

R1：

[R1]ospf 1 rou
[R1]ospf 1 router-id 1.1.1.1
[R1-ospf-1]a 0
[R1-ospf-1-area-0.0.0.0]network 172.16.0.128 0.0.0.63
[R1-ospf-1-area-0.0.0.0]network 172.16.0.192 0.0.0.63

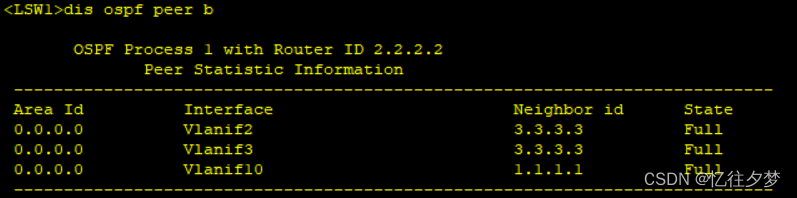

LSW1：

[LSW1]ospf 1 router-id 2.2.2.2
[LSW1-ospf-1]a 0
[LSW1-ospf-1-area-0.0.0.0]network 172.16.0.0 0.0.0.63
[LSW1-ospf-1-area-0.0.0.0]network 172.16.0.64 0.0.0.63
[LSW1-ospf-1-area-0.0.0.0]network 172.16.0.128 0.0.0.63

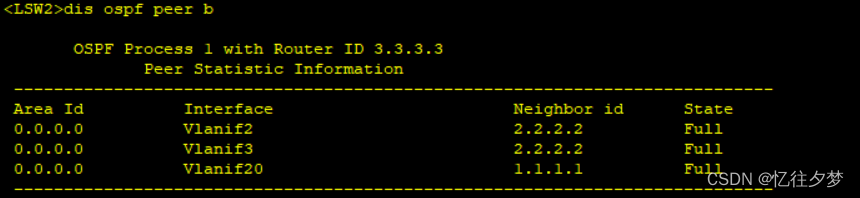

LSW2:

[LSW2]ospf 1 router-id 3.3.3.3
[LSW2-ospf-1]a 0
[LSW2-ospf-1-area-0.0.0.0]network 172.16.0.0 0.0.0.63
[LSW2-ospf-1-area-0.0.0.0]network 172.16.0.64 0.0.0.63
[LSW2-ospf-1-area-0.0.0.0]network 172.16.0.192 0.0.0.63

查看建邻情况

R1：

LSW1：

LSW2：

ping测试

PC1pingPC2：

PC1pingPC3：

PC1pingPC4：

PC3pingPC2：

PC3pingPC4：

PC2pingPC4：

由此判定内网通。

外网通

在R1上配置一个静态缺省通向外网

[R1]ip route-static 0.0.0.0 0 12.0.0.2

在R1ospf进程中下发缺省路由，以确保内网中的设备能寻址到外网

[R1-ospf-1]default-route-advertise

配置easy IP

[R1]acl 2000
[R1-acl-basic-2000]rule permit source 172.16.0.0 0.0.0.255
[R1-acl-basic-2000]q
[R1]int g 0/0/0
[R1-GigabitEthernet0/0/0]nat outbound 2000

检测

PC1：

PC2：

PC3：

PC4：

忆往夕梦

关注

5
点赞
踩
10

收藏

觉得还不错? 一键收藏
0
评论
eNSP-交换机综合实验

3、VRRP/stp/vlan/eth-trunk均使用。以LSW1和LSW2作为网关，需要使用vlanif接口。1、内网ip地址使用172.16.0.0/16。6、所有电脑可以正常访问ISP路由器环回。4、所有pc均通过DHCP获取IP地址。2、SW1和SW2之间互为备份。全部PC均能正常获取IP地址。5、ISP只配置IP地址。
复制链接

扫一扫
