openpyxl3.0官方文档（10）—— 气泡图

气泡图类似于散点图，但使用三维来确定气泡的大小，图表可以包含多个系列。

    """
    Sample bubble chart
    """

    from openpyxl import Workbook
    from openpyxl.chart import Series, Reference, BubbleChart

    wb = Workbook()
    ws = wb.active

    rows = [
        ("Number of Products", "Sales in USD", "Market share"),
        (14, 12200, 15),
        (20, 60000, 33),
        (18, 24400, 10),
        (22, 32000, 42),
        (),
        (12, 8200, 18),
        (15, 50000, 30),
        (19, 22400, 15),
        (25, 25000, 50),
    ]

    for row in rows:
        ws.append(row)

    chart = BubbleChart()
    chart.style = 18 # use a preset style

    # add the first series of data
    xvalues = Reference(ws, min_col=1, min_row=2, max_row=5)
    yvalues = Reference(ws, min_col=2, min_row=2, max_row=5)
    size = Reference(ws, min_col=3, min_row=2, max_row=5)
    series = Series(values=yvalues, xvalues=xvalues, zvalues=size, title="2013")
    chart.series.append(series)

    # add the second
    xvalues = Reference(ws, min_col=1, min_row=7, max_row=10)
    yvalues = Reference(ws, min_col=2, min_row=7, max_row=10)
    size = Reference(ws, min_col=3, min_row=7, max_row=10)
    series = Series(values=yvalues, xvalues=xvalues, zvalues=size, title="2014")
    chart.series.append(series)

    # place the chart starting in cell E1
    ws.add_chart(chart, "E1")
    wb.save("bubble.xlsx")

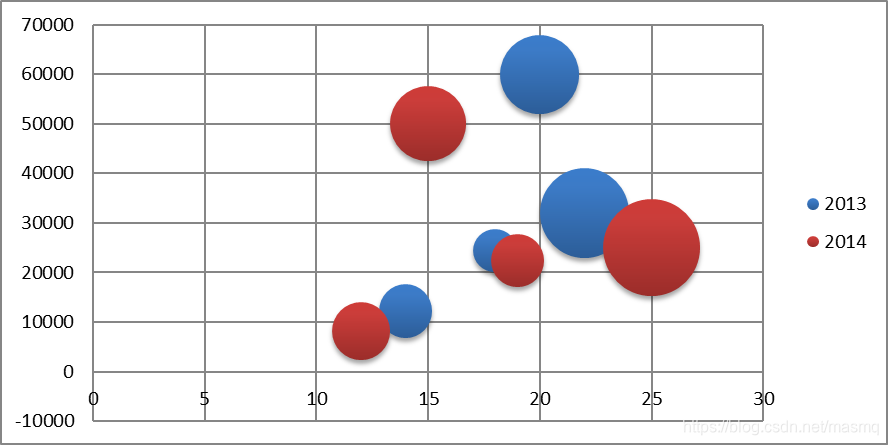

这将生成一个包含两个序列的气泡图，应该如下所示：
