从零开始手写mmo游戏从框架到爆炸（二）— 核心组件抽离与工厂模式创建

原创已于 2024-02-06 15:48:25 修改 · 798 阅读

7 ·

CC 4.0 BY-SA版权

文章标签：

#游戏

于 2024-02-04 16:15:58 首次发布

从零开始MMO游戏专栏收录该内容

28 篇文章

订阅专栏

导航：从零开始手写mmo游戏从框架到爆炸（零）—— 导航-CSDN博客

上一章我们已经完成了一个基本netty的通信，但是netty的启动很多代码都是重复的，所以我们使用工厂模式来生成不同的ServerBootstrap。

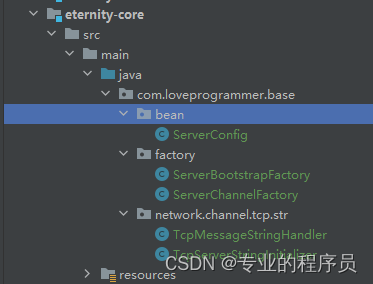

首先创建一个新的组件core组件，和common组件，主要用于netty通信和工具类，从server中分离出来没有本质的区别，就是希望可以把功能分散在不同的组件中，后续方便多人进行协同开发（如果有多人的话）。

eternity-server的pom文件中增加依赖：

    <dependencies>
        <dependency>
            <groupId>com.loveprogrammer</groupId>
            <artifactId>eternity-core</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

eternity-core的pom文件中增加依赖：

    <dependencies>
        <dependency>
            <groupId>com.loveprogrammer</groupId>
            <artifactId>eternity-common</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

公共变量

ConstantValue.java common:src/../constants

package com.loveprogrammer.constants;

/**
 * @ClassName ConstantValue
 * @Description 静态数据类
 * @Author admin
 * @Date 2024/1/30 10:01
 * @Version 1.0
 */
public class ConstantValue {

    public static final String CHANNEL_TYPE_NIO = "NIO";
    public static final String CHANNEL_TYPE_OIO = "OIO";

    public static final String PROTOCOL_TYPE_HTTP = "HTTP";
    public static final String PROTOCOL_TYPE_HTTPS = "HTTPS";
    public static final String PROTOCOL_TYPE_TCP = "TCP";
    public static final String PROTOCOL_TYPE_PROTOBUF = "PROTOBUF";
    public static final String PROTOCOL_TYPE_WEBSOCKET = "WEBSOCKET";

    public static final String MESSAGE_TYPE_STRING = "STRING";
    public static final String MESSAGE_TYPE_BYTE = "BYTE";

    public static final String PROJECT_CHARSET = "UTF-8";

    public static final int MESSAGE_CODEC_MAX_FRAME_LENGTH = 1024 * 1024;
    public static final int MESSAGE_CODEC_LENGTH_FIELD_LENGTH = 4;
    public static final int MESSAGE_CODEC_LENGTH_FIELD_OFFSET = 2;
    public static final int MESSAGE_CODEC_LENGTH_ADJUSTMENT = 0;
    public static final int MESSAGE_CODEC_INITIAL_BYTES_TO_STRIP = 0;

    /**
     * 登录和下线队列
     */
    public static final int QUEUE_LOGIN_LOGOUT = 1;

    /**
     * 业务队列
     */
    public static final int QUEUE_LOGIC = 2;

    private ConstantValue() {
    }

}

ServerException.java common:src/../exception

public class ServerException extends Exception{
    private String errMsg;

    public ServerException(String errMsg) {
        super(errMsg);
        this.errMsg = errMsg;
    }

    public ServerException(Throwable cause) {
        super(cause);
    }
}

下面是core中的新增代码

ServerConfig.java

/**
 * @ClassName ServerConfig
 * @Description 服务基本配置类
 * @Author admin
 * @Date 2024/2/4 15:12
 * @Version 1.0
 */
public class ServerConfig {
    private static final Logger logger = LoggerFactory.getLogger(ServerConfig.class);

    private Integer port;
    private String channelType;
    private String protocolType;

    private static ServerConfig instance = null;

    private ServerConfig() {
    }

    public static ServerConfig getInstance() {
        if (instance == null) {
            instance = new ServerConfig();
            instance.init();
            instance.printServerInfo();
        }
        return instance;
    }

    private void init() {
        port = 8088;
        channelType = "NIO";
        protocolType = "TCP";
    }

    public void printServerInfo() {
        logger.info("**************Server INFO******************");
        logger.info("protocolType  : " + protocolType);
        logger.info("port          : " + port);
        logger.info("channelType   : " + channelType);
        logger.info("**************Server INFO******************");
    }

    public Integer getPort() {
        return port;
    }

    public void setPort(Integer port) {
        this.port = port;
    }

    public String getChannelType() {
        return channelType;
    }

    public void setChannelType(String channelType) {
        this.channelType = channelType;
    }

    public String getProtocolType() {
        return protocolType;
    }

    public void setProtocolType(String protocolType) {
        this.protocolType = protocolType;
    }
}

ServerBootstrapFactory.java

package com.loveprogrammer.base.factory;

import com.loveprogrammer.base.bean.ServerConfig;
import com.loveprogrammer.constants.ConstantValue;
import com.loveprogrammer.exception.ServerException;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.EventLoopGroup;
import io.netty.channel.nio.NioEventLoopGroup;
import io.netty.channel.oio.OioEventLoopGroup;
import io.netty.channel.socket.nio.NioServerSocketChannel;
import io.netty.channel.socket.oio.OioServerSocketChannel;

/**
 * @ClassName ServerBootstrapFactory
 * @Description Bootstrap工厂类
 * @Author admin
 * @Date 2024/2/4 15:13
 * @Version 1.0
 */
public class ServerBootstrapFactory {

    private ServerBootstrapFactory() {
    }

    public static ServerBootstrap createServerBootstrap() throws ServerException {

        ServerBootstrap serverBootstrap = new ServerBootstrap();
        switch (ServerConfig.getInstance().getChannelType()) {
            case ConstantValue.CHANNEL_TYPE_NIO:
                EventLoopGroup bossGroup = new NioEventLoopGroup();
                EventLoopGroup workerGroup = new NioEventLoopGroup();
                serverBootstrap.group(bossGroup, workerGroup);
                serverBootstrap.channel(NioServerSocketChannel.class);

                return serverBootstrap;
            case ConstantValue.CHANNEL_TYPE_OIO:
                serverBootstrap.group(new OioEventLoopGroup());
                serverBootstrap.channel(OioServerSocketChannel.class);

                return serverBootstrap;
            default:
                throw new ServerException(
                        "Failed to create ServerBootstrap,  " +ServerConfig.getInstance().getChannelType() + " not supported!");
        }
    }
}

ServerChannelFactory.java

package com.loveprogrammer.base.factory;

import com.loveprogrammer.base.bean.ServerConfig;
import com.loveprogrammer.base.network.channel.tcp.str.TcpServerStringInitializer;
import com.loveprogrammer.constants.ConstantValue;
import com.loveprogrammer.exception.ServerException;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.Channel;
import io.netty.channel.ChannelFuture;
import io.netty.channel.ChannelInitializer;
import io.netty.channel.socket.SocketChannel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * @ClassName ServerChannelFactory
 * @Description channel工厂类
 * @Author admin
 * @Date 2024/2/4 15:13
 * @Version 1.0
 */
public class ServerChannelFactory {
    private static final Logger logger = LoggerFactory.getLogger(ServerChannelFactory.class);

    public static Channel createAcceptorChannel() throws ServerException {
        Integer port = ServerConfig.getInstance().getPort();
        final ServerBootstrap serverBootstrap = ServerBootstrapFactory.createServerBootstrap();
        serverBootstrap.childHandler(getChildHandler());
        logger.info("创建Server...");

        try {
            ChannelFuture channelFuture = serverBootstrap.bind(port).sync();
            channelFuture.awaitUninterruptibly();
            if(channelFuture.isSuccess()) {
                return channelFuture.channel();
            }else{
                String errMsg = "Failed to open socket! Cannot bind to port: " + port + "!";
                logger.error(errMsg);
                throw new ServerException(errMsg);
            }
        } catch (Exception e) {
            logger.debug(port + "is bind");
            throw new ServerException(e);
        }
    }

    private static ChannelInitializer<SocketChannel> getChildHandler() throws ServerException {

        String protocolType = ServerConfig.getInstance().getProtocolType();

        if (ConstantValue.PROTOCOL_TYPE_HTTP.equals(protocolType) || ConstantValue.PROTOCOL_TYPE_HTTPS
                .equals(protocolType)) {
        } else if (ConstantValue.PROTOCOL_TYPE_TCP.equals(protocolType)) {
            return new TcpServerStringInitializer();
        } else if (ConstantValue.PROTOCOL_TYPE_WEBSOCKET.equals(protocolType)) {
        } else if (ConstantValue.PROTOCOL_TYPE_PROTOBUF.equals(protocolType)) {
        } else {
        }
        String errMsg = "undefined protocol:" + protocolType + "!";
        throw new ServerException(errMsg);
    }

}

TcpMessageStringHandler.java

package com.loveprogrammer.base.network.channel.tcp.str;

import io.netty.channel.ChannelHandlerContext;
import io.netty.channel.SimpleChannelInboundHandler;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * @ClassName TcpMessageStringHandler
 * @Description tcp消息处理类
 * @Author admin
 * @Date 2024/2/4 15:16
 * @Version 1.0
 */
public class TcpMessageStringHandler extends SimpleChannelInboundHandler<String> {
    private static final Logger logger = LoggerFactory.getLogger(TcpMessageStringHandler.class);

    @Override
    public void exceptionCaught(ChannelHandlerContext ctx, Throwable throwable) {
        logger.debug("异常发生", throwable);
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        super.channelRead(ctx, msg);
    }

    @Override
    protected void channelRead0(ChannelHandlerContext ctx, String msg) {
        logger.info("数据内容：data=" + msg);
        String result = "我是服务器，我收到了你的信息:" + msg;
        result += "\r\n";
        ctx.writeAndFlush(result);
    }

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        logger.info("建立连接");
        super.channelActive(ctx);
    }

    @Override
    public void channelInactive(ChannelHandlerContext ctx) throws Exception {
        logger.info("连接断开");
        super.channelInactive(ctx);
    }
}

TcpServerStringInitializer.java

package com.loveprogrammer.base.network.channel.tcp.str;

import io.netty.channel.ChannelInitializer;
import io.netty.channel.ChannelPipeline;
import io.netty.channel.socket.SocketChannel;
import io.netty.handler.codec.DelimiterBasedFrameDecoder;
import io.netty.handler.codec.Delimiters;
import io.netty.handler.codec.string.StringDecoder;
import io.netty.handler.codec.string.StringEncoder;

/**
 * @ClassName TcpServerStringInitializer
 * @Description TODO
 * @Author admin
 * @Date 2024/2/4 15:15
 * @Version 1.0
 */
public class TcpServerStringInitializer  extends ChannelInitializer<SocketChannel> {

    @Override
    protected void initChannel(SocketChannel ch) {
        ChannelPipeline pipeline = ch.pipeline();
        pipeline.addLast("framer",new DelimiterBasedFrameDecoder(8192, Delimiters.lineDelimiter()));
        pipeline.addLast("decoder", new StringDecoder());
        pipeline.addLast("encoder", new StringEncoder());
        pipeline.addLast(new TcpMessageStringHandler());
    }

}

修改启动类EternityServerMain ：

package com.loveprogrammer;

import com.loveprogrammer.base.factory.ServerBootstrapFactory;
import com.loveprogrammer.base.factory.ServerChannelFactory;
import com.loveprogrammer.exception.ServerException;
import com.loveprogrammer.netty.simple.SocketServer;
import io.netty.bootstrap.ServerBootstrap;
import io.netty.channel.Channel;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;

/**
 * Hello world!
 *
 */
public class EternityServerMain
{
    // 为了保证使用时，不需要每次都去创建logger 对象，我们声明静态常量
    public static final Logger LOGGER = LoggerFactory.getLogger(EternityServerMain.class);

    public static void main( String[] args )
    {
        LOGGER.info( "Hello World!" );
        // 最基本的启动方法
//        try {
//            LOGGER.info("开始启动Socket服务器...");
//            new SocketServer().run();
//        } catch (Exception e) {
//            LOGGER.error( "服务器启动失败",e);
//        }

        // 工厂模式启动方法
        try {
            Channel channel = ServerChannelFactory.createAcceptorChannel();
            channel.closeFuture().sync();
        } catch (Exception e) {
            LOGGER.error( "服务器启动失败",e);
        }

    }
}

全部源码详见：

gitee : eternity-online: 多人在线mmo游戏 - Gitee.com

分支：step-02

从零开始手写mmo游戏从框架到爆炸（一）— 开发环境-CSDN博客

下一章：从零开始手写mmo游戏从框架到爆炸（三）— 服务启动接口与网络事件监听器-CSDN博客

参考：

java游戏服务器开发： https://blog.csdn.net/cmqwan/category_7690685.html
