项目7-2社交网站个人信息页面

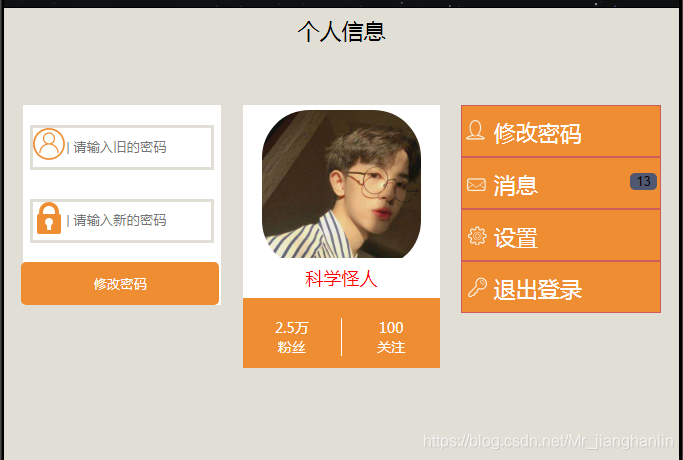

首先来看看最终的效果图形:

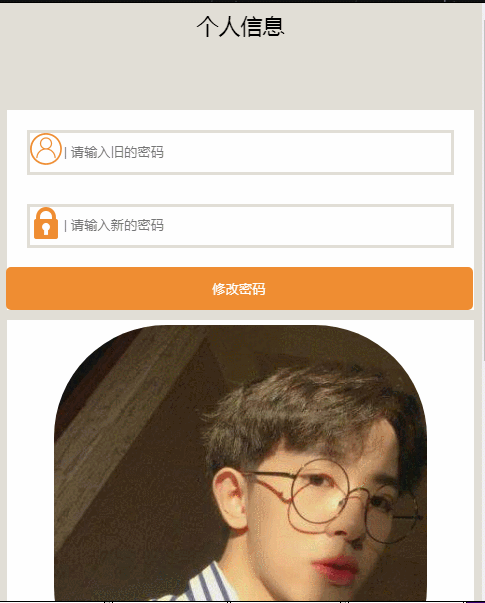

当网页缩小到一定的范
首先要把第一张图片的框架搭建起来,应用浮动布局,和百分比布局都是可以的;有了基础的框架在进行进一步的美化,当做出第一张图的效果时,在上面的基础上加上媒体查询设置效应的参数就可以达到上述的效果图形。
项目中用到精灵图技术,精灵图有利于给用户更好的体验,节约了网页加载的时间;图片我会放到最后.
媒体查询的语法:
@media mediatype and|not|only (media feature) {
CSS-Code;
}

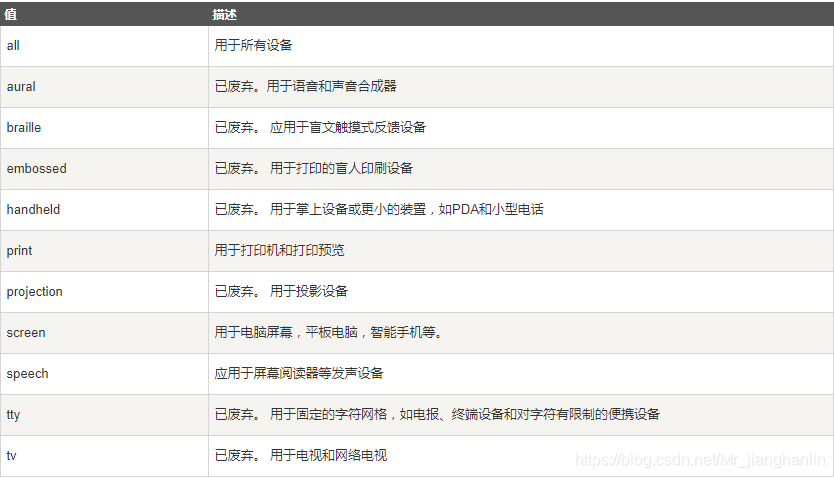

媒体查询的类型
简单的语法格式:
@media only screen and (max-width: 500px) {
.gridmenu {
width:100%;
}
.gridmain {
width:100%;
}
.gridright {
width:100%;
}
}
下面是HTML的代码:
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<link rel="stylesheet" href="one.css">
<title></title>
</head>
<body>
<div class="nav"> 个人信息</div>
<div class="content">
<div class="one">
<input type="text" class="one1" placeholder=" | 请输入旧的密码"><br>
<input type="text" class="one2" placeholder=" | 请输入新的密码"><br>
<button class="one3">修改密码</button>
</div>
<div class="two">
<div class="two1"><img src="touxiang.jpg"> </div>
<div class="text1">科学怪人</div>
<div class="two2">
<div class="two2-one">2.5万<br>粉丝</div>
<div> 100<br>关注</div>
</div>
</div>
<div class="there">
<div class="there1">
<span class="there-images1"> </span>
<span>修改密码</span>
</div>
<div class="there1">
<span class="there-images2"> </span>
<span>消息</span></button>
<button>13</button>
</div>
<div class="there1">
<span class="there-images3"> </span>
<sapn>设置</sapn>
</div>
<div class="there1">
<span class="there-images4"> </span>
<sapn>退出登录</sapn>
</div>
</div>
</div>
</body>
</html>
下面是css代码:
body{
background-color: #E1DED6;
}
.content{
display: flex;
margin-top: 60px;
justify-content: space-around;
color: white;
flex-wrap: wrap;
}
.one,.two,.there{
width: 30%;
display: flex;
flex-direction: column;
align-items: center;
}
.one{
order:0;
background: #FFFFFF;
height: 200px;
}
.nav{
text-align: center;
}
.one1{
width: 90%;
height:70px;
margin-top: 20px;
background: url(yonghumin.png) no-repeat ;
border: 3px solid #E1DED6
}
.one2{
width: 90%;
height: 70px;
background: url(password.png) no-repeat ;
border: 3px solid #E1DED6;
}
.one3{width: 100%;
height: 80px;
background-color: #EF8D32;
margin-top:-10px;
color: white;
cursor:pointer;
}
.two1 img{
margin-top: 5px;
width: 80%;
height: 80%;
border-radius: 30%;
}
.two1{
display: flex;
justify-content: center;
align-items: center;
width: 100%;
background-color: #ffffff;
}
.two2{
display: flex;
width: 100%;
height: 70px;
background-color: #EF8D32;
align-items: center;
}
.two2 div{
width: 100%;
margin-top: 8px;
text-align: center;
font-size: 14px;
}
.two2-one{
border-right: 1px solid white;
}
.text1{
font-size: 18px;
color: red;
margin-top: -10px;
width: 100%;
text-align: center;
line-height: 40px;
background-color: #FFFFFF;
}
.there1{width: 100%;
height: 50px;
background-color: #EF8D32;
border: 1px solid indianred;
color: white;
cursor:pointer;
}
.there-images1{
display: inline-block;
width:25px;
margin-top: 10px;
height: 25px;
background: url("img-sprite.png") no-repeat -1px 2px;
}
.there-images2{
display: inline-block;
width:25px;
margin-top: 10px;
height: 25px;
background: url("img-sprite.png") no-repeat -30px 2px;
}
.there-images3{
display: inline-block;
width:25px;
margin-top: 10px;
height: 25px;
background: url("img-sprite.png") no-repeat -60px 2px;
}
.there-images4{
display: inline-block;
width:25px;
margin-top: 10px;
height: 25px;
background: url("img-sprite.png") no-repeat -90px 2px;
}
.one3:hover{
background-color: #ee5a32;
}
.there1:hover{
background-color: #ee5a32;
}
button{
margin-top: 15px;
float: right;
background-color: #505771;
border-radius: 5px;
border: none;
margin-right: 3px;}
@media screen and (max-width: 500px) {
.one,.two,.there{
width: 100%;
margin-top: 10px;
}
}
