1. 引言
前序博客有:

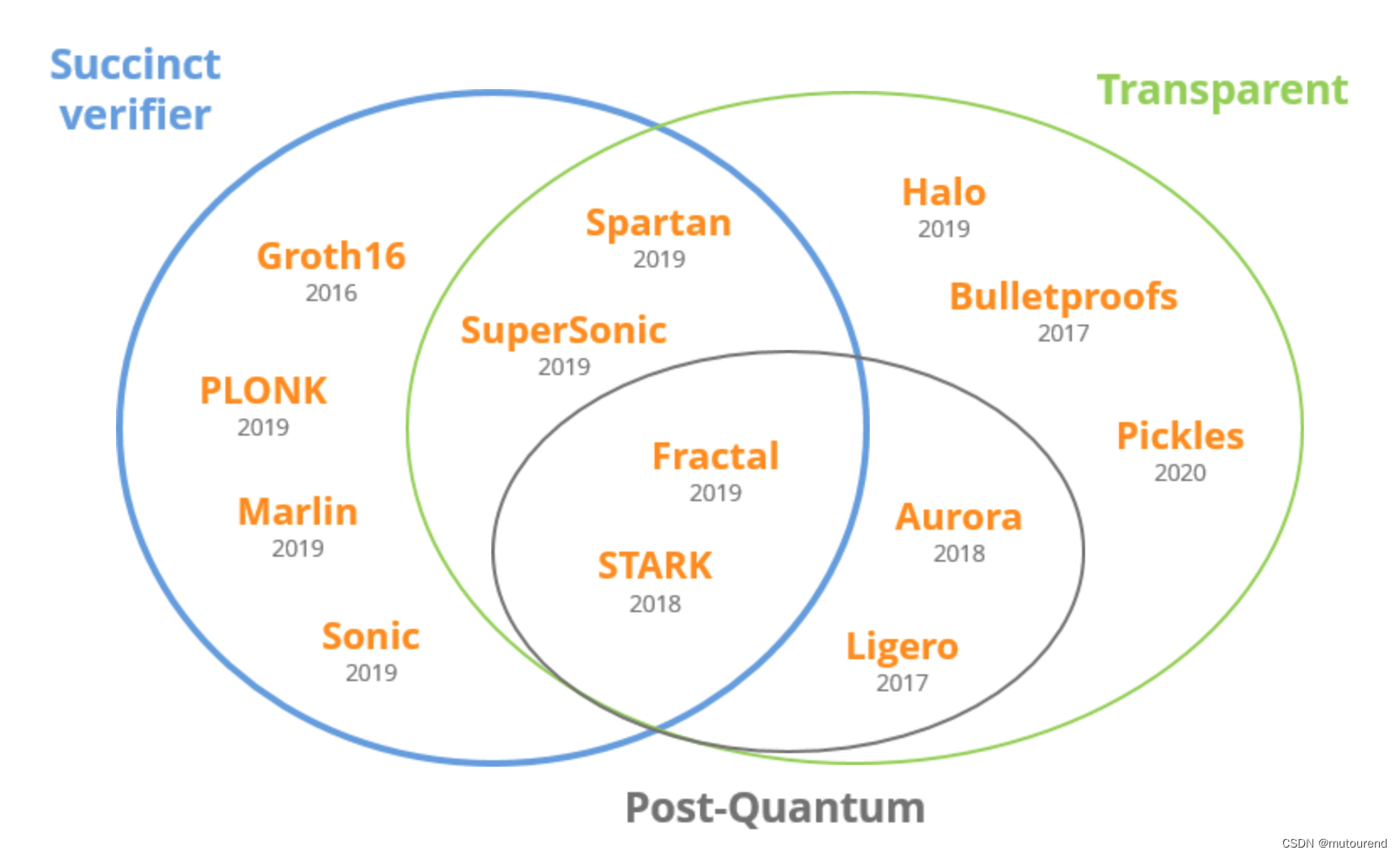

上图摘自STARKs and STARK VM: Proofs of Computational Integrity。
上图选自:Dan Boneh 斯坦福大学 CS251 Fall 2023 Building a SNARK 课件。
SNARK方案由 Polynomial IOP(信息理论对象) ➕ 多项式承诺方案(密码学对象) 组成。
当前的Polynomial IOP主要分为三大类:
- 1)基于interactive proofs(IPs)的Polynomial IOP:如Hyrax、vSQL、Libra、Virgo等。【 P P P无需做FFT运算】
- 2)基于multi-prover interactive proofs(MIPs)的Polynomial IOP:如Spartan、Brakedown、Xiphos等。【 P P P无需做FFT运算】
- 3)基于constant-round的Polynomial IOP:如Marlin、PlonK、StarkWare的SNARKs等。【 P P P需要做FFT运算】
以上方案都是通过增加
P
P
P开销,来减少proof长度以及降低
V
V
V开销。
以上1)2)类,只要其结合的多项式承诺方案也不需要FFT,则
P
P
P无需做FFT运算。
当前的多项式承诺方案主要分为四大类:
- 1)基于pairing的多项式承诺方案(既不transparent,也不post-quantum)
- 如KZG10、PST13、ZGKPP18等。
- 独特属性有:具有constant sized evaluation proofs。
- 2)基于discrete logarithm的多项式承诺方案(transparent,但不post-quantum)
- 如BCCGP16、Bulletproofs、Hyrax、Dory等。【其中Dory即需要discret-log hardness,还需要pairing。】
- 3)基于IOPs+hashing(transparent 且 post-quantum)
- 如Ligero、FRI、Brakedown等。
- 4)基于Groups of unknown order的多项式承诺方案(若使用class groups具有transparent属性,但不是post-quantum的)
- 如DARK、Dew等。
- 由于使用class groups, P P P非常慢。
现有的多项式承诺方案有:
- KZG多项式承诺:PlonK和Marlin采用KZG多项式承诺。其既不是transparent的,也不是post-quantum secure的。2020年。
- Bulletproofs多项式承诺:为transparent的,但不是post-quantum secure的。2017年。
- Hyrax多项式承诺:为transparent的,但不是post-quantum secure的。2017年。
- Dory多项式承诺:为transparent的,但不是post-quantum secure的。2020年。
- FRI多项式承诺:为post-quantum secure的。2017年。基于纠错码。
- Ligero多项式承诺:为post-quantum secure的。2017年。基于纠错码。
- Ligero++多项式承诺:为post-quantum secure的。2020年。基于纠错码。
- Brakedown多项式承诺:为post-quantum secure的。2021年。基于纠错码。
- Orion多项式承诺:为post-quantum secure的。2022年。基于纠错码。
上面的5种post-quantum secure多项式承诺方案均是基于纠错码,使用的唯一密码学原语为哈希。同时具有如下属性:
- 验证开销随着bits of security的位数增加而增加。(所谓验证开销,是由 哈希evaluation数量以及field operation数量 来衡量的。)
粗略来说,这些post-quantum多项式承诺方案的单次“迭代”仅可实现小数量的bits of security(如2-4)。因此,需重复该协议多次来“放大”安全等级,而随着每次重复,验证开销也会随之增加。因此,控制PQ-SNARKs的验证开销(对应为区块链应用中的gas开销),协议设计者通常有动力将security level设置为较低值。
除极少数例外情况(见2018年论文 Batching Techniques for Accumulators with Applications to IOPs and Stateless Blockchains)外,Non-PQ-SNARK(透明和不透明)中不会出现具体安全和验证成本之间的紧张关系。Non-PQ-SNARK使用椭圆曲线群,其中离散对数被认为很难计算,其安全级别由所使用的群确定。椭圆曲线群的合适大小,以及每个群操作的成本,随着所需的安全级别而增长。然而,proof 中群元素的数量与群的选择无关。
而在PQ-SNARKs中,不仅hash evaluation的size会随着所需的安全等级增加而增加,proof中所需的evaluation数以及Verifier计算的 evaluation数也将随着所需安全等级增加而增加。
本文重点关注Transparent 且 Post-quantum zkSNARKs,在:
- libiop: a C++ library for IOP-based zkSNARKs(C++)【2021年5月后未更新】
中实现了几种仅依赖于lightweight symmetric cryptography(任意Cryptographic hash function)的 Transparent 且 Post-quantum zkSNARKs 方案:
- 1)Ligero协议:argument size为 O ( N ) O(\sqrt{N}) O(N),见2017年论文Ligero: Lightweight Sublinear Arguments Without a Trusted Setup。
- 2)Aurora协议:argument size为 O ( log 2 N ) O(\log ^2 N) O(log2N),见2018年论文Aurora: Transparent Succinct Arguments for R1CS。
- 3)Fractal协议:argument size为 O ( log 2 N ) O(\log ^2 N) O(log2N),见2019年论文FRACTAL: Post-Quantum and Transparent Recursive Proofs from Holography。
以上这3种Transparent 且 Post-quantum zkSNARKs 方案,均支持基于smooth prime fields和binary extension fields的R1CS。所谓R1CS,为一种NP-complete relation that generalizes arithmetic circuit satisfiability。
不同于Ligero,其中Aurora和Fractal中有额外有趣的点在于:
2. 由IOPs 到 zkSNARKs
Interactive Oracle Proofs(IOPs):
- 为Probabilistically checkable proof 的multi-round generalization
- IOPs的性能,优于,PCPs
- libiop: a C++ library for IOP-based zkSNARKs库,通过Interactive Oracle Proofs(IOPs)(本文接下来按作者名,称为BCS transformation),实现了由IOPs构建的zkSNARKs。
BCS transformation:
- 使用cryptographic hash function(模型化为random oracle)
- 来将,任意public-coin IOP
- 编译为某SNARG
该SNARG具有如下属性:
- transparent:生成/验证proof strings所需的全局参数,仅为,该哈希函数
- post-quantum:在quantum random oracle模型内,其是安全的
- lightweight:除该哈希函数之外,无需其它密码学依赖
BCS transformation的描述见:
- Eli Ben-Sasson、Alessandro Chiesa 和 Nicholas Spooner 2016年论文 Interactive Oracle Proofs
BCS transformation的post-quantum安全性论证见:
- Alessandro Chiesa、Peter Manohar 和 Nicholas Spooner 2020年论文 Succinct Arguments in the Quantum Random Oracle Model
BCS transformation保持了proof of knowledge:
- 若底层的IOP是proof of knowledge,则所生成的SNARG为an argument of knowledge(即 a SNARK)
同理,BCS transformation保持了zero knowledge:
- 若底层IOP是(honest-verifier)zero knowledge,则所生成的SNARK是zero knowledge的(即 a zkSNARG)
同时,BCS transformation可扩展为:
- 向holographic IOPs,编译为,preprocessing SNARGs
- 详情见:Alessandro Chiesa、Dev Ojha 和 Nicholas Spooner 2019年论文 FRACTAL: Post-Quantum and Transparent Recursive Proofs from Holography
- 该特性,使得SNARGs可为,任意计算(而不仅仅是结构化计算),提供fast verification。
3. IOP协议
- https://github.com/scipr-lab/libiop/tree/master/libiop/iop:该目录下包含了编写IOP协议的基础设施。
- https://github.com/scipr-lab/libiop/tree/master/libiop/protocols:该目录下包含了几个使用该基础设施实现的协议,具体为:
language | round complexity | oracle length (field elts) | query complexity | indexer time (field ops) | prover time (field ops) | verifier time (field ops) | |
---|---|---|---|---|---|---|---|
Ligero-IOP | R1CS | 2 | O(N) | O(N0.5) | N/A | O(N logN) | O(N) |
Aurora-IOP | R1CS | O(log N) | O(N) | O(log N) | N/A | O(N logN) | O(N) |
Fractal-IOP | R1CS | O(log N) | O(N) | O(log N) | O(N logN) | O(N logN) | O(log N) |
其中:
- 1)Ligero-IOP:见2017年论文Ligero: Lightweight Sublinear Arguments Without a Trusted Setup。
- 更准确来说,Ligero论文中仅描述了arithmetic circuits构建。而Aurora论文附录中解释了如何将,该arithmetic circuits构建,扩展为,支持R1CS。因此,实际在libiop: a C++ library for IOP-based zkSNARKs代码库中所实现的Ligero协议,借助了Aurora论文中的该扩展技术。
- 2)Aurora-IOP:见2018年论文Aurora: Transparent Succinct Arguments for R1CS。
- 3)Fractal-IOP:见2019年论文FRACTAL: Post-Quantum and Transparent Recursive Proofs from Holography。
其中比Ligero-IOP更高效,的,Aurora-IOP和Fractal-IOP,结合了2大元素:【详情见 2018年论文Aurora: Transparent Succinct Arguments for R1CS 】
- 1)RS-encoded IOP,即基于纠错码
- https://github.com/scipr-lab/libiop/tree/master/libiop/protocols/encoded:该目录下包含了RS-encoded IOPs,覆盖了Ligero、Aurora和Fractal协议核心的RS-encoded IOPs。
- 2)对RS code的proximity test
- https://github.com/scipr-lab/libiop/tree/master/libiop/protocols/ldt:该目录下包含了对RS code的proximity tests。其包含了:
- direct test:用于Ligero
- FRI protocol:用于Aurora和Fractal。
- https://github.com/scipr-lab/libiop/tree/master/libiop/protocols/ldt:该目录下包含了对RS code的proximity tests。其包含了:
4. BCS transformation
- https://github.com/scipr-lab/libiop/tree/master/libiop/bcs:该目录下将BCS transformation作为独立组件。
- https://github.com/scipr-lab/libiop/tree/master/libiop/snark:该目录下,包含,将BCS transformation用于以上IOP协议,所获得的zkSNARKs。具体有:
language | indexer time | prover time | argument size | verifier time | |
---|---|---|---|---|---|
Ligero-SNARK | R1CS | N/A | Oκ(N logN) | Oκ(N0.5) | Oκ(N) |
Aurora-SNARK | R1CS | N/A | Oκ(N logN) | Oκ(log2 N) | Oκ(N) |
Fractal-SNARK | R1CS | Oκ(N logN) | Oκ(N logN) | Oκ(log2 N) | Oκ(log2 N) |
其中:
- κ 用于表示上表中的asymptotics还依赖于该安全参数。
make_zk
:设置该标签,表示该BCS transformation应保留zero knowledge属性;而不设置,则表示该所转换的IOP是非zero knowledge的,因此也无需保留zero knowledge属性。
5. libiop库安装及测试
编译运行前,需安装:
测试文件见:
若运行所有测试用例,则运行:
make check
/data/libiop/build# make check
Test project /data/libiop/build
Start 1: test_exponentiation
1/42 Test #1: test_exponentiation ................... Passed 0.15 sec
Start 2: test_fft
2/42 Test #2: test_fft .............................. Passed 2.99 sec
Start 3: test_lagrange
3/42 Test #3: test_lagrange ......................... Passed 0.55 sec
Start 4: test_merkle_tree
4/42 Test #4: test_merkle_tree ...................... Passed 0.68 sec
Start 5: test_linearized_polynomial
5/42 Test #5: test_linearized_polynomial ............ Passed 0.53 sec
Start 6: test_vanishing_polynomial
6/42 Test #6: test_vanishing_polynomial ............. Passed 0.41 sec
Start 7: test_lagrange_polynomial
7/42 Test #7: test_lagrange_polynomial .............. Passed 3.92 sec
Start 8: test_bivariate_embedding
8/42 Test #8: test_bivariate_embedding .............. Passed 0.40 sec
Start 9: test_successor_ordering
9/42 Test #9: test_successor_ordering ............... Passed 0.55 sec
Start 10: test_algebra_utils
10/42 Test #10: test_algebra_utils .................... Passed 0.00 sec
Start 11: test_iop
11/42 Test #11: test_iop .............................. Passed 0.06 sec
Start 12: test_iop_query_position
12/42 Test #12: test_iop_query_position ............... Passed 0.00 sec
Start 13: test_aurora_protocol
13/42 Test #13: test_aurora_protocol .................. Passed 0.27 sec
Start 14: test_r1cs_to_lincheck_reduction
14/42 Test #14: test_r1cs_to_lincheck_reduction ....... Passed 0.84 sec
Start 15: test_basic_lincheck
15/42 Test #15: test_basic_lincheck ................... Passed 0.79 sec
Start 16: test_boundary_constraint
16/42 Test #16: test_boundary_constraint .............. Passed 0.15 sec
Start 17: test_holographic_lincheck
17/42 Test #17: test_holographic_lincheck ............. Passed 0.31 sec
Start 18: test_sumcheck
18/42 Test #18: test_sumcheck ......................... Passed 0.71 sec
Start 19: test_direct_ldt
19/42 Test #19: test_direct_ldt ....................... Passed 0.16 sec
Start 20: test_fri
20/42 Test #20: test_fri .............................. Passed 0.64 sec
Start 21: test_fri_aux
21/42 Test #21: test_fri_aux .......................... Passed 0.02 sec
Start 22: test_fri_optimizer
22/42 Test #22: test_fri_optimizer ....................***Exception: SegFault 0.33 sec
Start 23: test_fractal_protocol
23/42 Test #23: test_fractal_protocol ................. Passed 0.20 sec
Start 24: test_ligero_interleaved_lincheck_et
24/42 Test #24: test_ligero_interleaved_lincheck_et ... Passed 0.90 sec
Start 25: test_ligero_interleaved_lincheck_ot
25/42 Test #25: test_ligero_interleaved_lincheck_ot ... Passed 0.96 sec
Start 26: test_ligero_protocol
26/42 Test #26: test_ligero_protocol .................. Passed 0.07 sec
Start 27: test_ligero_interleaved_rowcheck
27/42 Test #27: test_ligero_interleaved_rowcheck ...... Passed 0.23 sec
Start 28: test_ldt_reducer
28/42 Test #28: test_ldt_reducer ...................... Passed 1.46 sec
Start 29: test_fractal_indexer
29/42 Test #29: test_fractal_indexer .................. Passed 9.45 sec
Start 30: test_rational_linear_combination
30/42 Test #30: test_rational_linear_combination ...... Passed 0.05 sec
Start 31: test_rational_sumcheck
31/42 Test #31: test_rational_sumcheck ................ Passed 0.03 sec
Start 32: test_rowcheck
32/42 Test #32: test_rowcheck ......................... Passed 0.08 sec
Start 33: test_r1cs
33/42 Test #33: test_r1cs ............................. Passed 0.04 sec
Start 34: test_identity_matrices
34/42 Test #34: test_identity_matrices ................ Passed 0.01 sec
Start 35: test_poseidon
35/42 Test #35: test_poseidon ......................... Passed 0.00 sec
Start 36: test_pow
36/42 Test #36: test_pow .............................. Passed 0.87 sec
Start 37: test_bcs_transformation
37/42 Test #37: test_bcs_transformation ...............***Exception: SegFault 0.10 sec
Start 38: test_serialization
38/42 Test #38: test_serialization ....................***Failed 0.07 sec
Start 39: test_aurora_snark
39/42 Test #39: test_aurora_snark ..................... Passed 3.81 sec
Start 40: test_fractal_snark
40/42 Test #40: test_fractal_snark .................... Passed 21.59 sec
Start 41: test_ligero_snark
41/42 Test #41: test_ligero_snark ..................... Passed 0.10 sec
Start 42: test_linking
42/42 Test #42: test_linking .......................... Passed 0.30 sec
93% tests passed, 3 tests failed out of 42
Total Test time (real) = 54.82 sec
The following tests FAILED:
22 - test_fri_optimizer (SEGFAULT)
37 - test_bcs_transformation (SEGFAULT)
38 - test_serialization (Failed)
Errors while running CTest
Output from these tests are in: /data/libiop/build/Testing/Temporary/LastTest.log
Use "--rerun-failed --output-on-failure" to re-run the failed cases verbosely.
make[3]: *** [CMakeFiles/check.dir/build.make:70: CMakeFiles/check] Error 8
make[2]: *** [CMakeFiles/Makefile2:415: CMakeFiles/check.dir/all] Error 2
make[1]: *** [CMakeFiles/Makefile2:422: CMakeFiles/check.dir/rule] Error 2
make: *** [Makefile:179: check] Error 2
若仅运行Aurora协议所有测试用例,则运行:
$ ./test_aurora_snark
$ ./test_aurora_protocol
6. libiop库性能分析
- https://github.com/scipr-lab/libiop/tree/master/libiop/profiling:该目录下包含生成,具有timing和argument size信息的,协议执行traces。
- 这些traces均对应为单线程环境
如,可基于181 bit prime field(其中RS-extra-dimensions=3),采用如下命令,为Ligero、Aurora和Fractal创建traces:
$ ./instrument_aurora_snark --make_zk 1 --is_multiplicative 1 --field_size=181 --optimize_localization=1
$ ./instrument_fractal_snark --make_zk 1 --is_multiplicative 1 --field_size=181 --optimize_localization=1
$ ./instrument_ligero_snark --make_zk 1 --is_multiplicative 1 --field_size=181 --RS_extra_dimensions=3

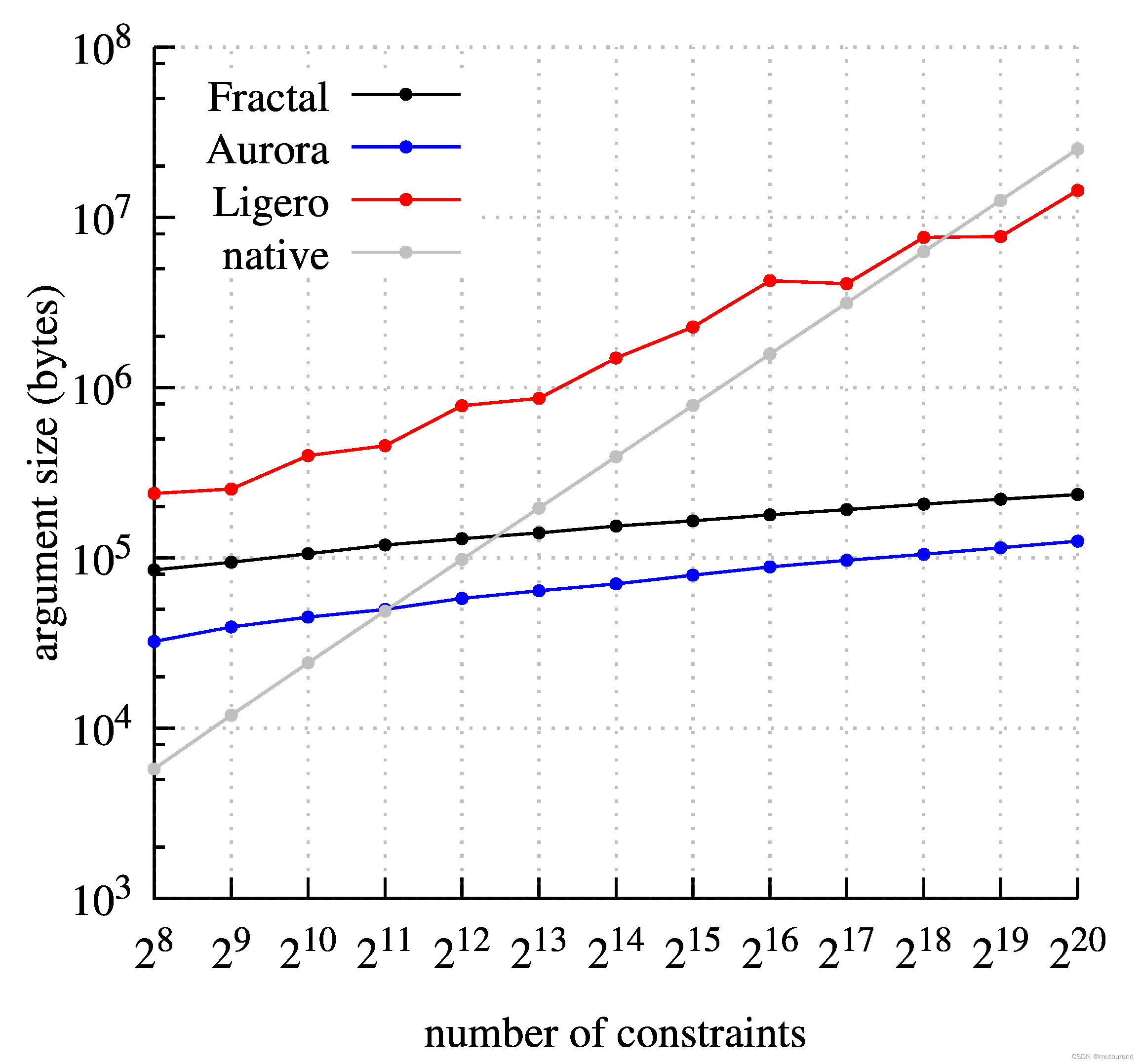

根据以上命令所生成的traces,绘制了如下性能分析图表:
/data/libiop/build/libiop# ./instrument_aurora_snark --make_zk 1 --is_multiplicative 1 --field_size=181 --optimize_localization=1
Reset time counters for profiling
Selected parameters:
- log_n_min = 8
- log_n_max = 20
- security_level = 128
- LDT_reducer_soundness_type = heuristic
- FRI_soundness_type = heuristic
- is_multiplicative = true
- field_size = 181
- make_zk = true
- hash_enum = blake2b
================================================================================
(enter) Check satisfiability of R1CS example [ ] (0.0036s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0001s x0.99] (0.0036s x1.00 from start)
* R1CS number of constraints: 256
* R1CS number of variables: 255
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 240
* R1CS size of constraint system (bytes): 19296
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 5760
(enter) Aurora SNARK prover [ ] (0.0037s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 119.9
* RS extra dimensions = 3
* codeword domain dim = 13
* constraint domain dim = 8
* variable domain dim = 8
* query bound = 81
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 172.0
* interactive repetitions = 1
* constraint domain dim = 8
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 167.0
* codeword domain dim = 13
* max tested degree bound = 1024
* max constraint degree bound = 673
* absolute proximity parameter = 7167
* fractional proximity parameter = 0.874878
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 118
* achieved query soundness error (bits) = 119.9
* codeword domain dim = 13
* effective proximity parameter = 0.874878
* number of interactive repetitions = 1
* number of query repetitions = 40
* localization parameter array = { 1 2 2 2 2 }
* number of reductions = 5
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (0.0044s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](0.0044s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.0076s x1.00](0.0120s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](0.0120s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0121s x1.00 from start)
* Vector size: 592
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0020s x1.00] (0.0141s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0021s x1.00](0.0141s x1.00 from start)
(enter) Compute randomized f_w [ ] (0.0141s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0172s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (0.0172s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0172s x1.00 from start)
* Vector size: 16
* Subgroup size: 256
(leave) Call to multiplicative_FFT_wrapper [0.0000s x1.01] (0.0172s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0172s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0173s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0185s x1.00 from start)
* Vector size: 321
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0016s x1.00] (0.0201s x1.00 from start)
(leave) Compute randomized f_w [0.0060s x1.00] (0.0201s x1.00 from start)
(enter) Compute A/B/Cz [ ] (0.0201s x1.00 from start)
(leave) Compute A/B/Cz [0.0000s x1.00] (0.0202s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (0.0202s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0202s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0203s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0203s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0204s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0204s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0205s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0205s x1.00 from start)
* Vector size: 337
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0016s x1.00] (0.0221s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0221s x1.00 from start)
* Vector size: 337
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0016s x1.00] (0.0237s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0237s x1.00 from start)
* Vector size: 337
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0016s x1.00] (0.0253s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.0052s x1.00] (0.0254s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (0.0254s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.03] (0.0254s x1.00 from start)
(leave) Submit witness oracles [0.0210s x1.00] (0.0254s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (0.0254s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0382s x1.00 from start)
* Vector size: 1024
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0019s x1.00] (0.0401s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.0147s x1.00] (0.0401s x1.00 from start)
(enter) Finish prover round [ ] (0.0401s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0401s x1.00 from start)
(enter) BCS: Sample randomness [ ] (0.0401s x1.00 from start)
(leave) BCS: Sample randomness [0.0030s x1.00] (0.0431s x1.00 from start)
(leave) Construct Merkle tree [0.0079s x1.00] (0.0480s x1.00 from start)
(leave) Finish prover round [0.0079s x1.00] (0.0480s x1.00 from start)
(enter) pow [ ] (0.0480s x1.00 from start)
(leave) pow [0.0000s x1.06] (0.0480s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (0.0480s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.0480s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.02] (0.0480s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.0480s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.01] (0.0480s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.0480s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0001s x1.00] (0.0481s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.0481s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0481s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0482s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0482s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0483s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0002s x1.00] (0.0483s x1.00 from start)
(enter) fz evaluated contents [ ] (0.0484s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0485s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (0.0485s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0485s x1.00 from start)
* Vector size: 16
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0008s x1.00] (0.0493s x1.00 from start)
(leave) fz evaluated contents [0.0014s x1.00] (0.0497s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (0.0498s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0498s x1.00 from start)
* Vector size: 256
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0014s x1.00] (0.0512s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0512s x1.00 from start)
* Vector size: 256
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0014s x1.00] (0.0527s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.0043s x1.00] (0.0541s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0546s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.0551s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0551s x1.00 from start)
* Vector size: 336
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0015s x1.00] (0.0566s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.0087s x1.00] (0.0566s x1.00 from start)
(enter) Finish prover round [ ] (0.0567s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0567s x1.00 from start)
(leave) Construct Merkle tree [0.0024s x1.00] (0.0591s x1.00 from start)
(leave) Finish prover round [0.0024s x1.00] (0.0591s x1.00 from start)
(enter) pow [ ] (0.0591s x1.00 from start)
(leave) pow [0.0000s x1.05] (0.0591s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (0.0591s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (0.0591s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0008s x1.00] (0.0599s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (0.0600s x1.00 from start)
(leave) rowcheck evaluated contents [0.0006s x1.00] (0.0605s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.0648s x1.00 from start)
(leave) evaluating next FRI codeword [0.0012s x1.00] (0.0660s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.0660s x1.00 from start)
(enter) Finish prover round [ ] (0.0660s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0660s x1.00 from start)
(leave) Construct Merkle tree [0.0006s x1.00] (0.0666s x1.00 from start)
(leave) Finish prover round [0.0006s x1.00] (0.0666s x1.00 from start)
(enter) pow [ ] (0.0666s x1.00 from start)
(leave) pow [0.0000s x1.04] (0.0666s x1.00 from start)
(leave) LDT signal prover round done [0.0006s x1.00] (0.0666s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.0666s x1.00 from start)
(leave) evaluating next FRI codeword [0.0005s x1.00] (0.0671s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.0671s x1.00 from start)
(enter) Finish prover round [ ] (0.0671s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0671s x1.00 from start)
(leave) Construct Merkle tree [0.0002s x1.00] (0.0673s x1.00 from start)
(leave) Finish prover round [0.0002s x1.00] (0.0673s x1.00 from start)
(enter) pow [ ] (0.0673s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.0673s x1.00 from start)
(leave) LDT signal prover round done [0.0002s x1.00] (0.0673s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.0673s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (0.0675s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.0675s x1.00 from start)
(enter) Finish prover round [ ] (0.0675s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0675s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.00] (0.0675s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (0.0676s x1.00 from start)
(enter) pow [ ] (0.0676s x1.00 from start)
(leave) pow [0.0000s x1.02] (0.0676s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.0676s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.0676s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (0.0677s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.0677s x1.00 from start)
(enter) Finish prover round [ ] (0.0677s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.0677s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (0.0677s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (0.0677s x1.00 from start)
(enter) pow [ ] (0.0677s x1.00 from start)
(leave) pow [0.0000s x1.04] (0.0677s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.0677s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.0677s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (0.0678s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0678s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.0678s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.0678s x1.00 from start)
(enter) Finish prover round [ ] (0.0678s x1.00 from start)
(leave) Finish prover round [0.0000s x1.02] (0.0678s x1.00 from start)
(enter) pow [ ] (0.0678s x1.00 from start)
(leave) pow [0.0004s x1.00] (0.0682s x1.00 from start)
(leave) LDT signal prover round done [0.0005s x1.00] (0.0682s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.0092s x1.00] (0.0683s x1.00 from start)
(enter) Obtain transcript [ ] (0.0683s x1.00 from start)
(leave) Obtain transcript [0.0030s x1.00] (0.0713s x1.00 from start)
* Total size of proof oracles (bytes): 1506816
* Total size of Merkle tree (bytes): 611136
* Total size of prover state (bytes): 2117952
(leave) Aurora SNARK prover [0.0676s x1.00] (0.0713s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (0.0723s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0006s x1.00] (0.0730s x1.00 from start)
* Argument size in bytes (IOP): 24242
* Argument size in bytes (BCS): 25312
* Argument size in bytes (total): 49554
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 61088
* Argument size in bytes (total, no pruning): 85330
total prover messages size: 46
total two to one hashes: 941
total leaves hashed: 1052
total hashes: 2073
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 12
IOP size: 11040 bytes
BCS size: 8928 bytes
number of two to one hashes: 277
number of leaves hashed: 480
number of zk hashes: 80
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 12
IOP size: 1840 bytes
BCS size: 7648 bytes
number of two to one hashes: 277
number of leaves hashed: 80
oracles in round: sumcheck h,
round 2
MT_depth 10
IOP size: 3680 bytes
BCS size: 5184 bytes
number of two to one hashes: 200
number of leaves hashed: 160
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 8
IOP size: 3404 bytes
BCS size: 2688 bytes
number of two to one hashes: 119
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 6
IOP size: 2852 bytes
BCS size: 768 bytes
number of two to one hashes: 53
number of leaves hashed: 124
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 4
IOP size: 1380 bytes
BCS size: 64 bytes
number of two to one hashes: 15
number of leaves hashed: 60
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (0.0735s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 119.9
* RS extra dimensions = 3
* codeword domain dim = 13
* constraint domain dim = 8
* variable domain dim = 8
* query bound = 81
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 172.0
* interactive repetitions = 1
* constraint domain dim = 8
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 167.0
* codeword domain dim = 13
* max tested degree bound = 1024
* max constraint degree bound = 673
* absolute proximity parameter = 7167
* fractional proximity parameter = 0.874878
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 118
* achieved query soundness error (bits) = 119.9
* codeword domain dim = 13
* effective proximity parameter = 0.874878
* number of interactive repetitions = 1
* number of query repetitions = 40
* localization parameter array = { 1 2 2 2 2 }
* number of reductions = 5
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](0.0738s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (0.0740s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0006s x1.00] (0.0746s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0010s x1.00](0.0747s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (0.0747s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.04] (0.0748s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (0.0748s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.0748s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.02] (0.0748s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.0748s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.02] (0.0748s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.0748s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0001s x1.00] (0.0749s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.0749s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0749s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0750s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0750s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0751s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0002s x1.00] (0.0751s x1.00 from start)
(leave) Construct R1CS verifier state [0.0003s x1.00] (0.0751s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (0.0751s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 40
* Total number of FRI queries over all query sets (incl. repeated queries): 720
(leave) Check LDT verifier predicate [0.0035s x1.00] (0.0786s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0051s x1.00] (0.0786s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (0.0857s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0001s x1.00] (0.0858s x1.00 from start)
* R1CS number of constraints: 512
* R1CS number of variables: 511
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 496
* R1CS size of constraint system (bytes): 38784
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 11904
(enter) Aurora SNARK prover [ ] (0.0858s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 120.0
* RS extra dimensions = 3
* codeword domain dim = 14
* constraint domain dim = 9
* variable domain dim = 9
* query bound = 81
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 171.0
* interactive repetitions = 1
* constraint domain dim = 9
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 166.0
* codeword domain dim = 14
* max tested degree bound = 2048
* max constraint degree bound = 1185
* absolute proximity parameter = 14335
* fractional proximity parameter = 0.874939
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 117
* achieved query soundness error (bits) = 120.0
* codeword domain dim = 14
* effective proximity parameter = 0.874939
* number of interactive repetitions = 1
* number of query repetitions = 40
* localization parameter array = { 1 2 2 2 2 2 }
* number of reductions = 6
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (0.0863s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](0.0864s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.0141s x1.00](0.1005s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](0.1005s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1005s x1.00 from start)
* Vector size: 1104
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0041s x1.00] (0.1047s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0042s x1.00](0.1047s x1.00 from start)
(enter) Compute randomized f_w [ ] (0.1047s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1078s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.1078s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1078s x1.00 from start)
* Vector size: 16
* Subgroup size: 512
(leave) Call to multiplicative_FFT_wrapper [0.0001s x1.00] (0.1079s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1079s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1081s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1091s x1.00 from start)
* Vector size: 577
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0035s x1.00] (0.1126s x1.00 from start)
(leave) Compute randomized f_w [0.0079s x1.00] (0.1126s x1.00 from start)
(enter) Compute A/B/Cz [ ] (0.1126s x1.00 from start)
(leave) Compute A/B/Cz [0.0001s x1.01] (0.1127s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (0.1127s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1127s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1129s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1129s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1130s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1131s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1132s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1133s x1.00 from start)
* Vector size: 593
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0035s x1.00] (0.1167s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1168s x1.00 from start)
* Vector size: 593
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0034s x1.00] (0.1202s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1202s x1.00 from start)
* Vector size: 593
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0035s x1.00] (0.1237s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.0110s x1.00] (0.1237s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (0.1237s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.02] (0.1237s x1.00 from start)
(leave) Submit witness oracles [0.0374s x1.00] (0.1237s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (0.1237s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1493s x1.00 from start)
* Vector size: 2048
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0040s x1.00] (0.1533s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.0296s x1.00] (0.1533s x1.00 from start)
(enter) Finish prover round [ ] (0.1533s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.1533s x1.00 from start)
(enter) BCS: Sample randomness [ ] (0.1533s x1.00 from start)
(leave) BCS: Sample randomness [0.0058s x1.00] (0.1592s x1.00 from start)
(leave) Construct Merkle tree [0.0150s x1.00] (0.1684s x1.00 from start)
(leave) Finish prover round [0.0150s x1.00] (0.1684s x1.00 from start)
(enter) pow [ ] (0.1684s x1.00 from start)
(leave) pow [0.0000s x1.05] (0.1684s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (0.1684s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.1684s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.02] (0.1684s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.1684s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.01] (0.1684s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.1684s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0002s x1.00] (0.1686s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.1686s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1686s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1688s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1688s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.1690s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0004s x1.00] (0.1690s x1.00 from start)
(enter) fz evaluated contents [ ] (0.1691s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1693s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x0.99] (0.1693s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1693s x1.00 from start)
* Vector size: 16
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0016s x1.00] (0.1709s x1.00 from start)
(leave) fz evaluated contents [0.0026s x1.00] (0.1716s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (0.1717s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1717s x1.00 from start)
* Vector size: 512
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0032s x1.00] (0.1749s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1749s x1.00 from start)
* Vector size: 512
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0032s x1.00] (0.1781s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.0093s x1.00] (0.1809s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.1821s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0009s x1.00] (0.1830s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.1830s x1.00 from start)
* Vector size: 592
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0033s x1.00] (0.1863s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.0179s x1.00] (0.1863s x1.00 from start)
(enter) Finish prover round [ ] (0.1863s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.1863s x1.00 from start)
(leave) Construct Merkle tree [0.0048s x1.00] (0.1911s x1.00 from start)
(leave) Finish prover round [0.0048s x1.00] (0.1912s x1.00 from start)
(enter) pow [ ] (0.1912s x1.00 from start)
(leave) pow [0.0000s x1.07] (0.1912s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (0.1912s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (0.1912s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0016s x1.00] (0.1928s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (0.1928s x1.00 from start)
(leave) rowcheck evaluated contents [0.0010s x1.00] (0.1939s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2021s x1.00 from start)
(leave) evaluating next FRI codeword [0.0025s x1.00] (0.2046s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2046s x1.00 from start)
(enter) Finish prover round [ ] (0.2046s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.2046s x1.00 from start)
(leave) Construct Merkle tree [0.0012s x1.00] (0.2058s x1.00 from start)
(leave) Finish prover round [0.0012s x1.00] (0.2058s x1.00 from start)
(enter) pow [ ] (0.2058s x1.00 from start)
(leave) pow [0.0000s x1.05] (0.2058s x1.00 from start)
(leave) LDT signal prover round done [0.0012s x1.00] (0.2058s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2058s x1.00 from start)
(leave) evaluating next FRI codeword [0.0010s x1.00] (0.2068s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2068s x1.00 from start)
(enter) Finish prover round [ ] (0.2068s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.2068s x1.00 from start)
(leave) Construct Merkle tree [0.0003s x1.00] (0.2071s x1.00 from start)
(leave) Finish prover round [0.0003s x1.00] (0.2071s x1.00 from start)
(enter) pow [ ] (0.2071s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.2072s x1.00 from start)
(leave) LDT signal prover round done [0.0003s x1.00] (0.2072s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2072s x1.00 from start)
(leave) evaluating next FRI codeword [0.0003s x1.00] (0.2074s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2074s x1.00 from start)
(enter) Finish prover round [ ] (0.2074s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.2074s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.00] (0.2075s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (0.2075s x1.00 from start)
(enter) pow [ ] (0.2075s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.2076s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.2076s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2076s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (0.2077s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2077s x1.00 from start)
(enter) Finish prover round [ ] (0.2077s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.2077s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (0.2077s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (0.2077s x1.00 from start)
(enter) pow [ ] (0.2077s x1.00 from start)
(leave) pow [0.0000s x1.02] (0.2077s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.2077s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2078s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (0.2078s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2078s x1.00 from start)
(enter) Finish prover round [ ] (0.2078s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.2078s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (0.2078s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (0.2078s x1.00 from start)
(enter) pow [ ] (0.2078s x1.00 from start)
(leave) pow [0.0000s x1.04] (0.2078s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.2078s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.2079s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (0.2079s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2079s x1.00 from start)
* Vector size: 8
* Coset size: 8
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.2079s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.2079s x1.00 from start)
(enter) Finish prover round [ ] (0.2079s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (0.2079s x1.00 from start)
(enter) pow [ ] (0.2079s x1.00 from start)
(leave) pow [0.0053s x1.00] (0.2132s x1.00 from start)
(leave) LDT signal prover round done [0.0053s x1.00] (0.2133s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.0221s x1.00] (0.2133s x1.00 from start)
(enter) Obtain transcript [ ] (0.2133s x1.00 from start)
(leave) Obtain transcript [0.0043s x1.00] (0.2177s x1.00 from start)
* Total size of proof oracles (bytes): 3014400
* Total size of Merkle tree (bytes): 1222944
* Total size of prover state (bytes): 4237344
(leave) Aurora SNARK prover [0.1319s x1.00] (0.2177s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (0.2193s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0007s x1.00] (0.2200s x1.00 from start)
* Argument size in bytes (IOP): 26611
* Argument size in bytes (BCS): 30368
* Argument size in bytes (total): 56979
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 72032
* Argument size in bytes (total, no pruning): 98643
total prover messages size: 23
total two to one hashes: 1123
total leaves hashed: 1156
total hashes: 2359
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 13
IOP size: 11040 bytes
BCS size: 9824 bytes
number of two to one hashes: 305
number of leaves hashed: 480
number of zk hashes: 80
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 13
IOP size: 1840 bytes
BCS size: 8544 bytes
number of two to one hashes: 305
number of leaves hashed: 80
oracles in round: sumcheck h,
round 2
MT_depth 11
IOP size: 3680 bytes
BCS size: 6080 bytes
number of two to one hashes: 228
number of leaves hashed: 160
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 9
IOP size: 3680 bytes
BCS size: 3840 bytes
number of two to one hashes: 158
number of leaves hashed: 160
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 7
IOP size: 3404 bytes
BCS size: 1728 bytes
number of two to one hashes: 89
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 5
IOP size: 2208 bytes
BCS size: 288 bytes
number of two to one hashes: 31
number of leaves hashed: 96
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 3
IOP size: 736 bytes
BCS size: 32 bytes
number of two to one hashes: 7
number of leaves hashed: 32
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (0.2206s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 120.0
* RS extra dimensions = 3
* codeword domain dim = 14
* constraint domain dim = 9
* variable domain dim = 9
* query bound = 81
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 171.0
* interactive repetitions = 1
* constraint domain dim = 9
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 166.0
* codeword domain dim = 14
* max tested degree bound = 2048
* max constraint degree bound = 1185
* absolute proximity parameter = 14335
* fractional proximity parameter = 0.874939
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 117
* achieved query soundness error (bits) = 120.0
* codeword domain dim = 14
* effective proximity parameter = 0.874939
* number of interactive repetitions = 1
* number of query repetitions = 40
* localization parameter array = { 1 2 2 2 2 2 }
* number of reductions = 6
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](0.2209s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (0.2211s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0007s x1.00] (0.2219s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0011s x1.00](0.2220s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (0.2220s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.05] (0.2220s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (0.2220s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.2220s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.01] (0.2220s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.2220s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.02] (0.2221s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.2221s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0001s x1.00] (0.2222s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.2222s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2222s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.2224s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2224s x1.00 from start)
* Vector size: 512
* Coset size: 512
(leave) Call to multiplicative_IFFT_wrapper [0.0002s x1.00] (0.2226s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0004s x1.00] (0.2226s x1.00 from start)
(leave) Construct R1CS verifier state [0.0006s x1.00] (0.2226s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (0.2226s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 40
* Total number of FRI queries over all query sets (incl. repeated queries): 880
(leave) Check LDT verifier predicate [0.0049s x1.00] (0.2275s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0070s x1.00] (0.2275s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (0.2422s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0001s x1.00] (0.2423s x1.00 from start)
* R1CS number of constraints: 1024
* R1CS number of variables: 1023
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 1008
* R1CS size of constraint system (bytes): 77952
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 24192
(enter) Aurora SNARK prover [ ] (0.2423s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 15
* constraint domain dim = 10
* variable domain dim = 10
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 170.0
* interactive repetitions = 1
* constraint domain dim = 10
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 165.0
* codeword domain dim = 15
* max tested degree bound = 4096
* max constraint degree bound = 2205
* absolute proximity parameter = 28671
* fractional proximity parameter = 0.874969
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 116
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 15
* effective proximity parameter = 0.874969
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 }
* number of reductions = 6
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (0.2429s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](0.2429s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.0263s x1.00](0.2692s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](0.2692s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.2693s x1.00 from start)
* Vector size: 2126
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0086s x1.00] (0.2779s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0087s x1.00](0.2779s x1.00 from start)
(enter) Compute randomized f_w [ ] (0.2779s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2809s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.2810s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.2810s x1.00 from start)
* Vector size: 16
* Subgroup size: 1024
(leave) Call to multiplicative_FFT_wrapper [0.0001s x1.00] (0.2811s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2811s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.2815s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.2825s x1.00 from start)
* Vector size: 1087
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0075s x1.00] (0.2900s x1.00 from start)
(leave) Compute randomized f_w [0.0121s x1.00] (0.2900s x1.00 from start)
(enter) Compute A/B/Cz [ ] (0.2900s x1.00 from start)
(leave) Compute A/B/Cz [0.0001s x1.01] (0.2901s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (0.2901s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2901s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.2905s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2905s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.2909s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.2909s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.2913s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.2914s x1.00 from start)
* Vector size: 1103
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0075s x1.00] (0.2988s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.2988s x1.00 from start)
* Vector size: 1103
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0075s x1.00] (0.3063s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.3063s x1.00 from start)
* Vector size: 1103
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0075s x1.00] (0.3138s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.0237s x1.00] (0.3138s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (0.3138s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.05] (0.3138s x1.00 from start)
(leave) Submit witness oracles [0.0709s x1.00] (0.3138s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (0.3138s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.3652s x1.00 from start)
* Vector size: 4096
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0086s x1.00] (0.3738s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.0600s x1.00] (0.3738s x1.00 from start)
(enter) Finish prover round [ ] (0.3738s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.3738s x1.00 from start)
(enter) BCS: Sample randomness [ ] (0.3739s x1.00 from start)
(leave) BCS: Sample randomness [0.0116s x1.00] (0.3855s x1.00 from start)
(leave) Construct Merkle tree [0.0301s x1.00] (0.4040s x1.00 from start)
(leave) Finish prover round [0.0302s x1.00] (0.4040s x1.00 from start)
(enter) pow [ ] (0.4040s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.4040s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (0.4040s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.4040s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.01] (0.4041s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.4041s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.01] (0.4041s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.4041s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0003s x1.00] (0.4044s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.4044s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.4044s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.4048s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.4049s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.4052s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0009s x1.00] (0.4053s x1.00 from start)
(enter) fz evaluated contents [ ] (0.4053s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.4058s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (0.4059s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.4059s x1.00 from start)
* Vector size: 16
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0030s x1.00] (0.4088s x1.00 from start)
(leave) fz evaluated contents [0.0050s x1.00] (0.4102s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (0.4103s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.4104s x1.00 from start)
* Vector size: 1024
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0070s x1.00] (0.4174s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.4174s x1.00 from start)
* Vector size: 1024
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0070s x1.00] (0.4244s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.0198s x1.00] (0.4301s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.4324s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0020s x1.00] (0.4343s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.4345s x1.00 from start)
* Vector size: 1102
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0072s x1.00] (0.4417s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.0376s x1.00] (0.4417s x1.00 from start)
(enter) Finish prover round [ ] (0.4417s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4417s x1.00 from start)
(leave) Construct Merkle tree [0.0095s x1.00] (0.4512s x1.00 from start)
(leave) Finish prover round [0.0096s x1.00] (0.4512s x1.00 from start)
(enter) pow [ ] (0.4512s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.4512s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (0.4513s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (0.4513s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0033s x1.00] (0.4545s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (0.4545s x1.00 from start)
(leave) rowcheck evaluated contents [0.0020s x1.00] (0.4565s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4731s x1.00 from start)
(leave) evaluating next FRI codeword [0.0049s x1.00] (0.4779s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4780s x1.00 from start)
(enter) Finish prover round [ ] (0.4780s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4780s x1.00 from start)
(leave) Construct Merkle tree [0.0023s x1.00] (0.4803s x1.00 from start)
(leave) Finish prover round [0.0023s x1.00] (0.4803s x1.00 from start)
(enter) pow [ ] (0.4803s x1.00 from start)
(leave) pow [0.0000s x1.05] (0.4803s x1.00 from start)
(leave) LDT signal prover round done [0.0024s x1.00] (0.4803s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4803s x1.00 from start)
(leave) evaluating next FRI codeword [0.0019s x1.00] (0.4823s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4823s x1.00 from start)
(enter) Finish prover round [ ] (0.4823s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4823s x1.00 from start)
(leave) Construct Merkle tree [0.0006s x1.00] (0.4829s x1.00 from start)
(leave) Finish prover round [0.0006s x1.00] (0.4829s x1.00 from start)
(enter) pow [ ] (0.4829s x1.00 from start)
(leave) pow [0.0000s x1.06] (0.4829s x1.00 from start)
(leave) LDT signal prover round done [0.0006s x1.00] (0.4829s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4829s x1.00 from start)
(leave) evaluating next FRI codeword [0.0005s x1.00] (0.4834s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4834s x1.00 from start)
(enter) Finish prover round [ ] (0.4834s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4834s x1.00 from start)
(leave) Construct Merkle tree [0.0002s x1.01] (0.4836s x1.00 from start)
(leave) Finish prover round [0.0002s x1.00] (0.4836s x1.00 from start)
(enter) pow [ ] (0.4836s x1.00 from start)
(leave) pow [0.0000s x1.04] (0.4836s x1.00 from start)
(leave) LDT signal prover round done [0.0002s x1.00] (0.4836s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4837s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (0.4838s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4838s x1.00 from start)
(enter) Finish prover round [ ] (0.4838s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4838s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (0.4839s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (0.4839s x1.00 from start)
(enter) pow [ ] (0.4839s x1.00 from start)
(leave) pow [0.0000s x1.02] (0.4839s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.4839s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4839s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (0.4839s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4840s x1.00 from start)
(enter) Finish prover round [ ] (0.4840s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.4840s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (0.4840s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (0.4840s x1.00 from start)
(enter) pow [ ] (0.4840s x1.00 from start)
(leave) pow [0.0000s x1.03] (0.4840s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (0.4840s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.4840s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (0.4840s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.4840s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.4841s x1.00 from start)
(enter) LDT signal prover round done [ ] (0.4841s x1.00 from start)
(enter) Finish prover round [ ] (0.4841s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (0.4841s x1.00 from start)
(enter) pow [ ] (0.4841s x1.00 from start)
(leave) pow [0.0074s x1.00] (0.4915s x1.00 from start)
(leave) LDT signal prover round done [0.0074s x1.00] (0.4915s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.0404s x1.00] (0.4916s x1.00 from start)
(enter) Obtain transcript [ ] (0.4916s x1.00 from start)
(leave) Obtain transcript [0.0065s x1.00] (0.4981s x1.00 from start)
* Total size of proof oracles (bytes): 6028800
* Total size of Merkle tree (bytes): 2446112
* Total size of prover state (bytes): 8474912
(leave) Aurora SNARK prover [0.2558s x1.00] (0.4981s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (0.5008s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0008s x1.00] (0.5015s x1.00 from start)
* Argument size in bytes (IOP): 27600
* Argument size in bytes (BCS): 35936
* Argument size in bytes (total): 63536
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 80512
* Argument size in bytes (total, no pruning): 108112
total prover messages size: 46
total two to one hashes: 1310
total leaves hashed: 1198
total hashes: 2586
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 14
IOP size: 10764 bytes
BCS size: 10848 bytes
number of two to one hashes: 337
number of leaves hashed: 468
number of zk hashes: 78
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 14
IOP size: 1794 bytes
BCS size: 9600 bytes
number of two to one hashes: 337
number of leaves hashed: 78
oracles in round: sumcheck h,
round 2
MT_depth 12
IOP size: 3588 bytes
BCS size: 7008 bytes
number of two to one hashes: 256
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 10
IOP size: 3588 bytes
BCS size: 4800 bytes
number of two to one hashes: 187
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 8
IOP size: 3588 bytes
BCS size: 2688 bytes
number of two to one hashes: 121
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 6
IOP size: 2852 bytes
BCS size: 896 bytes
number of two to one hashes: 57
number of leaves hashed: 124
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 4
IOP size: 1380 bytes
BCS size: 64 bytes
number of two to one hashes: 15
number of leaves hashed: 60
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (0.5022s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 15
* constraint domain dim = 10
* variable domain dim = 10
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 170.0
* interactive repetitions = 1
* constraint domain dim = 10
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 165.0
* codeword domain dim = 15
* max tested degree bound = 4096
* max constraint degree bound = 2205
* absolute proximity parameter = 28671
* fractional proximity parameter = 0.874969
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 116
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 15
* effective proximity parameter = 0.874969
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 }
* number of reductions = 6
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](0.5025s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (0.5028s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0008s x1.00] (0.5036s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0012s x1.00](0.5037s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (0.5037s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.05] (0.5037s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (0.5037s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.5037s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.01] (0.5038s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.5038s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.01] (0.5038s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.5038s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0003s x1.00] (0.5041s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.5041s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.5041s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.5045s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.5045s x1.00 from start)
* Vector size: 1024
* Coset size: 1024
(leave) Call to multiplicative_IFFT_wrapper [0.0004s x1.00] (0.5049s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0008s x1.00] (0.5049s x1.00 from start)
(leave) Construct R1CS verifier state [0.0012s x1.00] (0.5049s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (0.5049s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 39
* Total number of FRI queries over all query sets (incl. repeated queries): 858
(leave) Check LDT verifier predicate [0.0070s x1.00] (0.5119s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0097s x1.00] (0.5119s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (0.5401s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0002s x1.00] (0.5403s x1.00 from start)
* R1CS number of constraints: 2048
* R1CS number of variables: 2047
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 2032
* R1CS size of constraint system (bytes): 156672
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 48768
(enter) Aurora SNARK prover [ ] (0.5404s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 16
* constraint domain dim = 11
* variable domain dim = 11
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 169.0
* interactive repetitions = 1
* constraint domain dim = 11
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 164.0
* codeword domain dim = 16
* max tested degree bound = 8192
* max constraint degree bound = 4253
* absolute proximity parameter = 57343
* fractional proximity parameter = 0.874985
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 115
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 16
* effective proximity parameter = 0.874985
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 2 }
* number of reductions = 7
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (0.5411s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](0.5411s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.0517s x1.00](0.5928s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](0.5928s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.5930s x1.00 from start)
* Vector size: 4174
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0184s x1.00] (0.6114s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0186s x1.00](0.6114s x1.00 from start)
(enter) Compute randomized f_w [ ] (0.6114s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.6144s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (0.6144s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.6144s x1.00 from start)
* Vector size: 16
* Subgroup size: 2048
(leave) Call to multiplicative_FFT_wrapper [0.0002s x1.00] (0.6147s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.6147s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (0.6155s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.6168s x1.00 from start)
* Vector size: 2111
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0158s x1.00] (0.6326s x1.00 from start)
(leave) Compute randomized f_w [0.0211s x1.00] (0.6326s x1.00 from start)
(enter) Compute A/B/Cz [ ] (0.6326s x1.00 from start)
(leave) Compute A/B/Cz [0.0002s x1.00] (0.6328s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (0.6328s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.6328s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (0.6336s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.6336s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (0.6345s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.6345s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (0.6353s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.6354s x1.00 from start)
* Vector size: 2127
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0163s x1.00] (0.6517s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.6517s x1.00 from start)
* Vector size: 2127
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0163s x1.00] (0.6679s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.6679s x1.00 from start)
* Vector size: 2127
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0163s x1.00] (0.6842s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.0514s x1.00] (0.6842s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (0.6842s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.04] (0.6842s x1.00 from start)
(leave) Submit witness oracles [0.1432s x1.00] (0.6842s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (0.6842s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.7873s x1.00 from start)
* Vector size: 8192
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0185s x1.00] (0.8058s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.1215s x1.00] (0.8058s x1.00 from start)
(enter) Finish prover round [ ] (0.8058s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.8058s x1.00 from start)
(enter) BCS: Sample randomness [ ] (0.8058s x1.00 from start)
(leave) BCS: Sample randomness [0.0068s x1.00] (0.8126s x1.00 from start)
(leave) Construct Merkle tree [0.0441s x1.00] (0.8499s x1.00 from start)
(leave) Finish prover round [0.0442s x1.00] (0.8499s x1.00 from start)
(enter) pow [ ] (0.8500s x1.00 from start)
(leave) pow [0.0000s x1.04] (0.8500s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (0.8500s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (0.8500s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0001s x1.00] (0.8500s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (0.8500s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0001s x1.01] (0.8501s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (0.8501s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0006s x1.00] (0.8507s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (0.8507s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.8507s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0009s x1.00] (0.8516s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.8516s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (0.8525s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0018s x1.00] (0.8525s x1.00 from start)
(enter) fz evaluated contents [ ] (0.8525s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.8535s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (0.8535s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.8535s x1.00 from start)
* Vector size: 16
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0060s x1.00] (0.8595s x1.00 from start)
(leave) fz evaluated contents [0.0098s x1.00] (0.8623s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (0.8625s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.8625s x1.00 from start)
* Vector size: 2048
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0154s x1.00] (0.8779s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.8779s x1.00 from start)
* Vector size: 2048
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0154s x1.00] (0.8933s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.0423s x1.00] (0.9048s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.9092s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0042s x1.00] (0.9134s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.9137s x1.00 from start)
* Vector size: 2126
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0157s x1.00] (0.9293s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.0794s x1.00] (0.9293s x1.00 from start)
(enter) Finish prover round [ ] (0.9293s x1.00 from start)
(enter) Construct Merkle tree [ ] (0.9293s x1.00 from start)
(leave) Construct Merkle tree [0.0192s x1.00] (0.9485s x1.00 from start)
(leave) Finish prover round [0.0192s x1.00] (0.9485s x1.00 from start)
(enter) pow [ ] (0.9485s x1.00 from start)
(leave) pow [0.0000s x1.06] (0.9485s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (0.9485s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (0.9486s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0065s x1.00] (0.9550s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (0.9550s x1.00 from start)
(leave) rowcheck evaluated contents [0.0039s x1.00] (0.9590s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (0.9920s x1.00 from start)
(leave) evaluating next FRI codeword [0.0098s x1.00] (1.0018s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0018s x1.00 from start)
(enter) Finish prover round [ ] (1.0018s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0018s x1.00 from start)
(leave) Construct Merkle tree [0.0046s x1.00] (1.0065s x1.00 from start)
(leave) Finish prover round [0.0047s x1.00] (1.0065s x1.00 from start)
(enter) pow [ ] (1.0065s x1.00 from start)
(leave) pow [0.0000s x1.03] (1.0065s x1.00 from start)
(leave) LDT signal prover round done [0.0047s x1.00] (1.0065s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0065s x1.00 from start)
(leave) evaluating next FRI codeword [0.0038s x1.00] (1.0104s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0104s x1.00 from start)
(enter) Finish prover round [ ] (1.0104s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0104s x1.00 from start)
(leave) Construct Merkle tree [0.0012s x1.00] (1.0116s x1.00 from start)
(leave) Finish prover round [0.0012s x1.00] (1.0116s x1.00 from start)
(enter) pow [ ] (1.0116s x1.00 from start)
(leave) pow [0.0000s x1.04] (1.0116s x1.00 from start)
(leave) LDT signal prover round done [0.0012s x1.00] (1.0116s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0116s x1.00 from start)
(leave) evaluating next FRI codeword [0.0010s x1.00] (1.0126s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0126s x1.00 from start)
(enter) Finish prover round [ ] (1.0126s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0126s x1.00 from start)
(leave) Construct Merkle tree [0.0003s x1.00] (1.0129s x1.00 from start)
(leave) Finish prover round [0.0003s x1.00] (1.0129s x1.00 from start)
(enter) pow [ ] (1.0129s x1.00 from start)
(leave) pow [0.0000s x1.03] (1.0130s x1.00 from start)
(leave) LDT signal prover round done [0.0003s x1.00] (1.0130s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0130s x1.00 from start)
(leave) evaluating next FRI codeword [0.0003s x1.00] (1.0132s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0132s x1.00 from start)
(enter) Finish prover round [ ] (1.0132s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0132s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.00] (1.0133s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (1.0133s x1.00 from start)
(enter) pow [ ] (1.0133s x1.00 from start)
(leave) pow [0.0000s x1.03] (1.0133s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (1.0134s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0134s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (1.0134s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0134s x1.00 from start)
(enter) Finish prover round [ ] (1.0134s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0135s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (1.0135s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (1.0135s x1.00 from start)
(enter) pow [ ] (1.0135s x1.00 from start)
(leave) pow [0.0000s x1.03] (1.0135s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (1.0135s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0135s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (1.0136s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0136s x1.00 from start)
(enter) Finish prover round [ ] (1.0136s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.0136s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (1.0136s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (1.0136s x1.00 from start)
(enter) pow [ ] (1.0136s x1.00 from start)
(leave) pow [0.0000s x1.03] (1.0136s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (1.0136s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (1.0136s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (1.0137s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.0137s x1.00 from start)
* Vector size: 8
* Coset size: 8
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (1.0137s x1.00 from start)
(enter) LDT signal prover round done [ ] (1.0137s x1.00 from start)
(enter) Finish prover round [ ] (1.0137s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (1.0137s x1.00 from start)
(enter) pow [ ] (1.0137s x1.00 from start)
(leave) pow [0.0023s x1.00] (1.0161s x1.00 from start)
(leave) LDT signal prover round done [0.0024s x1.00] (1.0161s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.0677s x1.00] (1.0163s x1.00 from start)
(enter) Obtain transcript [ ] (1.0163s x1.00 from start)
(leave) Obtain transcript [0.0110s x1.00] (1.0273s x1.00 from start)
* Total size of proof oracles (bytes): 12058368
* Total size of Merkle tree (bytes): 4892928
* Total size of prover state (bytes): 16951296
(leave) Aurora SNARK prover [0.4870s x1.00] (1.0274s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (1.0321s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0009s x1.00] (1.0331s x1.00 from start)
* Argument size in bytes (IOP): 29049
* Argument size in bytes (BCS): 43360
* Argument size in bytes (total): 72409
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 90240
* Argument size in bytes (total, no pruning): 119289
total prover messages size: 23
total two to one hashes: 1556
total leaves hashed: 1262
total hashes: 2896
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 15
IOP size: 10764 bytes
BCS size: 12160 bytes
number of two to one hashes: 378
number of leaves hashed: 468
number of zk hashes: 78
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 15
IOP size: 1794 bytes
BCS size: 10912 bytes
number of two to one hashes: 378
number of leaves hashed: 78
oracles in round: sumcheck h,
round 2
MT_depth 13
IOP size: 3588 bytes
BCS size: 8544 bytes
number of two to one hashes: 304
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 11
IOP size: 3496 bytes
BCS size: 5792 bytes
number of two to one hashes: 217
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 9
IOP size: 3496 bytes
BCS size: 3968 bytes
number of two to one hashes: 160
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 7
IOP size: 3220 bytes
BCS size: 1568 bytes
number of two to one hashes: 82
number of leaves hashed: 140
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 5
IOP size: 1932 bytes
BCS size: 352 bytes
number of two to one hashes: 30
number of leaves hashed: 84
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 3
IOP size: 736 bytes
BCS size: 32 bytes
number of two to one hashes: 7
number of leaves hashed: 32
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (1.0340s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 16
* constraint domain dim = 11
* variable domain dim = 11
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 169.0
* interactive repetitions = 1
* constraint domain dim = 11
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 164.0
* codeword domain dim = 16
* max tested degree bound = 8192
* max constraint degree bound = 4253
* absolute proximity parameter = 57343
* fractional proximity parameter = 0.874985
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 115
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 16
* effective proximity parameter = 0.874985
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 2 }
* number of reductions = 7
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](1.0342s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (1.0346s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0009s x1.00] (1.0355s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0015s x1.00](1.0357s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (1.0357s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.07] (1.0357s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (1.0357s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (1.0357s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0000s x1.01] (1.0357s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (1.0357s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0000s x1.01] (1.0358s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (1.0358s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0005s x1.00] (1.0363s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (1.0363s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.0363s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (1.0372s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.0372s x1.00 from start)
* Vector size: 2048
* Coset size: 2048
(leave) Call to multiplicative_IFFT_wrapper [0.0008s x1.00] (1.0380s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0017s x1.00] (1.0381s x1.00 from start)
(leave) Construct R1CS verifier state [0.0024s x1.00] (1.0381s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (1.0381s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 39
* Total number of FRI queries over all query sets (incl. repeated queries): 1014
(leave) Check LDT verifier predicate [0.0116s x1.00] (1.0496s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0157s x1.00] (1.0497s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (1.1068s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0004s x1.00] (1.1072s x1.00 from start)
* R1CS number of constraints: 4096
* R1CS number of variables: 4095
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 4080
* R1CS size of constraint system (bytes): 314880
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 97920
(enter) Aurora SNARK prover [ ] (1.1073s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 17
* constraint domain dim = 12
* variable domain dim = 12
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 168.0
* interactive repetitions = 1
* constraint domain dim = 12
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 163.0
* codeword domain dim = 17
* max tested degree bound = 16384
* max constraint degree bound = 8349
* absolute proximity parameter = 114687
* fractional proximity parameter = 0.874992
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 114
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 17
* effective proximity parameter = 0.874992
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 2 }
* number of reductions = 7
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (1.1082s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](1.1082s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.1043s x1.00](1.2125s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](1.2125s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.2128s x1.00 from start)
* Vector size: 8270
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0396s x1.00] (1.2524s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0399s x1.00](1.2524s x1.00 from start)
(enter) Compute randomized f_w [ ] (1.2524s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.2555s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (1.2555s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.2555s x1.00 from start)
* Vector size: 16
* Subgroup size: 4096
(leave) Call to multiplicative_FFT_wrapper [0.0004s x1.00] (1.2559s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.2560s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (1.2578s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.2591s x1.00 from start)
* Vector size: 4159
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0343s x1.00] (1.2934s x1.00 from start)
(leave) Compute randomized f_w [0.0410s x1.00] (1.2934s x1.00 from start)
(enter) Compute A/B/Cz [ ] (1.2934s x1.00 from start)
(leave) Compute A/B/Cz [0.0004s x1.00] (1.2938s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (1.2938s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.2938s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (1.2956s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.2957s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (1.2975s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.2975s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (1.2993s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.2994s x1.00 from start)
* Vector size: 4175
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0352s x1.00] (1.3346s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.3346s x1.00 from start)
* Vector size: 4175
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0352s x1.00] (1.3698s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.3698s x1.00 from start)
* Vector size: 4175
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0352s x1.00] (1.4050s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.1112s x1.00] (1.4050s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (1.4050s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.04] (1.4050s x1.00 from start)
(leave) Submit witness oracles [0.2969s x1.00] (1.4050s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (1.4050s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.6119s x1.00 from start)
* Vector size: 16384
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0397s x1.00] (1.6516s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.2466s x1.00] (1.6516s x1.00 from start)
(enter) Finish prover round [ ] (1.6516s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.6516s x1.00 from start)
(enter) BCS: Sample randomness [ ] (1.6517s x1.00 from start)
(leave) BCS: Sample randomness [0.0126s x1.00] (1.6643s x1.00 from start)
(leave) Construct Merkle tree [0.0872s x1.00] (1.7389s x1.00 from start)
(leave) Finish prover round [0.0873s x1.00] (1.7389s x1.00 from start)
(enter) pow [ ] (1.7389s x1.00 from start)
(leave) pow [0.0000s x1.02] (1.7389s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (1.7389s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (1.7389s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0001s x1.00] (1.7391s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (1.7391s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0001s x1.00] (1.7392s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (1.7392s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0012s x1.00] (1.7403s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (1.7404s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.7404s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0019s x1.00] (1.7423s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.7423s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (1.7441s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0038s x1.00] (1.7442s x1.00 from start)
(enter) fz evaluated contents [ ] (1.7442s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.7463s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (1.7463s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.7463s x1.00 from start)
* Vector size: 16
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0119s x1.00] (1.7582s x1.00 from start)
(leave) fz evaluated contents [0.0195s x1.00] (1.7637s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (1.7641s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.7641s x1.00 from start)
* Vector size: 4096
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0334s x1.00] (1.7975s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.7976s x1.00 from start)
* Vector size: 4096
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0334s x1.00] (1.8310s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.0896s x1.00] (1.8537s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (1.8628s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0090s x1.00] (1.8717s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (1.8722s x1.00 from start)
* Vector size: 4174
* Subgroup size: 131072
(leave) Call to multiplicative_FFT_wrapper [0.0340s x1.00] (1.9062s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.1673s x1.00] (1.9062s x1.00 from start)
(enter) Finish prover round [ ] (1.9062s x1.00 from start)
(enter) Construct Merkle tree [ ] (1.9062s x1.00 from start)
(leave) Construct Merkle tree [0.0381s x1.00] (1.9443s x1.00 from start)
(leave) Finish prover round [0.0381s x1.00] (1.9444s x1.00 from start)
(enter) pow [ ] (1.9444s x1.00 from start)
(leave) pow [0.0000s x1.07] (1.9444s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (1.9444s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (1.9444s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0130s x1.00] (1.9573s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (1.9574s x1.00 from start)
(leave) rowcheck evaluated contents [0.0078s x1.00] (1.9652s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0314s x1.00 from start)
(leave) evaluating next FRI codeword [0.0194s x1.00] (2.0508s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0508s x1.00 from start)
(enter) Finish prover round [ ] (2.0509s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0509s x1.00 from start)
(leave) Construct Merkle tree [0.0092s x1.00] (2.0601s x1.00 from start)
(leave) Finish prover round [0.0092s x1.00] (2.0601s x1.00 from start)
(enter) pow [ ] (2.0601s x1.00 from start)
(leave) pow [0.0000s x1.05] (2.0601s x1.00 from start)
(leave) LDT signal prover round done [0.0093s x1.00] (2.0601s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0601s x1.00 from start)
(leave) evaluating next FRI codeword [0.0077s x1.00] (2.0678s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0678s x1.00 from start)
(enter) Finish prover round [ ] (2.0678s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0678s x1.00 from start)
(leave) Construct Merkle tree [0.0023s x1.00] (2.0702s x1.00 from start)
(leave) Finish prover round [0.0023s x1.00] (2.0702s x1.00 from start)
(enter) pow [ ] (2.0702s x1.00 from start)
(leave) pow [0.0000s x1.06] (2.0702s x1.00 from start)
(leave) LDT signal prover round done [0.0024s x1.00] (2.0702s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0702s x1.00 from start)
(leave) evaluating next FRI codeword [0.0019s x1.00] (2.0721s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0721s x1.00 from start)
(enter) Finish prover round [ ] (2.0721s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0721s x1.00 from start)
(leave) Construct Merkle tree [0.0006s x1.00] (2.0727s x1.00 from start)
(leave) Finish prover round [0.0006s x1.00] (2.0728s x1.00 from start)
(enter) pow [ ] (2.0728s x1.00 from start)
(leave) pow [0.0000s x1.05] (2.0728s x1.00 from start)
(leave) LDT signal prover round done [0.0006s x1.00] (2.0728s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0728s x1.00 from start)
(leave) evaluating next FRI codeword [0.0005s x1.00] (2.0733s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0733s x1.00 from start)
(enter) Finish prover round [ ] (2.0733s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0733s x1.00 from start)
(leave) Construct Merkle tree [0.0002s x1.00] (2.0734s x1.00 from start)
(leave) Finish prover round [0.0002s x1.00] (2.0735s x1.00 from start)
(enter) pow [ ] (2.0735s x1.00 from start)
(leave) pow [0.0000s x1.02] (2.0735s x1.00 from start)
(leave) LDT signal prover round done [0.0002s x1.00] (2.0735s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0735s x1.00 from start)
(leave) evaluating next FRI codeword [0.0002s x1.00] (2.0736s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0736s x1.00 from start)
(enter) Finish prover round [ ] (2.0736s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0737s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.00] (2.0737s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (2.0737s x1.00 from start)
(enter) pow [ ] (2.0737s x1.00 from start)
(leave) pow [0.0000s x1.03] (2.0737s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (2.0737s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0737s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.01] (2.0738s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0738s x1.00 from start)
(enter) Finish prover round [ ] (2.0738s x1.00 from start)
(enter) Construct Merkle tree [ ] (2.0738s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (2.0738s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (2.0738s x1.00 from start)
(enter) pow [ ] (2.0738s x1.00 from start)
(leave) pow [0.0000s x1.02] (2.0738s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (2.0739s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (2.0739s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (2.0739s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.0739s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.01] (2.0739s x1.00 from start)
(enter) LDT signal prover round done [ ] (2.0739s x1.00 from start)
(enter) Finish prover round [ ] (2.0739s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (2.0739s x1.00 from start)
(enter) pow [ ] (2.0739s x1.00 from start)
(leave) pow [0.0062s x1.00] (2.0802s x1.00 from start)
(leave) LDT signal prover round done [0.0063s x1.00] (2.0802s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.1363s x1.00] (2.0807s x1.00 from start)
(enter) Obtain transcript [ ] (2.0807s x1.00 from start)
(leave) Obtain transcript [0.0199s x1.00] (2.1006s x1.00 from start)
* Total size of proof oracles (bytes): 24116736
* Total size of Merkle tree (bytes): 9786112
* Total size of prover state (bytes): 33902848
(leave) Aurora SNARK prover [0.9934s x1.00] (2.1006s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (2.1097s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0010s x1.00] (2.1107s x1.00 from start)
* Argument size in bytes (IOP): 30360
* Argument size in bytes (BCS): 51296
* Argument size in bytes (total): 81656
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 100960
* Argument size in bytes (total, no pruning): 131320
total prover messages size: 46
total two to one hashes: 1818
total leaves hashed: 1318
total hashes: 3214
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 16
IOP size: 10764 bytes
BCS size: 13536 bytes
number of two to one hashes: 421
number of leaves hashed: 468
number of zk hashes: 78
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 16
IOP size: 1794 bytes
BCS size: 12288 bytes
number of two to one hashes: 421
number of leaves hashed: 78
oracles in round: sumcheck h,
round 2
MT_depth 14
IOP size: 3588 bytes
BCS size: 9632 bytes
number of two to one hashes: 338
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 12
IOP size: 3588 bytes
BCS size: 7264 bytes
number of two to one hashes: 264
number of leaves hashed: 156
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 10
IOP size: 3496 bytes
BCS size: 4832 bytes
number of two to one hashes: 187
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 8
IOP size: 3220 bytes
BCS size: 2720 bytes
number of two to one hashes: 118
number of leaves hashed: 140
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 6
IOP size: 2576 bytes
BCS size: 896 bytes
number of two to one hashes: 54
number of leaves hashed: 112
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 4
IOP size: 1288 bytes
BCS size: 96 bytes
number of two to one hashes: 15
number of leaves hashed: 56
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (2.1119s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 117.0
* RS extra dimensions = 3
* codeword domain dim = 17
* constraint domain dim = 12
* variable domain dim = 12
* query bound = 79
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 168.0
* interactive repetitions = 1
* constraint domain dim = 12
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 163.0
* codeword domain dim = 17
* max tested degree bound = 16384
* max constraint degree bound = 8349
* absolute proximity parameter = 114687
* fractional proximity parameter = 0.874992
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 114
* achieved query soundness error (bits) = 117.0
* codeword domain dim = 17
* effective proximity parameter = 0.874992
* number of interactive repetitions = 1
* number of query repetitions = 39
* localization parameter array = { 1 2 2 2 2 2 2 }
* number of reductions = 7
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](2.1121s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (2.1127s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0010s x1.00] (2.1137s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0017s x1.00](2.1138s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (2.1138s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.04] (2.1138s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (2.1138s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (2.1138s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0001s x1.00] (2.1139s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (2.1139s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0001s x1.00] (2.1140s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (2.1140s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0011s x1.00] (2.1151s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (2.1151s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.1151s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (2.1170s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.1170s x1.00 from start)
* Vector size: 4096
* Coset size: 4096
(leave) Call to multiplicative_IFFT_wrapper [0.0018s x1.00] (2.1188s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0037s x1.00] (2.1188s x1.00 from start)
(leave) Construct R1CS verifier state [0.0050s x1.00] (2.1188s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (2.1188s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 39
* Total number of FRI queries over all query sets (incl. repeated queries): 1014
(leave) Check LDT verifier predicate [0.0204s x1.00] (2.1392s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0273s x1.00] (2.1392s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (2.2516s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0009s x1.00] (2.2524s x1.00 from start)
* R1CS number of constraints: 8192
* R1CS number of variables: 8191
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 8176
* R1CS size of constraint system (bytes): 632832
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 196224
(enter) Aurora SNARK prover [ ] (2.2525s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 18
* constraint domain dim = 13
* variable domain dim = 13
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 167.0
* interactive repetitions = 1
* constraint domain dim = 13
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 162.0
* codeword domain dim = 18
* max tested degree bound = 32768
* max constraint degree bound = 16537
* absolute proximity parameter = 229375
* fractional proximity parameter = 0.874996
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 113
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 18
* effective proximity parameter = 0.874996
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 }
* number of reductions = 8
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (2.2538s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](2.2538s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.2077s x1.00](2.4615s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](2.4615s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.4620s x1.00 from start)
* Vector size: 16460
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0846s x1.00] (2.5466s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.0851s x1.00](2.5466s x1.00 from start)
(enter) Compute randomized f_w [ ] (2.5466s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.5495s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (2.5496s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.5496s x1.00 from start)
* Vector size: 16
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0008s x1.00] (2.5504s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.5506s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (2.5545s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.5561s x1.00 from start)
* Vector size: 8253
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0740s x1.00] (2.6300s x1.00 from start)
(leave) Compute randomized f_w [0.0834s x1.00] (2.6300s x1.00 from start)
(enter) Compute A/B/Cz [ ] (2.6300s x1.00 from start)
(leave) Compute A/B/Cz [0.0007s x1.00] (2.6308s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (2.6308s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.6308s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (2.6347s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.6347s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (2.6386s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (2.6386s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (2.6425s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.6426s x1.00 from start)
* Vector size: 8269
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0759s x1.00] (2.7186s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.7186s x1.00 from start)
* Vector size: 8269
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0761s x1.00] (2.7947s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (2.7947s x1.00 from start)
* Vector size: 8269
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0759s x1.00] (2.8706s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.2399s x1.00] (2.8707s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (2.8707s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.03] (2.8707s x1.00 from start)
(leave) Submit witness oracles [0.6169s x1.00] (2.8707s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (2.8707s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (3.2842s x1.00 from start)
* Vector size: 32768
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0851s x1.00] (3.3693s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [0.4986s x1.00] (3.3693s x1.00 from start)
(enter) Finish prover round [ ] (3.3693s x1.00 from start)
(enter) Construct Merkle tree [ ] (3.3693s x1.00 from start)
(enter) BCS: Sample randomness [ ] (3.3693s x1.00 from start)
(leave) BCS: Sample randomness [0.0252s x1.00] (3.3945s x1.00 from start)
(leave) Construct Merkle tree [0.1738s x1.00] (3.5431s x1.00 from start)
(leave) Finish prover round [0.1738s x1.00] (3.5431s x1.00 from start)
(enter) pow [ ] (3.5431s x1.00 from start)
(leave) pow [0.0000s x1.06] (3.5431s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (3.5432s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (3.5432s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0002s x1.00] (3.5434s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (3.5434s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0002s x1.00] (3.5436s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (3.5436s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0023s x1.00] (3.5460s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (3.5460s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (3.5461s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0040s x1.00] (3.5500s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (3.5504s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (3.5542s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0084s x1.00] (3.5543s x1.00 from start)
(enter) fz evaluated contents [ ] (3.5544s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (3.5582s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x0.99] (3.5582s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (3.5582s x1.00 from start)
* Vector size: 16
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0236s x1.00] (3.5818s x1.00 from start)
(leave) fz evaluated contents [0.0385s x1.00] (3.5928s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (3.5936s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (3.5936s x1.00 from start)
* Vector size: 8192
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0724s x1.00] (3.6660s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (3.6660s x1.00 from start)
* Vector size: 8192
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0723s x1.00] (3.7383s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.1898s x1.00] (3.7834s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (3.8016s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0191s x1.00] (3.8207s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (3.8216s x1.00 from start)
* Vector size: 8268
* Subgroup size: 262144
(leave) Call to multiplicative_FFT_wrapper [0.0734s x1.00] (3.8949s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.3518s x1.00] (3.8950s x1.00 from start)
(enter) Finish prover round [ ] (3.8950s x1.00 from start)
(enter) Construct Merkle tree [ ] (3.8950s x1.00 from start)
(leave) Construct Merkle tree [0.0763s x1.00] (3.9713s x1.00 from start)
(leave) Finish prover round [0.0764s x1.00] (3.9713s x1.00 from start)
(enter) pow [ ] (3.9713s x1.00 from start)
(leave) pow [0.0000s x1.01] (3.9713s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (3.9714s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (3.9714s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0260s x1.00] (3.9973s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (3.9973s x1.00 from start)
(leave) rowcheck evaluated contents [0.0157s x1.00] (4.0131s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.1446s x1.00 from start)
(leave) evaluating next FRI codeword [0.0389s x1.00] (4.1834s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.1836s x1.00 from start)
(enter) Finish prover round [ ] (4.1836s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.1836s x1.00 from start)
(leave) Construct Merkle tree [0.0183s x1.00] (4.2020s x1.00 from start)
(leave) Finish prover round [0.0184s x1.00] (4.2020s x1.00 from start)
(enter) pow [ ] (4.2020s x1.00 from start)
(leave) pow [0.0000s x1.05] (4.2020s x1.00 from start)
(leave) LDT signal prover round done [0.0184s x1.00] (4.2020s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2020s x1.00 from start)
(leave) evaluating next FRI codeword [0.0153s x1.00] (4.2173s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2173s x1.00 from start)
(enter) Finish prover round [ ] (4.2173s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2173s x1.00 from start)
(leave) Construct Merkle tree [0.0046s x1.00] (4.2219s x1.00 from start)
(leave) Finish prover round [0.0046s x1.00] (4.2219s x1.00 from start)
(enter) pow [ ] (4.2220s x1.00 from start)
(leave) pow [0.0000s x1.06] (4.2220s x1.00 from start)
(leave) LDT signal prover round done [0.0047s x1.00] (4.2220s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2220s x1.00 from start)
(leave) evaluating next FRI codeword [0.0038s x1.00] (4.2258s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2258s x1.00 from start)
(enter) Finish prover round [ ] (4.2258s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2258s x1.00 from start)
(leave) Construct Merkle tree [0.0012s x1.00] (4.2270s x1.00 from start)
(leave) Finish prover round [0.0012s x1.00] (4.2270s x1.00 from start)
(enter) pow [ ] (4.2270s x1.00 from start)
(leave) pow [0.0000s x1.06] (4.2270s x1.00 from start)
(leave) LDT signal prover round done [0.0012s x1.00] (4.2270s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2270s x1.00 from start)
(leave) evaluating next FRI codeword [0.0010s x1.00] (4.2280s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2280s x1.00 from start)
(enter) Finish prover round [ ] (4.2280s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2280s x1.00 from start)
(leave) Construct Merkle tree [0.0003s x1.00] (4.2283s x1.00 from start)
(leave) Finish prover round [0.0003s x1.00] (4.2283s x1.00 from start)
(enter) pow [ ] (4.2283s x1.00 from start)
(leave) pow [0.0000s x1.03] (4.2283s x1.00 from start)
(leave) LDT signal prover round done [0.0003s x1.00] (4.2283s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2283s x1.00 from start)
(leave) evaluating next FRI codeword [0.0003s x1.00] (4.2286s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2286s x1.00 from start)
(enter) Finish prover round [ ] (4.2286s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2286s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.01] (4.2287s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (4.2287s x1.00 from start)
(enter) pow [ ] (4.2287s x1.00 from start)
(leave) pow [0.0000s x1.03] (4.2287s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (4.2288s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2288s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (4.2288s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2288s x1.00 from start)
(enter) Finish prover round [ ] (4.2288s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2289s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (4.2289s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (4.2289s x1.00 from start)
(enter) pow [ ] (4.2289s x1.00 from start)
(leave) pow [0.0000s x1.02] (4.2289s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (4.2289s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2289s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (4.2290s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2290s x1.00 from start)
(enter) Finish prover round [ ] (4.2290s x1.00 from start)
(enter) Construct Merkle tree [ ] (4.2290s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (4.2290s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (4.2290s x1.00 from start)
(enter) pow [ ] (4.2290s x1.00 from start)
(leave) pow [0.0000s x1.03] (4.2290s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (4.2290s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (4.2290s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (4.2291s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (4.2291s x1.00 from start)
* Vector size: 8
* Coset size: 8
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.01] (4.2291s x1.00 from start)
(enter) LDT signal prover round done [ ] (4.2291s x1.00 from start)
(enter) Finish prover round [ ] (4.2291s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (4.2291s x1.00 from start)
(enter) pow [ ] (4.2291s x1.00 from start)
(leave) pow [0.0178s x1.00] (4.2470s x1.00 from start)
(leave) LDT signal prover round done [0.0179s x1.00] (4.2470s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.2766s x1.00] (4.2479s x1.00 from start)
(enter) Obtain transcript [ ] (4.2479s x1.00 from start)
(leave) Obtain transcript [0.0368s x1.00] (4.2847s x1.00 from start)
* Total size of proof oracles (bytes): 48234240
* Total size of Merkle tree (bytes): 19572960
* Total size of prover state (bytes): 67807200
(leave) Aurora SNARK prover [2.0323s x1.00] (4.2848s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (4.3023s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0011s x1.00] (4.3034s x1.00 from start)
* Argument size in bytes (IOP): 32039
* Argument size in bytes (BCS): 58784
* Argument size in bytes (total): 90823
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 111456
* Argument size in bytes (total, no pruning): 143495
total prover messages size: 23
total two to one hashes: 2071
total leaves hashed: 1392
total hashes: 3539
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 17
IOP size: 10488 bytes
BCS size: 14656 bytes
number of two to one hashes: 456
number of leaves hashed: 456
number of zk hashes: 76
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 17
IOP size: 1748 bytes
BCS size: 13440 bytes
number of two to one hashes: 456
number of leaves hashed: 76
oracles in round: sumcheck h,
round 2
MT_depth 15
IOP size: 3496 bytes
BCS size: 10784 bytes
number of two to one hashes: 373
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 13
IOP size: 3496 bytes
BCS size: 8160 bytes
number of two to one hashes: 291
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 11
IOP size: 3496 bytes
BCS size: 5856 bytes
number of two to one hashes: 219
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 9
IOP size: 3312 bytes
BCS size: 3872 bytes
number of two to one hashes: 155
number of leaves hashed: 144
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 7
IOP size: 3036 bytes
BCS size: 1664 bytes
number of two to one hashes: 83
number of leaves hashed: 132
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 5
IOP size: 2208 bytes
BCS size: 288 bytes
number of two to one hashes: 31
number of leaves hashed: 96
oracles in round: TODO: Fill in this name (batching.tcc),
round 8
MT_depth 3
IOP size: 736 bytes
BCS size: 32 bytes
number of two to one hashes: 7
number of leaves hashed: 32
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (4.3050s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 18
* constraint domain dim = 13
* variable domain dim = 13
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 167.0
* interactive repetitions = 1
* constraint domain dim = 13
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 162.0
* codeword domain dim = 18
* max tested degree bound = 32768
* max constraint degree bound = 16537
* absolute proximity parameter = 229375
* fractional proximity parameter = 0.874996
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 113
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 18
* effective proximity parameter = 0.874996
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 }
* number of reductions = 8
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](4.3053s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (4.3062s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0011s x1.00] (4.3073s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0022s x1.00](4.3075s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (4.3075s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.11] (4.3075s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (4.3075s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (4.3075s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0002s x1.00] (4.3077s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (4.3077s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0001s x1.00] (4.3078s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (4.3078s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0022s x1.00] (4.3100s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (4.3101s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (4.3101s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (4.3140s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (4.3140s x1.00 from start)
* Vector size: 8192
* Coset size: 8192
(leave) Call to multiplicative_IFFT_wrapper [0.0039s x1.00] (4.3179s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0078s x1.00] (4.3179s x1.00 from start)
(leave) Construct R1CS verifier state [0.0104s x1.00] (4.3179s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (4.3179s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 38
* Total number of FRI queries over all query sets (incl. repeated queries): 1140
(leave) Check LDT verifier predicate [0.0372s x1.00] (4.3551s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0501s x1.00] (4.3551s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (4.5822s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0017s x1.00] (4.5839s x1.00 from start)
* R1CS number of constraints: 16384
* R1CS number of variables: 16383
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 16368
* R1CS size of constraint system (bytes): 1271808
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 392832
(enter) Aurora SNARK prover [ ] (4.5840s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 19
* constraint domain dim = 14
* variable domain dim = 14
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 166.0
* interactive repetitions = 1
* constraint domain dim = 14
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 161.0
* codeword domain dim = 19
* max tested degree bound = 65536
* max constraint degree bound = 32921
* absolute proximity parameter = 458751
* fractional proximity parameter = 0.874998
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 112
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 19
* effective proximity parameter = 0.874998
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 }
* number of reductions = 8
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (4.5859s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](4.5859s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.4120s x1.00](4.9979s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](4.9979s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (4.9989s x1.00 from start)
* Vector size: 32844
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1808s x1.00] (5.1797s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.1817s x1.00](5.1797s x1.00 from start)
(enter) Compute randomized f_w [ ] (5.1797s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (5.1827s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.03] (5.1828s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (5.1828s x1.00 from start)
* Vector size: 16
* Subgroup size: 16384
(leave) Call to multiplicative_FFT_wrapper [0.0017s x1.00] (5.1845s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (5.1848s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (5.1931s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (5.1952s x1.00 from start)
* Vector size: 16445
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1596s x1.00] (5.3548s x1.00 from start)
(leave) Compute randomized f_w [0.1751s x1.00] (5.3548s x1.00 from start)
(enter) Compute A/B/Cz [ ] (5.3548s x1.00 from start)
(leave) Compute A/B/Cz [0.0015s x1.00] (5.3563s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (5.3563s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (5.3563s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (5.3647s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (5.3647s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (5.3730s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (5.3731s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (5.3814s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (5.3816s x1.00 from start)
* Vector size: 16461
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1630s x1.00] (5.5447s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (5.5447s x1.00 from start)
* Vector size: 16461
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1630s x1.00] (5.7078s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (5.7078s x1.00 from start)
* Vector size: 16461
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1629s x1.00] (5.8707s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [0.5144s x1.00] (5.8708s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (5.8708s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.03] (5.8708s x1.00 from start)
(leave) Submit witness oracles [1.2849s x1.00] (5.8708s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (5.8708s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (6.6942s x1.00 from start)
* Vector size: 65536
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1819s x1.00] (6.8761s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [1.0053s x1.00] (6.8761s x1.00 from start)
(enter) Finish prover round [ ] (6.8761s x1.00 from start)
(enter) Construct Merkle tree [ ] (6.8761s x1.00 from start)
(enter) BCS: Sample randomness [ ] (6.8761s x1.00 from start)
(leave) BCS: Sample randomness [0.0503s x1.00] (6.9264s x1.00 from start)
(leave) Construct Merkle tree [0.3469s x1.00] (7.2230s x1.00 from start)
(leave) Finish prover round [0.3470s x1.00] (7.2231s x1.00 from start)
(enter) pow [ ] (7.2231s x1.00 from start)
(leave) pow [0.0000s x1.04] (7.2231s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (7.2231s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (7.2231s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0005s x1.00] (7.2236s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (7.2236s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0004s x1.00] (7.2240s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (7.2240s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0047s x1.00] (7.2287s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (7.2287s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (7.2289s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0085s x1.00] (7.2374s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (7.2376s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (7.2459s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0174s x1.00] (7.2461s x1.00 from start)
(enter) fz evaluated contents [ ] (7.2461s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (7.2535s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x0.99] (7.2535s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (7.2536s x1.00 from start)
* Vector size: 16
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.0472s x1.00] (7.3008s x1.00 from start)
(leave) fz evaluated contents [0.0765s x1.00] (7.3226s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (7.3241s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (7.3241s x1.00 from start)
* Vector size: 16384
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1560s x1.00] (7.4801s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (7.4802s x1.00 from start)
* Vector size: 16384
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1565s x1.00] (7.6367s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.4028s x1.00] (7.7269s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (7.7636s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0406s x1.00] (7.8042s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (7.8059s x1.00 from start)
* Vector size: 16460
* Subgroup size: 524288
(leave) Call to multiplicative_FFT_wrapper [0.1580s x1.00] (7.9639s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [0.7408s x1.00] (7.9639s x1.00 from start)
(enter) Finish prover round [ ] (7.9639s x1.00 from start)
(enter) Construct Merkle tree [ ] (7.9639s x1.00 from start)
(leave) Construct Merkle tree [0.1524s x1.00] (8.1163s x1.00 from start)
(leave) Finish prover round [0.1525s x1.00] (8.1164s x1.00 from start)
(enter) pow [ ] (8.1164s x1.00 from start)
(leave) pow [0.0000s x0.96] (8.1164s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (8.1164s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (8.1164s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.0514s x1.00] (8.1678s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (8.1678s x1.00 from start)
(leave) rowcheck evaluated contents [0.0314s x1.00] (8.1992s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.4619s x1.00 from start)
(leave) evaluating next FRI codeword [0.0773s x1.00] (8.5392s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.5397s x1.00 from start)
(enter) Finish prover round [ ] (8.5397s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.5397s x1.00 from start)
(leave) Construct Merkle tree [0.0368s x1.00] (8.5765s x1.00 from start)
(leave) Finish prover round [0.0368s x1.00] (8.5765s x1.00 from start)
(enter) pow [ ] (8.5765s x1.00 from start)
(leave) pow [0.0000s x0.90] (8.5765s x1.00 from start)
(leave) LDT signal prover round done [0.0369s x1.00] (8.5765s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.5765s x1.00 from start)
(leave) evaluating next FRI codeword [0.0305s x1.00] (8.6070s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6071s x1.00 from start)
(enter) Finish prover round [ ] (8.6071s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6072s x1.00 from start)
(leave) Construct Merkle tree [0.0092s x1.00] (8.6164s x1.00 from start)
(leave) Finish prover round [0.0092s x1.00] (8.6164s x1.00 from start)
(enter) pow [ ] (8.6164s x1.00 from start)
(leave) pow [0.0000s x1.04] (8.6164s x1.00 from start)
(leave) LDT signal prover round done [0.0093s x1.00] (8.6164s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6164s x1.00 from start)
(leave) evaluating next FRI codeword [0.0076s x1.00] (8.6240s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6241s x1.00 from start)
(enter) Finish prover round [ ] (8.6241s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6241s x1.00 from start)
(leave) Construct Merkle tree [0.0023s x1.00] (8.6264s x1.00 from start)
(leave) Finish prover round [0.0023s x1.00] (8.6264s x1.00 from start)
(enter) pow [ ] (8.6264s x1.00 from start)
(leave) pow [0.0000s x1.03] (8.6264s x1.00 from start)
(leave) LDT signal prover round done [0.0024s x1.00] (8.6264s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6264s x1.00 from start)
(leave) evaluating next FRI codeword [0.0019s x1.00] (8.6284s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6284s x1.00 from start)
(enter) Finish prover round [ ] (8.6284s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6284s x1.00 from start)
(leave) Construct Merkle tree [0.0006s x1.00] (8.6290s x1.00 from start)
(leave) Finish prover round [0.0006s x1.00] (8.6290s x1.00 from start)
(enter) pow [ ] (8.6290s x1.00 from start)
(leave) pow [0.0000s x1.02] (8.6290s x1.00 from start)
(leave) LDT signal prover round done [0.0006s x1.00] (8.6290s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6290s x1.00 from start)
(leave) evaluating next FRI codeword [0.0005s x1.00] (8.6295s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6295s x1.00 from start)
(enter) Finish prover round [ ] (8.6295s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6295s x1.00 from start)
(leave) Construct Merkle tree [0.0002s x1.00] (8.6297s x1.00 from start)
(leave) Finish prover round [0.0002s x1.00] (8.6297s x1.00 from start)
(enter) pow [ ] (8.6297s x1.00 from start)
(leave) pow [0.0000s x1.02] (8.6297s x1.00 from start)
(leave) LDT signal prover round done [0.0002s x1.00] (8.6297s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6297s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.01] (8.6299s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6299s x1.00 from start)
(enter) Finish prover round [ ] (8.6299s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6299s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (8.6299s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (8.6299s x1.00 from start)
(enter) pow [ ] (8.6300s x1.00 from start)
(leave) pow [0.0000s x1.03] (8.6300s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (8.6300s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6300s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (8.6300s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6300s x1.00 from start)
(enter) Finish prover round [ ] (8.6300s x1.00 from start)
(enter) Construct Merkle tree [ ] (8.6300s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (8.6301s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (8.6301s x1.00 from start)
(enter) pow [ ] (8.6301s x1.00 from start)
(leave) pow [0.0000s x1.02] (8.6301s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (8.6301s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (8.6301s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (8.6301s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (8.6301s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (8.6301s x1.00 from start)
(enter) LDT signal prover round done [ ] (8.6301s x1.00 from start)
(enter) Finish prover round [ ] (8.6301s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (8.6302s x1.00 from start)
(enter) pow [ ] (8.6302s x1.00 from start)
(leave) pow [0.0178s x1.00] (8.6480s x1.00 from start)
(leave) LDT signal prover round done [0.0178s x1.00] (8.6480s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [0.5334s x1.00] (8.6498s x1.00 from start)
(enter) Obtain transcript [ ] (8.6498s x1.00 from start)
(leave) Obtain transcript [0.0710s x1.00] (8.7208s x1.00 from start)
* Total size of proof oracles (bytes): 96468480
* Total size of Merkle tree (bytes): 39146208
* Total size of prover state (bytes): 135614688
(leave) Aurora SNARK prover [4.1369s x1.00] (8.7208s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (8.7547s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0012s x1.00] (8.7559s x1.00 from start)
* Argument size in bytes (IOP): 33902
* Argument size in bytes (BCS): 67808
* Argument size in bytes (total): 101710
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 124480
* Argument size in bytes (total, no pruning): 158382
total prover messages size: 46
total two to one hashes: 2373
total leaves hashed: 1472
total hashes: 3921
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 18
IOP size: 10488 bytes
BCS size: 15616 bytes
number of two to one hashes: 486
number of leaves hashed: 456
number of zk hashes: 76
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 18
IOP size: 1748 bytes
BCS size: 14400 bytes
number of two to one hashes: 486
number of leaves hashed: 76
oracles in round: sumcheck h,
round 2
MT_depth 16
IOP size: 3496 bytes
BCS size: 12448 bytes
number of two to one hashes: 425
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 14
IOP size: 3496 bytes
BCS size: 9856 bytes
number of two to one hashes: 344
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 12
IOP size: 3496 bytes
BCS size: 6912 bytes
number of two to one hashes: 252
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 10
IOP size: 3496 bytes
BCS size: 4896 bytes
number of two to one hashes: 189
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 8
IOP size: 3220 bytes
BCS size: 2752 bytes
number of two to one hashes: 119
number of leaves hashed: 140
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 6
IOP size: 2944 bytes
BCS size: 864 bytes
number of two to one hashes: 57
number of leaves hashed: 128
oracles in round: TODO: Fill in this name (batching.tcc),
round 8
MT_depth 4
IOP size: 1472 bytes
BCS size: 32 bytes
number of two to one hashes: 15
number of leaves hashed: 64
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (8.7584s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 19
* constraint domain dim = 14
* variable domain dim = 14
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 166.0
* interactive repetitions = 1
* constraint domain dim = 14
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 161.0
* codeword domain dim = 19
* max tested degree bound = 65536
* max constraint degree bound = 32921
* absolute proximity parameter = 458751
* fractional proximity parameter = 0.874998
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 112
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 19
* effective proximity parameter = 0.874998
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 }
* number of reductions = 8
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](8.7587s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (8.7602s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0012s x1.00] (8.7615s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0030s x1.00](8.7616s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (8.7616s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.04] (8.7617s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (8.7617s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (8.7617s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0003s x1.00] (8.7620s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (8.7620s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0003s x1.00] (8.7623s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (8.7623s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0046s x1.00] (8.7668s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (8.7668s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (8.7669s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (8.7752s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (8.7752s x1.00 from start)
* Vector size: 16384
* Coset size: 16384
(leave) Call to multiplicative_IFFT_wrapper [0.0083s x1.00] (8.7835s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0167s x1.00] (8.7836s x1.00 from start)
(leave) Construct R1CS verifier state [0.0219s x1.00] (8.7836s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (8.7836s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 38
* Total number of FRI queries over all query sets (incl. repeated queries): 1140
(leave) Check LDT verifier predicate [0.0712s x1.00] (8.8547s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.0963s x1.00] (8.8548s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (9.3054s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0034s x1.00] (9.3088s x1.00 from start)
* R1CS number of constraints: 32768
* R1CS number of variables: 32767
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 32752
* R1CS size of constraint system (bytes): 2555904
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 786048
(enter) Aurora SNARK prover [ ] (9.3089s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 20
* constraint domain dim = 15
* variable domain dim = 15
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 165.0
* interactive repetitions = 1
* constraint domain dim = 15
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 160.0
* codeword domain dim = 20
* max tested degree bound = 131072
* max constraint degree bound = 65689
* absolute proximity parameter = 917503
* fractional proximity parameter = 0.874999
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 111
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 20
* effective proximity parameter = 0.874999
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 2 }
* number of reductions = 9
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (9.3121s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](9.3121s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [0.8241s x1.00](10.1362s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](10.1363s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (10.1382s x1.00 from start)
* Vector size: 65612
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3865s x1.00] (10.5247s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.3885s x1.00](10.5247s x1.00 from start)
(enter) Compute randomized f_w [ ] (10.5247s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (10.5279s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.04] (10.5279s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (10.5279s x1.00 from start)
* Vector size: 16
* Subgroup size: 32768
(leave) Call to multiplicative_FFT_wrapper [0.0034s x1.00] (10.5313s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (10.5320s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0179s x1.00] (10.5499s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (10.5530s x1.00 from start)
* Vector size: 32829
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3427s x1.00] (10.8957s x1.00 from start)
(leave) Compute randomized f_w [0.3710s x1.00] (10.8957s x1.00 from start)
(enter) Compute A/B/Cz [ ] (10.8957s x1.00 from start)
(leave) Compute A/B/Cz [0.0030s x1.00] (10.8987s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (10.8988s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (10.8988s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (10.9166s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (10.9167s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (10.9345s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (10.9346s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (10.9524s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (10.9529s x1.00 from start)
* Vector size: 32845
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3493s x1.00] (11.3022s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (11.3023s x1.00 from start)
* Vector size: 32845
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3493s x1.00] (11.6516s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (11.6517s x1.00 from start)
* Vector size: 32845
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3488s x1.00] (12.0004s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [1.1017s x1.00] (12.0005s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (12.0005s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.03] (12.0005s x1.00 from start)
(leave) Submit witness oracles [2.6884s x1.00] (12.0005s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (12.0005s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (13.6514s x1.00 from start)
* Vector size: 131072
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3909s x1.00] (14.0423s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [2.0418s x1.00] (14.0424s x1.00 from start)
(enter) Finish prover round [ ] (14.0424s x1.00 from start)
(enter) Construct Merkle tree [ ] (14.0424s x1.00 from start)
(enter) BCS: Sample randomness [ ] (14.0424s x1.00 from start)
(leave) BCS: Sample randomness [0.1007s x1.00] (14.1431s x1.00 from start)
(leave) Construct Merkle tree [0.6931s x1.00] (14.7355s x1.00 from start)
(leave) Finish prover round [0.6931s x1.00] (14.7355s x1.00 from start)
(enter) pow [ ] (14.7355s x1.00 from start)
(leave) pow [0.0000s x1.01] (14.7355s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (14.7355s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (14.7355s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0010s x1.00] (14.7365s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (14.7365s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0008s x1.00] (14.7373s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (14.7373s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0094s x1.00] (14.7467s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (14.7468s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (14.7472s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0181s x1.00] (14.7653s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (14.7657s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (14.7835s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0371s x1.00] (14.7838s x1.00 from start)
(enter) fz evaluated contents [ ] (14.7838s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (14.7986s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.01] (14.7987s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (14.7987s x1.00 from start)
* Vector size: 16
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.0947s x1.00] (14.8934s x1.00 from start)
(leave) fz evaluated contents [0.1538s x1.00] (14.9376s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (14.9405s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (14.9406s x1.00 from start)
* Vector size: 32768
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3363s x1.00] (15.2769s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (15.2770s x1.00 from start)
* Vector size: 32768
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3375s x1.00] (15.6145s x1.00 from start)
(leave) multi_lincheck evaluated contents [0.8529s x1.00] (15.7934s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (15.8672s x1.00 from start)
* Vector size: 131072
* Coset size: 131072
(leave) Call to multiplicative_IFFT_wrapper [0.0856s x1.00] (15.9528s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (15.9561s x1.00 from start)
* Vector size: 32844
* Subgroup size: 1048576
(leave) Call to multiplicative_FFT_wrapper [0.3405s x1.00] (16.2966s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [1.5612s x1.00] (16.2967s x1.00 from start)
(enter) Finish prover round [ ] (16.2967s x1.00 from start)
(enter) Construct Merkle tree [ ] (16.2967s x1.00 from start)
(leave) Construct Merkle tree [0.3047s x1.00] (16.6014s x1.00 from start)
(leave) Finish prover round [0.3048s x1.00] (16.6015s x1.00 from start)
(enter) pow [ ] (16.6015s x1.00 from start)
(leave) pow [0.0000s x1.02] (16.6015s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (16.6015s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (16.6015s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.1026s x1.00] (16.7041s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (16.7042s x1.00 from start)
(leave) rowcheck evaluated contents [0.0628s x1.00] (16.7669s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.2920s x1.00 from start)
(leave) evaluating next FRI codeword [0.1547s x1.00] (17.4468s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.4478s x1.00 from start)
(enter) Finish prover round [ ] (17.4479s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.4479s x1.00 from start)
(leave) Construct Merkle tree [0.0737s x1.00] (17.5216s x1.00 from start)
(leave) Finish prover round [0.0737s x1.00] (17.5216s x1.00 from start)
(enter) pow [ ] (17.5216s x1.00 from start)
(leave) pow [0.0000s x1.03] (17.5216s x1.00 from start)
(leave) LDT signal prover round done [0.0738s x1.00] (17.5216s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.5216s x1.00 from start)
(leave) evaluating next FRI codeword [0.0611s x1.00] (17.5827s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.5829s x1.00 from start)
(enter) Finish prover round [ ] (17.5829s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.5829s x1.00 from start)
(leave) Construct Merkle tree [0.0185s x1.00] (17.6014s x1.00 from start)
(leave) Finish prover round [0.0185s x1.00] (17.6014s x1.00 from start)
(enter) pow [ ] (17.6014s x1.00 from start)
(leave) pow [0.0000s x1.01] (17.6014s x1.00 from start)
(leave) LDT signal prover round done [0.0185s x1.00] (17.6014s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6014s x1.00 from start)
(leave) evaluating next FRI codeword [0.0152s x1.00] (17.6167s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6167s x1.00 from start)
(enter) Finish prover round [ ] (17.6167s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6167s x1.00 from start)
(leave) Construct Merkle tree [0.0046s x1.00] (17.6213s x1.00 from start)
(leave) Finish prover round [0.0046s x1.00] (17.6214s x1.00 from start)
(enter) pow [ ] (17.6214s x1.00 from start)
(leave) pow [0.0000s x1.04] (17.6214s x1.00 from start)
(leave) LDT signal prover round done [0.0046s x1.00] (17.6214s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6214s x1.00 from start)
(leave) evaluating next FRI codeword [0.0038s x1.00] (17.6252s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6252s x1.00 from start)
(enter) Finish prover round [ ] (17.6252s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6252s x1.00 from start)
(leave) Construct Merkle tree [0.0012s x1.00] (17.6264s x1.00 from start)
(leave) Finish prover round [0.0012s x1.00] (17.6264s x1.00 from start)
(enter) pow [ ] (17.6264s x1.00 from start)
(leave) pow [0.0000s x1.04] (17.6264s x1.00 from start)
(leave) LDT signal prover round done [0.0012s x1.00] (17.6264s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6264s x1.00 from start)
(leave) evaluating next FRI codeword [0.0010s x1.00] (17.6274s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6274s x1.00 from start)
(enter) Finish prover round [ ] (17.6274s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6274s x1.00 from start)
(leave) Construct Merkle tree [0.0003s x1.00] (17.6277s x1.00 from start)
(leave) Finish prover round [0.0003s x1.00] (17.6278s x1.00 from start)
(enter) pow [ ] (17.6278s x1.00 from start)
(leave) pow [0.0000s x1.02] (17.6278s x1.00 from start)
(leave) LDT signal prover round done [0.0003s x1.00] (17.6278s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6278s x1.00 from start)
(leave) evaluating next FRI codeword [0.0003s x1.00] (17.6280s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6280s x1.00 from start)
(enter) Finish prover round [ ] (17.6280s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6281s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.00] (17.6281s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (17.6282s x1.00 from start)
(enter) pow [ ] (17.6282s x1.00 from start)
(leave) pow [0.0000s x1.03] (17.6282s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (17.6282s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6282s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (17.6283s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6283s x1.00 from start)
(enter) Finish prover round [ ] (17.6283s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6283s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.00] (17.6283s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (17.6283s x1.00 from start)
(enter) pow [ ] (17.6283s x1.00 from start)
(leave) pow [0.0000s x1.02] (17.6283s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (17.6283s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6283s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (17.6284s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6284s x1.00 from start)
(enter) Finish prover round [ ] (17.6284s x1.00 from start)
(enter) Construct Merkle tree [ ] (17.6284s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (17.6284s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (17.6284s x1.00 from start)
(enter) pow [ ] (17.6284s x1.00 from start)
(leave) pow [0.0000s x1.02] (17.6284s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (17.6284s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (17.6284s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (17.6285s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (17.6285s x1.00 from start)
* Vector size: 8
* Coset size: 8
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.00] (17.6285s x1.00 from start)
(enter) LDT signal prover round done [ ] (17.6285s x1.00 from start)
(enter) Finish prover round [ ] (17.6285s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (17.6285s x1.00 from start)
(enter) pow [ ] (17.6285s x1.00 from start)
(leave) pow [0.1241s x1.00] (17.7527s x1.00 from start)
(leave) LDT signal prover round done [0.1242s x1.00] (17.7527s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [1.1546s x1.00] (17.7561s x1.00 from start)
(enter) Obtain transcript [ ] (17.7561s x1.00 from start)
(leave) Obtain transcript [0.1390s x1.00] (17.8951s x1.00 from start)
* Total size of proof oracles (bytes): 192937728
* Total size of Merkle tree (bytes): 78293184
* Total size of prover state (bytes): 271230912
(leave) Aurora SNARK prover [8.5862s x1.00] (17.8951s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (17.9617s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0014s x1.00] (17.9631s x1.00 from start)
* Argument size in bytes (IOP): 35627
* Argument size in bytes (BCS): 76448
* Argument size in bytes (total): 112075
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 137440
* Argument size in bytes (total, no pruning): 173067
total prover messages size: 23
total two to one hashes: 2660
total leaves hashed: 1548
total hashes: 4284
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 19
IOP size: 10488 bytes
BCS size: 16480 bytes
number of two to one hashes: 513
number of leaves hashed: 456
number of zk hashes: 76
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 19
IOP size: 1748 bytes
BCS size: 15264 bytes
number of two to one hashes: 513
number of leaves hashed: 76
oracles in round: sumcheck h,
round 2
MT_depth 17
IOP size: 3496 bytes
BCS size: 13344 bytes
number of two to one hashes: 453
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 15
IOP size: 3496 bytes
BCS size: 10944 bytes
number of two to one hashes: 378
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 13
IOP size: 3496 bytes
BCS size: 8736 bytes
number of two to one hashes: 309
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 11
IOP size: 3496 bytes
BCS size: 5984 bytes
number of two to one hashes: 223
number of leaves hashed: 152
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 9
IOP size: 3404 bytes
BCS size: 3616 bytes
number of two to one hashes: 148
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 7
IOP size: 3220 bytes
BCS size: 1728 bytes
number of two to one hashes: 87
number of leaves hashed: 140
oracles in round: TODO: Fill in this name (batching.tcc),
round 8
MT_depth 5
IOP size: 2024 bytes
BCS size: 288 bytes
number of two to one hashes: 29
number of leaves hashed: 88
oracles in round: TODO: Fill in this name (batching.tcc),
round 9
MT_depth 3
IOP size: 736 bytes
BCS size: 32 bytes
number of two to one hashes: 7
number of leaves hashed: 32
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (17.9673s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 114.0
* RS extra dimensions = 3
* codeword domain dim = 20
* constraint domain dim = 15
* variable domain dim = 15
* query bound = 77
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 165.0
* interactive repetitions = 1
* constraint domain dim = 15
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 160.0
* codeword domain dim = 20
* max tested degree bound = 131072
* max constraint degree bound = 65689
* absolute proximity parameter = 917503
* fractional proximity parameter = 0.874999
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 111
* achieved query soundness error (bits) = 114.0
* codeword domain dim = 20
* effective proximity parameter = 0.874999
* number of interactive repetitions = 1
* number of query repetitions = 38
* localization parameter array = { 1 2 2 2 2 2 2 2 2 }
* number of reductions = 9
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](17.9676s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (17.9704s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0014s x1.00] (17.9718s x1.00 from start)
(leave) Aurora IOP protocol initialization and registration [0.0044s x1.00](17.9720s x1.00 from start)
(enter) Check semantic validity of IOP transcript [ ] (17.9720s x1.00 from start)
(leave) Check semantic validity of IOP transcript [0.0000s x1.06] (17.9720s x1.00 from start)
(enter) Construct R1CS verifier state [ ] (17.9720s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (17.9720s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0007s x1.00] (17.9727s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (17.9727s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0006s x1.00] (17.9732s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (17.9733s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0091s x1.00] (17.9824s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (17.9824s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (17.9824s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (18.0002s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (18.0003s x1.00 from start)
* Vector size: 32768
* Coset size: 32768
(leave) Call to multiplicative_IFFT_wrapper [0.0178s x1.00] (18.0181s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0358s x1.00] (18.0182s x1.00 from start)
(leave) Construct R1CS verifier state [0.0461s x1.00] (18.0182s x1.00 from start)
(enter) Check LDT verifier predicate [ ] (18.0182s x1.00 from start)
* Number of FRI interactions: 1
* Number of FRI query sets per interaction: 38
* Total number of FRI queries over all query sets (incl. repeated queries): 1292
(leave) Check LDT verifier predicate [0.1392s x1.00] (18.1573s x1.00 from start)
* IOP transcript valid: true
* Full protocol decision predicate satisfied: true
(leave) Aurora SNARK verifier [0.1900s x1.00] (18.1573s x1.00 from start)
* Verifier satisfied: true
================================================================================
(enter) Check satisfiability of R1CS example [ ] (19.0576s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0067s x1.00] (19.0643s x1.00 from start)
* R1CS number of constraints: 65536
* R1CS number of variables: 65535
* R1CS number of variables for primary input: 15
* R1CS number of variables for auxiliary input: 65520
* R1CS size of constraint system (bytes): 5136384
* R1CS size of primary input (bytes): 360
* R1CS size of auxiliary input (bytes): 1572480
(enter) Aurora SNARK prover [ ] (19.0644s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 111.0
* RS extra dimensions = 3
* codeword domain dim = 21
* constraint domain dim = 16
* variable domain dim = 16
* query bound = 75
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 164.0
* interactive repetitions = 1
* constraint domain dim = 16
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 159.0
* codeword domain dim = 21
* max tested degree bound = 262144
* max constraint degree bound = 131221
* absolute proximity parameter = 1835007
* fractional proximity parameter = 0.875000
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 110
* achieved query soundness error (bits) = 111.0
* codeword domain dim = 21
* effective proximity parameter = 0.875000
* number of interactive repetitions = 1
* number of query repetitions = 37
* localization parameter array = { 1 2 2 2 2 2 2 2 2 }
* number of reductions = 9
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Submit witness oracles [ ] (19.0703s x1.00 from start)
(enter) Sumcheck: sample masking polynomial components [ ](19.0703s x1.00 from start)
(leave) Sumcheck: sample masking polynomial components [1.6508s x1.00](20.7211s x1.00 from start)
(enter) Sumcheck: compute masking polynomial codeword [ ](20.7212s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (20.7250s x1.00 from start)
* Vector size: 131146
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.8212s x1.00] (21.5462s x1.00 from start)
(leave) Sumcheck: compute masking polynomial codeword [0.8251s x1.00](21.5462s x1.00 from start)
(enter) Compute randomized f_w [ ] (21.5462s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (21.5492s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.03] (21.5493s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (21.5493s x1.00 from start)
* Vector size: 16
* Subgroup size: 65536
(leave) Call to multiplicative_FFT_wrapper [0.0067s x1.00] (21.5560s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (21.5576s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0385s x1.00] (21.5960s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (21.6012s x1.00 from start)
* Vector size: 65595
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7323s x1.00] (22.3335s x1.00 from start)
(leave) Compute randomized f_w [0.7873s x1.00] (22.3335s x1.00 from start)
(enter) Compute A/B/Cz [ ] (22.3336s x1.00 from start)
(leave) Compute A/B/Cz [0.0060s x1.00] (22.3395s x1.00 from start)
(enter) Compute f_{A/B/Cz} over codeword domain [ ] (22.3395s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (22.3397s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0382s x1.00] (22.3779s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (22.3781s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0379s x1.00] (22.4159s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (22.4161s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0379s x1.00] (22.4540s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (22.4550s x1.00 from start)
* Vector size: 65611
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7486s x1.00] (23.2036s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (23.2038s x1.00 from start)
* Vector size: 65611
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7537s x1.00] (23.9574s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (23.9576s x1.00 from start)
* Vector size: 65611
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7546s x1.00] (24.7122s x1.00 from start)
(leave) Compute f_{A/B/Cz} over codeword domain [2.3727s x1.00] (24.7122s x1.00 from start)
(enter) Call IOP oracle submission routines [ ] (24.7122s x1.00 from start)
(leave) Call IOP oracle submission routines [0.0000s x1.03] (24.7122s x1.00 from start)
(leave) Submit witness oracles [5.6419s x1.00] (24.7122s x1.00 from start)
(enter) LDT Reducer: Submit masking polynomial [ ] (24.7122s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (28.0033s x1.00 from start)
* Vector size: 262144
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.8372s x1.00] (28.8405s x1.00 from start)
(leave) LDT Reducer: Submit masking polynomial [4.1283s x1.00] (28.8406s x1.00 from start)
(enter) Finish prover round [ ] (28.8406s x1.00 from start)
(enter) Construct Merkle tree [ ] (28.8406s x1.00 from start)
(enter) BCS: Sample randomness [ ] (28.8406s x1.00 from start)
(leave) BCS: Sample randomness [0.2010s x1.00] (29.0416s x1.00 from start)
(leave) Construct Merkle tree [1.3834s x1.00] (30.2239s x1.00 from start)
(leave) Finish prover round [1.3834s x1.00] (30.2240s x1.00 from start)
(enter) pow [ ] (30.2240s x1.00 from start)
(leave) pow [0.0000s x1.05] (30.2240s x1.00 from start)
(enter) multi_lincheck: Calculate and submit proof [ ] (30.2240s x1.00 from start)
(enter) multi_lincheck compute alpha powers [ ] (30.2240s x1.00 from start)
(leave) multi_lincheck compute alpha powers [0.0019s x1.00] (30.2259s x1.00 from start)
(enter) multi_lincheck compute p_alpha_prime [ ] (30.2259s x1.00 from start)
(leave) multi_lincheck compute p_alpha_prime [0.0017s x1.01] (30.2276s x1.00 from start)
(enter) multi_lincheck compute p_alpha_ABC [ ] (30.2276s x1.00 from start)
(leave) multi_lincheck compute p_alpha_ABC [0.0191s x1.00] (30.2467s x1.00 from start)
(enter) multi_lincheck IFFT p_alphas [ ] (30.2467s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (30.2474s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0386s x1.00] (30.2860s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (30.2868s x1.00 from start)
* Vector size: 65536
* Coset size: 65536
(leave) Call to multiplicative_IFFT_wrapper [0.0379s x1.00] (30.3247s x1.00 from start)
(leave) multi_lincheck IFFT p_alphas [0.0787s x1.00] (30.3253s x1.00 from start)
(enter) fz evaluated contents [ ] (30.3254s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (30.3547s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x0.97] (30.3547s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (30.3547s x1.00 from start)
* Vector size: 16
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.1905s x1.00] (30.5452s x1.00 from start)
(leave) fz evaluated contents [0.3071s x1.00] (30.6324s x1.00 from start)
(enter) multi_lincheck evaluated contents [ ] (30.6377s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (30.6379s x1.00 from start)
* Vector size: 65536
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7216s x1.00] (31.3594s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (31.3596s x1.00 from start)
* Vector size: 65536
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7224s x1.00] (32.0821s x1.00 from start)
(leave) multi_lincheck evaluated contents [1.8075s x1.00] (32.4453s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (32.6142s x1.00 from start)
* Vector size: 262144
* Coset size: 262144
(leave) Call to multiplicative_IFFT_wrapper [0.1810s x1.00] (32.7951s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (32.8045s x1.00 from start)
* Vector size: 65610
* Subgroup size: 2097152
(leave) Call to multiplicative_FFT_wrapper [0.7483s x1.00] (33.5527s x1.00 from start)
(leave) multi_lincheck: Calculate and submit proof [3.3288s x1.00] (33.5528s x1.00 from start)
(enter) Finish prover round [ ] (33.5528s x1.00 from start)
(enter) Construct Merkle tree [ ] (33.5528s x1.00 from start)
(leave) Construct Merkle tree [0.6088s x1.00] (34.1615s x1.00 from start)
(leave) Finish prover round [0.6088s x1.00] (34.1616s x1.00 from start)
(enter) pow [ ] (34.1616s x1.00 from start)
(leave) pow [0.0000s x0.99] (34.1616s x1.00 from start)
(enter) LDT Reducer: Calculate and submit proof [ ] (34.1616s x1.00 from start)
(enter) Sumcheck: g evaluated contents [ ] (34.1616s x1.00 from start)
(leave) Sumcheck: g evaluated contents [0.2038s x1.00] (34.3655s x1.00 from start)
(enter) rowcheck evaluated contents [ ] (34.3681s x1.00 from start)
(leave) rowcheck evaluated contents [0.1451s x1.00] (34.5133s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (35.5693s x1.00 from start)
(leave) evaluating next FRI codeword [0.3427s x1.00] (35.9120s x1.00 from start)
(enter) LDT signal prover round done [ ] (35.9139s x1.00 from start)
(enter) Finish prover round [ ] (35.9140s x1.00 from start)
(enter) Construct Merkle tree [ ] (35.9140s x1.00 from start)
(leave) Construct Merkle tree [0.1630s x1.00] (36.0770s x1.00 from start)
(leave) Finish prover round [0.1630s x1.00] (36.0770s x1.00 from start)
(enter) pow [ ] (36.0770s x1.00 from start)
(leave) pow [0.0000s x1.00] (36.0770s x1.00 from start)
(leave) LDT signal prover round done [0.1631s x1.00] (36.0770s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.0770s x1.00 from start)
(leave) evaluating next FRI codeword [0.1487s x1.00] (36.2258s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.2262s x1.00 from start)
(enter) Finish prover round [ ] (36.2262s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.2262s x1.00 from start)
(leave) Construct Merkle tree [0.0369s x1.00] (36.2631s x1.00 from start)
(leave) Finish prover round [0.0369s x1.00] (36.2631s x1.00 from start)
(enter) pow [ ] (36.2631s x1.00 from start)
(leave) pow [0.0000s x1.06] (36.2632s x1.00 from start)
(leave) LDT signal prover round done [0.0369s x1.00] (36.2632s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.2632s x1.00 from start)
(leave) evaluating next FRI codeword [0.0335s x1.00] (36.2967s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.2968s x1.00 from start)
(enter) Finish prover round [ ] (36.2968s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.2968s x1.00 from start)
(leave) Construct Merkle tree [0.0092s x1.00] (36.3060s x1.00 from start)
(leave) Finish prover round [0.0092s x1.00] (36.3060s x1.00 from start)
(enter) pow [ ] (36.3060s x1.00 from start)
(leave) pow [0.0000s x1.03] (36.3060s x1.00 from start)
(leave) LDT signal prover round done [0.0093s x1.00] (36.3060s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3060s x1.00 from start)
(leave) evaluating next FRI codeword [0.0077s x1.00] (36.3137s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3137s x1.00 from start)
(enter) Finish prover round [ ] (36.3137s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.3137s x1.00 from start)
(leave) Construct Merkle tree [0.0023s x1.00] (36.3161s x1.00 from start)
(leave) Finish prover round [0.0023s x1.00] (36.3161s x1.00 from start)
(enter) pow [ ] (36.3161s x1.00 from start)
(leave) pow [0.0000s x1.04] (36.3161s x1.00 from start)
(leave) LDT signal prover round done [0.0024s x1.00] (36.3161s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3161s x1.00 from start)
(leave) evaluating next FRI codeword [0.0019s x1.00] (36.3180s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3180s x1.00 from start)
(enter) Finish prover round [ ] (36.3180s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.3181s x1.00 from start)
(leave) Construct Merkle tree [0.0006s x1.00] (36.3187s x1.00 from start)
(leave) Finish prover round [0.0006s x1.00] (36.3187s x1.00 from start)
(enter) pow [ ] (36.3187s x1.00 from start)
(leave) pow [0.0000s x1.05] (36.3187s x1.00 from start)
(leave) LDT signal prover round done [0.0006s x1.00] (36.3187s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3187s x1.00 from start)
(leave) evaluating next FRI codeword [0.0005s x1.00] (36.3192s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3192s x1.00 from start)
(enter) Finish prover round [ ] (36.3192s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.3192s x1.00 from start)
(leave) Construct Merkle tree [0.0002s x1.00] (36.3193s x1.00 from start)
(leave) Finish prover round [0.0002s x1.00] (36.3194s x1.00 from start)
(enter) pow [ ] (36.3194s x1.00 from start)
(leave) pow [0.0000s x1.03] (36.3194s x1.00 from start)
(leave) LDT signal prover round done [0.0002s x1.00] (36.3194s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3194s x1.00 from start)
(leave) evaluating next FRI codeword [0.0001s x1.00] (36.3195s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3195s x1.00 from start)
(enter) Finish prover round [ ] (36.3195s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.3195s x1.00 from start)
(leave) Construct Merkle tree [0.0001s x1.01] (36.3196s x1.00 from start)
(leave) Finish prover round [0.0001s x1.00] (36.3196s x1.00 from start)
(enter) pow [ ] (36.3196s x1.00 from start)
(leave) pow [0.0000s x1.02] (36.3196s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (36.3196s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3196s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.00] (36.3197s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3197s x1.00 from start)
(enter) Finish prover round [ ] (36.3197s x1.00 from start)
(enter) Construct Merkle tree [ ] (36.3197s x1.00 from start)
(leave) Construct Merkle tree [0.0000s x1.01] (36.3197s x1.00 from start)
(leave) Finish prover round [0.0000s x1.00] (36.3197s x1.00 from start)
(enter) pow [ ] (36.3197s x1.00 from start)
(leave) pow [0.0000s x1.02] (36.3198s x1.00 from start)
(leave) LDT signal prover round done [0.0001s x1.00] (36.3198s x1.00 from start)
(enter) evaluating next FRI codeword [ ] (36.3198s x1.00 from start)
(leave) evaluating next FRI codeword [0.0000s x1.01] (36.3198s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (36.3198s x1.00 from start)
* Vector size: 16
* Coset size: 16
(leave) Call to multiplicative_IFFT_wrapper [0.0000s x1.02] (36.3198s x1.00 from start)
(enter) LDT signal prover round done [ ] (36.3198s x1.00 from start)
(enter) Finish prover round [ ] (36.3198s x1.00 from start)
(leave) Finish prover round [0.0000s x1.01] (36.3199s x1.00 from start)
(enter) pow [ ] (36.3199s x1.00 from start)
(leave) pow [0.3441s x1.00] (36.6639s x1.00 from start)
(leave) LDT signal prover round done [0.3441s x1.00] (36.6639s x1.00 from start)
(leave) LDT Reducer: Calculate and submit proof [2.5049s x1.00] (36.6666s x1.00 from start)
(enter) Obtain transcript [ ] (36.6666s x1.00 from start)
(leave) Obtain transcript [0.2678s x1.00] (36.9344s x1.00 from start)
* Total size of proof oracles (bytes): 385875456
* Total size of Merkle tree (bytes): 156586688
* Total size of prover state (bytes): 542462144
(leave) Aurora SNARK prover [17.8700s x1.00] (36.9344s x1.00 from start)
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) verifier_seal_interaction_registrations [ ] (37.0761s x1.00 from start)
(leave) verifier_seal_interaction_registrations [0.0015s x1.00] (37.0776s x1.00 from start)
* Argument size in bytes (IOP): 36156
* Argument size in bytes (BCS): 85024
* Argument size in bytes (total): 121180
If we were to remove pruning of authentication paths in BCS,
the argument would have the following sizes:
* Argument size in bytes (BCS, no pruning): 146656
* Argument size in bytes (total, no pruning): 182812
total prover messages size: 46
total two to one hashes: 2936
total leaves hashed: 1570
total hashes: 4580
Transcript info by round
Per round IOP sizes don't include prover messages
round 0
MT_depth 20
IOP size: 10212 bytes
BCS size: 17600 bytes
number of two to one hashes: 548
number of leaves hashed: 444
number of zk hashes: 74
oracles in round: fw, fAz, fBz, fCz, sumcheck_mask, TODO: Fill in this name (batching.tcc),
round 1
MT_depth 20
IOP size: 1702 bytes
BCS size: 16416 bytes
number of two to one hashes: 548
number of leaves hashed: 74
oracles in round: sumcheck h,
round 2
MT_depth 18
IOP size: 3404 bytes
BCS size: 14048 bytes
number of two to one hashes: 474
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 3
MT_depth 16
IOP size: 3404 bytes
BCS size: 11808 bytes
number of two to one hashes: 404
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 4
MT_depth 14
IOP size: 3404 bytes
BCS size: 9632 bytes
number of two to one hashes: 336
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 5
MT_depth 12
IOP size: 3404 bytes
BCS size: 7328 bytes
number of two to one hashes: 264
number of leaves hashed: 148
oracles in round: TODO: Fill in this name (batching.tcc),
round 6
MT_depth 10
IOP size: 3312 bytes
BCS size: 4800 bytes
number of two to one hashes: 184
number of leaves hashed: 144
oracles in round: TODO: Fill in this name (batching.tcc),
round 7
MT_depth 8
IOP size: 3128 bytes
BCS size: 2560 bytes
number of two to one hashes: 112
number of leaves hashed: 136
oracles in round: TODO: Fill in this name (batching.tcc),
round 8
MT_depth 6
IOP size: 2760 bytes
BCS size: 736 bytes
number of two to one hashes: 51
number of leaves hashed: 120
oracles in round: TODO: Fill in this name (batching.tcc),
round 9
MT_depth 4
IOP size: 1380 bytes
BCS size: 64 bytes
number of two to one hashes: 15
number of leaves hashed: 60
oracles in round: TODO: Fill in this name (batching.tcc),
(enter) Aurora SNARK verifier [ ] (37.0852s x1.00 from start)
Aurora SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Aurora IOP parameters
* target security parameter = 128
* achieved security parameter = 111.0
* RS extra dimensions = 3
* codeword domain dim = 21
* constraint domain dim = 16
* variable domain dim = 16
* query bound = 75
* make zk = true
* domain type = multiplicative coset
Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 164.0
* interactive repetitions = 1
* constraint domain dim = 16
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 159.0
* codeword domain dim = 21
* max tested degree bound = 262144
* max constraint degree bound = 131221
* absolute proximity parameter = 1835007
* fractional proximity parameter = 0.875000
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 110
* achieved query soundness error (bits) = 111.0
* codeword domain dim = 21
* effective proximity parameter = 0.875000
* number of interactive repetitions = 1
* number of query repetitions = 37
* localization parameter array = { 1 2 2 2 2 2 2 2 2 }
* number of reductions = 9
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Aurora IOP protocol initialization and registration [ ](37.0854s x1.00 from start)
(enter) verifier_seal_interaction_registrations [ ] (37.0909s x1.00 from
root@ip-10-0-22-17:/data/libiop/build/libiop#
root@ip-10-0-22-17:/data/libiop/build/libiop# ./instrument_fractal_snark --make_zk 1 --is_multiplicative 1 --field_size=181 --optimize_localization=1
Reset time counters for profiling
Selected parameters:
- log_n_min = 8
- log_n_max = 20
- security_level = 128
- LDT_reducer_soundness_type = heuristic
- FRI_soundness_type = heuristic
- is_multiplicative = true
- field_size = 181
- make_zk = true
- hash_enum = blake2b
================================================================================
(enter) Check satisfiability of R1CS example [ ] (0.0038s x1.00 from start)
(leave) Check satisfiability of R1CS example [0.0000s x0.99] (0.0039s x1.00 from start)
* R1CS number of constraints: 256
* R1CS number of variables: 255
* R1CS number of variables for primary input: 0
* R1CS number of variables for auxiliary input: 255
* R1CS size of constraint system (bytes): 19296
* R1CS size of primary input (bytes): 0
* R1CS size of auxiliary input (bytes): 6120
(enter) Fractal SNARK indexer [ ] (0.0039s x1.00 from start)
Fractal SNARK parameters
* security parameter (bits) = 128
* RS extra dimensions = 3
* LDT reducer soundness type = heuristic
* FRI soundness type = heuristic
* zero-knowledge = true
* domain type = multiplicative coset
Fractal hIOP parameters
* target security parameter = 128
* achieved security parameter = 119.9
* RS extra dimensions = 3
* matrix domain dim = 8
* index domain dim = 8
* codeword domain dim = 13
* query bound = 80
* make zk = true
* domain type = multiplicative coset
Holographic Multi lincheck parameters
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 171.0
* interactive repetitions = 1
* constraint domain dim = 8
* make zk = true
* domain type = multiplicative coset
LDT instance reducer parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 167.0
* codeword domain dim = 13
* max tested degree bound = 1024
* max constraint degree bound = 1024
* absolute proximity parameter = 7167
* fractional proximity parameter = 0.874878
* num output LDT instances = 1
FRI parameters
* soundness type = heuristic
* target interactive soundness error (bits) = 131
* achieved interactive soundness error (bits) = 180.0
* target query soundness error (bits) = 118
* achieved query soundness error (bits) = 119.9
* codeword domain dim = 13
* effective proximity parameter = 0.874878
* number of interactive repetitions = 1
* number of query repetitions = 40
* localization parameter array = { 1 2 2 2 2 }
* number of reductions = 5
BCS parameters
* digest_len (bytes) = 32
* digest_len (bits) = 256
* hash_type = blake2b
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0048s x1.00 from start)
* Vector size: 256
* Coset size: 256
(leave) Call to multiplicative_IFFT_wrapper [0.0001s x1.00] (0.0050s x1.00 from start)
(enter) Call to multiplicative_FFT_wrapper [ ] (0.0050s x1.00 from start)
* Vector size: 256
* Subgroup size: 8192
(leave) Call to multiplicative_FFT_wrapper [0.0017s x1.00] (0.0066s x1.00 from start)
(enter) Call to multiplicative_IFFT_wrapper [ ] (0.0067s x1.00 from start)
* Vector size: 256
