webservice之axis2工具wsdl2java使用

1. 解压axis2-1.7.8-bin.zip，看到bin目录
2. 增加maven的依赖：需要删除servlet-api包，否则，如果项目引用了3.0以上的servlet-api会不起作用。

        <dependency>
            <groupId>org.apache.axis2</groupId>
            <artifactId>axis2-kernel</artifactId>
            <exclusions>
                <exclusion>
                    <groupId>javax.servlet</groupId>
                    <artifactId>servlet-api</artifactId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.apache.axis2</groupId>
            <artifactId>axis2-adb</artifactId>
            <version>${axis2.version}</version>
        </dependency>

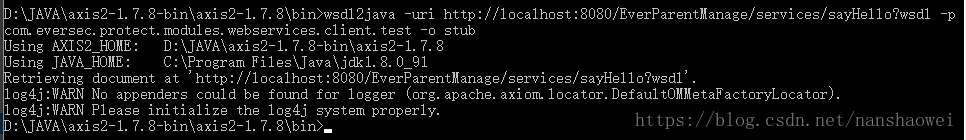

3 进入bin目录，执行命令

wsdl2java -uri http://localhost:8080/EverParentManage/services/sayHello?wsdl -p com.eversec.protect.modules.webservices.client.test -o stub


参数解释：-p 是生成代码的包路径，-o 是代码的生成目录。

4. 在当前目录生成stub文件夹，打开，拷贝两个文件到项目中，修改报错（主要是包名）
5. 新建一个SayHelloClient类，用来调用stub

package com.nansw.protect.modules.webservices.client.test;

public class SayHelloClient {

    public static void sayHello() {
        try {
            String url = "http://localhost:8080/ProManage/services/sayHello";
            SayHelloStub stub = new SayHelloStub(url);
            SayHelloStub.SayHello sayHello = new SayHelloStub.SayHello();
            sayHello.setName("张三");
            SayHelloStub.SayHelloResponse response = stub.sayHello(sayHello);
            String result = response.get_return();
            System.out.println(result);
        } catch (Exception axisFault) {
            axisFault.printStackTrace();
        }
    }

    public static void main(String[] args) {
        sayHello();
    }
}

6 修改SayHelloStub类，增加打印日志，请求报文和返回报文

//省略
            //adding SOAP soap_headers
            _serviceClient.addHeadersToEnvelope(env);
            // set the message context with that soap envelope
            _messageContext.setEnvelope(env);

            // add the message contxt to the operation client
            _operationClient.addMessageContext(_messageContext);
            System.out.println("请求报文：" + env);
            //execute the operation client
            _operationClient.execute(true);

            org.apache.axis2.context.MessageContext _returnMessageContext = _operationClient.getMessageContext(org.apache.axis2.wsdl.WSDLConstants.MESSAGE_LABEL_IN_VALUE);
            org.apache.axiom.soap.SOAPEnvelope _returnEnv = _returnMessageContext.getEnvelope();
            System.out.println("返回报文：" + _returnEnv);
            Object object = fromOM(_returnEnv.getBody()
                            .getFirstElement(),
                    SayHelloResponse.class);

            return (SayHelloResponse) object;
//省略

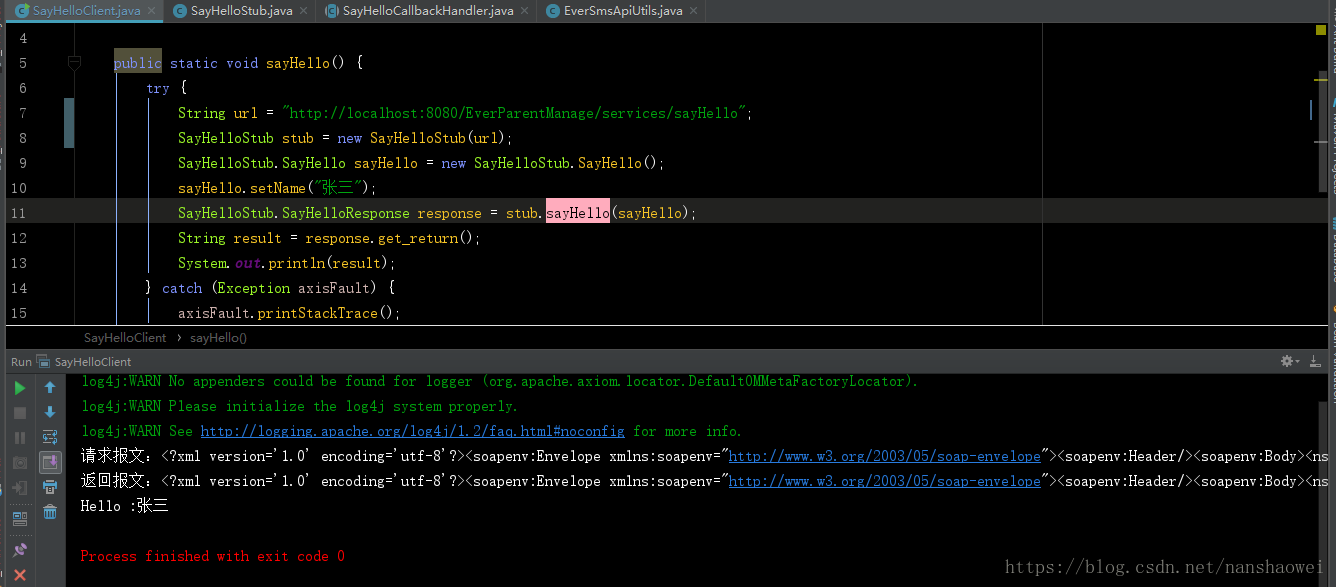

7.执行代码：
