全能扫描王app里面有一个对图像进行矫正的功能,实际上是通过四点法的仿射变换来进行操作的。选取文档的四个角点,然后计算仿射变换矩阵来对图像进行矫正。下面通过一段python程序来进行简单实现,功能为:通过顺时针点击文档的左上,右上,右下,左下四个角点来对其进行图像矫正。代码如下:
# coding=utf-8
# 导入相应的python包
import numpy as np
import cv2
def order_points(pts):
# 参考ref[1]
# 初始化坐标点
rect = np.zeros((4, 2), dtype = "float32")
# 获取左上角和右下角坐标点
s = pts.sum(axis = 1)
rect[0] = pts[np.argmin(s)]
rect[2] = pts[np.argmax(s)]
# 分别计算左上角和右下角的离散差值
diff = np.diff(pts, axis = 1)
rect[1] = pts[np.argmin(diff)]
rect[3] = pts[np.argmax(diff)]
return rect
def four_point_transform(image, pts):
#参考ref[1]
# 获取坐标点,并将它们分离开来
rect = order_points(pts)
(tl, tr, br, bl) = rect
# 计算新图片的宽度值,选取水平差值的最大值
widthA = np.sqrt(((br[0] - bl[0]) ** 2) + ((br[1] - bl[1]) ** 2))
widthB = np.sqrt(((tr[0] - tl[0]) ** 2) + ((tr[1] - tl[1]) ** 2))
maxWidth = max(int(widthA), int(widthB))
# 计算新图片的高度值,选取垂直差值的最大值
heightA = np.sqrt(((tr[0] - br[0]) ** 2) + ((tr[1] - br[1]) ** 2))
heightB = np.sqrt(((tl[0] - bl[0]) ** 2) + ((tl[1] - bl[1]) ** 2))
maxHeight = max(int(heightA), int(heightB))
# 构建新图片的4个坐标点
dst = np.array([
[0, 0],
[maxWidth - 1, 0],
[maxWidth - 1, maxHeight - 1],
[0, maxHeight - 1]], dtype = "float32")
# 获取仿射变换矩阵并应用它
M = cv2.getPerspectiveTransform(rect, dst)
# 进行仿射变换
warped = cv2.warpPerspective(image, M, (maxWidth, maxHeight))
# 返回变换后的结果
return warped
def on_mouse(event, x, y, flags, param):
global timg, points
img2 = timg.copy()
point0 = (0, 0)
if event == cv2.EVENT_LBUTTONDOWN: #左键点击
point1 = (x,y)
points.append([x,y])
print(x,y)
cv2.circle(img2, point1, 4, (0,255,0), 4)
cv2.imshow('origin', img2)
return point0
if __name__ == '__main__':
global points, timg
xscale, yscale = 0.5, 0.5 # 通过放大图像来使得点击位置更加精确
points = []
oimg = cv2.imread('test.png')
oshape = oimg.shape
timg = cv2.resize(oimg, (int(oshape[1]/xscale), int(oshape[0]/yscale))) # 放大图像
print(timg.shape)
cv2.imshow('origin', timg)
cv2.setMouseCallback('origin', on_mouse)
cv2.waitKey(0) # 点完4个角点之后随便按一个键盘按键结束操作
cv2.destroyAllWindows()
points = np.array(points, dtype=np.float32)
points[:,0] *= oshape[1] / int(oshape[1]/xscale) # 还原像素位置的大小
points[:,1] *= oshape[0] / int(oshape[0]/yscale)
warped = four_point_transform(oimg, points)
# cv2.imwrite('warped.png', warped ) # 保存图像
cv2.imshow('origin', warped)
cv2.waitKey(0)
cv2.destroyAllWindows()
实验效果如下:

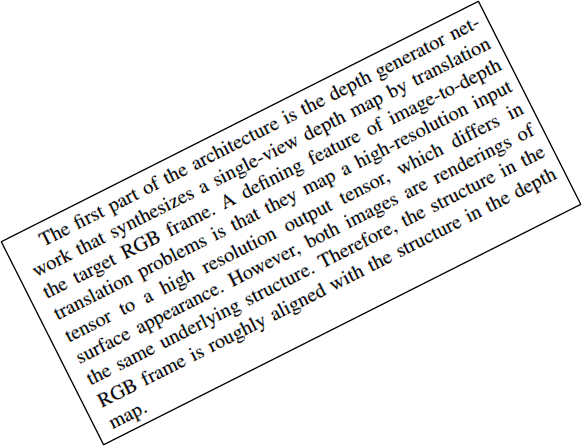

原始图片:

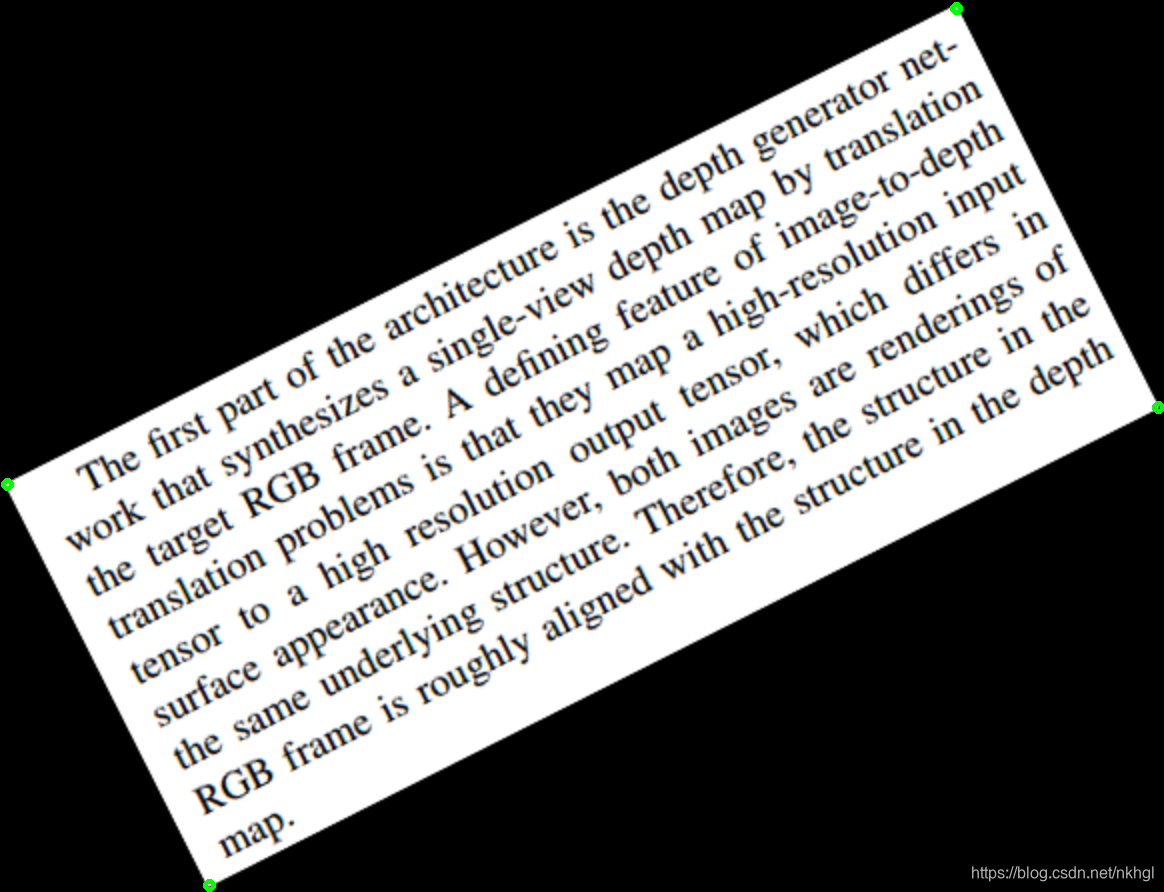

点击四个角点:

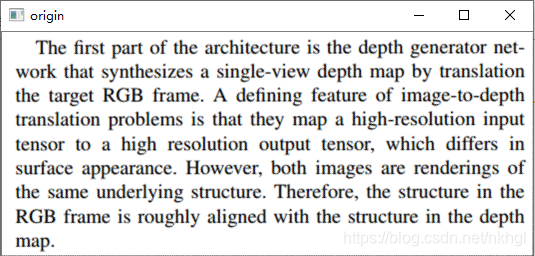

随便按一个键盘按键结束操作,随后显示矫正后的图像:
Done!
