从源码角度浅析 Spring @Transactional 的代理过程

本文基于 Spring Boot 项目测试，依赖的 Spring 源码版本为5.2.1，主要测试代码如下：

@EnableTransactionManagement
//@EnableAspectJAutoProxy(exposeProxy = true)
@SpringBootApplication
public class DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(DemoApplication.class, args);
    }

}

@Service
@Slf4j
@Transactional(propagation = Propagation.REQUIRED, rollbackFor = Exception.class)
public class StudentServiceImpl implements StudentService {
    @Autowired
    private StudentDao studentDao;

    @Override
    public void insert() {
        Student student = new Student();
        student.setName("test");
        student.setAge(23);
        student.setNo("1002");
        studentDao.insert(student);
    }
}

在之前讲Spring IOC相关的文章了讲到过 org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#doCreateBean 中调用了 org.springframework.beans.factory.support.AbstractAutowireCapableBeanFactory#populateBean 方法，在这方法后面还调用了一个方法，主要就是用来完成AOP的，主要代码如下：

	// Initialize the bean instance.
	Object exposedObject = bean;
	try {
		// 属性填充
		populateBean(beanName, mbd, instanceWrapper);
		// 执行后置处理器，aop就是在这里完成的处理
		exposedObject = initializeBean(beanName, exposedObject, mbd);
	}
	catch (Throwable ex) {
		if (ex instanceof BeanCreationException && beanName.equals(((BeanCreationException) ex).getBeanName())) {
			throw (BeanCreationException) ex;
		}
		else {
			throw new BeanCreationException(
					mbd.getResourceDescription(), beanName, "Initialization of bean failed", ex);
		}
	}

在 initializeBean 方法中会调用Bean的后置处理器（ applyBeanPostProcessorsAfterInitialization() ）来完成AOP代理，主要代码如下：

@Override
public Object applyBeanPostProcessorsAfterInitialization(Object existingBean, String beanName)
		throws BeansException {

	Object result = existingBean;
	for (BeanPostProcessor processor : getBeanPostProcessors()) {
		Object current = processor.postProcessAfterInitialization(result, beanName);
		if (current == null) {
			return result;
		}
		result = current;
	}
	return result;
}

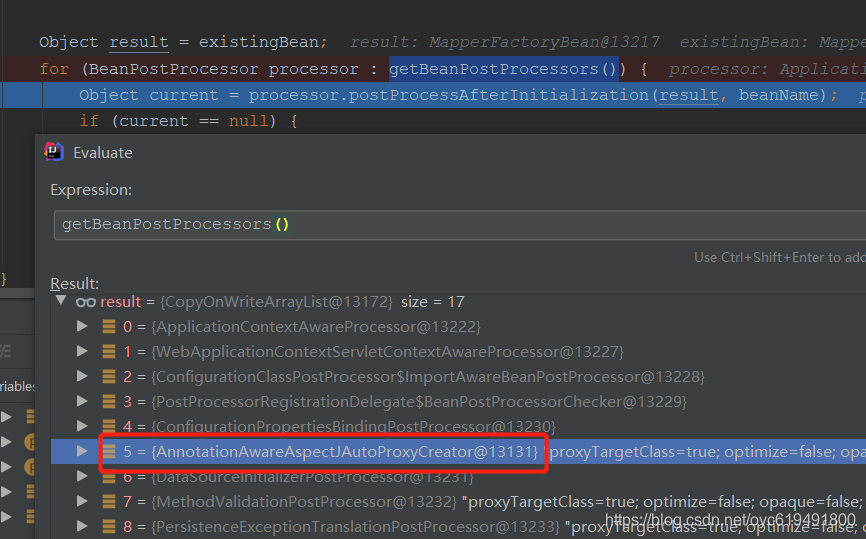

当调用到此方法时，可以看到 getBeanPostProcessors() 中有一个 AnnotationAwareAspectJAutoProxyCreator，如下：

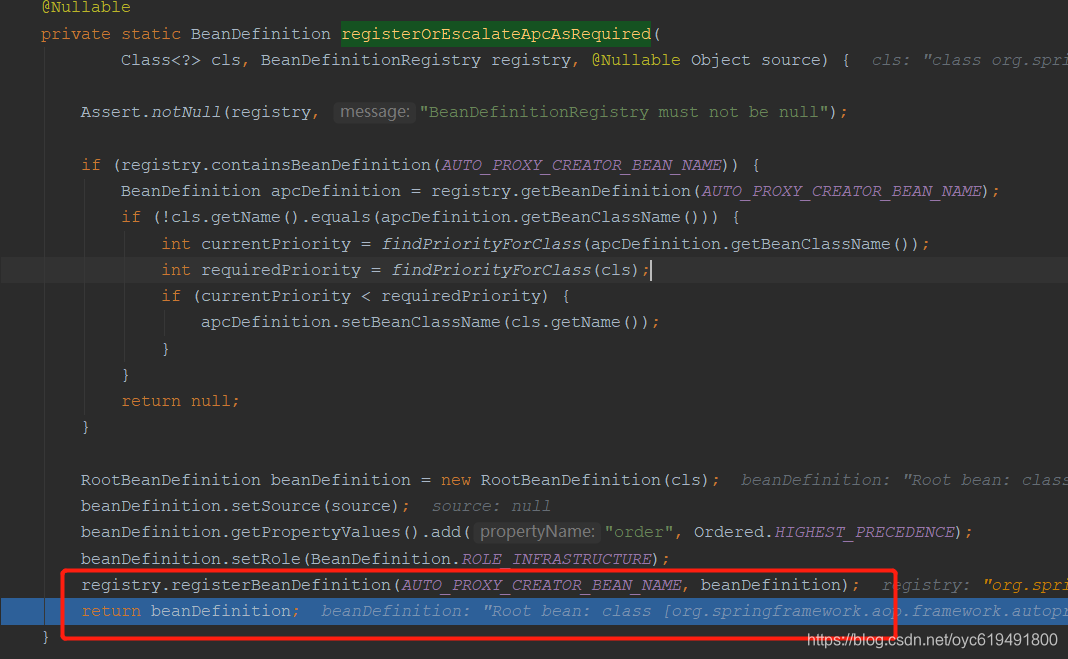

之所以能获取到 AnnotationAwareAspectJAutoProxyCreator 是因为加了@EnableTransactionManagement注解，它引入了 TransactionManagementConfigurationSelector，而这个Selector中有段代码是这样的（会被调用到）：

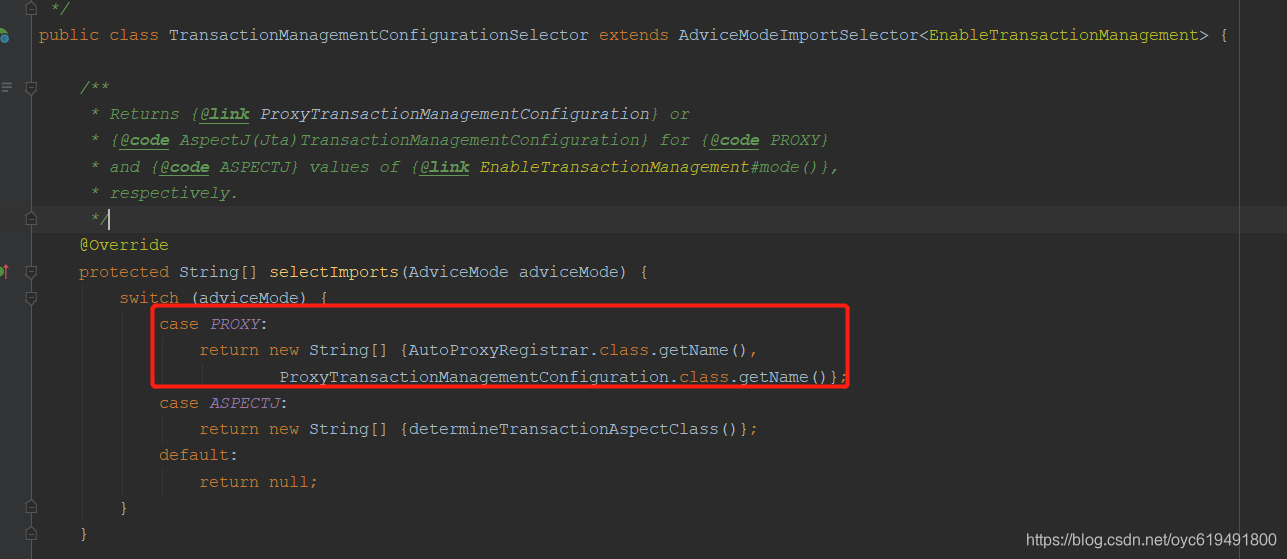

上图中红色区域返回了 AutoProxyRegistrar.class 和 ProxyTransactionManagementConfiguration.class（下文会用到），在spring初始化过程中会调用到 org.springframework.context.annotation.AutoProxyRegistrar#registerBeanDefinitions ，从而调用到 org.springframework.aop.config.AopConfigUtils#registerOrEscalateApcAsRequired，有一段这样的代码：

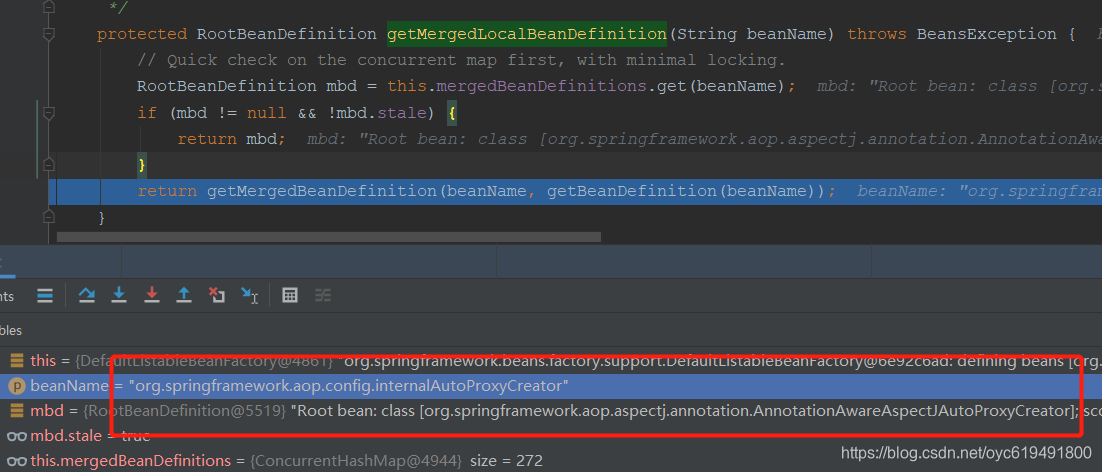

后续又会调用到 org.springframework.beans.factory.support.AbstractBeanFactory#getMergedLocalBeanDefinition ，在这个方法中获取到了 AnnotationAwareAspectJAutoProxyCreator 的 BeanDefinition，后续会添加到 BeanPostProcessors 中去，如下：

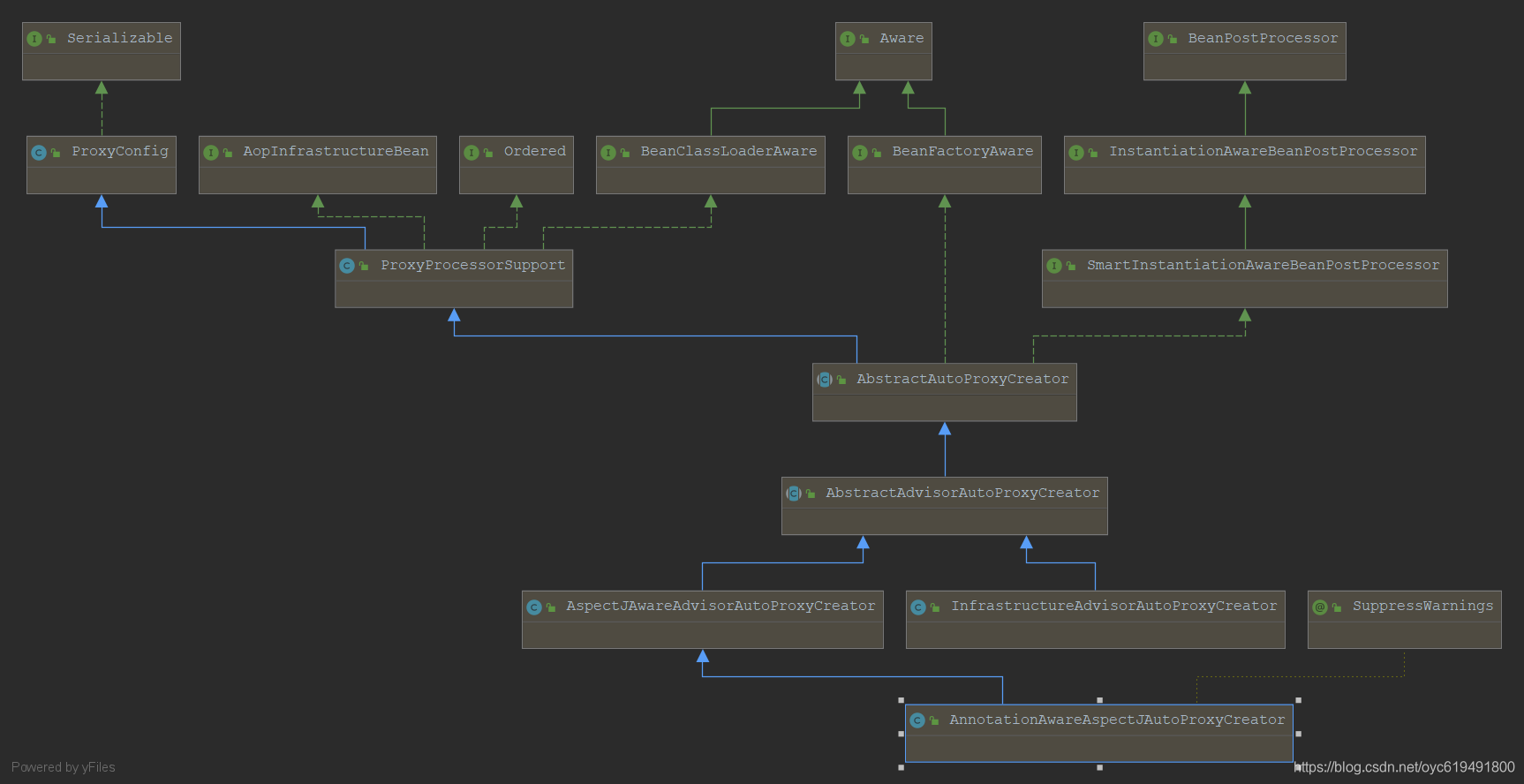

AnnotationAwareAspectJAutoProxyCreator 实现或继承了N多类，如下：

从这幅图说明他的功能很强大，这里不扩展讲。这个后置处理器会调用 postProcessAfterInitialization 方法，然后依次调用：

org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#postProcessAfterInitialization
org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#getAdvicesAndAdvisorsForBean
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findEligibleAdvisors
org.springframework.aop.framework.autoproxy.AbstractAdvisorAutoProxyCreator#findAdvisorsThatCanApply
org.springframework.aop.support.AopUtils#findAdvisorsThatCanApply
org.springframework.aop.support.AopUtils#canApply(org.springframework.aop.Pointcut, java.lang.Class<?>, boolean)
org.springframework.transaction.interceptor.TransactionAttributeSourcePointcut#matches
org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#getTransactionAttribute
org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#computeTransactionAttribute

下面我们重点看一下 org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#computeTransactionAttribute 方法，

	@Nullable
	protected TransactionAttribute computeTransactionAttribute(Method method, @Nullable Class<?> targetClass) {
		// 这里判断了只允许public修饰的方法，这就是为什么 @Transactional默认只对可见性为public的方法起作用
		// Don't allow no-public methods as required.
		if (allowPublicMethodsOnly() && !Modifier.isPublic(method.getModifiers())) {
			return null;
		}

		// The method may be on an interface, but we need attributes from the target class.
		// If the target class is null, the method will be unchanged.
		Method specificMethod = AopUtils.getMostSpecificMethod(method, targetClass);

		// 1.这里先从方法上面找@Transactional，所以方法上面加了注解的优先级会高于类上面加了注解的，因为找到了就返回
		// First try is the method in the target class.
		TransactionAttribute txAttr = findTransactionAttribute(specificMethod);
		if (txAttr != null) {
			return txAttr;
		}

		// 2.这里是从类上面找@Transactional，如果类（StudentServiceImpl）上找不到，会从接口（StudentService）上找，找到就返回
		// Second try is the transaction attribute on the target class.
		txAttr = findTransactionAttribute(specificMethod.getDeclaringClass());
		if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
			return txAttr;
		}

		if (specificMethod != method) {
			// Fallback is to look at the original method.
			txAttr = findTransactionAttribute(method);
			if (txAttr != null) {
				return txAttr;
			}
			// Last fallback is the class of the original method.
			txAttr = findTransactionAttribute(method.getDeclaringClass());
			if (txAttr != null && ClassUtils.isUserLevelMethod(method)) {
				return txAttr;
			}
		}

		return null;
	}

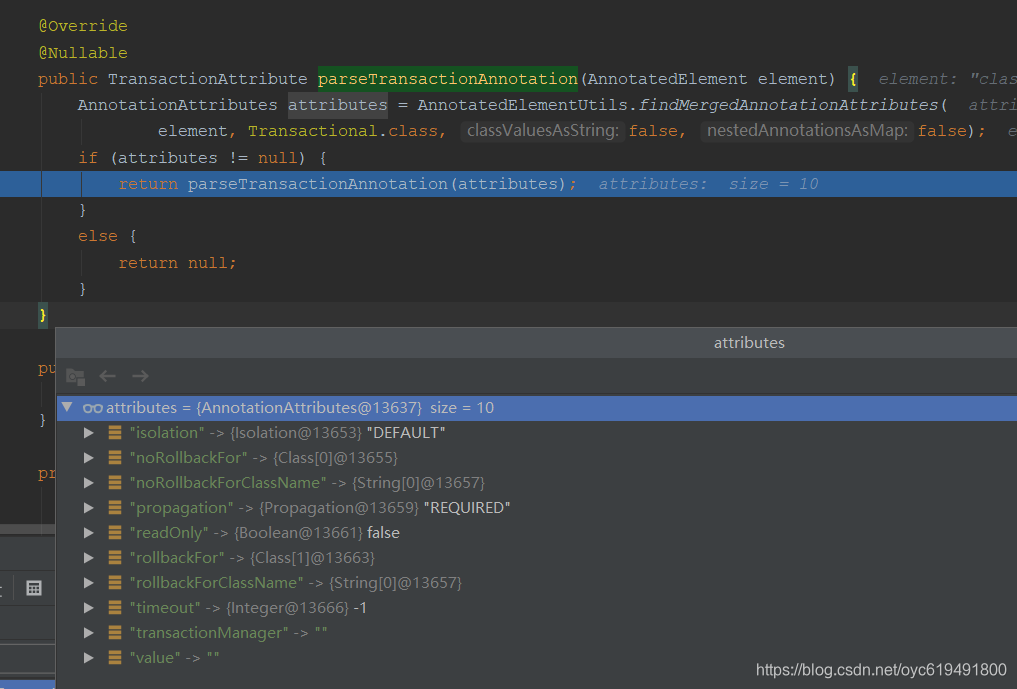

示例是将注解加载了类上，所以会走第2个逻辑，断点一直跟进去到：org.springframework.transaction.annotation.SpringTransactionAnnotationParser#parseTransactionAnnotation(java.lang.reflect.AnnotatedElement)，如下：

然后会调用 parseTransactionAnnotation 方法来处理，如下：

	protected TransactionAttribute parseTransactionAnnotation(AnnotationAttributes attributes) {
		RuleBasedTransactionAttribute rbta = new RuleBasedTransactionAttribute();

		Propagation propagation = attributes.getEnum("propagation");
		rbta.setPropagationBehavior(propagation.value());
		Isolation isolation = attributes.getEnum("isolation");
		rbta.setIsolationLevel(isolation.value());
		rbta.setTimeout(attributes.getNumber("timeout").intValue());
		rbta.setReadOnly(attributes.getBoolean("readOnly"));
		rbta.setQualifier(attributes.getString("value"));

		List<RollbackRuleAttribute> rollbackRules = new ArrayList<>();
		for (Class<?> rbRule : attributes.getClassArray("rollbackFor")) {
			rollbackRules.add(new RollbackRuleAttribute(rbRule));
		}
		for (String rbRule : attributes.getStringArray("rollbackForClassName")) {
			rollbackRules.add(new RollbackRuleAttribute(rbRule));
		}
		for (Class<?> rbRule : attributes.getClassArray("noRollbackFor")) {
			rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
		}
		for (String rbRule : attributes.getStringArray("noRollbackForClassName")) {
			rollbackRules.add(new NoRollbackRuleAttribute(rbRule));
		}
		rbta.setRollbackRules(rollbackRules);

		return rbta;
	}

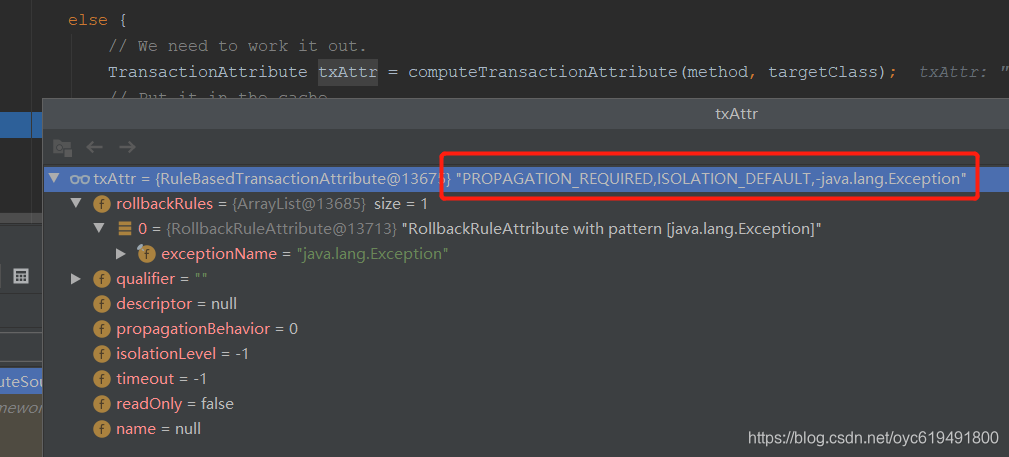

然后回到 org.springframework.transaction.interceptor.AbstractFallbackTransactionAttributeSource#getTransactionAttribute 中，可以看到返回的 TransactionAttribute 和我们设置的（或默认的）一样，如下：

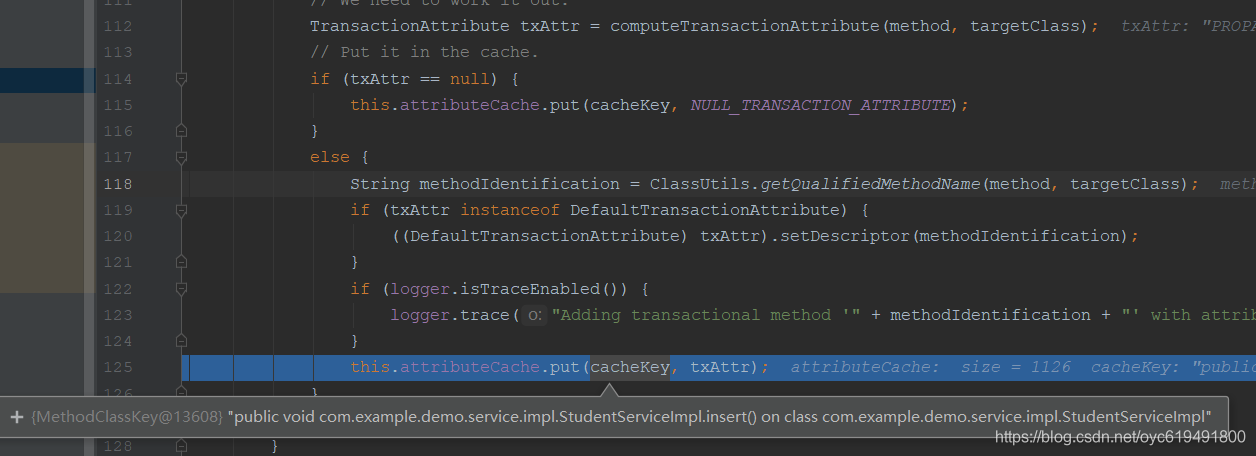

然后将其放入缓存中（下次就可以直接从缓存中取）：

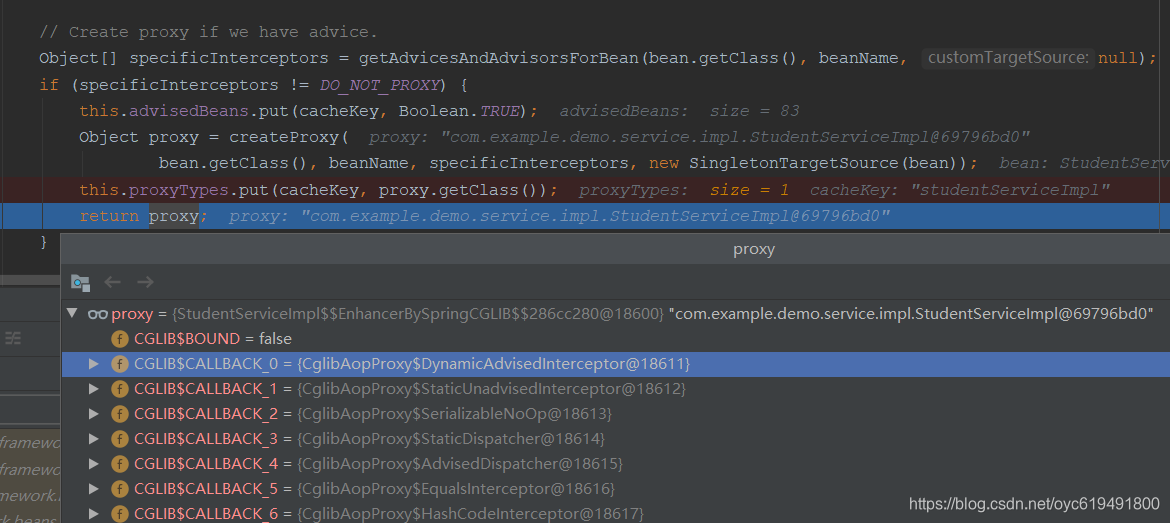

继续执行直至回到 org.springframework.aop.framework.autoproxy.AbstractAutoProxyCreator#wrapIfNecessary 中，创建并返回代理对象：

Object proxy = createProxy(
					bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));

到这里，基本上就完成了 @Transactional 的代理过程。

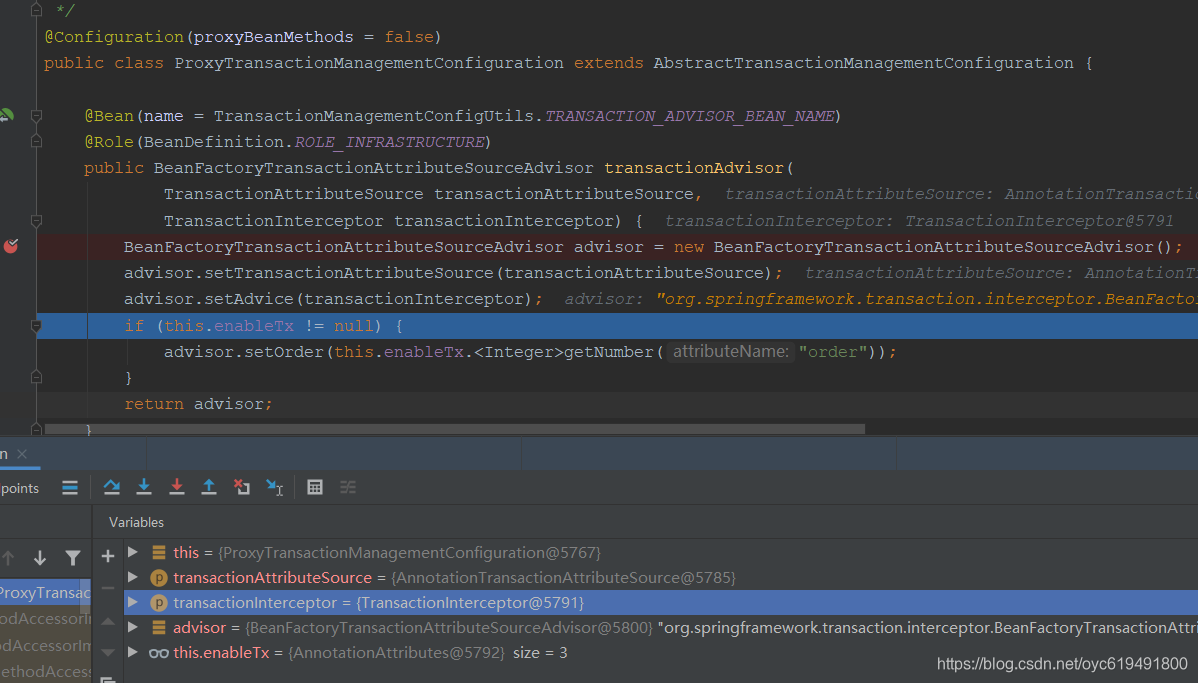

上文提到过 ProxyTransactionManagementConfiguration.class ，在spring 初始化时会调用到这样一段代码：

图中重点是 org.springframework.transaction.interceptor.TransactionInterceptor，在调用接口进行插入操作时，会被这个拦截器所拦截，然后会调用到 org.springframework.transaction.interceptor.TransactionAspectSupport#invokeWithinTransaction 方法，代码如下：

@Nullable
	protected Object invokeWithinTransaction(Method method, @Nullable Class<?> targetClass,
			final InvocationCallback invocation) throws Throwable {

		// If the transaction attribute is null, the method is non-transactional.
		TransactionAttributeSource tas = getTransactionAttributeSource();
		final TransactionAttribute txAttr = (tas != null ? tas.getTransactionAttribute(method, targetClass) : null);
		final TransactionManager tm = determineTransactionManager(txAttr);

		if (this.reactiveAdapterRegistry != null && tm instanceof ReactiveTransactionManager) {
			ReactiveTransactionSupport txSupport = this.transactionSupportCache.computeIfAbsent(method, key -> {
				if (KotlinDetector.isKotlinType(method.getDeclaringClass()) && KotlinDelegate.isSuspend(method)) {
					throw new TransactionUsageException(
							"Unsupported annotated transaction on suspending function detected: " + method +
							". Use TransactionalOperator.transactional extensions instead.");
				}
				ReactiveAdapter adapter = this.reactiveAdapterRegistry.getAdapter(method.getReturnType());
				if (adapter == null) {
					throw new IllegalStateException("Cannot apply reactive transaction to non-reactive return type: " +
							method.getReturnType());
				}
				return new ReactiveTransactionSupport(adapter);
			});
			return txSupport.invokeWithinTransaction(
					method, targetClass, invocation, txAttr, (ReactiveTransactionManager) tm);
		}

		PlatformTransactionManager ptm = asPlatformTransactionManager(tm);
		final String joinpointIdentification = methodIdentification(method, targetClass, txAttr);

        // 声明式事务处理
		if (txAttr == null || !(ptm instanceof CallbackPreferringPlatformTransactionManager)) {
			// Standard transaction demarcation with getTransaction and commit/rollback calls.
			// 创建事务
			TransactionInfo txInfo = createTransactionIfNecessary(ptm, txAttr, joinpointIdentification);

			Object retVal;
			try {
				// This is an around advice: Invoke the next interceptor in the chain.
				// This will normally result in a target object being invoked.
				// 执行目标方法
				retVal = invocation.proceedWithInvocation();
			}
			catch (Throwable ex) {
				// target invocation exception
				// 异常处理
				completeTransactionAfterThrowing(txInfo, ex);
				throw ex;
			}
			finally {
			    // 清除事务信息
				cleanupTransactionInfo(txInfo);
			}

			if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
				// Set rollback-only in case of Vavr failure matching our rollback rules...
				TransactionStatus status = txInfo.getTransactionStatus();
				if (status != null && txAttr != null) {
					retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
				}
			}

            // 提交事务
			commitTransactionAfterReturning(txInfo);
			return retVal;
		}

		// 编程式事务处理
		else {
			final ThrowableHolder throwableHolder = new ThrowableHolder();

			// It's a CallbackPreferringPlatformTransactionManager: pass a TransactionCallback in.
			try {
				Object result = ((CallbackPreferringPlatformTransactionManager) ptm).execute(txAttr, status -> {
					TransactionInfo txInfo = prepareTransactionInfo(ptm, txAttr, joinpointIdentification, status);
					try {
						Object retVal = invocation.proceedWithInvocation();
						if (vavrPresent && VavrDelegate.isVavrTry(retVal)) {
							// Set rollback-only in case of Vavr failure matching our rollback rules...
							retVal = VavrDelegate.evaluateTryFailure(retVal, txAttr, status);
						}
						return retVal;
					}
					catch (Throwable ex) {
						if (txAttr.rollbackOn(ex)) {
							// A RuntimeException: will lead to a rollback.
							if (ex instanceof RuntimeException) {
								throw (RuntimeException) ex;
							}
							else {
								throw new ThrowableHolderException(ex);
							}
						}
						else {
							// A normal return value: will lead to a commit.
							throwableHolder.throwable = ex;
							return null;
						}
					}
					finally {
						cleanupTransactionInfo(txInfo);
					}
				});

				// Check result state: It might indicate a Throwable to rethrow.
				if (throwableHolder.throwable != null) {
					throw throwableHolder.throwable;
				}
				return result;
			}
			catch (ThrowableHolderException ex) {
				throw ex.getCause();
			}
			catch (TransactionSystemException ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
					ex2.initApplicationException(throwableHolder.throwable);
				}
				throw ex2;
			}
			catch (Throwable ex2) {
				if (throwableHolder.throwable != null) {
					logger.error("Application exception overridden by commit exception", throwableHolder.throwable);
				}
				throw ex2;
			}
		}
	}

由于我们采用的注解方式，相当于声明式事务，所以会调用到 createTransactionIfNecessary 方法，代码如下：

protected TransactionInfo createTransactionIfNecessary(@Nullable PlatformTransactionManager tm,
			@Nullable TransactionAttribute txAttr, final String joinpointIdentification) {

		// If no name specified, apply method identification as transaction name.
		if (txAttr != null && txAttr.getName() == null) {
			txAttr = new DelegatingTransactionAttribute(txAttr) {
				@Override
				public String getName() {
					return joinpointIdentification;
				}
			};
		}

		TransactionStatus status = null;
		if (txAttr != null) {
			if (tm != null) {
			    // 获取 TransactionStatus ，会根据当前配置的事物传播特性做出相应处理，从而返回合适的 TransactionStatus
				status = tm.getTransaction(txAttr);
			}
			else {
				if (logger.isDebugEnabled()) {
					logger.debug("Skipping transactional joinpoint [" + joinpointIdentification +
							"] because no transaction manager has been configured");
				}
			}
		}
		return prepareTransactionInfo(tm, txAttr, joinpointIdentification, status);
	}

有时间会继续分析 status = tm.getTransaction(txAttr) 里面的及相关代码。。。
