主要用于毕业论文答辩
https://github.com/tonixtom/HEU-Beamer-Template
参考至USTC的博主,之后找到他的原链接贴下。
%--------------------------------------------------------
% 1. 本模板是通过现用现学不断积累修改得到的,其中必有大量不恰当之处,欢迎批评指教。
% 2. 本模板适合于毕业论文答辩、课程大作业展示等内容比较少的场景。幻灯片上方导航栏虽然能明显区别Beamer和PPT,在文档较短时属于加分项,但在太长时显得累赘。
% 3. 本模板不局限于中国科学技术大学使用,只用修改.sty文件中变量ustcblue的rgb参数就可以改变颜色风格,替换111.png和112.png两个图片就可以修改背景。

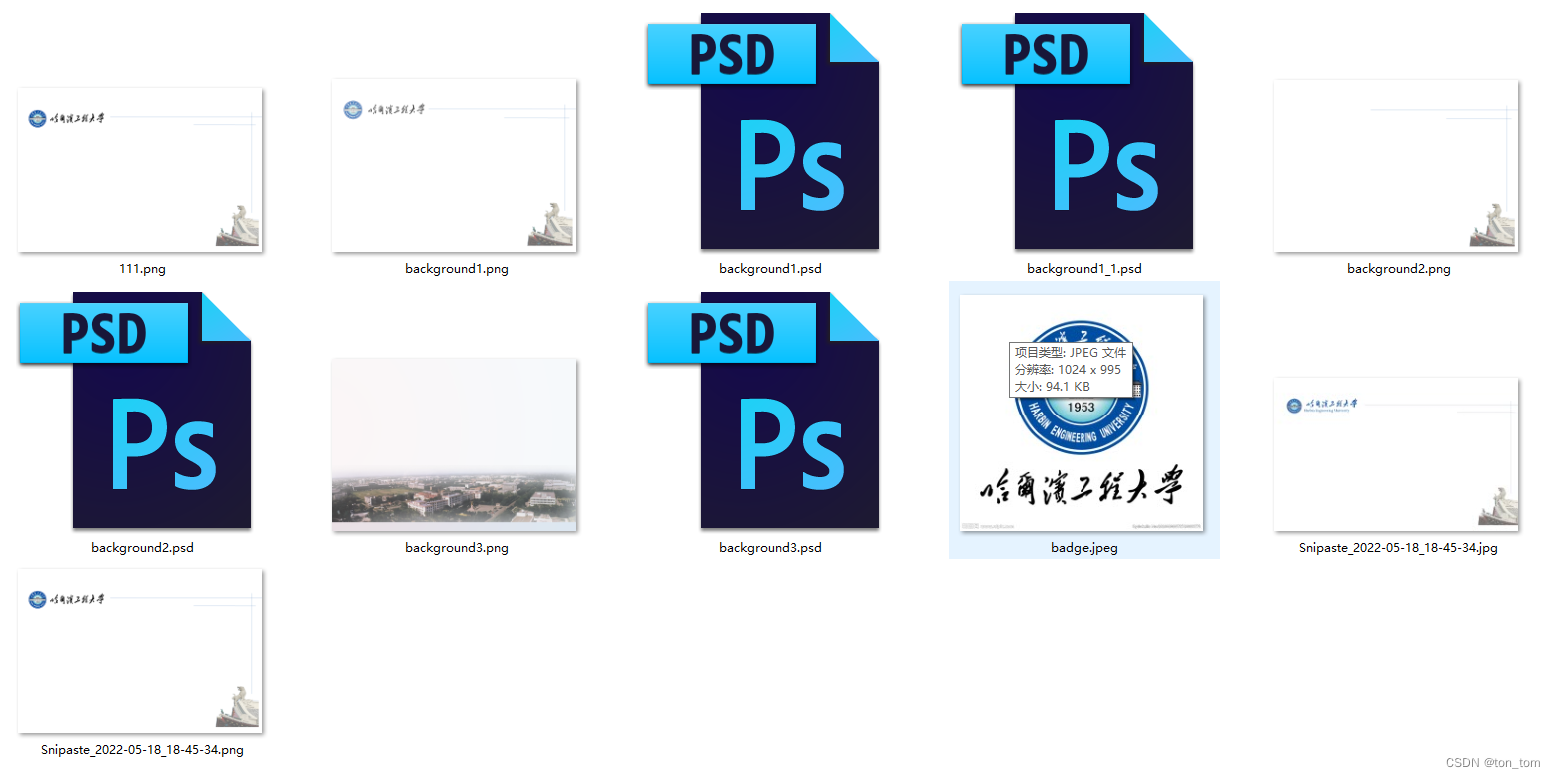

% 4. background文件夹中包含了两个背景图片的.png格式和.psd格式,其中.psd格式可以自由修改。
% 5. 本模板在参考了很多优秀的模板和论坛上的回答,如https://www.latexstudio.net/archives/51752.html, https://github.com/teancake/latex-beamer-beihang, https://tex.stackexchange.com/questions/167648/beamer-navigation-symbols-inside-footline 等等,非常感谢。
%--------------------------------------------------------
%--------------------------------------------------------
% 注意:
% 1. 请设置XeLaTeX编译否则可能无法生成PDF;修改很简单,可自行百度。
% 2. 文档推荐使用微软雅黑字体,若使用overleaf等请自行适配微软雅黑或更改成其他字体。
% 3. 需要使用新功能时,可以修改或添加引用的包。
%--------------------------------------------------------
\documentclass{beamer}%[hyperref,UTF8,11pt]
\usepackage{ctex}
\usepackage[utf8]{inputenc}
\setbeamersize{text margin left=0.042\paperwidth,text margin right=0.042\paperwidth}% 调整左右边距
\usepackage{fontspec}
\usepackage{comment}
\usepackage{xeCJK}
\usepackage{hyperref}
\usepackage{graphicx}
\usepackage{epstopdf}
\usepackage{bm}
\usepackage{array}
\usepackage{cases}
\usepackage{multirow}
\usepackage{enumerate}
\usepackage{algorithm}
\usepackage{algorithmic}
\usepackage{xcolor}
\usepackage{amsmath, amsfonts, amssymb} % math equations, symbols
\usepackage[english]{babel}
\usepackage{color} % color content
\usepackage{graphicx} % import figures
\usepackage{url} % hyperlinks
\usepackage{bm} % bold type for equations
\usepackage{multirow}
\usepackage{booktabs}
\usepackage{epstopdf}
\usepackage{epsfig}
\usepackage{algorithm}
\usepackage{algorithmic}
\hypersetup{CJKbookmarks=true}
\usepackage{url}
\usepackage{amsmath}
\usepackage{amsthm}
\newtheorem{assumption}{假设}
\newtheorem{proposition}{性质}
\usepackage{booktabs}
\usepackage[backend=biber,style=numeric,sorting=none]{biblatex}
\beamertemplatetextbibitems
\setcounter{tocdepth}{1}
\usepackage{subcaption}
\usepackage{amsmath}
\usepackage{ustcbeamersx}
\graphicspath{{image/} {background/}}
\setsansfont{Microsoft YaHei} % 一般建议是微软雅黑,可以修改成其他字体。
\setCJKmainfont{Microsoft YaHei}
%\setCJKmainfont{SimHei}
\usefonttheme{professionalfonts}
\usepackage[UTF8,noindent]{ctexcap} %使用中文输入及显示

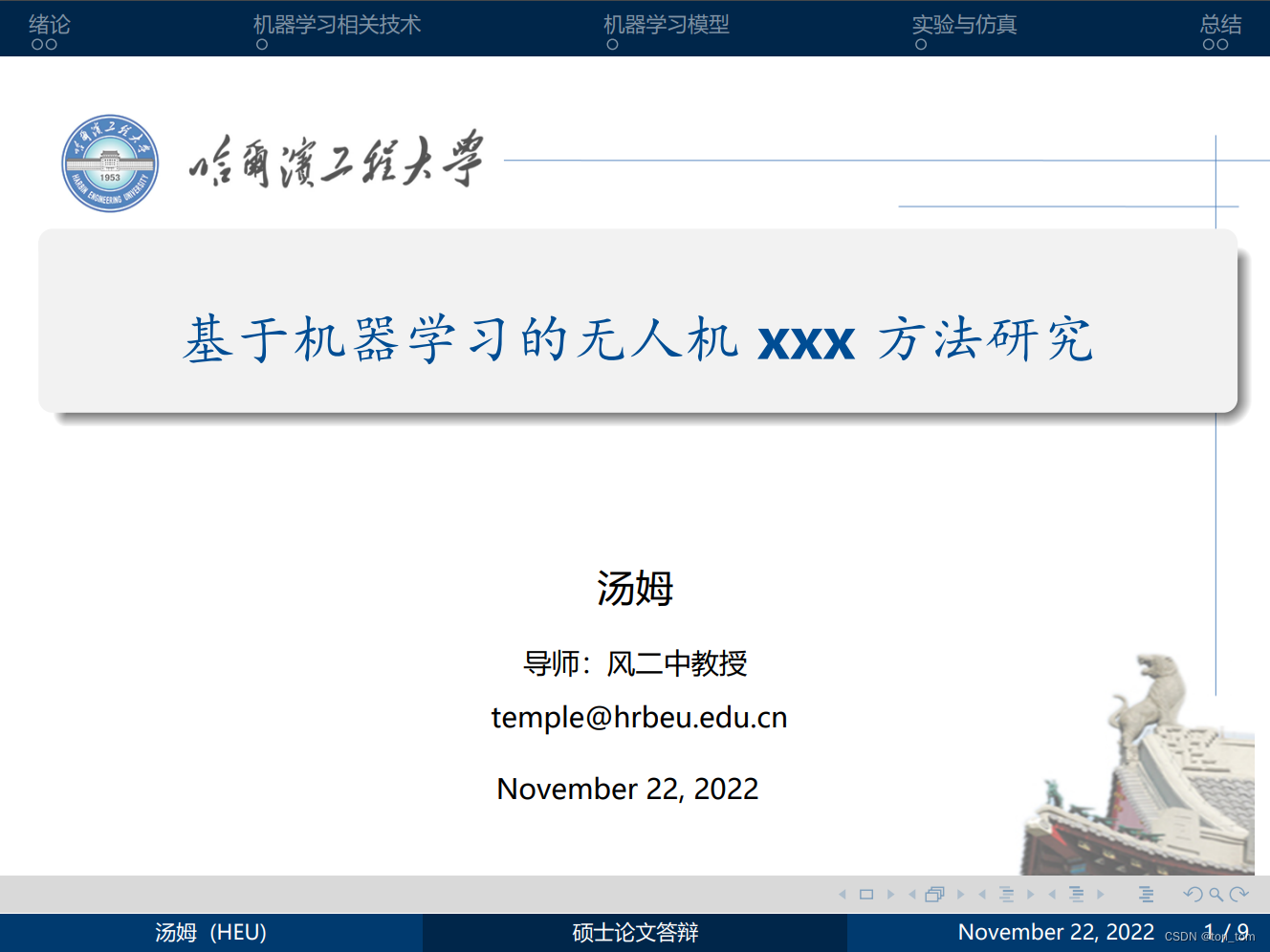

% 第一页的设置
\title[硕士论文答辩]{\zihao{3} \kaishu 基于机器学习的无人机xxx方法研究}% 方括号内容显示在页脚,花括号内容是全称
\author{\noindent 汤姆}
\institute[HEU]
{
\noindent 导师:风二中教授\\
\medskip
\noindent \textit{ tonixtom@hrbeu.edu.cn}
}
\date{\today} % Date, can be changed to a custom date
%
%\AtBeginSection[]% 每章之前加目录,不喜欢可以注释掉
%{
% \begin{frame}{目录}
% \transfade%淡入淡出效果
% \tableofcontents[sectionstyle=show/shaded,subsectionstyle=show/shaded/hide] %突出显示当前章节,而其它章节都进行了淡化处理
% \addtocounter{framenumber}{-1} %目录页不计算页码
% \end{frame}
%}
\begin{document}
\begin{frame}
\pgfdeclareimage[width=\paperwidth,height=0.9575\paperheight]{bg}{./background/background1.png}
%\transfade 渐变
\titlepage % Print the title page as the first slide
\end{frame}
%%\section{目录}
% \begin{frame}{目录}
% \pgfdeclareimage[width=\paperwidth,height=0.9575\paperheight]{bg}{112.png}
% %\transfade
% \onslide<1->条目;
%
% \onslide<2->条目:
% \begin{itemize}
% \item<3-> 条目;
% \item<4-> 条目;
% \end{itemize}
% % \end{itemize}
% \end{frame}
\begin{frame}{目录} % 总的目录页 可以注释掉
\pgfdeclareimage[width=\paperwidth,height=0.9575\paperheight]{bg}{./background/background2.png}
%[width=\paperwidth,height=0.9575\paperheight]{bg}{112.png}
%\transfade%淡入淡出
\tableofcontents
\end{frame}
\section{绪论}
\begin{frame}{图}
\begin{columns}[T] % align columns
\begin{column}<0->{.65\textwidth}
\begin{itemize}
\item<1-> 128
\begin{itemize}
\item<1->123
\item<1-> 123
\end{itemize}
\item<2-> 122
\begin{itemize}
\item<2-> 129
\end{itemize}
\end{itemize}
\end{column}%
\hfill%
\begin{column}<0->{.40\textwidth}
\begin{figure}[thpb]
\centering
\resizebox{1\linewidth}{!}{
\includegraphics{ddddddd.jpg}
}
%\includegraphics[scale=1.0]{figurefile}
%\caption{}
\label{fig:campus}
\end{figure}
\end{column}%
\end{columns}
\end{frame}
\begin{frame}{图}
\begin{figure}[htb]
% \centering
\label{fig:example}
\begin{subfigure}{.45\textwidth}
\centering
\includegraphics[width=\textwidth]{badge.jpeg}
\caption{校徽}
\label{fig:logoa}
\end{subfigure}
\begin{subfigure}{.45\textwidth}
\centering
\includegraphics[width=\textwidth]{badge.jpeg}
\caption{校徽}
\label{fig:logob}
\end{subfigure}
\caption{校徽}
%\note{注:}
\end{figure}
\end{frame}
\section{机器学习相关技术}
\begin{frame}{表格}
\footnotesize
\begin{table}[htb]
\setlength{\abovecaptionskip}{-1mm}
% \setlength{\belowcaptionskip}{-2.3mm}
\centering
\caption{三线表}
\label{tab:err1}
%\resizebox{\textwidth}{19mm}{ %用于控制表格宽度
\begin{tabular}{ccccccccc}
\toprule
\text{模型}&\text{组别} & $D_0$ & $D_1$ & $D_2$ \\
\midrule
1&(1.1) & 0.0600& 0.0600& 0.0800 \\
&(1.2) & 0.0600& 0.0600& 0.0800 \\
2&(2.1) & 0.0600& 0.0600& 0.0800 \\
&(2.2) & 0.0600& 0.0600& 0.0800 \\
\bottomrule
\end{tabular}%}
% \note{注:} %可以调整字体
\end{table}
\begin{table}[H]
\centering
\caption{The relationship between $f$ and $f'$.}
\def\arraystretch{1.5}
\begin{tabular}{|l|p{3in}|}
\hline
$f(x)$ & $f'(x)$ \\ \hline
$x>0$ & The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. \\ \hline
\end{tabular}
\end{table}
\end{frame}
\section{机器学习模型}

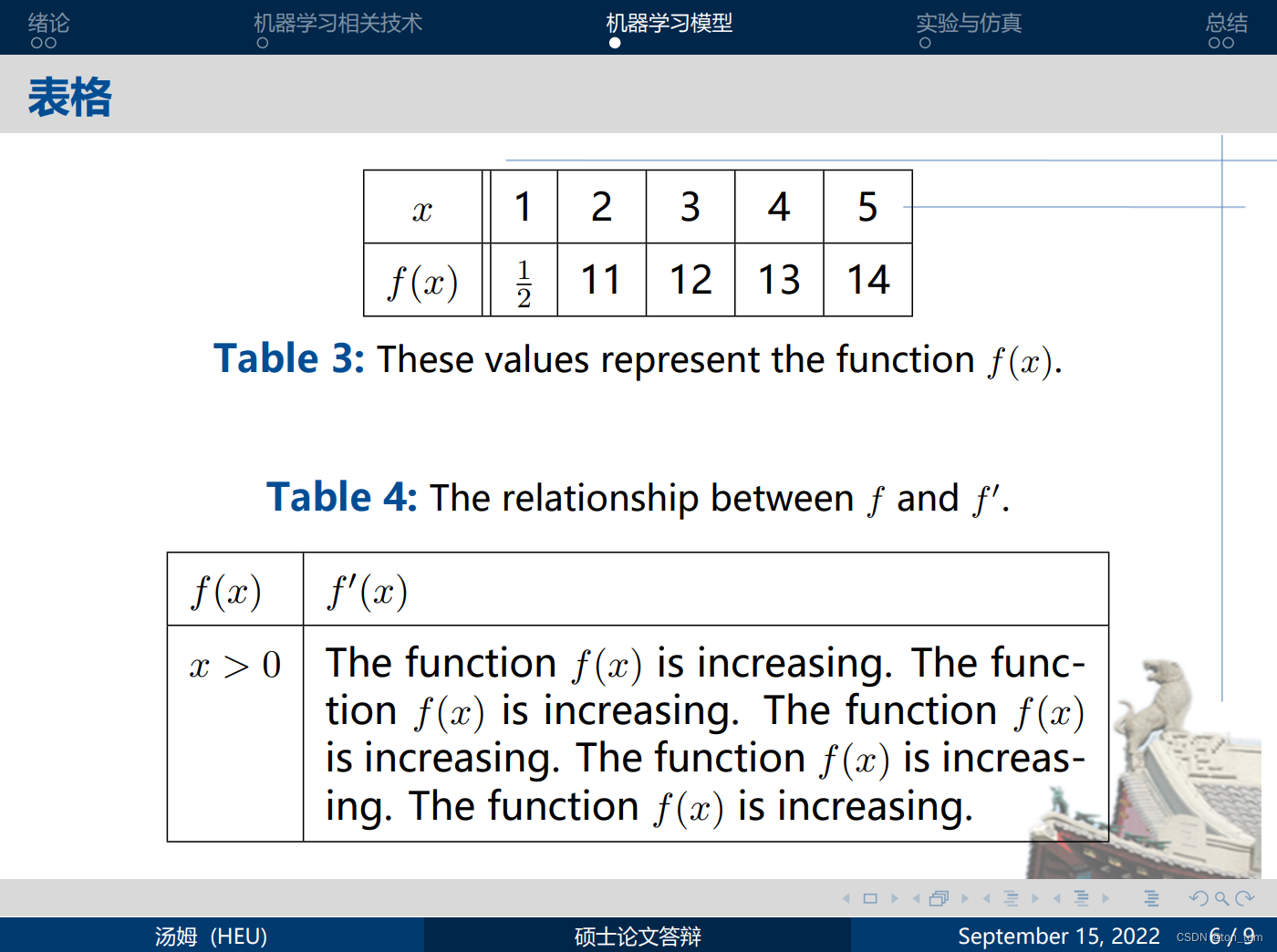

\begin{frame}{表格}
\begin{table}[H]
\centering
\def\arraystretch{1.5}
\begin{tabular}{|c||c|c|c|c|c|}
\hline
$x$ & 1 & 2 & 3 & 4 & 5 \\ \hline
$f(x)$ & $\frac{1}{2}$ & 11 & 12 & 13 & 14 \\ \hline
\end{tabular}
\caption{These values represent the function $f(x)$.}
\end{table}
\begin{table}[H]
\centering
\caption{The relationship between $f$ and $f'$.}
\def\arraystretch{1.5}
\begin{tabular}{|l|p{3in}|}
\hline
$f(x)$ & $f'(x)$ \\ \hline
$x>0$ & The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. The function $f(x)$ is increasing. \\ \hline
\end{tabular}
\end{table}
\end{frame}
\section{实验与仿真}
\begin{frame}{定理}
\begin{theorem}[勾股定理]
勾三股四弦五。
\end{theorem}
证明:
xxx,证毕。
$\hfill\qedsymbol$
The function $f(x)=(x-3)^2+\frac{1}{2}$ has domain $\mathrm{D}_f:(-\infty,\infty)$ and range $\mathrm{R}_f:\left[\frac{1}{2},\infty\right)$.\\
$\displaystyle{\lim \limits_{x \to a} \frac{f(x)-f(a)}{x-a}=f'(a)}$\\
$\displaystyle{\int_a^b f(x) \,dx=\lim \limits_{x \to \infty} \sum \limits_{k=1}^{n} f(x_k) \cdot \Delta x}$\\
$\vec{v}=v_1 \vec{i}+v_2 \vec{j}=\langle v_1, v_2 \rangle$
\end{frame}
\section{总结}
\begin{frame}
\frametitle{总结}
\begin{align}
5x^2-9=x+3\\
5x^2-x-12=0
\end{align}
\begin{align}
5x^2-9=x+3\\
5x^2-x-12=0
\end{align}
\end{frame}

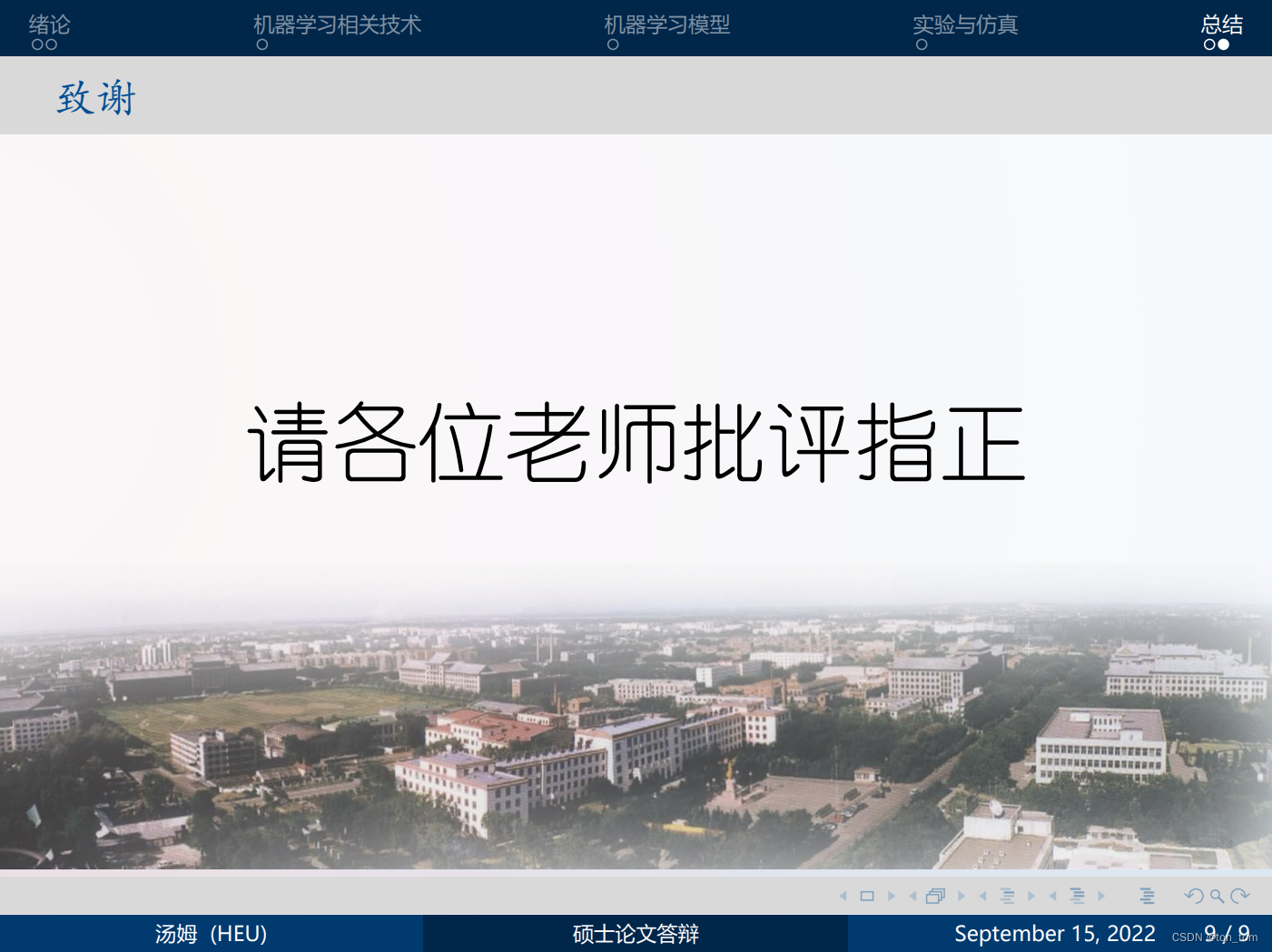

\begin{frame}
\pgfdeclareimage[width=\paperwidth,height=0.9575\paperheight]{bg}{./background/background3.png}
\frametitle{ \kaishu\textbf{ 致谢}}
\centerline{\Huge \youyuan 请各位老师批评指正}
\end{frame}
\end{document}
