Fedora 29 添加 惠普打印机 Smart Tank 531

环境

系统: Fedora 29 x64
打印机: HP Smart Tank 531 Wireless All in One
打印机WIFI 地址: 192.168.1.13

步骤

1. 准备 PPD 文件
   使用 ipptool 获得打印机的属性说明

 ipptool -tv ipp://192.168.1.13/ipp/print get-printer-attributes.test > attr.txt

查看 /usr/share/ppd/HP

...
hp-deskjet_935c.ppd.gz                       hp-laserjet_professional_p1107.ppd.gz         hp-smart_tank_350_series.ppd.gz
hp-deskjet_940c.ppd.gz                       hp-laserjet_professional_p1107w.ppd.gz        hp-smart_tank_530_series.ppd.gz
hp-deskjet_948c.ppd.gz                       hp-laserjet_professional_p1108.ppd.gz         hp-smart_tank_wireless_450_series.ppd.gz
hp-deskjet_950c.ppd.gz                       hp-laserjet_professional_p1108w.ppd.gz        hp-tango.ppd.gz
...

有很多 PPD 文件. 这里使用打印机属性文件里的信息，复制 hp-smart_tank_wireless_450_series.ppd.gz 为 hp-smart_tank_530_series.ppd.gz 进行修改. 这个文件是 gzip 的包, 可以解压出来 ppd 文件. 不过我发现不解压也可以直接用 vim 操作.

我主要修改了几个地方, hp-smart_tank_530_series.ppd.gz, 主要是把名字都改成 530.

*PPD-Adobe: "4.3"
*%%%% PPD file for HP Smart Tank 530 Series with CUPS.

...

*PCFileName: "hp-smart_tank_530_series.ppd"
*Product: "(HP Smart Tank 530 Series)"
...

*ModelName: "HP Smart Tank 530 Series"
*ShortNickName: "HP_Smart_Tank_530_series"
*NickName: "HP Smart Tank 530 Series, hpcups 3.18.12"
...

*1284DeviceID: "MFG:HP;MDL:Smart Tank 530 series;DES:我的机器型号编码;"
...

*% End of hp-smart_tank_530_series.ppd, 29028 bytes.
...

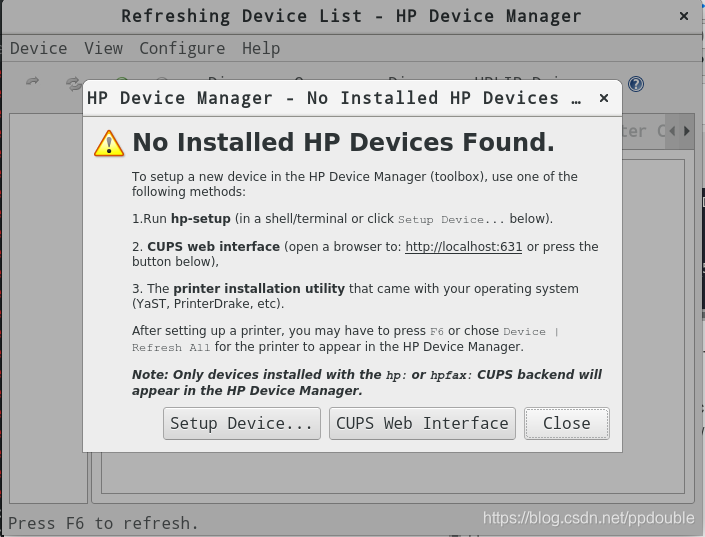

2. 打开 HPLIP Graphical Tools

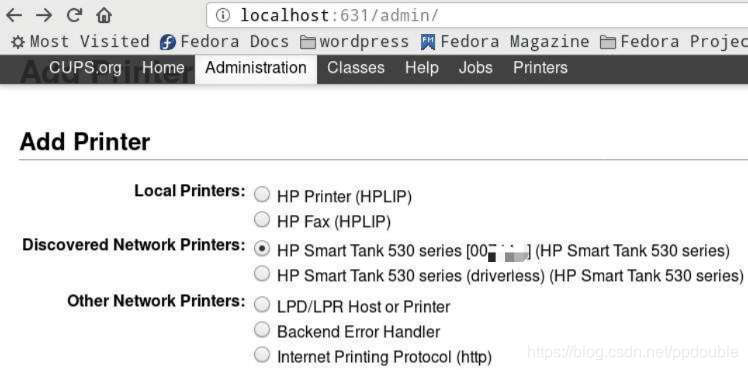

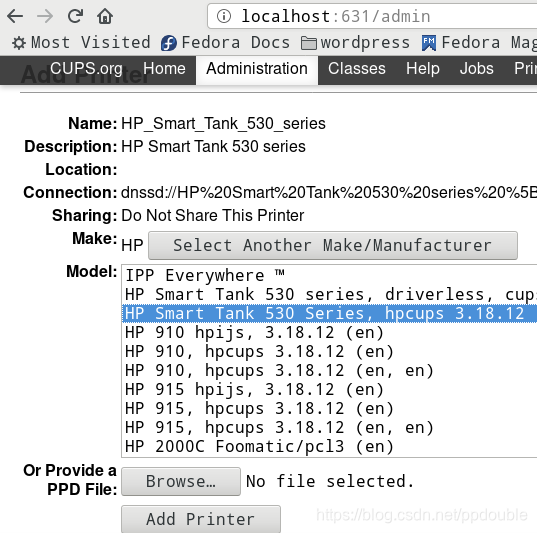

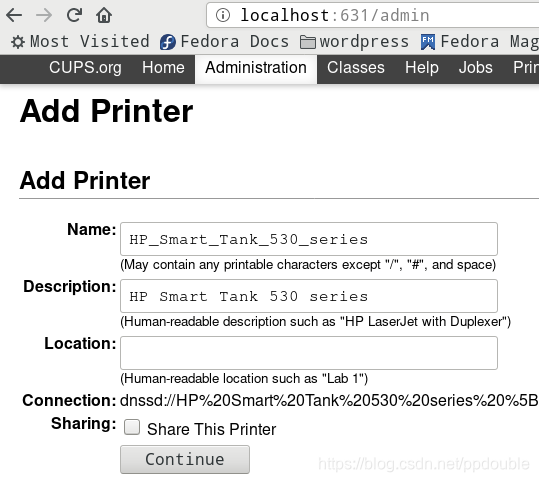

   选择 CUPS Web Interface




   [1] https://github.com/apple/cups/issues/5238
   [2] https://www.cups.org/doc/man-ipptool.html
   [3] https://developers.hp.com/hp-linux-imaging-and-printing/supported_devices/index

补充

Model Name	Min. HPLIP Version	Driver Plug-in	Support Level	Print Mode	Scan to PC	PC Send Fax	Connectivity: USB, Network, Parallel	Note
HP Smart Tank 530 series	3.19.6	Yes	Full	Color	Yes	No	USB,Network
HP Smart Tank 350	3.18.7	yes	Full	Color	yes	No	USB
HP Smart Tank Wireless 450	3.18.7	yes	Full	Color	yes	No	USB

我原来的 hplip 版本是

hplip-common-3.18.12-9.fc29.x86_64
hplip-3.18.12-9.fc29.x86_64
hplip-gui-3.18.12-9.fc29.x86_64
hplip-libs-3.18.12-9.fc29.x86_64

只需要更新 hplip 即可获得默认支持, 不需要自己制造 PPD 文件.

[user@localhost hpsmart]$ sudo dnf upgrade hplip*
......
=========================================================================================================================
 Package                        Arch                    Version                           Repository                Size
=========================================================================================================================
Upgrading:
 hplip                          x86_64                  3.19.10-1.fc29                    updates                   17 M
 hplip-common                   x86_64                  3.19.10-1.fc29                    updates                   76 k
 hplip-gui                      x86_64                  3.19.10-1.fc29                    updates                  1.3 M
 hplip-libs                     x86_64                  3.19.10-1.fc29                    updates                  162 k
 libsane-hpaio                  x86_64                  3.19.10-1.fc29                    updates                   88 k

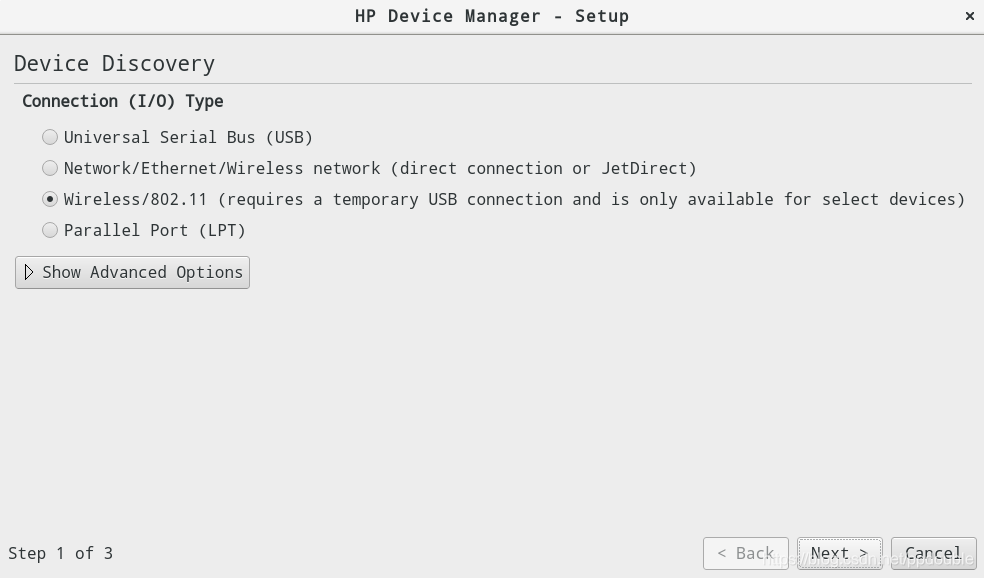

选择 Setup Device...

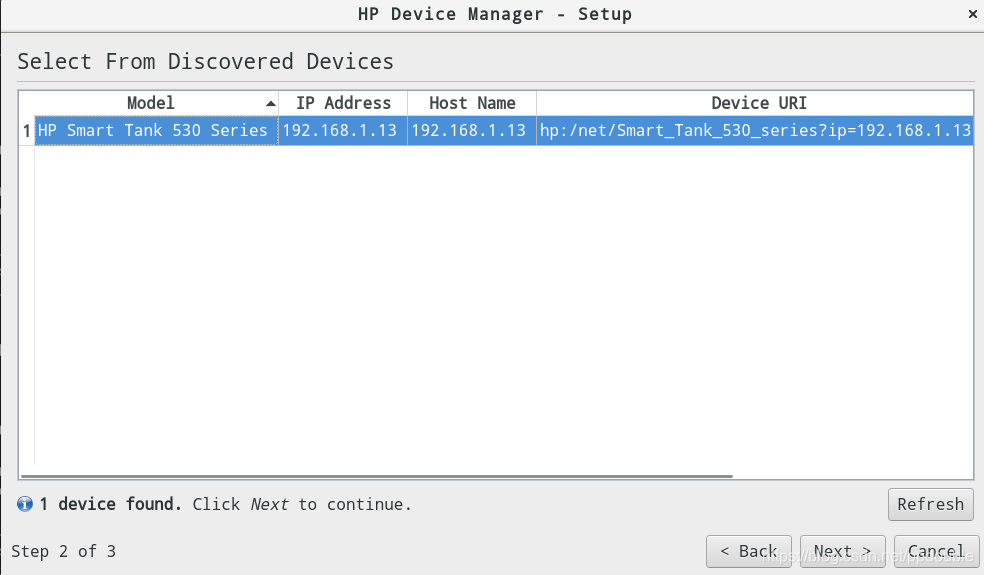

这个选项主要是使用 USB 连接线配置打印机的网络, 让打印机连接WIFI 路由器. 等连接成功后, 会显示打印机的 IP 地址, 并提示使用 hp-setup 添加打印机, 如 hp-setup 192.168.1.13 打开的是图形界面.

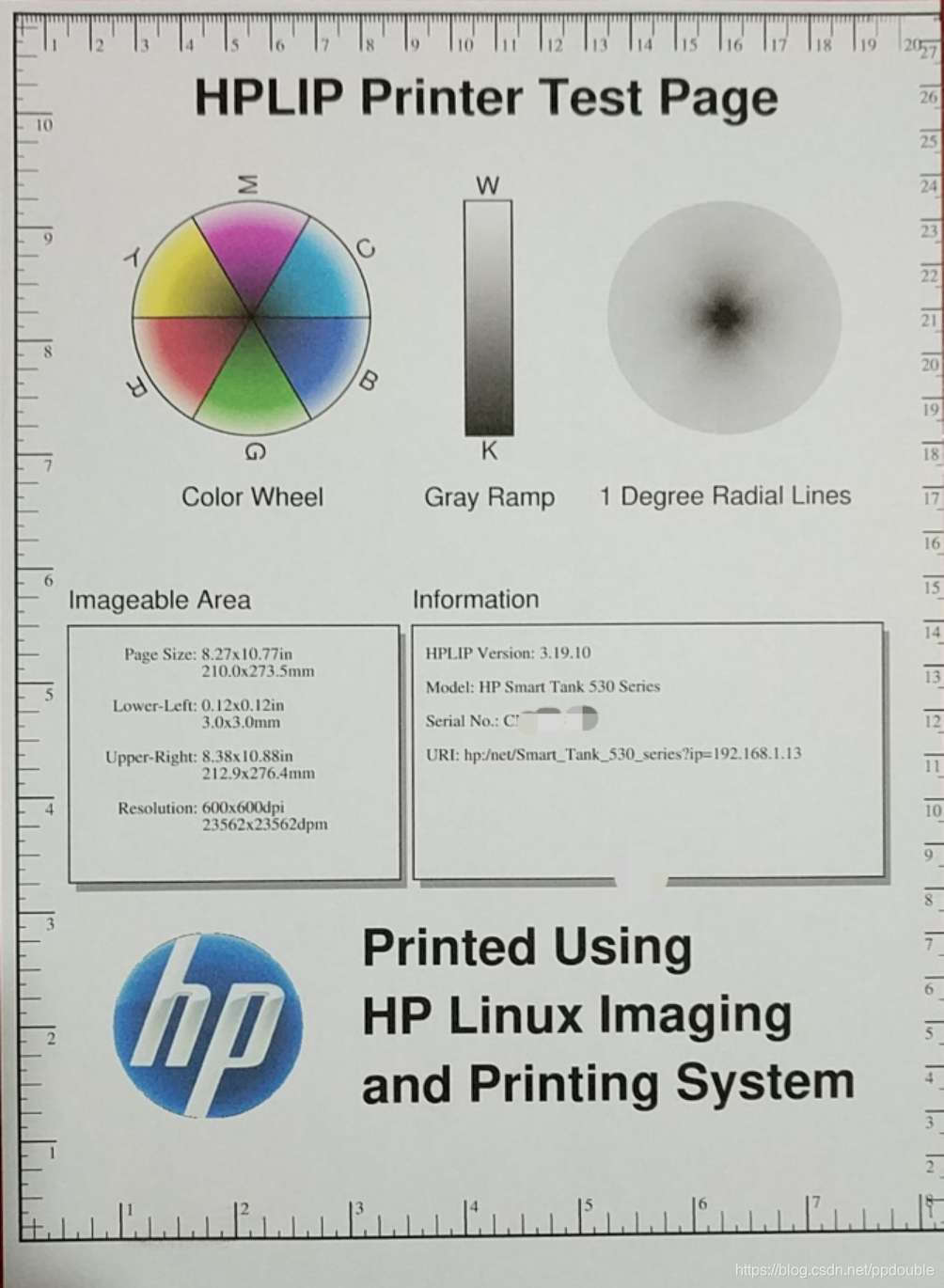

最后选择 Send test page 项可以让打印机打印测试页

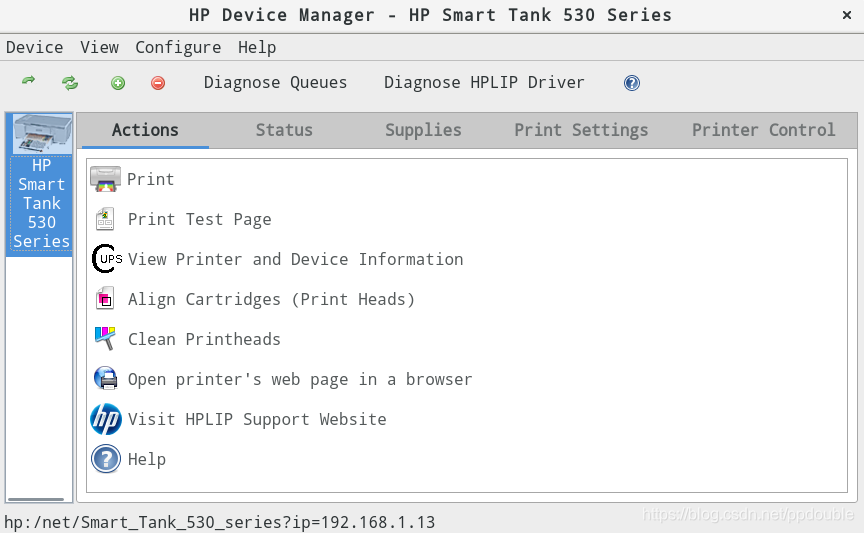

HP Device Manager 的图示

[4] https://developers.hp.com/hp-linux-imaging-and-printing
[5] https://docs.fedoraproject.org/en-US/fedora/f29/system-administrators-guide/servers/File_and_Print_Servers/#sec-Printer_Configuration
