echarts当横坐标数值很多时又想特定的点显示出来应该怎么做

天天iy

于 2025-03-27 15:46:05 发布

阅读量502

点赞数 8

文章标签： echarts javascript

本文链接：https://blog.csdn.net/q875401793/article/details/146560792

版权

前言

项目中有一个实际需求，在一个折线图上只显示特定的点，并且在横坐标很多，隐藏了部分横坐标后仍然要显示出来。

解决方案

通过更改series下的symbol设置样式(‘circle’/‘none’)或者symbolSize设置点的大小来控制点是否显示，当symbolSize为0时点位不显示
同时通过设置series下的showAllSymbol: true 来控制所有的点位都显示出来

步骤

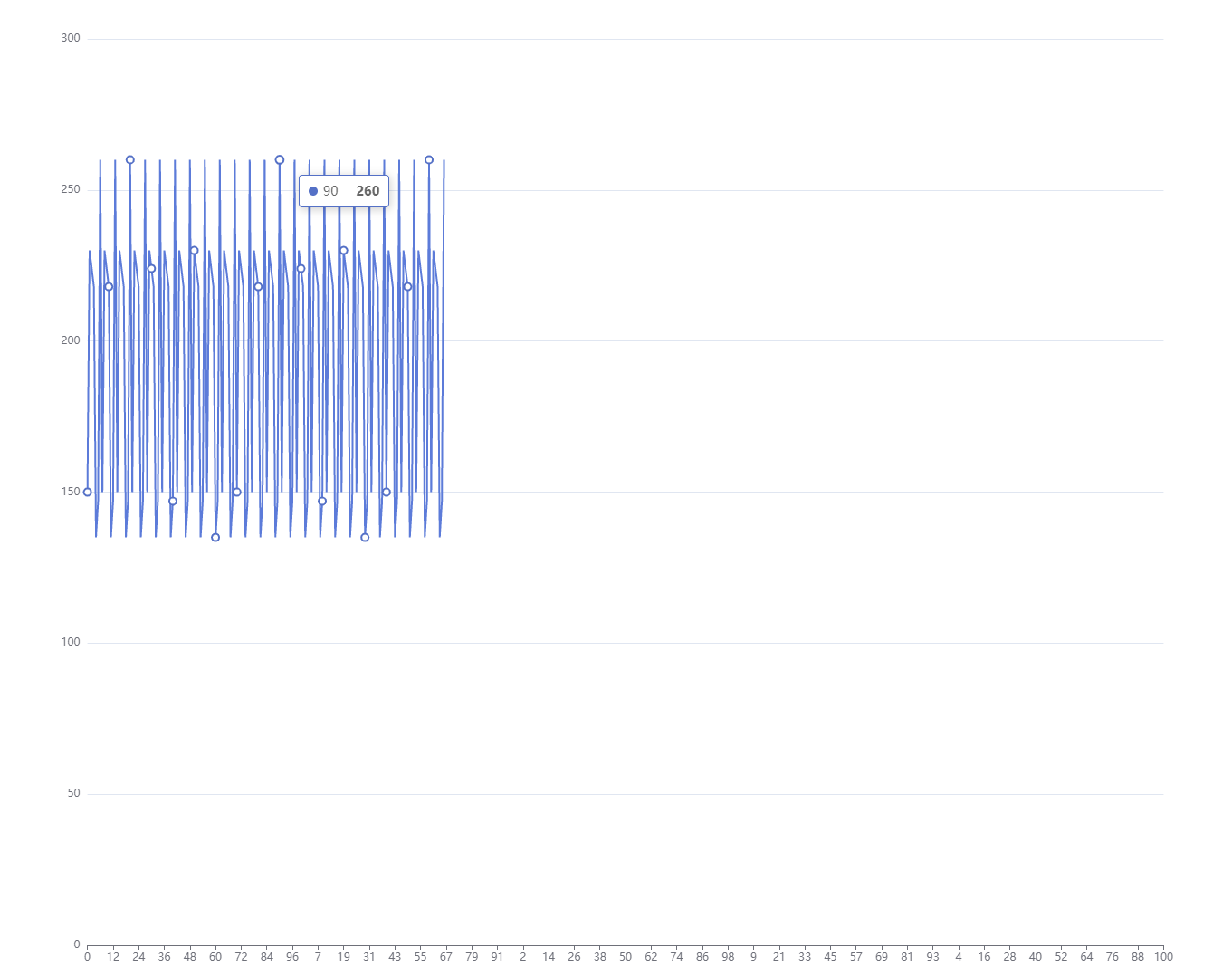

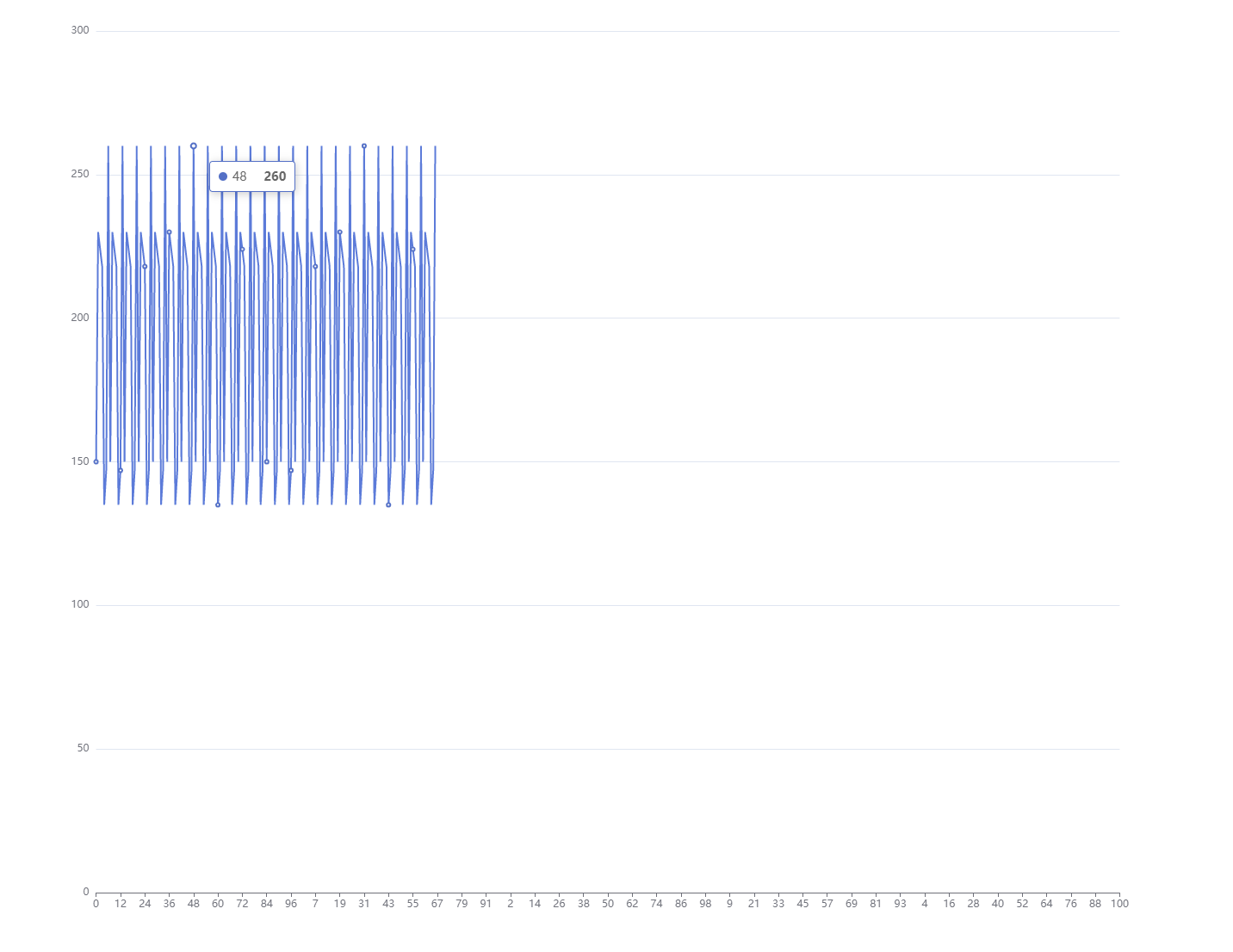

这些数据来源于echars官网多次复制横坐标后的折线图，会发现显示的点本来就已经隐藏了

option = {
  tooltip: {
      trigger: 'item',
  },
  xAxis: {
    type: 'category',
    data: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100],
    boundaryGap: false, // 设置为 false，消除两端留白
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      data: [150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,],
      type: 'line',
    }
  ]
};

在这里插入图片描述

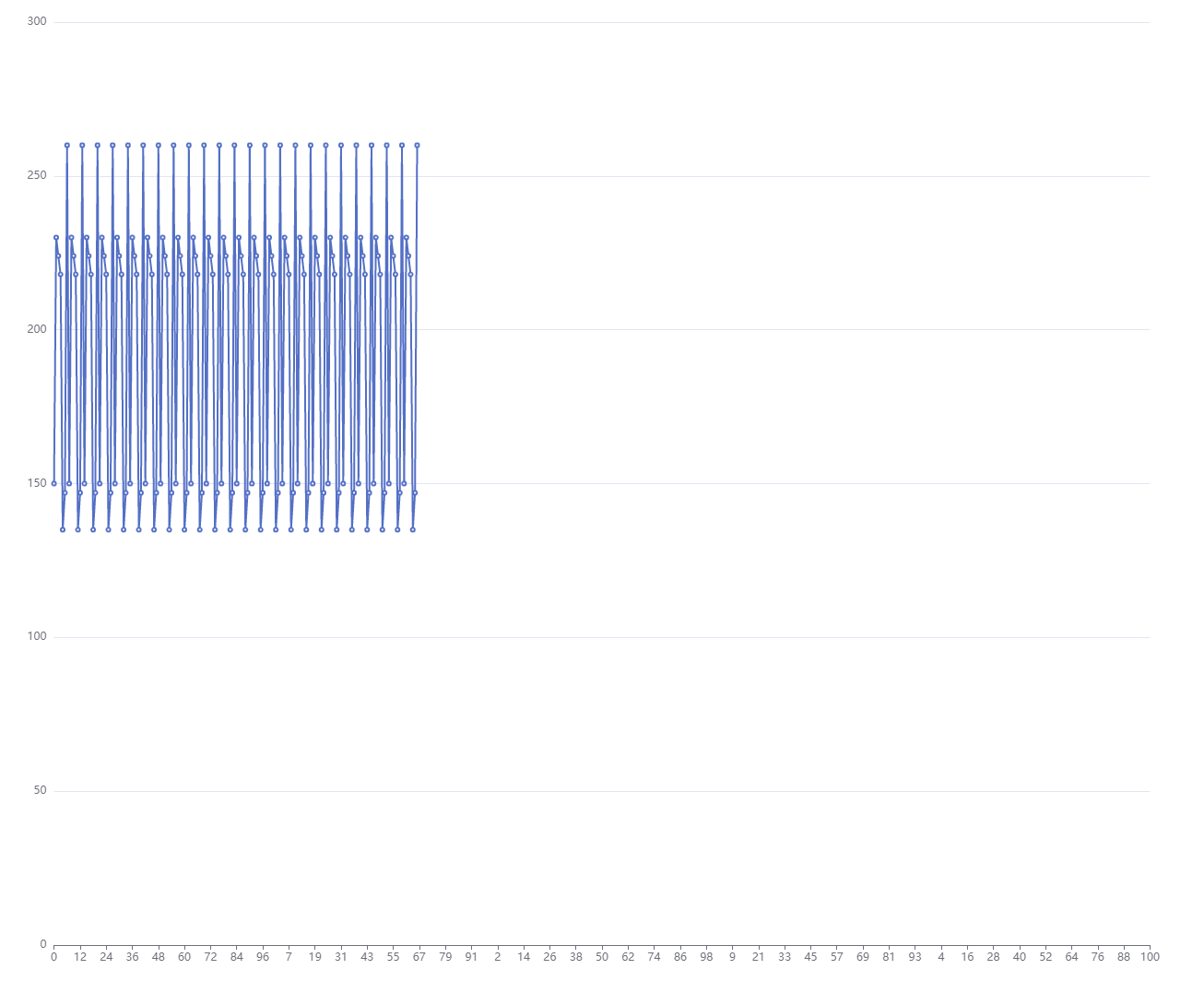

为了让点全部显示出来需要在代码中加入showAllSymbol: true

option = {
  tooltip: {
      trigger: 'item',
  },
  xAxis: {
    type: 'category',
    data: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100],
    boundaryGap: false, // 设置为 false，消除两端留白
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      data: [150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,],
      type: 'line',
      showAllSymbol: true, //将所有的点显示出来

    }
  ]
};

在这里插入图片描述

因为需求是特定的点显示，我这里以10的倍数显示演示，实际可以根据后端返回数值来确认是否显示

option = {
  tooltip: {
      trigger: 'item',
  },
  xAxis: {
    type: 'category',
    data: [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100,0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 70, 71, 72, 73, 74, 75, 76, 77, 78, 79, 80, 81, 82, 83, 84, 85, 86, 87, 88, 89, 90, 91, 92, 93, 94, 95, 96, 97, 98, 99, 100],
    boundaryGap: false, // 设置为 false，消除两端留白
  },
  yAxis: {
    type: 'value'
  },
  series: [
    {
      data: [150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,150, 230, 224, 218, 135, 147, 260,],
      type: 'line',
      showAllSymbol: true,
      symbolSize: function (value, data) {
          // 根据数据动态判断是否显示数据点 这里是当索引为10的倍数的时候设置为8 否则为0不显示
          return data.dataIndex % 10 == 0 ? 8 : 0;
      },
    }
  ]
};
