Python加CH9329模块实现云顶之弈自动刷局数

前言

2.0版本脚本，不需要硬件模块。

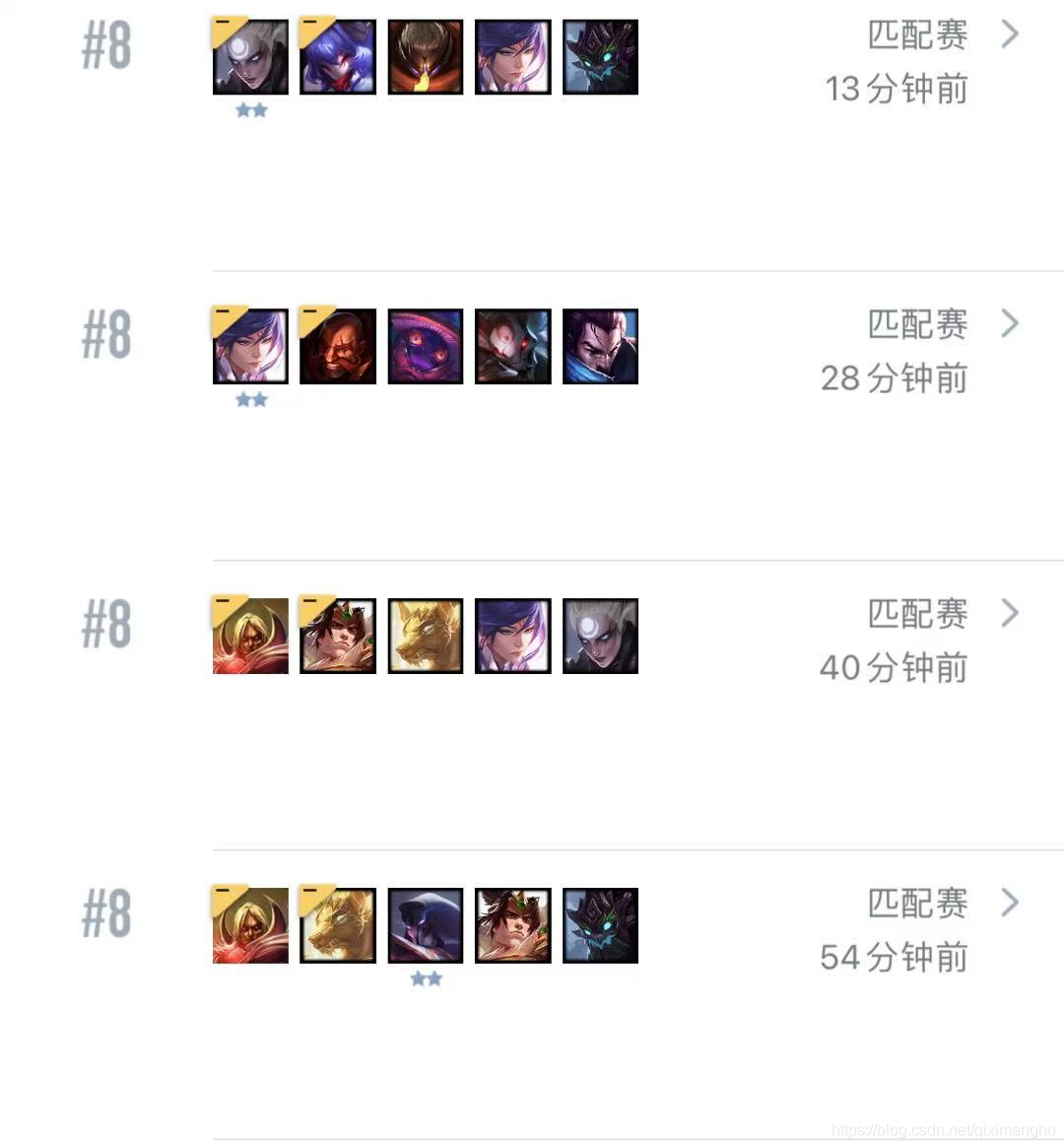

现在的LOL活动是又氪又肝，各种代币宝典之类的太费肝了。所以我就想搞个云顶自动刷局数的脚本。

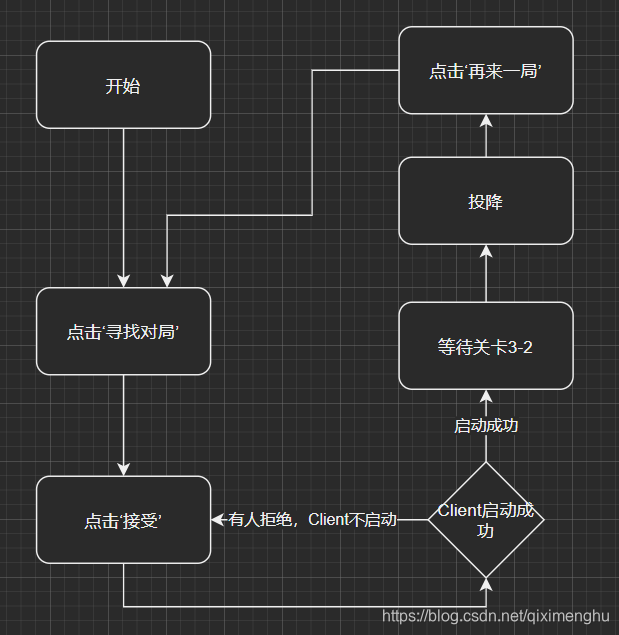

流程大概如下：

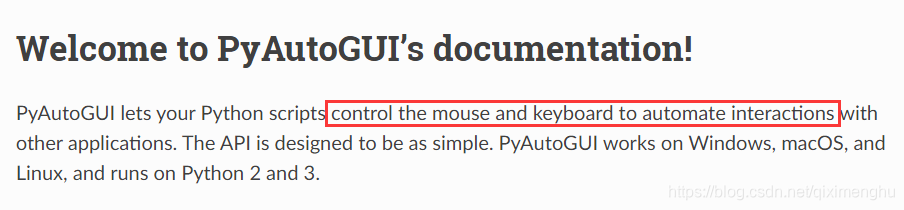

一开始我打算直接用pyautogui这个模块控制鼠标和键盘实现这个功能:

但是LOL在这方面好像有防备，在客户端上面可以控制鼠标移动，但是控制鼠标点击的时候，它没反应。而且到了游戏内时候，直接无法用pyautogui模块控制鼠标移动，也无法控制鼠标点击。这也就是为什么要用CH9329这个硬件模块了（某宝加邮费总共23块不到，外加一个CH340 USB转TTL模块，如果自己没有，买一个大概7块钱，买的时候会送杜邦线）。我觉得LOL总不能检测到我用了个假鼠标和键盘吧。

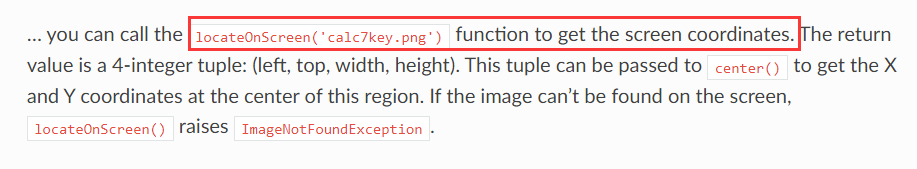

虽然，pyautogui的一部分功能不能使用了，但是它还有一些比较有用的功能，比如在屏幕上定位一幅图片的位置(pyautogui.locateOnScreen)，比如我们可以将上面流程图里面的按钮都截图，然后使用pyautogui去定位这些按钮的位置，然后通过CH9329模块进行硬件鼠标左键单击。pyautogui还可以通过界面的标题来获取到windows下面的hwnd信息(pyautogui.getWindowsWithTitle)，这样我们就可以用来检测游戏是否启动或者结束了。

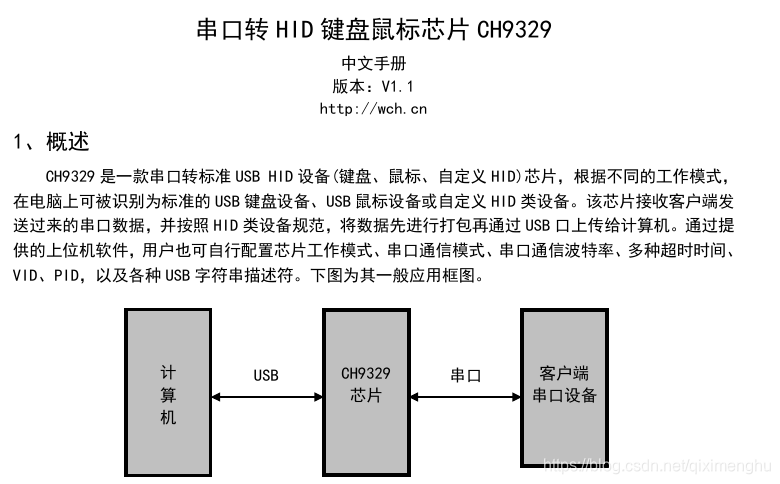

CH9329模块是通过串口接收指令，然后自己上报鼠标或者键盘事件。它支持鼠标的相对移动，绝对移动，键盘按键。

以下是这个脚本所需要的Python库环境：

Python 3.7

pyautogui,PIL,serial,opencv-python

注意：虽然没有直接调用opencv的功能，但是pyautogui模块在模糊定位图片时候，需要用到opencv库。

控制CH9239模块

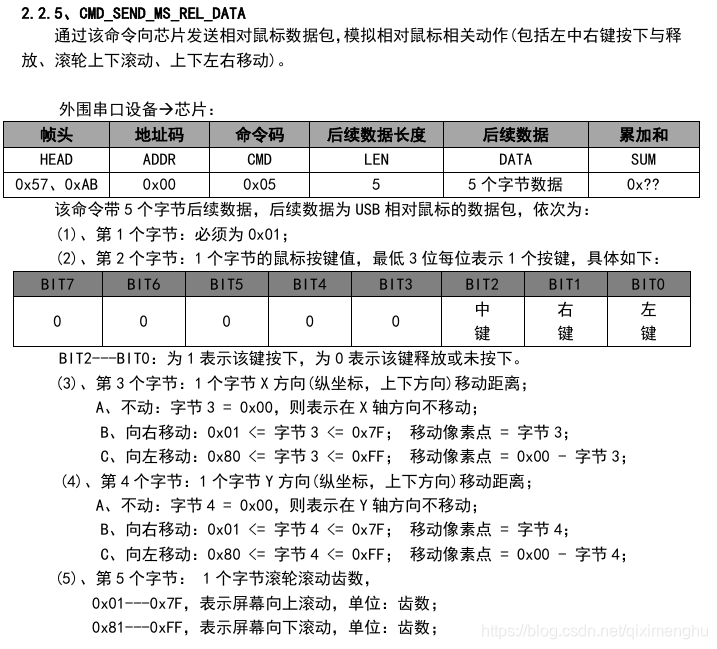

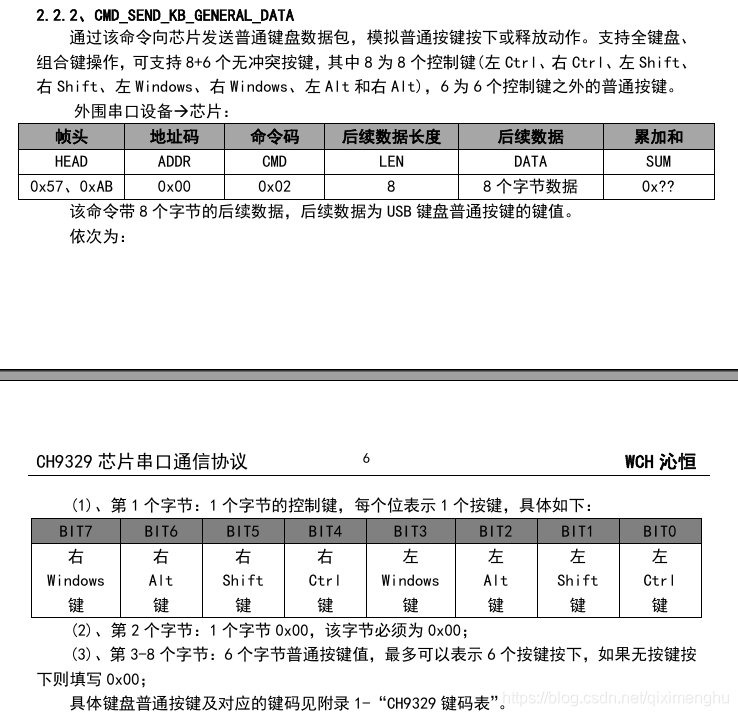

CH9239芯片通信协议的资料：

链接：某度网盘 提取码：rarl

首先根据CH9239的通信协议，实现控制鼠标移动点击函数，实现键盘按键功能，把pyautogui模块不可用的功能用我们的硬件模块代替。

鼠标绝对移动并单击按键（模仿pyautogui模块的API写的，后来发现用不到多次点击的功能）：

mserial = serial.Serial("COM3", 115200, timeout=1)
def hard_click(x, y, clicks=1, interval=0.0, button=pg.LEFT, duration=0.0):
    global mserial
    nx = int(x * 4096 / 1920)
    ny = int(y * 4096 / 1080)
    # 鼠标绝对坐标命令
    cmd = [0x57, 0xAB, 0x00, 0x04, 0x07, 0x02]
    button_val = 1 << get_button_val(button)
    low_x = nx & 0xFF
    high_x = (nx >> 8) & 0xFF
    low_y = ny & 0xFF
    high_y = (ny >> 8) & 0xFF
    scroll = 0x00
    data = [button_val, low_x, high_x, low_y, high_y, scroll]
    sum_val = (sum(cmd) + sum(data)) & 0xFF
    data.append(sum_val)
    # 按下
    press = cmd + data
    # 释放
    release = press.copy()
    release[6] = 0x0
    sum_val = sum(release[:-1]) & 0xFF
    release[len(release) - 1] = sum_val

    while clicks > 0:
        # 移动并按下键
        mserial.write(bytes(press))
        # 延时50ms
        time.sleep(50 / 1000)
        # mserial.readall()
        # 释放键
        mserial.write(bytes(release))
        time.sleep(50 / 1000)
        # mserial.readall()
        clicks -= 1
        if clicks > 0:
            time.sleep(interval)
    # 忽略CH9239回复的消息
    mserial.flushInput()

    return True

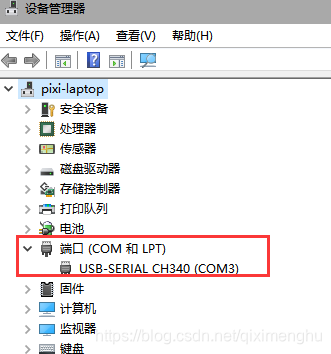

注意：其中串口的名称根据设备管理器里面的COM口实际名称来定。一般插上CH340 USB转TTL模块，设备管理器中就能看到。如果没有这一项的话，需要装一个CH340的驱动，这个驱动很常用，很容易找到安装的教程，此处不做赘述。波特率设置可以使用CH9239模块资料中的设置工具设置你想要的波特率。

鼠标绝对移动，不点击：

def hard_moveTo(x, y):
    global mserial
    nx = int(x * 4096 / 1920)
    ny = int(y * 4096 / 1080)

    # 鼠标绝对坐标命令
    cmd = [0x57, 0xAB, 0x00, 0x04, 0x07, 0x02]
    button_val = 0
    low_x = nx & 0xFF
    high_x = (nx >> 8) & 0xFF
    low_y = ny & 0xFF
    high_y = (ny >> 8) & 0xFF
    scroll = 0x00
    data = [button_val, low_x, high_x, low_y, high_y, scroll]
    sum_val = (sum(cmd) + sum(data)) & 0xFF
    data.append(sum_val)

    cmd_move = cmd + data
    mserial.write(bytes(cmd_move))
    mserial.flushInput()

    return True

然后是按键，因为我们这个脚本只用到了'D','F','ESC'这三个按键，所以其他的按键暂时不管：

# ch9329 键值对
key_map = {
    'A': 0x4,
    'D': 0x7,
    'F': 0x9,
    'ESC':0x29,
}
# ch9329 控制键offset
control_key_map = {
    'ctrl': 0,
    'shift': 1,
    'alt': 2,
    'win': 3,
}

def hard_key_write(keys):
    global key_map, control_key_map
    l_keys = keys.split('+')
    v = []
    c = []
    for k in l_keys:
        k = k.upper()
        if k in key_map:
            v.append(key_map[k])
        if k in control_key_map:
            c.append(control_key_map[k])

    cmd = [0x57, 0xab, 0x00, 0x02, 0x08]
    data = []
    ctl_byte = 0x0
    for i in c:
        ctl_byte += 1 << i
    data.append(ctl_byte)   # 1
    data.append(0x00)       # 2
    data += v[:6]            # 3-8
    data += [0] * (8 - len(data))

    press = cmd + data
    press.append(sum(press) & 0xFF)

    release = [0x57, 0xab, 0x00, 0x02, 0x08] + [0x00] * 8 + [0x0c]

    mserial.write(bytes(press))
    # 延时50ms
    time.sleep(50 / 1000)
    # 释放键
    mserial.write(bytes(release))
    time.sleep(50 / 1000)

    mserial.flushInput()

    return True

截图准备

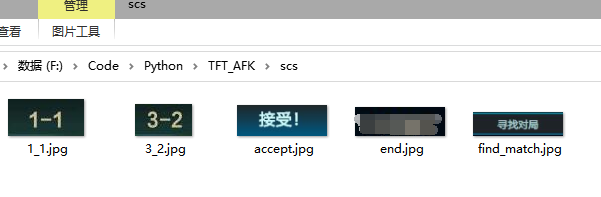

首先我们需要去截图，把我们要点击的按钮，要检测的图片先截图保存下来：

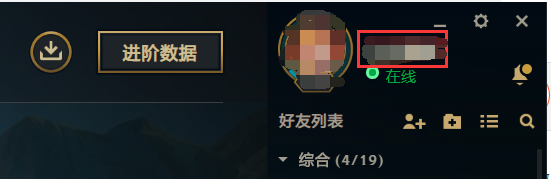

end.jpg是对局完成后，结算界面右上角的你自己的召唤师名字。为什么不使用“再来一局”按钮的截图作为检测图片呢？因为LOL这个客户端结算界面，如果鼠标移动到了好友的头像上面，它的下半部分会卡成黑条，导致我们一直检测不到按钮图片，脚本卡在这里动不了。打个码，免得被封号（手动滑稽）。

正常情况下，石头人打完就能点投降了，也就是3-1回合。这里截3-2回合是因为，3-1回合刚开始有时是不能点投降的，得等到战斗开始一阵后才能点投降的，所以直接采用3-2回合，确保投降能一次点成功。

所以现在流程就变成了这样：检测find_match.jpg图片，如果检测到了，调用hard_click去点击检测到位置的中心。然后一边等待一边检测accept.jpg图片，如果检测到了，点击中心。然后我们需要一边等待，一边检测LOL的游戏进程是不是启动了，同时还要检测accept.jpg这张图片，因为如果有人拒绝了，需要再次点击接受按钮。游戏进程启动后，我们一边等待一边检测1_1.jpg这张图片，检测到后，我们就开始当演员，比如控制鼠标在棋盘上右键随便点几个点，防止被系统认为我们在挂机，然后控制键盘按F给小小英雄升个等级之类的。然后就是一边当演员，一边检测3_2.jpg这张图片，检测到后，直接控制鼠标点小地图上面的设置按钮，然后点“发起投降”，然后点“确认退出”，三连告辞。然后等待游戏进程结束。然后去检测end.jpg，检测到后，直接根据再来一局和LOL客户端的相对位置，直接控制鼠标在那个位置点击（“再来一局”按钮，不管这个按钮是否被黑条挡住了）。然后重复以上流程。

注意：每次点击完按钮后，都需要将鼠标移开到非检测区域，防止影响后面的检测。

流程代码实现

检测和接受对局：

def pg_find_match(lol_hwnd):
    global thread_stage
    thread_stage = ''
    pic_find_match = Image.open(r'scs\find_match.jpg')
    pic_accept = Image.open(r'scs\accept.jpg')

    while True:
        # 点击寻找对局
        box = pg.locateOnScreen(pic_find_match, confidence=0.9)
        if box:
            p = pg.center(box)
            hard_click(p[0], p[1])
            # 将鼠标移动到非检测区域，防止遮挡按钮，影响后面的检测
            move_to_empty_area(lol_hwnd)
        else:
            time.sleep(1)
            continue
        client_title = 'League of Legends (TM) Client'
        # 队列中
        while True:
            # 接受对局
            box3 = pg.locateOnScreen(pic_accept, confidence = 0.9)
            if box3:
                p3 = pg.center(box3)
                hard_click(p3[0], p3[1])
                move_to_empty_area(lol_hwnd)
                time.sleep(5)
            if pg.getWindowsWithTitle(client_title) != []:
                return True
            time.sleep(1)

    return False

等待游戏进程启动和加载界面结束：

def pg_wait_loading(lol_hwnd):
    pic = Image.open(r'scs\1_1.jpg')

    while True:
        # pyautogui 模块检测关卡
        box = pg.locateOnScreen(pic, confidence=0.9)
        if box:
            return True

    return True

在对局内当演员：

def hang_out():
    global box_stage_3_2

    # 在棋盘小范围内随机游荡，防止鼠标指针挡住关卡图片导致检测不到3-2关卡
    x = random.randint(400, 1500)
    y = random.randint(100, 700)

    # 随机点击2-5下鼠标右键
    for i in range(random.randint(2,5)):
        hard_click(x, y, button=pg.RIGHT)
        time.sleep(0.1)

    return True

# 商店5个怪的边框位置（1920x1080分辨率下，其他分辨率情况下需要自己截图计算出大概位置）
champ_box = [
    (480, 930, 670, 1070),
    (680, 930, 870, 1070),
    (880, 930, 1070, 1070),
    (1080, 930, 1270, 1070),
    (1290, 930, 1480, 1070),
]

# 买一个怪
def buy_single_champ(index):
    global champ_box

    if index > 4:
        index = 4
    if index < 0:
        index = 0

    box = champ_box[index]
    center = get_box_center(box)
    hard_click(center[0], center[1], button=pg.LEFT)

    return True

# 刷新商店
def refresh_shop():
    hard_key_write('D')
    return True
# 买经验
def upgrade_champ():
    hard_key_write('F')

# 一边演，一边等待3-2回合
def pg_wait_stage_3_2():
    pic = Image.open(r'scs\3_2.jpg')

    while True:
        # pyautogui 模块检测关卡
        box = pg.locateOnScreen(pic, confidence=0.9)
        if box:
            return True

        case = random.randint(1,100)
        # %40 概率游荡
        if case < 40:
            hang_out()
        case = random.randint(1,100)
        # %30 概率买1个英雄
        if case >= 20 and case < 50:
            buy_single_champ(random.randint(0, 4))

        case = random.randint(1,100)
        # %1 概率刷新商店
        if case == 50:
            refresh_shop()

        case = random.randint(1,100)
        # %10 概率升级
        if case >= 80 and case < 90:
            upgrade_champ()

        time.sleep(2)

三连告辞（投降）：

def get_box_center(box):
    x = int((box[2] - box[0]) / 2) + box[0]
    y = int((box[3] - box[1]) / 2) + box[1]

    return (x, y)


def surrender():
    global box_settings, box_surrender, box_confirm, thread_check_flag
    center = get_box_center(box_settings)
    hard_moveTo(center[0], center[1])  # 点击设置
    time.sleep(0.3)
    hard_click(center[0], center[1])
    # hard_key_write('esc')
    time.sleep(1)
    center = get_box_center(box_surrender)
    hard_moveTo(center[0], center[1])  # 发起投降
    time.sleep(0.3)
    hard_click(center[0], center[1])
    time.sleep(0.5)
    center = get_box_center(box_confirm)
    hard_moveTo(center[0], center[1])  # 确定离开
    time.sleep(0.3)
    hard_click(center[0], center[1])

    thread_check_flag = 0

    return True

注意：LOL的这些按钮，直接hard_click点击按钮，可能不成功，界面不会显示出来。所以先把鼠标移到图标上，稍微延迟一点时间再进行点击，这样确保点击成功。

等待游戏进程结束：

def pg_wait_surrender_finish():
    client_title = 'League of Legends (TM) Client'
    times = 0
    while True:
        time.sleep(1)
        times += 1
        if pg.getWindowsWithTitle(client_title) == []:
            break

        if times % 10 == 0:
            print("pg_wait_surrender_finish %d sec, still wait client over!"%times)

    # 检测结算界面是否打开
    while True:
        pic = Image.open(r'scs\end.jpg')
        box = pg.locateOnScreen(pic, confidence = 0.9)
        if box:
            break

        time.sleep(1)

    return True

再玩一次：

def pg_play_again(lol_hwnd):
    global box_play_again, box_empty_area
    center = convert_lol_to_destop_point(get_box_center(box_play_again), lol_hwnd)
    hard_moveTo(center[0], center[1])
    time.sleep(0.3)
    hard_click(center[0], center[1])  # 点击再玩一次
    move_to_empty_area(lol_hwnd)
    return True

注意：这部分代码有可能出现点击‘再玩一次’按钮失败的情况，然后导致脚本不能正常执行。可以考虑检测是否出现‘寻找对局’按钮来检测是否点击成功：

def pg_play_again(lol_hwnd):
    global box_play_again, box_empty_area
    center = convert_lol_to_destop_point(get_box_center(box_play_again), lol_hwnd)
    hard_moveTo(center[0], center[1])
    time.sleep(0.5)
    hard_click(center[0], center[1])  # 点击再玩一次
    move_to_empty_area(lol_hwnd)

    # 检测寻找对局按钮
    time.sleep(1)
    pic_find_match = Image.open(r'scs\find_match.jpg')
    box = pg.locateOnScreen(pic_find_match)

    while not box:
        hard_moveTo(center[0], center[1])
        time.sleep(0.5)
        hard_click(center[0], center[1])  # 点击再玩一次
        move_to_empty_area(lol_hwnd)

        time.sleep(1)
        box = pg.locateOnScreen(pic_find_match)

    return True

硬件连接

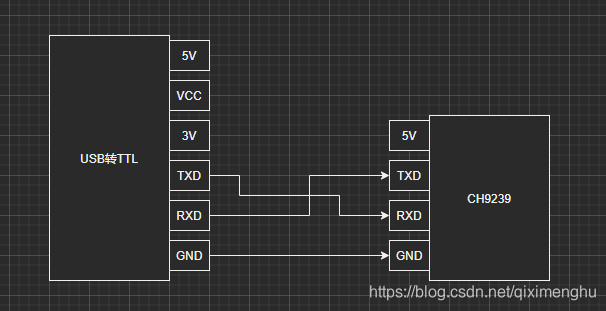

只要电脑上有两个USB口就行，通过杜邦线连接USB转TTL和CH9239模块，如果没有，再买个USB转hub的器件：

完整代码

import time
import pyautogui as pg
from PIL import Image
import serial
import serial.tools.list_ports
import random

mserial = None
AutoPalyFlag = True
# 0:未进入对局 1:第一阶段 2:剩下的阶段

# 设置 图标 box
box_settings = (1890, 870, 1920, 900)
# 发起投降 按钮 box
box_surrender = (700, 820, 840, 860)
# 确认投降 按钮 box
box_confirm = (720, 460, 940, 520)
# 空白区域
box_empty_area = (700, 0, 800, 10)
# 再玩一次
box_play_again = (530, 830, 780, 880)

# 商店5个怪的box
champ_box = [
    (480, 930, 670, 1070),
    (680, 930, 870, 1070),
    (880, 930, 1070, 1070),
    (1080, 930, 1270, 1070),
    (1290, 930, 1480, 1070),
]

# ch9329 键值对
key_map = {
    'A': 0x4,
    'D': 0x7,
    'F': 0x9,
    'ESC':0x29,
}
# ch9329 控制键offset
control_key_map = {
    'ctrl': 0,
    'shift': 1,
    'alt': 2,
    'win': 3,
}

def get_button_val(button):
    if button == pg.LEFT:
        return 0
    if button == pg.RIGHT:
        return 1
    if button == pg.MIDDLE:
        return 2

def hard_click(x, y, clicks=1, interval=0.0, button=pg.LEFT, duration=0.0):
    global mserial
    nx = int(x * 4096 / 1920)
    ny = int(y * 4096 / 1080)
    # 鼠标绝对坐标命令
    cmd = [0x57, 0xAB, 0x00, 0x04, 0x07, 0x02]
    button_val = 1 << get_button_val(button)
    low_x = nx & 0xFF
    high_x = (nx >> 8) & 0xFF
    low_y = ny & 0xFF
    high_y = (ny >> 8) & 0xFF
    scroll = 0x00
    data = [button_val, low_x, high_x, low_y, high_y, scroll]
    sum_val = (sum(cmd) + sum(data)) & 0xFF
    data.append(sum_val)
    # 按下
    press = cmd + data
    # 释放
    release = press.copy()
    release[6] = 0x0
    sum_val = sum(release[:-1]) & 0xFF
    release[len(release) - 1] = sum_val

    while clicks > 0:
        # 移动并按下键
        mserial.write(bytes(press))
        # 延时50ms
        time.sleep(50 / 1000)
        # mserial.readall()
        # 释放键
        mserial.write(bytes(release))
        time.sleep(50 / 1000)
        # mserial.readall()
        clicks -= 1
        if clicks > 0:
            time.sleep(interval)

    mserial.flushInput()

    return True

def hard_moveTo(x, y):
    global mserial
    nx = int(x * 4096 / 1920)
    ny = int(y * 4096 / 1080)

    # 鼠标绝对坐标命令
    cmd = [0x57, 0xAB, 0x00, 0x04, 0x07, 0x02]
    button_val = 0
    low_x = nx & 0xFF
    high_x = (nx >> 8) & 0xFF
    low_y = ny & 0xFF
    high_y = (ny >> 8) & 0xFF
    scroll = 0x00
    data = [button_val, low_x, high_x, low_y, high_y, scroll]
    sum_val = (sum(cmd) + sum(data)) & 0xFF
    data.append(sum_val)

    cmd_move = cmd + data
    mserial.write(bytes(cmd_move))
    mserial.flushInput()

    return True

def hard_key_write(keys):
    global key_map, control_key_map
    l_keys = keys.split('+')
    v = []
    c = []
    for k in l_keys:
        k = k.upper()
        if k in key_map:
            v.append(key_map[k])
        if k in control_key_map:
            c.append(control_key_map[k])

    cmd = [0x57, 0xab, 0x00, 0x02, 0x08]
    data = []
    ctl_byte = 0x0
    for i in c:
        ctl_byte += 1 << i
    data.append(ctl_byte)   # 1
    data.append(0x00)       # 2
    data += v[:6]            # 3-8
    data += [0] * (8 - len(data))

    press = cmd + data
    press.append(sum(press) & 0xFF)

    release = [0x57, 0xab, 0x00, 0x02, 0x08] + [0x00] * 8 + [0x0c]

    mserial.write(bytes(press))
    # 延时50ms
    time.sleep(50 / 1000)
    # 释放键
    mserial.write(bytes(release))
    time.sleep(50 / 1000)

    mserial.flushInput()

    return True

def hang_out():
    # 在棋盘小范围内随机游荡，防止鼠标指针挡住关卡图片导致检测不到3-2关卡
    x = random.randint(400, 1500)
    y = random.randint(100, 700)

    # 随机点击2-5下鼠标右键
    for i in range(random.randint(2,5)):
        hard_click(x, y, button=pg.RIGHT)
        time.sleep(0.1)

    return True

# 买一个怪
def buy_single_champ(index):
    global champ_box

    if index > 4:
        index = 4
    if index < 0:
        index = 0

    box = champ_box[index]
    center = get_box_center(box)
    hard_click(center[0], center[1], button=pg.LEFT)

    return True

# 刷新商店
def refresh_shop():
    hard_key_write('D')
    return True

# 提升等级
def upgrade_champ():
    hard_key_write('F')
    return True

def get_lol_hwnd():
    title = 'League of Legends'
    w = pg.getWindowsWithTitle(title)
    for i in w:
        if i.title == title:
            w = i
            break

    return w

def get_available_serial():
    l = list(serial.tools.list_ports.comports())
    if len(l) < 1:
        return False
    port_list = list(l[0])
    port = port_list[0]
    return port

def open_serial():
    global mserial
    port = get_available_serial()
    if not port:
        return False
    # mserial = serial.Serial("COM3", 115200, timeout=1)
    mserial = serial.Serial(port, 115200, timeout=1)
    return True

def get_box_center(box):
    x = int((box[2] - box[0]) / 2) + box[0]
    y = int((box[3] - box[1]) / 2) + box[1]

    return (x, y)

def move_to_empty_area(lol_hwnd):
    global  box_empty_area

    center = convert_lol_to_destop_point(get_box_center(box_empty_area), lol_hwnd)
    hard_moveTo(center[0], center[1])

    return True

# 将LOL客户端相对坐标根据LOL客户端位置转换为实际桌面的绝对坐标
def convert_lol_to_destop_point(p, lol_hwnd):
    x = lol_hwnd.topleft[0] + p[0]
    y = lol_hwnd.topleft[1] + p[1]

    return (x, y)

def surrender():
    global box_settings, box_surrender, box_confirm
    center = get_box_center(box_settings)
    hard_moveTo(center[0], center[1])  # 点击设置
    time.sleep(0.3)
    hard_click(center[0], center[1])
    # hard_key_write('esc')
    time.sleep(1)
    center = get_box_center(box_surrender)
    hard_moveTo(center[0], center[1])  # 发起投降
    time.sleep(0.3)
    hard_click(center[0], center[1])
    time.sleep(0.5)
    center = get_box_center(box_confirm)
    hard_moveTo(center[0], center[1])  # 确定离开
    time.sleep(0.3)
    hard_click(center[0], center[1])

    return True

# 寻找对局 -> 队列中 -> 接受 -> 开始加载
# 寻找对局 -> 队列中 -> 接受 -> 有人拒绝 -> 队列中
def pg_find_match(lol_hwnd):
    pic_find_match = Image.open(r'scs\find_match.jpg')
    pic_accept = Image.open(r'scs\accept.jpg')

    while True:
        # 点击寻找对局
        box = pg.locateOnScreen(pic_find_match, confidence=0.9)
        if box:
            p = pg.center(box)
            hard_click(p[0], p[1])
            move_to_empty_area(lol_hwnd)
        else:
            time.sleep(1)
            continue
        client_title = 'League of Legends (TM) Client'
        # 队列中
        while True:
            # 接受对局
            box3 = pg.locateOnScreen(pic_accept, confidence = 0.9)
            if box3:
                p3 = pg.center(box3)
                hard_click(p3[0], p3[1])
                move_to_empty_area(lol_hwnd)
                time.sleep(5)
            if pg.getWindowsWithTitle(client_title) != []:
                return True
            time.sleep(1)

    return False

def pg_wait_loading(lol_hwnd):
    pic = Image.open(r'scs\1_1.jpg')

    while True:
        # pyautogui 模块检测关卡
        box = pg.locateOnScreen(pic, confidence=0.9)
        if box:
            return True
        time.sleep(2)
    return True

def pg_wait_stage_3_2():
    pic = Image.open(r'scs\3_2.jpg')

    while True:
        # pyautogui 模块检测关卡
        box = pg.locateOnScreen(pic, confidence=0.9)
        if box:
            return True

        case = random.randint(1,100)
        # %40 概率游荡
        if case < 40:
            hang_out()
        case = random.randint(1,100)
        # %30 概率买1个英雄
        if case >= 20 and case < 50:
            buy_single_champ(random.randint(0, 4))

        case = random.randint(1,100)
        # %1 概率刷新商店
        if case == 50:
            refresh_shop()

        case = random.randint(1,100)
        # %10 概率升级
        if case >= 80 and case < 90:
            upgrade_champ()

        time.sleep(2)

def pg_wait_surrender_finish():
    client_title = 'League of Legends (TM) Client'
    times = 0
    while True:
        time.sleep(1)
        times += 1
        if pg.getWindowsWithTitle(client_title) == []:
            break

        if times % 10 == 0:
            print("pg_wait_surrender_finish %d sec, still wait client over!"%times)

    # 检测结算界面是否打开
    while True:
        pic = Image.open(r'scs\end.jpg')
        box = pg.locateOnScreen(pic, confidence = 0.9)
        if box:
            break

        time.sleep(1)

    return True

def pg_play_again(lol_hwnd):
    global box_play_again, box_empty_area
    center = convert_lol_to_destop_point(get_box_center(box_play_again), lol_hwnd)
    hard_moveTo(center[0], center[1])
    time.sleep(0.5)
    hard_click(center[0], center[1])  # 点击再玩一次
    move_to_empty_area(lol_hwnd)

    # 检测寻找对局按钮
    time.sleep(1)
    pic_find_match = Image.open(r'scs\find_match.jpg')
    box = pg.locateOnScreen(pic_find_match)

    # 未找到，就重新点击再来一局按钮，然后继续找
    while not box:
        hard_moveTo(center[0], center[1])
        time.sleep(0.5)
        hard_click(center[0], center[1])  # 点击再玩一次
        move_to_empty_area(lol_hwnd)

        time.sleep(1)
        box = pg.locateOnScreen(pic_find_match)

    return True

def pg_main():
    global mserial, AutoPalyFlag

    open_serial()

    w = get_lol_hwnd()

    while AutoPalyFlag:
        print("[%s] pg_find_match"%time.asctime())
        pg_find_match(w)
        print("[%s] pg_wait_loading"%time.asctime())
        pg_wait_loading(w)
        print("[%s] pg_wait_stage_3_2"%time.asctime())
        pg_wait_stage_3_2()
        print("[%s] surrender"%time.asctime())
        surrender()
        print("[%s] pg_wait_surrender_finish"%time.asctime())
        pg_wait_surrender_finish()
        print("[%s] pg_play_again"%time.asctime())
        pg_play_again(w)

    mserial.close()
    print('Over')

    return True

if __name__ == '__main__':
    pg_main()

注意：其中的坐标都是LOL客户端分辨率1600x900，LOL游戏分辨率1980x1080时测试得到的，如果你的电脑设置了不同的分辨率，需要重新截图计算实际的坐标。

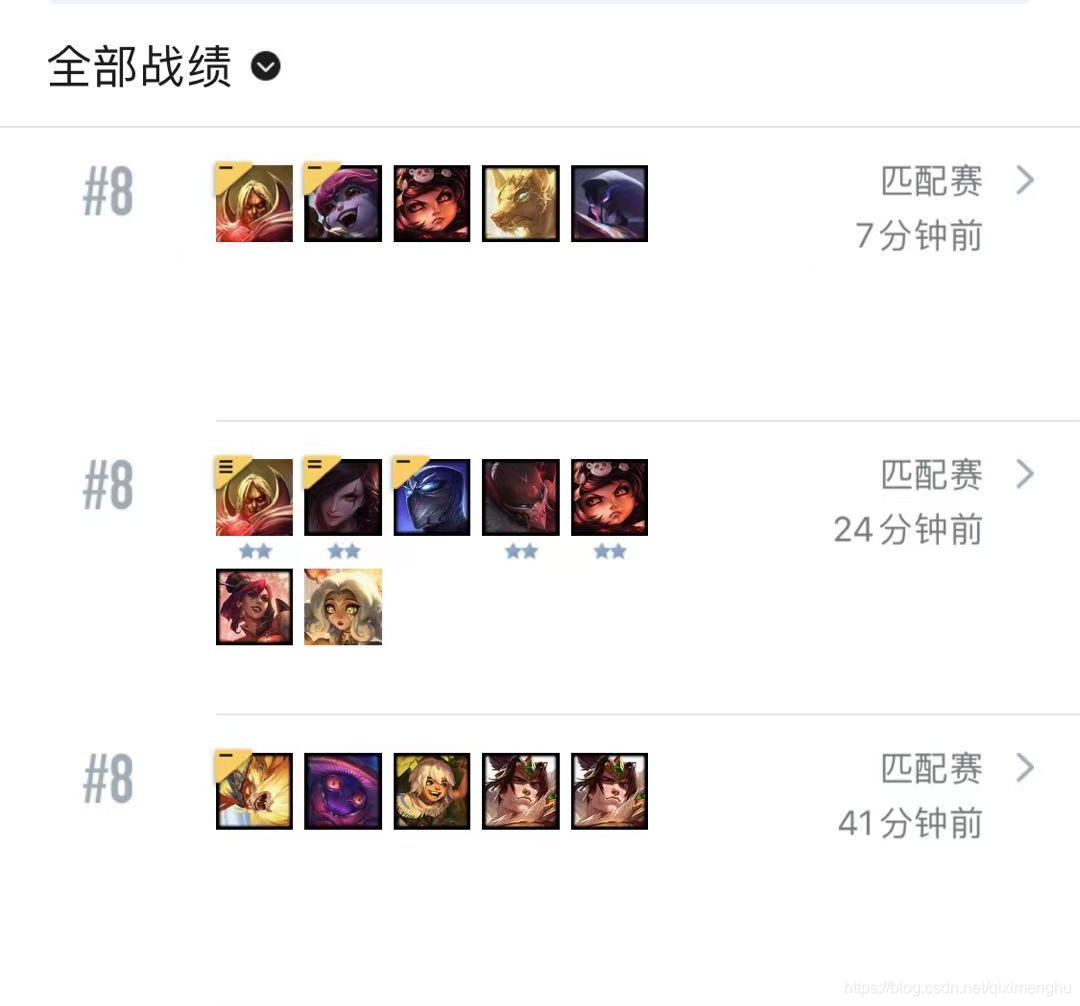

实际效果

基本15分钟左右一把，一小时能刷4把，24x4 = 96把，一把两个币，一天192个币。护肝。
