Android自定义圆形进度表

很早之前项目中需要展示进度管理做的，今天总结一下。为后面更复杂的自定义view打下基础。

功能很简单，但是里面涉及了两个自定义控件很重要的两个方法 onMeasure 和 onDraw，用来确定控件的大小和内容

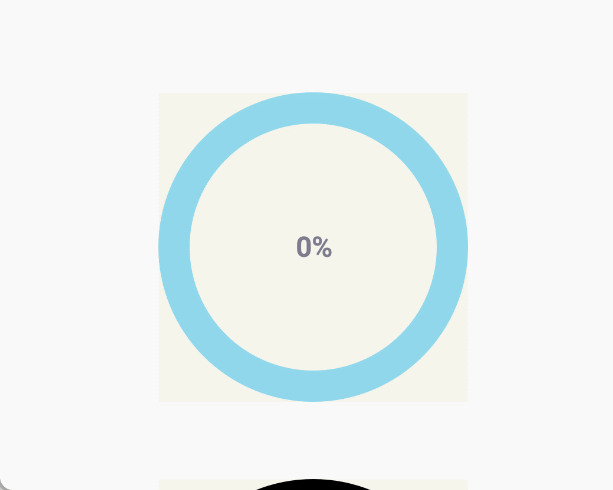

话不多说先看效果

自定义view 大体分为三类：

1. 直接继承View

2. 继承ViewGroup

3. 继承原有控件

根据项目需求选择最优的实现方式。

因为当前的view是一个圆形进度图所以它的宽高是固定并且相等的，重写onMeasure设置当前view的大小

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);
        setMeasuredDimension(Math.min(width,height),Math.min(width,height));
    }

当前控件选择继承view来实现。可以看到当前view可以分三个部分 外圈弧、内圈弧、进度文字。根据这三个部分一步步去实现。

首先绘制外弧背景 角度为0到360度

   //画背景弧
   canvas.drawArc(left, top,right, bottom, 0,
      360, false, backProgressPaint);

画内弧 -90为圆弧绘制的开始角度，因为内弧的角度和进度有关，所以我们可以定义一个变量sweepAngle 在变化时去进行重绘

 //进度弧
   canvas.drawArc(left, top,right, bottom, -90,
      sweepAngle, false, progressPaint);

画进度文字，使用canvas绘制文字的时候需要去计算当前文字的基线才能使文字居中

  Rect rect = new Rect();
  textPaint.getTextBounds(mProgress,0,mProgress.length(),rect);
  float dx = getWidth()/2-rect.width()/2;
// 获取基线
  Paint.FontMetrics fontMetrics = textPaint.getFontMetrics();
  int dy = (int) ((fontMetrics.bottom - fontMetrics.top) / 2 - fontMetrics.bottom);
  int baseLine = getHeight() / 2 + dy;

   canvas.drawText(mProgress,dx, baseLine,textPaint);

绘制已经完成了，想要动起来需要添加数值动画，监听回调并调用invalidate方法进行重绘操作

 private void startAnimator(){
        //当前数值变化从0到1
        valueAnimator = ValueAnimator.ofFloat(1);
        valueAnimator.setDuration(4000);
        valueAnimator.setInterpolator(new DecelerateInterpolator());
        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                float animationValue = (float) animation.getAnimatedValue();
                Log.d(TAG, "onAnimationUpdate: "+animationValue);
                sweepAngle = (int) (360 * animationValue);
                mProgress =  (int) (animationValue * 100) + "%";
                //进行重绘
                invalidate();
            }
        });
        valueAnimator.start();
    }

完整代码如下：

public class CircularProgress extends View{

    private static final String TAG = "CircularProgress";

    // 文字画笔
    Paint textPaint;
    // 弧形背景画笔
    Paint backProgressPaint;
    // 弧形进度画笔
    Paint progressPaint;
    //进度
    String mProgress = "0%";

    int textColor = R.color.color_009ad6;

    int backProgressColor = R.color.color_90d7ec;

    int progressColor = R.color.color_009ad6;

    //圆弧的宽度
    float progressWidgt = UtilView.dip2px(20);

    Context mContext;

    int sweepAngle = 0;

    ValueAnimator valueAnimator = null;

    public CircularProgress(Context context) {
        this(context,null);
    }

    public CircularProgress(Context context, @Nullable AttributeSet attrs) {
        this(context, attrs,0);
    }

    public CircularProgress(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
        this.mContext = context;
        textPaint = initPaint(textColor);
        textPaint.setTextSize(UtilView.sp2px(18));
        textPaint.setTypeface(Typeface.DEFAULT_BOLD);

        backProgressPaint = initPaint(backProgressColor);
        backProgressPaint.setStrokeWidth(progressWidgt);
        backProgressPaint.setStyle(Paint.Style.STROKE);
        backProgressPaint.setColor(Color.parseColor("#90d7ec"));

        progressPaint = initPaint(progressColor);
        progressPaint.setStrokeWidth(progressWidgt);
        progressPaint.setStyle(Paint.Style.STROKE);
        progressPaint.setColor(Color.parseColor("#009ad6"));
        progressPaint.setStrokeCap(Paint.Cap.ROUND);
    }

    private Paint initPaint(int color) {
        Paint paint = new Paint();
        paint.setAntiAlias(true);
        paint.setColor(color);
        return paint;
    }

    @Override
    protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
        super.onMeasure(widthMeasureSpec, heightMeasureSpec);
        int width = MeasureSpec.getSize(widthMeasureSpec);
        int height = MeasureSpec.getSize(heightMeasureSpec);
        setMeasuredDimension(Math.min(width,height),Math.min(width,height));
    }

    @Override
    protected void onDraw(Canvas canvas) {
        super.onDraw(canvas);


        float left = 0 + progressWidgt / 2;
        float top = 0 + progressWidgt / 2;
        float right = getWidth() - progressWidgt / 2;
        float bottom = getHeight() - progressWidgt / 2;
        //画背景弧
        canvas.drawArc(left, top,right, bottom, 0,
        360, false, backProgressPaint);

        //进度弧
        canvas.drawArc(left, top,right, bottom, -90,
                sweepAngle, false, progressPaint);

        Rect rect = new Rect();
        textPaint.getTextBounds(mProgress,0,mProgress.length(),rect);
        float dx = getWidth()/2-rect.width()/2;
        // 获取基线
        Paint.FontMetrics fontMetrics = textPaint.getFontMetrics();
        int dy = (int) ((fontMetrics.bottom - fontMetrics.top) / 2 - fontMetrics.bottom);
        int baseLine = getHeight() / 2 + dy;

        canvas.drawText(mProgress,dx, baseLine,textPaint);


    }


    public void setStateProgress(){
        startAnimator();
    }

    private void startAnimator(){
        valueAnimator = ValueAnimator.ofFloat(1);
        valueAnimator.setDuration(4000);
        valueAnimator.setInterpolator(new DecelerateInterpolator());
        valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
            @Override
            public void onAnimationUpdate(ValueAnimator animation) {
                float animationValue = (float) animation.getAnimatedValue();
                Log.d(TAG, "onAnimationUpdate: "+animationValue);
                sweepAngle = (int) (360 * animationValue);
                mProgress =  (int) (animationValue * 100) + "%";
                invalidate();
            }
        });
        valueAnimator.start();
    }

    public void stopAnimator(){
        if(valueAnimator != null){
            valueAnimator.cancel();
            valueAnimator = null;
        }
    }

}
