蚂蚁S9矿板引脚定义

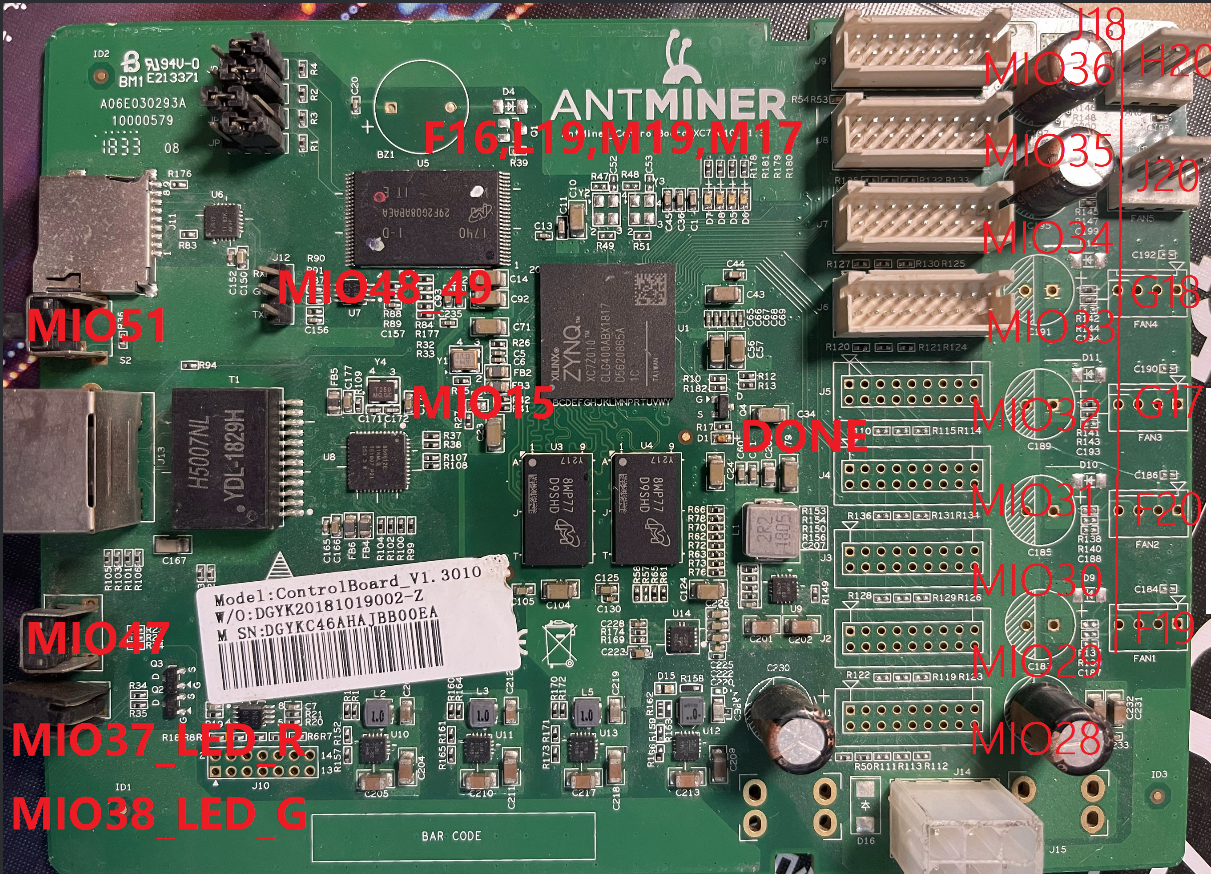

PCB

引脚定义

	EN	PLUG	RST	TXD	RXD	SCL	SDA
J9	MIO36	R16	R17	T17	R18	N17	P18
J8	MIO35	Y18	Y19	V16	W16	W18	W19
J7	MIO34	T20	U20	V20	W20	W18	W19
J6	MIO33	U14	U15	U18	U19	W18	W19
J5	MIO32	T16	U17	V15	W15	W18	W19
J4	MIO31	Y16	Y17	W14	Y14	W18	W19
J3	MIO30	T14	T15	P14	R14	W18	W19
J2	MIO29	R19	V13	V12	W13	W18	W19
J1	MIO28	T11	T10	T12	U12	W18	W19
S1	MIO47		D3_RED	MIO37		FAN1	F19
S2	MIO51		D3_GREEN	MIO38		FAN2	F20
			D2	MIO15		FAN3	G17
			D5	M19		FAN4	G18
			D6	M17		FAN5	J20(AD5P)
			D7	F16		FAN6	H20(AD5N)
			D8	L19		FAN_PWM	J18(AD4P)

顶层引脚

module PL_TOP(
    input  i_clk,
    input  i_rst_n,
    input [5:0] PL_FAN_SPEED,
    output [8:0] PL_J_PLUG,
    output [8:0] PL_J_RST,
    output [8:0] PL_J_TXD,
    output [8:0] PL_J_RXD,
    output [1:0] PL_J_SCL,
    output [1:0] PL_J_SDA,
    output  PL_FAN_PWM,
    output  PL_D5,
    output  PL_D6,
    output  PL_D7,
    output  PL_D8
);

assign  PL_J_PLUG =  {8{1'b1}};
assign  PL_J_RST = {8{1'b1}};
assign  PL_J_TXD =  {8{1'b1}};
assign  PL_J_RXD =  {8{1'b1}};
assign  PL_J_SCL = {0,0};
assign  PL_J_SDA = {0,0};
assign  PL_D5 = 1;
assign  PL_D6 = 1;
assign  PL_D7 = 1;
assign  PL_D8 =1;
endmodule

system.xdc

set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[8]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[7]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[6]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RST[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[8]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[7]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[6]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_PLUG[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[8]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[7]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[6]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_RXD[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_SCL[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_SCL[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_SDA[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_SDA[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[8]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[7]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[6]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_J_TXD[0]}]
set_property PACKAGE_PIN U20 [get_ports {PL_J_RST[6]}]
set_property PACKAGE_PIN Y19 [get_ports {PL_J_RST[7]}]
set_property PACKAGE_PIN R17 [get_ports {PL_J_RST[8]}]
set_property PACKAGE_PIN T11 [get_ports {PL_J_PLUG[0]}]
set_property IOSTANDARD LVCMOS33 [get_ports PL_D5]
set_property IOSTANDARD LVCMOS33 [get_ports PL_D6]
set_property IOSTANDARD LVCMOS33 [get_ports PL_D7]
set_property IOSTANDARD LVCMOS33 [get_ports PL_D8]
set_property PACKAGE_PIN V13 [get_ports {PL_J_RST[1]}]
set_property PACKAGE_PIN T15 [get_ports {PL_J_RST[2]}]
set_property PACKAGE_PIN Y17 [get_ports {PL_J_RST[3]}]
set_property PACKAGE_PIN U17 [get_ports {PL_J_RST[4]}]
set_property PACKAGE_PIN U15 [get_ports {PL_J_RST[5]}]
set_property PACKAGE_PIN R19 [get_ports {PL_J_PLUG[1]}]
set_property PACKAGE_PIN T14 [get_ports {PL_J_PLUG[2]}]
set_property PACKAGE_PIN Y16 [get_ports {PL_J_PLUG[3]}]
set_property PACKAGE_PIN T16 [get_ports {PL_J_PLUG[4]}]
set_property PACKAGE_PIN U14 [get_ports {PL_J_PLUG[5]}]
set_property PACKAGE_PIN T20 [get_ports {PL_J_PLUG[6]}]
set_property PACKAGE_PIN Y18 [get_ports {PL_J_PLUG[7]}]
set_property PACKAGE_PIN R16 [get_ports {PL_J_PLUG[8]}]
set_property PACKAGE_PIN U12 [get_ports {PL_J_RXD[0]}]
set_property PACKAGE_PIN W13 [get_ports {PL_J_RXD[1]}]
set_property PACKAGE_PIN R14 [get_ports {PL_J_RXD[2]}]
set_property PACKAGE_PIN Y14 [get_ports {PL_J_RXD[3]}]
set_property PACKAGE_PIN W15 [get_ports {PL_J_RXD[4]}]
set_property PACKAGE_PIN U19 [get_ports {PL_J_RXD[5]}]
set_property PACKAGE_PIN W20 [get_ports {PL_J_RXD[6]}]
set_property PACKAGE_PIN W16 [get_ports {PL_J_RXD[7]}]
set_property PACKAGE_PIN R18 [get_ports {PL_J_RXD[8]}]
set_property PACKAGE_PIN V12 [get_ports {PL_J_TXD[1]}]
set_property PACKAGE_PIN P14 [get_ports {PL_J_TXD[2]}]
set_property PACKAGE_PIN W14 [get_ports {PL_J_TXD[3]}]
set_property PACKAGE_PIN V15 [get_ports {PL_J_TXD[4]}]
set_property PACKAGE_PIN U18 [get_ports {PL_J_TXD[5]}]
set_property PACKAGE_PIN V20 [get_ports {PL_J_TXD[6]}]
set_property PACKAGE_PIN V16 [get_ports {PL_J_TXD[7]}]
set_property PACKAGE_PIN T17 [get_ports {PL_J_TXD[8]}]
set_property PACKAGE_PIN W18 [get_ports {PL_J_SCL[0]}]
set_property PACKAGE_PIN W19 [get_ports {PL_J_SDA[0]}]
set_property PACKAGE_PIN N17 [get_ports {PL_J_SCL[1]}]
set_property PACKAGE_PIN P18 [get_ports {PL_J_SDA[1]}]
set_property PACKAGE_PIN M19 [get_ports PL_D5]
set_property PACKAGE_PIN M17 [get_ports PL_D6]
set_property PACKAGE_PIN F16 [get_ports PL_D7]
set_property PACKAGE_PIN L19 [get_ports PL_D8]
set_property PACKAGE_PIN T12 [get_ports {PL_J_TXD[0]}]
set_property PACKAGE_PIN T10 [get_ports {PL_J_RST[0]}]

set_property PACKAGE_PIN F19 [get_ports {PL_FAN_SPEED[0]}]
set_property PACKAGE_PIN F20 [get_ports {PL_FAN_SPEED[1]}]
set_property PACKAGE_PIN G17 [get_ports {PL_FAN_SPEED[2]}]
set_property PACKAGE_PIN G18 [get_ports {PL_FAN_SPEED[3]}]
set_property PACKAGE_PIN J20 [get_ports {PL_FAN_SPEED[4]}]
set_property PACKAGE_PIN H20 [get_ports {PL_FAN_SPEED[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[5]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[4]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[3]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[2]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[1]}]
set_property IOSTANDARD LVCMOS33 [get_ports {PL_FAN_SPEED[0]}]
set_property PACKAGE_PIN J18 [get_ports PL_FAN_PWM]
set_property IOSTANDARD LVCMOS33 [get_ports PL_FAN_PWM]
