开源项目-V部落
github -- https://github.com/lenve/VBlog
一、前期工作(此处只是展示如何开启前后端工程):
1. IDEA创建Springboot工程
工程名:v-springboot
2. VSCode创建Vue-cli3工程
1) node.js安装
2) 安装vue-cli3脚手架
- npm install -g @vue/cli
3) 安装vue-cli服务
- npm install -g @vue/cli-service-global
4) 创建v-vue工程
- vue create my-project
- 若出现错误:管理员运行powershell并设置set-ExecutionPolicy RemoteSigned为true
二、登录模块
1. 前端工作流程
启动前端和后端,前端初始化地址:
http://localhost:8080/
首先看前端的路由地址,位于router(对用的插件--vue-router)下的index.js:
{
path: '/',
name: '登录',
hidden: true,
component: Login
}

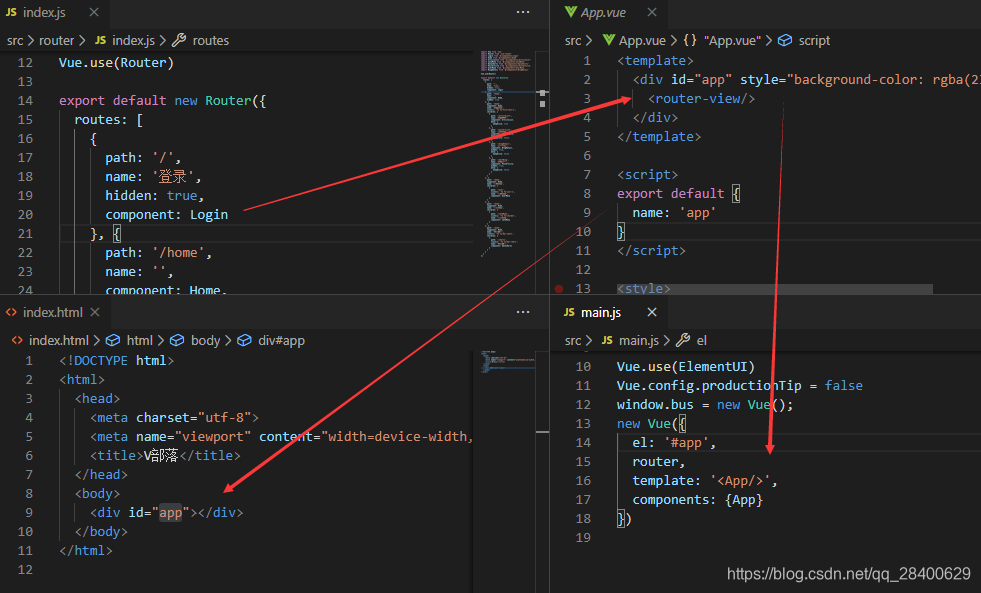

前端是如何先到登录的这个路由的呢?如下图:
1) 前端命令
npm run dev
对应的脚本命令
"dev": "webpack-dev-server --inline --progress --config build/webpack.dev.conf.js",
因此对应的基本配置为:
build/webpack.dev.conf.js
看此具体配置
'use strict'
const utils = require('./utils')
const webpack = require('webpack')
const config = require('../config')
const merge = require('webpack-merge') // 合并配置的
// dev和pro通用的配置
// 1. entry: 入口,此处指定了这个程序的启动入口:./src/main.js
// 2. output: 出口,根路径下的index.js
// 3. resolve: 配置 Webpack 如何寻找模块所对应的文件,文件拓展后缀
// 4. module: 模块系统,rules:一些资源匹配的必要规则
const baseWebpackConfig = require('./webpack.base.conf')
const HtmlWebpackPlugin = require('html-webpack-plugin')
const FriendlyErrorsPlugin = require('friendly-errors-webpack-plugin')
const portfinder = require('portfinder')
// 根据 process.env.HOST 的值判断当前是什么环境
// 命令:npm run build -- test ,process.env.HOST就设置为:'test'
const HOST = process.env.HOST
// 端口号
const PORT = process.env.PORT && Number(process.env.PORT)
// 开发环境的基本配置
const devWebpackConfig = merge(baseWebpackConfig, {
module: {
// 新增的css匹配规则
rules: utils.styleLoaders({ sourceMap: config.dev.cssSourceMap, usePostCSS: true })
},
// cheap-module-eval-source-map is faster for development
// 跨域的一些配置
devtool: config.dev.devtool,
// these devServer options should be customized in /config/index.js
devServer: {
clientLogLevel: 'warning',
historyApiFallback: true,
hot: true,
compress: true,
host: HOST || config.dev.host,
port: PORT || config.dev.port,
open: config.dev.autoOpenBrowser,
overlay: config.dev.errorOverlay
? { warnings: false, errors: true }
: false,
publicPath: config.dev.assetsPublicPath,
proxy: config.dev.proxyTable,
quiet: true, // necessary for FriendlyErrorsPlugin
watchOptions: {
poll: config.dev.poll,
}
},
plugins: [
// 设置环境变量插件,主要是dev和pro的切换
new webpack.DefinePlugin({
'process.env': require('../config/dev.env')
}),
// 热更新插件
new webpack.HotModuleReplacementPlugin(),
// HMR shows correct file names in console on update.
new webpack.NamedModulesPlugin(),
// 在编译出现错误时,使用 NoEmitOnErrorsPlugin 来跳过输出阶段。这样可以确保输出资源不会包含错误
new webpack.NoEmitOnErrorsPlugin(),
// https://github.com/ampedandwired/html-webpack-plugin
// 可以生成创建html入口文件
new HtmlWebpackPlugin({
filename: 'index.html',
template: 'index.html',
inject: true
}),
]
})
// Promise解决回调地狱问题
module.exports = new Promise((resolve, reject) => {
portfinder.basePort = process.env.PORT || config.dev.port
portfinder.getPort((err, port) => {
if (err) {
reject(err)
} else {
// publish the new Port, necessary for e2e tests
process.env.PORT = port
// add port to devServer config
devWebpackConfig.devServer.port = port
// Add FriendlyErrorsPlugin
// 识别某些类别的webpack错误,并清理,聚合和优先级
devWebpackConfig.plugins.push(new FriendlyErrorsPlugin({
compilationSuccessInfo: {
messages: [`Your application is running here: http://${devWebpackConfig.devServer.host}:${port}`],
},
onErrors: config.dev.notifyOnErrors
? utils.createNotifierCallback()
: undefined
}))
resolve(devWebpackConfig)
}
})
})
2) 前端登录模块发出请求,后端才会根据请求地址传回数据
Login.vue:使用element-ui模板进行登录页面的开发
axios:Axios 是一个基于 promise 的 HTTP 库,可以用在浏览器和 node.js 中
在./utils/api.js定义Restful请求处理规则:get、post、delete、put
methods: {
submitClick: function () {
var _this = this;
this.loading = true;
postRequest('/login', {
username: this.loginForm.username,
password: this.loginForm.password
}).then(resp=> {
_this.loading = false;
if (resp.status == 200) {
//成功
var json = resp.data;
if (json.status == 'success') {
_this.$router.replace({path: '/home'});
} else {
_this.$alert('登录失败!', '失败!');
}
} else {
//失败
_this.$alert('登录失败!', '失败!');
}
}, resp=> {
_this.loading = false;
_this.$alert('找不到服务器⊙﹏⊙∥!', '失败!');
});
}
}
2. 后端接受请求进行处理并返回数据
前端输出用户名与密码后,请求地址:localhost:8081/login
先认识一下springboot中的websecurityconfig中的formLogin配置
@Configuration
public class SecurityConfig extends WebSecurityConfigurerAdapter {
@Override
protected void configure(HttpSecurity http) throws Exception {
http.csrf().disable() //禁用跨站csrf攻击防御,后面的章节会专门讲解
.formLogin()
.loginPage("/login.html")//用户未登录时,访问任何资源都转跳到该路径,即登录页面
.loginProcessingUrl("/login")//登录表单form中action的地址,也就是处理认证请求的路径
.usernameParameter("uname")///登录表单form中用户名输入框input的name名,不修改的话默认是username
.passwordParameter("pword")//form中密码输入框input的name名,不修改的话默认是password
.defaultSuccessUrl("/index")//登录认证成功后默认转跳的路径
.and()
.authorizeRequests()
.antMatchers("/login.html","/login").permitAll()//不需要通过登录验证就可以被访问的资源路径
.antMatchers("/biz1").hasAnyAuthority("biz1") //前面是资源的访问路径、后面是资源的名称或者叫资源ID
.antMatchers("/biz2").hasAnyAuthority("biz2")
.antMatchers("/syslog").hasAnyAuthority("syslog")
.antMatchers("/sysuser"
