QT基础 QChart绘制折线

已于 2023-10-18 15:45:40 修改
阅读量1.1k 收藏 2
点赞数
分类专栏： QT基础 文章标签： qt
于 2023-10-11 17:42:54 首次发布
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。
本文链接：https://blog.csdn.net/qq_31565379/article/details/133774136
版权

目录

1.简单折线

2.数学折线

3.可滑动折线

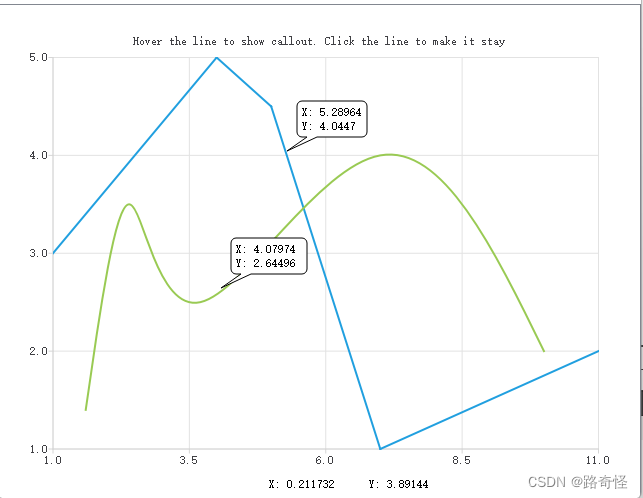

4.具有tip的折线

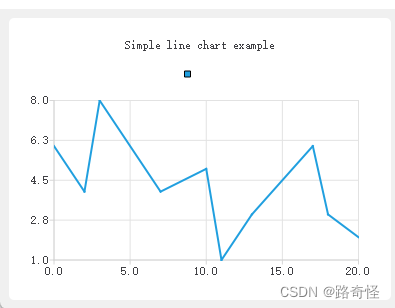

1.简单折线

//![1]
//! 折现段坐标
    QLineSeries *series = new QLineSeries();
//![1]

//![2]
//! 添加点
    series->append(0, 6);
    series->append(2, 4);
    series->append(3, 8);
    series->append(7, 4);
    series->append(10, 5);
    *series << QPointF(11, 1) << QPointF(13, 3) << QPointF(17, 6) << QPointF(18, 3) << QPointF(20, 2);
//![2]

//![3]
    QChart *chart = new QChart();
    chart->legend()->hide();
    chart->addSeries(series);
    //根据已添加到图表中的系列为图表创建轴。以前添加到图表中的任何轴都将被删除
    chart->createDefaultAxes();
    chart->setTitle("Simple line chart example");
//![3]

//![4]
    QChartView *chartView = new QChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);
//![4]

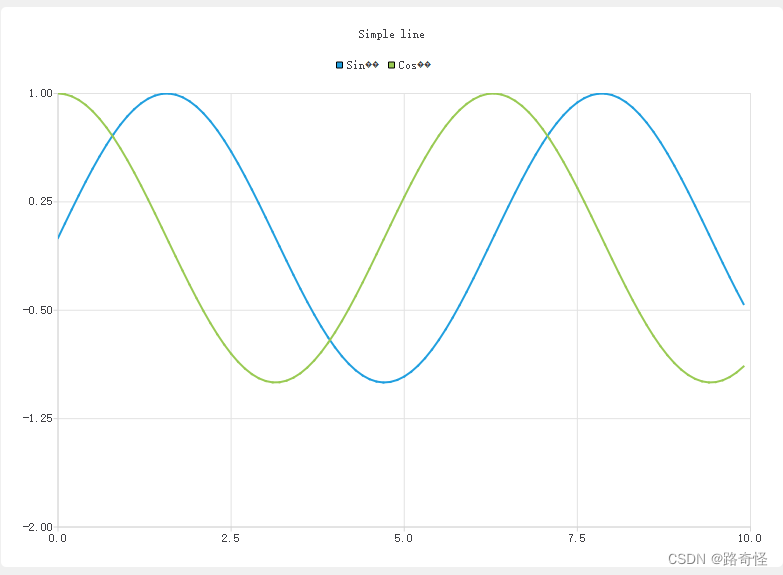

2.数学折线

 QChartView* cview = new QChartView(this);
    cview->setRenderHints(QPainter::Antialiasing);
    QChart* chart = new QChart();
    chart->setTitle("Simple line");

    cview->setChart(chart);
    setCentralWidget(cview);

    QLineSeries* seriesS = new QLineSeries;
    QLineSeries* seriesC = new QLineSeries;
    seriesS->setName("Sinθ");
    seriesC->setName("Cosθ");
    chart->addSeries(seriesS);
    chart->addSeries(seriesC);

    //添加数据绘制
   qreal y0,y1,t=0,intv=0.1;
   size_t count=100;
   for (size_t i=0;i<count;i++)
   {
       y0 = qSin(t);
       y1 = qCos(t);
       seriesS->append(t,y0);
       seriesC->append(t,y1);
       t += intv;
   }

   QValueAxis* axixX = new QValueAxis;
   axixX->setRange(0,10);
   chart->setAxisX(axixX,seriesS);
   chart->setAxisX(axixX,seriesC);

   QValueAxis* axixY = new QValueAxis;
   axixY->setRange(-2,1);
   chart->setAxisY(axixY,seriesS);
   chart->setAxisY(axixY,seriesC);

3.可滑动折线

本质逻辑上与上面差不多，但是如果要放大/缩小等操作，需要重写一下QChartView函数，如果是触摸的需要重写QChart的bool sceneEvent(QEvent *event);

    bool viewportEvent(QEvent *event);
    void mousePressEvent(QMouseEvent *event);
    void mouseMoveEvent(QMouseEvent *event);
    void mouseReleaseEvent(QMouseEvent *event);
    void keyPressEvent(QKeyEvent *event);

chart.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef CHART_H
#define CHART_H

#include <QtCharts/QChart>

QT_BEGIN_NAMESPACE
class QGestureEvent;
QT_END_NAMESPACE

QT_CHARTS_USE_NAMESPACE

//![1]
class Chart : public QChart
//![1]
{
public:
    explicit Chart(QGraphicsItem *parent = 0, Qt::WindowFlags wFlags = 0);
    ~Chart();

protected:
    bool sceneEvent(QEvent *event);

private:
    bool gestureEvent(QGestureEvent *event);

private:

};

#endif // CHART_H

chart.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "chart.h"
#include <QtWidgets/QGesture>
#include <QtWidgets/QGraphicsScene>
#include <QtWidgets/QGraphicsView>

Chart::Chart(QGraphicsItem *parent, Qt::WindowFlags wFlags)
    : QChart(QChart::ChartTypeCartesian, parent, wFlags)
{
    // Seems that QGraphicsView (QChartView) does not grab gestures.
    // They can only be grabbed here in the QGraphicsWidget (QChart).
    grabGesture(Qt::PanGesture);
    grabGesture(Qt::PinchGesture);
}

Chart::~Chart()
{

}

//![1]
bool Chart::sceneEvent(QEvent *event)
{
    if (event->type() == QEvent::Gesture)
        return gestureEvent(static_cast<QGestureEvent *>(event));
    return QChart::event(event);
}

bool Chart::gestureEvent(QGestureEvent *event)
{
    if (QGesture *gesture = event->gesture(Qt::PanGesture)) {
        QPanGesture *pan = static_cast<QPanGesture *>(gesture);
        QChart::scroll(-(pan->delta().x()), pan->delta().y());
    }

    if (QGesture *gesture = event->gesture(Qt::PinchGesture)) {
        QPinchGesture *pinch = static_cast<QPinchGesture *>(gesture);
        if (pinch->changeFlags() & QPinchGesture::ScaleFactorChanged)
            QChart::zoom(pinch->scaleFactor());
    }

    return true;
}
//![1]

chartview.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef CHARTVIEW_H
#define CHARTVIEW_H

#include <QtCharts/QChartView>
#include <QtWidgets/QRubberBand>

QT_CHARTS_USE_NAMESPACE

//![1]
class ChartView : public QChartView
//![1]
{
public:
    ChartView(QChart *chart, QWidget *parent = 0);

//![2]
protected:
    bool viewportEvent(QEvent *event);
    void mousePressEvent(QMouseEvent *event);
    void mouseMoveEvent(QMouseEvent *event);
    void mouseReleaseEvent(QMouseEvent *event);
    void keyPressEvent(QKeyEvent *event);
//![2]

private:
    bool m_isTouching;
};

#endif

chartview.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "chartview.h"
#include <QtGui/QMouseEvent>

ChartView::ChartView(QChart *chart, QWidget *parent) :
    QChartView(chart, parent),
    m_isTouching(false)
{
    setRubberBand(QChartView::RectangleRubberBand);
}

bool ChartView::viewportEvent(QEvent *event)
{
    if (event->type() == QEvent::TouchBegin) {
        // By default touch events are converted to mouse events. So
        // after this event we will get a mouse event also but we want
        // to handle touch events as gestures only. So we need this safeguard
        // to block mouse events that are actually generated from touch.
        m_isTouching = true;

        // Turn off animations when handling gestures they
        // will only slow us down.
        chart()->setAnimationOptions(QChart::NoAnimation);
    }
    return QChartView::viewportEvent(event);
}

void ChartView::mousePressEvent(QMouseEvent *event)
{
    if (m_isTouching)
        return;
    QChartView::mousePressEvent(event);
}

void ChartView::mouseMoveEvent(QMouseEvent *event)
{
    if (m_isTouching)
        return;
    QChartView::mouseMoveEvent(event);
}

void ChartView::mouseReleaseEvent(QMouseEvent *event)
{
    if (m_isTouching)
        m_isTouching = false;

    // Because we disabled animations when touch event was detected
    // we must put them back on.
    chart()->setAnimationOptions(QChart::SeriesAnimations);

    QChartView::mouseReleaseEvent(event);
}

//![1]
void ChartView::keyPressEvent(QKeyEvent *event)
{
    switch (event->key()) {
    case Qt::Key_Plus:
        chart()->zoomIn();
        break;
    case Qt::Key_Minus:
        chart()->zoomOut();
        break;
//![1]
    case Qt::Key_Left:
        chart()->scroll(-10, 0);
        break;
    case Qt::Key_Right:
        chart()->scroll(10, 0);
        break;
    case Qt::Key_Up:
        chart()->scroll(0, 10);
        break;
    case Qt::Key_Down:
        chart()->scroll(0, -10);
        break;
    default:
        QGraphicsView::keyPressEvent(event);
        break;
    }
}

main.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "chart.h"
#include "chartview.h"
#include <QtWidgets/QApplication>
#include <QtWidgets/QMainWindow>
#include <QtCore/QtMath>
#include <QtCore/QRandomGenerator>
#include <QtCharts/QLineSeries>
#include <QtCharts/QValueAxis>

QT_CHARTS_USE_NAMESPACE

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);

//![1]
    QLineSeries *series = new QLineSeries();
    for (int i = 0; i < 500; i++) {
        QPointF p((qreal) i, qSin(M_PI / 50 * i) * 100);
        p.ry() += QRandomGenerator::global()->bounded(20);
        *series << p;
    }
//![1]

    Chart *chart = new Chart();
    chart->addSeries(series);
    chart->setTitle("Zoom in/out example");
    chart->setAnimationOptions(QChart::SeriesAnimations);
    chart->legend()->hide();
    chart->createDefaultAxes();

    ChartView *chartView = new ChartView(chart);
    chartView->setRenderHint(QPainter::Antialiasing);

    QMainWindow window;
    window.setCentralWidget(chartView);
    window.resize(400, 300);
    window.grabGesture(Qt::PanGesture);
    window.grabGesture(Qt::PinchGesture);
    window.show();

    return a.exec();
}

4.具有tip的折线

callout.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef CALLOUT_H
#define CALLOUT_H

#include <QtCharts/QChartGlobal>
#include <QtWidgets/QGraphicsItem>
#include <QtGui/QFont>

QT_BEGIN_NAMESPACE
class QGraphicsSceneMouseEvent;
QT_END_NAMESPACE

QT_CHARTS_BEGIN_NAMESPACE
class QChart;
QT_CHARTS_END_NAMESPACE

QT_CHARTS_USE_NAMESPACE

class Callout : public QGraphicsItem
{
public:
    Callout(QChart *parent);

    void setText(const QString &text);
    void setAnchor(QPointF point);
    void updateGeometry();

    QRectF boundingRect() const;
    void paint(QPainter *painter, const QStyleOptionGraphicsItem *option,QWidget *widget);

protected:
    void mousePressEvent(QGraphicsSceneMouseEvent *event);
    void mouseMoveEvent(QGraphicsSceneMouseEvent *event);

private:
    QString m_text;
    QRectF m_textRect;
    QRectF m_rect;
    QPointF m_anchor;
    QFont m_font;
    QChart *m_chart;
};

#endif // CALLOUT_H

callout.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "callout.h"
#include <QtGui/QPainter>
#include <QtGui/QFontMetrics>
#include <QtWidgets/QGraphicsSceneMouseEvent>
#include <QtGui/QMouseEvent>
#include <QtCharts/QChart>

Callout::Callout(QChart *chart):
    QGraphicsItem(chart),
    m_chart(chart)
{
}

QRectF Callout::boundingRect() const
{
    QPointF anchor = mapFromParent(m_chart->mapToPosition(m_anchor));
    QRectF rect;
    rect.setLeft(qMin(m_rect.left(), anchor.x()));
    rect.setRight(qMax(m_rect.right(), anchor.x()));
    rect.setTop(qMin(m_rect.top(), anchor.y()));
    rect.setBottom(qMax(m_rect.bottom(), anchor.y()));
    return rect;
}

void Callout::paint(QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget)
{
    Q_UNUSED(option)
    Q_UNUSED(widget)
    QPainterPath path;
    path.addRoundedRect(m_rect, 5, 5);

    QPointF anchor = mapFromParent(m_chart->mapToPosition(m_anchor));
    if (!m_rect.contains(anchor)) {
        QPointF point1, point2;

        // establish the position of the anchor point in relation to m_rect
        bool above = anchor.y() <= m_rect.top();
        bool aboveCenter = anchor.y() > m_rect.top() && anchor.y() <= m_rect.center().y();
        bool belowCenter = anchor.y() > m_rect.center().y() && anchor.y() <= m_rect.bottom();
        bool below = anchor.y() > m_rect.bottom();

        bool onLeft = anchor.x() <= m_rect.left();
        bool leftOfCenter = anchor.x() > m_rect.left() && anchor.x() <= m_rect.center().x();
        bool rightOfCenter = anchor.x() > m_rect.center().x() && anchor.x() <= m_rect.right();
        bool onRight = anchor.x() > m_rect.right();

        // get the nearest m_rect corner.
        qreal x = (onRight + rightOfCenter) * m_rect.width();
        qreal y = (below + belowCenter) * m_rect.height();
        bool cornerCase = (above && onLeft) || (above && onRight) || (below && onLeft) || (below && onRight);
        bool vertical = qAbs(anchor.x() - x) > qAbs(anchor.y() - y);

        qreal x1 = x + leftOfCenter * 10 - rightOfCenter * 20 + cornerCase * !vertical * (onLeft * 10 - onRight * 20);
        qreal y1 = y + aboveCenter * 10 - belowCenter * 20 + cornerCase * vertical * (above * 10 - below * 20);;
        point1.setX(x1);
        point1.setY(y1);

        qreal x2 = x + leftOfCenter * 20 - rightOfCenter * 10 + cornerCase * !vertical * (onLeft * 20 - onRight * 10);;
        qreal y2 = y + aboveCenter * 20 - belowCenter * 10 + cornerCase * vertical * (above * 20 - below * 10);;
        point2.setX(x2);
        point2.setY(y2);

        path.moveTo(point1);
        path.lineTo(anchor);
        path.lineTo(point2);
        path = path.simplified();
    }
    painter->setBrush(QColor(255, 255, 255));
    painter->drawPath(path);
    painter->drawText(m_textRect, m_text);
}

void Callout::mousePressEvent(QGraphicsSceneMouseEvent *event)
{
    event->setAccepted(true);
}

void Callout::mouseMoveEvent(QGraphicsSceneMouseEvent *event)
{
    if (event->buttons() & Qt::LeftButton){
        setPos(mapToParent(event->pos() - event->buttonDownPos(Qt::LeftButton)));
        event->setAccepted(true);
    } else {
        event->setAccepted(false);
    }
}

void Callout::setText(const QString &text)
{
    m_text = text;
    // 提供关于字体的指标信息
    QFontMetrics metrics(m_font);
    m_textRect = metrics.boundingRect(QRect(0, 0, 150, 150), Qt::AlignLeft, m_text);
    m_textRect.translate(5, 5);
    prepareGeometryChange();
    m_rect = m_textRect.adjusted(-5, -5, 5, 5);
}

void Callout::setAnchor(QPointF point)
{
    m_anchor = point;
}

void Callout::updateGeometry()
{
    prepareGeometryChange();
    setPos(m_chart->mapToPosition(m_anchor) + QPoint(10, -50));
}

view.h

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#ifndef VIEW_H
#define VIEW_H
#include <QtWidgets/QGraphicsView>
#include <QtCharts/QChartGlobal>

QT_BEGIN_NAMESPACE
class QGraphicsScene;
class QMouseEvent;
class QResizeEvent;
QT_END_NAMESPACE

QT_CHARTS_BEGIN_NAMESPACE
class QChart;
QT_CHARTS_END_NAMESPACE

class Callout;

QT_CHARTS_USE_NAMESPACE

class View: public QGraphicsView
{
    Q_OBJECT

public:
    View(QWidget *parent = 0);

protected:
    void resizeEvent(QResizeEvent *event);
    void mouseMoveEvent(QMouseEvent *event);

public slots:
    void keepCallout();
    void tooltip(QPointF point, bool state);

private:
    QGraphicsSimpleTextItem *m_coordX;
    QGraphicsSimpleTextItem *m_coordY;
    QChart *m_chart;
    Callout *m_tooltip;
    QList<Callout *> m_callouts;
};

#endif

view.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include "view.h"
#include <QtGui/QResizeEvent>
#include <QtWidgets/QGraphicsScene>
#include <QtCharts/QChart>
#include <QtCharts/QLineSeries>
#include <QtCharts/QSplineSeries>
#include <QtWidgets/QGraphicsTextItem>
#include "callout.h"
#include <QtGui/QMouseEvent>

View::View(QWidget *parent)
    : QGraphicsView(new QGraphicsScene, parent),
      m_coordX(0),
      m_coordY(0),
      m_chart(0),
      m_tooltip(0)
{
    setDragMode(QGraphicsView::NoDrag);
    setVerticalScrollBarPolicy(Qt::ScrollBarAlwaysOff);
    setHorizontalScrollBarPolicy(Qt::ScrollBarAlwaysOff);

    // chart
    m_chart = new QChart;
    m_chart->setMinimumSize(640, 480);
    m_chart->setTitle("Hover the line to show callout. Click the line to make it stay");
    m_chart->legend()->hide();
    QLineSeries *series = new QLineSeries;
    series->append(1, 3);
    series->append(4, 5);
    series->append(5, 4.5);
    series->append(7, 1);
    series->append(11, 2);
    m_chart->addSeries(series);

    QSplineSeries *series2 = new QSplineSeries;
    series2->append(1.6, 1.4);
    series2->append(2.4, 3.5);
    series2->append(3.7, 2.5);
    series2->append(7, 4);
    series2->append(10, 2);
    m_chart->addSeries(series2);

    m_chart->createDefaultAxes();
    m_chart->setAcceptHoverEvents(true);

    setRenderHint(QPainter::Antialiasing);
    //返回指向当前在视图中可视化的场景的指针。如果当前未显示任何场景，则返回0
    scene()->addItem(m_chart);

    m_coordX = new QGraphicsSimpleTextItem(m_chart);
    m_coordX->setPos(m_chart->size().width()/2 - 50, m_chart->size().height());
    m_coordX->setText("X: ");
    m_coordY = new QGraphicsSimpleTextItem(m_chart);
    m_coordY->setPos(m_chart->size().width()/2 + 50, m_chart->size().height());
    m_coordY->setText("Y: ");

    connect(series, &QLineSeries::clicked, this, &View::keepCallout);
    connect(series, &QLineSeries::hovered, this, &View::tooltip);

    connect(series2, &QSplineSeries::clicked, this, &View::keepCallout);
    connect(series2, &QSplineSeries::hovered, this, &View::tooltip);

    this->setMouseTracking(true);
}

void View::resizeEvent(QResizeEvent *event)
{
    if (scene()) {
        scene()->setSceneRect(QRect(QPoint(0, 0), event->size()));
         m_chart->resize(event->size());
         m_coordX->setPos(m_chart->size().width()/2 - 50, m_chart->size().height() - 20);
         m_coordY->setPos(m_chart->size().width()/2 + 50, m_chart->size().height() - 20);
         const auto callouts = m_callouts;
         for (Callout *callout : callouts)
             callout->updateGeometry();
    }
    QGraphicsView::resizeEvent(event);
}

void View::mouseMoveEvent(QMouseEvent *event)
{
    m_coordX->setText(QString("X: %1").arg(m_chart->mapToValue(event->pos()).x()));
    m_coordY->setText(QString("Y: %1").arg(m_chart->mapToValue(event->pos()).y()));
    QGraphicsView::mouseMoveEvent(event);
}

void View::keepCallout()
{
    m_callouts.append(m_tooltip);
    m_tooltip = new Callout(m_chart);
}

void View::tooltip(QPointF point, bool state)
{
    if (m_tooltip == 0)
        m_tooltip = new Callout(m_chart);

    if (state) {
        m_tooltip->setText(QString("X: %1 \nY: %2 ").arg(point.x()).arg(point.y()));
        m_tooltip->setAnchor(point);
        m_tooltip->setZValue(11);
        m_tooltip->updateGeometry();
        m_tooltip->show();
    } else {
        m_tooltip->hide();
    }
}

main.cpp

/****************************************************************************
**
** Copyright (C) 2016 The Qt Company Ltd.
** Contact: https://www.qt.io/licensing/
**
** This file is part of the Qt Charts module of the Qt Toolkit.
**
** $QT_BEGIN_LICENSE:GPL$
** Commercial License Usage
** Licensees holding valid commercial Qt licenses may use this file in
** accordance with the commercial license agreement provided with the
** Software or, alternatively, in accordance with the terms contained in
** a written agreement between you and The Qt Company. For licensing terms
** and conditions see https://www.qt.io/terms-conditions. For further
** information use the contact form at https://www.qt.io/contact-us.
**
** GNU General Public License Usage
** Alternatively, this file may be used under the terms of the GNU
** General Public License version 3 or (at your option) any later version
** approved by the KDE Free Qt Foundation. The licenses are as published by
** the Free Software Foundation and appearing in the file LICENSE.GPL3
** included in the packaging of this file. Please review the following
** information to ensure the GNU General Public License requirements will
** be met: https://www.gnu.org/licenses/gpl-3.0.html.
**
** $QT_END_LICENSE$
**
****************************************************************************/

#include <QtWidgets/QApplication>
#include "view.h"

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    View w;
    w.show();

    return a.exec();
}

QT绘制折线图。
希望我的博客，能帮上你解决学习中工作中所遇到的问题
01-08 1527
QT绘制折线图。
QT开发——Qchart实现的折线图
2303_78730505的博客
03-01 2118
这份用QChart制作的简易折线图能够实现：X轴左端不动与随动、三条数据的实时显示。
使用QT绘制折线图
new9232的博客
02-19 9096
我们先创建一个工程，然后在界面上放置一个Graphics Widget组件，在组件上点击鼠标右键，选择提升为... 提升的类的名称我们写为QChartView 下面我们贴下主要代码 zx.pro #------------------------------------------------- # # Project created by QtCreator 2022-02-13T18:15:06 # #--------------------------------------------
Qt-QChart实现折线图
最新发布
weixin_36323170的博客
03-16 612
动态查看数据变化，或者了解数据发展趋势，让数据可以形象直观展现出来，这里推荐使用折线图的方式展现，本文抛砖引玉，简单实现一个实例，效果图如下：（1）、这里用来绘制图表，引入QT中的charts组件；首先要确保安装了组件QT Charts;在pro文件中添加如下代码 （2）、这里主要用的类为QChart为图表绘制画布; QChartView为图表绘制相框，其位于QChart之上；QDateTimeAxis为时间坐标轴；QValueAxis为数值坐标轴；QLineSeries为折线数据线；widget.h
QtChart绘制折线图
12-10
QtChart绘制折线图
QChart绘制折线图
Lenn Louis' Scribe
08-25 1669
下面是主窗口类MainWindow的类定义（省略了Action和界面组件的槽函数定义）。在文件重需要包含QtChart，并使用宏导入命名空间。Q_OBJECTpublic:private:// 当前序列// 当前坐标轴// 创建图表// 更新数据// 从图表更新到界面private:在MainWindow类中定义了两个私有的变量，curSeries用于指向当前的序列，界面上对序列的设置操作都是针对当前选择的序列；curAxis用于指向当前的QValueAxis。
QT中使用图表之QChart绘制折线图
sc_o_r_pio的博客
10-29 1700
需要注意的是同一个轴只能添加进图表一次，再次添加则不会生效，这个轴的位置可以在左边也可以在底部也可以在右边.......我们还可以控制点是否显示，以及点的文本，Qt6.2之后还可以单独设定每个点的样式。8、创建折线系列，设置系列的各种属性，给系列添加点，然后把系列添加到图表中。其中有很多属性可以设置，上面设置了一些常用的，还有其他属性可查手册 ，6、创建X轴，设置轴的各种属性，然后将轴添加到图表的底部。7、创建Y轴，设置轴的各种属性，然后将轴添加到图表的左边。9、关联系列和xy轴，使系列显示的位置正确。
Qt（十三）QChart绘制折线图
热门推荐
红叶谷 wsp_1138886114的博客
04-05 2万+
文章目录一、简单绘图二、绘制折线图 一、简单绘图 Qt Charts基于Qt的Graphics View架构，其核心组件是QChartView 和 QChart QChartView是显示图标的视图，基类为QGraphicsView QChart的基类是QGraphicsltem 类的继承关系： 创建项目：.pro文件中添加：QT += charts 代码如下：其他文件未修改，修改代码只在mainwindow.cpp文件中进行。 mainwindow.cpp #include "mainwindow.
Qt Chats(一）绘制折线图
m0_75179090的博客
09-25 3899
图例是根据添加的序列自动生成的，但是也可以修改图例的一些属性。对于图例QLegendMarker，可以为每个序列的图例生成一个类似于QCheckBox的组件，在图例上单击序列的标记，可以控制序列是否显示。注：静态函数创建一个dlg实例，然后调用 dlg->setPen(initPen)进行初始化设置，运行对话框并获取返回状态，如果返回类型为 QDialog::Accepted，就调用 pen = dlg->getpen()获取设置属性后的QPen的对象，最后删除对话框并删除设置的QPen对象。
QT QChart绘制折线图应用程序示例
02-05
实例samp9_2以绘制折线图为例，详细介绍图表各个部分的设置和操作，包括图表的标题、 图例、边距等属性设置，QLineSeries序列的属性设置，QValueAxis坐标轴的属性设置，以及图表的缩放。 实例samp9_2是一个主窗口...
qt使用qchart做折线图
qq_29284813的博客
03-30 1014
int j,k,LineLength,i; for(i = 0;i<100,i++) { Serial1[i] = i; ALLSerial1[i] = i*2 } QWidget widget; QList<QLineSeries *> m_series; QLineSeries *series1 = new QLineSeri...
Qt界面设计：利用QChart显示折线图（QT+VS C++）
10-27
在本文中，我们将深入探讨如何使用Qt库，特别是在Visual Studio C++环境中，通过QChart组件来创建和展示折线图。Qt是一个强大的跨平台应用程序开发框架，提供了丰富的UI设计工具和功能，包括QChart模块，它允许我们...
QT画坐标系折线图
01-02
QT使用QPainter画坐标系折线图，图中可显示所有数据的最大值，最小值，以及平均值，
qt如何绘制折线图
qfZYG的博客
08-28 1286
/ 可以根据需要调整跨度。//改变坐标轴颜色，变成透明色。// 假设我们想要三行俩列的布局。axisX->setTitleText("时间S");// 根据需要调整 row 和 column 的值。// 将图表视图添加到布局中。//将折线和轴添加图表。
用qt 实现一个折线图
weixin_35756892的博客
01-01 1570
要用 Qt 实现一个折线图，你需要使用 Qt 的绘图模块中的 QPainter 类和相关的函数。 具体来说，你需要做如下几件事： 创建一个 QWidget 或者 QMainWindow 类的对象作为图表的容器。 在这个容器中重新实现 paintEvent() 函数。paintEvent() 函数会在窗口需要重绘时自动调用，你可以在这个函数中使用 QPainter 绘制各种图形。 在 pain...
Qt QChart实现折线图的绘制
m0_73443478的博客
06-16 833
Qt QChart实现折线图的绘制
用qt绘制折线图
weixin_43935474的博客
10-21 9212
用qt绘制折线图需要用到QChartView，QChart，QLineSeries 效果如下图： 代码中需要添加的东西： 1.在.pro文件中添加 QT += charts 2.在mainwindow.h头文件中添加 #ifndef MAINWINDOW_H #define MAINWINDOW_H #include <QMainWindow> #include &l...
利用QT进行折线图的绘制
BitSlinger的博客
09-09 680
要开始绘制折线图，我们需要创建一个QT项目并设置好所需的环境。在QT Creator中创建一个新的QT Widgets应用程序项目，并确保已正确配置编译器和所需的QT库。在本文中，我们将使用QT编程框架来绘制折线图。QT是一个流行的跨平台应用程序开发框架，它提供了丰富的图形绘制功能和易于使用的API。在这个例子中，我们假设我们有一组X坐标和对应的Y坐标。QT提供了许多其他的绘图函数和选项，可以帮助你创建更复杂的图形。在上面的代码中，我们首先绘制了坐标轴，然后定义了一组示例数据。在绘制折线时，我们使用。
Qt中绘制折线
ppss177的博客
05-22 656
Qt中绘制折线 基本流程 三要素：场景、图表、序列 创建场景—创建图表—图表添加到场景—创建序列—序列添加到图表 创建坐标轴并设置—坐标轴添加到图表—序列、坐标轴、图表配合 序列设值 1.必要配置 .pro文件 QT += charts 头文件 #include <QtCharts> QT_CHARTS_USE_NAMESPACE namespace Ui { class MainWindow; } 2.创建图表 有些类的对象是全局定义，如series,axisX,axisY //创建Char
QT QChart绘制折线图应用程序操作详解
标题“QT QChart绘制折线图应用程序示例”涉及了使用Qt框架中QChart类来创建折线图的程序设计。Qt是一个跨平台的C++应用程序框架，广泛应用于开发GUI程序。其中，QChart是Qt Charts模块中的一个类，用于创建、展示...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

路奇怪

有钱出钱，没钱多出编程主意啊

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付：¥1
获取中
扫码支付

您的余额不足，请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
