【Qt C++】fatal error LNK1112: module machine type 'x64' conflicts with target machine type 'X86',以及解决在VS Code中使用qmake编译项目的问题
使用Vscode + qmake + jom 编译Qt项目,发现在QtCreator里编译地好好的,但是vscode里设置的脚本死活报错:
Qt5Widgets.lib(Qt5Widgets.dll) : fatal error LNK1112: module machine
type ‘x64’ conflicts with target machine type ‘X86’ jom:
D:\Projects\2023.9.19
AfterService\AfterServiceSoft\build\Makefile.Release
[release\AfterServiceSoft.exe] Error 1112
我开始还以为是Task.json写错了,但是检查了很多遍都看不出问题在哪里。
{
// See https://go.microsoft.com/fwlink/?LinkId=733558
// for the documentation about the tasks.json format
"version": "2.0.0",
"tasks": [
{
"label": "mkdir",
"type": "shell",
"options": {"cwd": "${workspaceFolder}"},
"command": "mkdir -Force build"
"problemMatcher": ["$msCompile"]
},
{
"label": "qmake-release",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "qmake ${workspaceFolder}/${workspaceFolderBasename}.pro -spec win32-msvc \"CONFIG+=qtquickcompiler\""
],
"problemMatcher": ["$msCompile"]
},
{
"label": "make-release",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "jom -f Makefile.Release"
],
"dependsOn": ["qmake-release"],
"problemMatcher": ["$msCompile"]
},
{
"label": "run-release",
"type": "process",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "${workspaceFolderBasename}.exe",
"dependsOn": ["make-release"]
},
{
"label": "clean",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "jom clean"
],
"problemMatcher": ["$msCompile"]
}
]
}
大概花了2天时间,做了诸多尝试
尝试(1):修改qtConfigure.vcvarsallPath的值

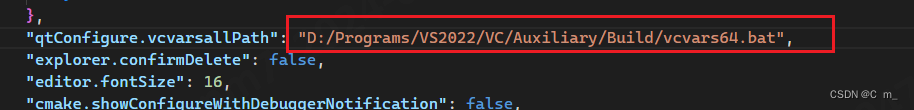

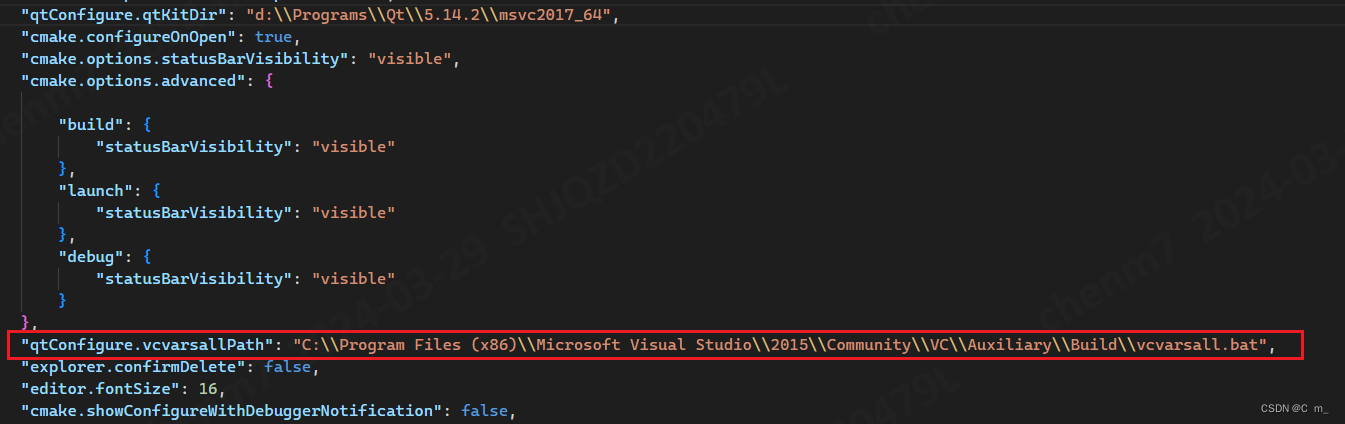

查找别人的博客才知道得先运行“x64 Native Tools Command Prompt for VS 2022”配置x64的工具链编译环境,否则cl.exe默认都是以x86的库在链接程序。我检查了下VS Code的setting.json文件发现,qtConfigure.vcvarsallPath这个参数就是用来调整编译器的版本的。原先默认生成的是vs2015的32位编译器。
因此原以为改成2022的64位编译器就可以。

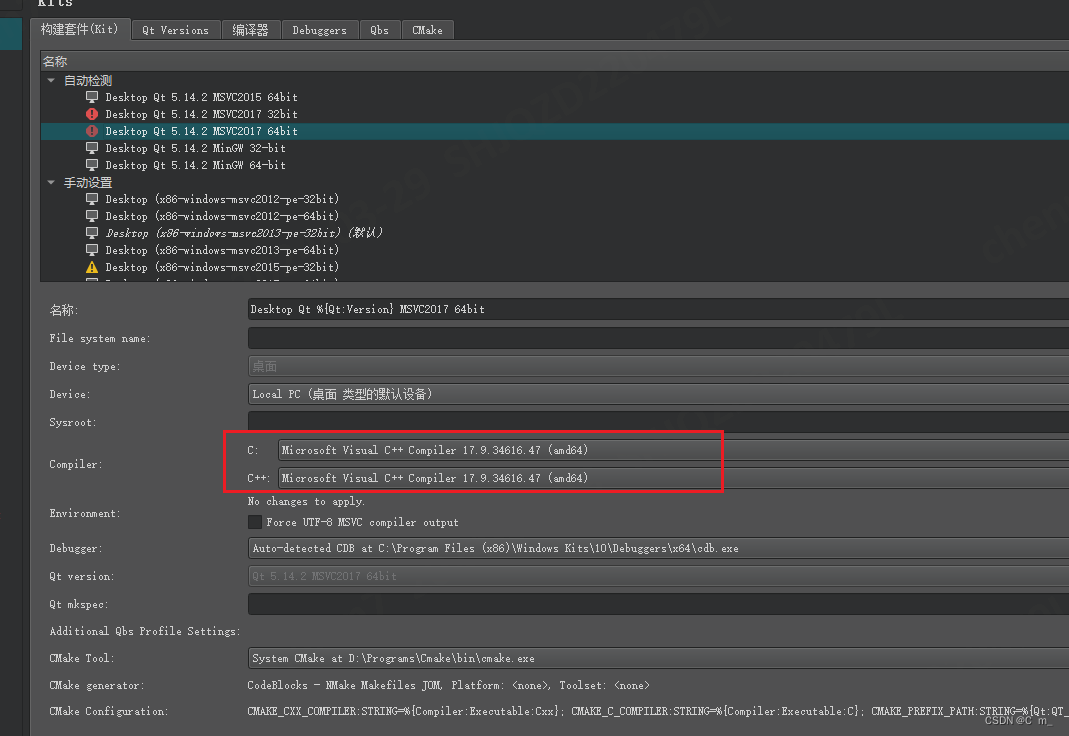

相当于Qt Creator里配置这玩意:
但是仍然没有解决
尝试(2):尝试主动调用vsvars64.bat
我在cmd窗口下打开vsvars64.bat,并在其中主动运行jom -f Makefile.Release,没有这个问题。也就是说,要在脚本运行且不退出的情况下才有效。因此我首先把vsvars64.bat所在路径加入到环境变量中,然后在Task.json中做如下修改。
"label": "make-release",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "vsvars64.bat ;jom -f Makefile.Release" //因为VSC里的命令行执行多条命令得把&&换成;

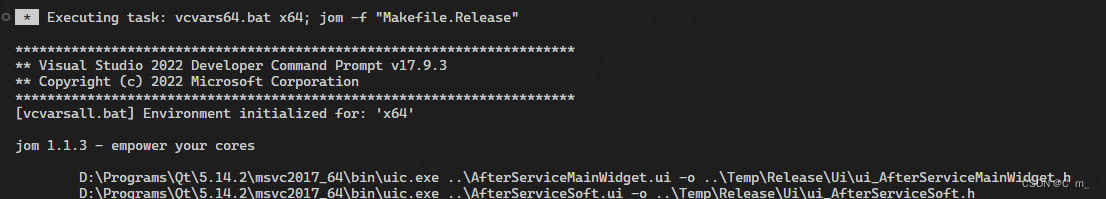

发现VsCode里确实有打印,64位环境的配置过程,紧接着执行了jom,但最终还是报LNK1112错误,相当于可能配置后没有生效?
没有解决
尝试(3):换写法实现尝试(2)
经过诸多尝试,参考Developer Command Prompt集成到VScode、VS CODE可以配置用vc++编译和调试吗?等文章,最终的写法如下
"label": "make-release",
"type": "shell",
"options": {
"cwd": "${workspaceFolder}/build"
},
"command": "cmd.exe /k 'D:\\Programs\\VS2022\\VC\\Auxiliary\\Build\\vcvars64.bat 1>nul 2>&1 && jom -f Makefile.Release && EXIT'" ,
"problemMatcher": ["$msCompile"]
原来vsvars64是要通过cmd /k保存环境后才调用完后仍然有效,且在VSCode里命令最好用’'而不是""。
已经解决
最后贴一下Task.json的完整配置
{
// See https://go.microsoft.com/fwlink/?LinkId=733558
// for the documentation about the tasks.json format
"version": "2.0.0",
"tasks": [
{
"label": "mkdir",
"type": "shell",
"options": {"cwd": "${workspaceFolder}"},
"command": "mkdir -Force build",
"problemMatcher": ["$msCompile"]
},
{
"label": "qmake-release",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "qmake '${workspaceFolder}/${workspaceFolderBasename}.pro' -spec win32-msvc \"CONFIG+=qtquickcompiler\"",
"problemMatcher": ["$msCompile"]
},
{
"label": "make-release",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "cmd.exe /k 'vcvars64.bat 1>nul 2>&1 && jom -f Makefile.Release && EXIT'",
"dependsOn": ["qmake-release"],
"problemMatcher": ["$msCompile"]
},
{
"label": "run-release",
"type": "process",
"options": {"cwd": "${workspaceFolder}/build/release"},
"command": "${workspaceFolderBasename}.exe",
"dependsOn": ["make-release"],
"problemMatcher": ["$msCompile"]
},
{
"label": "clean",
"type": "shell",
"options": {"cwd": "${workspaceFolder}/build"},
"command": "jom clean",
"problemMatcher": ["$msCompile"]
}
]
}
