Spring(18) @Order注解介绍、使用、底层原理

一、简介

@Order:是 spring-core 包下的一个注解。@Order 作用是定义 Spring IOC 容器中 Bean 的执行顺序

注意: Spring 的 @Order 注解或者 Ordered 接口,不决定 Bean 的加载顺序和实例化顺序,只决定 Bean 注入到 List 中的顺序。

@Order 注解接受一个整数值作为参数,数值越小表示优先级越高。当存在多个具有 @Order 注解的组件时,Spring Boot将按照数值从小到大的顺序加载它们。

需要注意的是:

  • @Order 注解只能用于标记 Spring 容器中的组件,而不适用于标记普通的类。因此,在使用 @Order 注解时,确保你的组件被正确地注册到 Spring 容器中。
  • @Order 注解只决定Bean的注入顺序,并不保证实际执行的顺序。例如:在 Web 应用中,Filter 的执行顺序并不受 @Order 注解影响。如果需要确保 Filter 按照顺序执行,可以使用 FilterRegistrationBean 来设置 Filter 的顺序。

二、List 注入使用示例

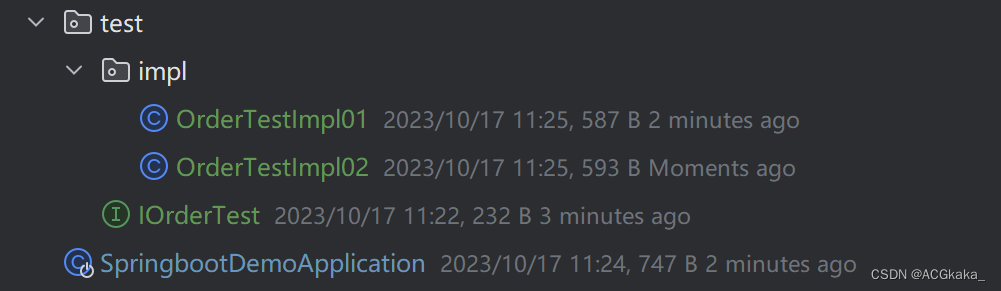

包结构如下:

在这里插入图片描述

2.1 测试接口类

IOrderTest 接口中定义了一个 handle() 方法用于测试。

IOrderTest.java

/**
 * <p> @Title IOrderTest
 * <p> @Description @Order注解测试接口
 *
 * @author ACGkaka
 * @date 2023/10/17 11:20
 */
public interface IOrderTest {

    /**
     * 处理
     */
    void handle();
}

2.2 测试接口实现类1

@Order注解测试实现类01 和 @Order注解测试实现类02 实现了 IOrderTest 接口,用于测试 @Order 的生效。

OrderTestImpl01.java

import com.demo.test.IOrderTest;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

/**
 * <p> @Title OrderTestA
 * <p> @Description @Order注解测试实现类01
 *
 * @author ACGkaka
 * @date 2023/10/17 11:18
 */
@Order(1)
@Component
public class OrderTestImpl01 implements IOrderTest {

    public OrderTestImpl01() {
        System.out.println("=== OrderTestImpl01 constructor() ==");
    }

    @Override
    public void handle() {
        System.out.println("=== OrderTestImpl01 handle() ===");
    }
}

2.3 测试接口实现类2

@Order注解测试实现类01 和 @Order注解测试实现类02 实现了 IOrderTest 接口,用于测试 @Order 的生效。

OrderTestImpl02.java

import com.demo.test.IOrderTest;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

/**
 * <p> @Title OrderTestImpl02
 * <p> @Description @Order注解测试实现类02
 *
 * @author ACGkaka
 * @date 2023/10/17 11:18
 */
@Order(2)
@Component
public class OrderTestImpl02 implements IOrderTest {

    public OrderTestImpl02() {
        System.out.println("=== OrderTestImpl02 constructor() ===");
    }

    @Override
    public void handle() {
        System.out.println("=== OrderTestImpl02 handle() ===");
    }
}

2.4 启动类(测试)

SpringbootDemoApplication.java

import com.demo.test.IOrderTest;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;

import java.util.List;

@SpringBootApplication
public class SpringbootDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootDemoApplication.class, args);
    }

    @Bean
    public CommandLineRunner commandLineRunner(List<IOrderTest> list) {
        return args -> {
            System.out.println("=== CommandLineRunner ===");
            list.forEach(IOrderTest::handle);
        };
    }
}

2.5 测试结果

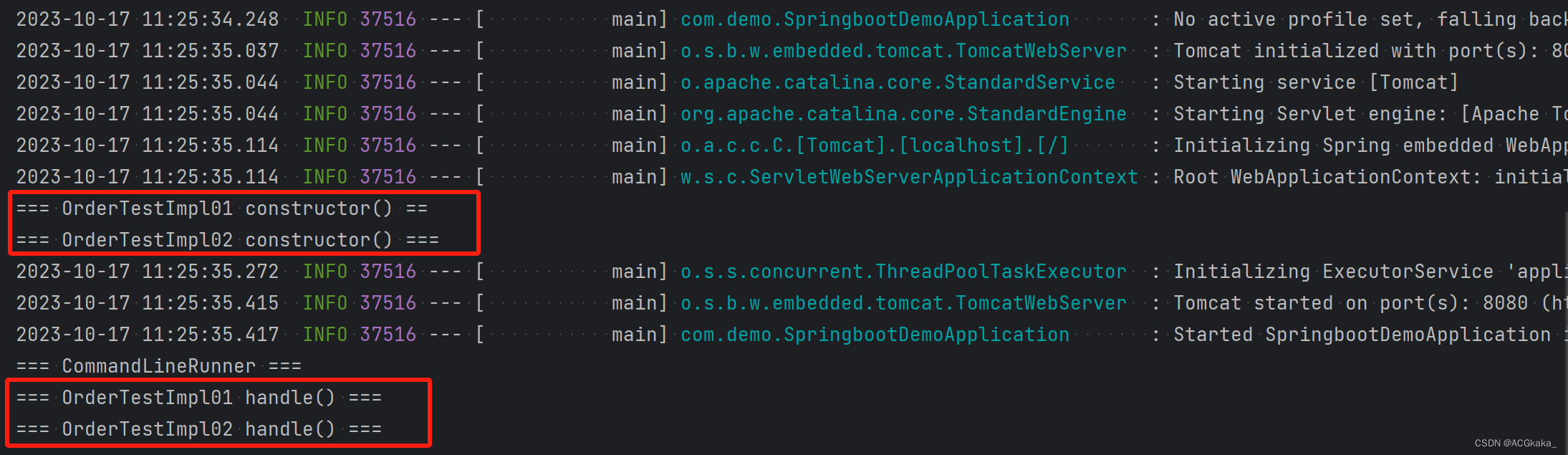

场景一:
  • @Order(1) 注解修饰 OrderTestImpl01.java
  • @Order(2) 注解修饰 OrderTestImpl02.java

执行结果如下:

在这里插入图片描述

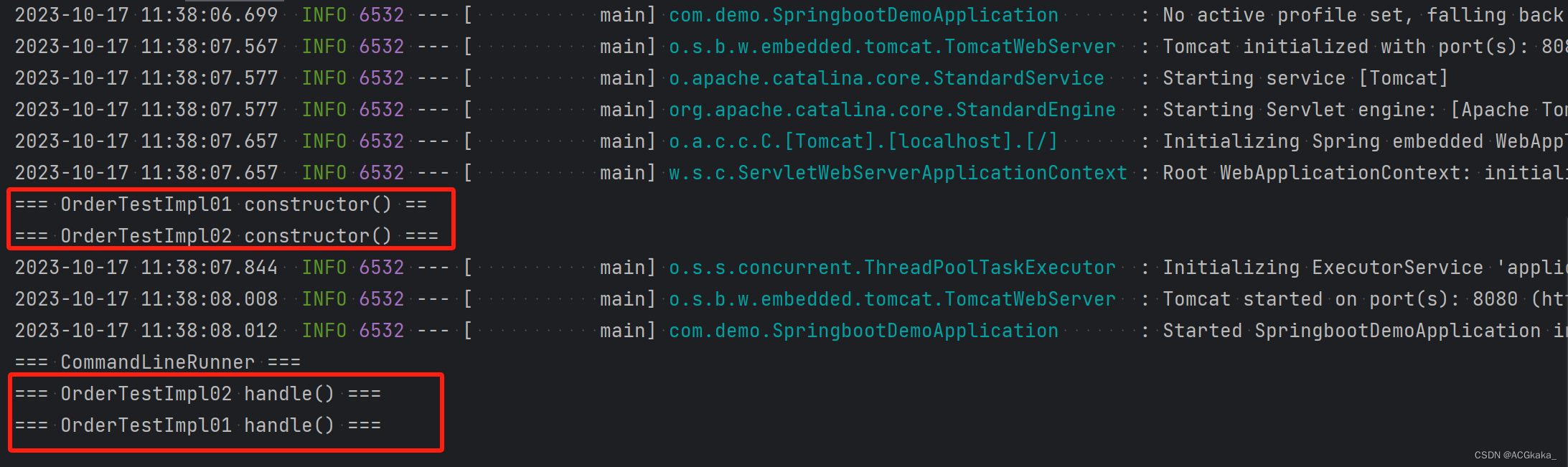

场景二:
  • @Order(1) 注解修饰 OrderTestImpl02.java
  • @Order(2) 注解修饰 OrderTestImpl01.java

执行结果如下:

在这里插入图片描述


三、CommandLineRunner 使用示例

3.1 接口实现类1

CommandLineRunner01.java

import org.springframework.boot.CommandLineRunner;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

/**
 * <p> @Title CommandLineRunner01
 * <p> @Description @Order注解测试01
 *
 * @author ACGkaka
 * @date 2023/10/17 11:20
 */
@Component
@Order(1)
public class CommandLineRunner01 implements CommandLineRunner {

    @Override
    public void run(String... args) {
        System.out.println("=== CommandLineRunner01 ===");
    }
}

3.2 接口实现类2

CommandLineRunner02.java

import org.springframework.boot.CommandLineRunner;
import org.springframework.core.annotation.Order;
import org.springframework.stereotype.Component;

/**
 * <p> @Title CommandLineRunner02
 * <p> @Description @Order注解测试02
 *
 * @author ACGkaka
 * @date 2023/10/17 11:20
 */
@Component
@Order(2)
public class CommandLineRunner02 implements CommandLineRunner {

    @Override
    public void run(String... args) {
        System.out.println("=== CommandLineRunner02 ===");
    }
}

3.3 测试结果

场景一:
  • @Order(1) 注解修饰 CommandLineRunner01.java
  • @Order(2) 注解修饰 CommandLineRunner02.java

执行结果如下:

在这里插入图片描述

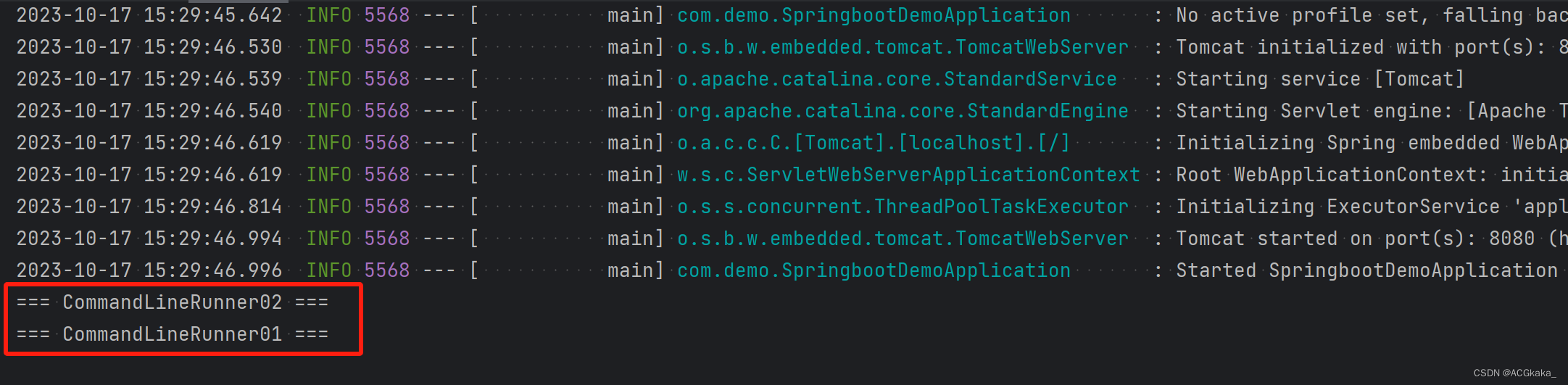

场景二:
  • @Order(1) 注解修饰 CommandLineRunner02.java
  • @Order(2) 注解修饰 CommandLineRunner01.java

执行结果如下:

在这里插入图片描述

四、@Order失效场景

失效场景:@Configuration 里面通过 @Bean 方式创建 Bean,在上面加 @Order 控制顺序是没有效果的。

4.1 失效代码示例

SpringbootDemoApplication.java

import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.Bean;
import org.springframework.core.annotation.Order;

@SpringBootApplication
public class SpringbootDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootDemoApplication.class, args);
    }

    @Order(2)
    @Bean
    public CommandLineRunner commandLineRunner01() {
        return args -> System.out.println("=== commandLineRunner01 ===");
    }

    @Order(1)
    @Bean
    public CommandLineRunner commandLineRunner02() {
        return args -> System.out.println("=== commandLineRunner02 ===");
    }
}

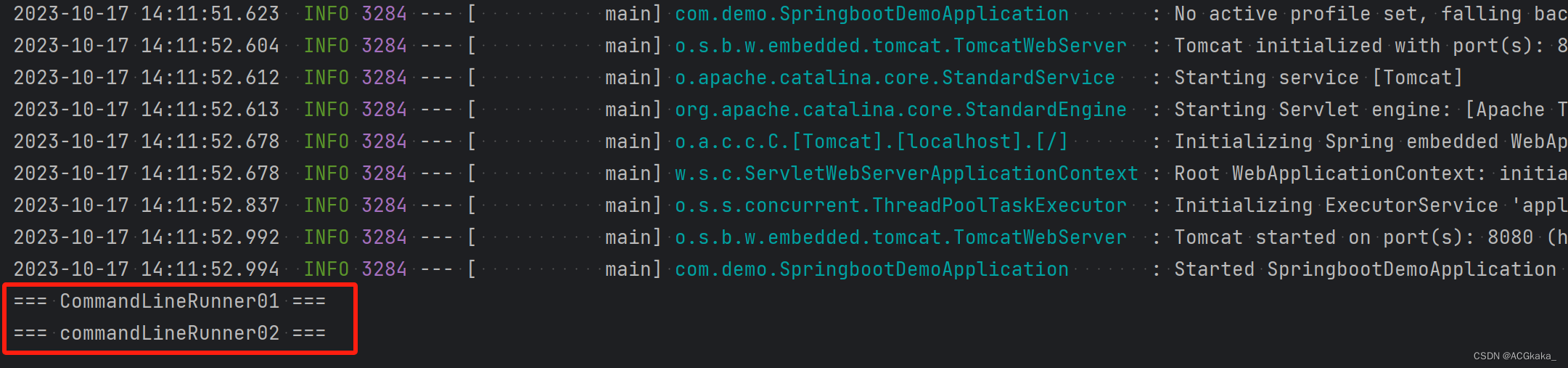

4.2 执行结果

由下图可知,虽然我们使用 @Order 注解明确声明要先执行 commandLineRunner02,但是并没有生效。

在这里插入图片描述

4.3 失效场景补救

在 @Order 注解失效的场景下,可以通过以下方式来控制顺序:

  • 方式一: 可以通过具体实现类的方式创建 Bean,用 @Order + @Component 注解修饰。
  • 方式二: 可以通过 RegistrationBean 方式创建 Bean,用 setOrder 添加顺序。
  • 方式三: filter 可以通过 FilterRegistrationBean 创建 filter 的 Bean,用 setOrder 添加顺序。

五、@Order、@Priority底层原理

看完 @Order 注解的时候,可能会疑惑 IOC 容器时如何通过 @Order 注解来控制程序的先后顺序的,接下来我们从源码层面看下,容器是如何加载的。

先说结论:

  • @Order 底层是在 Bean 注入 IOC 容器之后执行的,所以无法控制 Bean 的加载顺序。
  • @Order 底层是通过 List.sort(Comparator) 实现的,AnnotationAwareOrderComparator 类集成 OrderComparator 类,通过获取注解的 value 值实现了比对逻辑。

5.1 平平无奇的启动类

SpringbootDemoApplication.java

@SpringBootApplication
public class SpringbootDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringbootDemoApplication.class, args);
    }
}

5.2 神奇的 run() 方法

SpringApplication.run()

public ConfigurableApplicationContext run(String... args) {
    StopWatch stopWatch = new StopWatch();
    stopWatch.start();
    ConfigurableApplicationContext context = null;
    Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
    configureHeadlessProperty();
    SpringApplicationRunListeners listeners = getRunListeners(args);
    listeners.starting();
    try {
        ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
        ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
        configureIgnoreBeanInfo(environment);
        Banner printedBanner = printBanner(environment);
        context = createApplicationContext();
        exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
                new Class[] { ConfigurableApplicationContext.class }, context);
        prepareContext(context, environment, listeners, applicationArguments, printedBanner);
        refreshContext(context);
        afterRefresh(context, applicationArguments);
        stopWatch.stop();
        if (this.logStartupInfo) {
            new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
        }
        listeners.started(context);
        // #### 重点!!!调用具体的执行方法 ###
        callRunners(context, applicationArguments);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, listeners);
        throw new IllegalStateException(ex);
    }

    try {
        listeners.running(context);
    }
    catch (Throwable ex) {
        handleRunFailure(context, ex, exceptionReporters, null);
        throw new IllegalStateException(ex);
    }
    return context;
}

5.3 开始排序的 callRunners() 方法

SpringApplication.callRunners()

private void callRunners(ApplicationContext context, ApplicationArguments args) {
    List<Object> runners = new ArrayList<>();
    runners.addAll(context.getBeansOfType(ApplicationRunner.class).values());
    runners.addAll(context.getBeansOfType(CommandLineRunner.class).values());
    // ### 重点!!!按照定义的优先级顺序排序 ###
    AnnotationAwareOrderComparator.sort(runners);
    for (Object runner : new LinkedHashSet<>(runners)) {
        if (runner instanceof ApplicationRunner) {
            callRunner((ApplicationRunner) runner, args);
        }
        if (runner instanceof CommandLineRunner) {
            callRunner((CommandLineRunner) runner, args);
        }
    }
}

5.4 排序调用图

由于剩下的实现内容调用链比较长,为了看起来更清晰直观,采用顺序图展现出来:

SpringApplication AnnotationAwareOrderComparator List OrderComparator OrderUtils run() callRunners() sort() sort() compare() doCompare() getOrder() findOrder() findOrderFromAnnotation() getOrderFromAnnotations() findOrder() SpringApplication AnnotationAwareOrderComparator List OrderComparator OrderUtils

5.5 排序的根源 findOrder() 方法

获取 @Order 注解的 value 值,来进行排序。

OrderUtils.findOrder()

@Nullable
private static Integer findOrder(MergedAnnotations annotations) {
    MergedAnnotation<Order> orderAnnotation = annotations.get(Order.class);
    if (orderAnnotation.isPresent()) {
        // ### 重点!!!获取@Order注解的value值
        return orderAnnotation.getInt(MergedAnnotation.VALUE);
    }
    MergedAnnotation<?> priorityAnnotation = annotations.get(JAVAX_PRIORITY_ANNOTATION);
    if (priorityAnnotation.isPresent()) {
        // ### 重点!!!获取@Priority注解的value值
        return priorityAnnotation.getInt(MergedAnnotation.VALUE);
    }
    return null;
}

整理完毕,完结撒花~ 🌻





参考地址:

1.浅谈Spring @Order注解的使用,https://blog.csdn.net/yaomingyang/article/details/86649072

2.深入理解Spring的@Order注解和Ordered接口,https://blog.csdn.net/zkc7441976/article/details/112548075

3.踩坑!@Order失效。。。https://blog.csdn.net/qq_34142184/article/details/126951618
