Android CheckedTextView 实现单选与多选

以下demo 地址

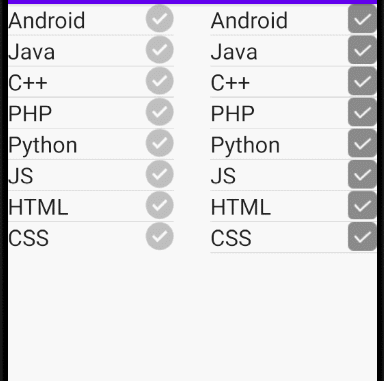

单选与双选实现的效果如下

CheckedTextView 继承的是 TextView 实现 Checkable 具有TextView 的属性

一般使用结合ListView

xml 属性

android:checkMark : 可绘制用于复选标记图形

android:checked : 指示文本的初始检查状态

默认提供单选框样式：
android:checkMark="?android:attr/listChoiceIndicatorSingle"

默认的效果图如下

默认提供复选框样式：
android:checkMark="?android:attr/listChoiceIndicatorMultiple"

默认的效果图如下

下面结合代码说下使用

MainActivity 的代码如下

public class MainActivity extends AppCompatActivity {
    private String[] data = {"Android", "Java", "C++", "PHP", "Python", "JS", "HTML", "CSS"};
    private ListView listView;
    ArrayList<String> arrayList = new ArrayList<>();
    SingleCheckAdapter adapter;

    private ListView listView1;
    ArrayList<String> arrayList1 = new ArrayList<>();
    List<String> list = new ArrayList<>();
    MultCheckAdapter adapter1;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        // 单选数据
        listView = findViewById(R.id.listView);
        arrayList.addAll(Arrays.asList(data));
        adapter = new SingleCheckAdapter(MainActivity.this, arrayList);
        listView.setAdapter(adapter);
        listView.setChoiceMode(ListView.CHOICE_MODE_SINGLE);

        listView.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                Log.v("----hxm", "您选择的是:" + arrayList.get(position));
            }
        });

        //多选数据
        listView1 = findViewById(R.id.listView1);
        arrayList1.addAll(Arrays.asList(data));
        adapter1 = new MultCheckAdapter(MainActivity.this, arrayList1);
        listView1.setAdapter(adapter1);
        listView1.setChoiceMode(AbsListView.CHOICE_MODE_MULTIPLE);

        listView1.setOnItemClickListener(new AdapterView.OnItemClickListener() {
            @Override
            public void onItemClick(AdapterView<?> parent, View view, int position, long id) {
                if (list.contains(arrayList1.get(position))) {
                    list.remove(arrayList1.get(position));
                } else {
                    list.add(arrayList.get(position));
                }
                Log.v("----hxm", "您选择的是:" + list);

            }
        });

    }

}

SingleCheckAdapter 的代码如下:

package com.hly.timeactivity;

import java.util.ArrayList;

import android.content.Context;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.CheckedTextView;

public class SingleCheckAdapter extends BaseAdapter {
    private ArrayList<String> list;
    private Context mContext;
    private ArrayList<String> resultList = new ArrayList<>();

    public SingleCheckAdapter(Context context, ArrayList<String> list) {
        this.list = list;
        this.mContext = context;
    }

    @Override
    public int getCount() {
        return list.size();
    }

    @Override
    public Object getItem(int position) {
        return list.get(position);
    }

    @Override
    public long getItemId(int position) {
        return position;
    }

    @Override
    public View getView(final int position, View convertView, ViewGroup parent) {
        final ViewHolder holder;
        if (convertView == null) {
            holder = new ViewHolder();
            convertView = LayoutInflater.from(mContext).inflate(R.layout.single_list_item_layout, null);
            holder.checkedTextView = convertView.findViewById(R.id.checkedTextView);
            convertView.setTag(holder);
        } else {
            holder = (ViewHolder) convertView.getTag();
        }

        holder.checkedTextView.setText(list.get(position));

        return convertView;

    }

    public static class ViewHolder {
        CheckedTextView checkedTextView;
    }


}

xml :single_list_item_layout

<?xml version="1.0" encoding="utf-8"?>
<CheckedTextView xmlns:android="http://schemas.android.com/apk/res/android"
        android:layout_width="match_parent"
        android:layout_height="60dp"
        android:id="@+id/checkedTextView"
        android:checkMark="@drawable/drawable_single_checked_view"
        android:text="CheckedTextView"
        android:textSize="25sp" />

drawable_single_checked_view

<?xml version="1.0" encoding="utf-8"?>
<selector xmlns:android="http://schemas.android.com/apk/res/android">
    <item android:drawable="@drawable/single_select" android:state_checked="true" />
    <item android:drawable="@drawable/single_unselect" android:state_checked="false" />
</selector>

由于多选和单选差不多,这里就不贴代码了, 代码都很简单的,别的就不多说了, 不过还需要特别注意下,list 的item 最外层的布局要使用CheckedTextView, 这个监听的时候点击item 就相当于点击了CheckedTextView,

如果最外层不是CheckedTextView 点击事件会有问题.
