LATEX中优化问题如何排列 max—s.t. 格式

做优化的同学可能会碰到排列形如

max   *******
s.t.  ***** = *
      ***** > ***
      ...

的格式，既要要求max 和 s.t. 对齐，又要令约束式的 => 等符号对齐，下面几个代码以供参考。

1

\documentclass{ctexart}
\usepackage{amsmath}
\begin{document}
\begin{align*}
&\max\quad z=\sum\limits_{i=1}^m c_i x_i \\
& \begin{array}{r@{\quad}r@{}l@{\quad}l}
s.t.&\sum\limits_{j=1}^m a_{ij} x_j&\leq b_i,  &i=1,2,3\ldots,n \\
&x_j&\geq110,  &i=1,2,3\ldots,n  \\
&x_j&\geq10,  &i=1,2,3\ldots,n  \\
&x_j&\geq0,  &i=1,2,3\ldots,n  \\
&x_j&\geq0,  &i=1,2,3\ldots,n  \\
\end{array}
\end{align*}
\end{document}

2

\begin{align*}
&\max\,\, z=\sum_{j=1}^n c_jx_j\\
&s.t.\quad
\begin{cases}
\sum\limits_{j=1}^n a_{ij}x_j \leq b_i & (i=1,2,3,\cdots, m), \\
x_j \geq 0 & (j=1,2,3,\cdots,n).
\end{cases}
\end{align*}

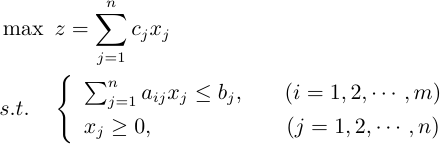

3

\begin{equation*}
\begin{split}
&\max \,\, z=\sum_{j=1}^nc_jx_j\\
&s.t.\quad  \left\{\begin{array}{lc}
\sum_{j=1}^na_{ij}x_j\leq b_j,\quad & (i=1,2,\cdots,m)\\
x_j\geq 0,\quad & (j=1,2,\cdots,n) \end{array}\right.
\end{split}
\end{equation*}

4

\begin{align*}
&\max\,\,z=\sum\limits_{j=1}^nc_jx_j\\
&s.t.\begin{cases}\sum_{j=1}^na_{ij}x_j\leq b_i&(i=1,2,\cdots,m)\\
x_j\geq0&(j=1,2,\cdots,n)\end{cases}\\
\end{align*}

转自 https://www.cnblogs.com/GarfieldEr007/p/5574297.html
