蓝绿发布其实就是一个蓝环境和一个绿环境同时运行，但是同时只有一个对外提供服务，其实也就是启动了两个deployment，service也是两个，最后ingress选择service的时候只需要选择其中一个就行了。如果蓝环境有问题了，那么就可以快速的回退到绿环境。

这种情况下就是占用的环境资源较大，完全两套资源。

蓝绿发布

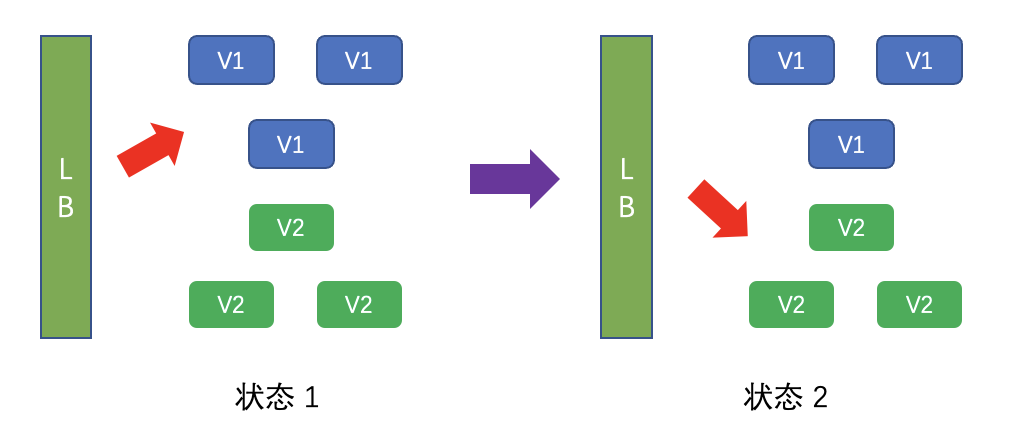

蓝绿部署是指有两个完全相同的、互相独立的生产环境，一个叫做“蓝环境”，一个叫做“绿环境”。其中，绿环境是用户正在使用的生产环境。当要部署一个新版本的时候，先把这个新版本部署到蓝环境中，然后在蓝环境中运行冒烟测试，以检查新版本是否正常工作。如果测试通过，发布系统更新路由配置，将用户流量从绿环境导向蓝环境，蓝环境就变成了生产环境。这种切换通常在一秒钟之内就能搞定。

如果出了问题，把路由切回到绿环境上，再在蓝环境中调试，找到问题的原因。因此，蓝绿部署可以做到仅仅一次切换，立刻就向所有用户推出新版本，新功能对所有用户立刻生效可见。

优势：

升级切换和回退速度非常快
零停机时间

不足：

一次性的全量切换，如果发布出现问题, 会对用户产生比较大的影响
需要两倍的机器资源
需要中间件和应用自身支持热备集群的流量切换

适用场景：

机器资源比较富余或者按需分配 (背靠云厂商)

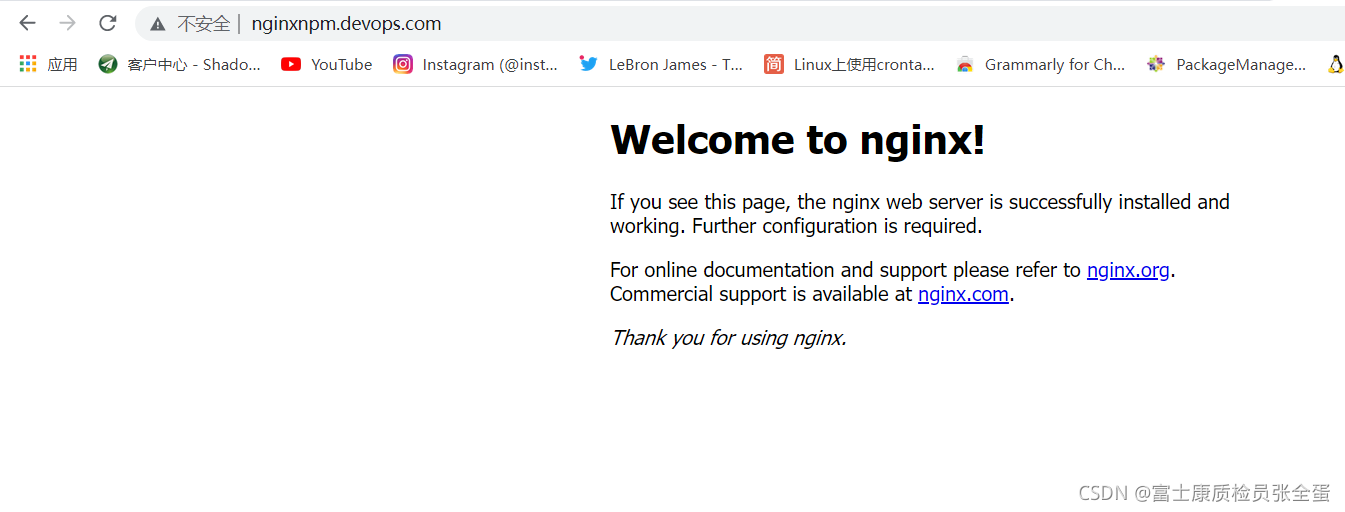

绿环境现在生产环境

[root@master devops]# cat green.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxapp
    version: "1.20"
  name: nginxapp-1.20-green
  namespace: devops
spec:
  replicas: 3
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: nginxapp
      version: "1.20"
  template:
    metadata:
      labels:
        k8s-app: nginxapp
        version: "1.20"
      namespace: default
      name: nginxapp
    spec:
      containers:
        - name: nginxapp
          image: nginx
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web

[root@master devops]# kubectl get pod -n devops -o wide
NAME                                   READY   STATUS    RESTARTS   AGE     IP              NODE    NOMINATED NODE   READINESS GATES
nginxapp-1.20-green-5668c79ff7-9l7kl   1/1     Running   0          5m28s   10.233.96.185   node2   <none>           <none>
nginxapp-1.20-green-5668c79ff7-fckpc   1/1     Running   0          5m28s   10.233.96.184   node2   <none>           <none>
nginxapp-1.20-green-5668c79ff7-vmvq9   1/1     Running   0          5m28s   10.233.90.170   node1   <none>           <none>


[root@master devops]# kubectl get svc -n devops
NAME       TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
nginxapp   ClusterIP   10.233.34.137   <none>        80/TCP    10s

[root@master devops]# kubectl get ep -n devops
NAME       ENDPOINTS                                            AGE
nginxapp   10.233.90.170:80,10.233.96.184:80,10.233.96.185:80   17s

[root@master devops]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxnpm-ingress
  namespace: devops
spec:
  rules:
  - host: nginxnpm.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxapp
          servicePort: 80


[root@master devops]# kubectl get ingress -n devops
Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
NAME               CLASS    HOSTS                 ADDRESS   PORTS   AGE
nginxnpm-ingress   <none>   nginxnpm.devops.com             80      19m



[root@master devops]# kubectl describe ingress nginxnpm-ingress -n devops
Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
Name:             nginxnpm-ingress
Namespace:        devops
Address:
Default backend:  default-http-backend:80 (<error: endpoints "default-http-backend" not found>)
Rules:
  Host                 Path  Backends
  ----                 ----  --------
  nginxnpm.devops.com
                       /   nginxapp:80 (10.233.90.170:80,10.233.96.184:80,10.233.96.185:80)
Annotations:           <none>
Events:
  Type    Reason  Age   From                      Message
  ----    ------  ----  ----                      -------
  Normal  CREATE  20m   nginx-ingress-controller  Ingress devops/nginxnpm-ingress
  Normal  CREATE  20m   nginx-ingress-controller  Ingress devops/nginxnpm-ingress
  Normal  UPDATE  102s  nginx-ingress-controller  Ingress devops/nginxnpm-ingress
  Normal  UPDATE  102s  nginx-ingress-controller  Ingress devops/nginxnpm-ingress

蓝环境（假设就行了冒烟测试通过）

在蓝环境中运行冒烟测试，以检查新版本是否正常工作。如果测试通过，发布系统更新路由配置，将用户流量从绿环境导向蓝环境，蓝环境就变成了生产环境。这种切换通常在一秒钟之内就能搞定。

#use the latest LTS (long term support) version 12 of node available from the Docker Hub
#FROM node:12
# Create app directory
#WORKDIR /usr/src/app
# Install app dependencies
# A wildcard is used to ensure both package.json AND package-lock.json are copied
# where available (npm@6+)
#COPY package*.json ./
#RUN npm install
# If you are building your code for production
# RUN npm ci --only=production
# Bundle app source
#COPY . .
#EXPOSE 8080
#CMD npm run serve
#CMD ['http-server'] ['dist']
#CMD ["node","server.js"]
FROM nginx
COPY ./dist /usr/share/nginx/html/
EXPOSE 80
CMD ["nginx", "-g", "daemon off;"]


-----------------------------------------
构建日志
[2022/10/17 15:28:14.303]   6bfb411.css
[2022/10/17 15:28:14.303]   dist/css/identity-modal.b2a321ee.css      0.12 KiB         0.12 KiB
[2022/10/17 15:28:14.303]   dist/css/JSON-schema-form.76bfb411.css    0.11 KiB         0.13 KiB
[2022/10/17 15:28:14.303]   dist/css/chat-components-map.972b3bc5.    0.11 KiB         0.13 KiB
[2022/10/17 15:28:14.303]   css
[2022/10/17 15:28:14.303]   dist/css/internal-link.19ef152d.css       0.10 KiB         0.12 KiB
[2022/10/17 15:28:14.303]   dist/css/button-styles-setButtonColor-    0.00 KiB         0.02 KiB
[2022/10/17 15:28:14.303]   less.2947857b.css

部署新版本的deployment，然后修改service的label。

[root@master devops]# cat blue.yaml
kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: nginxnpm
    version: "1"
  name: nginx-npm-blue
  namespace: devops
spec:
  replicas: 3
  selector:
    matchLabels:
      k8s-app: nginxnpm
      version: "1"
  template:
    metadata:
      labels:
        k8s-app: nginxnpm
        version: "1"
    spec:
      containers:
        - name: nginxapp
          image: 192.168.100.4:88/devops/npm:1
          imagePullPolicy: IfNotPresent
          ports:
            - containerPort: 80
              name: web



[root@master devops]# cat service-blue.yaml
kind: Service
apiVersion: v1
metadata:
  name: nginxnpm
  namespace: devops
spec:
  ports:
    - name: web
      port: 80
      targetPort: 80
  selector:
    k8s-app: nginxnpm
    version: "1"

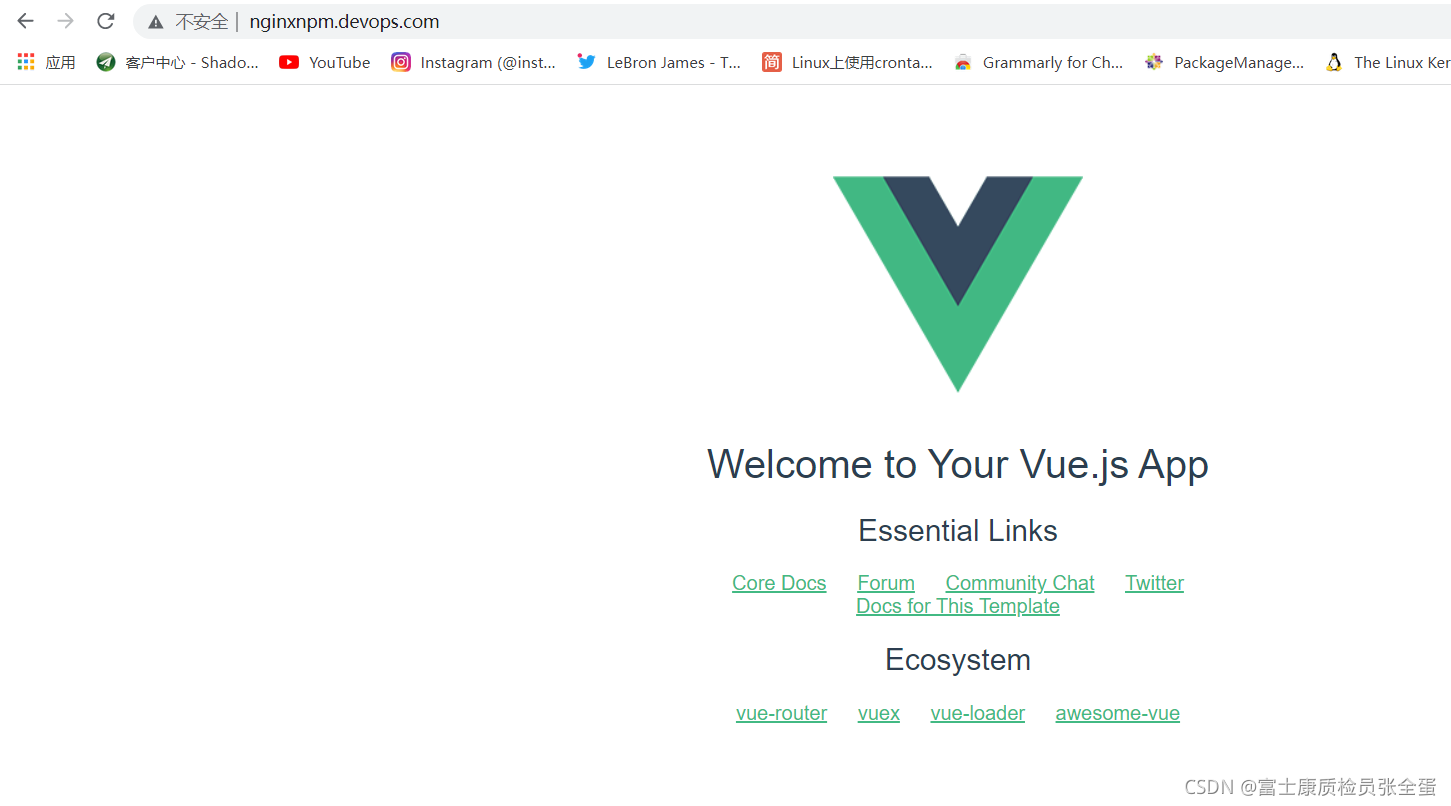

这里只需要修改一下servicenName就行了，为蓝环境的serviceName

[root@master devops]# cat ingress.yaml
apiVersion: extensions/v1beta1
kind: Ingress
metadata:
  name: nginxnpm-ingress
  namespace: devops
spec:
  rules:
  - host: nginxnpm.devops.com
    http:
      paths:
      - path: /
        backend:
          serviceName: nginxnpm
          servicePort: 80

[root@master devops]# kubectl get pod -n devops
NAME                              READY   STATUS    RESTARTS   AGE
nginx-npm-blue-6c5ddc9ffd-jl25q   1/1     Running   0          2m57s
nginx-npm-blue-6c5ddc9ffd-qx2kw   1/1     Running   0          2m57s
nginx-npm-blue-6c5ddc9ffd-vhtnx   1/1     Running   0          2m57s


[root@master devops]# kubectl get svc -n devops
NAME       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)   AGE
nginxnpm   ClusterIP   10.233.18.40   <none>        80/TCP    2m26s


[root@master devops]# kubectl get ep -n devops
NAME       ENDPOINTS                                            AGE
nginxnpm   10.233.90.167:80,10.233.90.168:80,10.233.96.179:80   2m30s


[root@master devops]# kubectl get ingress -n devops
Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
NAME               CLASS    HOSTS                 ADDRESS   PORTS   AGE
nginxnpm-ingress   <none>   nginxnpm.devops.com             80      2m38s


[root@master devops]# kubectl describe ingress nginxnpm-ingress -n devops
Warning: extensions/v1beta1 Ingress is deprecated in v1.14+, unavailable in v1.22+; use networking.k8s.io/v1 Ingress
Name:             nginxnpm-ingress
Namespace:        devops
Address:
Default backend:  default-http-backend:80 (<error: endpoints "default-http-backend" not found>)
Rules:
  Host                 Path  Backends
  ----                 ----  --------
  nginxnpm.devops.com
                       /   nginxnpm:80 (10.233.90.167:80,10.233.90.168:80,10.233.96.179:80)
Annotations:           <none>
Events:
  Type    Reason  Age   From                      Message
  ----    ------  ----  ----                      -------
  Normal  CREATE  3m2s  nginx-ingress-controller  Ingress devops/nginxnpm-ingress
  Normal  CREATE  3m2s  nginx-ingress-controller  Ingress devops/nginxnpm-ingress
