描述

RRC Connection Reconfiguration可传递信息

流程图

Log

总结

---

LTE(4G) - NR(5G) RRC连接重配置(RRC Connection Reconfiguration)

描述

RRC连接重配置主要的作用就是，修改RRC连接。我们知道当UE第一次接入网络的时候就要进行RRC连接，建立的原因是为了建立SRB1等承载。 如果UE需要传IP包那就需要建立DRB或者SRB2承载他们如何来建立呢？就是通过RRC连接重配置进行建立

RRC Connection Reconfiguration可传递信息

传递信息	案例
无线资源配置	包括DRB SRB等RB操作，MAC 主要配置和无线信66道配置
相关专用NAS信息和安全性配置
修改控制信息	发送切换命令:比如UE要接入邻区，基站发送一条RRC连接重配置信令，UE会先建立一个DRB而后UE会发起一个重配置成功消息
测试配置	建立 , 修改 , 释放 , 测量 。如何测，网络侧会将自己测量的信息通过RRC重配置给UE的

流程图

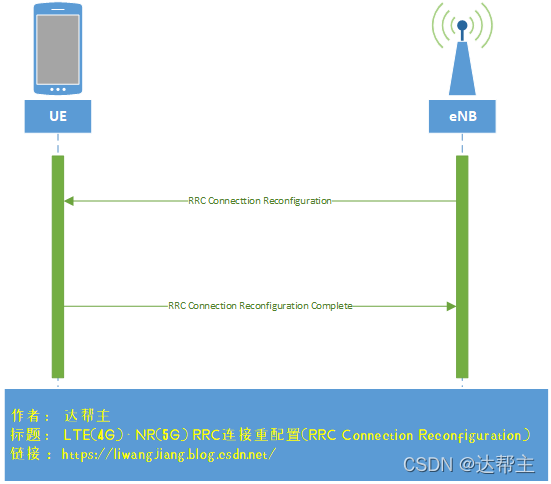

流程很简单，基站发起一个重配置过来，UE收到后根据重配置协议信息进行配置，UE发起一个连接重配置成功信令给基站

Log

RRCConnectionReconfiguration
Type: DCCH_DL
Direction: Downlik
Computer Timestamp: 14:33:22.943
Earfcn\Pci: 32432 - 55
DL - DCCH-Message
	message
		c1
			rrcConnectionReconfiguration
				rrc-TransactionIdentifier: 0
				criticalExtensions
					c1
						rrcConnectionReconfiguration-r8
							measConfig  //对应测量的配置，测量如何测，是需要基站通知UE的
								measObjectToAddModList
									measObjectId: 2
									measObjectId //测量的对象
										measObjectEUTRA
											carrierFreq: 344213 //测量目标的频点
											allowedMeasBandWidhth: (0)mbw6  //允许测量的带宽
											presenceAntennaPrort1: false
											neighCellConfig: 0x1  //邻区的配置
											offsetFreq: (15) dB0  //偏移量
								reportConfigToAddModList
									ReportConfigToAddMod
										reportConfigId: 1
										reportConfig   //测量报告相关配置
											reportConfigEUTRA
												triggerType
													event
														eventId
															eventA3 //测量报告基于A3进行发送的
																a3-Offset: 6  //A3的偏移量
																reportOnLeave: false
														hysteresis: 2
														timeToTrigger: (1) ms40
												triggerQuantity: (0) rerp
												reportQuantity: (1) both
												maxReportCells: 4  //最大上报小区
												reportInterval: (2) ms480
												reportAmount: (7) infinity
										reportConfigId: 2
										reportConfig
											reportConfigEutra
												triggerType
													event
														eventId
															eventA2 //A2测试报告事件
																a2-Threshold
																	threshold-RSRP: 0
														hysteresis: 2
														timeToTrigger: (11) ms661
												triggerQuantity: (0) rsrp
												reportQuantity: (1) both
												maxReportCells: 5
												reportInterval: (2) ms441
												reportAmount:(7) infinity
										reportConfigId: 3
										reportConfig
											reportConfigEUTRA
												triggerType
													event
														eventId
															eventA2
																a2-Threshold
																	threshold-RSRQ: 1
														hysteresis: 2
														timeToTrigger: (11) ms642
												triggerQuantity: (1) resrq
												reportQuantity: (1) both
												maxReportCells: 4
												reportInterval: (2) ms480
												reportAmount: (7) infinity
								measIdToAddModList
									MeasIdToAddMod
										measId: 1
										measObjectId: 1
										reportConfigId :1
										measId: 2
										measObjectId: 1
										reportConfigId: 2
										measId: 3
										measObjectId: 1
										reportConfigId: 3
								quantityConfig
									quantityConfigEUTRA
										filterCoefficientRSRP: (4) fc4
										filterCoefficientRSRQ: (5) fc11
									speedStatePars: release
							radioResourceConfigDedicated  //无线资源的专用配置
								srb-ToAddModList
									SRB-ToAddMod
										srb-Identity: 2   //配置SRB2
										rlc-Config
											explicitValue
												am
													ul-AM-RLC
														t-PollRetransmit: (8) ms45
														pollPDU: (7) pInfinity
														pollByte: (14)kBinfinity
														maxRetxThreshold: (5) t8
													dl-AM-RLC
														t-Reordering: (7) ms35
														tStatusProhibit: (0) ms0
										logicalChannelConfig
											explicitValue
												ul-SpecificParameters
													priority: 3
													prioritisedBitRate: (7) infinity
													bucketSizeDuration: (0) ms50
													logicalChannelGroup: 0
								drb-ToAddModList
									DRB-ToAddMod
										eps-BearerIdentity:5  //EPS 承载
										drb-Identity: 3     //配置DRB
										pdcp-Config
											discardTimer: (7) infinity
											rlc-AM
												statusReportRequired: false
											headerCompression: notUsed
										rlc-Config
											am
												ul-AM-RLC
													t-PollRetransmit: (9) ms50
													pollPDU: (2) p13
													pollByte: (14) kBinfinity
													maxRetxThreshold: (5) t8
												dl-AM-RLC
													t-Reordering: (7) ms35
													t-StatusProhoibit: (5) ms25
										logicalChannelIdentity: 3
										logicalChannelConfig
											ul-SpecificParameters
												priority: 4
												prioritisedBitRate: (1) kBps8
												bucketSizeDuration: (0) ms50
												logicalChannelGroup: 1


总结

通过查看基站反馈的RRC Connection Reconfiguration后，UE会读取协议中的内容配置UE相关信息，比如建立SRB2,DRB,还有pdcp层配置等。
