spark之combineByKey函数源码

1.源码：

/**
   * Simplified version of combineByKeyWithClassTag that hash-partitions the output RDD.
   * This method is here for backward compatibility. It does not provide combiner
   * classtag information to the shuffle.
   *
   * @see `combineByKeyWithClassTag`
   */
  def combineByKey[C](
      createCombiner: V => C,
      mergeValue: (C, V) => C,
      mergeCombiners: (C, C) => C,
      numPartitions: Int): RDD[(K, C)] = self.withScope {
    combineByKeyWithClassTag(createCombiner, mergeValue, mergeCombiners, numPartitions)(null)
  }

调用combineByKeyWithClassTag

 /**
   * :: Experimental ::
   * Generic function to combine the elements for each key using a custom set of aggregation
   * functions. Turns an RDD[(K, V)] into a result of type RDD[(K, C)], for a "combined type" C
   *
   * Users provide three functions:
   *
   *  - `createCombiner`, which turns a V into a C (e.g., creates a one-element list)
   *  - `mergeValue`, to merge a V into a C (e.g., adds it to the end of a list)
   *  - `mergeCombiners`, to combine two C's into a single one.
   *
   * In addition, users can control the partitioning of the output RDD, and whether to perform
   * map-side aggregation (if a mapper can produce multiple items with the same key).
   *
   * @note V and C can be different -- for example, one might group an RDD of type
   * (Int, Int) into an RDD of type (Int, Seq[Int]).
   */
  @Experimental
  def combineByKeyWithClassTag[C](
      createCombiner: V => C,
      mergeValue: (C, V) => C,
      mergeCombiners: (C, C) => C,
      partitioner: Partitioner,
      mapSideCombine: Boolean = true,
      serializer: Serializer = null)(implicit ct: ClassTag[C]): RDD[(K, C)] = self.withScope {
    require(mergeCombiners != null, "mergeCombiners must be defined") // required as of Spark 0.9.0
    if (keyClass.isArray) {
      if (mapSideCombine) {
        throw new SparkException("Cannot use map-side combining with array keys.")
      }
      if (partitioner.isInstanceOf[HashPartitioner]) {
        throw new SparkException("HashPartitioner cannot partition array keys.")
      }
    }
    val aggregator = new Aggregator[K, V, C](
      self.context.clean(createCombiner),
      self.context.clean(mergeValue),
      self.context.clean(mergeCombiners))
    if (self.partitioner == Some(partitioner)) {
      self.mapPartitions(iter => {
        val context = TaskContext.get()
        new InterruptibleIterator(context, aggregator.combineValuesByKey(iter, context))
      }, preservesPartitioning = true)
    } else {
      new ShuffledRDD[K, V, C](self, partitioner)
        .setSerializer(serializer)
        .setAggregator(aggregator)
        .setMapSideCombine(mapSideCombine)
    }
  }

1.1跟踪aggregator

aggregator中的mergeValue和mergeCombiners类似于mapreduce中的map和reduce过程。

 val aggregator = new Aggregator[K, V, C](
      self.context.clean(createCombiner),
      self.context.clean(mergeValue),
      self.context.clean(mergeCombiners))

1.2 combineByKeyWithClassTag核心逻辑

其中最核心的代码逻辑：大概的意思是，RDD本身的partitioner和传入的partitioner相等时, 即不需要重新shuffle, 直接map即可，则在partitioner使用mapPartitions对每个元素使用combineValuesByKey，如果partition不相等，则new ShuffledRDD，也是使用mapSideCombine的方式先在每个partiton中聚合，然后再reduce聚合。

self.partitioner == Some(partitioner) ：表示分区早就分好了，相同的key他已经在同一个partition中了，不需要shuffle。

其实这里就是判断本次聚合是窄依赖还是宽依赖。

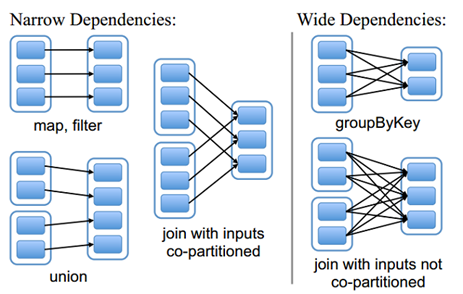

从图中可知：
窄依赖：是指每个父RDD的一个Partition最多被子RDD的一个Partition所使用，例如map、filter、union等操作都会产生窄依赖；（独生子女）
宽依赖：是指一个父RDD的Partition会被多个子RDD的Partition所使用，例如groupByKey、reduceByKey、sortByKey等操作都会产生宽依赖；（超生）
需要特别说明的是对join操作有两种情况：
（1）图中左半部分join：如果两个RDD在进行join操作时，一个RDD的partition仅仅和另一个RDD中已知个数的Partition进行join，那么这种类型的join操作就是窄依赖，例如图1中左半部分的join操作(join with inputs co-partitioned)；
（2）图中右半部分join：其它情况的join操作就是宽依赖,例如图1中右半部分的join操作(join with inputs not co-partitioned)，由于是需要父RDD的所有partition进行join的转换，这就涉及到了shuffle，因此这种类型的join操作也是宽依赖。

if (self.partitioner == Some(partitioner)) {
      self.mapPartitions(iter => {
        val context = TaskContext.get()
        new InterruptibleIterator(context, aggregator.combineValuesByKey(iter, context))
      }, preservesPartitioning = true)
    } else {
      new ShuffledRDD[K, V, C](self, partitioner)
        .setSerializer(serializer)
        .setAggregator(aggregator)
        .setMapSideCombine(mapSideCombine)
    }

2.通过案例分析

scala> rdd6.collect
res3: Array[(Int, String)] = Array((1,dog), (1,cat), (2,gnu), (2,salmon), (2,rabbit), (1,turkey), (2,wolf), (2,bear), (2,bee))

scala> rdd6.combineByKey(List(_),(x:List[String],y:String)=>x:+y,(a:List[String],b:List[String])=>a++b).collect
res6: Array[(Int, List[String])] = Array((1,List(turkey, dog, cat)), (2,List(salmon, rabbit, gnu, wolf, bear, bee)))

1.很明显数据的分区为：
partitioner1：(1,dog), (1,cat), (2,gnu)
partitioner2：(2,salmon), (2,rabbit), (1,turkey)
partitioner3：(2,wolf), (2,bear), (2,bee)

分区的方法：ParallelCollectionRDD中分区的源码

def positions(length: Long, numSlices: Int): Iterator[(Int, Int)] = {
     (0 until numSlices).iterator.map { i =>
       val start = ((i * length) / numSlices).toInt
       val end = (((i + 1) * length) / numSlices).toInt
       (start, end)
     }
   }

可以看出，计算分区直接是使用数据的长度除以分区的个数，平均将数据分给每个分区

2.第一步合并数据aggregator
partitioner1：(1,(dog,cat)), (2,gnu)
partitioner2：(2,(salmon,rabbit)), (1,turkey)
partitioner3：(2,(wolf,bear,bee))

3.调用List( _ ),对value中的第一元素使用List( _ )
partitioner1：(1,(List(dog),cat)), (2,List(gnu))
partitioner2：(2,(List(salmon),rabbit)), (1,List(turkey))
partitioner3：(2,(List(wolf),bear,bee))

4.调用(x:List[String],y:String)=>x:+y
partitioner1：(1,(List(dog,cat))), (2,List(gnu))
partitioner2：(2,(List(salmon,rabbit))), (1,List(turkey))
partitioner3：(2,(List(wolf,bear,bee)))

5.调用 (a:List[String],b:List[String])=>a++b
讲不同的partition之间的数据合并：(1,List(turkey, dog, cat)), (2,List(salmon, rabbit, gnu, wolf, bear, bee))
