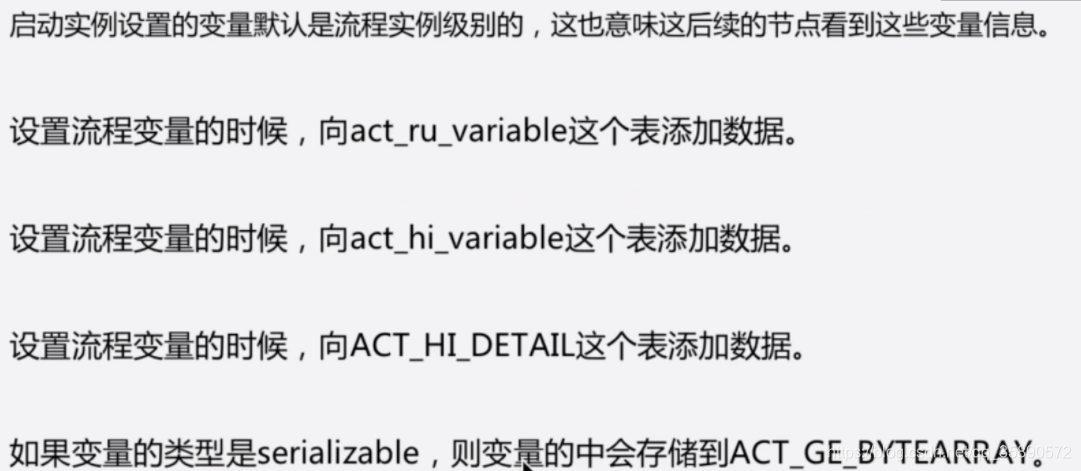

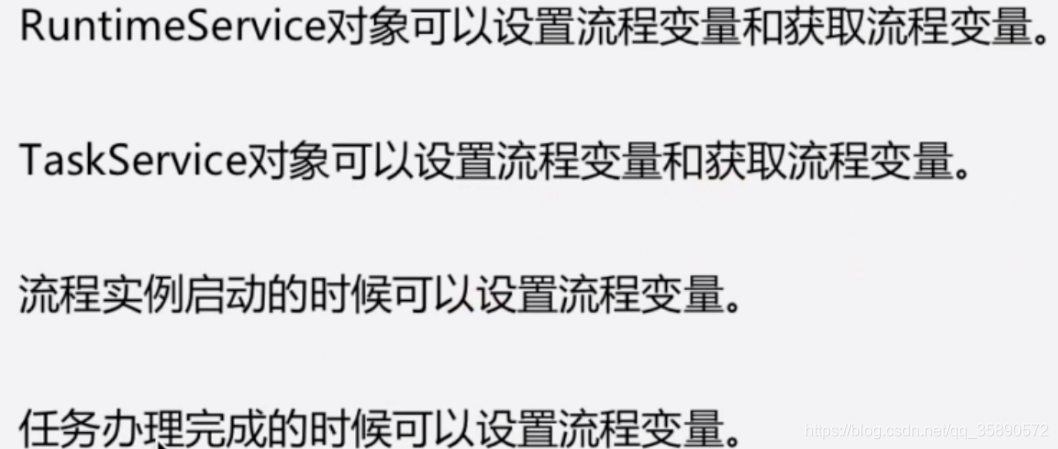

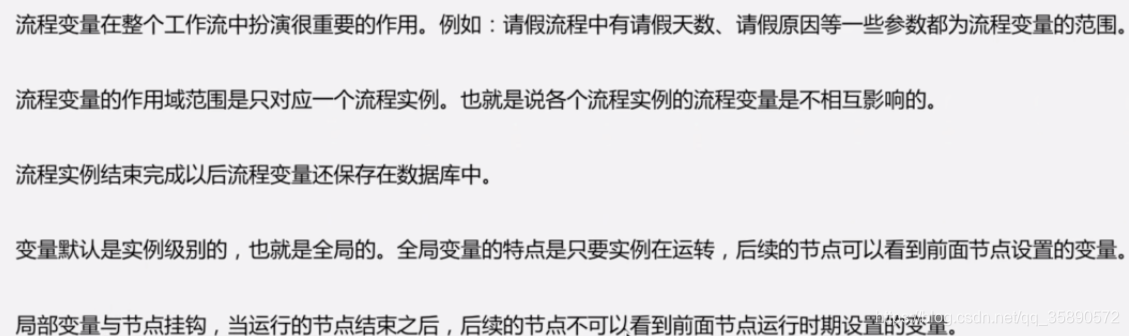

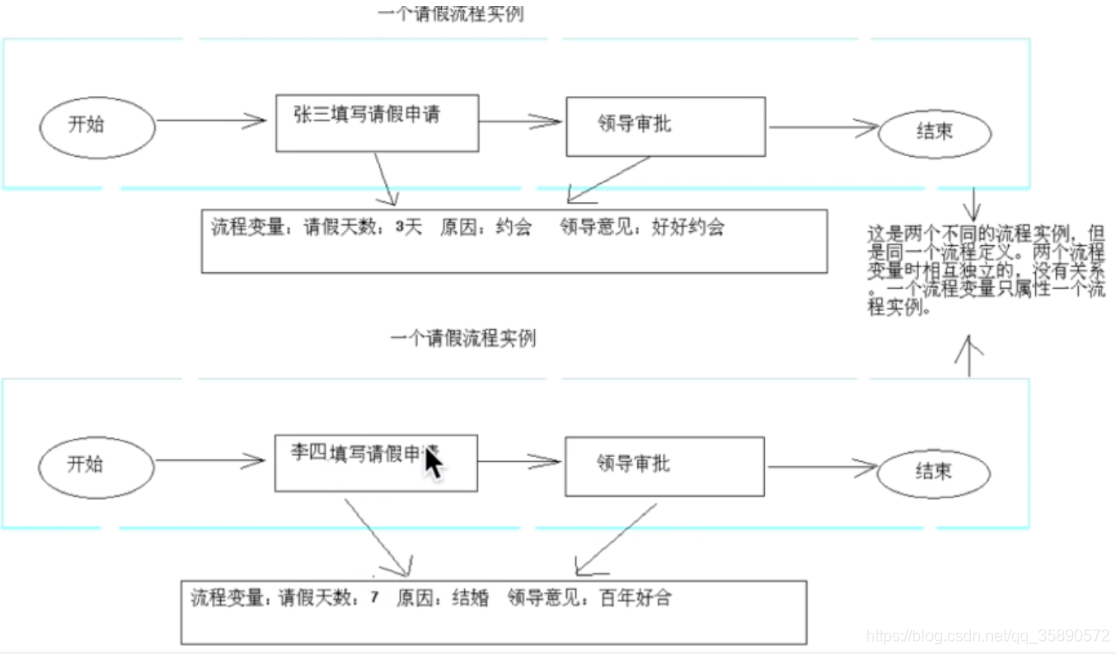

一、变量设置以及涉及三张表说明

在这里插入图片描述

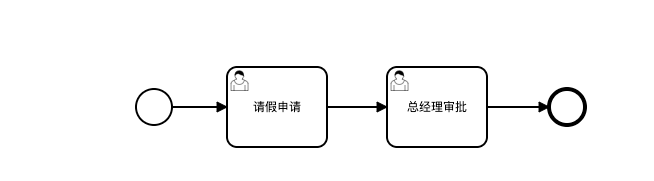

启动流程设置变量：

 /**
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_HI_VARINST ( ID_, PROC_DEF_KEY_, PROC_DEF_ID_, ROOT_PROC_INST_ID_, PROC_INST_ID_, EXECUTION_ID_, ACT_INST_ID_, TENANT_ID_, CASE_DEF_KEY_, CASE_DEF_ID_, CASE_INST_ID_, CASE_EXECUTION_ID_, TASK_ID_, NAME_, REV_, VAR_TYPE_, CREATE_TIME_, REMOVAL_TIME_, BYTEARRAY_ID_, DOUBLE_, LONG_, TEXT_, TEXT2_, STATE_ ) values ( '3802', 'var', 'var:1:3403', '3801', '3801', '3801', '3801', 'a', null, null, null, null, null, 'var2', 0, 'string', '2021-03-10 15:23:01.259', null, null, null, null, '变量2', null, 'CREATED' );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_HI_TASKINST ( ID_, PROC_DEF_KEY_, PROC_DEF_ID_, ROOT_PROC_INST_ID_, PROC_INST_ID_, EXECUTION_ID_, CASE_DEF_KEY_, CASE_DEF_ID_, CASE_INST_ID_, CASE_EXECUTION_ID_, ACT_INST_ID_, NAME_, PARENT_TASK_ID_, DESCRIPTION_, OWNER_, ASSIGNEE_, START_TIME_, END_TIME_, DURATION_, DELETE_REASON_, TASK_DEF_KEY_, PRIORITY_, DUE_DATE_, FOLLOW_UP_DATE_, TENANT_ID_, REMOVAL_TIME_ ) values ( '3809', 'var', 'var:1:3403', '3801', '3801', '3801', null, null, null, null, 'Activity_0dhhxgy:3808', '请假申请', null, null, null, null, '2021-03-10 15:23:01.264', null, null, null, 'Activity_0dhhxgy', 50, null, null, 'a', null );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_HI_PROCINST ( ID_, PROC_INST_ID_, BUSINESS_KEY_, PROC_DEF_KEY_, PROC_DEF_ID_, START_TIME_, END_TIME_, REMOVAL_TIME_, DURATION_, START_USER_ID_, START_ACT_ID_, END_ACT_ID_, SUPER_PROCESS_INSTANCE_ID_, ROOT_PROC_INST_ID_, SUPER_CASE_INSTANCE_ID_, CASE_INST_ID_, DELETE_REASON_, TENANT_ID_, STATE_ ) values ( '3801', '3801', null, 'var', 'var:1:3403', '2021-03-10 15:23:01.253', null, null, null, null, 'StartEvent_1', null, null, '3801', null, null, null, 'a', 'ACTIVE' );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_HI_ACTINST ( ID_, PARENT_ACT_INST_ID_, PROC_DEF_KEY_, PROC_DEF_ID_, ROOT_PROC_INST_ID_, PROC_INST_ID_, EXECUTION_ID_, ACT_ID_, TASK_ID_, CALL_PROC_INST_ID_, CALL_CASE_INST_ID_, ACT_NAME_, ACT_TYPE_, ASSIGNEE_, START_TIME_, END_TIME_, DURATION_, ACT_INST_STATE_, SEQUENCE_COUNTER_, TENANT_ID_, REMOVAL_TIME_ ) values ( 'Activity_0dhhxgy:3808', '3801', 'var', 'var:1:3403', '3801', '3801', '3801', 'Activity_0dhhxgy', '3809', null, null, '请假申请', 'userTask', null, '2021-03-10 15:23:01.261', null, null, 0, 3, 'a', null );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_RU_EXECUTION ( ID_, ROOT_PROC_INST_ID_, PROC_INST_ID_, BUSINESS_KEY_, PROC_DEF_ID_, ACT_ID_, ACT_INST_ID_, IS_ACTIVE_, IS_CONCURRENT_, IS_SCOPE_, IS_EVENT_SCOPE_, PARENT_ID_, SUPER_EXEC_, SUPER_CASE_EXEC_, CASE_INST_ID_, SUSPENSION_STATE_, CACHED_ENT_STATE_, SEQUENCE_COUNTER_, TENANT_ID_, REV_ ) values ( '3801', '3801', '3801', null, 'var:1:3403', 'Activity_0dhhxgy', 'Activity_0dhhxgy:3808', true, false, true, false, null, null, null, null, 1, 18, 3, 'a', 1 );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_RU_TASK ( ID_, NAME_, PARENT_TASK_ID_, DESCRIPTION_, PRIORITY_, CREATE_TIME_, OWNER_, ASSIGNEE_, DELEGATION_, EXECUTION_ID_, PROC_INST_ID_, PROC_DEF_ID_, CASE_EXECUTION_ID_, CASE_INST_ID_, CASE_DEF_ID_, TASK_DEF_KEY_, DUE_DATE_, FOLLOW_UP_DATE_, SUSPENSION_STATE_, TENANT_ID_, REV_ ) values ( '3809', '请假申请', null, null, 50, '2021-03-10 15:23:01.261', null, null, null, '3801', '3801', 'var:1:3403', null, null, null, 'Activity_0dhhxgy', null, null, 1, 'a', 1 );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_GE_BYTEARRAY(ID_, NAME_, BYTES_, DEPLOYMENT_ID_, TENANT_ID_, TYPE_, CREATE_TIME_, ROOT_PROC_INST_ID_, REMOVAL_TIME_, REV_) values ( '3804', 'person', java.io.ByteArrayInputStream@2f3c6ac4(ByteArrayInputStream), null, null, 2, '2021-03-10 15:23:01.252', null, null, error, 1 );
     * ------------------------------------------------------------------------------------------------------------------------
     * insert into ACT_RU_VARIABLE ( ID_, TYPE_, NAME_, PROC_INST_ID_, EXECUTION_ID_, CASE_INST_ID_, CASE_EXECUTION_ID_, TASK_ID_, BYTEARRAY_ID_, DOUBLE_, LONG_, TEXT_, TEXT2_, VAR_SCOPE_, SEQUENCE_COUNTER_, IS_CONCURRENT_LOCAL_, TENANT_ID_, REV_ ) values ( '3802', 'string', 'var2', '3801', '3801', null, null, null, null, null, null, '变量2', null, '3801', 1, false, 'a', 1 );
     * ------------------------------------------------------------------------------------------------------------------------
     */
    @Test
    public void startProcessInstanceByKey() {
        VariableMap variableMap = Variables.createVariables()
                .putValue("var1", "变量1")
                .putValue("var2", "变量2")
                .putValue("person", new Person(18, "peng"));
        runtimeService.startProcessInstanceByKey("var", variableMap);
    }

在这里插入图片描述
完成任务设置变量：

    @Test
    public void complete() {
        VariableMap variableMap = Variables.createVariables()
                .putValue("var1", "变量11")
                .putValue("var2", "变量22")
                .putValue("person", new Person(19, "peng"));
        taskService.complete("3809", variableMap);
    }

此时，原有变量会被覆盖
在这里插入图片描述

二、变量获取及序列化变量使用

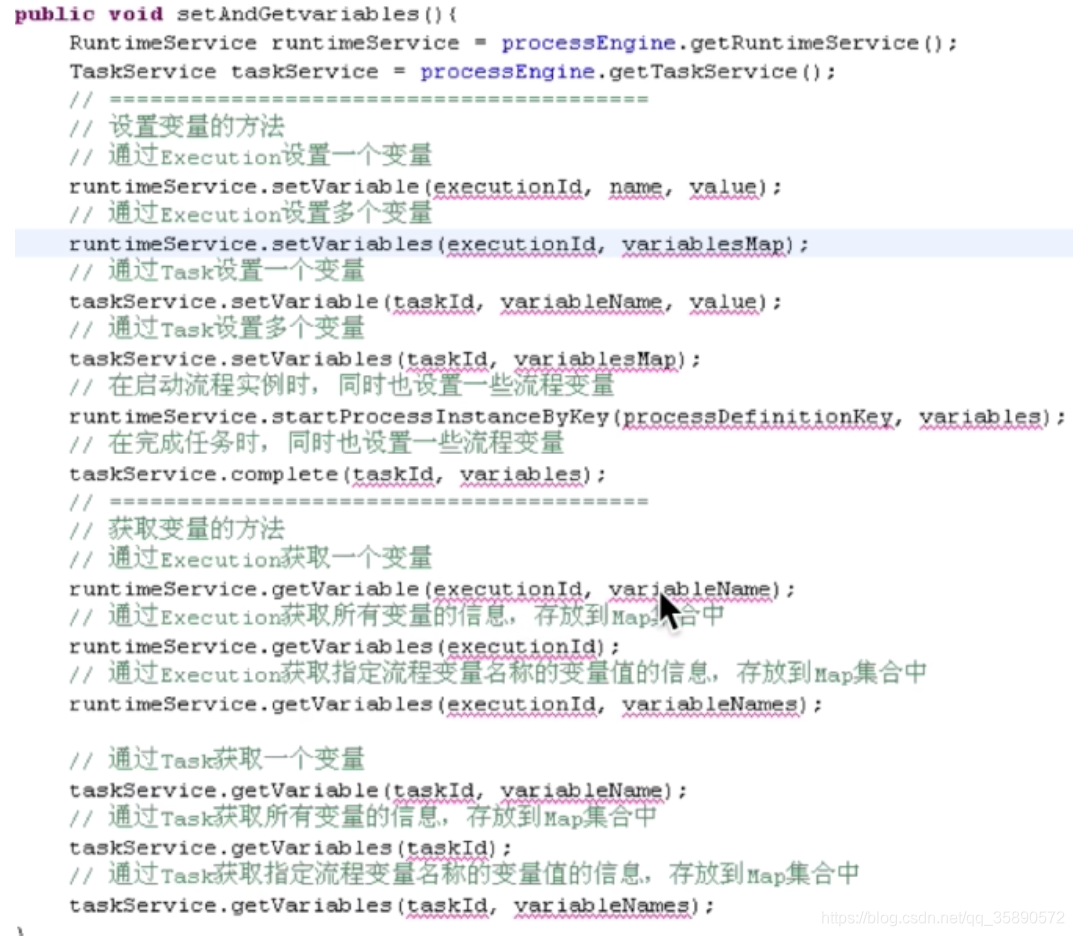

手工变量设置：

在这里插入图片描述
变量获取：

 @Test
    public void getRuntimeServiceVariables() {
        String executionId = "3801";
        Map<String, Object> variables = runtimeService.getVariables(executionId);
        System.out.println(variables);

        Object var1 = runtimeService.getVariable(executionId, "var1");
        System.out.println("#####" + var1);

        List<String> varParams = new ArrayList<String>();
        varParams.add("var1");
        varParams.add("var2");
        Map<String, Object> variables1 = runtimeService.getVariables(executionId, varParams);
        System.out.println(variables1);


        VariableMap variablesTyped = runtimeService.getVariablesTyped(executionId);
        Object var11 = variablesTyped.get("var1");
        System.out.println("#####" + var11);

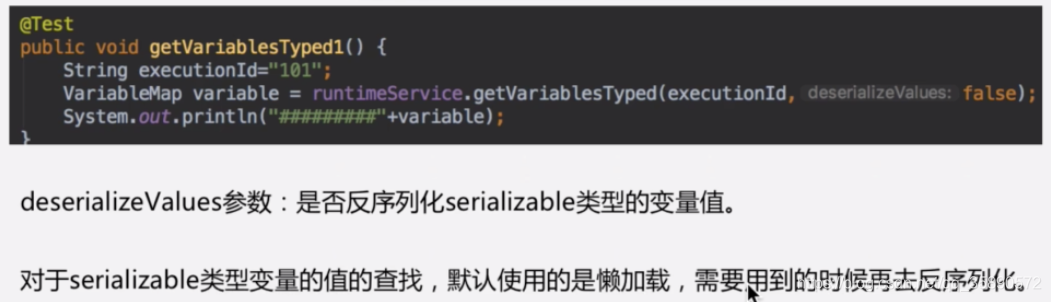

//        VariableMap variablesTyped1 = runtimeService.getVariablesTyped(executionId, false);
//        Object person = variablesTyped1.get("person");
//        System.out.println("#####" + person);

    }

    @Test
    public void getTaskServiceVariables() {
        String taskId = "3904";
        Map<String, Object> variables = taskService.getVariables(taskId);
        System.out.println(variables);


        Object var1 = taskService.getVariable(taskId, "var1");
        System.out.println("#####" + var1);

        List<String> varParams = new ArrayList<String>();
        varParams.add("var1");
        varParams.add("var2");
        Map<String, Object> variables1 = taskService.getVariables(taskId, varParams);
        System.out.println(variables1);

        VariableMap variablesTyped = taskService.getVariablesTyped(taskId);
        Object var11 = variablesTyped.get("var1");
        System.out.println("#####" + var11);

    }

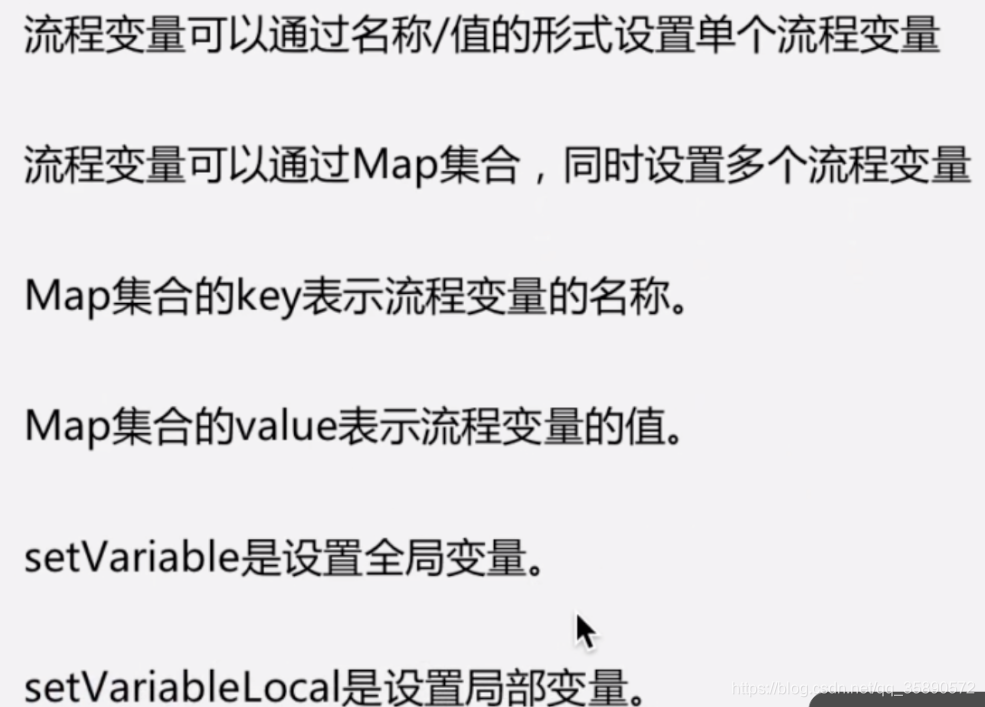

变量设置：

 @Test
    public void runtimeServiceSetVariable() {
        String executionId = "3801";
        runtimeService.setVariable(executionId, "p1", "peng1");

        VariableMap variableMap = Variables.createVariables()
                .putValue("var1", "变量111")
                .putValue("var2", "变量222")
                .putValue("person", new Person(18, "peng"));
        runtimeService.setVariables(executionId,variableMap);
    }


    @Test
    public void taskServiceSetVariable() {
        String taskId = "3904";
        taskService.setVariable(taskId, "p1", "peng1");

        VariableMap variableMap = Variables.createVariables()
                .putValue("var1", "变量1111")
                .putValue("var2", "变量2222")
                .putValue("person", new Person(18, "peng"));
        taskService.setVariables(taskId,variableMap);
    }

在这里插入图片描述

设置局部变量使用：setVariableLocal

三、历史明细变量获取

    @Test
    public void createHistoricDetailQuery() {
        List<HistoricDetail> list = historyService
                .createHistoricDetailQuery()
                .processInstanceId("1701")
                .activityInstanceId("Task_11w89:1734")
                .list();
        for (HistoricDetail historicDetail : list) {
            System.out.println(historicDetail);
        }
    }

    @Test
    public void createHistoricVariableInstanceQuery() {
        List<HistoricVariableInstance> list = historyService
                .createHistoricVariableInstanceQuery()
                .list();
        for (HistoricVariableInstance historicVariableInstance : list) {
            System.out.println("###########");
            System.out.println(historicVariableInstance.getId());
            System.out.println(historicVariableInstance.getExecutionId());
            System.out.println(historicVariableInstance.getActivityInstanceId());
            System.out.println(historicVariableInstance.getName());
            System.out.println(historicVariableInstance.getValue());
            System.out.println("###########");
        }
    }

四、变量设置源码分析

引擎支持变量类型说明：

org.camunda.bpm.engine.impl.cfg.ProcessEngineConfigurationImpl#initValueTypeResolver

    protected void initValueTypeResolver() {
        if (this.valueTypeResolver == null) {
            this.valueTypeResolver = new ValueTypeResolverImpl();
        }

    }

public class ValueTypeResolverImpl implements ValueTypeResolver {
    protected Map<String, ValueType> knownTypes = new HashMap();

    public ValueTypeResolverImpl() {
        this.addType(ValueType.BOOLEAN);
        this.addType(ValueType.BYTES);
        this.addType(ValueType.DATE);
        this.addType(ValueType.DOUBLE);
        this.addType(ValueType.INTEGER);
        this.addType(ValueType.LONG);
        this.addType(ValueType.NULL);
        this.addType(ValueType.SHORT);
        this.addType(ValueType.STRING);
        this.addType(ValueType.OBJECT);
        this.addType(ValueType.NUMBER);
        this.addType(ValueType.FILE);
    }

    public void addType(ValueType type) {
        this.knownTypes.put(type.getName(), type);
    }

    public ValueType typeForName(String typeName) {
        return (ValueType)this.knownTypes.get(typeName);
    }

    public Collection<ValueType> getSubTypes(ValueType type) {
        List<ValueType> types = new ArrayList();
        Set<ValueType> validParents = new HashSet();
        validParents.add(type);
        Iterator var4 = this.knownTypes.values().iterator();

        while(var4.hasNext()) {
            ValueType knownType = (ValueType)var4.next();
            if (validParents.contains(knownType.getParent())) {
                validParents.add(knownType);
                if (!knownType.isAbstract()) {
                    types.add(knownType);
                }
            }
        }

        return types;
    }
}

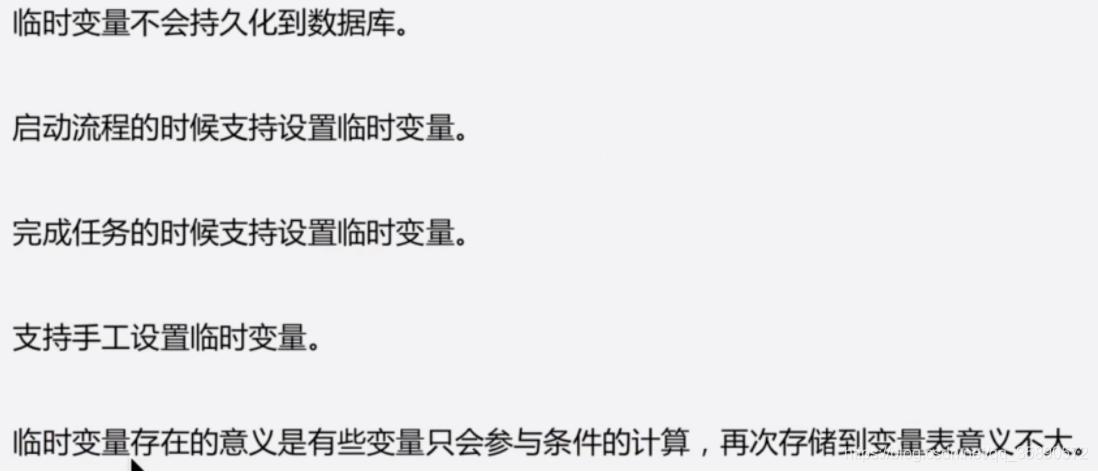

五、临时变量使用

    @Test
    public void setVariable3() {
        String executionId = "3801";

        PrimitiveValueTypeImpl.DoubleTypeImpl dateType = new PrimitiveValueTypeImpl.DoubleTypeImpl();
        Map<String, Object> map = new HashMap<>();
        map.put("transient", false);
        DoubleValue doubleValue = dateType.createValue(12D, map);
        runtimeService.setVariable(executionId,"var_transient",doubleValue);

        //是否是临时的
        boolean isTransient=true;
        DoubleValue doubleValue1 = Variables.doubleValue(13D, isTransient);
    }

在这里插入图片描述

    @Test
    public void setVariable4() {
        String executionId = "3801";

        VariableMap variableMap = Variables.createVariables()
                .putValue("a", Variables.doubleValue(11D, true))
                .putValue("b", Variables.doubleValue(11D, false))
                .putValue("c", Variables.stringValue("mm", false));
        runtimeService.setVariables(executionId, variableMap);
    }
