【17.PIE-Engine案例—— 全球夜光指数年度变化】

全球夜光指数年度变化

原始路径

欢迎大家登录航天宏图官网查看本案例原始来源

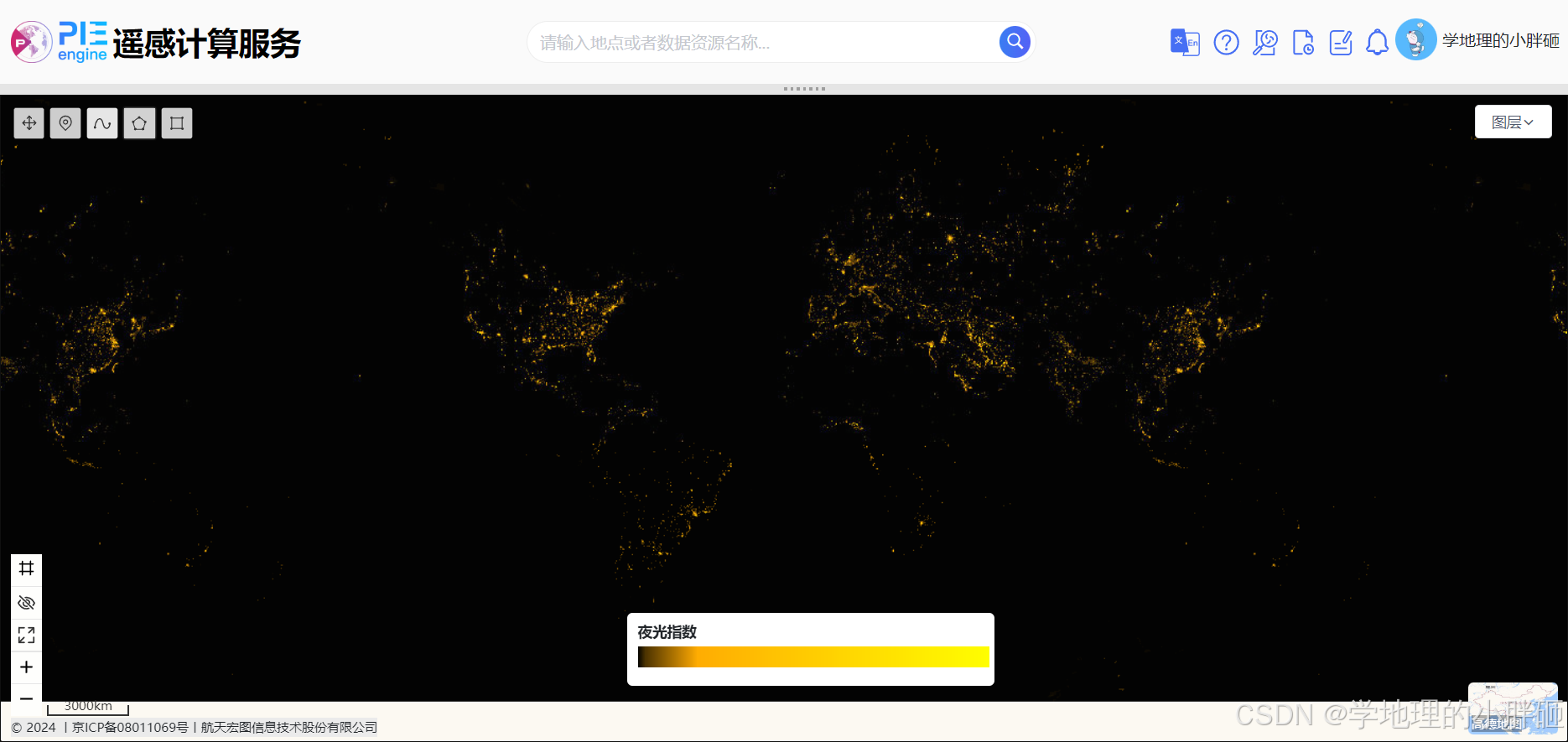

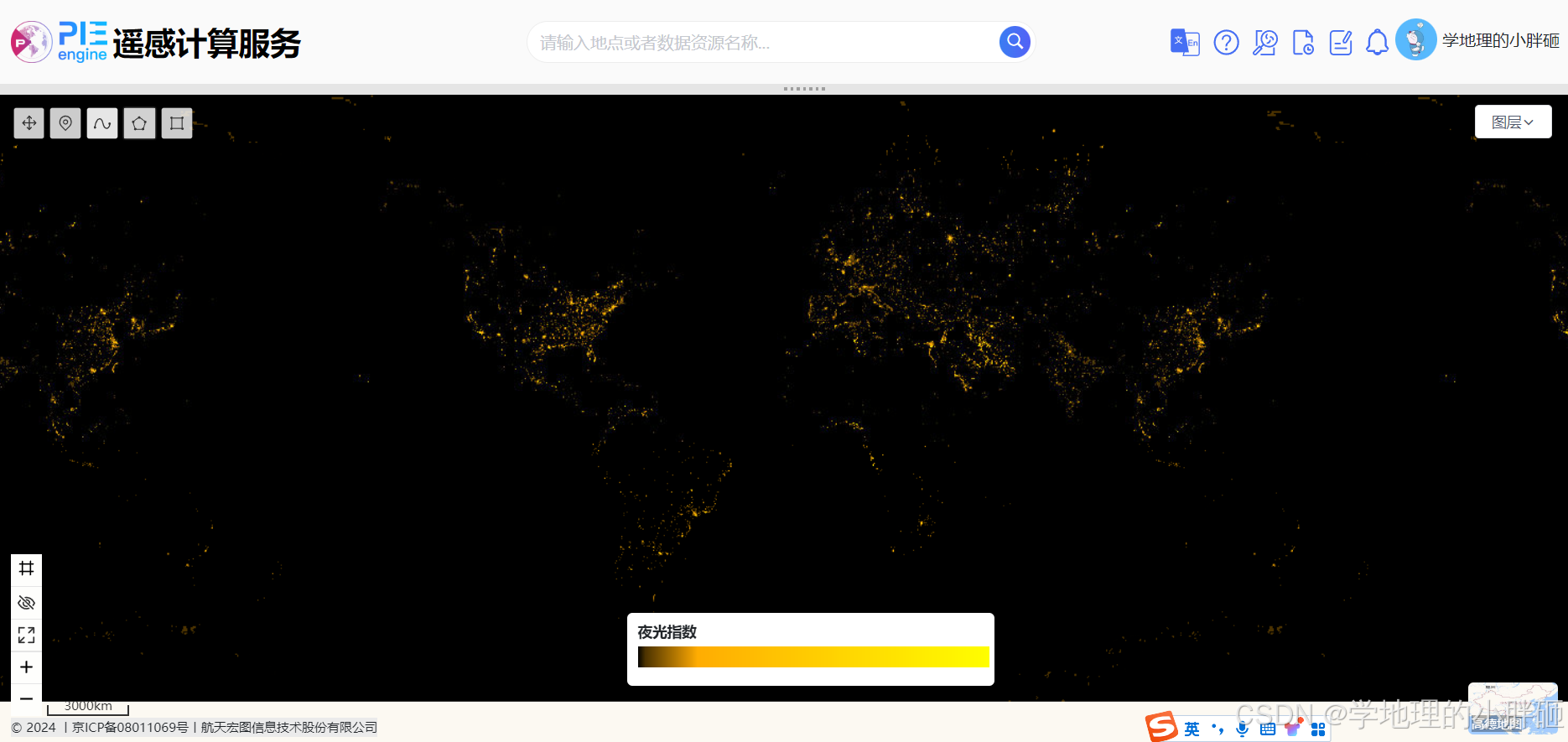

最终结果

具体代码

/**
 * @File    :   全球夜光指数年度变化
 * @Time    :   2022/3/1
 * @Author  :   piesat
 * @Version :   1.0
 * @Contact :   400-890-0662
 * @License :   (C)Copyright 航天宏图信息技术股份有限公司
 * @Desc    :   全球夜光指数年度变化
 */

//加载全球国家行政区划边界数据
var roi = pie
  .FeatureCollection("RESDC/WORLD_COUNTRY_BOUNDARY")
  .filter(pie.Filter.eq("fcname", "中国"));
visroi = { color: "ff0000ff", fillColor: "00000000", width: 1 };
Map.addLayer(roi, visroi, "中国", false);
var chn = roi.getAt(0).geometry();
//定位地图中心
Map.centerObject(chn, 3);

//设置夜光数据预览参数及颜色组合
var colors = [
  "#000000",
  "#4c3300",
  "#664401",
  "#7f5501",
  "#996601",
  "#b27702",
  "#cc8802",
  "#e59902",
  "#ffad02",
  "#ffaf02",
  "#ffb102",
  "#ffb302",
  "#ffb502",
  "#ffb702",
  "#ffb902",
  "#ffbb02",
  "#ffbd02",
  "#ffc002",
  "#ffc202",
  "#ffc402",
  "#ffc602",
  "#ffc801",
  "#ffca01",
  "#ffcc01",
  "#ffce01",
  "#ffd001",
  "#ffd201",
  "#ffd501",
  "#ffd701",
  "#ffd901",
  "#ffdb01",
  "#ffdd01",
  "#ffdf01",
  "#ffe101",
  "#ffe300",
  "#ffe500",
  "#ffe700",
  "#ffea00",
  "#ffec00",
  "#ffee00",
  "#fff000",
  "#fff200",
  "#fff400",
  "#fff600",
  "#fff800",
  "#fffa00",
  "#fffc00",
  "#ffff00",
];
var visParams = {
  min: 0,
  max: 60,
  palette: colors,
};
//定义夜光指数计算函数
function calcNT(night, chn) {
  var result = night.reduceRegion(pie.Reducer.mean(), chn, 1);
  return result;
}
//循环计算影像的夜光指数
var xSeries = [];
var chnNT = [];
for (var i = 2013; i < 2021; i++) {
  var nightLight = pie
    .ImageCollection("VIIRS_VCMCFG/NIGHTTIME_LIGHTS")
    .filterDate(i + "-01-01", i + "-12-31")
    .select("avg_rad")
    .map(function (image) {
      return image.divide(1000).rename("a_r");
    })
    .mean();
  Map.addLayer(nightLight, visParams, String(i), true);
  var chnresult = calcNT(nightLight, chn);
  xSeries.push(String(i));
  chnNT.push(chnresult);
}
//动画显示
Map.playLayersAnimation(xSeries, 0.5, 100);

//添加图例
var data = {
  title: "夜光指数",
  colors: colors,
  step: 30,
};

//设定图例位置
var style = {
  top: "80%",
  left: "40%",
  height: "70px",
  width: "350px",
};
var legend = ui.Legend(data, style);
Map.addUI(legend);
