SpringCloud Eureka之服务注册

阿......嚏

已于 2022-08-04 15:37:51 修改

阅读量468

点赞数

分类专栏： SpringCloud 文章标签： eureka spring cloud java

于 2022-03-11 17:12:43 首次发布

本文链接：https://blog.csdn.net/qq_36851469/article/details/123429444

版权

SpringCloud 专栏收录该内容

14 篇文章 0 订阅

订阅专栏

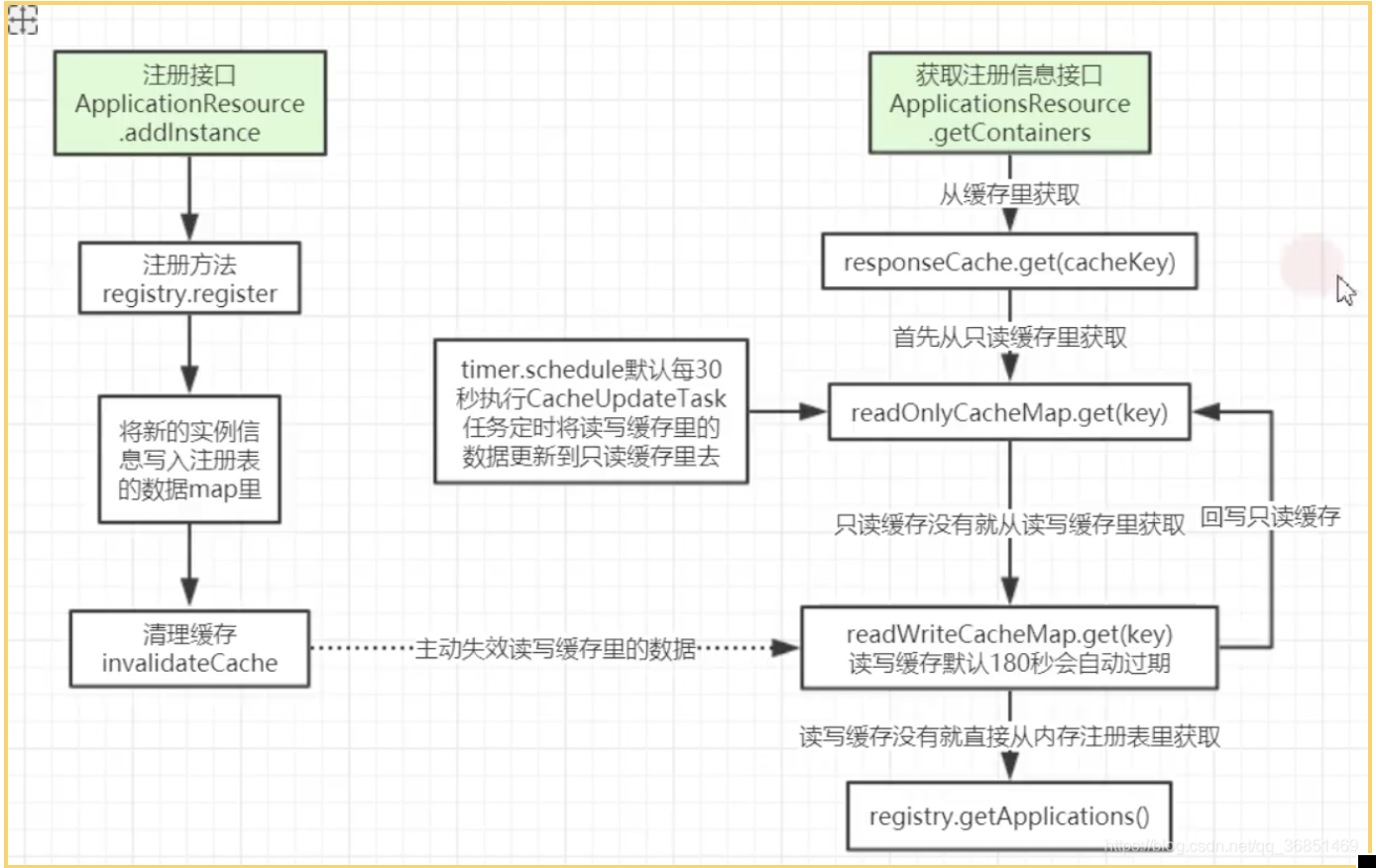

ApplicationResource提供注册接口addInstance。
ApplicationsResource提供服务列表获取getContainers。

ApplicationResource.addInstance：接收服务注册请求，将InstanceInfo服务信息调用PeerAwareInstanceRegistry.register将其信息组装后放入名叫registry（实际就是父类AbstractInstanceRegistry提供的ConcurrentHashMap存放服务注册列表：registry））的一个ConcurrentHashMap中，这样就完成了服务注册操作。

ApplicationsResource.getContainers:接收服务列表获取访问，调用ResponseCacheImpl.getGZIP其实际就是通过readWriteCacheMap（LoadingCache<Key, Value>）中获取到信息，而这这个readWriteCacheMap信息是在实例化ResponseCacheImpl时进行初始化数据的，初始化是真正调用到的是ResponseCacheImpl.generatePayload进行readWriteCacheMap赋值，而这里就是从AbstractInstanceRegistry的registry.entrySet()获取所有服务信息将其进行处理返回。

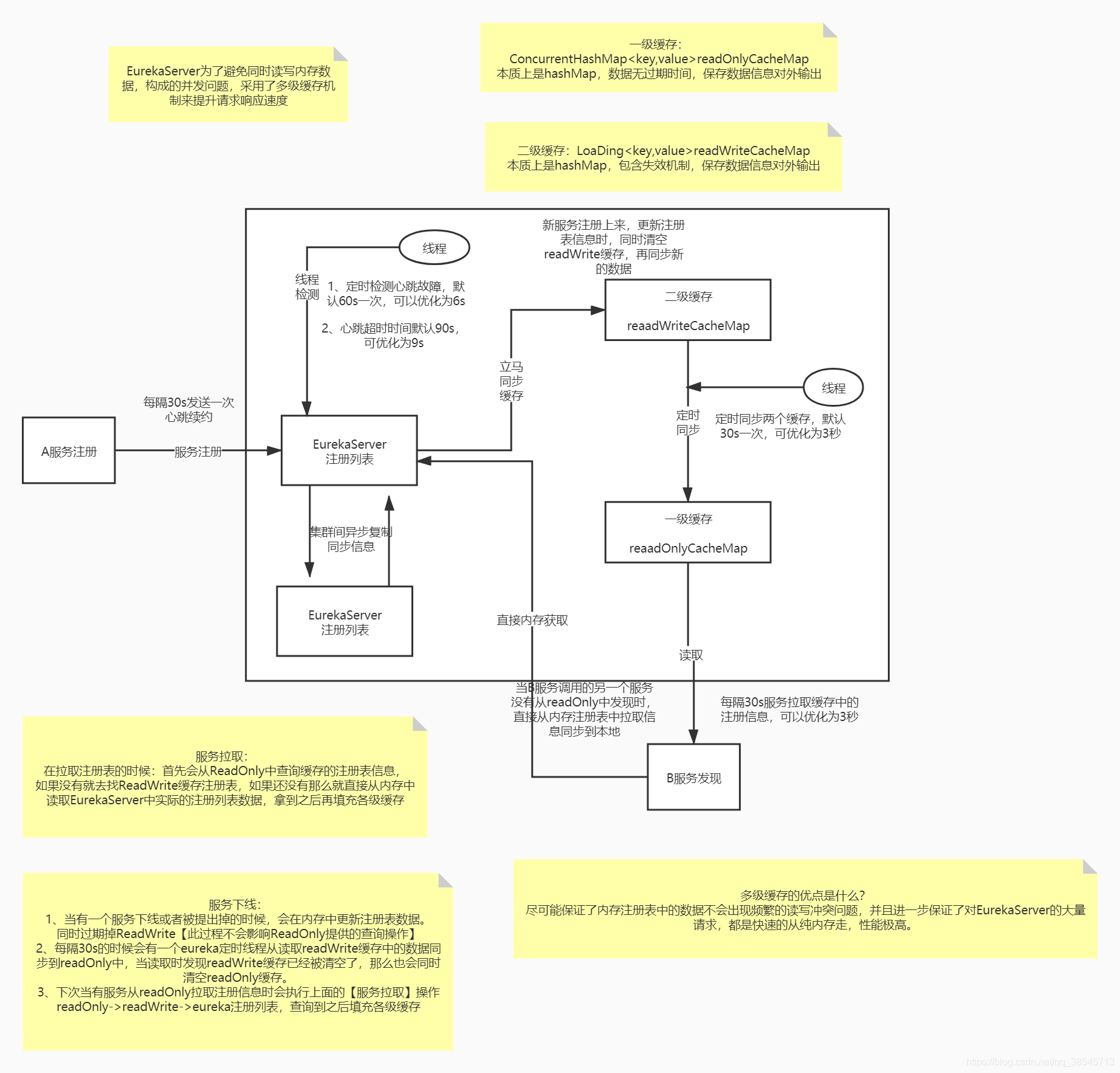

服务端通过客户端发送的心跳进行服务的续约（续约时间固定），当超过续约时间未收到客户端心跳则会进行剔除操作，当然服务端下线时也会主动触发请求服务端进行服务剔除，服务续约请求：InstanceResource.renewLease()进行服务时间的刷新。

主动触发剔除请求：InstanceResource.cancelLease（）调用的是AbstractInstanceRegistry.internalCancel()进行服务删除。

定时查看对比各服务的续约时间是否超期，是则发起剔除操作：AbstractInstanceRegistry.evict()查询服务是否过期，过期的调用AbstractInstanceRegistry.internalCancel()进行服务删除。

服务注册（Server & Client）-定时

EurekaClientAutoConfiguration

        @Bean(destroyMethod = "shutdown")
		@ConditionalOnMissingBean(value = EurekaClient.class, search =
        SearchStrategy.CURRENT)
		public EurekaClient eurekaClient(ApplicationInfoManager manager,
        EurekaClientConfig config) {
			return new CloudEurekaClient(manager, config, this.optionalArgs,
					this.context);
		}

DiscoveryClient

Eureka Server & Eureka Client都是通过DiscoveryClient 进行注册服务。

@Inject
    DiscoveryClient(ApplicationInfoManager applicationInfoManager, EurekaClientConfig config, AbstractDiscoveryClientOptionalArgs args,
                    Provider<BackupRegistry> backupRegistryProvider) {
        this.applicationInfoManager = applicationInfoManager;
		...
        try {
            // default size of 2 - 1 each for heartbeat and cacheRefresh
            scheduler = Executors.newScheduledThreadPool(2,
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-%d")
                            .setDaemon(true)
                            .build());

            heartbeatExecutor = new ThreadPoolExecutor(
                    1, clientConfig.getHeartbeatExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                    new SynchronousQueue<Runnable>(),
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-HeartbeatExecutor-%d")
                            .setDaemon(true)
                            .build()
            );  // use direct handoff

            cacheRefreshExecutor = new ThreadPoolExecutor(
                    1, clientConfig.getCacheRefreshExecutorThreadPoolSize(), 0, TimeUnit.SECONDS,
                    new SynchronousQueue<Runnable>(),
                    new ThreadFactoryBuilder()
                            .setNameFormat("DiscoveryClient-CacheRefreshExecutor-%d")
                            .setDaemon(true)
                            .build()
            );  // use direct handoff

            eurekaTransport = new EurekaTransport();
            scheduleServerEndpointTask(eurekaTransport, args);
            ...
        } catch (Throwable e) {
            throw new RuntimeException("Failed to initialize DiscoveryClient!", e);
        }
        if (clientConfig.shouldFetchRegistry() && !fetchRegistry(false)) {
            fetchRegistryFromBackup();
        }
        ...
        // finally, init the schedule tasks (e.g. cluster resolvers, heartbeat, instanceInfo replicator, fetch
        // 开始将当前服务注册到注册信息表
        initScheduledTasks();
        try {
            Monitors.registerObject(this);
        } catch (Throwable e) {
            logger.warn("Cannot register timers", e);
        }
        ...
    }

initScheduledTasks：

初始化任务 Runnable之InstanceInfoReplicator 。

private void initScheduledTasks() {
        ...
        if (clientConfig.shouldRegisterWithEureka()) {
            int renewalIntervalInSecs = instanceInfo.getLeaseInfo().getRenewalIntervalInSecs();
            int expBackOffBound = clientConfig.getHeartbeatExecutorExponentialBackOffBound();
            logger.info("Starting heartbeat executor: " + "renew interval is: {}", renewalIntervalInSecs);

            // Heartbeat timer 通过心跳进行续约
            scheduler.schedule(
                    new TimedSupervisorTask(
                            "heartbeat",
                            scheduler,
                            heartbeatExecutor,
                            renewalIntervalInSecs,// 默认是30s
                            TimeUnit.SECONDS,
                            expBackOffBound,
                            new HeartbeatThread()// 代表续约任务
                    ),
                    renewalIntervalInSecs, TimeUnit.SECONDS);

            // InstanceInfo replicator
            instanceInfoReplicator = new InstanceInfoReplicator(
                    this,
                    instanceInfo,
                    clientConfig.getInstanceInfoReplicationIntervalSeconds(),
                    2); // burstSize

            statusChangeListener = new ApplicationInfoManager.StatusChangeListener() {
                @Override
                public String getId() {
                    return "statusChangeListener";
                }

                @Override
                public void notify(StatusChangeEvent statusChangeEvent) {
                    if (InstanceStatus.DOWN == statusChangeEvent.getStatus() ||
                            InstanceStatus.DOWN == statusChangeEvent.getPreviousStatus()) {
                        // log at warn level if DOWN was involved
                        logger.warn("Saw local status change event {}", statusChangeEvent);
                    } else {
                        logger.info("Saw local status change event {}", statusChangeEvent);
                    }
                    // 方法内部调用步骤3中的run方法
                    instanceInfoReplicator.onDemandUpdate();
                }
            };

            if (clientConfig.shouldOnDemandUpdateStatusChange()) {
                applicationInfoManager.registerStatusChangeListener(statusChangeListener);
            }
            instanceInfoReplicator.start(clientConfig.getInitialInstanceInfoReplicationIntervalSeconds());
        } else {
            logger.info("Not registering with Eureka server per configuration");
        }
    }

InstanceInfoReplicator调用start启动定时任务。

	public void start(int initialDelayMs) {//initialDelayMs = 40
        if (started.compareAndSet(false, true)) {
            instanceInfo.setIsDirty();  // for initial register
            Future next = scheduler.schedule(this, initialDelayMs, TimeUnit.SECONDS);
            scheduledPeriodicRef.set(next);
        }
    }

根据dirtyTimestamp判断是否需要注册。

public void run() {
        try {
            discoveryClient.refreshInstanceInfo();
            Long dirtyTimestamp = instanceInfo.isDirtyWithTime();
            if (dirtyTimestamp != null) {
            	// 此处最终会通过Jersey调用注册接口
                discoveryClient.register();
                instanceInfo.unsetIsDirty(dirtyTimestamp);
            }
        } catch (Throwable t) {
            logger.warn("There was a problem with the instance info replicator", t);
        } finally {
        	// replicationIntervalSeconds = 30
            Future next = scheduler.schedule(this, replicationIntervalSeconds, TimeUnit.SECONDS);
            scheduledPeriodicRef.set(next);
        }
    }

调用ApplicationResource#addInstance方法注册服务。

续约-定时

 scheduler.schedule(// 启动定时续约任务
 new TimedSupervisorTask(// 调用 TimedSupervisorTask run方法
         "heartbeat",
         scheduler,
         heartbeatExecutor,
         renewalIntervalInSecs,// 默认是30s
         TimeUnit.SECONDS,
         expBackOffBound,// 默认是10s
         new HeartbeatThread()
 ),
 renewalIntervalInSecs, TimeUnit.SECONDS);

TimedSupervisorTask#run

@Override
    public void run() {
        Future<?> future = null;
        try {
            future = executor.submit(task);//调用HeartbeatThread#run方法，进行续约
            threadPoolLevelGauge.set((long) executor.getActiveCount());
            future.get(timeoutMillis, TimeUnit.MILLISECONDS);  // timeoutMillis = 30s
            delay.set(timeoutMillis);
            threadPoolLevelGauge.set((long) executor.getActiveCount());
        } catch (TimeoutException e) {
            logger.warn("task supervisor timed out", e);
            timeoutCounter.increment();

            long currentDelay = delay.get();//30s
            long newDelay = Math.min(maxDelay, currentDelay * 2);
            delay.compareAndSet(currentDelay, newDelay);

        } catch (RejectedExecutionException e) {
           rejectedCounter.increment();
        } catch (Throwable e) {
            throwableCounter.increment();
        } finally {
            if (future != null) {
                future.cancel(true);
            }

            if (!scheduler.isShutdown()) {
                scheduler.schedule(this, delay.get(), TimeUnit.MILLISECONDS);
            }
        }
    }

private class HeartbeatThread implements Runnable {
        public void run() {
            if (renew()) {// 调用Jersey续约服务
                lastSuccessfulHeartbeatTimestamp = System.currentTimeMillis();
            }
        }
    }

备注：说明即使Eureka Server重新启动，客户端也可以通过心跳注册自己的服务信息。

服务端处理续约

lastDirtyTimestamp：判断当前实例信息是否发生更新。
lastUpdateTime：每次续约时都会更新注册表中当前实例的lastUpdateTime。表示最近一次续约时间。但并不一定会更新当前注册表中的实例信息。

续约是在com.netflix.eureka.resources.InstanceResource#renewLease中。

 		public Response renewLease(
            @HeaderParam(PeerEurekaNode.HEADER_REPLICATION) String isReplication,
            @QueryParam("overriddenstatus") String overriddenStatus,
            @QueryParam("status") String status,
            @QueryParam("lastDirtyTimestamp") String lastDirtyTimestamp) {
				// 1.是不是从其他节点复制过来的续约信息
        boolean isFromReplicaNode = "true".equals(isReplication);
				// 2.交给InstanceRegistry进一步注册
        boolean isSuccess = registry.renew(app.getName(), id, isFromReplicaNode);
				// 如果没有在注册表中找到注册信息，立刻返回未找到
        // Not found in the registry, immediately ask for a register
        if (!isSuccess) {
            logger.warn("Not Found (Renew): {} - {}", app.getName(), id);
            return Response.status(Status.NOT_FOUND).build();
        }
        // Check if we need to sync based on dirty time stamp, the client
        // instance might have changed some value
        Response response;
				//当上次更新时间跟本地注册表的时间不一致的时候，需要同步状态
        if (lastDirtyTimestamp != null && serverConfig.shouldSyncWhenTimestampDiffers()) {
	          //  客户端传入的上次更新时间和服务器存储的时间不一致时进行处理
						response = this.validateDirtyTimestamp(Long.valueOf(lastDirtyTimestamp), isFromReplicaNode);
            // Store the overridden status since the validation found out the node that replicates wins
	          // 当renew传入的上次客户端更新时间大于注册表中的上次更新时间时，表示中间存在未同步或者同步失败操作
						// 这时候需要同步客户端状态信息
						if (response.getStatus() == Response.Status.NOT_FOUND.getStatusCode()
                    && (overriddenStatus != null)
                    && !(InstanceStatus.UNKNOWN.name().equals(overriddenStatus))
                    && isFromReplicaNode) {
                // 状态同步，用传入的状态覆写现在机器的状态
                registry.storeOverriddenStatusIfRequired(app.getAppName(), id,
                InstanceStatus.valueOf(overriddenStatus));
            }
        } else {
            response = Response.ok().build();
        }
        logger.debug("Found (Renew): {} - {}; reply status={}", app.getName(), id, response.getStatus());
        return response;
    }

	public boolean renew(final String appName, final String id, final boolean isReplication) {
        if (super.renew(appName, id, isReplication)) {
            replicateToPeers(Action.Heartbeat, appName, id, null, null, isReplication);
            return true;
        }
        return false;
    }

同步到子节点

		private void replicateToPeers(Action action, String appName, String id,
                                  InstanceInfo info /* optional */,
                                  InstanceStatus newStatus /* optional */, boolean isReplication) {
        Stopwatch tracer = action.getTimer().start();
        try {
            if (isReplication) {
                numberOfReplicationsLastMin.increment();
            }
            // If it is a replication already, do not replicate again as this will create a poison replication
            if (peerEurekaNodes == Collections.EMPTY_LIST || isReplication) {
                return;
            }

            for (final PeerEurekaNode node : peerEurekaNodes.getPeerEurekaNodes()) {
                // If the url represents this host, do not replicate to yourself.
                if (peerEurekaNodes.isThisMyUrl(node.getServiceUrl())) {
                    continue;
                }
                replicateInstanceActionsToPeers(action, appName, id, info, newStatus, node);
            }
        } finally {
            tracer.stop();
        }
    }

		private void replicateInstanceActionsToPeers(Action action, String appName,
                                                 String id, InstanceInfo info, InstanceStatus newStatus,
                                                 PeerEurekaNode node) {
        try {
            InstanceInfo infoFromRegistry = null;
            CurrentRequestVersion.set(Version.V2);
            switch (action) {
                case Cancel:
                    node.cancel(appName, id);
                    break;
                case Heartbeat:
                    InstanceStatus overriddenStatus = overriddenInstanceStatusMap.get(id);
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.heartbeat(appName, id, infoFromRegistry, overriddenStatus, false);
                    break;
                case Register:
                    node.register(info);
                    break;
                case StatusUpdate:
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.statusUpdate(appName, id, newStatus, infoFromRegistry);
                    break;
                case DeleteStatusOverride:
                    infoFromRegistry = getInstanceByAppAndId(appName, id, false);
                    node.deleteStatusOverride(appName, id, infoFromRegistry);
                    break;
            }
        } catch (Throwable t) {
            logger.error("Cannot replicate information to {} for action {}", node.getServiceUrl(), action.name(), t);
        }
    }

客户端延长定时任务时间策略

public TimedSupervisorTask(String name, ScheduledExecutorService scheduler, ThreadPoolExecutor executor,
                               int timeout, TimeUnit timeUnit, int expBackOffBound, Runnable task) {
        this.scheduler = scheduler;
        this.executor = executor;
        this.timeoutMillis = timeUnit.toMillis(timeout);//30s
        this.task = task;
        this.delay = new AtomicLong(timeoutMillis);
        this.maxDelay = timeoutMillis * expBackOffBound;//300s

        // Initialize the counters and register.
        timeoutCounter = Monitors.newCounter("timeouts");
        rejectedCounter = Monitors.newCounter("rejectedExecutions");
        throwableCounter = Monitors.newCounter("throwables");
        threadPoolLevelGauge = new LongGauge(MonitorConfig.builder("threadPoolUsed").build());
        Monitors.registerObject(name, this);
    }

future.get方法会触发超时。
通过Math.min(maxDelay, currentDelay * 2)延长currentDelay一倍60s。
最终执行finally方法，此时delay.get()为步骤二中的currentDelay。

客户端处理服务端续约结果

boolean renew() {
        EurekaHttpResponse<InstanceInfo> httpResponse;
        try {
            httpResponse = eurekaTransport.registrationClient.sendHeartBeat(instanceInfo.getAppName(), instanceInfo.getId(), instanceInfo, null);
            logger.debug(PREFIX + "{} - Heartbeat status: {}", appPathIdentifier, httpResponse.getStatusCode());
            if (httpResponse.getStatusCode() == 404) {// 如果服务端响应404，则更新dirtyTime，重新发起注册
                REREGISTER_COUNTER.increment();
                logger.info(PREFIX + "{} - Re-registering apps/{}", appPathIdentifier, instanceInfo.getAppName());
                long timestamp = instanceInfo.setIsDirtyWithTime();
                boolean success = register();
                if (success) {
                    instanceInfo.unsetIsDirty(timestamp);
                }
                return success;
            }
            return httpResponse.getStatusCode() == 200;
        } catch (Throwable e) {
            logger.error(PREFIX + "{} - was unable to send heartbeat!", appPathIdentifier, e);
            return false;
        }
    }

注册信息表

该注册包含自身注册&其他Eureka节点注册。

ApplicationResource#addInstance

@POST
    @Consumes({"application/json", "application/xml"})
    public Response addInstance(InstanceInfo info,
                                @HeaderParam(PeerEurekaNode.HEADER_REPLICATION) String isReplication) {
        ...

        registry.register(info, "true".equals(isReplication));
        return Response.status(204).build();  // 204 to be backwards compatible
    }

ConcurrentHashMap<String, Map<String, Lease<InstanceInfo>>> registry
            = new ConcurrentHashMap<String, Map<String, Lease<InstanceInfo>>>();

public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
        try {
            read.lock();
            Map<String, Lease<InstanceInfo>> gMap = registry.get(registrant.getAppName());
            REGISTER.increment(isReplication);
            if (gMap == null) {
                final ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap<String, Lease<InstanceInfo>>();
                gMap = registry.putIfAbsent(registrant.getAppName(), gNewMap);
                if (gMap == null) {
                    gMap = gNewMap;
                }
            }
            Lease<InstanceInfo> existingLease = gMap.get(registrant.getId());
            // Retain the last dirty timestamp without overwriting it, if there is already a lease
            if (existingLease != null && (existingLease.getHolder() != null)) {
                Long existingLastDirtyTimestamp = existingLease.getHolder().getLastDirtyTimestamp();
                Long registrationLastDirtyTimestamp = registrant.getLastDirtyTimestamp();
                logger.debug("Existing lease found (existing={}, provided={}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);

                // this is a > instead of a >= because if the timestamps are equal, we still take the remote transmitted
                // InstanceInfo instead of the server local copy.
                if (existingLastDirtyTimestamp > registrationLastDirtyTimestamp) {
                    logger.warn("There is an existing lease and the existing lease's dirty timestamp {} is greater" +
                            " than the one that is being registered {}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                    logger.warn("Using the existing instanceInfo instead of the new instanceInfo as the registrant");
                    registrant = existingLease.getHolder();
                }
            } else {
                // The lease does not exist and hence it is a new registration
                synchronized (lock) {
                    if (this.expectedNumberOfRenewsPerMin > 0) {
                        // Since the client wants to cancel it, reduce the threshold
                        // (1
                        // for 30 seconds, 2 for a minute)
                        this.expectedNumberOfRenewsPerMin = this.expectedNumberOfRenewsPerMin + 2;
                        this.numberOfRenewsPerMinThreshold =
                                (int) (this.expectedNumberOfRenewsPerMin * serverConfig.getRenewalPercentThreshold());
                    }
                }
                logger.debug("No previous lease information found; it is new registration");
            }
            // 包装实例信息
            Lease<InstanceInfo> lease = new Lease<InstanceInfo>(registrant, leaseDuration);
            if (existingLease != null) {
                lease.setServiceUpTimestamp(existingLease.getServiceUpTimestamp());
            }
            gMap.put(registrant.getId(), lease);
            ...
            // If the lease is registered with UP status, set lease service up timestamp
            if (InstanceStatus.UP.equals(registrant.getStatus())) {
                lease.serviceUp();
            }
            registrant.setActionType(ActionType.ADDED);
            recentlyChangedQueue.add(new RecentlyChangedItem(lease));
            registrant.setLastUpdatedTimestamp();
            invalidateCache(registrant.getAppName(), registrant.getVIPAddress(), registrant.getSecureVipAddress());
        } finally {
            read.unlock();
        }
    }

客户端从服务端获取全部注册表信息接口

获取全部的注册列表信息之ApplicationsResource.getContainers()...

		Key cacheKey = new Key(Key.EntityType.Application,
                ResponseCacheImpl.ALL_APPS,
                keyType, CurrentRequestVersion.get(), EurekaAccept.fromString(eurekaAccept), regions
        );

        Response response;
        if (acceptEncoding != null && acceptEncoding.contains(HEADER_GZIP_VALUE)) {
            response = Response.ok(responseCache.getGZIP(cacheKey))
                    .header(HEADER_CONTENT_ENCODING, HEADER_GZIP_VALUE)
                    .header(HEADER_CONTENT_TYPE, returnMediaType)
                    .build();
        } else {
// responseCache.get(cacheKey) 涉及3级缓存
            response = Response.ok(responseCache.get(cacheKey))
                    .build();
        }

多级缓存

注册表发生变更的时候：

会在内存中更新注册表数据，同时过期掉ReadWriteCacheMap。
此过程不会影响 ReadWriteCacheMap提供客户端查询注册表信息。
默认每30s Eureka Server会将 ReadWriteCacheMap 更新到ReadOnlyCacheMap。
默认间隔180s Eureka Server会将 ReadWriteCacheMap数据失效。
下次有服务拉取注册表，又会从内存中获取最新的数据，同时填充各级缓存。备注：在此过程中各级缓存的数据有可能不一致，此处也体现了Eureka 涉及之初的 AP 理论。

在这里插入图片描述

Value getValue(final Key key, boolean useReadOnlyCache) {
        Value payload = null;
        try {
            if (useReadOnlyCache) {
                final Value currentPayload = readOnlyCacheMap.get(key);
                if (currentPayload != null) {
                    payload = currentPayload;
                } else {
                    payload = readWriteCacheMap.get(key);
                    readOnlyCacheMap.put(key, payload);
                }
            } else {
                payload = readWriteCacheMap.get(key);
            }
        } catch (Throwable t) {
            logger.error("Cannot get value for key : {}", key, t);
        }
        return payload;
    }

readWriteCacheMap初始化

包括：读写缓存间隔 180s 会过期；只读缓存间隔 30s 遍历读写缓存，如果发现两者不一样，直接利用读写缓存覆盖自己的内容。

ResponseCacheImpl(EurekaServerConfig serverConfig, ServerCodecs serverCodecs, AbstractInstanceRegistry registry) {
        this.serverConfig = serverConfig;
        this.serverCodecs = serverCodecs;
        this.shouldUseReadOnlyResponseCache = serverConfig.shouldUseReadOnlyResponseCache();
        this.registry = registry;

        long responseCacheUpdateIntervalMs = serverConfig.getResponseCacheUpdateIntervalMs();
        this.readWriteCacheMap =
                CacheBuilder.newBuilder().initialCapacity(1000)
// readWriteCacheMap 会每间隔 180s 清除一次缓存           .expireAfterWrite(serverConfig.getResponseCacheAutoExpirationInSeconds(), TimeUnit.SECONDS)
                        .removalListener(new RemovalListener<Key, Value>() {
                            @Override
                            public void onRemoval(RemovalNotification<Key, Value> notification) {
                                Key removedKey = notification.getKey();
                                if (removedKey.hasRegions()) {
                                    Key cloneWithNoRegions = removedKey.cloneWithoutRegions();
                                    regionSpecificKeys.remove(cloneWithNoRegions, removedKey);
                                }
                            }
                        })
                        .build(new CacheLoader<Key, Value>() {
                            @Override
                            public Value load(Key key) throws Exception {
// 如果读写缓存获取不到信息，通过回调直接在 内存注册表中 获取
                                Value value = generatePayload(key);
                                return value;
                            }
                        });
      ...
// 只读缓存间隔 30s 更新一次
if (shouldUseReadOnlyResponseCache) {
            timer.schedule(getCacheUpdateTask(),
                    new Date(((System.currentTimeMillis() / responseCacheUpdateIntervalMs) * responseCacheUpdateIntervalMs)
                            + responseCacheUpdateIntervalMs),
                    responseCacheUpdateIntervalMs);
        }
    }

内存注册表之AbstractInstanceRegistry：

private Value generatePayload(Key key) {
        Stopwatch tracer = null;
        try {
            String payload;
            switch (key.getEntityType()) {
                case Application:
                    boolean isRemoteRegionRequested = key.hasRegions();

                    if (ALL_APPS.equals(key.getName())) {
// AbstractInstanceRegistry 就是第三级缓存
                            tracer = serializeAllAppsTimer.start();
                            payload = getPayLoad(key, registry.getApplications());
                        }
                    }                    break;

            return new Value(payload);
        }
    }

以上所述：

一级缓存：readOnlyCacheMap；二级缓存：readWriteCacheMap；三级缓存：注册表 AbstractInstanceRegistry。

客户端信息调用服务端注册接口

ApplicationResource.addInstance()。
registry.register(info, "true".equals(isReplication));
@Override
    public void register(final InstanceInfo info, final boolean isReplication) {
        int leaseDuration = Lease.DEFAULT_DURATION_IN_SECS;
        if (info.getLeaseInfo() != null && info.getLeaseInfo().getDurationInSecs() > 0) {
            leaseDuration = info.getLeaseInfo().getDurationInSecs();
        }
        super.register(info, leaseDuration, isReplication);
        replicateToPeers(Action.Register, info.getAppName(), info.getId(), info, null, isReplication);
    }
public void register(InstanceInfo registrant, int leaseDuration, boolean isReplication) {
        try {
            read.lock();
            Map<String, Lease<InstanceInfo>> gMap = registry.get(registrant.getAppName());
            REGISTER.increment(isReplication);
            if (gMap == null) {
                final ConcurrentHashMap<String, Lease<InstanceInfo>> gNewMap = new ConcurrentHashMap<String, Lease<InstanceInfo>>();
                gMap = registry.putIfAbsent(registrant.getAppName(), gNewMap);
                if (gMap == null) {
                    gMap = gNewMap;
                }
            }
            Lease<InstanceInfo> existingLease = gMap.get(registrant.getId());
            // Retain the last dirty timestamp without overwriting it, if there is already a lease
            if (existingLease != null && (existingLease.getHolder() != null)) {
                Long existingLastDirtyTimestamp = existingLease.getHolder().getLastDirtyTimestamp();
                Long registrationLastDirtyTimestamp = registrant.getLastDirtyTimestamp();
                logger.debug("Existing lease found (existing={}, provided={}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);

                // this is a > instead of a >= because if the timestamps are equal, we still take the remote transmitted
                // InstanceInfo instead of the server local copy.
                if (existingLastDirtyTimestamp > registrationLastDirtyTimestamp) {
                    logger.warn("There is an existing lease and the existing lease's dirty timestamp {} is greater" +
                            " than the one that is being registered {}", existingLastDirtyTimestamp, registrationLastDirtyTimestamp);
                    logger.warn("Using the existing instanceInfo instead of the new instanceInfo as the registrant");
                    registrant = existingLease.getHolder();
                }
            } else {
                ...

            }
            Lease<InstanceInfo> lease = new Lease<InstanceInfo>(registrant, leaseDuration);
            if (existingLease != null) {
                lease.setServiceUpTimestamp(existingLease.getServiceUpTimestamp());
            }
            gMap.put(registrant.getId(), lease);
            synchronized (recentRegisteredQueue) {
                recentRegisteredQueue.add(new Pair<Long, String>(
                        System.currentTimeMillis(),
                        registrant.getAppName() + "(" + registrant.getId() + ")"));
            }
            // This is where the initial state transfer of overridden status happens

            registrant.setActionType(ActionType.ADDED);
            recentlyChangedQueue.add(new RecentlyChangedItem(lease));
            registrant.setLastUpdatedTimestamp();
// 客户端注册信息完毕后，服务端会清除 读写缓存的信息
            invalidateCache(registrant.getAppName(), registrant.getVIPAddress(), registrant.getSecureVipAddress());
            logger.info("Registered instance {}/{} with status {} (replication={})",
                    registrant.getAppName(), registrant.getId(), registrant.getStatus(), isReplication);
        } finally {
            read.unlock();
        }
    }

阿......嚏

关注

0
点赞
踩
0

收藏

觉得还不错? 一键收藏
0
评论
SpringCloud Eureka之服务注册

服务端启动互相注册EurekaClientAutoConfiguration @Bean(destroyMethod = "shutdown") @ConditionalOnMissingBean(value = EurekaClient.class, search = SearchStrategy.CURRENT) public EurekaClient eurekaClient(ApplicationInfoManager manager,
复制链接

扫一扫
