九天过去了，班级要实训，以为可以出去，结果还是在学校，内容是华为na的基础内容，下面是我做实验的代码。

华为命令

Telnet

1.普通密码

（R1）

user-interface vty 0 4

authentication-mode password 123456

user privilege level 3

<R2>telnet 192.168.1.1

Password:

2.aaa

[R1]user-interface vty 0 4 [R1-ui-vty0-4]authentication-mode aaa

[R1-ui-vty0-4]q

[R1]aaa

[R1-aaa]local-user huawei password cipher 123.abc

Info: Add a new user.

[R1-aaa]q

<R2>telnet 192.168.1.1

Username:huawei

Password:

3.ssh

[R1]stelnet server enable

[R1]user-interface vty 0 4

[R1-ui-vty0-4]pro

[R1-ui-vty0-4]protocol in

[R1-ui-vty0-4]protocol inbound ssh

[R1-ui-vty0-4]q

[R1]aaa

[R1-aaa]local-user huawei password cipher 123

[R1-aaa]local-user huawei privilege level 15

[R1-aaa]local-user huawei service-type ssh

[R1]rsa local-key-pair create

[R1]user-interface vty 0 4

[R1-ui-vty0-4]authentication-mode aaa

[R2]stelnet server enable

[R2]ssh client first-time enable

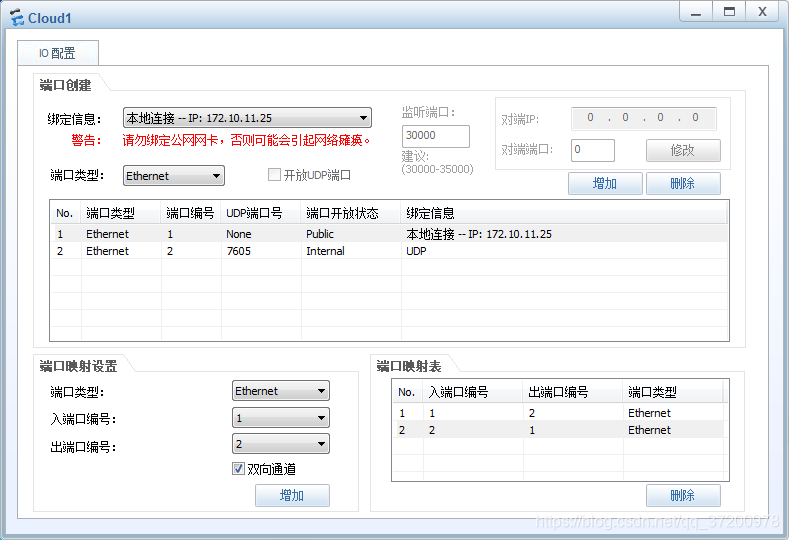

4.ftp

[sysname R3]ftp server enable

[R3]int GigabitEthernet 0/0/0

[R3-GigabitEthernet0/0/0] ip add

[R3-GigabitEthernet0/0/0]ip address 172.10.11.10 24（和主机ip的子网相同）

[R3]user-interface vty 0 4 [R3-ui-vty0-4]authentication-mode aaa

[R3-ui-vty0-4]q

[R3]aaa

[R3-aaa]local-user huawei password cipher 123

[R3-aaa]local-user huawei privilege level 3

[R3-aaa] local-user huawei ftp-directory flash:

[R3-aaa] local-user huawei service-type ftp

<R3>ftp 172.10.11.10

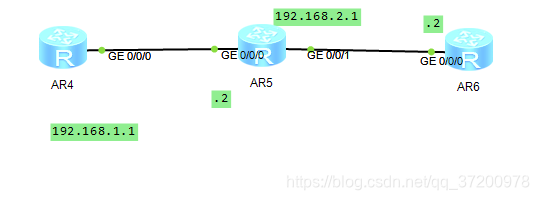

5.静态路由

Ip route 目的ip 子网掩码（24）下一跳ip

Huawei]ip route-static 192.168.2.2 24 192.168.1.2

[Huawei]ip route-static 192.168.1.1 24 192.168.2.1

链路聚合

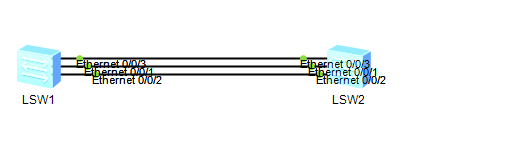

交换机链路聚合

[S1]interface Eth-Trunk 1

[S1-Eth-Trunk1]mode lacp-static

[S1-Eth-Trunk1]lacp preempt enable

[S1-Eth-Trunk1]trunkport e0/0/1

[S1-Eth-Trunk1]trunkport e0/0/2

[S1-Eth-Trunk1]trunkport e0/0/3

[S1-Eth-Trunk1]int e0/0/1

[S1-Ethernet0/0/1]lacp priority 10

[S1-Eth-Trunk1]int e0/0/2

[S1-Ethernet0/0/2]lacp priority 10

（第二个交换机进行以上相同配置）

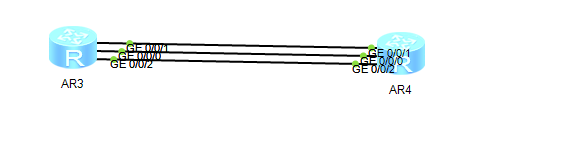

路由器链路聚合

[AR1]interface Eth-Trunk 1 //创建逻辑链路

[AR1-Eth-Trunk1]undo portswitch //关闭二层功能

[AR1-Eth-Trunk1]ip address 192.168.1.1 24

[AR1-Eth-Trunk1]mode manual load-balance //手动负载均衡

[AR1-Eth-Trunk1]mode lacp-static //静态链路

[AR1-Eth-Trunk1]lacp preempt enable //开启抢占功能

[AR1-Eth-Trunk1]max active-linknumber 2 //开启两条活动链路

[AR1-Eth-Trunk1]q

[AR1]interface g

[AR1]interface GigabitEthernet 0/0/1

[AR1-GigabitEthernet0/0/1]eth-trunk 1

[AR1]interface GigabitEthernet 0/0/2

[AR1-GigabitEthernet0/0/1]eth-trunk 1

[AR1]interface GigabitEthernet 0/0/3

[AR1-GigabitEthernet0/0/1]eth-trunk 1

（路由器2做同样配置）

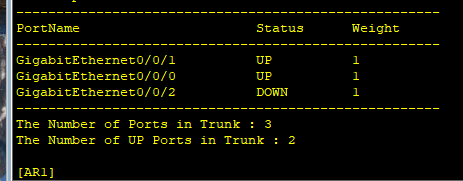

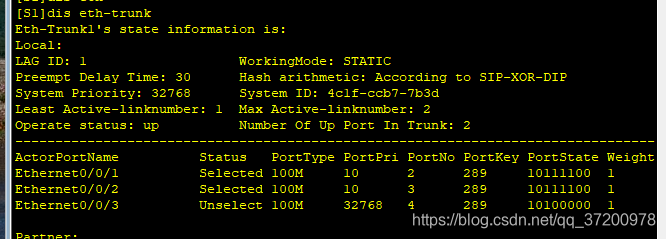

[AR1]dis interface Eth-Trunk 1

vlan配置

[S1]vlan batch 11 22 //对S1下面的两个主机接口配置vlan

[S1]interface e0/0/2

[S1-Ethernet0/0/2]port link-type access

[S1-Ethernet0/0/2]port default vlan 11

[S1-Ethernet0/0/2]q

[S1]int e0/0/3

[S1-Ethernet0/0/3]port link-type access

[S1-Ethernet0/0/3]port default vlan 22

[S1-Ethernet0/0/3]q

[S2]vlan batch 11 22 // 对S2下面的两个主机接口配置vlan

[S2]interface e0/0/2

[S2-Ethernet0/0/2]port link-type access

[S2-Ethernet0/0/2]port default vlan 11

[S2-Ethernet0/0/2]q

[S2]int e0/0/3

[S2-Ethernet0/0/3]po

[S2-Ethernet0/0/3]port link-type access

[S2-Ethernet0/0/3]port default vlan 22

[S2-Ethernet0/0/3]q

[S2]int e0/0/1 //S2实现路由互通

[S2-Ethernet0/0/1]port link-type trunk

[S2-Ethernet0/0/1]port trunk allow-pass vlan 11 22

[S2-Ethernet0/0/1]q

[S1]int e0/0/1 //S1实现路由互通

[S1-Ethernet0/0/1]port link-type trunk

[S1-Ethernet0/0/1]port trunk allow-pass vlan 11 22

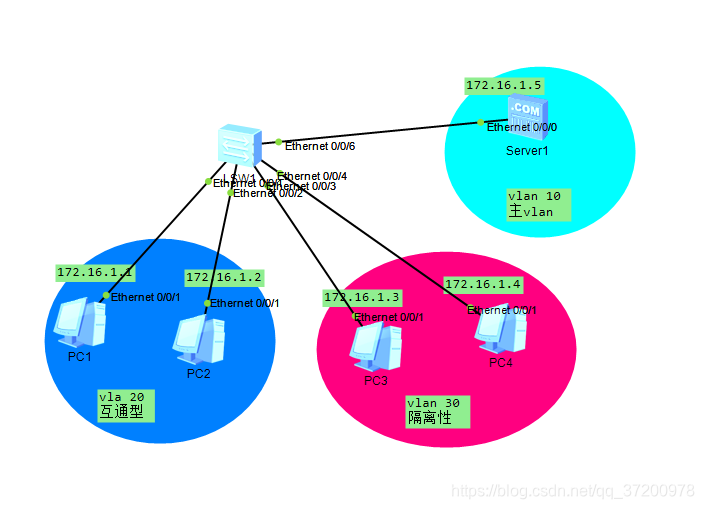

mux-vlan

[S1]vlan batch 10 20 30 //创建vlan10，20.30

[S1]vlan 10

[S1-vlan10]mux-vlan //主vlan，使能端口

[S1-vlan10]subordinate separate 30 //设置vlan30为隔离型

[S1-vlan10]subordinate group 20 //设置vlan20为互通型

[S1-vlan10]q

[S1]interface e0/0/1

[S1-Ethernet0/0/1]port link-type access

[S1-Ethernet0/0/1]port default vlan 20

[S1-Ethernet0/0/1]int e0/0/2

[S1-Ethernet0/0/2]port link-type access

[S1-Ethernet0/0/2]port default vlan 20

[S1-Ethernet0/0/2]int e0/0/3

[S1-Ethernet0/0/3]port link-type access

[S1-Ethernet0/0/3]port default vlan 30

[S1-Ethernet0/0/3]int e0/0/4

[S1-Ethernet0/0/4]port link-type access

[S1-Ethernet0/0/4]port default vlan 30

[S1-Ethernet0/0/4]int e0/0/6

[S1-Ethernet0/0/6]port link-type access

[S1-Ethernet0/0/6]port default vlan 10

[S1-Ethernet0/0/6]port mux-vlan enable //开启端口mux-vlan功能

[S1-Ethernet0/0/6]int e0/0/5

[S1-Ethernet0/0/5]port mux-vlan enable

[S1-Ethernet0/0/5]int e0/0/4

[S1-Ethernet0/0/4]port mux-vlan enable

[S1-Ethernet0/0/4]int e0/0/3

[S1-Ethernet0/0/3]port mux-vlan enable

[S1-Ethernet0/0/3]int e0/0/2

[S1-Ethernet0/0/2]port mux-vlan enable

[S1-Ethernet0/0/2]int e0/0/1

[S1-Ethernet0/0/1]port mux-vlan enable

就可以了（注意端口别接错vlan！）

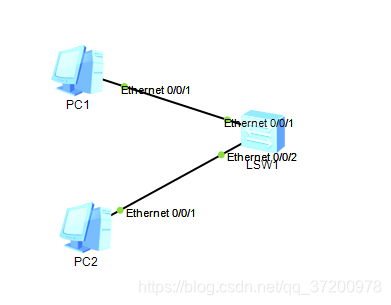

不同子网vlan 交换机设置

[S1]vlan batch 10 20

[S1]interface e0/0/1

[S1-Ethernet0/0/1]port link-type access

[S1-Ethernet0/0/1]port default vlan 10

[S1-Ethernet0/0/1]q

[S1]int Eth0/0/2

[S1-Ethernet0/0/2]port link-type access

[S1-Ethernet0/0/2]port default vlan 20

[S1-Ethernet0/0/2]q

[S1]int Vlanif 10

[S1-Vlanif10]ip address 192.168.1.254 24

[S1-Vlanif10]q

[S1]int Vlanif 20

[S1-Vlanif20]ip address 192.168.2.254 24

[S1-Vlanif20]q

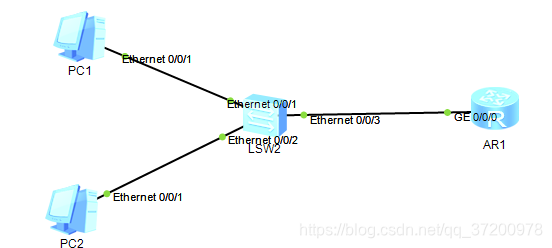

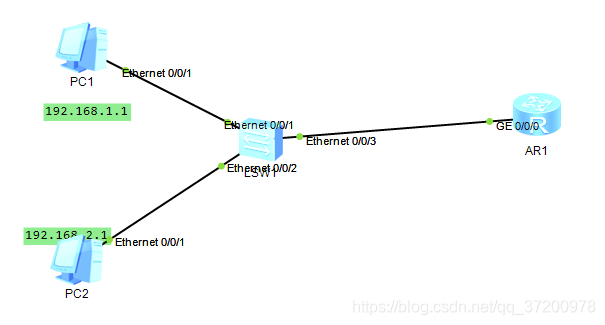

单臂路由

[Huawei]vlan batch 10 20

[Huawei]interface Ethernet 0/0/1

[Huawei-Ethernet0/0/1]port link-type access

[Huawei-Ethernet0/0/1]port default vlan 10

[Huawei-Ethernet0/0/1]q

[Huawei]int Ethernet 0/0/2

[Huawei-Ethernet0/0/2]port link-type access

[Huawei-Ethernet0/0/2]port default vlan 20

[Huawei-Ethernet0/0/2]q

[Huawei]interface Ethernet 0/0/3

[Huawei-Ethernet0/0/3]port link-type trunk //trunk接口类型

[Huawei-Ethernet0/0/3]port trunk allow-pass vlan all //允许所有vlan通过

[Huawei]vlan batch 10 20

[Huawei]int g0/0/0.10 //进入子接口

[Huawei-GigabitEthernet0/0/0.10]dot1q termination vid 10 //给子接口加上vlan10标签

[Huawei-GigabitEthernet0/0/0.10]arp broadcast enable 打开arp广播

[Huawei-GigabitEthernet0/0/0.10]ip address 192.168.1.254 24 //添加逻辑接口

[Huawei]int g0/0/0.20

[Huawei-GigabitEthernet0/0/0.20]dot1q termination vid 20

[Huawei-GigabitEthernet0/0/0.20]ip add 192.168.2.254 24

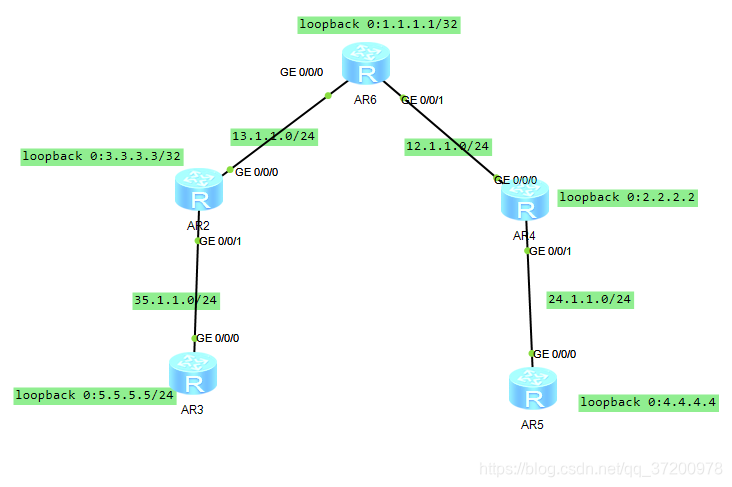

osfp简单设置

接口设置别错了

先把所有ip设好

[R1]int LoopBack 0

[R1-LoopBack0]ip address 1.1.1.1 32 //设置环回接口

[R1]ospf

[R1-ospf-1]area 0

[R1-ospf-1-area-0.0.0.0]network 13255

[R1-ospf-1-area-0.0.0.0]network 1.1.1.1 0.0.0.0

[R1-ospf-1-area-0.0.0.0]network 12.1.1.0 0.0.0.255

[R1-ospf-1-area-0.0.0.0]network 13.1.1.0 0.0.0.255

之后所有的路由器都要设置环回接口，然后ospf给子网，它相邻的子网和它本身的环回都要给

osfp简单设置

主干区域路由器R1

它需要宣告其他区域的直连的子网

[Huawei]ospf

[Huawei-ospf-1]area 0

[Huawei-ospf-1-area-0.0.0.0]undo network 12.1.1.0 0.0.0.255

[Huawei]ospf

[Huawei-ospf-1]area 1

[Huawei-ospf-1-area-0.0.0.0]undo network 13.1.1.0 0.0.0.255

[Huawei]ospf

[Huawei-ospf-1]area 2

[Huawei-ospf-1-area-0.0.0.0]undo network 16.1.1.0 0.0.0.255

dhcp设置

[Huawei]dhcp enable //开启dhcp服务

[Huawei]int GigabitEthernet 0/0/0

[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.254 24 //设置网关

[Huawei-GigabitEthernet0/0/0]dhcp select interface //选择接口模式

[Huawei-GigabitEthernet0/0/0]dhcp server dns-list 8.8.8.8 //设置dns服务器

[Huawei-GigabitEthernet0/0/0]dhcp server excluded-ip-address 192.168.1.250 192.168.1.253 //设置地址解除（不用）

[Huawei-GigabitEthernet0/0/0]dhcp server lease day 2 hour 0 minute 0 //设置租约时间

（记得pc要启用dhcp）

全局dhcp设置

[Huawei]dhcp enable //开启dhcp

[Huawei]ip pool 1 //进入（创建）地址池

Huawei-ip-pool-1]gateway-list 192.168.1.254 //设置一个网关

[Huawei-ip-pool-1]network 192.168.1.0 mask 255.255.255.0 //设置一个网段

[Huawei-ip-pool-1]excluded-ip-address 192.168.1.240 192.168.1.250

//设置排除地址

Huawei-ip-pool-1]lease day 8 hour 0 minute 0 //设置租约时间

[Huawei-ip-pool-1]dns-list 8.8.8.8 //设置dns

[Huawei]int GigabitEthernet 0/0/0 //进入接口

[Huawei-GigabitEthernet0/0/0]ip address 192.168.1.254 255.255.255.0 //添加网关ip

[Huawei-GigabitEthernet0/0/0]dhcp select global //设置为全局

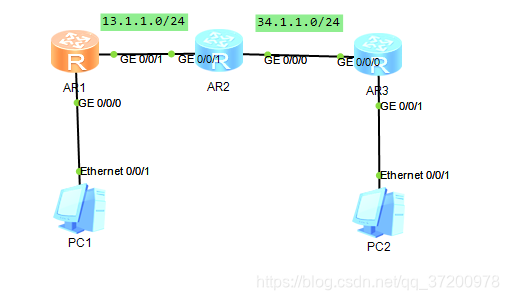

基本ACL

https://wenku.baidu.com/view/d293f80e4a7302768e993962.html

[AR1]user-interface console 0 //进入Console口配置模式

[AR1-ui-console0]idle-timeout 0 0 //关闭超时功能分钟：秒钟

[AR1-ui-console0]q

[AR1]int g0/0/0

[AR1-GigabitEthernet0/0/0]ip add 192.168.1.254 24

[AR1-GigabitEthernet0/0/0]int g0/0/1

[AR1-GigabitEthernet0/0/1]ip add 13.1.1.1 24

[AR1-GigabitEthernet0/0/1]q

[AR1]ospf 1 //启用OSPF默认是进程1

[AR1-ospf-1]area 0 //进入区域0

[AR1-ospf-1-area-0.0.0.0]network 192.168.1.0 0.0.0.255 //发布直连网段

[AR1-ospf-1-area-0.0.0.0]network 13.1.1.0 0.0.0.255 //发布直连网段

[AR1-ospf-1-area-0.0.0.0][AR1-ospf-1-area-0.0.0.0]ping 192.168.2.2

//AR1能ping通PC2

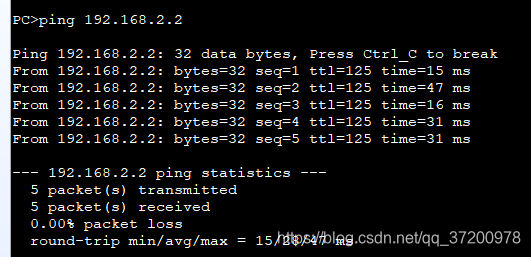

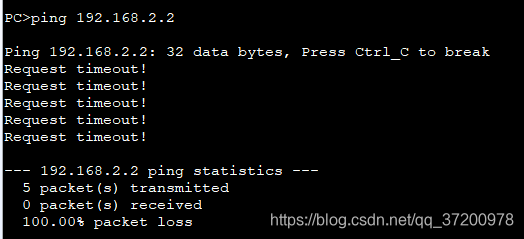

PING 192.168.2.2: 56 data bytes, press CTRL_C to break

Request time out

Reply from 192.168.2.2: bytes=56 Sequence=2 ttl=126 time=30 ms

Reply from 192.168.2.2: bytes=56 Sequence=3 ttl=126 time=30 ms

[AR3]int g0/0/0

[AR3-GigabitEthernet0/0/0]ip add 34.1.1.3 24

[AR3-GigabitEthernet0/0/0]int g0/0/1

[AR3-GigabitEthernet0/0/1]ip add 192.168.2.254 24

[AR3-GigabitEthernet0/0/1]q

[AR3]ospf 1 //启用OSPF默认是进程1

[AR3-ospf-1]area 0 //进入区域0

[AR3-ospf-1-area-0.0.0.0]network 34.1.1.0 0.0.0.255 //发布直连网段

[AR3-ospf-1-area-0.0.0.0]network 192.168.2.0 0.0.0.255 //发布直连网段

[AR3-ospf-1]acl 2001 //配置基本acl

[AR3-acl-basic-2001]rule 5 deny source 192.168.1.1 0 //拒绝源IP（注意反掩码0，默认步长为5）

[AR3-acl-basic-2001]rule 10 permit source any //允许任意

[AR3]int g0/0/1

[AR3-GigabitEthernet0/0/1]traffic-filter outbound acl 2001 //应用

配置生效时间段

[AR3]time-range time1 from 00:00 2019/1/1 to 23:59 2019/6/19 //设置时间范围

[AR3]acl 2000 //定义访问控制列表

[AR3-acl-basic-2000]rule 5 permit time-range time1 //设置规则5允许时间段访问

[AR3-acl-basic-2000]q

[AR3]time-range time1 08:00 to 00:00 ?

<0-6> Day of the week(0 is Sunday)

Fri Friday

Mon Monday

Sat Saturday

Sun Sunday

Thu Thursday

Tue Tuesday

Wed Wednesday

daily Every day of the week

off-day Saturday and Sunday

working-day Monday to Friday

[AR3]time-range time1 08:00 to 00:00 daily

高级ACL

[AR3-acl-basic-2001]q

[AR3]undo acl 2001 //先undo基本acl

[AR1-ospf-1]q

[AR1]acl 3001

[AR1-acl-adv-3001]rule 6 deny ip source 192.168.1.0 0.0.0.255 destination 192.168.2.0 0.0.0.255

[AR1-acl-adv-3001]q

[AR1]int g0/0/0

[AR1-GigabitEthernet0/0/0]traffic-filter inbound acl 3001

[AR1-GigabitEthernet0/0/0]dis this

[AR1-GigabitEthernet0/0/0]q

[AR1]acl 3001

[AR1-acl-adv-3001]undo rule 5

[AR1-acl-adv-3001]rule 5 permit ip source 192.168.1.1 0 destination 192.168.2.0 0.0.0.255

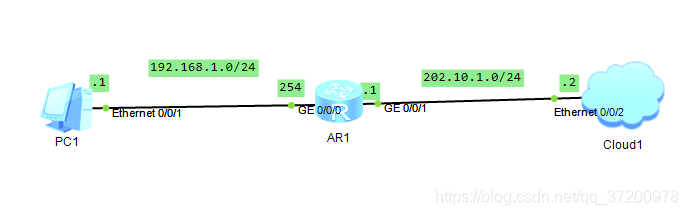

nat 一对一

[Huawei]ip route-static 0.0.0.0 0.0.0.0 202.10.1.1 //在Router上配置缺省路由，指定下一跳地址为202.10.1.1

[Huawei]nat static global 202.10.1.3 inside 192.168.1.1（下面那个也可以） //在Router的上行接口GE2/0/0上配置一对一的NAT映射

[Huawei-GigabitEthernet0/0/1]nat static global 202.10.1.3 inside

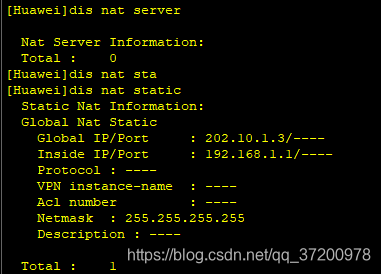

<Router> display nat static //查看地址池映射关系

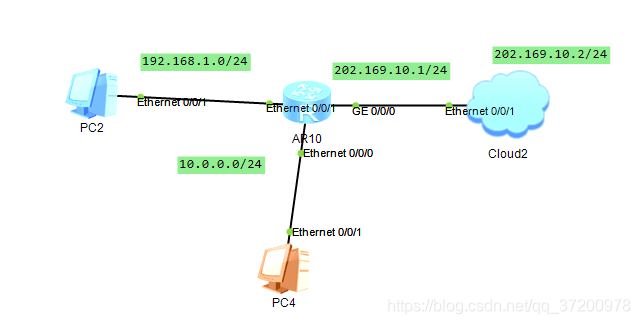

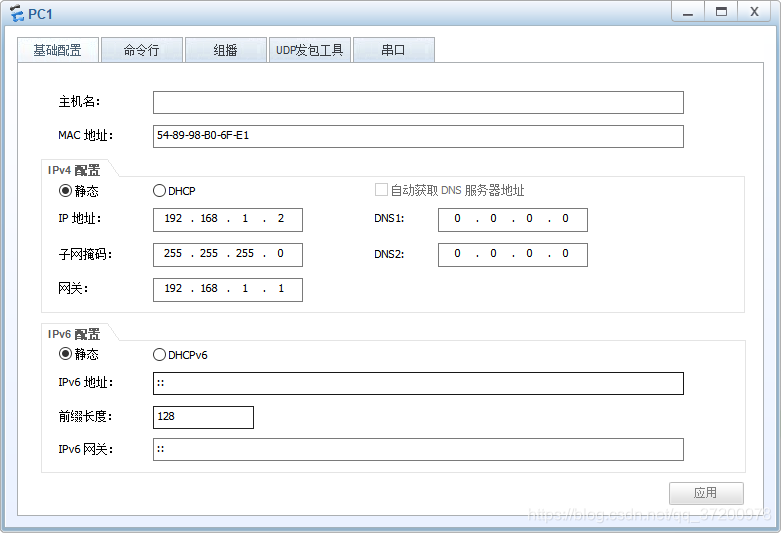

多对一nat

[Huawei]un in en
[Huawei]vlan batch 100 200
[Huawei]interface Vlanif 100
[Huawei-Vlanif100]ip add 192.168.1.1 24
[Huawei-Vlanif100]q
[Huawei]interface e0/0/1
[Huawei-Ethernet0/0/1]port link-type access
[Huawei-Ethernet0/0/1]port default vlan 100
[Huawei-Ethernet0/0/1]q
[Huawei]vlan 200
[Huawei]interface Vlanif 200
[Huawei-Vlanif200]ip add 10.0.0.1 24
[Huawei-Vlanif200]q
[Huawei]int e0/0/0
[Huawei-Ethernet0/0/0]port link-type access
[Huawei-Ethernet0/0/0]port default vlan 200
[Huawei-Ethernet0/0/0]q
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]ip add 202.169.10.1 24
[Huawei-GigabitEthernet0/0/0]q
[Huawei]ip route-static 0.0.0.0 0.0.0.0 202.169.10.2

//配置缺省路由，指定下一跳地址为202.169.10.2

[Huawei]nat address-group 1 202.169.10.100 202.169.10.200

//希望使用公网地址池中的地址（202.169.10.100 ～ 202.169.10.200）采用NAT方式替换A区内部的主机地址（网段为192.168.1.0/24 ）

[Huawei]nat address-group 2 202.169.10.80 202.169.10.83

//希望使用公网地址池（202.169.10.80～20 2.169.10.83）采用IP地址和端口的替换方式替换B区内部的主机地址（网段为10.0.0.0/24 ）

[Huawei]acl 2000
[Huawei-acl-basic-2000]rule 5 permit source 192.168.1.0 0.0.0.255
[Huawei-acl-basic-2000]q
[Huawei]acl 2001
[Huawei-acl-basic-2001]rule 5 permit source 10.0.0.0 0.0.0.255
[Huawei-acl-basic-2001]q
[Huawei]int g0/0/0
[Huawei-GigabitEthernet0/0/0]nat outbound 2000 address-group 1 no-pat // 应用outbound，一对一（no-pat）
[Huawei-GigabitEthernet0/0/0]nat outbound 2001 address-group 2 // 应用outbound

[Huawei-GigabitEthernet0/0/0]q
[Huawei]dis nat outbound //显示

橙子配

关注

0
点赞
踩
11

收藏

觉得还不错? 一键收藏
0
评论
华为na基础实验的一些操作命令

九天过去了，班级要实训，以为可以出去，结果还是在学校，内容是华为na的基础内容，下面是我做实验的代码。华为命令Telnet1.普通密码（R1）user-interface vty 0 4authentication-mode password 123456user privilege level 3q<R2>telnet 192.168....
复制链接

扫一扫
