SpringBoot启动过程探究各个接口(一)

SpringApplication作为springBoot启动类没有继承任何接口或者父类

public static ConfigurableApplicationContext run(Class<?>[] primarySources, String[] args) {
		return new SpringApplication(primarySources).run(args);
	}

先看看构造方法

@SuppressWarnings({ "unchecked", "rawtypes" })
	public SpringApplication(ResourceLoader resourceLoader, Class<?>... primarySources) {
		this.resourceLoader = resourceLoader;
		Assert.notNull(primarySources, "PrimarySources must not be null");
		this.primarySources = new LinkedHashSet<>(Arrays.asList(primarySources));
		this.webApplicationType = WebApplicationType.deduceFromClasspath();
		setInitializers((Collection) getSpringFactoriesInstances(ApplicationContextInitializer.class));
		setListeners((Collection) getSpringFactoriesInstances(ApplicationListener.class));
		this.mainApplicationClass = deduceMainApplicationClass();
	}

resourceLoader资源加载器为指定为null
primarySources 为入口类
webApplicationType 根据classpath判断类型

/**
	 * The application should not run as a web application and should not start an
	 * embedded web server.
	 */
	NONE,

	/**
	 * The application should run as a servlet-based web application and should start an
	 * embedded servlet web server.
	 */
	SERVLET,

	/**
	 * The application should run as a reactive web application and should start an
	 * embedded reactive web server.
	 */
	REACTIVE;

org.springframework.boot.SpringApplication#getSpringFactoriesInstances(java.lang.Class, java.lang.Class<?>[], java.lang.Object…)

private <T> Collection<T> getSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes, Object... args) {
		ClassLoader classLoader = getClassLoader();
		// Use names and ensure unique to protect against duplicates
		Set<String> names = new LinkedHashSet<>(SpringFactoriesLoader.loadFactoryNames(type, classLoader));
		List<T> instances = createSpringFactoriesInstances(type, parameterTypes, classLoader, args, names);
		AnnotationAwareOrderComparator.sort(instances);
		return instances;
	}

private static Map<String, List<String>> loadSpringFactories(@Nullable ClassLoader classLoader) {
		MultiValueMap<String, String> result = cache.get(classLoader);
		if (result != null) {
			return result;
		}

		try {
			Enumeration<URL> urls = (classLoader != null ?
					classLoader.getResources(FACTORIES_RESOURCE_LOCATION) :
					ClassLoader.getSystemResources(FACTORIES_RESOURCE_LOCATION));
			result = new LinkedMultiValueMap<>();
			while (urls.hasMoreElements()) {
				URL url = urls.nextElement();
				UrlResource resource = new UrlResource(url);
				Properties properties = PropertiesLoaderUtils.loadProperties(resource);
				for (Map.Entry<?, ?> entry : properties.entrySet()) {
					String factoryTypeName = ((String) entry.getKey()).trim();
					for (String factoryImplementationName : StringUtils.commaDelimitedListToStringArray((String) entry.getValue())) {
						result.add(factoryTypeName, factoryImplementationName.trim());
					}
				}
			}
			cache.put(classLoader, result);
			return result;
		}
		catch (IOException ex) {
			throw new IllegalArgumentException("Unable to load factories from location [" +
					FACTORIES_RESOURCE_LOCATION + "]", ex);
		}
	}

利用classLoader定位META-INF/spring.factories，把所有文件都加载并放入MultiValueMap<String, String>
并缓存起来

cache.put(classLoader, result);

private <T> List<T> createSpringFactoriesInstances(Class<T> type, Class<?>[] parameterTypes,
			ClassLoader classLoader, Object[] args, Set<String> names) {
		List<T> instances = new ArrayList<>(names.size());
		for (String name : names) {
			try {
				Class<?> instanceClass = ClassUtils.forName(name, classLoader);
				Assert.isAssignable(type, instanceClass);
				Constructor<?> constructor = instanceClass.getDeclaredConstructor(parameterTypes);
				T instance = (T) BeanUtils.instantiateClass(constructor, args);
				instances.add(instance);
			}
			catch (Throwable ex) {
				throw new IllegalArgumentException("Cannot instantiate " + type + " : " + name, ex);
			}
		}
		return instances;
	}

实例化指定类型的Class
至此ApplicationContextInitializer接口类型都已经被实例化了

ApplicationContextInitializer接口的作用

• 用于在spring容器刷新之前初始化Spring ConfigurableApplicationContext的回调接口。（剪短说就是在容器刷新之前调用该类的 initialize 方法。并将 ConfigurableApplicationContext 类的实例传递给该方法，这样就可以对俄容器做一系列的操作）
• 通常用于需要对应用程序上下文进行编程初始化的web应用程序中。例如，根据上下文环境注册属性源或激活配置文件等。
• 可排序的（实现Ordered接口，或者添加@Order注解）

看完这段解释，为了讲解方便，我们先看自定义 ApplicationContextInitializer 的三种方式。再通过SpringBoot的源码，分析生效的时间以及实现的功能等。
​

同样的步骤加载ApplicationListener
​

ApplicationContext事件机制是观察者设计模式的实现，通过ApplicationEvent类和ApplicationListener接口，可以实现ApplicationContext事件处理。
​

如果容器中有一个ApplicationListener Bean，每当ApplicationContext发布ApplicationEvent时，ApplicationListener Bean将自动被触发。这种事件机制都必须需要程序显示的触发。
​

其中spring有一些内置的事件，当完成某种操作时会发出某些事件动作。比如监听ContextRefreshedEvent事件，当所有的bean都初始化完成并被成功装载后会触发该事件，实现ApplicationListener接口可以收到监听动作，然后可以写自己的逻辑。
​

同样事件可以自定义、监听也可以自定义，完全根据自己的业务逻辑来处理。
​

​

​

private Class<?> deduceMainApplicationClass() {
		try {
			StackTraceElement[] stackTrace = new RuntimeException().getStackTrace();
			for (StackTraceElement stackTraceElement : stackTrace) {
				if ("main".equals(stackTraceElement.getMethodName())) {
					return Class.forName(stackTraceElement.getClassName());
				}
			}
		}
		catch (ClassNotFoundException ex) {
			// Swallow and continue
		}
		return null;
	}

寻找启动main方法，进而寻找MainApplication
​

​

进入run方法

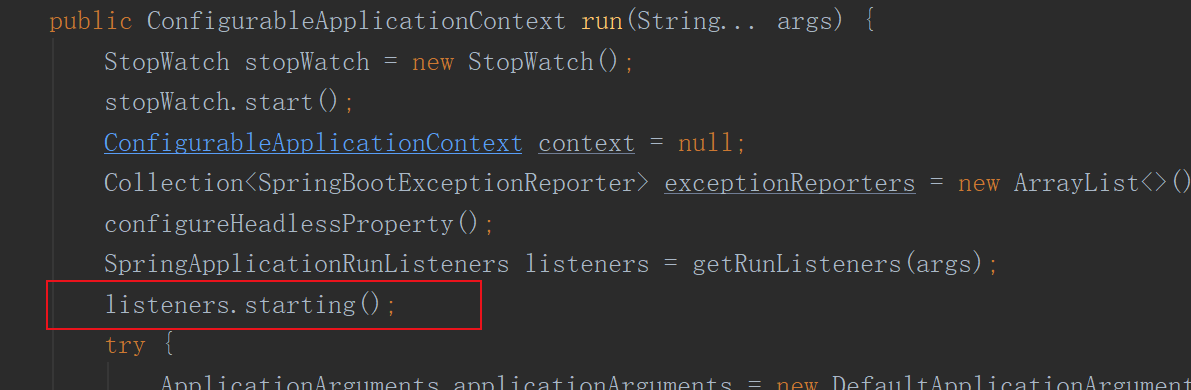

public ConfigurableApplicationContext run(String... args) {
		StopWatch stopWatch = new StopWatch();
		stopWatch.start();
		ConfigurableApplicationContext context = null;
		Collection<SpringBootExceptionReporter> exceptionReporters = new ArrayList<>();
		configureHeadlessProperty();
		SpringApplicationRunListeners listeners = getRunListeners(args);
		listeners.starting();
		try {
			ApplicationArguments applicationArguments = new DefaultApplicationArguments(args);
			ConfigurableEnvironment environment = prepareEnvironment(listeners, applicationArguments);
			configureIgnoreBeanInfo(environment);
			Banner printedBanner = printBanner(environment);
			context = createApplicationContext();
			exceptionReporters = getSpringFactoriesInstances(SpringBootExceptionReporter.class,
					new Class[] { ConfigurableApplicationContext.class }, context);
			prepareContext(context, environment, listeners, applicationArguments, printedBanner);
			refreshContext(context);
			afterRefresh(context, applicationArguments);
			stopWatch.stop();
			if (this.logStartupInfo) {
				new StartupInfoLogger(this.mainApplicationClass).logStarted(getApplicationLog(), stopWatch);
			}
			listeners.started(context);
			callRunners(context, applicationArguments);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, listeners);
			throw new IllegalStateException(ex);
		}

		try {
			listeners.running(context);
		}
		catch (Throwable ex) {
			handleRunFailure(context, ex, exceptionReporters, null);
			throw new IllegalStateException(ex);
		}
		return context;
	}

SpringApplicationRunListeners listeners = getRunListeners(args);
获取SpringApplicationRunListener 监听器
这里获取到的就是org.springframework.boot.context.event.EventPublishingRunListener
是springBoot生命周期的一个监听器
​

ApplicationContext接口

public interface ApplicationContext extends EnvironmentCapable, ListableBeanFactory, HierarchicalBeanFactory,
		MessageSource, ApplicationEventPublisher, ResourcePatternResolver

这是一个极其复杂的接口
让我们来挨个看看各个接口，来看ApplicationContext具备的能力

EnvironmentCapable

ApplicationContext接口继承了EnvironmentCapable接口，所以具备了获取Environment的能力。
其中的getEnvironment方法的实现是在AbstractApplicationContext中：
​

	@Override
	public ConfigurableEnvironment getEnvironment() {
		if (this.environment == null) {
			this.environment = createEnvironment();
		}
		return this.environment;
	}
	protected ConfigurableEnvironment createEnvironment() {
		return new StandardEnvironment();
	}

ListableBeanFactory

ListableBeanFactory又继承了BeanFactory
ListableBeanFactory是beanFactory接口的扩展接口，它可以枚举所有的bean实例，而不是客户端通过名称一个一个的查询得出所有的实例。要预加载所有的bean定义的beanfactory可以实现这个接口来。该 接口定义了访问容器中Bean基本信息的若干方法，如查看Bean的个数、获取某一类型Bean的配置名、查看容器中是否包括某一Bean等方法.
ListableBeanFactory是BeanFactory上的进一步扩充
​

/**
 *
 * @author DemoTransfer
 * @since 4.3
 */
public interface ListableBeanFactory extends BeanFactory {


    //-------------------------------------------------------------------------
    // 暴力获取全部bean的属性
    //-------------------------------------------------------------------------

    // 对于给定的名字是否含有BeanDefinition
    boolean containsBeanDefinition(String beanName);


    // 返回工厂的BeanDefinition总数
    int getBeanDefinitionCount();


    // 返回工厂中所有Bean的名字
    String[] getBeanDefinitionNames();

    //-------------------------------------------------------------------------
    // 根据bean 的类型获取bean
    //
    // 这边的方法仅检查顶级bean.它不会检查嵌套的bean.FactoryBean创建的bean会匹配为FactoryBean而不是原始类型.
    // 一样不会考虑父factory中的bean,非要用可以通过BeanFactoryUtils中的beanNamesForTypeIncludingAncestors.
    // 其他方式注册的单例这边会纳入判断.
    // 这个版本的getBeanNamesForType会匹配所有类型的bean,包括单例,原型,FactoryBean.返回的bean names会根据backend 配置的进行排序.

    String[] getBeanNamesForType(ResolvableType type);

     */
    // 获取给定类型的bean names(包括子类),通过bean 定义或者FactoryBean的getObjectType判断.
    // 返回对于指定类型Bean（包括子类）的所有名字
    String[] getBeanNamesForType(Class<?> type);


     * 返回指定类型的名字 includeNonSingletons为false表示只取单例Bean，true则不是
     * allowEagerInit为true表示立刻加载，false表示延迟加载。 注意：FactoryBeans都是立刻加载的。
     */
    String[] getBeanNamesForType(Class<?> type, boolean includeNonSingletons, boolean allowEagerInit);


    // 如果保护懒加载的类,FactoryBean初始化的类和工厂方法初始化的类会被初始化.就是说执行这个方法会执行对应的初始化.
    // 根据类型（包括子类）返回指定Bean名和Bean的Map
    <T> Map<String, T> getBeansOfType(Class<T> type) throws BeansException;


    <T> Map<String, T> getBeansOfType(Class<T> type, boolean includeNonSingletons, boolean allowEagerInit)
            throws BeansException;

    //-------------------------------------------------------------------------
    // 查找使用注解的类
    //-------------------------------------------------------------------------


    String[] getBeanNamesForAnnotation(Class<? extends Annotation> annotationType);


     // 根据注解类型，查找所有有这个注解的Bean名和Bean的Map
    Map<String, Object> getBeansWithAnnotation(Class<? extends Annotation> annotationType) throws BeansException;

    //-------------------------------------------------------------------------
    // 查找一个类上的注解,如果找不到,父类,接口使用注解也算.
    //-------------------------------------------------------------------------


     // 根据指定Bean名和注解类型查找指定的Bean
    <A extends Annotation> A findAnnotationOnBean(String beanName, Class<A> annotationType)
            throws NoSuchBeanDefinitionException;

}

具体实现在org.springframework.beans.factory.support.DefaultListableBeanFactory中

BeanFactory

BeanFactory是对Bean工厂的的最高抽象

package org.springframework.beans.factory;

public interface BeanFactory {

    /**
     * 用来引用一个实例，或把它和工厂产生的Bean区分开，就是说，如果一个FactoryBean的名字为a，那么，&a会得到那个Factory
     */
    String FACTORY_BEAN_PREFIX = "&";

    /*
     * 四个不同形式的getBean方法，获取实例
     */
    Object getBean(String name) throws BeansException;

    <T> T getBean(String name, Class<T> requiredType) throws BeansException;

    <T> T getBean(Class<T> requiredType) throws BeansException;

    Object getBean(String name, Object... args) throws BeansException;

    boolean containsBean(String name); // 是否存在

    boolean isSingleton(String name) throws NoSuchBeanDefinitionException;// 是否为单实例

    boolean isPrototype(String name) throws NoSuchBeanDefinitionException;// 是否为原型（多实例）

    boolean isTypeMatch(String name, Class<?> targetType)
            throws NoSuchBeanDefinitionException;// 名称、类型是否匹配

    Class<?> getType(String name) throws NoSuchBeanDefinitionException; // 获取类型

    String[] getAliases(String name);// 根据实例的名字获取实例的别名

}

HierarchicalBeanFactor

y接口是BeanFactory的扩展，所有要应用到有层级体系的容器类（有父BeanFactory的那种），都应该实现此接口。
此接口的getParentBeanFactory方法可以得到此BeanFactory的父BeanFactory,但是设置一个BeanFactory的父BeanFactory的方法却没有在此接口中，而是在ConfigurableBeanFactory中。

public interface HierarchicalBeanFactory extends BeanFactory {

    /**
     * 返回当前BeanFactory的父BeanFactory
     */
    BeanFactory getParentBeanFactory();

    /**
     * Return whether the local bean factory contains a bean of the given name,
     * 检测当前BeanFactory中是否包含指定名字的Bean。不去检测其父BeanFactory中是否包含
     * 类似于Listable中的查找Bean的方法
     */
    boolean containsLocalBean(String name);

}

可以看出ApplicationContext和BeanFactory都有其父工厂

MessageSource接口方法

String getMessage(String code, Object[] args, String defaultMessage, Locale locale)
code表示国际化资源中的属性名；args用于传递格式化串占位符所用的运行期参数；当在资源找不到对应属性名时，返回defaultMessage参数所指定的默认信息；locale表示本地化对象；
​

String getMessage(String code, Object[] args, Locale locale) throws NoSuchMessageException;
​

与上面的方法类似，只不过在找不到资源中对应的属性名时，直接抛出NoSuchMessageException异常；
​

String getMessage(MessageSourceResolvable resolvable, Locale locale) throws NoSuchMessageException;
​

MessageSourceResolvable 将属性名、参数数组以及默认信息封装起来，它的功能和第一个接口方法相同。
[

](https://blog.csdn.net/yangshangwei/article/details/77075833)

ApplicationEventPublisher

@FunctionalInterface
public interface ApplicationEventPublisher {

	/**
	 * Notify all <strong>matching</strong> listeners registered with this
	 * application of an application event. Events may be framework events
	 * (such as ContextRefreshedEvent) or application-specific events.
	 * <p>Such an event publication step is effectively a hand-off to the
	 * multicaster and does not imply synchronous/asynchronous execution
	 * or even immediate execution at all. Event listeners are encouraged
	 * to be as efficient as possible, individually using asynchronous
	 * execution for longer-running and potentially blocking operations.
	 * @param event the event to publish
	 * @see #publishEvent(Object)
	 * @see org.springframework.context.event.ContextRefreshedEvent
	 * @see org.springframework.context.event.ContextClosedEvent
	 */
	default void publishEvent(ApplicationEvent event) {
		publishEvent((Object) event);
	}

	/**
	 * Notify all <strong>matching</strong> listeners registered with this
	 * application of an event.
	 * <p>If the specified {@code event} is not an {@link ApplicationEvent},
	 * it is wrapped in a {@link PayloadApplicationEvent}.
	 * <p>Such an event publication step is effectively a hand-off to the
	 * multicaster and does not imply synchronous/asynchronous execution
	 * or even immediate execution at all. Event listeners are encouraged
	 * to be as efficient as possible, individually using asynchronous
	 * execution for longer-running and potentially blocking operations.
	 * @param event the event to publish
	 * @since 4.2
	 * @see #publishEvent(ApplicationEvent)
	 * @see PayloadApplicationEvent
	 */
	void publishEvent(Object event);

}

实现在org.springframework.context.support.AbstractApplicationContext#publishEvent(java.lang.Object, org.springframework.core.ResolvableType)

protected void publishEvent(Object event, @Nullable ResolvableType eventType) {
		Assert.notNull(event, "Event must not be null");

		// Decorate event as an ApplicationEvent if necessary
		ApplicationEvent applicationEvent;
		if (event instanceof ApplicationEvent) {
			applicationEvent = (ApplicationEvent) event;
		}
		else {
			applicationEvent = new PayloadApplicationEvent<>(this, event);
			if (eventType == null) {
				eventType = ((PayloadApplicationEvent<?>) applicationEvent).getResolvableType();
			}
		}

		// Multicast right now if possible - or lazily once the multicaster is initialized
		if (this.earlyApplicationEvents != null) {
			this.earlyApplicationEvents.add(applicationEvent);
		}
		else {
			getApplicationEventMulticaster().multicastEvent(applicationEvent, eventType);
		}

		// Publish event via parent context as well...
		if (this.parent != null) {
			if (this.parent instanceof AbstractApplicationContext) {
				((AbstractApplicationContext) this.parent).publishEvent(event, eventType);
			}
			else {
				this.parent.publishEvent(event);
			}
		}
	}

进入org.springframework.context.event.SimpleApplicationEventMulticaster#multicastEvent(org.springframework.context.ApplicationEvent, org.springframework.core.ResolvableType)

@Override
	public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
		ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
		Executor executor = getTaskExecutor();
		for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {
			if (executor != null) {
				executor.execute(() -> invokeListener(listener, event));
			}
			else {
				invokeListener(listener, event);
			}
		}
	}

org.springframework.context.event.AbstractApplicationEventMulticaster#getApplicationListeners(org.springframework.context.ApplicationEvent, org.springframework.core.ResolvableType)
​

	protected Collection<ApplicationListener<?>> getApplicationListeners(
			ApplicationEvent event, ResolvableType eventType) {

		Object source = event.getSource();
		Class<?> sourceType = (source != null ? source.getClass() : null);
		ListenerCacheKey cacheKey = new ListenerCacheKey(eventType, sourceType);

		// Quick check for existing entry on ConcurrentHashMap...
		ListenerRetriever retriever = this.retrieverCache.get(cacheKey);
		if (retriever != null) {
			return retriever.getApplicationListeners();
		}

		if (this.beanClassLoader == null ||
				(ClassUtils.isCacheSafe(event.getClass(), this.beanClassLoader) &&
						(sourceType == null || ClassUtils.isCacheSafe(sourceType, this.beanClassLoader)))) {
			// Fully synchronized building and caching of a ListenerRetriever
			synchronized (this.retrievalMutex) {
				retriever = this.retrieverCache.get(cacheKey);
				if (retriever != null) {
					return retriever.getApplicationListeners();
				}
				retriever = new ListenerRetriever(true);
				Collection<ApplicationListener<?>> listeners =
						retrieveApplicationListeners(eventType, sourceType, retriever);
				this.retrieverCache.put(cacheKey, retriever);
				return listeners;
			}
		}
		else {
			// No ListenerRetriever caching -> no synchronization necessary
			return retrieveApplicationListeners(eventType, sourceType, null);
		}
	}

调用时机
最终到

	private void doInvokeListener(ApplicationListener listener, ApplicationEvent event) {
		try {
			listener.onApplicationEvent(event);
		}
		catch (ClassCastException ex) {
			String msg = ex.getMessage();
			if (msg == null || matchesClassCastMessage(msg, event.getClass())) {
				// Possibly a lambda-defined listener which we could not resolve the generic event type for
				// -> let's suppress the exception and just log a debug message.
				Log logger = LogFactory.getLog(getClass());
				if (logger.isTraceEnabled()) {
					logger.trace("Non-matching event type for listener: " + listener, ex);
				}
			}
			else {
				throw ex;
			}
		}
	}

因此，想使用springBoot发布的事件的，继承org.springframework.context.ApplicationListener实现，并配置到spring.factories中就可以了
​

ResourcePatternResolver

上篇文章说过了，用来加载资源用
ResourceLoader 的 Resource getResource(String location) 每次只能根据 location 返回一个 Resource，当需要加载多个资源时，我们除了多次调用 getResource() 外别无他法。ResourcePatternResolver 是 ResourceLoader 的扩展，它支持根据指定的资源路径匹配模式每次返回多个 Resource 实例，其定义如下：
​

​

Environment相关

private ConfigurableEnvironment prepareEnvironment(SpringApplicationRunListeners listeners,
			ApplicationArguments applicationArguments) {
		// Create and configure the environment
		ConfigurableEnvironment environment = getOrCreateEnvironment();
		configureEnvironment(environment, applicationArguments.getSourceArgs());
		ConfigurationPropertySources.attach(environment);
		listeners.environmentPrepared(environment);
		bindToSpringApplication(environment);
		if (!this.isCustomEnvironment) {
			environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
					deduceEnvironmentClass());
		}
		ConfigurationPropertySources.attach(environment);
		return environment;
	}

创建Environment

private ConfigurableEnvironment getOrCreateEnvironment() {
		if (this.environment != null) {
			return this.environment;
		}
		switch (this.webApplicationType) {
		case SERVLET:
			return new StandardServletEnvironment();
		case REACTIVE:
			return new StandardReactiveWebEnvironment();
		default:
			return new StandardEnvironment();
		}
	}

new StandardEnvironment();
构造函数

public AbstractEnvironment() {
		customizePropertySources(this.propertySources);
	}

protected void customizePropertySources(MutablePropertySources propertySources) {
		propertySources.addLast(
				new PropertiesPropertySource(SYSTEM_PROPERTIES_PROPERTY_SOURCE_NAME, getSystemProperties()));
		propertySources.addLast(
				new SystemEnvironmentPropertySource(SYSTEM_ENVIRONMENT_PROPERTY_SOURCE_NAME, getSystemEnvironment()));
	}

MutablePropertySources

先看看MutablePropertySources是个啥
​

public interface PropertySources extends Iterable<PropertySource<?>> {

	/**
	 * Return a sequential {@link Stream} containing the property sources.
	 * @since 5.1
	 */
	default Stream<PropertySource<?>> stream() {
		return StreamSupport.stream(spliterator(), false);
	}

	/**
	 * Return whether a property source with the given name is contained.
	 * @param name the {@linkplain PropertySource#getName() name of the property source} to find
	 */
	boolean contains(String name);

	/**
	 * Return the property source with the given name, {@code null} if not found.
	 * @param name the {@linkplain PropertySource#getName() name of the property source} to find
	 */
	@Nullable
	PropertySource<?> get(String name);

}

通过其get方法可以看出来，越早加入进来的Source优先级越高

	@Nullable
	public PropertySource<?> get(String name) {
		for (PropertySource<?> propertySource : this.propertySourceList) {
			if (propertySource.getName().equals(name)) {
				return propertySource;
			}
		}
		return null;
	}

可以看出来，其继承了迭代器，具备遍历的能力

public class MutablePropertySources implements PropertySources {

	private final List<PropertySource<?>> propertySourceList = new CopyOnWriteArrayList<>();
···省略代码···

可以看出来，MutablePropertySources的功能就是一个集合的功能
​

MapPropertySource

PropertiesPropertySource和SystemEnvironmentPropertySource都继承自MapPropertySource
因此都具备，map的接口
​

customizePropertySources后propertySources放入了SystemProperties和SystemEnvironment
系统环境变量（System Environment Variable）：
在Linux下使用export $ENV=123指定的值。获取的方式如下：

Map<String,String> map = System.getenv();
        Set<Map.Entry<String,String>> entries = map.entrySet();
        for (Map.Entry<String, String> entry : entries) {
            System.out.println(entry.getKey() + ":" + entry.getValue());
        }

        System.out.println(map.get("ENV"));

系统属性（System Properties）：
通过java -jar test.jar -Denv=123启动时指定的值，获取方式如下：

Properties properties = System.getProperties();
        Set<Map.Entry<Object, Object>> set = properties.entrySet();
        for (Map.Entry<Object, Object> objectObjectEntry : set) {
            System.out.println(objectObjectEntry.getKey() + ":" + objectObjectEntry.getValue());
        }

        System.out.println(properties.getProperty("env"));

启动参数：
通过java -jar test.jar --env=123启动时指定的值，获取方式如下

  for (String arg : args) {
        　　System.out.println(arg);
    　　}

至此StandardEnvironment新建完成。
​

​

紧接着进入

configureEnvironment(environment, applicationArguments.getSourceArgs());

configurePropertySources(environment, args);
configureProfiles(environment, args);

读取 程序启动参数。program arguments,读取到environment的propertySources中，对于args直接加到fitrst也就是说其优先级最高

	sources.addFirst(new SimpleCommandLinePropertySource(args));

加入后再读取spring.profiles.active 确认生效配置文件 activeProfiles

ConfigurationPropertySources.attach(environment);

	public static void attach(Environment environment) {
		Assert.isInstanceOf(ConfigurableEnvironment.class, environment);
		MutablePropertySources sources = ((ConfigurableEnvironment) environment).getPropertySources();
		PropertySource<?> attached = sources.get(ATTACHED_PROPERTY_SOURCE_NAME);
		if (attached != null && attached.getSource() != sources) {
			sources.remove(ATTACHED_PROPERTY_SOURCE_NAME);
			attached = null;
		}
		if (attached == null) {
			sources.addFirst(new ConfigurationPropertySourcesPropertySource(ATTACHED_PROPERTY_SOURCE_NAME,
					new SpringConfigurationPropertySources(sources)));
		}
	}

把之前的propertySources加一层包装SpringConfigurationPropertySources，放入configurationProperties
​

void environmentPrepared(ConfigurableEnvironment environment) {
		for (SpringApplicationRunListener listener : this.listeners) {
			listener.environmentPrepared(environment);
		}
	}

springBoot默认提供了一个监听器
org.springframework.boot.context.event.EventPublishingRunListener
​

org.springframework.boot.SpringApplicationRunListener接口

public interface SpringApplicationRunListener {

	/**
	 * Called immediately when the run method has first started. Can be used for very
	 * early initialization.
	 */
	default void starting() {
	}

	/**
	 * Called once the environment has been prepared, but before the
	 * {@link ApplicationContext} has been created.
	 * @param environment the environment
	 */
	default void environmentPrepared(ConfigurableEnvironment environment) {
	}

	/**
	 * Called once the {@link ApplicationContext} has been created and prepared, but
	 * before sources have been loaded.
	 * @param context the application context
	 */
	default void contextPrepared(ConfigurableApplicationContext context) {
	}

	/**
	 * Called once the application context has been loaded but before it has been
	 * refreshed.
	 * @param context the application context
	 */
	default void contextLoaded(ConfigurableApplicationContext context) {
	}

	/**
	 * The context has been refreshed and the application has started but
	 * {@link CommandLineRunner CommandLineRunners} and {@link ApplicationRunner
	 * ApplicationRunners} have not been called.
	 * @param context the application context.
	 * @since 2.0.0
	 */
	default void started(ConfigurableApplicationContext context) {
	}

	/**
	 * Called immediately before the run method finishes, when the application context has
	 * been refreshed and all {@link CommandLineRunner CommandLineRunners} and
	 * {@link ApplicationRunner ApplicationRunners} have been called.
	 * @param context the application context.
	 * @since 2.0.0
	 */
	default void running(ConfigurableApplicationContext context) {
	}

	/**
	 * Called when a failure occurs when running the application.
	 * @param context the application context or {@code null} if a failure occurred before
	 * the context was created
	 * @param exception the failure
	 * @since 2.0.0
	 */
	default void failed(ConfigurableApplicationContext context, Throwable exception) {
	}

}

springBoot再不同阶段调用不同的方法，如果需要自定义 ，继承该接口，写在spring.facories中

org.springframework.core.Ordered接口

public interface Ordered {

	/**
	 * Useful constant for the highest precedence value.
	 * @see java.lang.Integer#MIN_VALUE
	 */
	int HIGHEST_PRECEDENCE = Integer.MIN_VALUE;

	/**
	 * Useful constant for the lowest precedence value.
	 * @see java.lang.Integer#MAX_VALUE
	 */
	int LOWEST_PRECEDENCE = Integer.MAX_VALUE;


	/**
	 * Get the order value of this object.
	 * <p>Higher values are interpreted as lower priority. As a consequence,
	 * the object with the lowest value has the highest priority (somewhat
	 * analogous to Servlet {@code load-on-startup} values).
	 * <p>Same order values will result in arbitrary sort positions for the
	 * affected objects.
	 * @return the order value
	 * @see #HIGHEST_PRECEDENCE
	 * @see #LOWEST_PRECEDENCE
	 */
	int getOrder();

}

排序接口
​

@Override
	public void multicastEvent(final ApplicationEvent event, @Nullable ResolvableType eventType) {
		ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
		Executor executor = getTaskExecutor();
		for (ApplicationListener<?> listener : getApplicationListeners(event, type)) {
			if (executor != null) {
				executor.execute(() -> invokeListener(listener, event));
			}
			else {
				invokeListener(listener, event);
			}
		}
	}

根据获取 type获取声明相关事件ApplicationEvent的ApplicationListener(声明ApplicationEvent)那么能够处理所有的事件，如果声明的子类，则只能处理子类事件
挨个执行ApplicationListener的onApplicationEvent

public interface ApplicationListener<E extends ApplicationEvent> extends EventListener

listeners.environmentPrepared(environment);执行完毕之后发现environment的propertySource变多了那么，配置文件肯定在这里加载了
原来是出发了org.springframework.boot.context.config.ConfigFileApplicationListener#onApplicationEnvironmentPreparedEvent

private void onApplicationEnvironmentPreparedEvent(ApplicationEnvironmentPreparedEvent event) {
		List<EnvironmentPostProcessor> postProcessors = loadPostProcessors();
		postProcessors.add(this);
		AnnotationAwareOrderComparator.sort(postProcessors);
		for (EnvironmentPostProcessor postProcessor : postProcessors) {
			postProcessor.postProcessEnvironment(event.getEnvironment(), event.getSpringApplication());
		}
	}

又出现了新的接口

org.springframework.boot.env.EnvironmentPostProcessor

@FunctionalInterface
public interface EnvironmentPostProcessor {

	/**
	 * Post-process the given {@code environment}.
	 * @param environment the environment to post-process
	 * @param application the application to which the environment belongs
	 */
	void postProcessEnvironment(ConfigurableEnvironment environment, SpringApplication application);

}

进入org.springframework.boot.context.config.ConfigFileApplicationListener#postProcessEnvironment
具体逻辑见 上篇关于资源加载文章
​

if (!this.isCustomEnvironment) {
			environment = new EnvironmentConverter(getClassLoader()).convertEnvironmentIfNecessary(environment,
					deduceEnvironmentClass());
		}

​

private Class<? extends StandardEnvironment> deduceEnvironmentClass() {
		switch (this.webApplicationType) {
		case SERVLET:
			return StandardServletEnvironment.class;
		case REACTIVE:
			return StandardReactiveWebEnvironment.class;
		default:
			return StandardEnvironment.class;
		}
	}

​

如果是web环境转化成对应的环境
来到org.springframework.boot.SpringApplication#printBanner

Banner printedBanner = printBanner(environment);

​

private Banner printBanner(ConfigurableEnvironment environment) {
		if (this.bannerMode == Banner.Mode.OFF) {
			return null;
		}
		ResourceLoader resourceLoader = (this.resourceLoader != null) ? this.resourceLoader
				: new DefaultResourceLoader(null);
		SpringApplicationBannerPrinter bannerPrinter = new SpringApplicationBannerPrinter(resourceLoader, this.banner);
		if (this.bannerMode == Mode.LOG) {
			return bannerPrinter.print(environment, this.mainApplicationClass, logger);
		}
		return bannerPrinter.print(environment, this.mainApplicationClass, System.out);
	}

​

	Banner print(Environment environment, Class<?> sourceClass, PrintStream out) {
		Banner banner = getBanner(environment);
		banner.printBanner(environment, sourceClass, out);
		return new PrintedBanner(banner, sourceClass);
	}

private Banner getBanner(Environment environment) {
		Banners banners = new Banners();
		banners.addIfNotNull(getImageBanner(environment));
		banners.addIfNotNull(getTextBanner(environment));
		if (banners.hasAtLeastOneBanner()) {
			return banners;
		}
		if (this.fallbackBanner != null) {
			return this.fallbackBanner;
		}
		return DEFAULT_BANNER;
	}

看下Banners这个类

private static class Banners implements Banner {

		private final List<Banner> banners = new ArrayList<>();

		void addIfNotNull(Banner banner) {
			if (banner != null) {
				this.banners.add(banner);
			}
		}

		boolean hasAtLeastOneBanner() {
			return !this.banners.isEmpty();
		}

		@Override
		public void printBanner(Environment environment, Class<?> sourceClass, PrintStream out) {
			for (Banner banner : this.banners) {
				banner.printBanner(environment, sourceClass, out);
			}
		}

	}

继承了Banner在里面又维护了Banner集合重写printBanner所有banner挨个执行
​

如果配置了相关属性spring.banner.location，spring.banner.image.location就会打印对应的banner，如不配置，打印默认。

AnnotationConfigApplicationContext

····未完待续·····
