<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/activity_main"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context="com.example.bz0209.xinwenkehuduan.MainActivity">
<FrameLayout
android:layout_width="match_parent"
android:layout_height="match_parent">
<LinearLayout
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/loading"
android:visibility="invisible"
android:gravity="center"
android:orientation="vertical">
<ProgressBar
android:layout_width="wrap_content"
android:layout_height="wrap_content" />
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="正在加载信息......"
/>
</LinearLayout>
<ListView
android:layout_width="match_parent"
android:layout_height="match_parent"
android:id="@+id/lv_news">
</ListView>
</FrameLayout>
</LinearLayout>
b.界面如下1-1所示:
1-1 1-2
2.创建ListView Item的布局:
a.ListView的Item布局文件如下所示:
<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="65dip">
<com.loopj.android.image.SmartImageView
android:id="@id/siv_icon"
android:layout_width="80dip"
android:layout_height="60dip"
android:layout_alignParentLeft="true"
android:layout_marginButtom="5dip"
android:layout_marginLeft="5dip"
android:layout_marginTop="5dip"
android:scaleType="centerCrop"
android:src="@mipmap/ic_launcher">
</com.loopj.android.image.SmartImageView>
<TextView
android:id="@+id/tv_title"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginLeft="5dip"
android:layout_marginTop="10dip"
android:layout_toRightOf="@+id/siv_icon"
android:text="我是标题"
android:maxLength="20"
android:singleLine="true"
android:ellipsize="end"
android:textColor="#000000"
android:textSize="18sp"
/>
<TextView
android:id="@+id/tv_description"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_below="@id/tv_title"
android:layout_marginLeft="5dip"
android:layout_marginTop="5dip"
android:layout_toRightOf="@+id/siv_icon"
android:text="我是描述"
android:maxLength="16"
android:singleLine="true"
android:ellipsize="end"
android:textColor="#99000000"
android:textSize="14sp"
/>
<TextView
android:id="@+id/tv_type"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentBottom="true"
android:layout_alignParentRight="true"
android:layout_marginBottom="5dip"
android:text="评论"
android:textColor="#99000000"
android:textSize="12sp"
/>
</RelativeLayout>

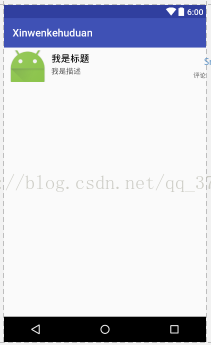

b.界面如图1-2所示。
3.编写界面交互代码如下所示:
a.用于实现获取服务器的NewsInfo.xml文件解析并将解析的信息设置到ListView显示在界面上。
import android.graphics.Color;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.view.View;
import android.view.ViewGroup;
import android.widget.BaseAdapter;
import android.widget.LinearLayout;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.Toast;
import com.loopj.android.image.SmartImageView;
import java.io.ByteArrayInputStream;
import java.util.List;
public class MainActivity extends AppCompatActivity {
private ListView lv_news;
private LinearLayout loading;
private List<NewsInfo> newsInfos;
private class NewsAdapter extends BaseAdapter{
@Override
public int getCount() {
return newsInfos.size();
}
public View getView(int position, View convertView , ViewGroup parent) {
View view = View.inflate(MainActivity.this, R.layout.news_item, null);
SmartImageView siv = (SmartImageView) view.findViewById(R.id.siv_icon);
TextView tv_title = (TextView) view.findViewById(R.id.tv_title);
TextView tv_description = (TextView) view.findViewById(R.id.tv_description);
NewsInfo newsInfo = newsInfos.get(position);
siv.setImageUrl(newsInfo.getIconPath(), R.drawable.ab, R.drawable.ic_launcher);
tv_title.setText(newsInfo.getTitle);
tv_description.setText(newsInfo.getDescription);
int type = newsInfo.getType();
switch (type) {
case 1:
tv_type.setText("评论:" + newsInfo.getComment());
break;
case 2:
tv_type.setTextColor(Color.RED);
tv_type.setText("专题");
break;
;
case 3:
tv_type.setTextColor(Color.BLUE);
tv_type.setText("LIVE");
break;
;
}
return view;
}
public Object getItem(int position){
return null;
}
public long getItemId(int position){
return 0;
}
}
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
lv_news = (ListView) findViewById(R.id.lv_news);
loading = (LinearLayout) findViewById(R.id.loading);
fillData2();
}
private void fillData2(){
AsyncHttpClient asyncHttpClient=new AsyncHttpClient();
asyncHttpClient.get(getString(android.R.string.serverurl)),new AsyncHttpResponHandler(){
public void onSuccess(String content){
super.onSuccess(content);
byte[] bytes=content.getBytes();
ByteArrayInputStream bais=new ByteArrayInputStream(bytes);
newsInfos=NewsInfoService.getNewsInfos(bais);
if(newsInfos==null){
Toast.makeText(MainActivity.this,"解析失败",0).show();
}else{
loading.setVisibility(View.INVISIBLE);
lv_news.steAdapter(new NewsAdapter());
}
}
public void onFailure(Throwable error,String content){
super.onFailure(error.content);
Toast.makeText(MainActivity.this,"请求失败",0).show();
}
};
}
}
4.创建NewsInfo类
a.具体代码如下:
public class NewsInfo {
private String iconPath;
private String title;
private String description;
private int type;
private long comment;
public String getIconPath() {
return iconPath;
}
public void setIconPath(String iconPath) {
this.iconPath = iconPath;
}
public String getTitle() {
return title;
}
public void setTitle(String title) {
this.title = title;
}
public String getDescription() {
return description;
}
public void setDescription(String description) {
this.description = description;
}
public int getType() {
return type;
}
public void setType(int type) {
this.type = type;
}
public long getComment() {
return comment;
}
public void setComment(long comment) {
this.comment = comment;
}
}
4..创建工具NewsInfoService类解析Xml文件
a.具体代码如下:
import android.util.Xml;
import android.widget.Switch;
import org.xmlpull.v1.XmlPullParser;
import java.io.InputStream;
import java.util.ArrayList;
import java.util.List;
public class NewsInfoService {
public static List<NewsInfo> getNewsInfos(InputStream is){
XmlPullParser parser= Xml.newPullParser();
try{
parser.setInput(is,"utf-8");
int type=parser.getEventType();
List<NewsInfo> newsInfos=null;
NewsInfo newsInfo=null;
while(type!=XmlPullParser.END_DOCUMENT){
switch(type){
case XmlPullParser.START_TAG:
if("news".equals(parser.getName())){
newsInfos=new ArrayList<NewsInfo>();
}else if("newsInfo" .equals(parser.getName())){
newsInfo=new NewsInfo();
}else if("icon".equals(parser.getName())){
String icon=parser.nextText();
newsInfo.setIconPath(icon);
}else if("title".equals(parser.getName())){
String title=parser.nextText();
newsInfo.setTitle(title);
}else if("content".equals(parser.getName())){
String description=parser.nextText();
newsInfo.setDescription(description);
}else if("type".equals(parser.getName())){
String newsType=parser.nextText();
newsInfo.setType(Integer.parseInt(newsType));
}else if("comment".equals(parser.getName())){
String comment=parser.nextText();
newsInfo.setComment(Long.parseLong(comment));
}
break;
case XmlPullParser.END_TAG:
if("newsInfo".equals(parser.getName())){
newsInfos.add(newsInfo);
newsInfo=null;
}
break;
}
type=parser.next();
}
return newsInfos;
}catch (Exception e){
e.printStackTrace();
return null;
}
}
}
6.配置服务器:
a.启动tomcat服务器,在tomcat根目录下找bin文件夹,运行tomcat服务器,在tomcat的安装目录下打开webapps文件夹,将NewsInfo.xml文件放置在ROOT文件夹下,NewsInfo.xml代码如下:
<new>
<newsInfo>
<icom>http://172.16.25.13:8080/img/a.jpg</icom>
<title>科技温暖世界</title>
<type>1</type>
<comment>69</comment>
</newsInfo>
<newsInfo>
<icom>http://172.16.25.13:8080/img/b.jpg</icom>
<title>《神武》</title>
<content>新美术资源盘点 视觉新体验</content>
<type>2</type>
<comment>35</comment>
</newsInfo>
<newsInfo>
<icom>http://172.16.25.13:8080/img/c.jpg</icom>
<title>南北车正式公布合并</title>
<content>南北车将于今日正式公布合并</content>
<type>3</type>
<comment>2</comment>
</newsInfo>
<newsInfo>
<icom>http://172.16.25.13:8080/img/d.jpg</icom>
<title>北京拟推医生电子注册</title>
<content>突破多点执业“限制”</content>
<type>1</type>
<comment>25</comment>
</newsInfo>
<newsInfo>
<icom>http://172.16.25.13:8080/img/e.jpg</icom>
<title>风力发电进校园</title>
<content>风力发电普进校园</content>
<type>2</type>
<comment>26</comment>
</newsInfo>
<newsInfo>
<icom>http://172.16.25.13:8080/img/f.jpg</icom>
<title>地球一小时</title>
<content>地球熄灯一小时</content>
<type>1</type>
<comment>23</comment>
</newsInfo>
</new>
7.JSON文件:
http://www.qqe2.com/ json在线编辑器

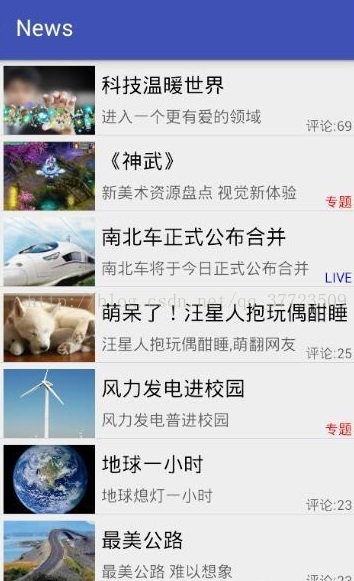

8.运行图如下所示:
