Spring容器创建
7 Spring容器创建
7.1 创建BenFactory预准备
public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
this();
register(annotatedClasses);
refresh();
}
主要来关心refresh();容器的刷新创建
1、刷新前的预处理工作
// Prepare this context for refreshing.
prepareRefresh();
protected void prepareRefresh() {
this.startupDate = System.currentTimeMillis();
this.closed.set(false);
this.active.set(true);
if (logger.isInfoEnabled()) {
logger.info("Refreshing " + this);
}
// Initialize any placeholder property sources in the context environment
//自定义一些属性设置方法,用来给子类自定义一些属性设置
initPropertySources();
// Validate that all properties marked as required are resolvable
// see ConfigurablePropertyResolver#setRequiredProperties
//检验属性合法
getEnvironment().validateRequiredProperties();
// Allow for the collection of early ApplicationEvents,
// to be published once the multicaster is available...
//保存容器中的一些早期事件
this.earlyApplicationEvents = new LinkedHashSet<ApplicationEvent>();
}
2、获取beanFactory
// Tell the subclass to refresh the internal bean factory.
ConfigurableListableBeanFactory beanFactory = obtainFreshBeanFactory();
protected ConfigurableListableBeanFactory obtainFreshBeanFactory() {
//设置beanFactory的id
refreshBeanFactory();
//返回GenericApplicationContext创建的beanFactory
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
if (logger.isDebugEnabled()) {
logger.debug("Bean factory for " + getDisplayName() + ": " + beanFactory);
}
//将创建的new DefaultListableBeanFactory();
return beanFactory;
}
3、BeanFactory的预准备工作
// Prepare the bean factory for use in this context.
prepareBeanFactory(beanFactory);
protected void prepareBeanFactory(ConfigurableListableBeanFactory beanFactory) {
// Tell the internal bean factory to use the context's class loader etc.
// 设置beanFactory的类加载器
beanFactory.setBeanClassLoader(getClassLoader());
//支持表达式解析器
beanFactory.setBeanExpressionResolver(new StandardBeanExpressionResolver(beanFactory.getBeanClassLoader()));
beanFactory.addPropertyEditorRegistrar(new ResourceEditorRegistrar(this, getEnvironment()));
// Configure the bean factory with context callbacks.
//添加部分beanProcessor
beanFactory.addBeanPostProcessor(new ApplicationContextAwareProcessor(this));
//设置忽略自动装配的接口
beanFactory.ignoreDependencyInterface(EnvironmentAware.class);
beanFactory.ignoreDependencyInterface(EmbeddedValueResolverAware.class);
beanFactory.ignoreDependencyInterface(ResourceLoaderAware.class);
beanFactory.ignoreDependencyInterface(ApplicationEventPublisherAware.class);
beanFactory.ignoreDependencyInterface(MessageSourceAware.class);
beanFactory.ignoreDependencyInterface(ApplicationContextAware.class);
// BeanFactory interface not registered as resolvable type in a plain factory.
// MessageSource registered (and found for autowiring) as a bean.
//注册可以解析的自动装配,我们一颗在bean中自动注入这些
beanFactory.registerResolvableDependency(BeanFactory.class, beanFactory);
beanFactory.registerResolvableDependency(ResourceLoader.class, this);
beanFactory.registerResolvableDependency(ApplicationEventPublisher.class, this);
beanFactory.registerResolvableDependency(ApplicationContext.class, this);
// Register early post-processor for detecting inner beans as ApplicationListeners.
//添加后置处理器
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(this));
// Detect a LoadTimeWeaver and prepare for weaving, if found.
//添加编译时的Aspectj
if (beanFactory.containsBean(LOAD_TIME_WEAVER_BEAN_NAME)) {
beanFactory.addBeanPostProcessor(new LoadTimeWeaverAwareProcessor(beanFactory));
// Set a temporary ClassLoader for type matching.
beanFactory.setTempClassLoader(new ContextTypeMatchClassLoader(beanFactory.getBeanClassLoader()));
}
// Register default environment beans.
//注册一些能用的组件
//environment->ConfigurableEnvironment、
//systemProperties->Map<String, Object>
//systemEnvironment->Map<String, Object>
if (!beanFactory.containsLocalBean(ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(ENVIRONMENT_BEAN_NAME, getEnvironment());
}
if (!beanFactory.containsLocalBean(SYSTEM_PROPERTIES_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_PROPERTIES_BEAN_NAME, getEnvironment().getSystemProperties());
}
if (!beanFactory.containsLocalBean(SYSTEM_ENVIRONMENT_BEAN_NAME)) {
beanFactory.registerSingleton(SYSTEM_ENVIRONMENT_BEAN_NAME, getEnvironment().getSystemEnvironment());
}
}
4、BeanFactory的后置处理器
// Allows post-processing of the bean factory in context subclasses.
postProcessBeanFactory(beanFactory);
子类通过重写这个方法在beanFactory创建并预准备完成后做进一步的设置
7.2 执行BeanFactoryPostProcessor
// Invoke factory processors registered as beans in the context.
invokeBeanFactoryPostProcessors(beanFactory);
在BeanFactory标准化初始完之后执行
其中主要有BeanFactoryPostProcessor和它的子类BeanDefinitionRegistryPostProcessor其中原理见6.1和6.2
7.3 注冊BeanPostProcessor
注册Bean的后置处理器
// Register bean processors that intercept bean creation.
registerBeanPostProcessors(beanFactory);

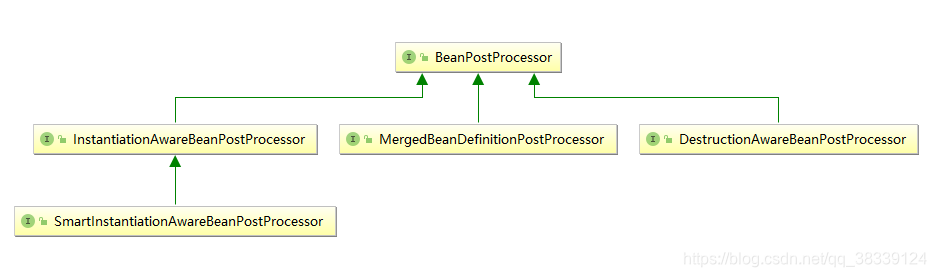

举例说明几个BeanPostProcessor,不同的BeanPostProcessor在bean创建前后的处理时机是不同的
public static void registerBeanPostProcessors(
ConfigurableListableBeanFactory beanFactory, AbstractApplicationContext applicationContext) {
String[] postProcessorNames = beanFactory.getBeanNamesForType(BeanPostProcessor.class, true, false);
int beanProcessorTargetCount = beanFactory.getBeanPostProcessorCount() + 1 + postProcessorNames.length;
beanFactory.addBeanPostProcessor(new BeanPostProcessorChecker(beanFactory, beanProcessorTargetCount));
List<BeanPostProcessor> priorityOrderedPostProcessors = new ArrayList<BeanPostProcessor>();
List<BeanPostProcessor> internalPostProcessors = new ArrayList<BeanPostProcessor>();
List<String> orderedPostProcessorNames = new ArrayList<String>();
List<String> nonOrderedPostProcessorNames = new ArrayList<String>();
for (String ppName : postProcessorNames) {
if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
priorityOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
orderedPostProcessorNames.add(ppName);
}
else {
nonOrderedPostProcessorNames.add(ppName);
}
}
// First, register the BeanPostProcessors that implement PriorityOrdered.
sortPostProcessors(beanFactory, priorityOrderedPostProcessors);
//首先注册priorityOrderedPostProcessors,将Processor放到beanfactory
registerBeanPostProcessors(beanFactory, priorityOrderedPostProcessors);
// Next, register the BeanPostProcessors that implement Ordered.
List<BeanPostProcessor> orderedPostProcessors = new ArrayList<BeanPostProcessor>();
for (String ppName : orderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
orderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
sortPostProcessors(beanFactory, orderedPostProcessors);
registerBeanPostProcessors(beanFactory, orderedPostProcessors);
// Now, register all regular BeanPostProcessors.
List<BeanPostProcessor> nonOrderedPostProcessors = new ArrayList<BeanPostProcessor>();
for (String ppName : nonOrderedPostProcessorNames) {
BeanPostProcessor pp = beanFactory.getBean(ppName, BeanPostProcessor.class);
nonOrderedPostProcessors.add(pp);
if (pp instanceof MergedBeanDefinitionPostProcessor) {
internalPostProcessors.add(pp);
}
}
//最后注册没有实现排序接口的Processor
registerBeanPostProcessors(beanFactory, nonOrderedPostProcessors);
//最后注册internalPostProcessors
sortPostProcessors(beanFactory, internalPostProcessors);
registerBeanPostProcessors(beanFactory, internalPostProcessors);
//注册ApplicationListenerDetector,这个Detector用来在bean创建完成后判断bean是为一个ApplicationListener
//如果是保存起来
beanFactory.addBeanPostProcessor(new ApplicationListenerDetector(applicationContext));
}
7.4 初始化MessageSource
做国际化功能,消息绑定和消息解析
// Initialize message source for this context.
initMessageSource();
protected void initMessageSource() {
ConfigurableListableBeanFactory beanFactory = getBeanFactory();
if (beanFactory.containsLocalBean(MESSAGE_SOURCE_BEAN_NAME)) {
//如果有 id是MESSAGE_SOURCE_BEAN_NAME的组件,就赋值
this.messageSource = beanFactory.getBean(MESSAGE_SOURCE_BEAN_NAME, MessageSource.class);
// Make MessageSource aware of parent MessageSource.
if (this.parent != null && this.messageSource instanceof HierarchicalMessageSource) {
HierarchicalMessageSource hms = (HierarchicalMessageSource) this.messageSource;
if (hms.getParentMessageSource() == null) {
// Only set parent context as parent MessageSource if no parent MessageSource
// registered already.
hms.setParentMessageSource(getInternalParentMessageSource());
}
}
if (logger.isDebugEnabled()) {
logger.debug("Using MessageSource [" + this.messageSource + "]");
}
}
else {
// Use empty MessageSource to be able to accept getMessage calls.
//如果没有注册一个DelegatingMessageSource组件,取出国际化配置文件中的某个key值,能按照 区域信息获取
DelegatingMessageSource dms = new DelegatingMessageSource();
dms.setParentMessageSource(getInternalParentMessageSource());
this.messageSource = dms;
//把创建好的messagesource放到容器中
beanFactory.registerSingleton(MESSAGE_SOURCE_BEAN_NAME, this.messageSource);
if (logger.isDebugEnabled()) {
logger.debug("Unable to locate MessageSource with name '" + MESSAGE_SOURCE_BEAN_NAME +
"': using default [" + this.messageSource + "]");
}
}
}
7.5 初始化事件派发器和监听器
给容器中添加一个事件派发器
// Initialize event multicaster for this context.
initApplicationEventMulticaster();
子类可以重写方法来自定义逻辑,刷新容器的时候
// Initialize other special beans in specific context subclasses.
onRefresh();
将每个监听器注册到事件派发器中
// Check for listener beans and register them.
registerListeners();
protected void registerListeners() {
// Register statically specified listeners first.
for (ApplicationListener<?> listener : getApplicationListeners()) {
getApplicationEventMulticaster().addApplicationListener(listener);
}
String[] listenerBeanNames = getBeanNamesForType(ApplicationListener.class, true, false);
for (String listenerBeanName : listenerBeanNames) {
getApplicationEventMulticaster().addApplicationListenerBean(listenerBeanName);
}
// Publish early application events now that we finally have a multicaster...
//将派发步骤之前产生的事件派发出去
Set<ApplicationEvent> earlyEventsToProcess = this.earlyApplicationEvents;
this.earlyApplicationEvents = null;
if (earlyEventsToProcess != null) {
for (ApplicationEvent earlyEvent : earlyEventsToProcess) {
getApplicationEventMulticaster().multicastEvent(earlyEvent);
}
}
}
7.6 创建剩余的单实例bean
// Instantiate all remaining (non-lazy-init) singletons.
finishBeanFactoryInitialization(beanFactory);
// Instantiate all remaining (non-lazy-init) singletons.
beanFactory.preInstantiateSingletons();
@Override
public void preInstantiateSingletons() throws BeansException {
if (this.logger.isDebugEnabled()) {
this.logger.debug("Pre-instantiating singletons in " + this);
}
// Iterate over a copy to allow for init methods which in turn register new bean definitions.
// While this may not be part of the regular factory bootstrap, it does otherwise work fine.
List<String> beanNames = new ArrayList<String>(this.beanDefinitionNames);
// Trigger initialization of all non-lazy singleton beans...
//获取容器中的所有bean依次进行初始化和创建对象
for (String beanName : beanNames) {
//获取bean的定义信息
RootBeanDefinition bd = getMergedLocalBeanDefinition(beanName);
//bean不是抽象的是单实例的,不是懒加载的
if (!bd.isAbstract() && bd.isSingleton() && !bd.isLazyInit()) {
//判断是否是FactoryBean(实现了 FactoryBen接口的)
if (isFactoryBean(beanName)) {
//调用FactoryBean的getBean创建对象
final FactoryBean<?> factory = (FactoryBean<?>) getBean(FACTORY_BEAN_PREFIX + beanName);
boolean isEagerInit;
if (System.getSecurityManager() != null && factory instanceof SmartFactoryBean) {
isEagerInit = AccessController.doPrivileged(new PrivilegedAction<Boolean>() {
@Override
public Boolean run() {
return ((SmartFactoryBean<?>) factory).isEagerInit();
}
}, getAccessControlContext());
}
else {
isEagerInit = (factory instanceof SmartFactoryBean &&
((SmartFactoryBean<?>) factory).isEagerInit());
}
if (isEagerInit) {
getBean(beanName);
}
}
else {
//不是FactoryBean 利用getBean创建对象
getBean(beanName);
}
}
}
// Trigger post-initialization callback for all applicable beans...
//所有bean都创建完之后,检查所有的bean是SmartInitializingSingleton类型
for (String beanName : beanNames) {
Object singletonInstance = getSingleton(beanName);
if (singletonInstance instanceof SmartInitializingSingleton) {
final SmartInitializingSingleton smartSingleton = (SmartInitializingSingleton) singletonInstance;
if (System.getSecurityManager() != null) {
AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
smartSingleton.afterSingletonsInstantiated();
return null;
}
}, getAccessControlContext());
}
else {
//如果是,执行这个方法
smartSingleton.afterSingletonsInstantiated();
}
}
}
}
public Object getSingleton(String beanName, ObjectFactory<?> singletonFactory) {
..........
finally {
if (recordSuppressedExceptions) {
this.suppressedExceptions = null;
}
afterSingletonCreation(beanName);
}
if (newSingleton) {
addSingleton(beanName, singletonObject);
............
}
protected void addSingleton(String beanName, Object singletonObject) {
synchronized (this.singletonObjects) {
//将创建的bean放入到缓存中,Ioc容器就是这些单实例bean,环境信息
this.singletonObjects.put(beanName, (singletonObject != null ? singletonObject : NULL_OBJECT));
this.singletonFactories.remove(beanName);
this.earlySingletonObjects.remove(beanName);
this.registeredSingletons.add(beanName);
}
}
protected <T> T doGetBean(
final String name, final Class<T> requiredType, final Object[] args, boolean typeCheckOnly)
throws BeansException {
final String beanName = transformedBeanName(name);
Object bean;
// Eagerly check singleton cache for manually registered singletons.
//先获取缓存中的单实例bean,如果能获取到说明这个bean被创建过,所有创建过的bean都会被缓存起来
Object sharedInstance = getSingleton(beanName);
if (sharedInstance != null && args == null) {
if (logger.isDebugEnabled()) {
if (isSingletonCurrentlyInCreation(beanName)) {
logger.debug("Returning eagerly cached instance of singleton bean '" + beanName +
"' that is not fully initialized yet - a consequence of a circular reference");
}
else {
logger.debug("Returning cached instance of singleton bean '" + beanName + "'");
}
}
bean = getObjectForBeanInstance(sharedInstance, name, beanName, null);
}
//缓存中获取不到就去创建
else {
// Fail if we're already creating this bean instance:
// We're assumably within a circular reference.
if (isPrototypeCurrentlyInCreation(beanName)) {
throw new BeanCurrentlyInCreationException(beanName);
}
// Check if bean definition exists in this factory.
//拿到父级的beanFactory
BeanFactory parentBeanFactory = getParentBeanFactory();
if (parentBeanFactory != null && !containsBeanDefinition(beanName)) {
// Not found -> check parent.
String nameToLookup = originalBeanName(name);
if (args != null) {
// Delegation to parent with explicit args.
return (T) parentBeanFactory.getBean(nameToLookup, args);
}
else {
// No args -> delegate to standard getBean method.
return parentBeanFactory.getBean(nameToLookup, requiredType);
}
}
if (!typeCheckOnly) {
//标记当前bean已被创建
markBeanAsCreated(beanName);
}
try {
//获取bean的定义信息
final RootBeanDefinition mbd = getMergedLocalBeanDefinition(beanName);
checkMergedBeanDefinition(mbd, beanName, args);
// Guarantee initialization of beans that the current bean depends on.
//获取当前bean所依赖的其他bean
String[] dependsOn = mbd.getDependsOn();
if (dependsOn != null) {
for (String dep : dependsOn) {
if (isDependent(beanName, dep)) {
throw new BeanCreationException(mbd.getResourceDescription(), beanName,
"Circular depends-on relationship between '" + beanName + "' and '" + dep + "'");
}
registerDependentBean(dep, beanName);
//如果有,按照getBean的方式,把依赖的bean先创建出来
getBean(dep);
}
}
// Create bean instance.
if (mbd.isSingleton()) {
//启动单实例bean的创建过程
sharedInstance = getSingleton(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
try {
//调createBean来创建bean
return createBean(beanName, mbd, args);
}
catch (BeansException ex) {
// Explicitly remove instance from singleton cache: It might have been put there
// eagerly by the creation process, to allow for circular reference resolution.
// Also remove any beans that received a temporary reference to the bean.
destroySingleton(beanName);
throw ex;
}
}
});
bean = getObjectForBeanInstance(sharedInstance, name, beanName, mbd);
}
else if (mbd.isPrototype()) {
// It's a prototype -> create a new instance.
Object prototypeInstance = null;
try {
beforePrototypeCreation(beanName);
prototypeInstance = createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
bean = getObjectForBeanInstance(prototypeInstance, name, beanName, mbd);
}
else {
String scopeName = mbd.getScope();
final Scope scope = this.scopes.get(scopeName);
if (scope == null) {
throw new IllegalStateException("No Scope registered for scope name '" + scopeName + "'");
}
try {
Object scopedInstance = scope.get(beanName, new ObjectFactory<Object>() {
@Override
public Object getObject() throws BeansException {
beforePrototypeCreation(beanName);
try {
return createBean(beanName, mbd, args);
}
finally {
afterPrototypeCreation(beanName);
}
}
});
bean = getObjectForBeanInstance(scopedInstance, name, beanName, mbd);
}
catch (IllegalStateException ex) {
throw new BeanCreationException(beanName,
"Scope '" + scopeName + "' is not active for the current thread; consider " +
"defining a scoped proxy for this bean if you intend to refer to it from a singleton",
ex);
}
}
}
catch (BeansException ex) {
cleanupAfterBeanCreationFailure(beanName);
throw ex;
}
}
@Override
protected Object createBean(String beanName, RootBeanDefinition mbd, Object[] args) throws BeanCreationException {
if (logger.isDebugEnabled()) {
logger.debug("Creating instance of bean '" + beanName + "'");
}
RootBeanDefinition mbdToUse = mbd;
// Make sure bean class is actually resolved at this point, and
// clone the bean definition in case of a dynamically resolved Class
// which cannot be stored in the shared merged bean definition.
Class<?> resolvedClass = resolveBeanClass(mbd, beanName);
if (resolvedClass != null && !mbd.hasBeanClass() && mbd.getBeanClassName() != null) {
mbdToUse = new RootBeanDefinition(mbd);
mbdToUse.setBeanClass(resolvedClass);
}
// Prepare method overrides.
try {
mbdToUse.prepareMethodOverrides();
}
catch (BeanDefinitionValidationException ex) {
throw new BeanDefinitionStoreException(mbdToUse.getResourceDescription(),
beanName, "Validation of method overrides failed", ex);
}
try {
// Give BeanPostProcessors a chance to return a proxy instead of the target bean instance.
// 给bean一个机会去创建代理对象
//
Object bean = resolveBeforeInstantiation(beanName, mbdToUse);
if (bean != null) {
return bean;
}
}
catch (Throwable ex) {
throw new BeanCreationException(mbdToUse.getResourceDescription(), beanName,
"BeanPostProcessor before instantiation of bean failed", ex);
}
//如果没有返回代理对象就执行doCreateBean
Object beanInstance = doCreateBean(beanName, mbdToUse, args);
if (logger.isDebugEnabled()) {
logger.debug("Finished creating instance of bean '" + beanName + "'");
}
return beanInstance;
}
//这块就是来判断时候存在InstantiationAwareBeanPostProcessor
//之前分析的AOP开启的注解所加载的类SmartInstantiationAwareBeanPostProcessor
//就是InstantiationAwareBeanPostProcessor的子类
protected Object resolveBeforeInstantiation(String beanName, RootBeanDefinition mbd) {
Object bean = null;
if (!Boolean.FALSE.equals(mbd.beforeInstantiationResolved)) {
// Make sure bean class is actually resolved at this point.
if (!mbd.isSynthetic() && hasInstantiationAwareBeanPostProcessors()) {
Class<?> targetType = determineTargetType(beanName, mbd);
if (targetType != null) {
bean = applyBeanPostProcessorsBeforeInstantiation(targetType, beanName);
if (bean != null) {
bean = applyBeanPostProcessorsAfterInitialization(bean, beanName);
}
}
}
mbd.beforeInstantiationResolved = (bean != null);
}
return bean;
}
doCreateBean方法里边
//创建bean实例
instanceWrapper = createBeanInstance(beanName, mbd, args);
//应用mergedBeanDefinionPostProdessor
applyMergedBeanDefinitionPostProcessors(mbd, beanType, beanName);
//对bean进行赋值
populateBean(beanName, mbd, instanceWrapper);
//初始化bean
initializeBean(beanName, exposedObject, mbd);
//注册bean的销毁方法
egisterDisposableBeanIfNecessary(beanName, bean, mbd);
对bean进行赋值的时候又执行InstantiationAwareBeanPostProcessor的after方法
再拿到InstantiationAwareBeanPostProcessor后置处理器,再来执行postProcessPropertyValues方法
,最后应用applyPropertyValues()方法对bean进行赋值、利用setter方法
初始化bean的时候:执行Aware接口的方法,再来执行bean后置处理器初始化之前的方法,再执行bean的初始化方法(是否实现了初始化接口,自定义初始化方法),再来执行bean后置处理器的初始化之后的方法,再执行bean的销毁方法
7.7 完成bean的初始化创建工作
// Last step: publish corresponding event.
finishRefresh();
protected void finishRefresh() {
// Initialize lifecycle processor for this context.
//初始化和生命周期有关的后置处理器,可以写一个LifecycleProcessor的实现类,在BeanFactory onRefresh onclose时执行方法,默认从容器中找,如果没有使用默认的生命周期组件,加入到容器中
initLifecycleProcessor();
// Propagate refresh to lifecycle processor first.
//拿到前面定义的getLifecycleProcessor 回调onRefresh方法
getLifecycleProcessor().onRefresh();
// Publish the final event.
//发布容器刷新完成事件
publishEvent(new ContextRefreshedEvent(this));
// Participate in LiveBeansView MBean, if active.
LiveBeansView.registerApplicationContext(this);
}
7.8 Spring容器创建总结
1、Spring容器在启动的时候,会先保存所有注册进来的Bean的定义信息
1)、xml注册bean
2)、注解注册Bean:@Service、@Component、@Bean、xxx
2、Spring容器会在合适的时机创建这些bean
1)、用到这个bean的时候、利用getBean创建bean、创建好以后保存在容器中
2)、统一创建剩余所有的bean的时候
3、后置处理器:
每一个bean创建完成、都会使用各种后置处理器进行处理、来增强bean的功能
AutowiredAnnotationBeanPostProcessor处理自动注入
AnnotationAwareAspectJAutoProxyCreator处理AOP自动代理
4、事件驱动模型
ApplicationListener事件监听
ApplicationEventMulticaster事件派发
