EUREKA服务注册源码品读

由于不同版本的springcloub源码可能会有一下差异，以下源代码都取自：springcloub的Greenwich.SR1版本

如果对于eureka基础知识还不是很了解可以看这篇文章：服务治理(EUREKA)



服务注册流程分析

首先先看`@EnableDiscoveryClient`这个注解，发现这个注解中并没有实现的代码，但是在这个注解中引用了一个`EnableDiscoveryClientImportSelector.class`这个类，那么我们就去这个类中看看都有些什么东西。

/*
* Copyright 2012-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*      http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/


package org.springframework.cloud.client.discovery;


import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Inherited;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;


import org.springframework.context.annotation.Import;


/**
* Annotation to enable a DiscoveryClient implementation.
* @author Spencer Gibb
*/
@Target(ElementType.TYPE)
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Inherited
@Import(EnableDiscoveryClientImportSelector.class)
public @interface EnableDiscoveryClient {
    /**
     * If true, the ServiceRegistry will automatically register the local server.
     * @return - {@code true} if you want to automatically register.
     */
    boolean autoRegister() default true;
}



我们进入`EnableDiscoveryClientImportSelector.class`这个类，在这个类的selectImports方法中会注入一个新的配置类org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationConfiguration

/*
* Copyright 2012-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*      http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/


package org.springframework.cloud.client.discovery;


import java.util.ArrayList;
import java.util.Arrays;
import java.util.LinkedHashMap;
import java.util.List;


import org.springframework.cloud.commons.util.SpringFactoryImportSelector;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.AnnotationAttributes;
import org.springframework.core.annotation.Order;
import org.springframework.core.env.ConfigurableEnvironment;
import org.springframework.core.env.Environment;
import org.springframework.core.env.MapPropertySource;
import org.springframework.core.type.AnnotationMetadata;


/**
* @author Spencer Gibb
*/
@Order(Ordered.LOWEST_PRECEDENCE - 100)
public class EnableDiscoveryClientImportSelector
        extends SpringFactoryImportSelector<EnableDiscoveryClient> {


    @Override
    public String[] selectImports(AnnotationMetadata metadata) {
        String[] imports = super.selectImports(metadata);


        AnnotationAttributes attributes = AnnotationAttributes.fromMap(
                metadata.getAnnotationAttributes(getAnnotationClass().getName(), true));


        boolean autoRegister = attributes.getBoolean("autoRegister");


        if (autoRegister) {
            List<String> importsList = new ArrayList<>(Arrays.asList(imports));
            importsList.add(
                    "org.springframework.cloud.client.serviceregistry.AutoServiceRegistrationConfiguration");
            imports = importsList.toArray(new String[0]);
        }
        else {
            Environment env = getEnvironment();
            if (ConfigurableEnvironment.class.isInstance(env)) {
                ConfigurableEnvironment configEnv = (ConfigurableEnvironment) env;
                LinkedHashMap<String, Object> map = new LinkedHashMap<>();
                map.put("spring.cloud.service-registry.auto-registration.enabled", false);
                MapPropertySource propertySource = new MapPropertySource(
                        "springCloudDiscoveryClient", map);
                configEnv.getPropertySources().addLast(propertySource);
            }


        }


        return imports;
    }


    @Override
    protected boolean isEnabled() {
        return getEnvironment().getProperty("spring.cloud.discovery.enabled",
                Boolean.class, Boolean.TRUE);
    }


    @Override
    protected boolean hasDefaultFactory() {
        return true;
    }


}



那我们就来看一下这个config中都有哪些内容，在这个类中会自动装配AutoServiceRegistrationProperties.class这个类.

/*
* Copyright 2012-2019 the original author or authors.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
*      http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/


package org.springframework.cloud.client.serviceregistry;


import org.springframework.boot.autoconfigure.condition.ConditionalOnProperty;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Configuration;


/**
* @author Spencer Gibb
*/
@Configuration
@EnableConfigurationProperties(AutoServiceRegistrationProperties.class)
@ConditionalOnProperty(value = "spring.cloud.service-registry.auto-registration.enabled", matchIfMissing = true)
public class AutoServiceRegistrationConfiguration {


}

而在这个类中最终会将EurekaAutoServiceRegistration类注入到ApplicationContext中，这样在springboot启动的时候就会调用EurekaAutoServiceRegistration中的satrt方法。

@Override
    public void start() {
        // only set the port if the nonSecurePort or securePort is 0 and this.port != 0
        if (this.port.get() != 0) {
            if (this.registration.getNonSecurePort() == 0) {
                this.registration.setNonSecurePort(this.port.get());
            }


            if (this.registration.getSecurePort() == 0 && this.registration.isSecure()) {
                this.registration.setSecurePort(this.port.get());
            }
        }


        // only initialize if nonSecurePort is greater than 0 and it isn't already running
        // because of containerPortInitializer below
        if (!this.running.get() && this.registration.getNonSecurePort() > 0) {


            this.serviceRegistry.register(this.registration);


            this.context.publishEvent(new InstanceRegisteredEvent<>(this,
                    this.registration.getInstanceConfig()));
            this.running.set(true);
        }
    }



而在这个方法中会往上线文中注入一个InstanceRegisteredEvent事件，最会就会调用到DiscoveryClient中的register方法，而这个可以说是真正开始进行服务注册

boolean register() throws Throwable {
    logger.info(PREFIX + "{}: registering service...", appPathIdentifier);
    EurekaHttpResponse<Void> httpResponse;
    try {
        httpResponse = eurekaTransport.registrationClient.register(instanceInfo);
    } catch (Exception e) {
        logger.warn(PREFIX + "{} - registration failed {}", appPathIdentifier, e.getMessage(), e);
        throw e;
    }
    if (logger.isInfoEnabled()) {
        logger.info(PREFIX + "{} - registration status: {}", appPathIdentifier, httpResponse.getStatusCode());
    }
    return httpResponse.getStatusCode() == Status.NO_CONTENT.getStatusCode();
}



这里要提一下，Eureka的服务注册使用的装饰者和代理模式，所有的实现类都实现了EurekaHttpClientDecorator类，大家可以看一下这个类中的register方法，在这个方法中会执行execute方法，而这个方法在EurekaHttpClientDecorator中是一个抽象类，在每一个实现类中都有自己的一套实现方案。

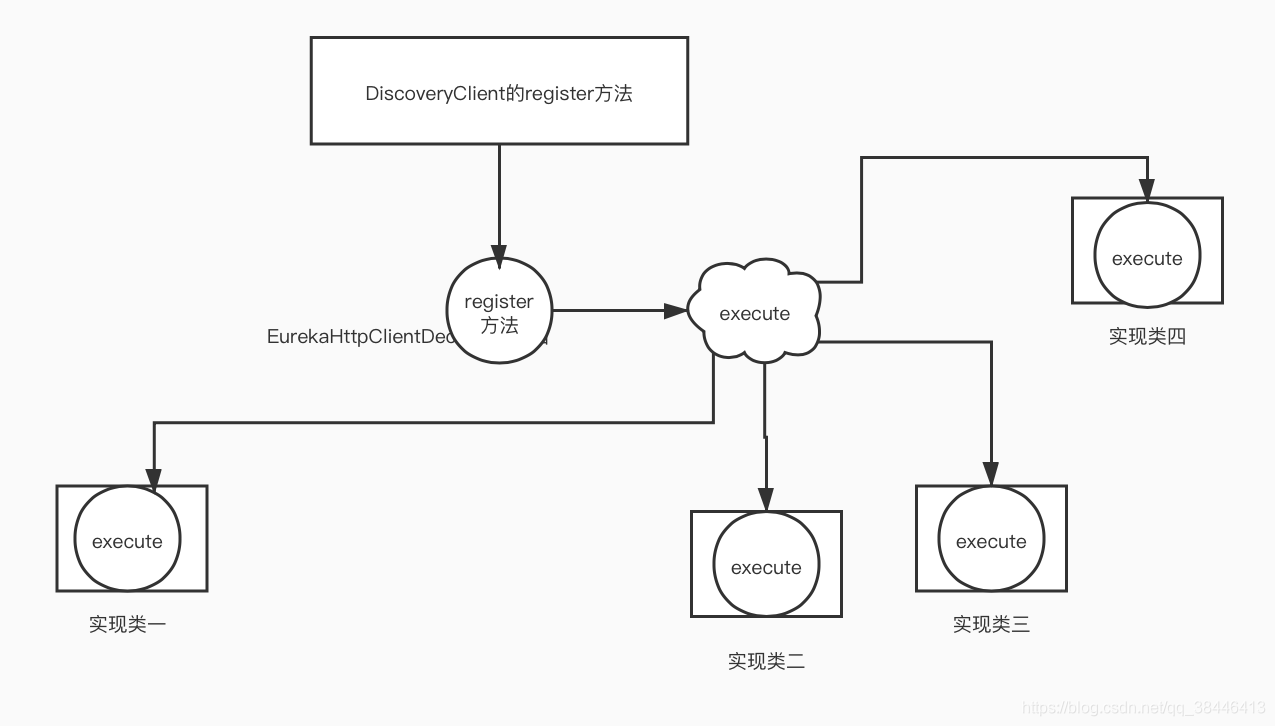

可能大家被绕晕了，这里我用一个图来讲一下，DiscoveryClient是要调用register方法的，register方法需要调用里面的execute方法，在EurekaHttpClientDecorator中execute方法是一个抽象方法，所以需要去实现类中调用execute方法，调用完后在返回register方法中，依次调用。







@Override
public EurekaHttpResponse<Void> register(final InstanceInfo info) {
    return execute(new RequestExecutor<Void>() {
        @Override
        public EurekaHttpResponse<Void> execute(EurekaHttpClient delegate) {
            return delegate.register(info);
        }


        @Override
        public RequestType getRequestType() {
            return RequestType.Register;
        }
    });
}



EurekaHttpClientDecorator实现类总共分为4层，第一层为SessionedEurekaHttpClient，这层主要是获取需要带有session的eureka客户端信息，也是防止一个eureka客户端一直连接一台服务器，为高可用做铺垫

@Override
protected <R> EurekaHttpResponse<R> execute(RequestExecutor<R> requestExecutor) {
    long now = System.currentTimeMillis();
    long delay = now - lastReconnectTimeStamp;
    if (delay >= currentSessionDurationMs) {
        logger.debug("Ending a session and starting anew");
        lastReconnectTimeStamp = now;
        currentSessionDurationMs = randomizeSessionDuration(sessionDurationMs);
        TransportUtils.shutdown(eurekaHttpClientRef.getAndSet(null));
    }


    EurekaHttpClient eurekaHttpClient = eurekaHttpClientRef.get();
    if (eurekaHttpClient == null) {
        eurekaHttpClient = TransportUtils.getOrSetAnotherClient(eurekaHttpClientRef, clientFactory.newClient());
    }
    return requestExecutor.execute(eurekaHttpClient);
}



第二层为RetryableEurekaHttpClient，这层主要是用来在服务端的列表中获取一个可用的服务端信息

@Override
protected <R> EurekaHttpResponse<R> execute(RequestExecutor<R> requestExecutor) {
    List<EurekaEndpoint> candidateHosts = null;
    int endpointIdx = 0;
    for (int retry = 0; retry < numberOfRetries; retry++) {
        EurekaHttpClient currentHttpClient = delegate.get();
        EurekaEndpoint currentEndpoint = null;
        if (currentHttpClient == null) {
            if (candidateHosts == null) {
                candidateHosts = getHostCandidates();
                if (candidateHosts.isEmpty()) {
                    throw new TransportException("There is no known eureka server; cluster server list is empty");
                }
            }
            if (endpointIdx >= candidateHosts.size()) {
                throw new TransportException("Cannot execute request on any known server");
            }


            currentEndpoint = candidateHosts.get(endpointIdx++);
            currentHttpClient = clientFactory.newClient(currentEndpoint);
        }


        try {
            EurekaHttpResponse<R> response = requestExecutor.execute(currentHttpClient);
            if (serverStatusEvaluator.accept(response.getStatusCode(), requestExecutor.getRequestType())) {
                delegate.set(currentHttpClient);
                if (retry > 0) {
                    logger.info("Request execution succeeded on retry #{}", retry);
                }
                return response;
            }
            logger.warn("Request execution failure with status code {}; retrying on another server if available", response.getStatusCode());
        } catch (Exception e) {
            logger.warn("Request execution failed with message: {}", e.getMessage());  // just log message as the underlying client should log the stacktrace
        }


        // Connection error or 5xx from the server that must be retried on another server
        delegate.compareAndSet(currentHttpClient, null);
        if (currentEndpoint != null) {
            quarantineSet.add(currentEndpoint);
        }
    }
    throw new TransportException("Retry limit reached; giving up on completing the request");
}



第三层为RedirectingEurekaHttpClient层，这层主要是要来寻找非302重定向的 Eureka-Server 的 EurekaHttpClient 。

@Override
protected <R> EurekaHttpResponse<R> execute(RequestExecutor<R> requestExecutor) {
    EurekaHttpClient currentEurekaClient = delegateRef.get();
    if (currentEurekaClient == null) {
        AtomicReference<EurekaHttpClient> currentEurekaClientRef = new AtomicReference<>(factory.newClient(serviceEndpoint));
        try {
            EurekaHttpResponse<R> response = executeOnNewServer(requestExecutor, currentEurekaClientRef);
            TransportUtils.shutdown(delegateRef.getAndSet(currentEurekaClientRef.get()));
            return response;
        } catch (Exception e) {
            logger.error("Request execution error. endpoint={}", serviceEndpoint, e);
            TransportUtils.shutdown(currentEurekaClientRef.get());
            throw e;
        }
    } else {
        try {
            return requestExecutor.execute(currentEurekaClient);
        } catch (Exception e) {
            logger.error("Request execution error. endpoint={}", serviceEndpoint, e);
            delegateRef.compareAndSet(currentEurekaClient, null);
            currentEurekaClient.shutdown();
            throw e;
        }
    }
}

private <R> EurekaHttpResponse<R> executeOnNewServer(RequestExecutor<R> requestExecutor,
                                                     AtomicReference<EurekaHttpClient> currentHttpClientRef) {
    URI targetUrl = null;
    for (int followRedirectCount = 0; followRedirectCount < MAX_FOLLOWED_REDIRECTS; followRedirectCount++) {
        EurekaHttpResponse<R> httpResponse = requestExecutor.execute(currentHttpClientRef.get());
        if (httpResponse.getStatusCode() != 302) {
            if (followRedirectCount == 0) {
                logger.debug("Pinning to endpoint {}", targetUrl);
            } else {
                logger.info("Pinning to endpoint {}, after {} redirect(s)", targetUrl, followRedirectCount);
            }
            return httpResponse;
        }


        targetUrl = getRedirectBaseUri(httpResponse.getLocation());
        if (targetUrl == null) {
            throw new TransportException("Invalid redirect URL " + httpResponse.getLocation());
        }


        currentHttpClientRef.getAndSet(null).shutdown();
        currentHttpClientRef.set(factory.newClient(new DefaultEndpoint(targetUrl.toString())));
    }
    String message = "Follow redirect limit crossed for URI " + serviceEndpoint.getServiceUrl();
    logger.warn(message);
    throw new TransportException(message);
}



第四层为MetricsCollectingEurekaHttpClient层，这层主要是监控指标收集 EurekaHttpClient ，配合 Netflix Servo 实现监控信息采集。

@Override
protected <R> EurekaHttpResponse<R> execute(RequestExecutor<R> requestExecutor) {
    EurekaHttpClientRequestMetrics requestMetrics = metricsByRequestType.get(requestExecutor.getRequestType());
    Stopwatch stopwatch = requestMetrics.latencyTimer.start();
    try {
        EurekaHttpResponse<R> httpResponse = requestExecutor.execute(delegate);
        requestMetrics.countersByStatus.get(mappedStatus(httpResponse)).increment();
        return httpResponse;
    } catch (Exception e) {
        requestMetrics.connectionErrors.increment();
        exceptionsMetric.count(e);
        throw e;
    } finally {
        stopwatch.stop();
    }
}



最后调用AbstractJerseyEurekaHttpClient，去真正的向eureka服务端发送请求的方法了。

@Override
public EurekaHttpResponse<Void> register(InstanceInfo info) {
    String urlPath = "apps/" + info.getAppName();
    ClientResponse response = null;
    try {
        Builder resourceBuilder = jerseyClient.resource(serviceUrl).path(urlPath).getRequestBuilder();
        addExtraHeaders(resourceBuilder);
        response = resourceBuilder
                .header("Accept-Encoding", "gzip")
                .type(MediaType.APPLICATION_JSON_TYPE)
                .accept(MediaType.APPLICATION_JSON)
                .post(ClientResponse.class, info);
        return anEurekaHttpResponse(response.getStatus()).headers(headersOf(response)).build();
    } finally {
        if (logger.isDebugEnabled()) {
            logger.debug("Jersey HTTP POST {}/{} with instance {}; statusCode={}", serviceUrl, urlPath, info.getId(),
                    response == null ? "N/A" : response.getStatus());
        }
        if (response != null) {
            response.close();
        }
    }
}
