Spring StateMachine个人小结

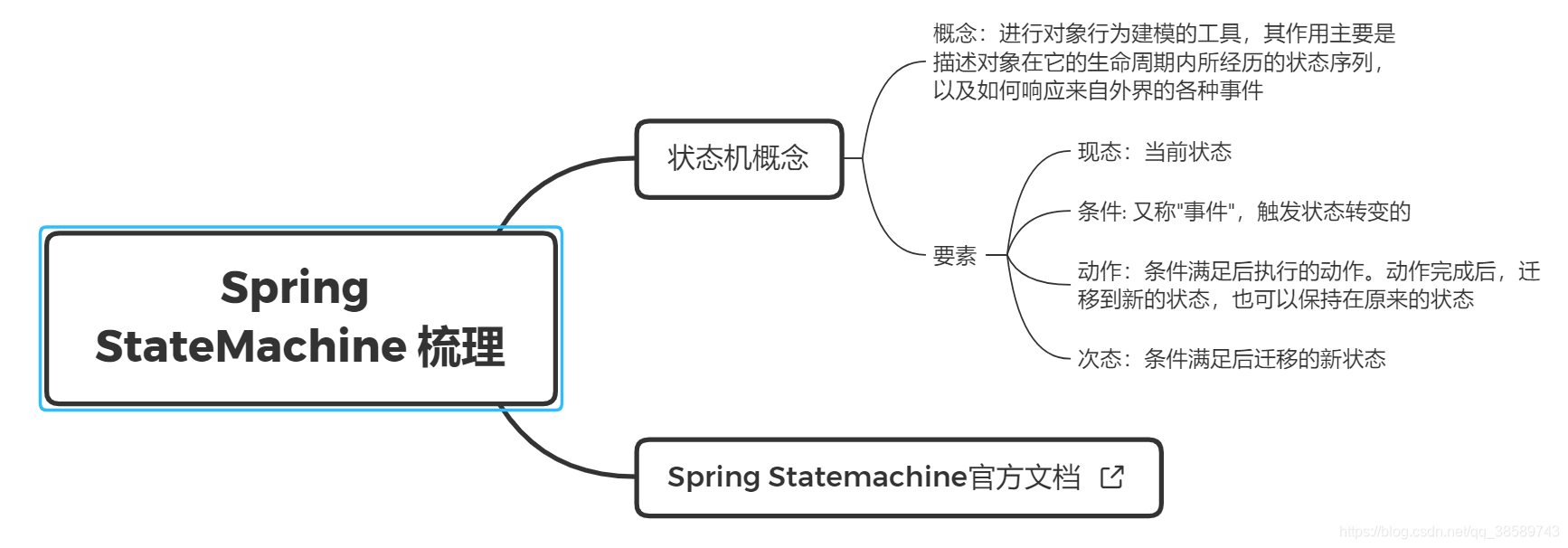

一、有关概念梳理

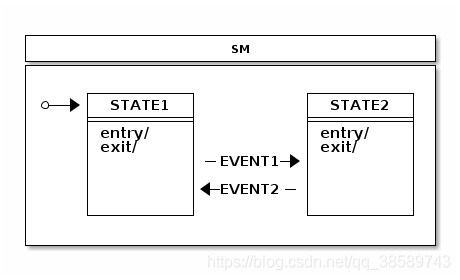

官方流程图：

二、简单demo实验

参考自：https://github.com/sunbufu/spring-state-machine-demo

依赖：

        <dependency>
            <groupId>org.springframework.statemachine</groupId>
            <artifactId>spring-statemachine-core</artifactId>
            <version>2.0.1.RELEASE</version>
        </dependency>

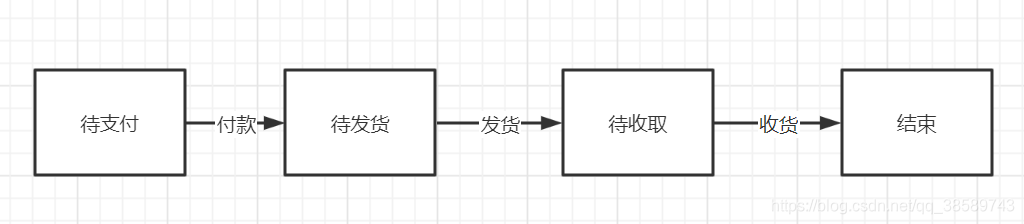

1. 定义两个枚举类 分别是订单状态和事件

public enum OrderStatus {
    WAIT_PAYMAENT("等待支付"),
    WAIT_DELIVER("待发货"),
    WAIT_RECEIVE("待收货"),
    FINISH("完成");

    //状态描述
    private String desc;

    OrderStatus(String desc){
        this.desc=desc;
    }
}

//相关事件
public enum OrderStatusChangeEvent {
    PAYED("支付"),
    DELIVERY("发送"),
    RECEIVED("接收");

    //状态描述
    private String desc;

    OrderStatusChangeEvent(String desc){
        this.desc=desc;
    }
}

2. 订单对象创建

@Data
@NoArgsConstructor
@AllArgsConstructor
public class Order {
    /** 订单id */
    private Integer id;
    /** 状态 */
    private OrderStatus status;
}

@Component
public class OrderMapper {
    private static Map<Integer, Order> dateBase=new HashMap<>();


    private static int id=1;

    /**
     *
     * @param order
     * @return
     */
    public Order save(Order order){
        if(order.getId()==null){
            order.setId(id++);
        }
        dateBase.put(order.getId(),order);
        return order;
    }

    /**
     * 查询
     * @param id
     * @return
     */
    public Order select(int id){
        return dateBase.get(id);
    }
}

3. StateMachine配置

   按照官方文档给出的说明，创建stateMachine有两种方法：1. 用Builder的形式 2.用JavaConfig的形式

   官方文档

   这里使用状态机配置的形式去创建

   StateMachineConfig 里面可以根据自己需要调整是否持久化存储，也提供了一些直接可以存储到redis的接口。另外也提供了一些listener根据自己需要去编写特定的监听器功能。

   @Configuration
   @EnableStateMachine(name = "orderStateMachine")
   public class OrderStateMachineConfig extends EnumStateMachineConfigurerAdapter<OrderStatus, OrderStatusChangeEvent> {
       // 配置状态
       private Logger logger = LoggerFactory.getLogger(getClass());

       /**
        *
        * @param states
        * @throws Exception
        */
       @Override
       public void configure(StateMachineStateConfigurer<OrderStatus, OrderStatusChangeEvent> states) throws Exception {
           states.withStates()
                   .initial(OrderStatus.WAIT_PAYMAENT)
                   .states(EnumSet.allOf(OrderStatus.class));
       }

       /**
        * 配置状态和事件之间的转换关系
        * @param transitions
        * @throws Exception
        */
       @Override
       public void configure(StateMachineTransitionConfigurer<OrderStatus, OrderStatusChangeEvent> transitions) throws Exception {
           transitions.withExternal().source(OrderStatus.WAIT_PAYMAENT).target(OrderStatus.WAIT_DELIVER).event(OrderStatusChangeEvent.PAYED).and()
                   .withExternal().source(OrderStatus.WAIT_DELIVER).target(OrderStatus.WAIT_RECEIVE).event(OrderStatusChangeEvent.DELIVERY).and()
                   .withExternal().source(OrderStatus.WAIT_RECEIVE).target(OrderStatus.FINISH).event(OrderStatusChangeEvent.RECEIVED);
       }

       /**
        * 制定状态机的处理监听器
        * @param config
        * @throws Exception
        */
       @Override
       public void configure(StateMachineConfigurationConfigurer<OrderStatus, OrderStatusChangeEvent> config) throws Exception {
           config.withConfiguration().listener(listener());
       }

       /**
        * 可以持久化到redis里面 https://projects.spring.io/spring-statemachine/
        */
       /** 状态机持久化 */
       @Bean
       public StateMachinePersister<OrderStatus, OrderStatusChangeEvent, Order> orderStateMachinePersister() {
           return new DefaultStateMachinePersister<>(new StateMachinePersist<OrderStatus, OrderStatusChangeEvent, Order>() {
               @Override
               public void write(StateMachineContext<OrderStatus, OrderStatusChangeEvent> context, Order order) {
                   // 进行持久化操作
                   order.setStatus(context.getState());
               }

               @Override
               public StateMachineContext<OrderStatus, OrderStatusChangeEvent> read(Order order) {
                   // 读取状态并设置到context中
                   return new DefaultStateMachineContext<>(order.getStatus(), null, null, null);
               }
           });
       }

       /**
        * 配置listener
        * @return
        */
       @Bean
       public StateMachineListener<OrderStatus,OrderStatusChangeEvent> listener(){
           return new StateMachineListenerAdapter<OrderStatus,OrderStatusChangeEvent>(){
               @Override
               public void transition(Transition<OrderStatus, OrderStatusChangeEvent> transition) {
                   if(transition.getTarget().getId()==OrderStatus.WAIT_PAYMAENT){
                       logger.info("用户订单创建，待支付");
                       return;
                   }
                   if(transition.getSource().getId()==OrderStatus.WAIT_PAYMAENT && transition.getTarget().getId()==OrderStatus.WAIT_DELIVER){
                       logger.info("用户已支付，待发货");
                       return;
                   }
                   if (transition.getSource().getId()==OrderStatus.WAIT_DELIVER && transition.getTarget().getId()==OrderStatus.WAIT_RECEIVE){
                       logger.info("商家已发货，待接收");
                       return;
                   }
                   if (transition.getSource().getId()==OrderStatus.WAIT_RECEIVE && transition.getTarget().getId()==OrderStatus.FINISH){
                       logger.info("用户已收货，订单完成");
                       return;
                   }
               }
           };
       }
   }


   4. orderService接口和实现类

   public interface OrderService {
       /**
        * 创建订单
        * @return Order
        */
       Order create();

       /**
        * 支付
        * @param  id
        * @return
        */
       Order pay(int id);

       /**
        * 发货
        * @param id
        * @return
        */
       Order deliver(int id);

       /**
        * 接收
        * @param id
        * @return
        */
       Order receive(int id);
   }


   @Slf4j
   @Service
   public class OrderServiceImpl implements OrderService {

       private final Logger logger = LoggerFactory.getLogger(OrderServiceImpl.class);

       @Resource
       private StateMachine<OrderStatus,OrderStatusChangeEvent> orderStateMachine;

       @Autowired
       private OrderMapper orderMapper;

       @Autowired
       private StateMachinePersister<OrderStatus,OrderStatusChangeEvent,Order> persister;

       @Override
       public Order create() {
           Order order = new Order();
           order.setStatus(OrderStatus.WAIT_PAYMAENT);
           return orderMapper.save(order);
       }

       @Override
       public Order pay(int id) {
           Order order = orderMapper.select(id);
           if (!sendEvent(OrderStatusChangeEvent.PAYED, order)) {
               throw new RuntimeException(" 等待支付 -> 等待发货 失败, 状态异常 order=" + order);
           }
           return order;    }

       @Override
       public Order deliver(int id) {
           Order order = orderMapper.select(id);
           if (!sendEvent(OrderStatusChangeEvent.DELIVERY, order)) {
               throw new RuntimeException(" 等待发货 -> 等待收货 失败，状态异常 order=" + order);
           }
           return order;    }

       @Override
       public Order receive(int id) {
           Order order = orderMapper.select(id);
           if (!sendEvent(OrderStatusChangeEvent.RECEIVED, order)) {
               throw new RuntimeException(" 等待收货 -> 完成 失败，状态异常 order=" + order);
           }
           return order;
       }
       /**
        * 发送订单状态转换事件
        *
        * @param event 事件
        * @param order 订单
        * @return 执行结果
        */
       private boolean sendEvent(OrderStatusChangeEvent event, Order order) {
           boolean result = false;
           try {
               orderStateMachine.start();
               // 设置状态机状态
               persister.restore(orderStateMachine, order);
               result = orderStateMachine.sendEvent(MessageBuilder.withPayload(event).setHeader("order", order).build());
               // 保存状态机状态
               persister.persist(orderStateMachine, order);
           } catch (Exception e) {
               e.printStackTrace();
           } finally {
               orderStateMachine.stop();
           }
           return result;
       }
   }


   @Resource
   private StateMachine<OrderStatus,OrderStatusChangeEvent> orderStateMachine;


   在编写过程中 一开始仿照官网的写法，用的@Autowired 这里会报错，显示找不到对应注入的Statemachine，但是对运行结果没啥影响，后来看到别的文章用的@Resource 这里就不会再报错了。

   5. 测试

   @SpringBootTest
   class SpringStateMachineDemoApplicationTests {

       @Autowired
       private OrderService orderService;

       @Test
       public void testSuccess(){
           Order order = orderService.create();
           orderService.pay(order.getId());
           orderService.deliver(order.getId());
           orderService.receive(order.getId());
           assertTrue(OrderStatus.FINISH == order.getStatus());
       }

       @Test
       public void testError(){
           Order order = orderService.create();
   //        orderService.pay(order.getId());
           // 少这一步 测试一下出现意外的状况
           orderService.deliver(order.getId());
           orderService.receive(order.getId());
           assertTrue(OrderStatus.FINISH == order.getStatus());
       }
   }

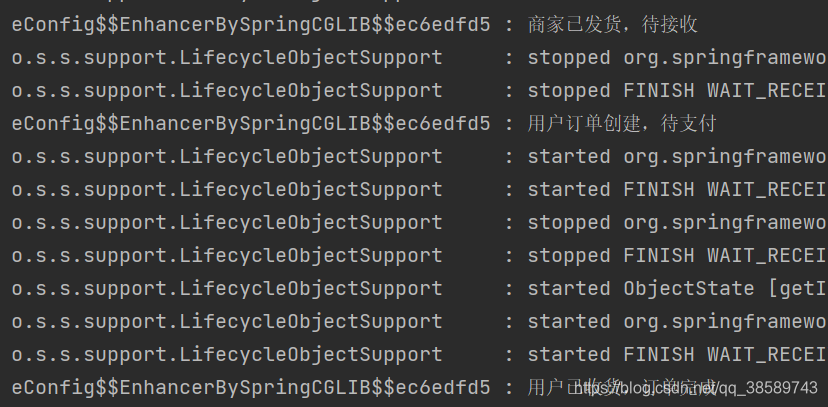

   测试结果： 成功时

失败时：

三、其他实验扩展

可以参考：多个状态机以及多种状态机共存的情况

多个状态机，多种状态机以及各种持久化的相关测试暂时没完成，以后有时间再做。
