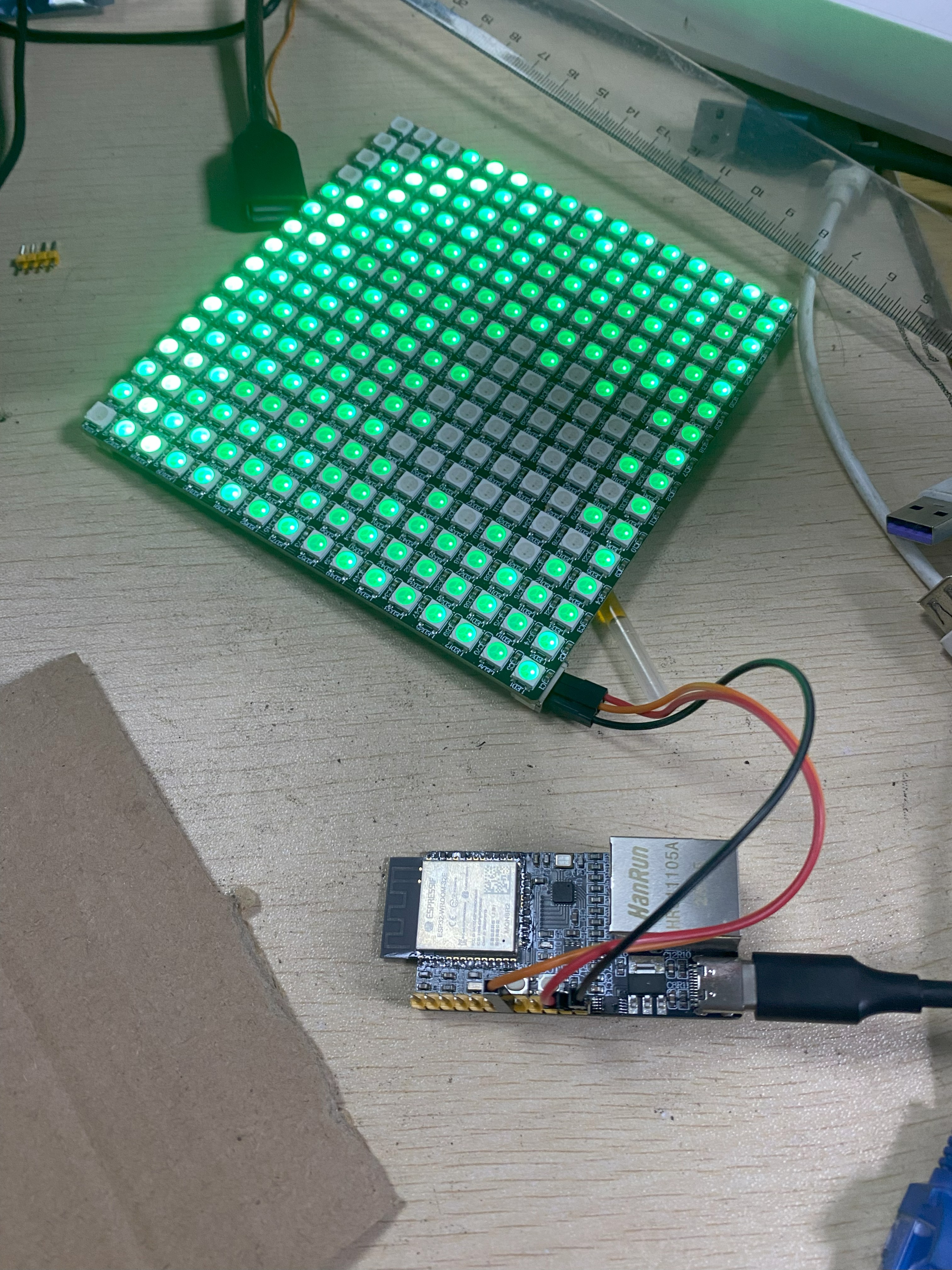

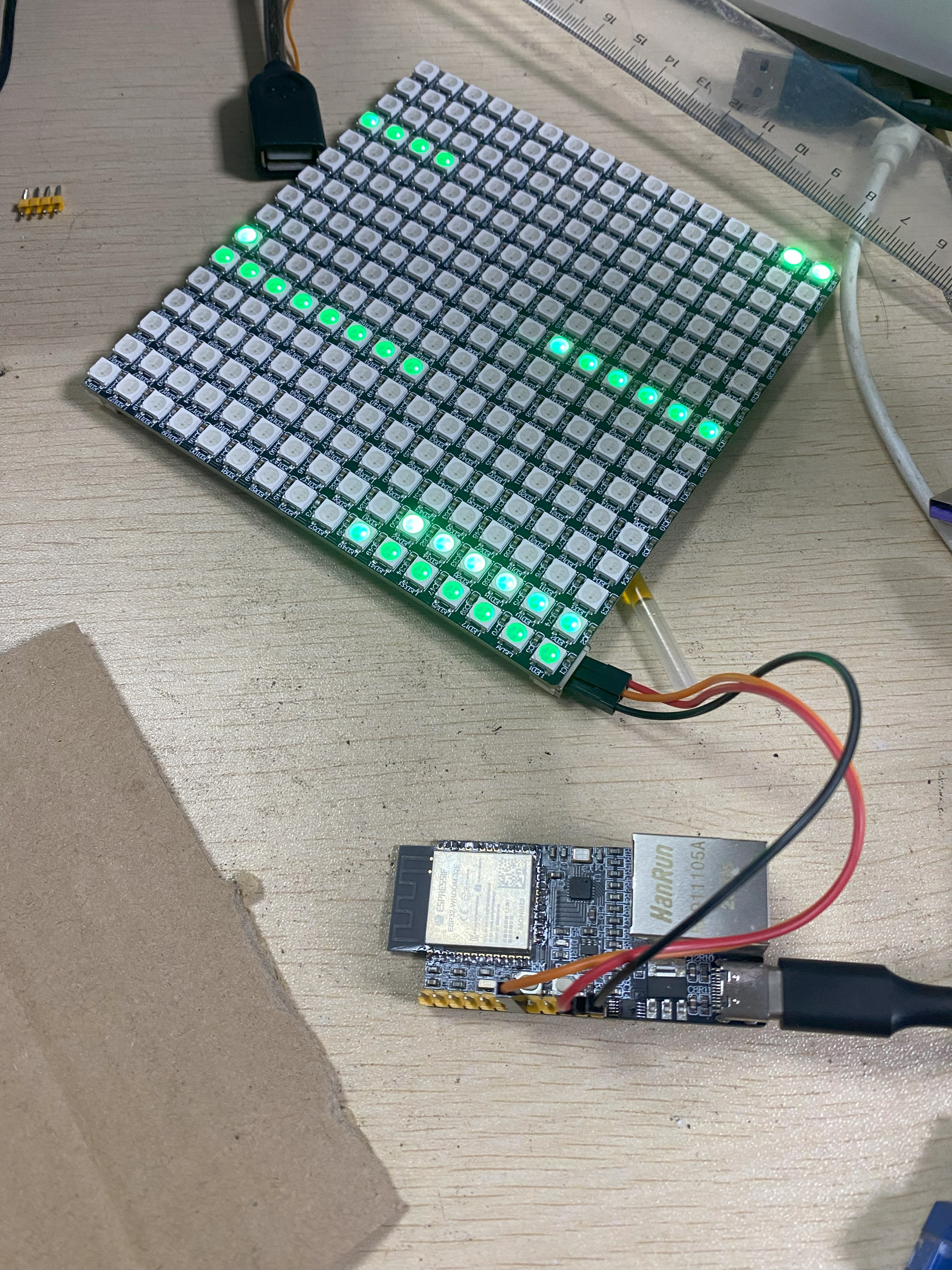

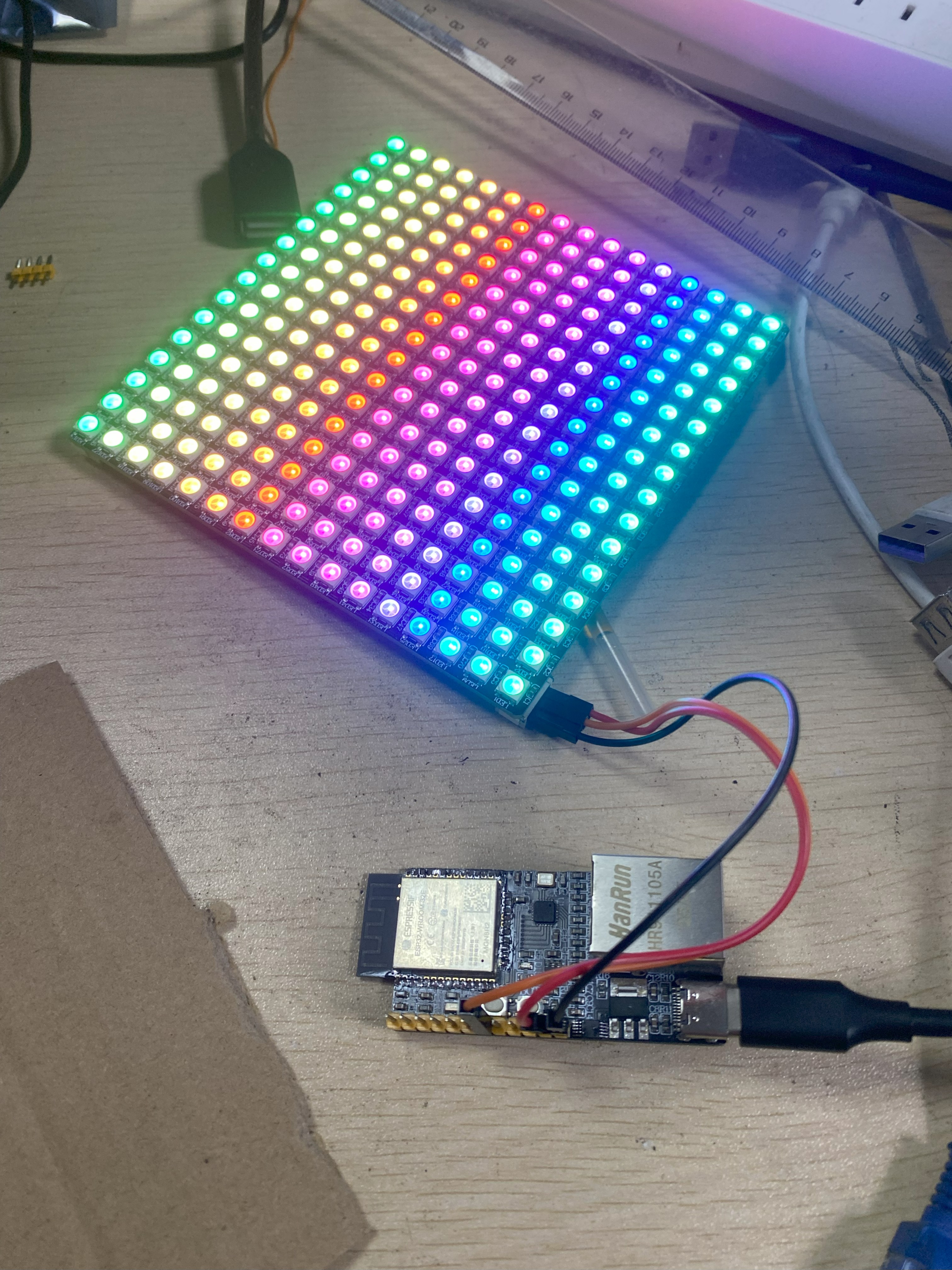

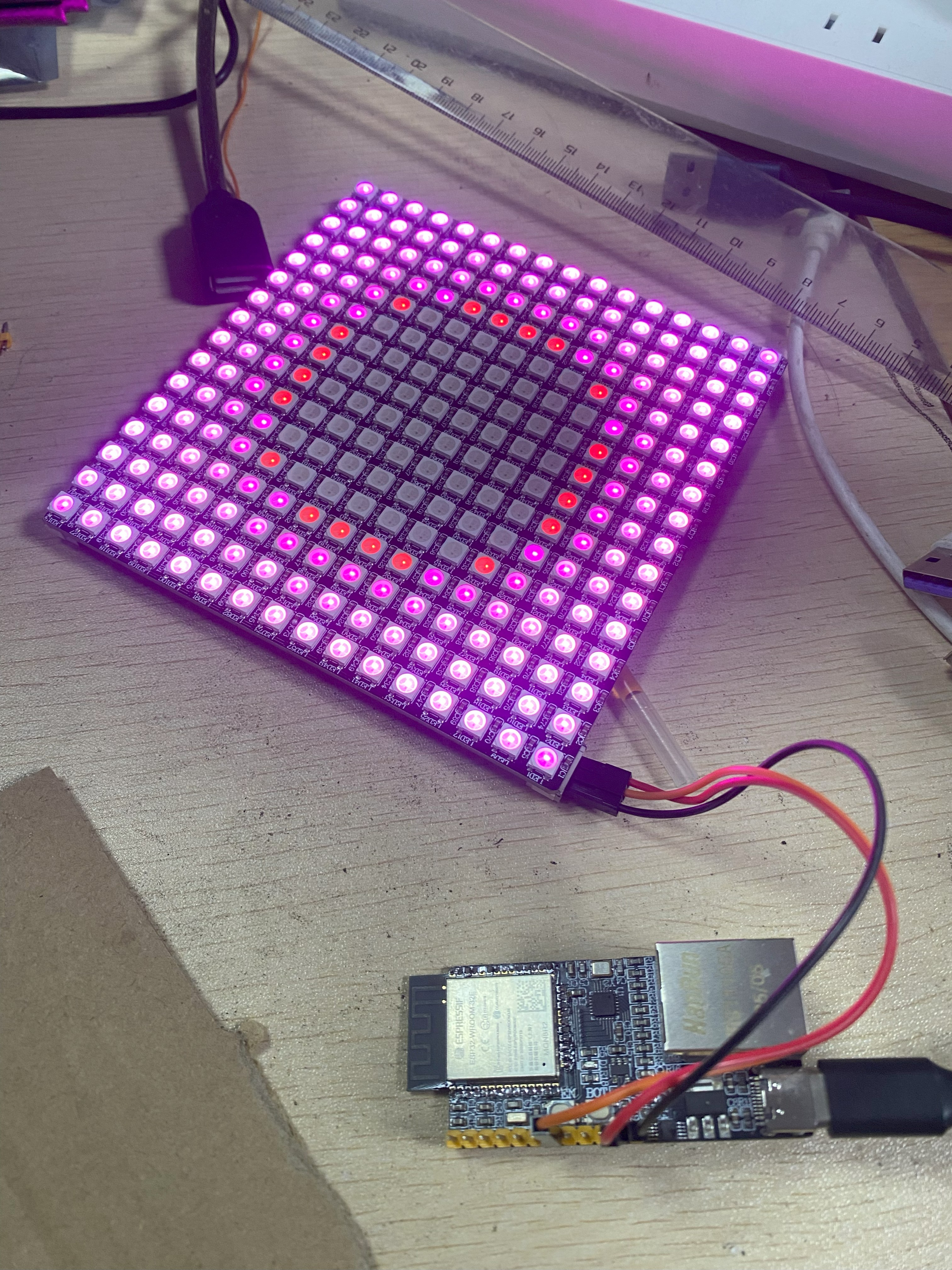

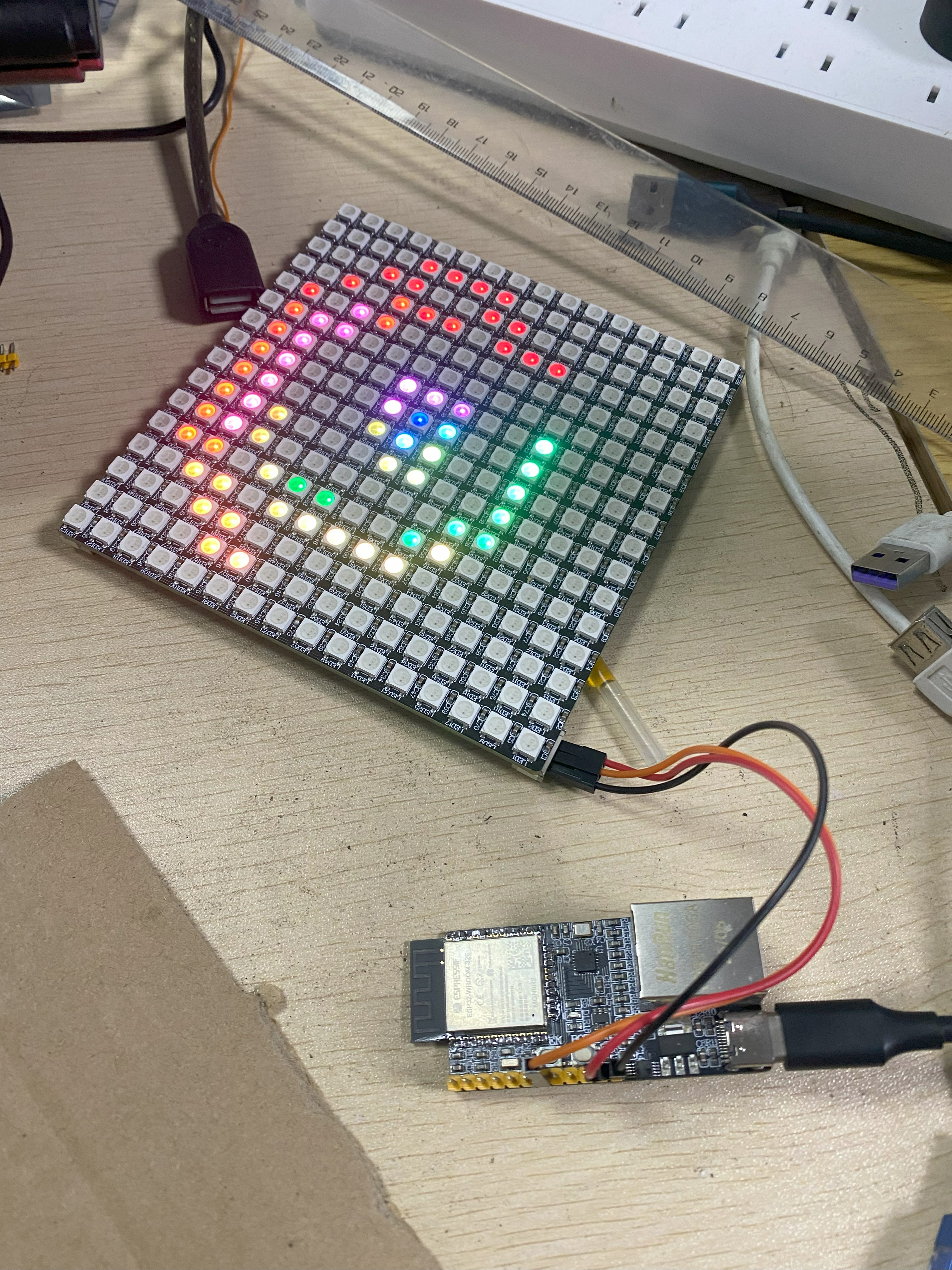

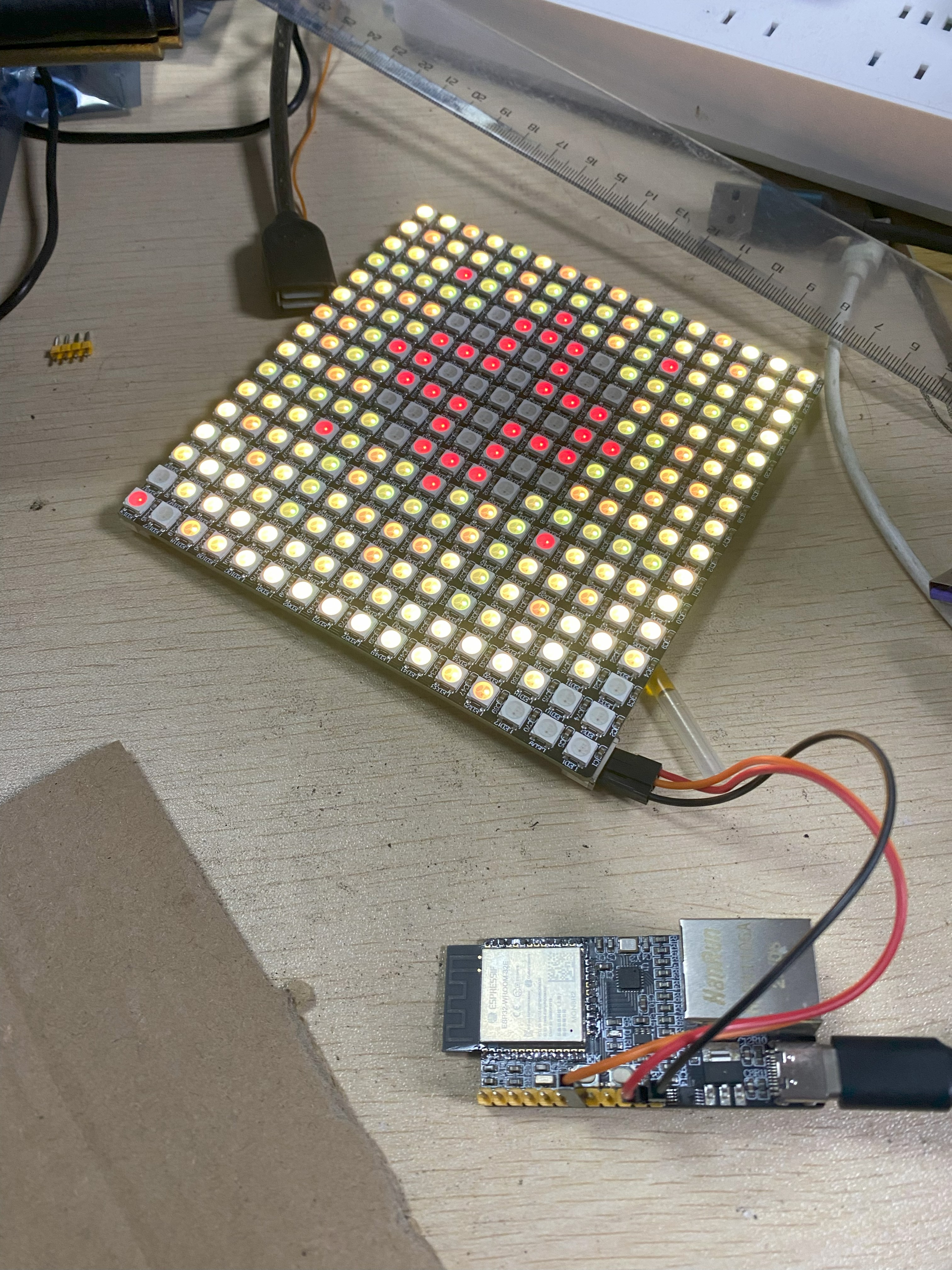

esp32，ws2812b，正方形灯板，16*16 256
esp32，ws2812b，正方形灯板，16*16 256
esp32，ws2812b，正方形灯板，16*16 256
esp32，ws2812b，正方形灯板，16*16 256
esp32，ws2812b，正方形灯板，16*16 256
某宝链接
https://item.taobao.com/item.htm?ft=t&id=711485540266&spm=pc_detail.29232929.202205.12.519d7dd6zAjLib
- 以下是下载、安装、点亮步骤

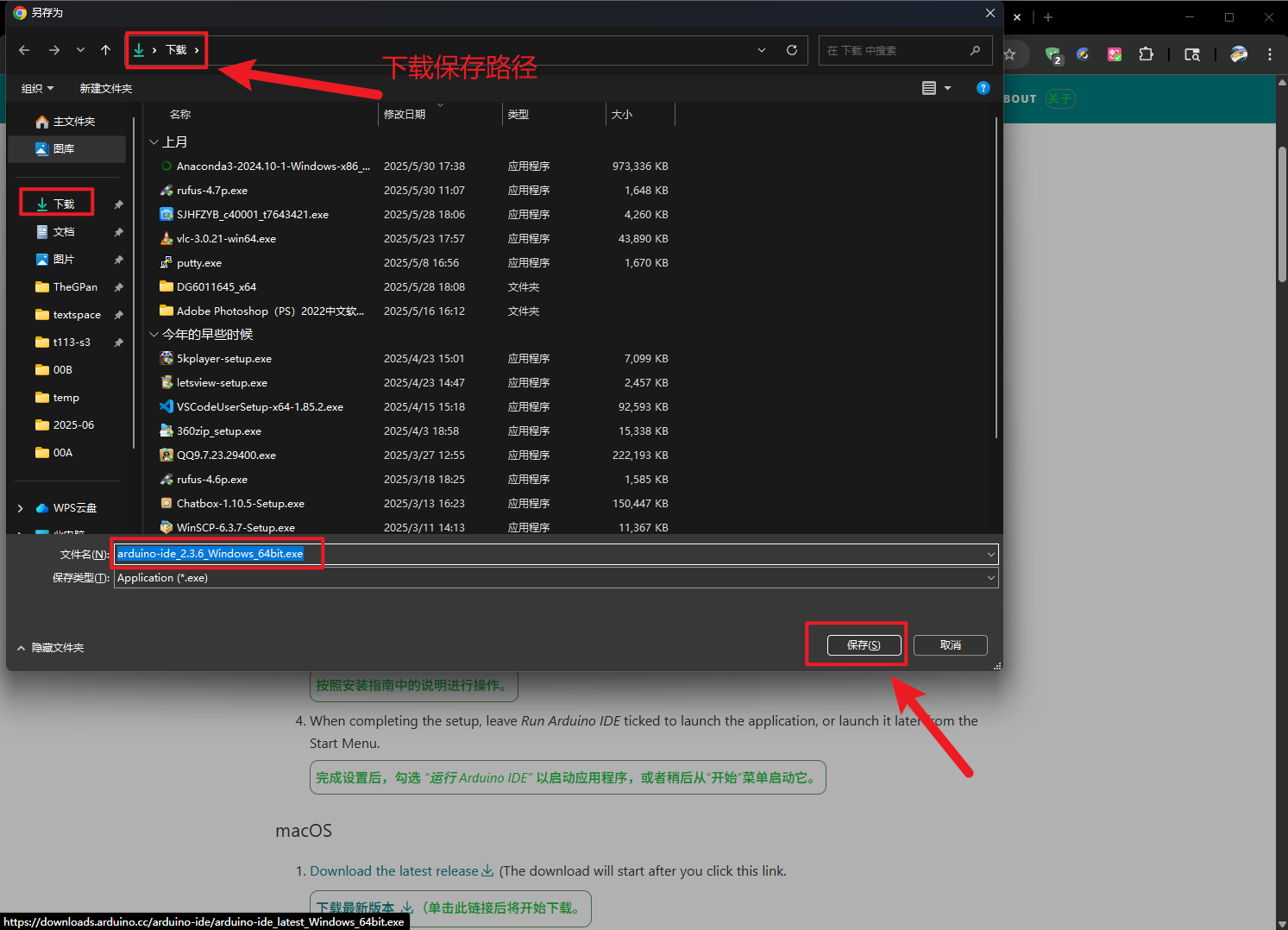

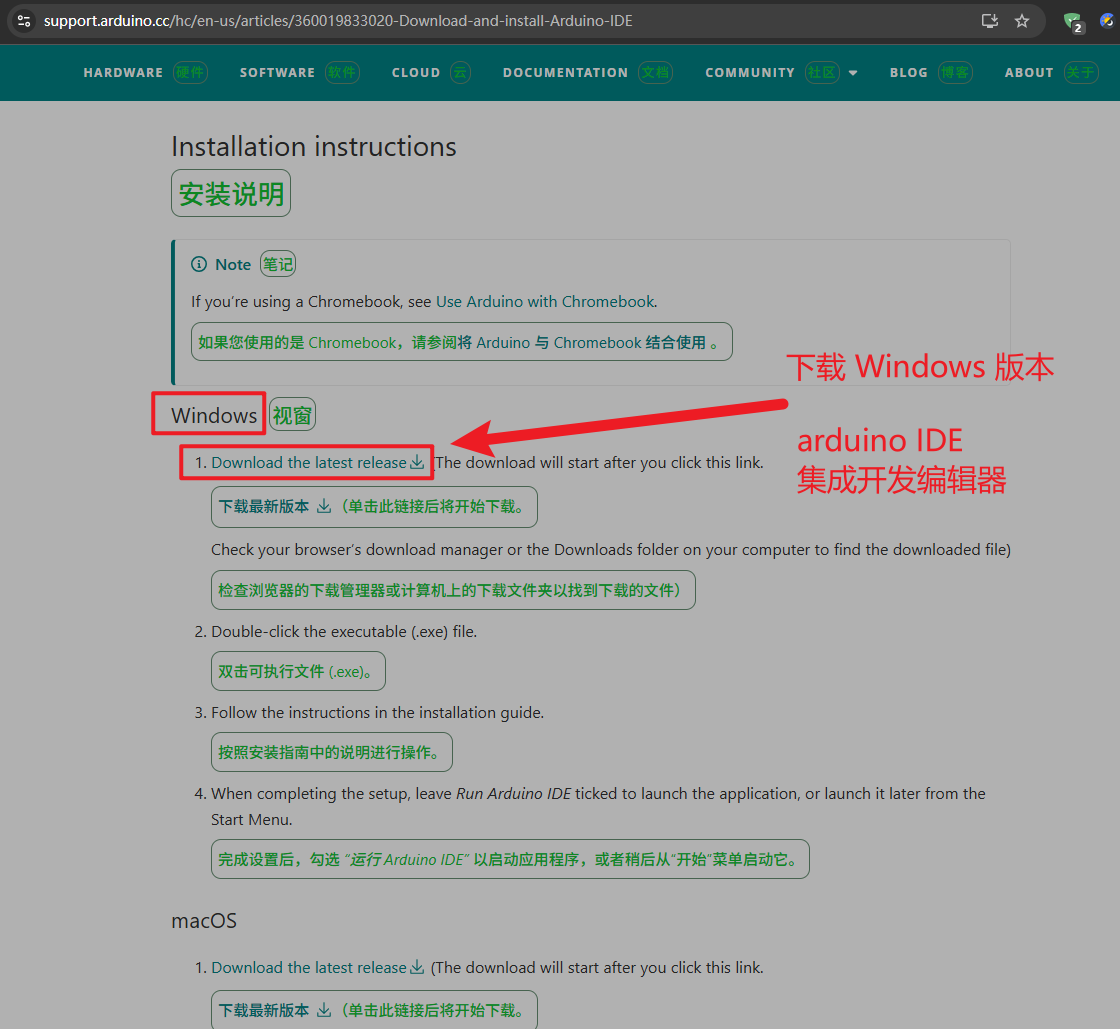

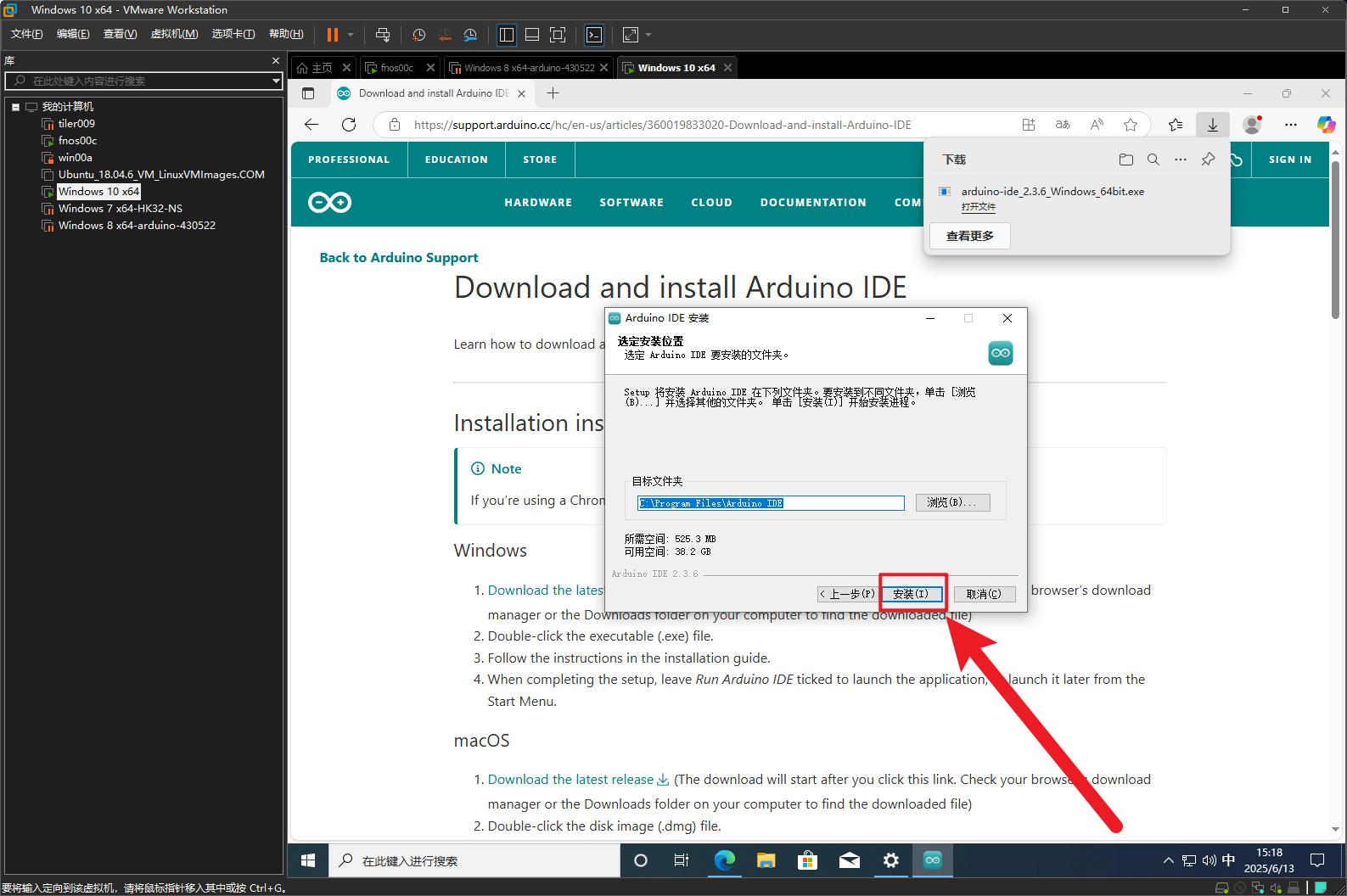

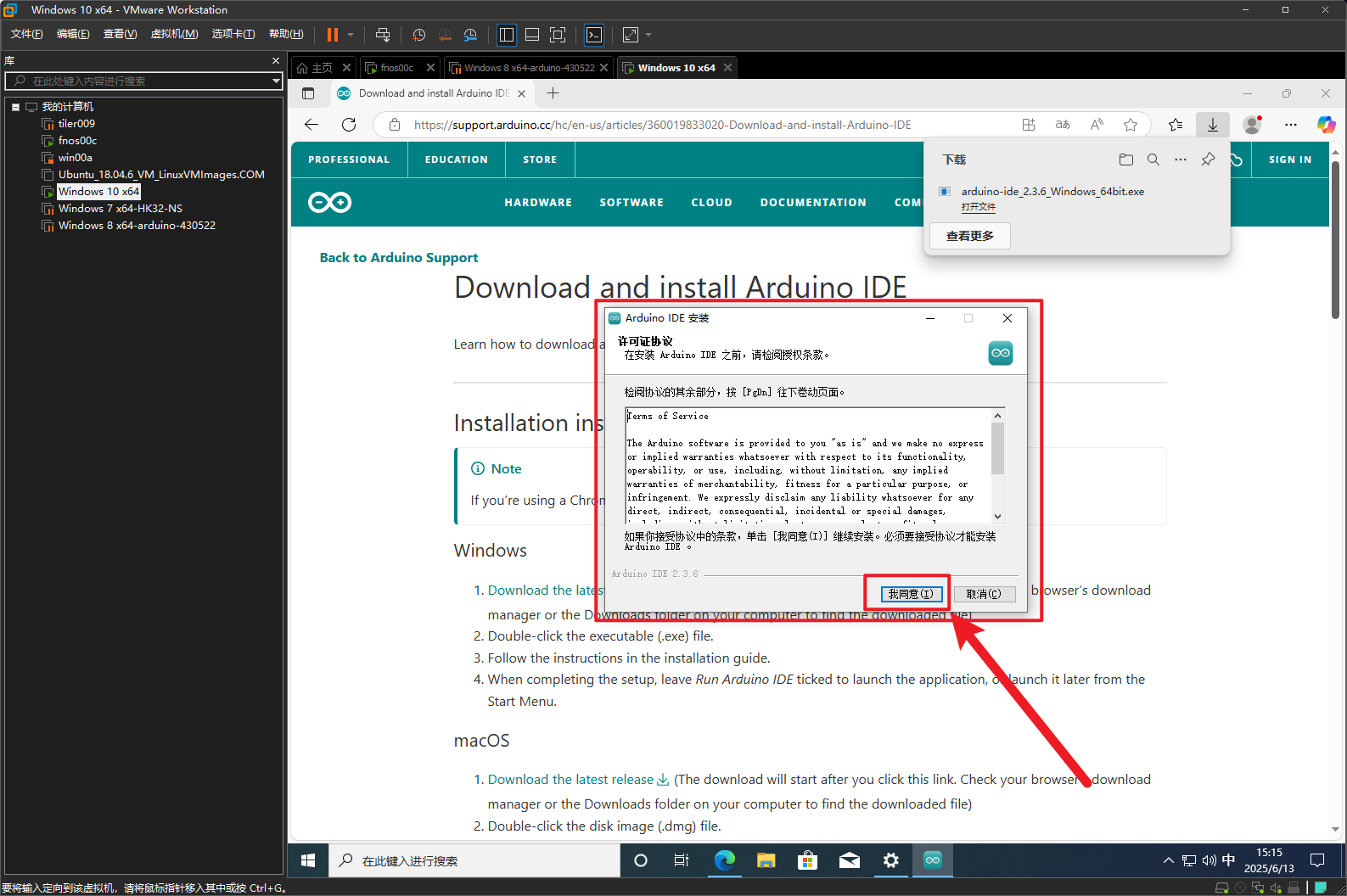

- arduino IDE 集成开发编辑器，下载地址
https://support.arduino.cc/hc/en-us/articles/360019833020-Download-and-install-Arduino-IDE

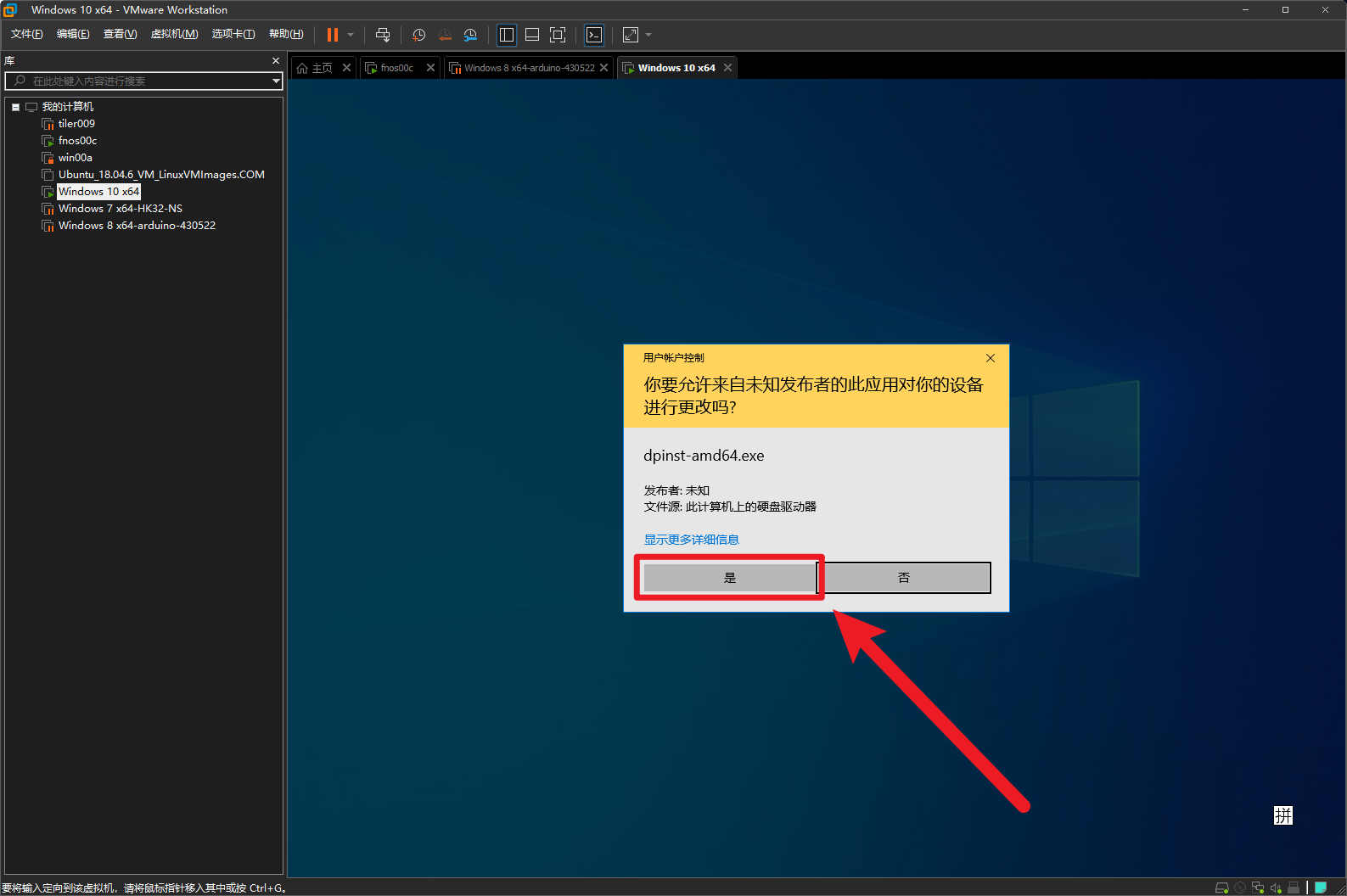

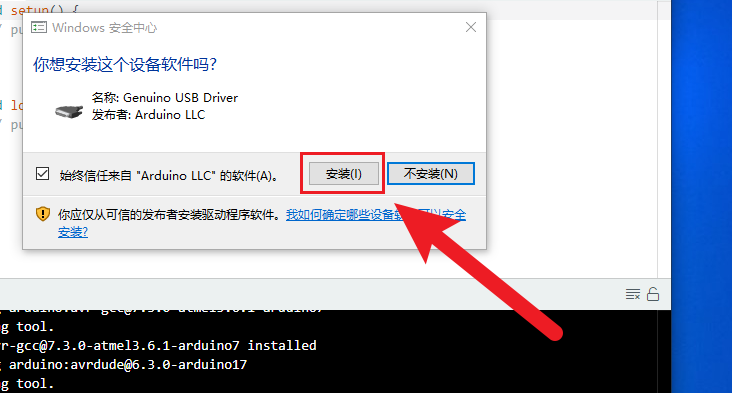

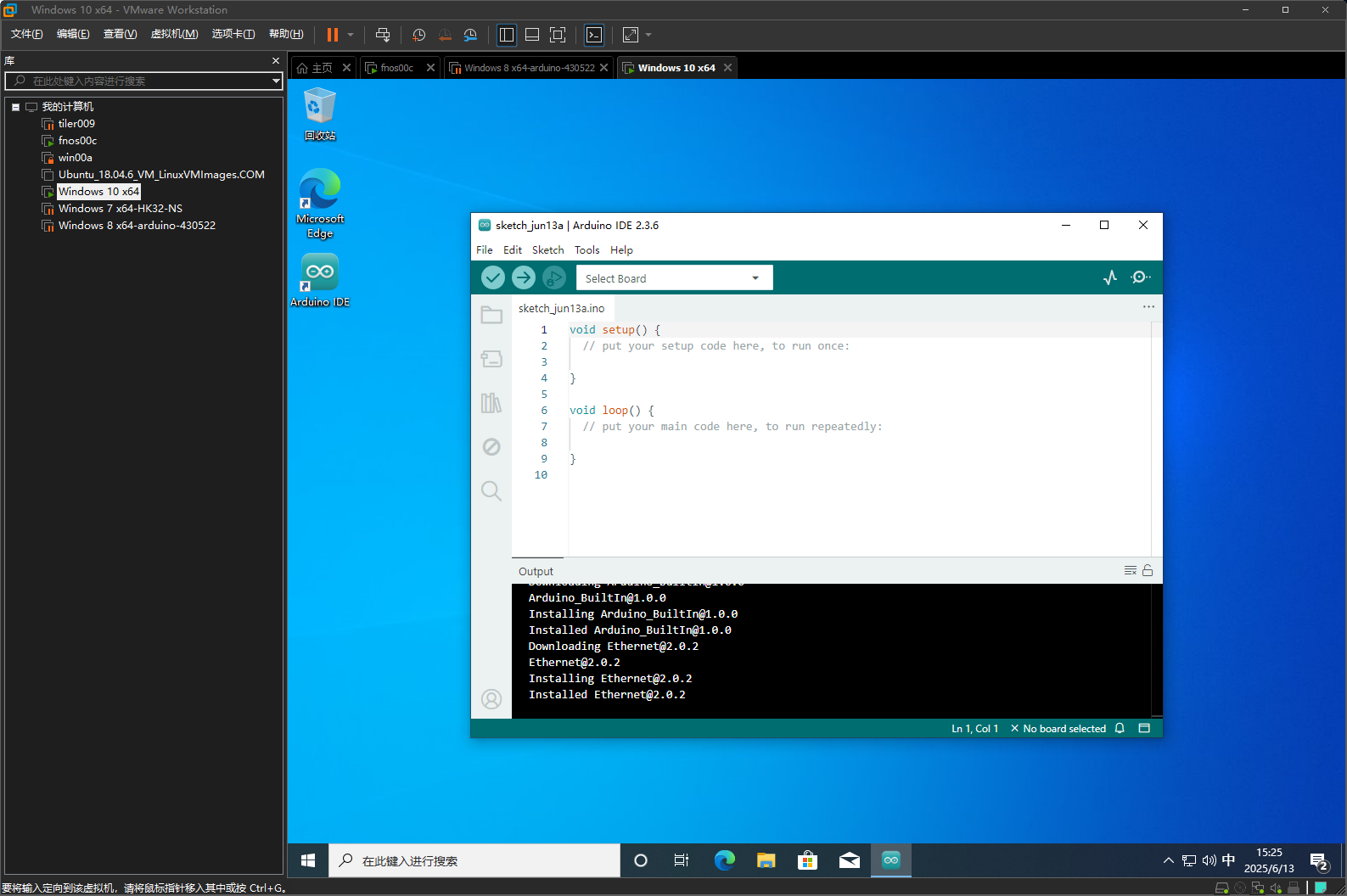

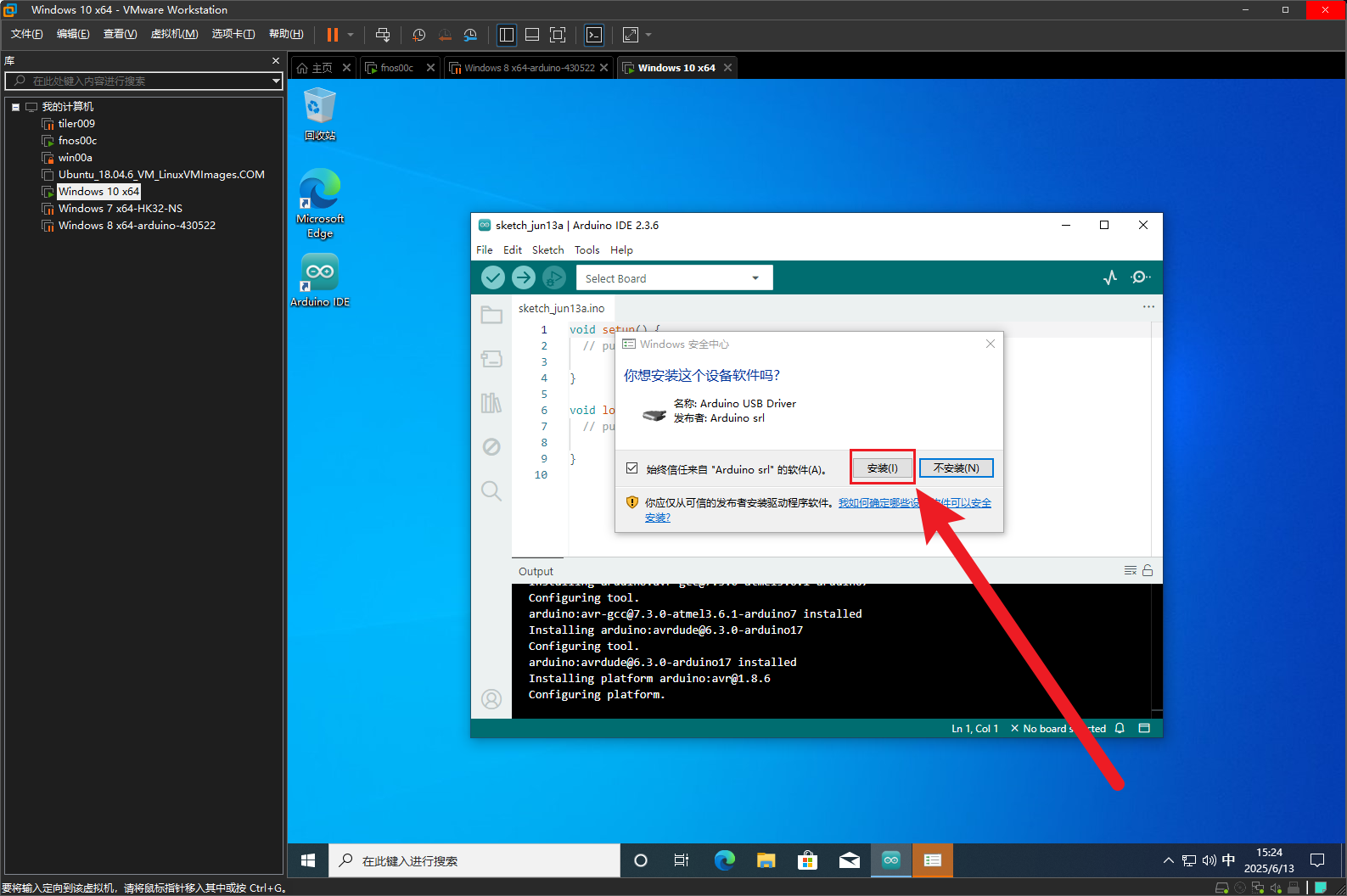

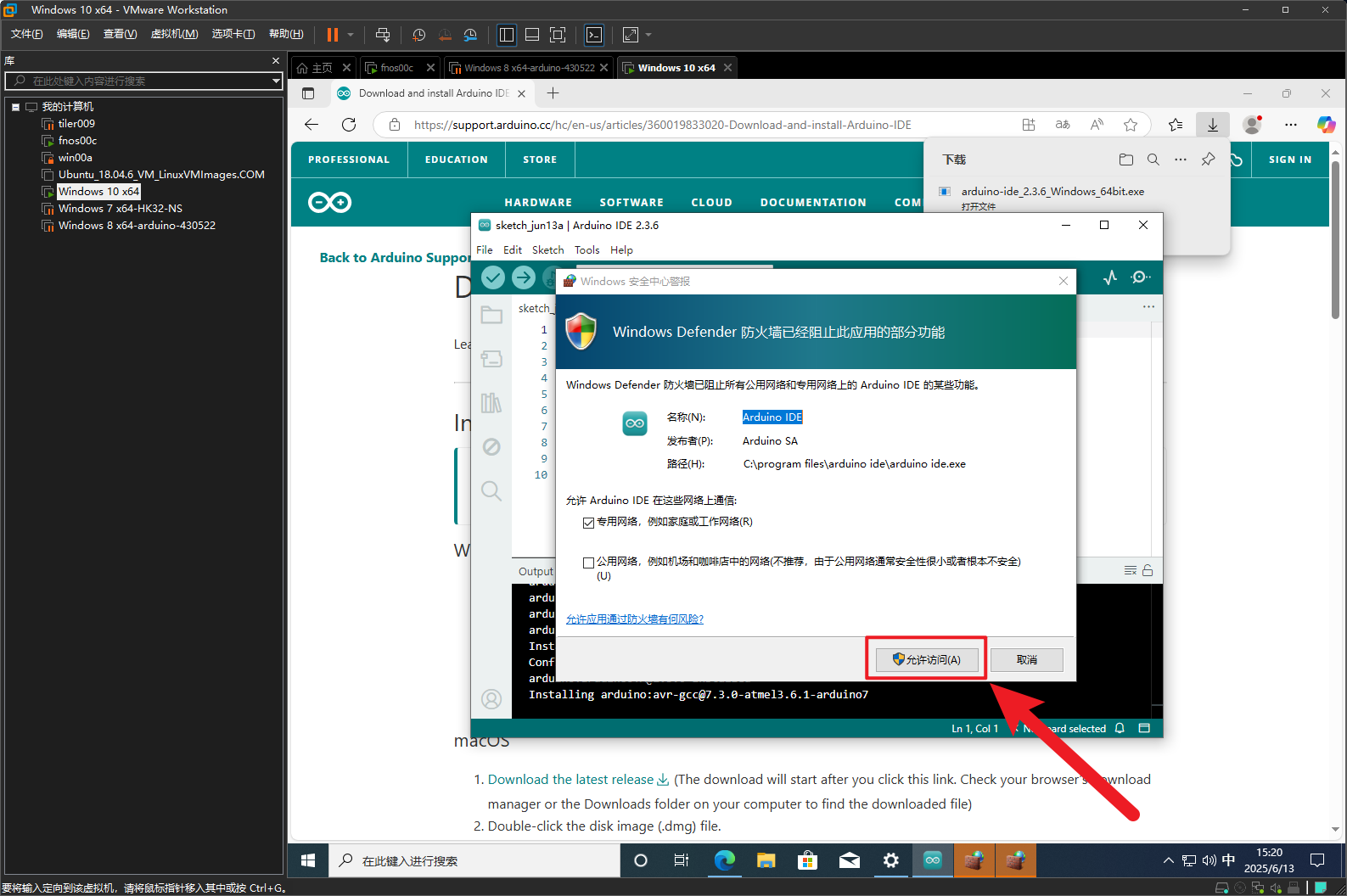

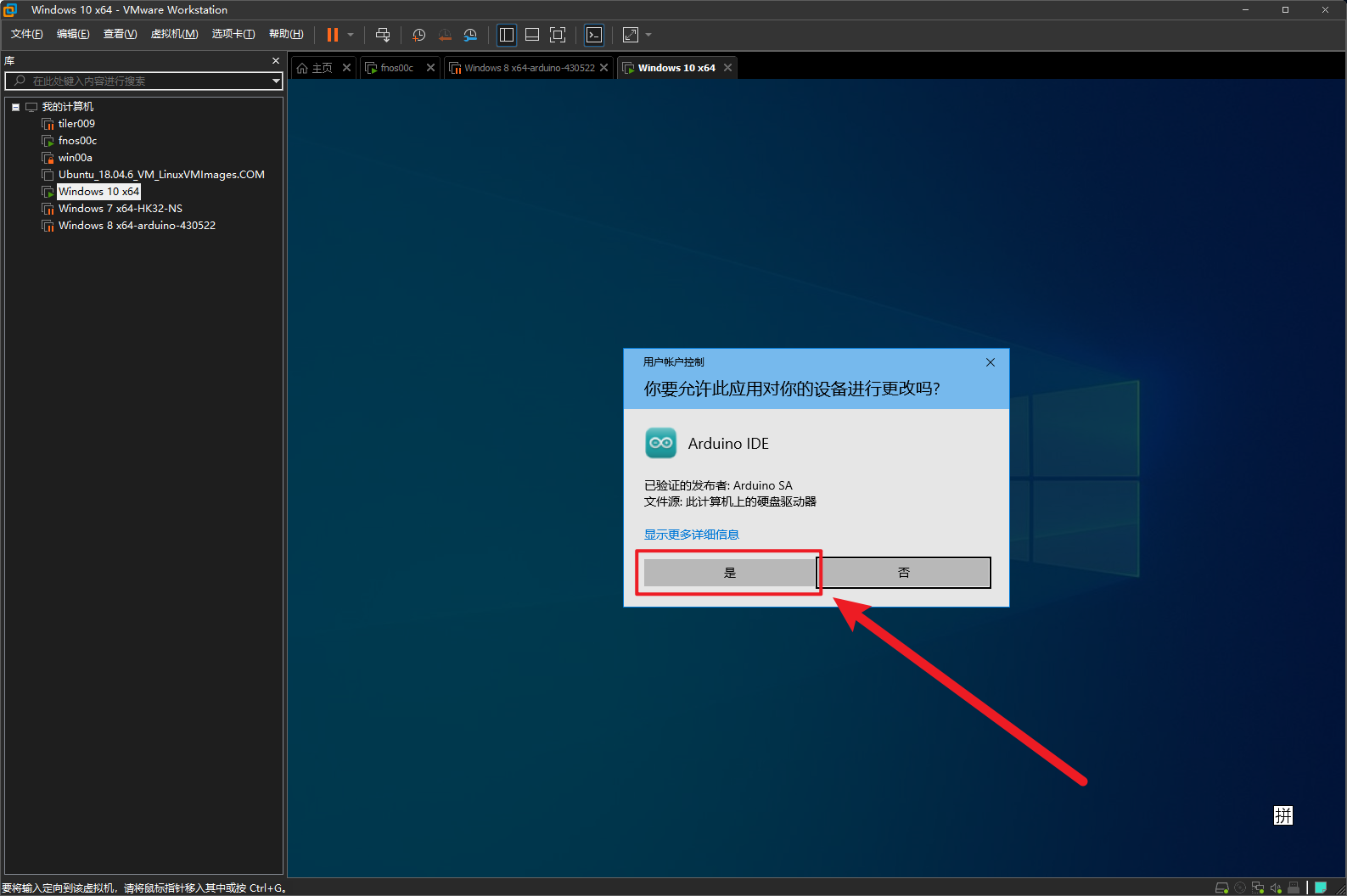

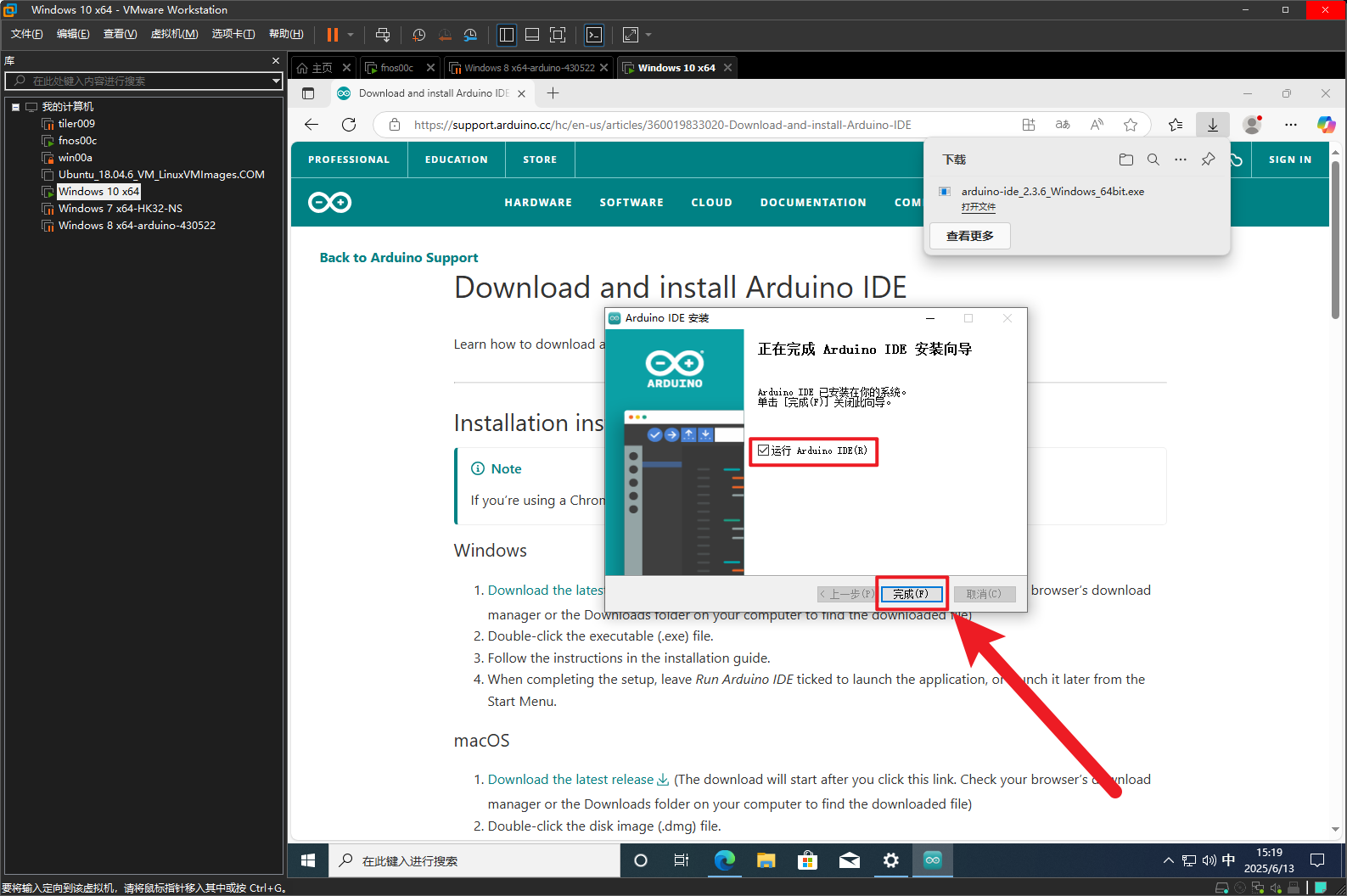

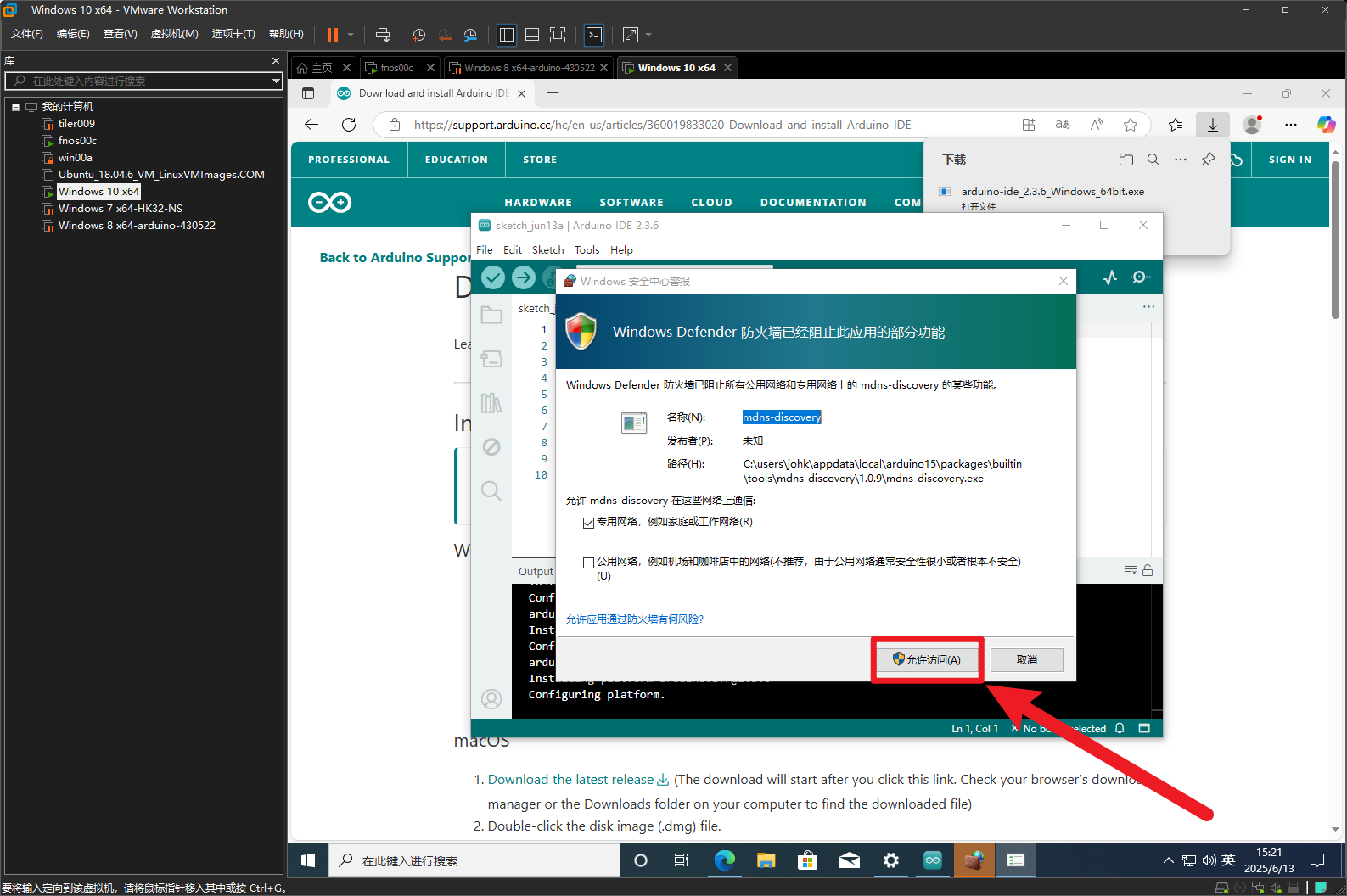

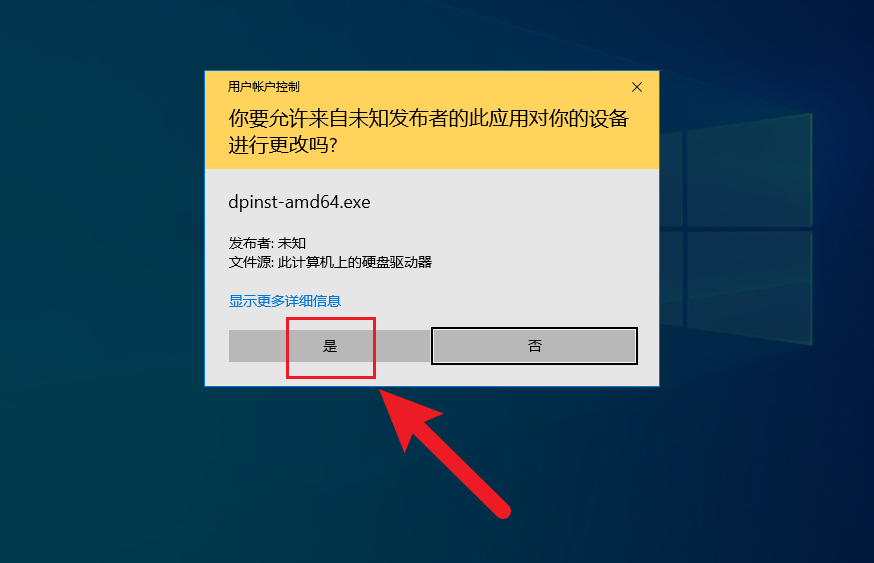

- arduino IDE，这样就装好了
- arduino IDE 集成开发编辑器，安装好之后
- 需要在 IDE 中配置 esp32 相关的核心支持包

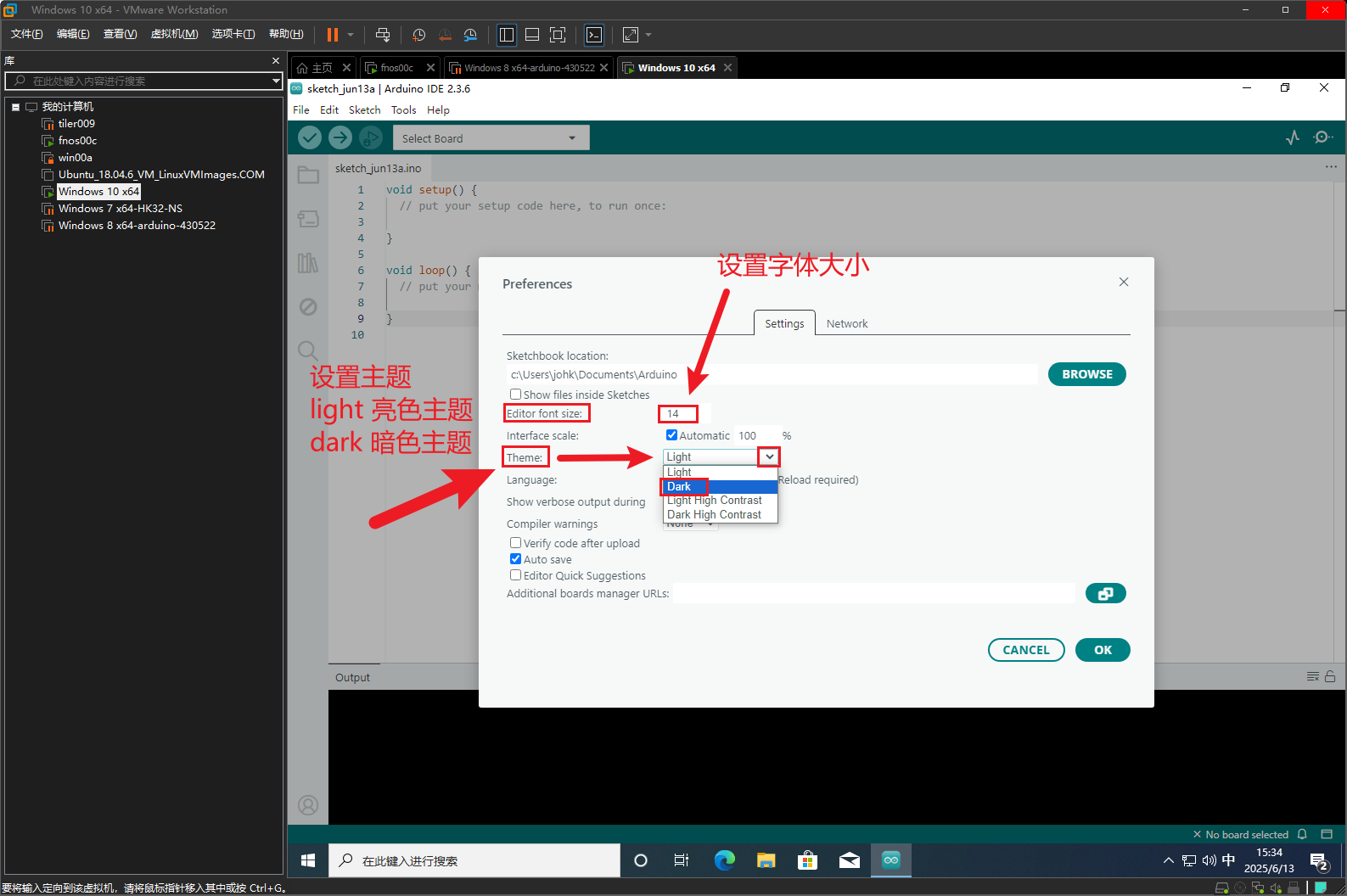

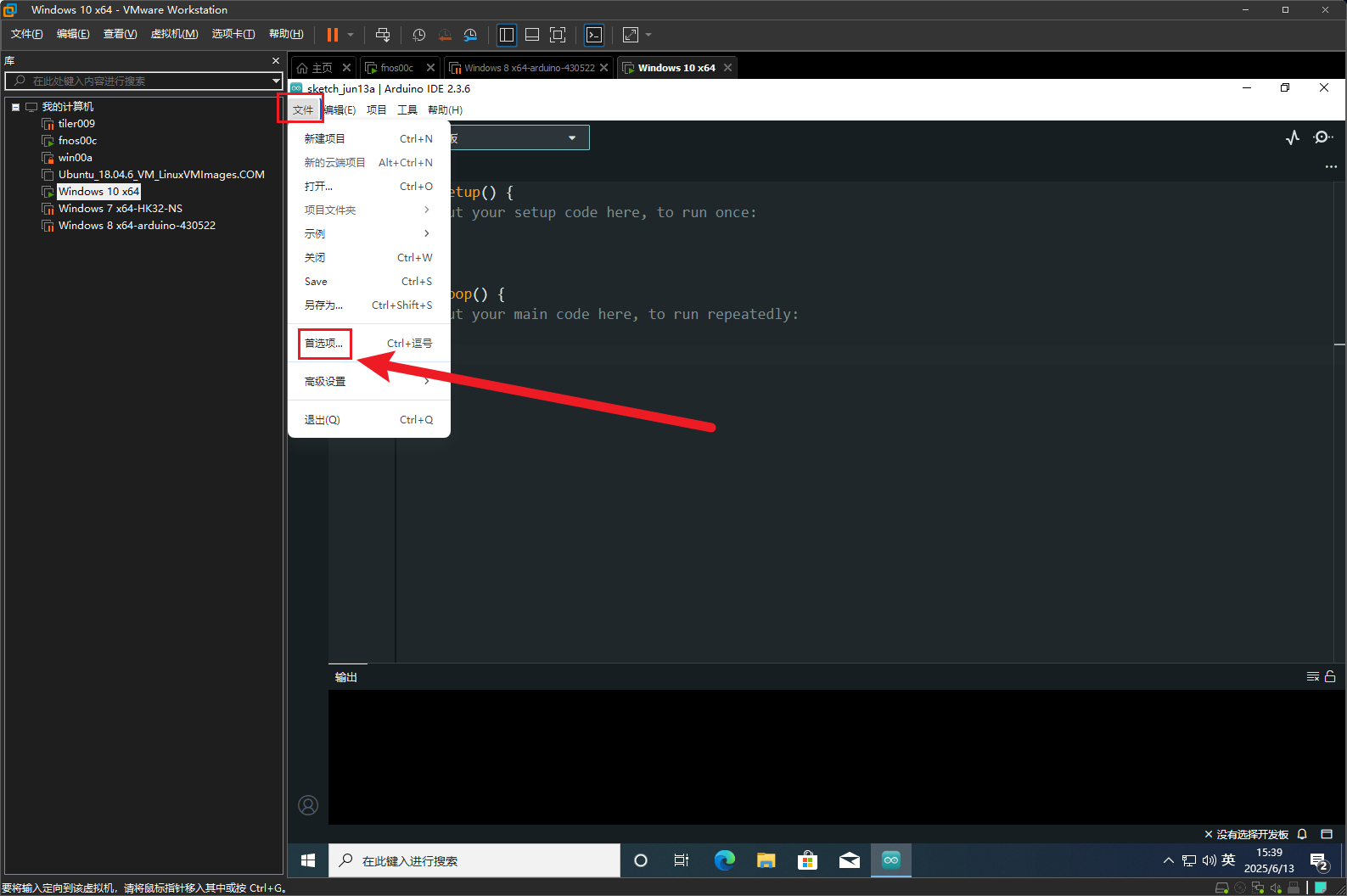

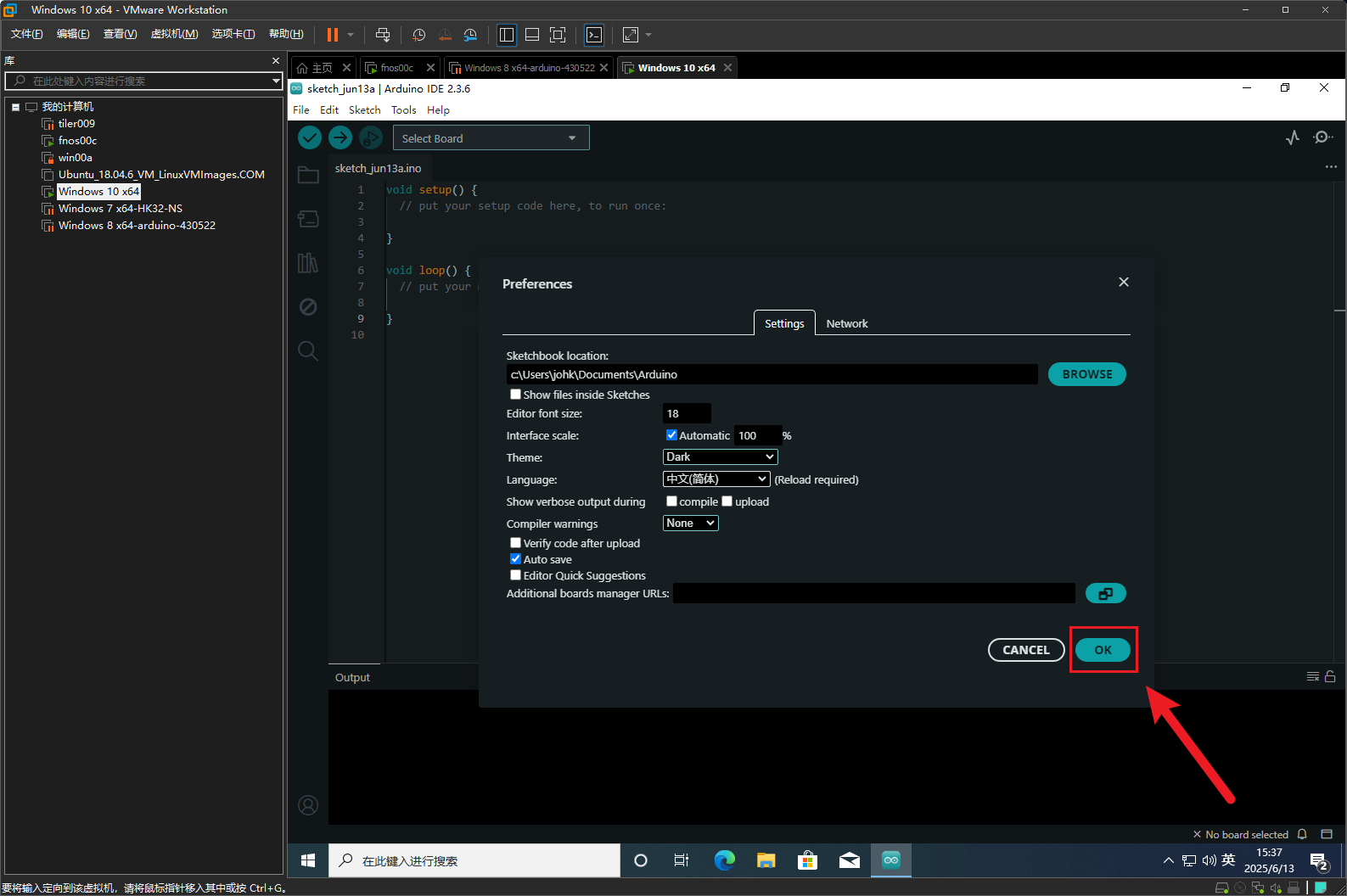

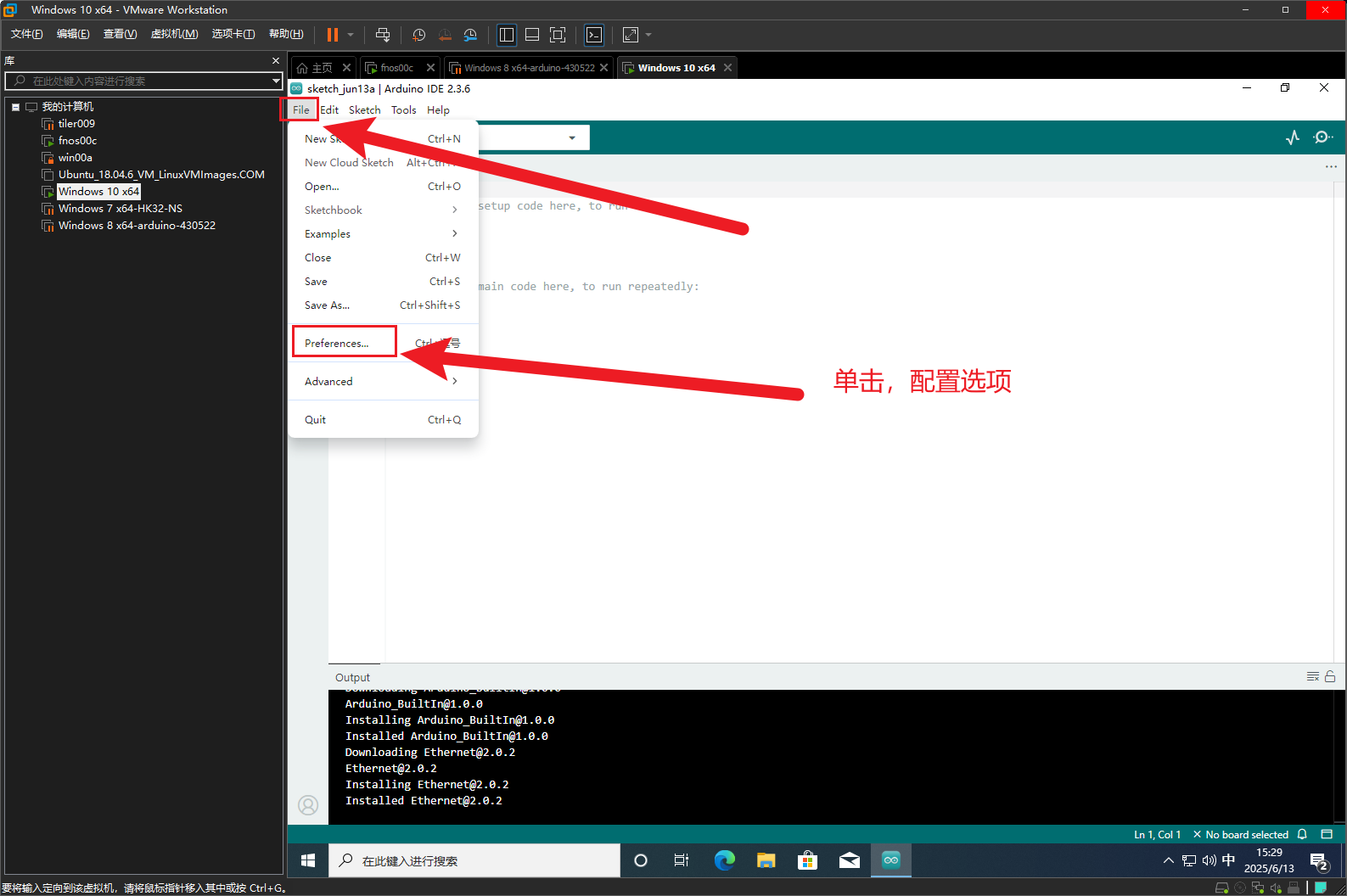

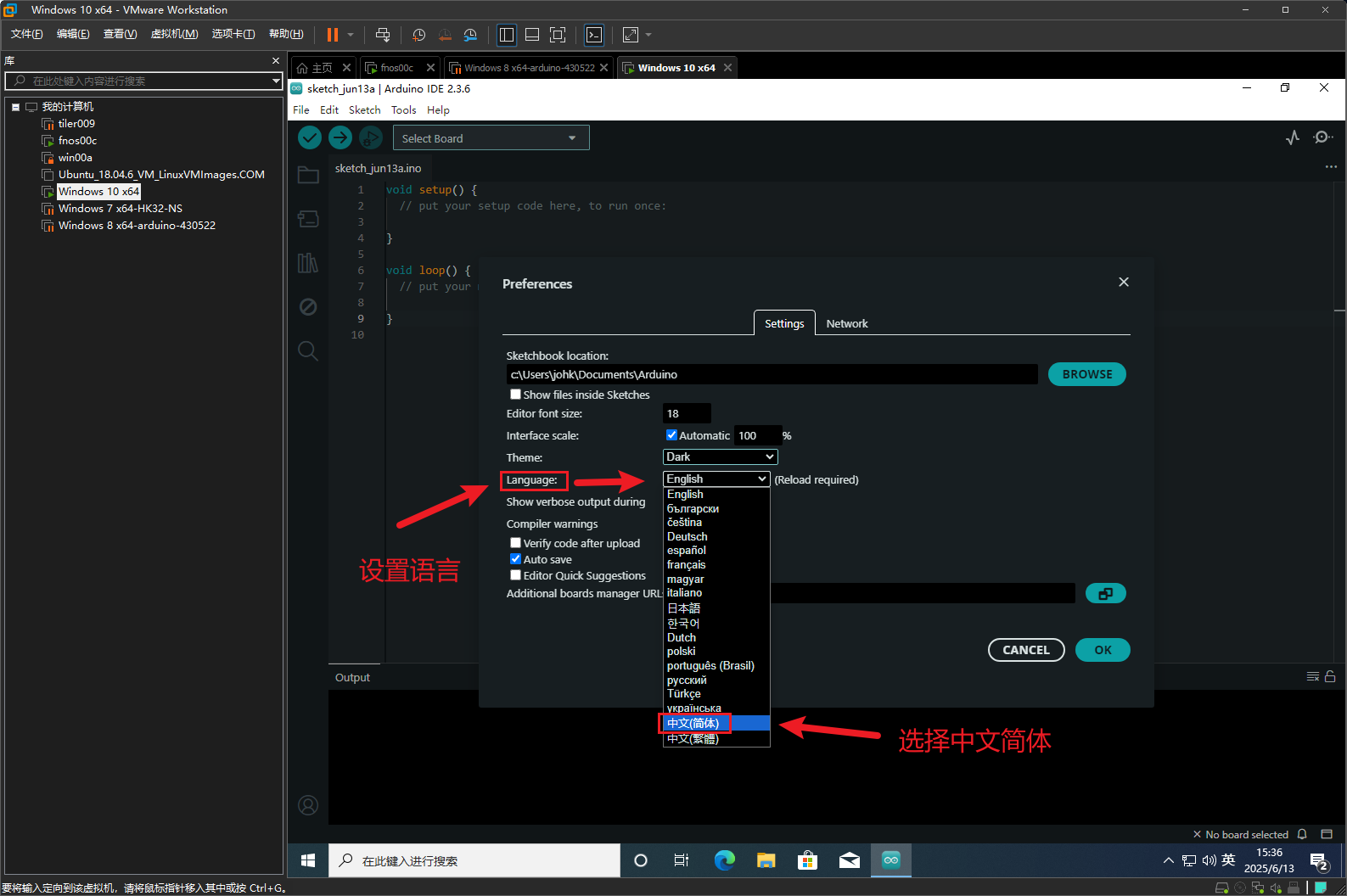

- 导航至 文件 (File) > 首选项 (Preferences)
- 在弹出的对话框中，找到“附加开发板管理器网址 (Additional Boards Manager URLs)” 这个输入框
- 将下面这个至关重要的地址，精确无误地复制进去
- https://raw.githubusercontent.com/espressif/arduino-esp32/gh-pages/package_esp32_index.json
- 这个网址是 anduino IDE ESP32 的核心支持包
- 如果更新碰到网络问题，下载极其缓慢，可以参考以下博客，手动下载核心支持包
- https://blog.csdn.net/penguinyao/article/details/147632696

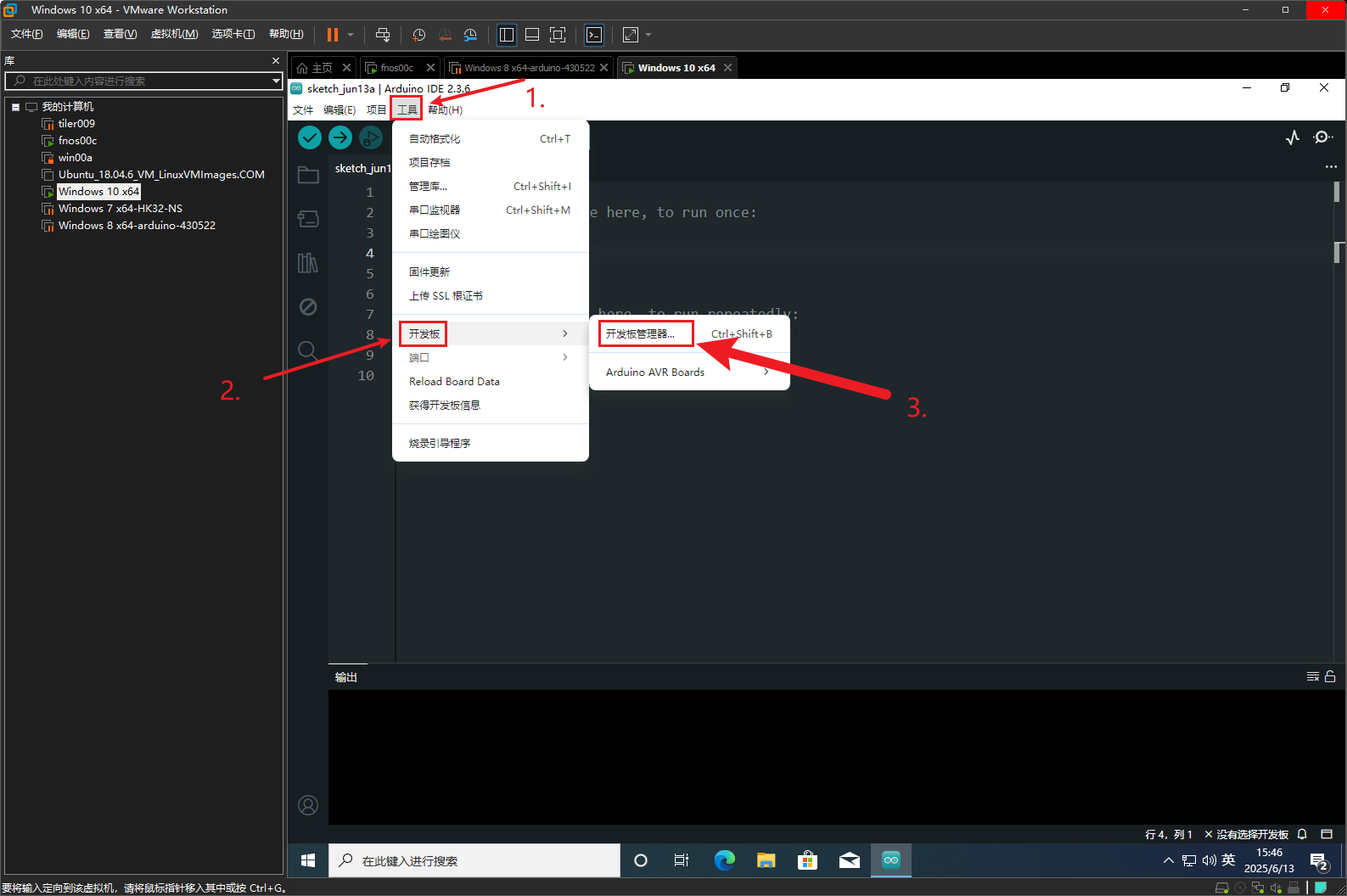

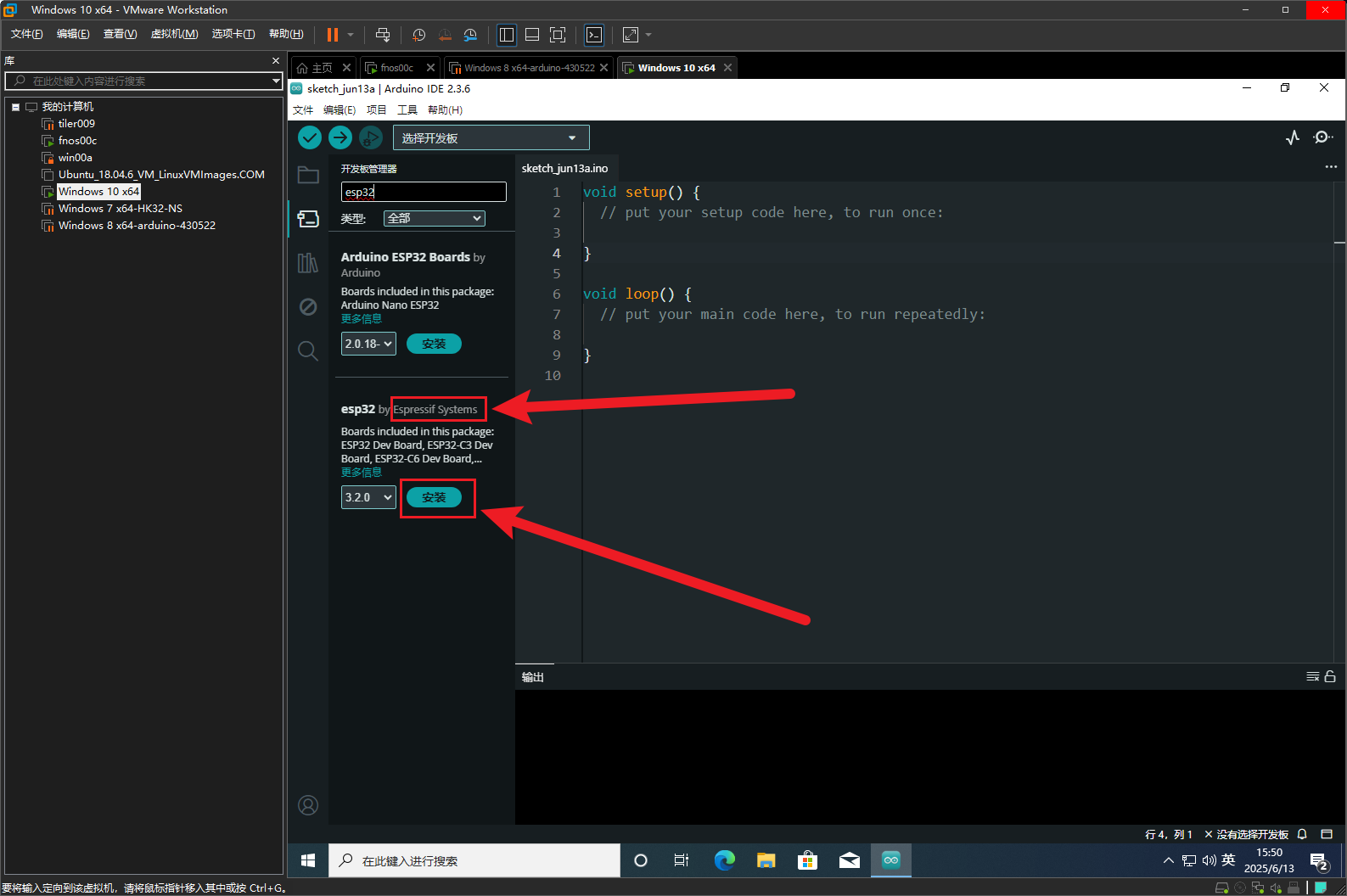

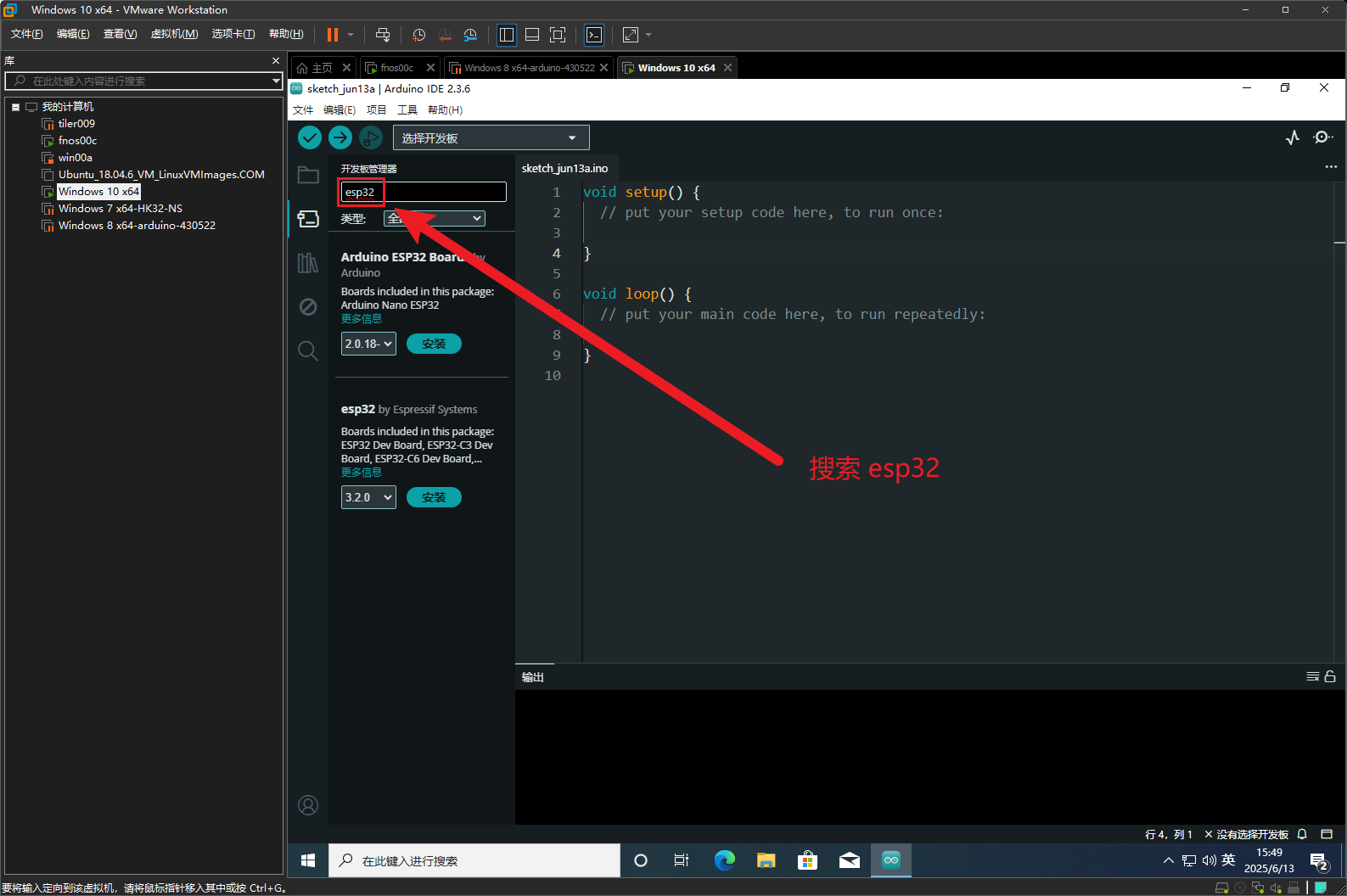

- 导航至 工具 (Tools) > 开发板 (Board) > 开发板管理器 (Boards Manager…)。
- 开发板管理器会加载一会

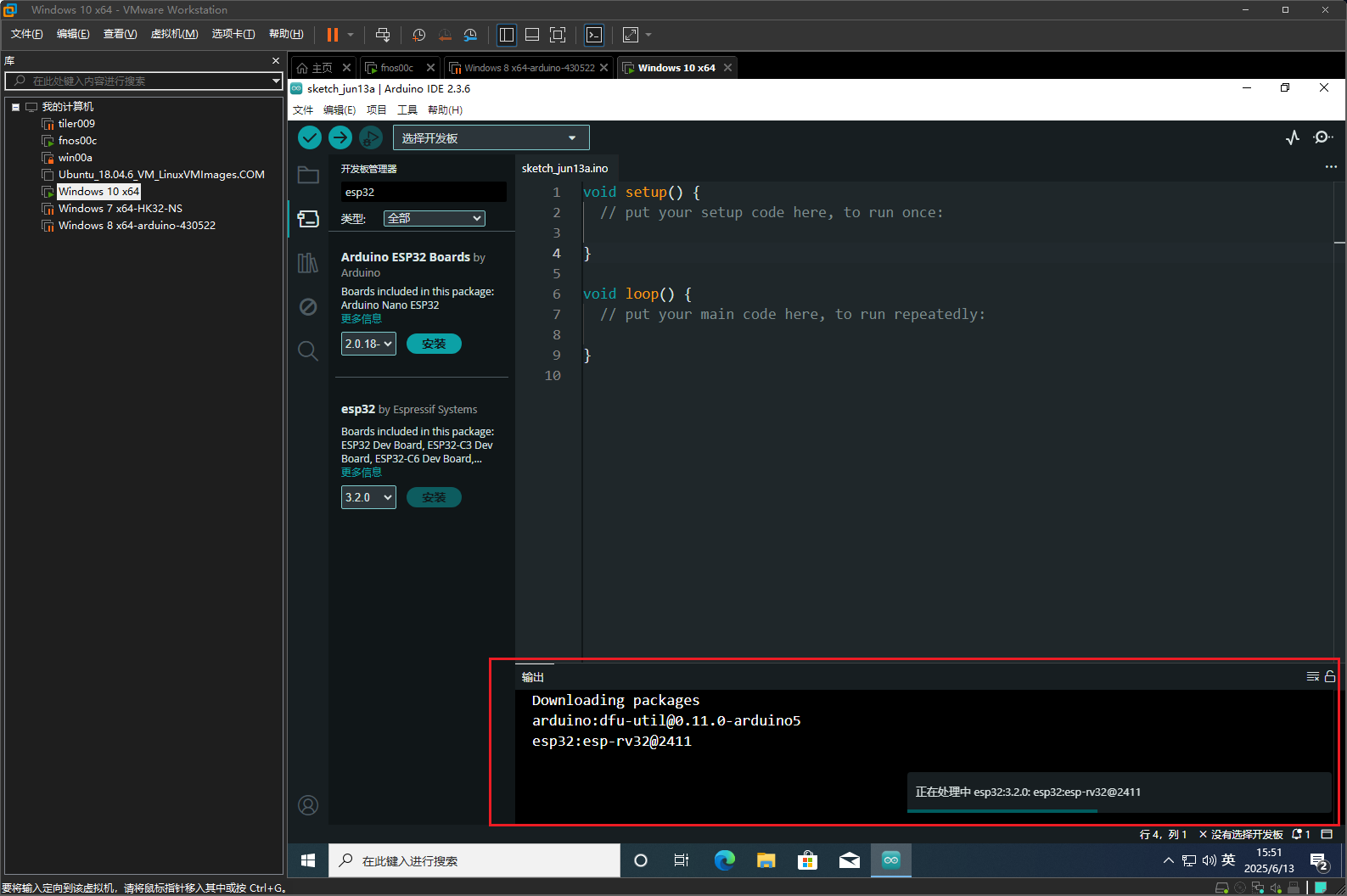

- 下载中

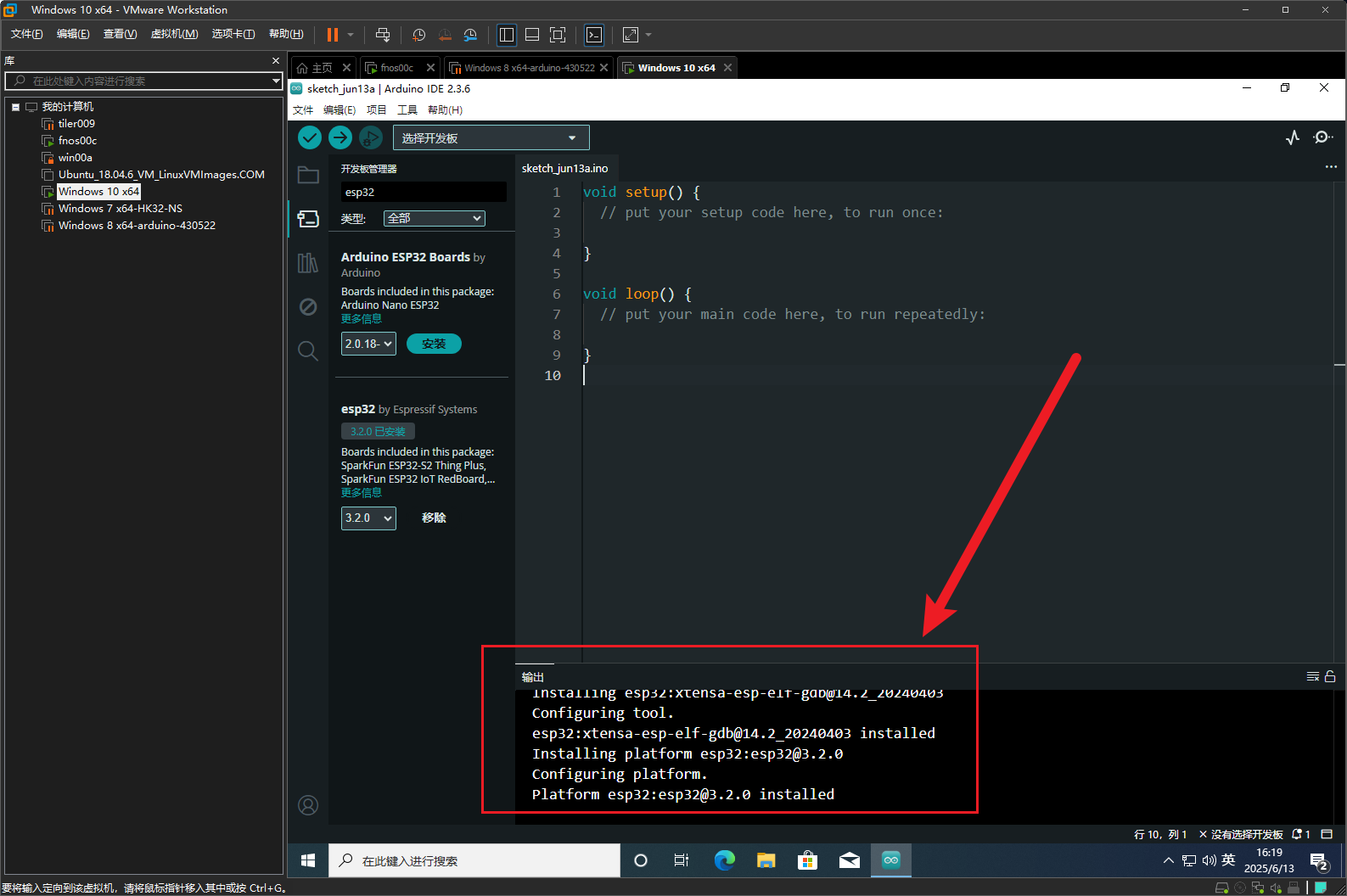

- 下载完成

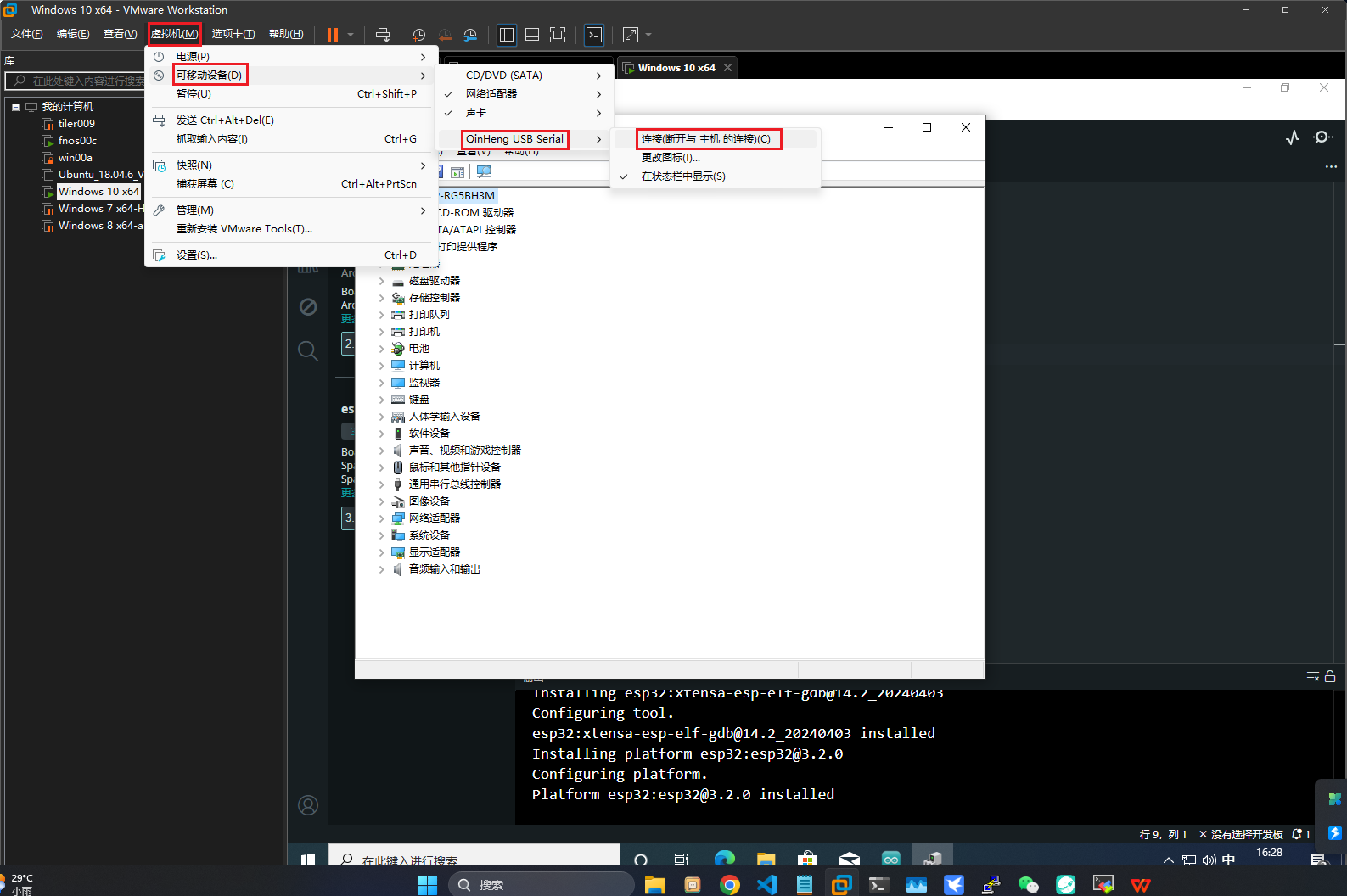

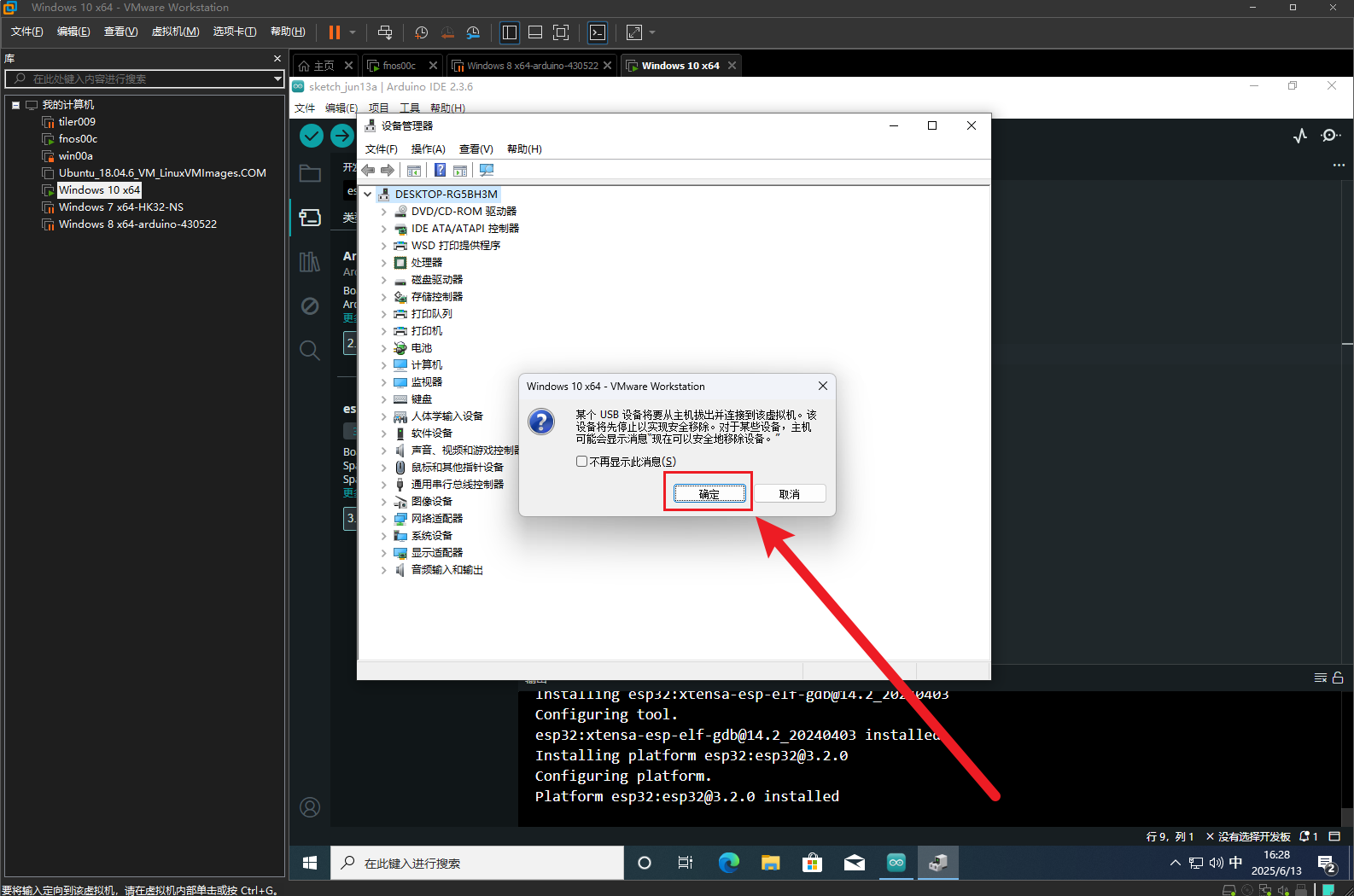

- 将 ESP32 开发板通过 USB 线连接到电脑
- 接下来通过库管理器安装 FastLED 库

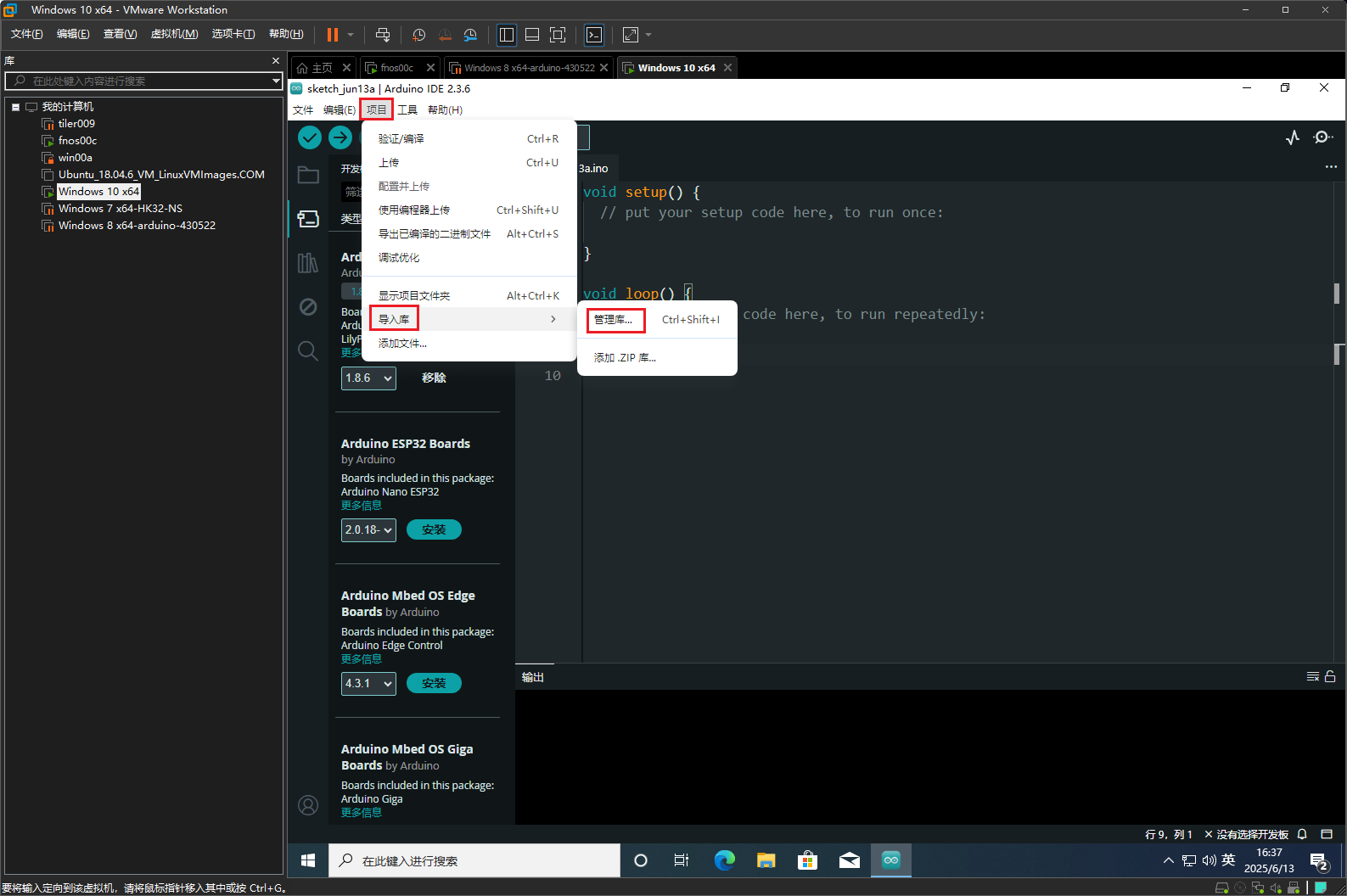

- 在 Arduino IDE 中，导航至 项目 (Sketch) > 导入库 (Include Library) > 管理库 (Manage Libraries…)

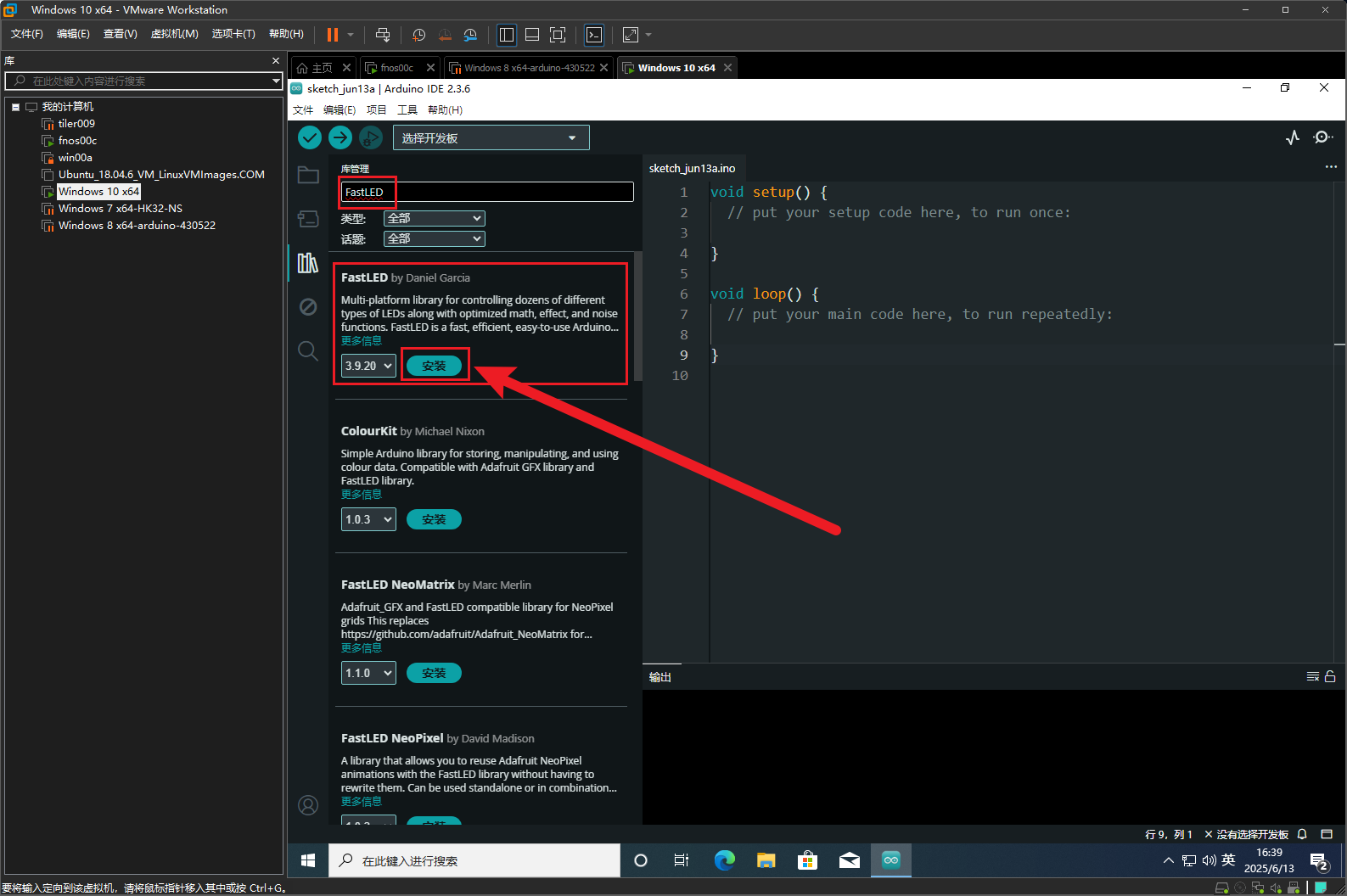

- 在库管理器窗口的搜索框中，输入 FastLED
- 点击“安装”

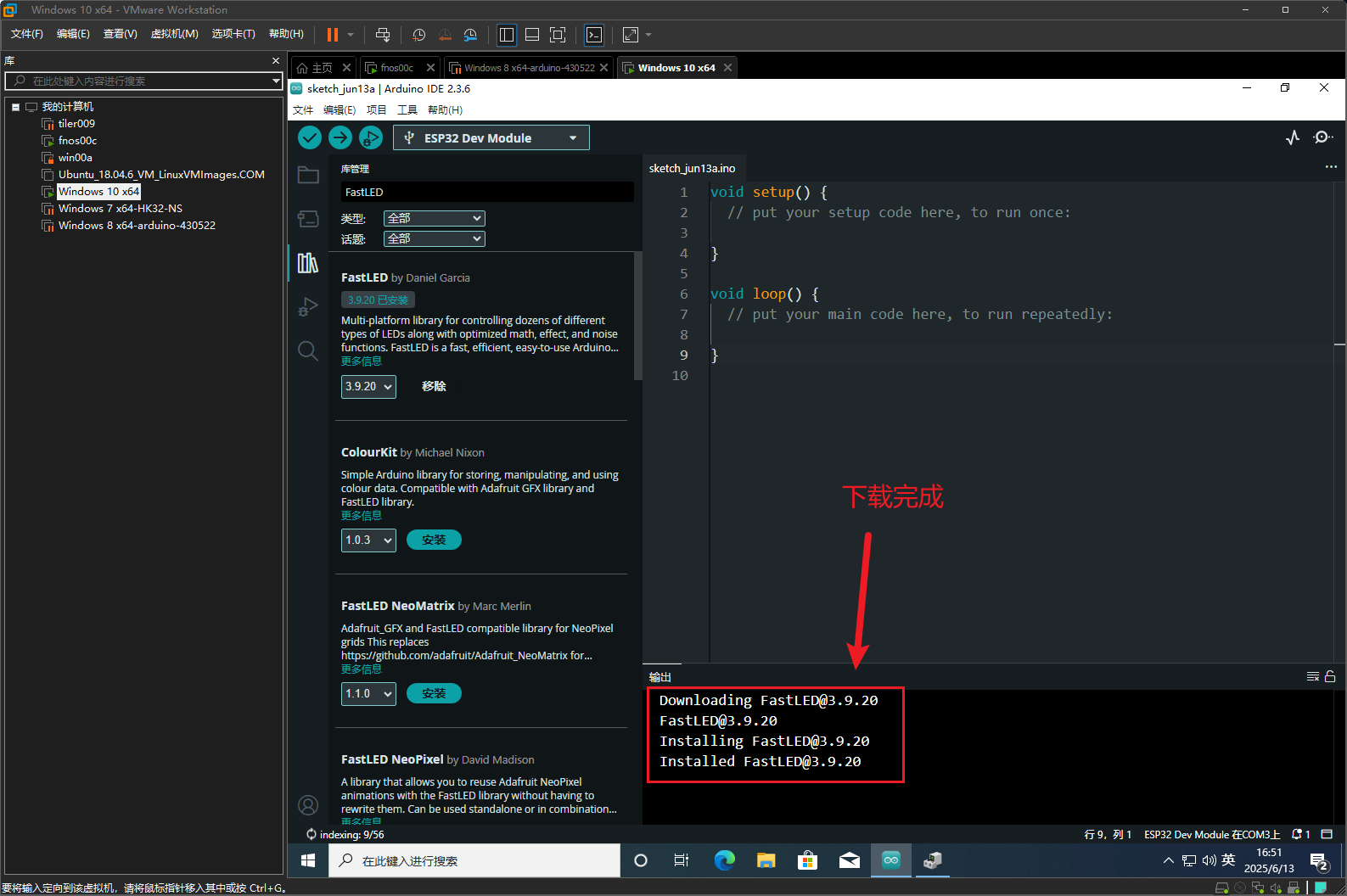

- IDE 会自动下载并放置到正确的位置
- 接线
gnd -> gnd
3.3v -> vcc
io16 -> din

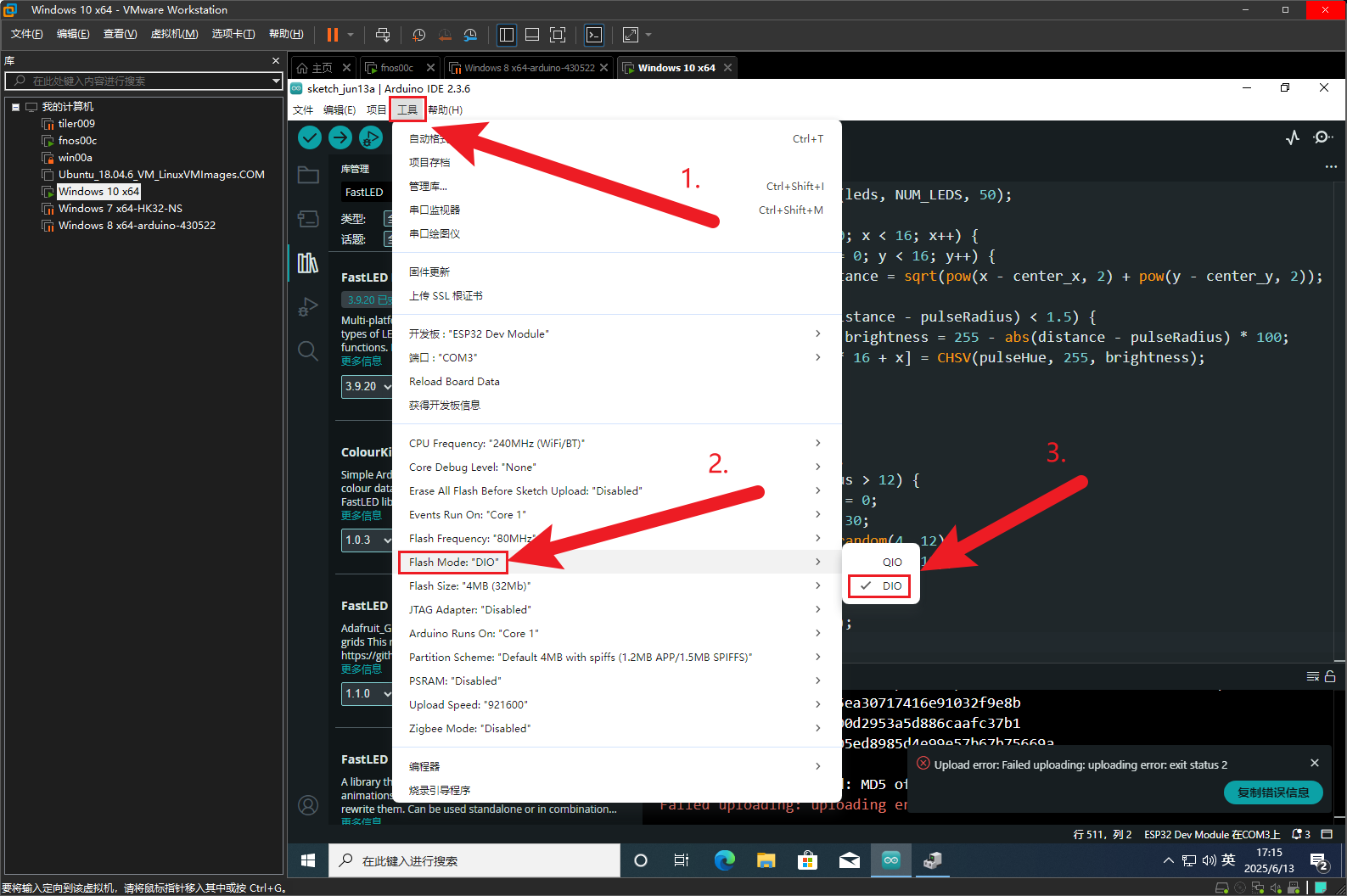

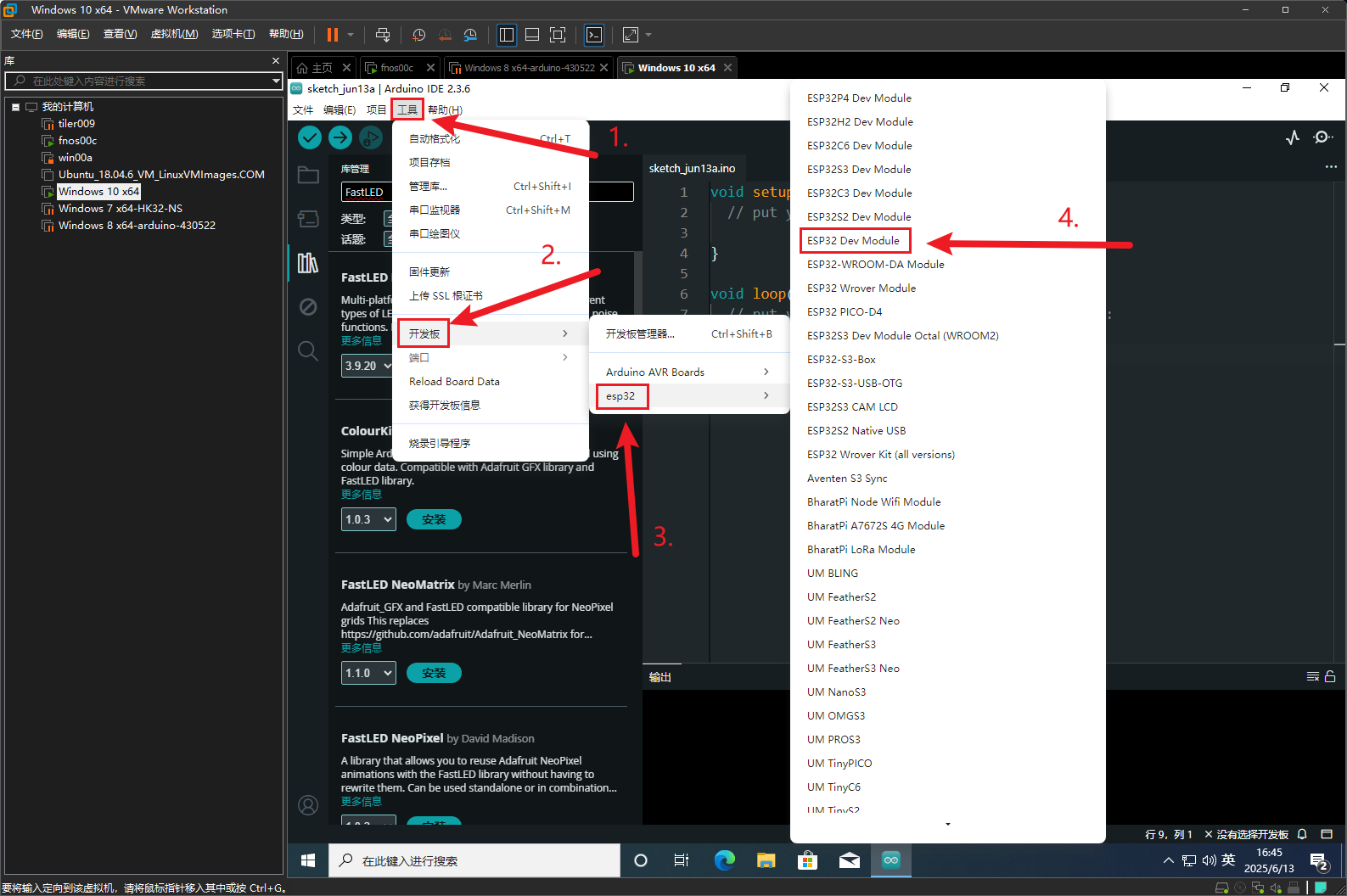

- 工具 (Tools) > 开发板 (Board) 中，选择一款通用的板型，例如 ESP32 Dev Module。

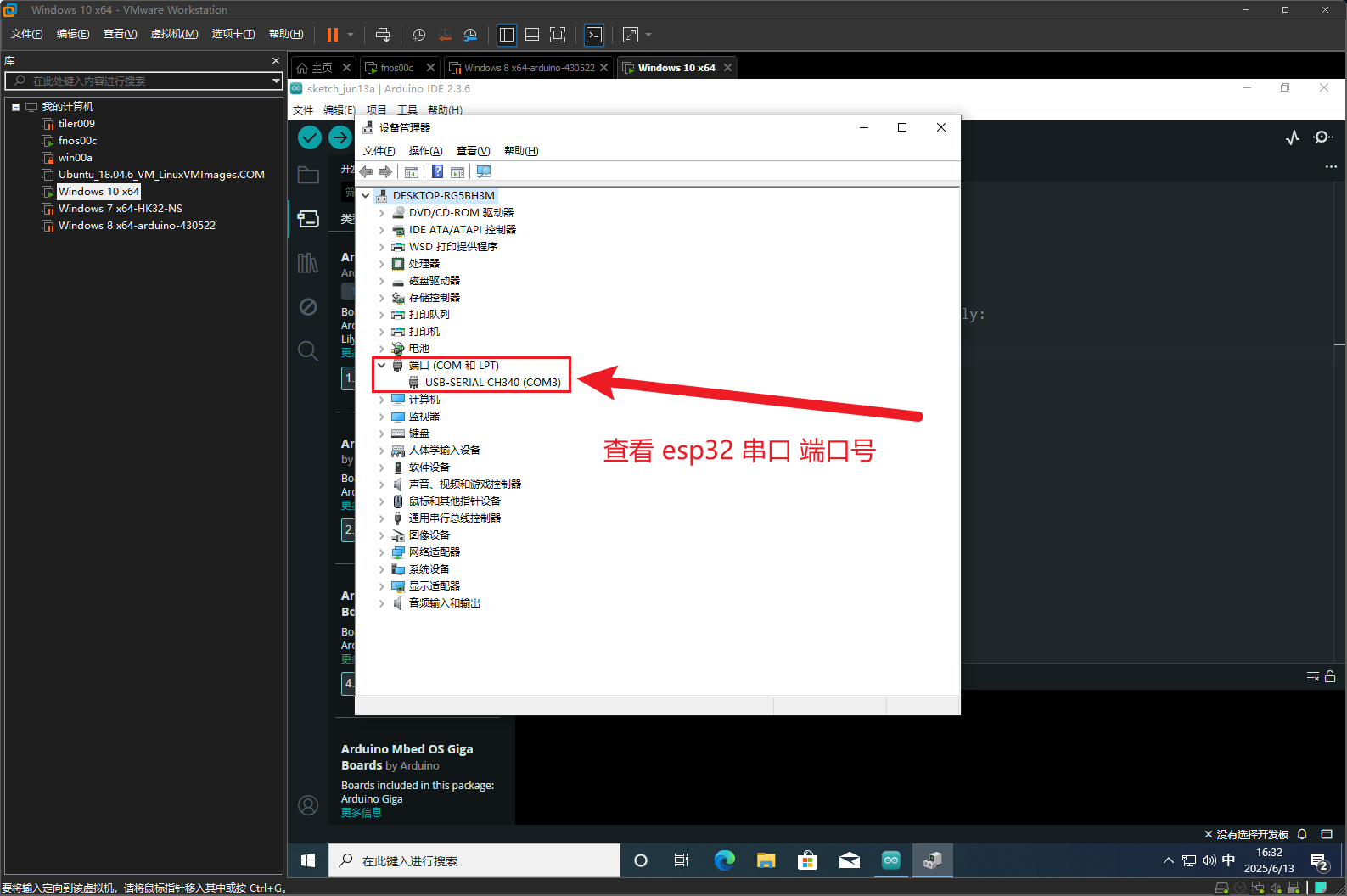

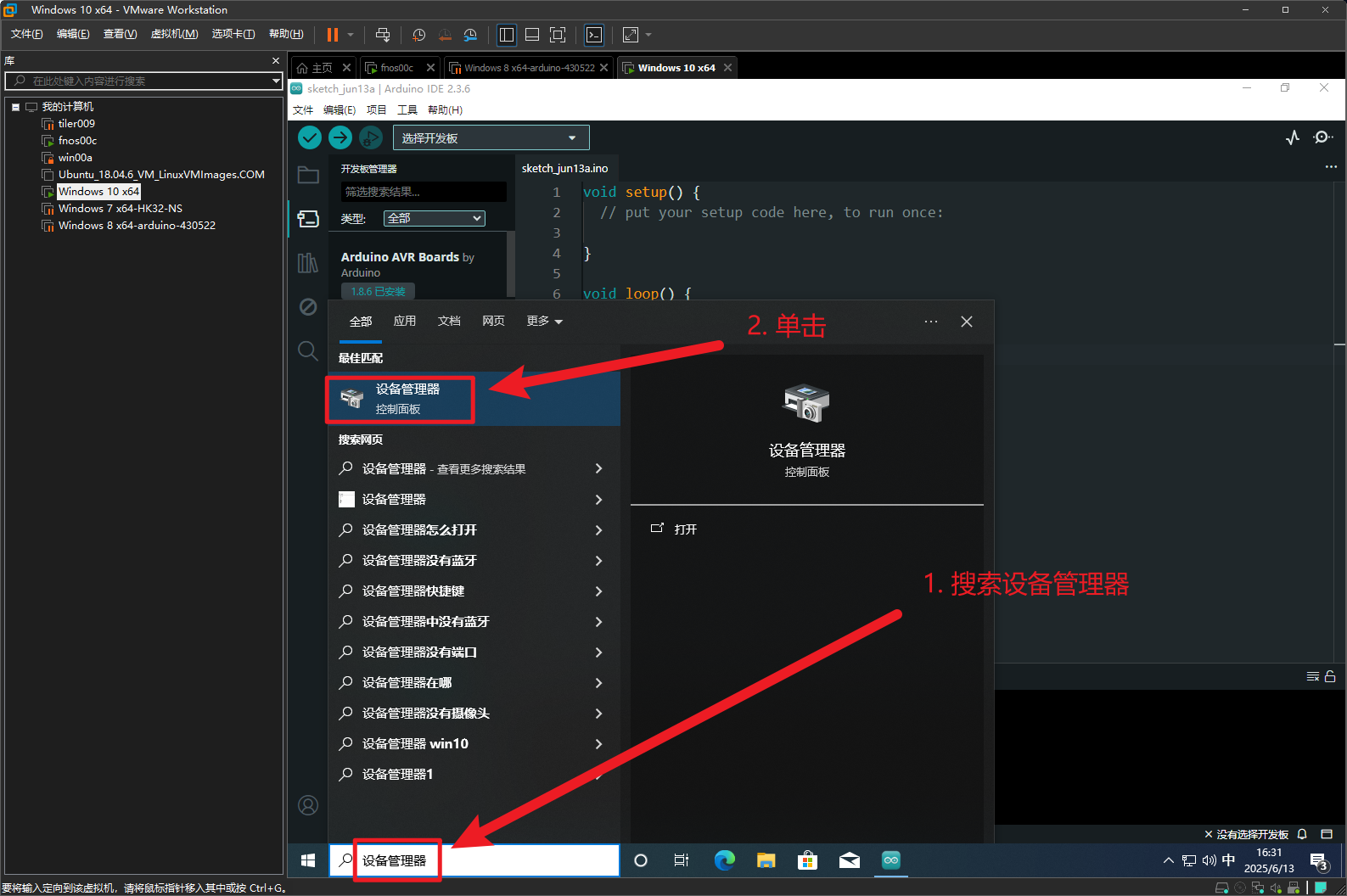

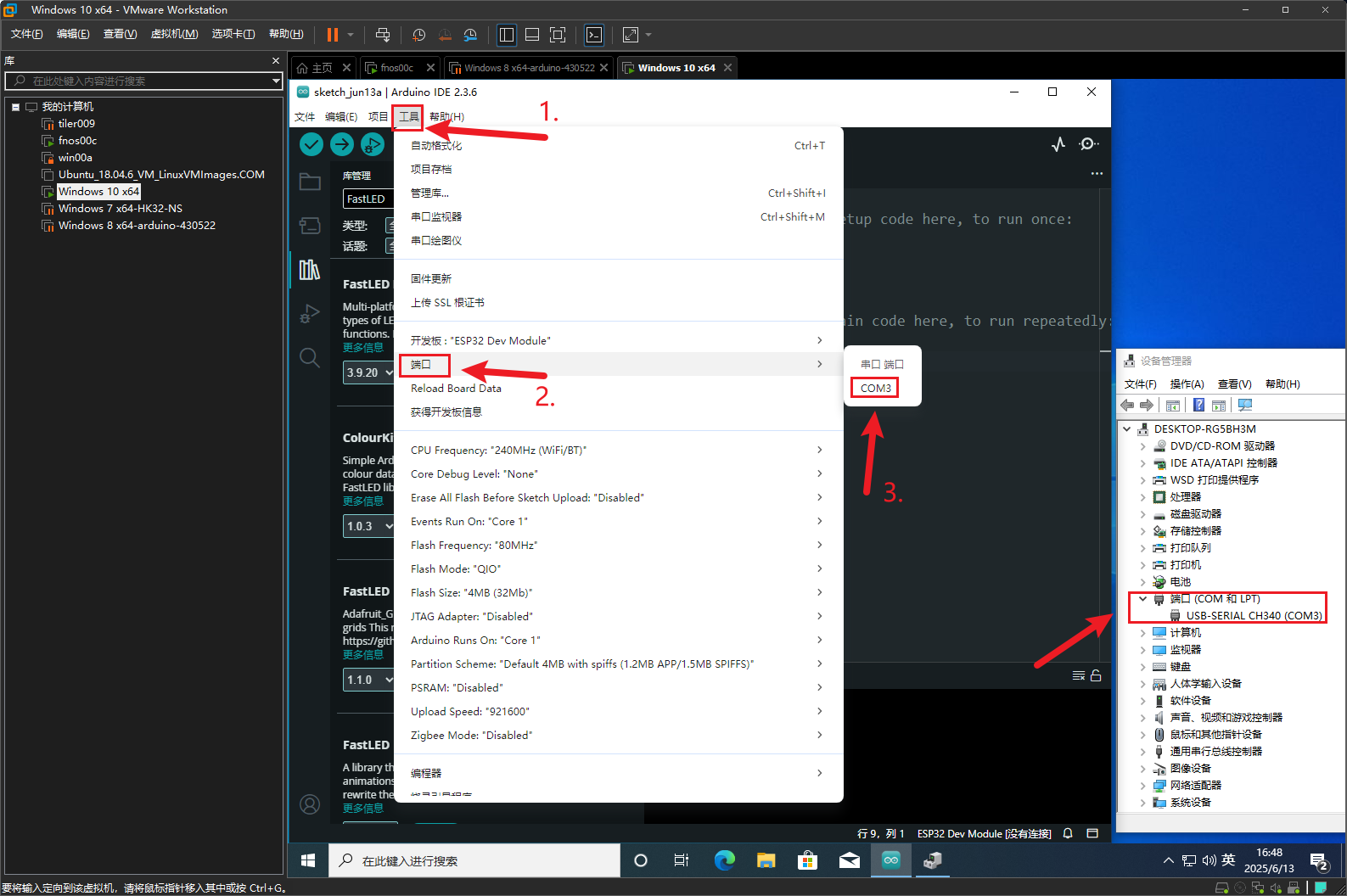

- 工具 (Tools) > 端口 (Port) 中，选择刚才在设备管理器中看到的那个 COM 端口。
假设以下：
- 使用的 esp32 引脚，io16
- 灯板：16*16，256 颗灯珠，ws2812b

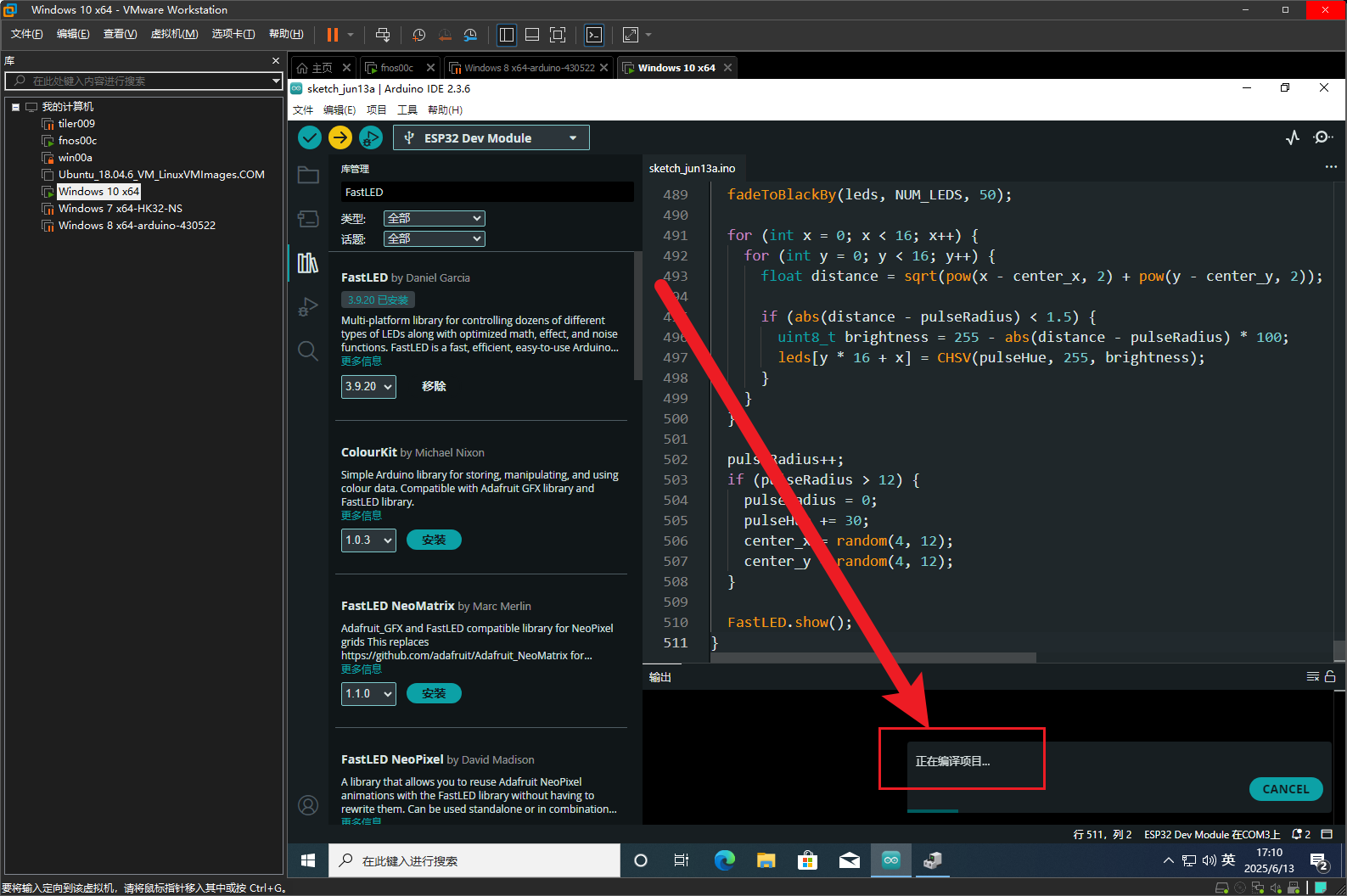

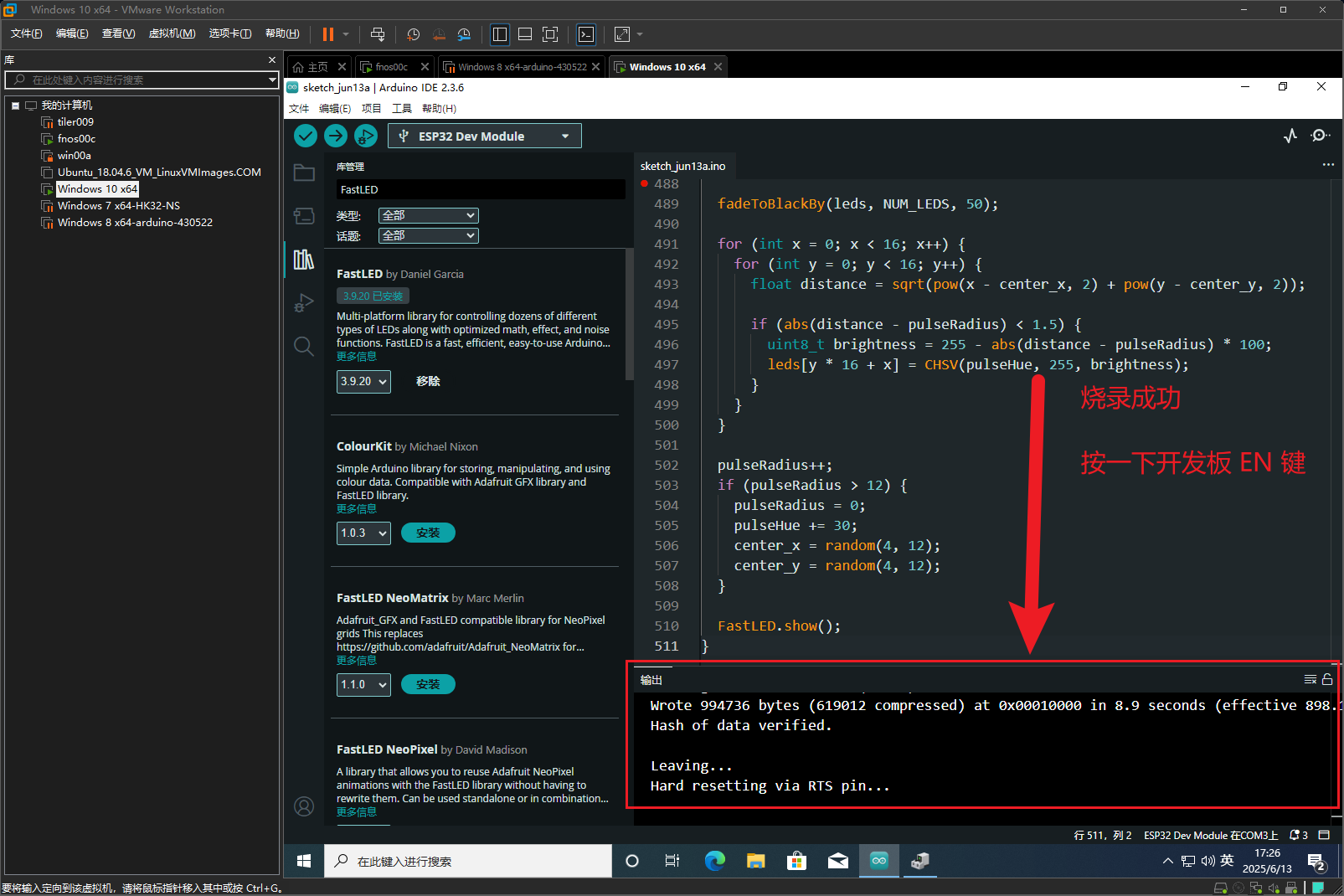

- 将下面的代码复制到 arduino IDE 的编辑区
#include <WiFi.h>
#include <WebServer.h>
#include <FastLED.h>
// WiFi配置
const char* ssid = "HUAWEI-10HP4H";
const char* password = "123456789";
// LED配置
#define LED_PIN 16
#define NUM_LEDS 256
#define BRIGHTNESS 80
CRGB leds[NUM_LEDS];
WebServer server(80);
// 效果控制变量
uint8_t currentEffect = 0;
bool effectRunning = true;
uint8_t ledBrightness = 80;
uint8_t effectSpeed = 50;
// 效果状态变量
uint8_t breathingHue = 0;
int breathingBrightness = 0;
int breathingDirection = 1;
uint8_t timeCounter = 0;
float spiralAngle = 0;
uint8_t pulseRadius = 0;
uint8_t pulseHue = 0;
uint8_t rainbowStart = 0;
void setup() {
Serial.begin(115200);
// 初始化LED
FastLED.addLeds<WS2812B, LED_PIN, GRB>(leds, NUM_LEDS);
FastLED.setBrightness(ledBrightness);
FastLED.clear();
FastLED.show();
// 连接WiFi
WiFi.begin(ssid, password);
Serial.print("连接WiFi");
while (WiFi.status() != WL_CONNECTED) {
delay(500);
Serial.print(".");
}
Serial.println();
Serial.print("WiFi已连接! IP地址: ");
Serial.println(WiFi.localIP());
// 设置Web路由
server.on("/", handleRoot);
server.on("/effect", handleEffect);
server.on("/brightness", handleBrightness);
server.on("/speed", handleSpeed);
server.on("/power", handlePower);
server.begin();
Serial.println("Web服务器已启动!");
}
void loop() {
server.handleClient();
if (effectRunning) {
runCurrentEffect();
} else {
FastLED.clear();
FastLED.show();
}
delay(map(effectSpeed, 0, 100, 100, 10)); // 速度控制
}
// Web页面HTML
void handleRoot() {
String html = R"(
<!DOCTYPE html>
<html lang='zh-CN'>
<head>
<meta charset='UTF-8'>
<meta name='viewport' content='width=device-width, initial-scale=1.0'>
<title>WS2812B 光影控制台</title>
<style>
* { margin: 0; padding: 0; box-sizing: border-box; }
body {
font-family: 'Microsoft YaHei', Arial, sans-serif;
background: linear-gradient(135deg, #667eea 0%, #764ba2 100%);
min-height: 100vh;
padding: 20px;
}
.container {
max-width: 800px;
margin: 0 auto;
background: rgba(255, 255, 255, 0.95);
border-radius: 20px;
padding: 30px;
box-shadow: 0 20px 40px rgba(0,0,0,0.1);
}
h1 {
text-align: center;
color: #333;
margin-bottom: 30px;
font-size: 2.5em;
background: linear-gradient(45deg, #667eea, #764ba2);
-webkit-background-clip: text;
-webkit-text-fill-color: transparent;
}
.status {
text-align: center;
margin-bottom: 30px;
padding: 15px;
background: linear-gradient(45deg, #4CAF50, #45a049);
color: white;
border-radius: 10px;
font-size: 1.2em;
}
.control-section {
margin-bottom: 30px;
padding: 20px;
background: #f8f9fa;
border-radius: 15px;
border-left: 5px solid #667eea;
}
.section-title {
font-size: 1.3em;
color: #333;
margin-bottom: 15px;
font-weight: bold;
}
.effect-grid {
display: grid;
grid-template-columns: repeat(auto-fit, minmax(200px, 1fr));
gap: 15px;
margin-bottom: 20px;
}
.effect-btn {
padding: 15px 20px;
border: none;
border-radius: 10px;
cursor: pointer;
font-size: 1em;
font-weight: bold;
transition: all 0.3s ease;
position: relative;
overflow: hidden;
}
.effect-btn:hover {
transform: translateY(-2px);
box-shadow: 0 8px 20px rgba(0,0,0,0.2);
}
.effect-btn.active {
transform: scale(0.95);
box-shadow: inset 0 4px 8px rgba(0,0,0,0.2);
}
.btn-breathing { background: linear-gradient(45deg, #ff9a9e, #fecfef); color: #333; }
.btn-ripple { background: linear-gradient(45deg, #a8edea, #fed6e3); color: #333; }
.btn-rainbow { background: linear-gradient(45deg, #ffecd2, #fcb69f); color: #333; }
.btn-spiral { background: linear-gradient(45deg, #667eea, #764ba2); color: white; }
.btn-matrix { background: linear-gradient(45deg, #0f3460, #0e4b99); color: #00ff00; }
.btn-pulse { background: linear-gradient(45deg, #fa709a, #fee140); color: #333; }
.slider-container {
margin: 15px 0;
}
.slider {
width: 100%;
height: 8px;
border-radius: 5px;
background: #ddd;
outline: none;
-webkit-appearance: none;
}
.slider::-webkit-slider-thumb {
-webkit-appearance: none;
appearance: none;
width: 20px;
height: 20px;
border-radius: 50%;
background: #667eea;
cursor: pointer;
}
.power-btn {
width: 100%;
padding: 20px;
font-size: 1.2em;
font-weight: bold;
border: none;
border-radius: 15px;
cursor: pointer;
transition: all 0.3s ease;
margin-top: 20px;
}
.power-on {
background: linear-gradient(45deg, #4CAF50, #45a049);
color: white;
}
.power-off {
background: linear-gradient(45deg, #f44336, #da190b);
color: white;
}
.value-display {
display: inline-block;
background: #667eea;
color: white;
padding: 5px 10px;
border-radius: 20px;
font-weight: bold;
margin-left: 10px;
}
@keyframes pulse {
0% { box-shadow: 0 0 0 0 rgba(102, 126, 234, 0.7); }
70% { box-shadow: 0 0 0 10px rgba(102, 126, 234, 0); }
100% { box-shadow: 0 0 0 0 rgba(102, 126, 234, 0); }
}
.active-effect {
animation: pulse 2s infinite;
}
</style>
</head>
<body>
<div class='container'>

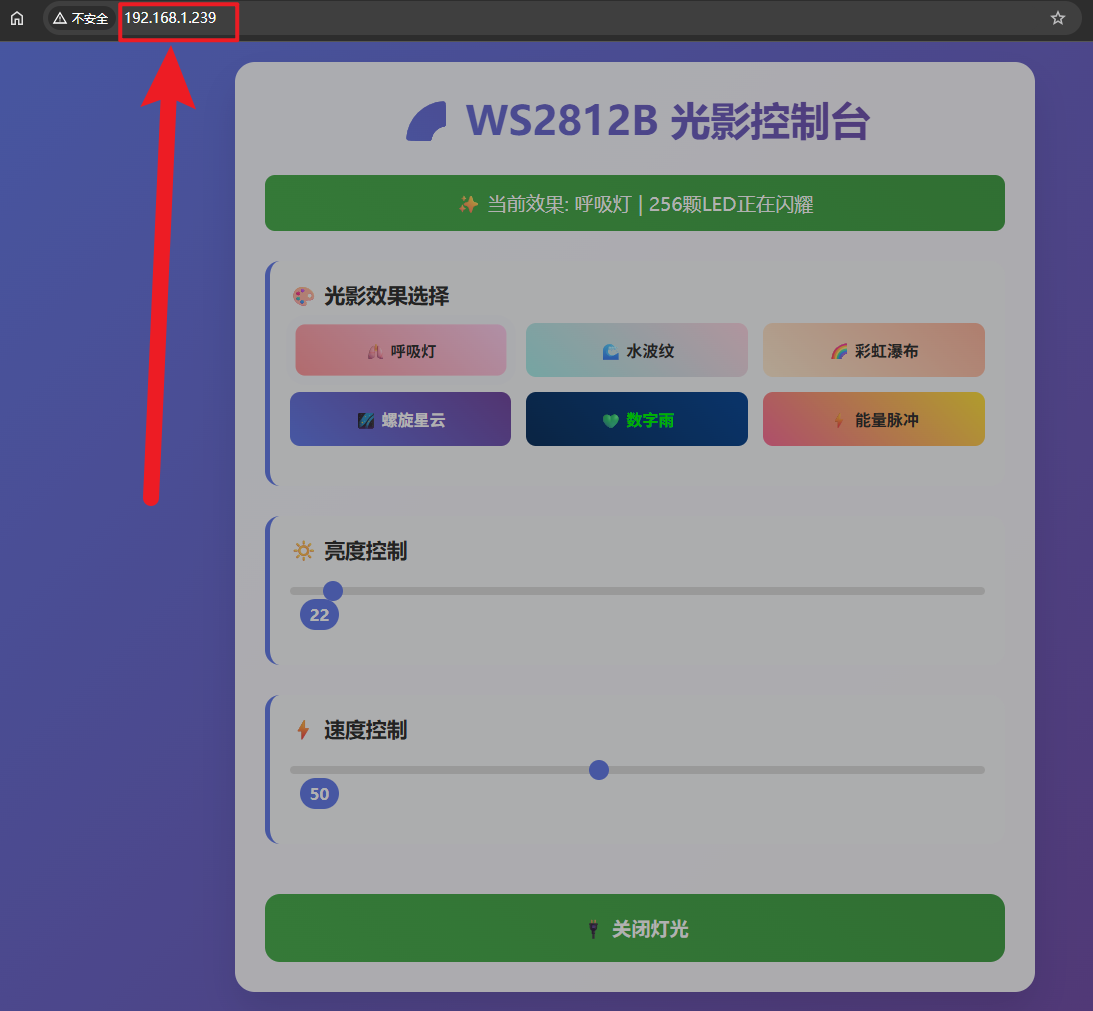

<h1>🌈 WS2812B 光影控制台</h1>
<a href='https://item.taobao.com/item.htm?ft=t&id=711485540266&spm=pc_detail.29232929.202205.12.519d7dd6zAjLib' target="_blank">淘宝店铺</a>
<div class='status' id='status'>
✨ 系统就绪 - 256颗LED等待您的指挥
</div>
<div class='control-section'>
<div class='section-title'>🎨 光影效果选择</div>
<div class='effect-grid'>
<button class='effect-btn btn-breathing' onclick='setEffect(0)'>🫁 呼吸灯</button>
<button class='effect-btn btn-ripple' onclick='setEffect(1)'>🌊 水波纹</button>
<button class='effect-btn btn-rainbow' onclick='setEffect(2)'>🌈 彩虹瀑布</button>
<button class='effect-btn btn-spiral' onclick='setEffect(3)'>🌌 螺旋星云</button>
<button class='effect-btn btn-matrix' onclick='setEffect(4)'>💚 数字雨</button>
<button class='effect-btn btn-pulse' onclick='setEffect(5)'>⚡ 能量脉冲</button>
</div>
</div>
<div class='control-section'>
<div class='section-title'>🔆 亮度控制</div>
<div class='slider-container'>
<input type='range' min='10' max='255' value='80' class='slider' id='brightnessSlider' oninput='setBrightness(this.value)'>
<span class='value-display' id='brightnessValue'>80</span>
</div>
</div>
<div class='control-section'>
<div class='section-title'>⚡ 速度控制</div>
<div class='slider-container'>
<input type='range' min='10' max='100' value='50' class='slider' id='speedSlider' oninput='setSpeed(this.value)'>
<span class='value-display' id='speedValue'>50</span>
</div>
</div>
<button class='power-btn power-on' id='powerBtn' onclick='togglePower()'>
🔌 关闭灯光
</button>
</div>
<script>
let currentEffect = 0;
let isOn = true;
// 设置效果
function setEffect(effect) {
currentEffect = effect;
fetch(`/effect?value=${effect}`)
.then(() => {
updateEffectButtons();
updateStatus();
});
}
// 设置亮度
function setBrightness(value) {
document.getElementById('brightnessValue').textContent = value;
fetch(`/brightness?value=${value}`);
}
// 设置速度
function setSpeed(value) {
document.getElementById('speedValue').textContent = value;
fetch(`/speed?value=${value}`);
}
// 电源控制
function togglePower() {
isOn = !isOn;
const btn = document.getElementById('powerBtn');
if (isOn) {
btn.textContent = '🔌 关闭灯光';
btn.className = 'power-btn power-on';
} else {
btn.textContent = '🔌 开启灯光';
btn.className = 'power-btn power-off';
}
fetch(`/power?value=${isOn ? '1' : '0'}`);
}
// 更新效果按钮状态
function updateEffectButtons() {
const buttons = document.querySelectorAll('.effect-btn');
buttons.forEach((btn, index) => {
if (index === currentEffect) {
btn.classList.add('active', 'active-effect');
} else {
btn.classList.remove('active', 'active-effect');
}
});
}
// 更新状态显示
function updateStatus() {
const effects = ['呼吸灯', '水波纹', '彩虹瀑布', '螺旋星云', '数字雨', '能量脉冲'];
document.getElementById('status').textContent =
`✨ 当前效果: ${effects[currentEffect]} | 256颗LED正在闪耀`;
}
// 初始化
updateEffectButtons();
updateStatus();
</script>
</body>
</html>
)";
server.send(200, "text/html", html);
}
// 处理效果切换
void handleEffect() {
if (server.hasArg("value")) {
currentEffect = server.arg("value").toInt();
Serial.println("切换到效果: " + String(currentEffect));
}
server.send(200, "text/plain", "OK");
}
// 处理亮度调节
void handleBrightness() {
if (server.hasArg("value")) {
ledBrightness = server.arg("value").toInt();
FastLED.setBrightness(ledBrightness);
Serial.println("亮度设置为: " + String(ledBrightness));
}
server.send(200, "text/plain", "OK");
}
// 处理速度调节
void handleSpeed() {
if (server.hasArg("value")) {
effectSpeed = server.arg("value").toInt();
Serial.println("速度设置为: " + String(effectSpeed));
}
server.send(200, "text/plain", "OK");
}
// 处理电源控制
void handlePower() {
if (server.hasArg("value")) {
effectRunning = (server.arg("value") == "1");
Serial.println("电源状态: " + String(effectRunning ? "开启" : "关闭"));
}
server.send(200, "text/plain", "OK");
}
// 运行当前效果
void runCurrentEffect() {
switch (currentEffect) {
case 0: breathingLight(); break;
case 1: waterRipple(); break;
case 2: rainbowWaterfall(); break;
case 3: spiralNebula(); break;
case 4: digitalRain(); break;
case 5: energyPulse(); break;
}
}
// 效果函数实现（简化版，与之前相同但去掉了delay）
void breathingLight() {
breathingBrightness += breathingDirection * 3;
if (breathingBrightness >= 255 || breathingBrightness <= 0) {
breathingDirection = -breathingDirection;
breathingHue += 10;
}
CHSV color(breathingHue, 200, breathingBrightness);
fill_solid(leds, NUM_LEDS, color);
FastLED.show();
}
void waterRipple() {
for (int x = 0; x < 16; x++) {
for (int y = 0; y < 16; y++) {
float distance = sqrt(pow(x - 7.5, 2) + pow(y - 7.5, 2));
uint8_t brightness = sin8(distance * 20 - timeCounter * 8);
CHSV color(160 + sin8(distance * 10) / 4, 255, brightness);
leds[y * 16 + x] = color;
}
}
timeCounter++;
FastLED.show();
}
void rainbowWaterfall() {
for (int y = 0; y < 16; y++) {
uint8_t hue = rainbowStart + (y * 16);
for (int x = 0; x < 16; x++) {
leds[y * 16 + x] = CHSV(hue, 255, 255);
}
}
rainbowStart += 2;
FastLED.show();
}
void spiralNebula() {
fadeToBlackBy(leds, NUM_LEDS, 20);
for (int i = 0; i < 8; i++) {
float spiral_angle = spiralAngle + i * PI / 4;
float radius = 3 + 4 * sin(spiralAngle / 10 + i);
int x = 8 + radius * cos(spiral_angle);
int y = 8 + radius * sin(spiral_angle);
if (x >= 0 && x < 16 && y >= 0 && y < 16) {
leds[y * 16 + x] = CHSV(spiralAngle * 4 + i * 32, 255, 255);
}
}
spiralAngle += 0.1;
FastLED.show();
}
// 数字雨效果的完整实现
void digitalRain() {
fadeToBlackBy(leds, NUM_LEDS, 64);
for (int x = 0; x < 16; x++) {
if (random8() < 20) {
for (int y = 0; y < 16; y++) {
if (leds[y * 16 + x] == CRGB::Black) {
leds[y * 16 + x] = CHSV(96, 255, 255);
break;
}
}
}
}
for (int y = 15; y > 0; y--) {
for (int x = 0; x < 16; x++) {
if (leds[(y-1) * 16 + x] != CRGB::Black && leds[y * 16 + x] == CRGB::Black) {
leds[y * 16 + x] = leds[(y-1) * 16 + x];
leds[(y-1) * 16 + x].fadeToBlackBy(100);
}
}
}
FastLED.show();
}
void energyPulse() {
static uint8_t center_x = 8, center_y = 8;
fadeToBlackBy(leds, NUM_LEDS, 50);
for (int x = 0; x < 16; x++) {
for (int y = 0; y < 16; y++) {
float distance = sqrt(pow(x - center_x, 2) + pow(y - center_y, 2));
if (abs(distance - pulseRadius) < 1.5) {
uint8_t brightness = 255 - abs(distance - pulseRadius) * 100;
leds[y * 16 + x] = CHSV(pulseHue, 255, brightness);
}
}
}
pulseRadius++;
if (pulseRadius > 12) {
pulseRadius = 0;
pulseHue += 30;
center_x = random(4, 12);
center_y = random(4, 12);
}
FastLED.show();
}
- 将以上代码复制后
- 按住 esp32 开发板 BOOT 键，然后按一下 EN 键，最后松开，进入烧录模式
- 接下来，点击 IDE 左上角的 “向右箭头” 按钮（上传）
- IDE 会开始编译代码。首次编译 ESP32 代码会稍慢
- 编译完成后，它会尝试上传。观察下方的输出窗口。如果显示 Connecting…_____…，有时需要按住 ESP32 板上的 “BOOT” 按钮，直到上传开始。
- 如果上传失败，尝试以下操作。
- 拔掉开发板所有负载
- 将 flash mode 设为 DIO

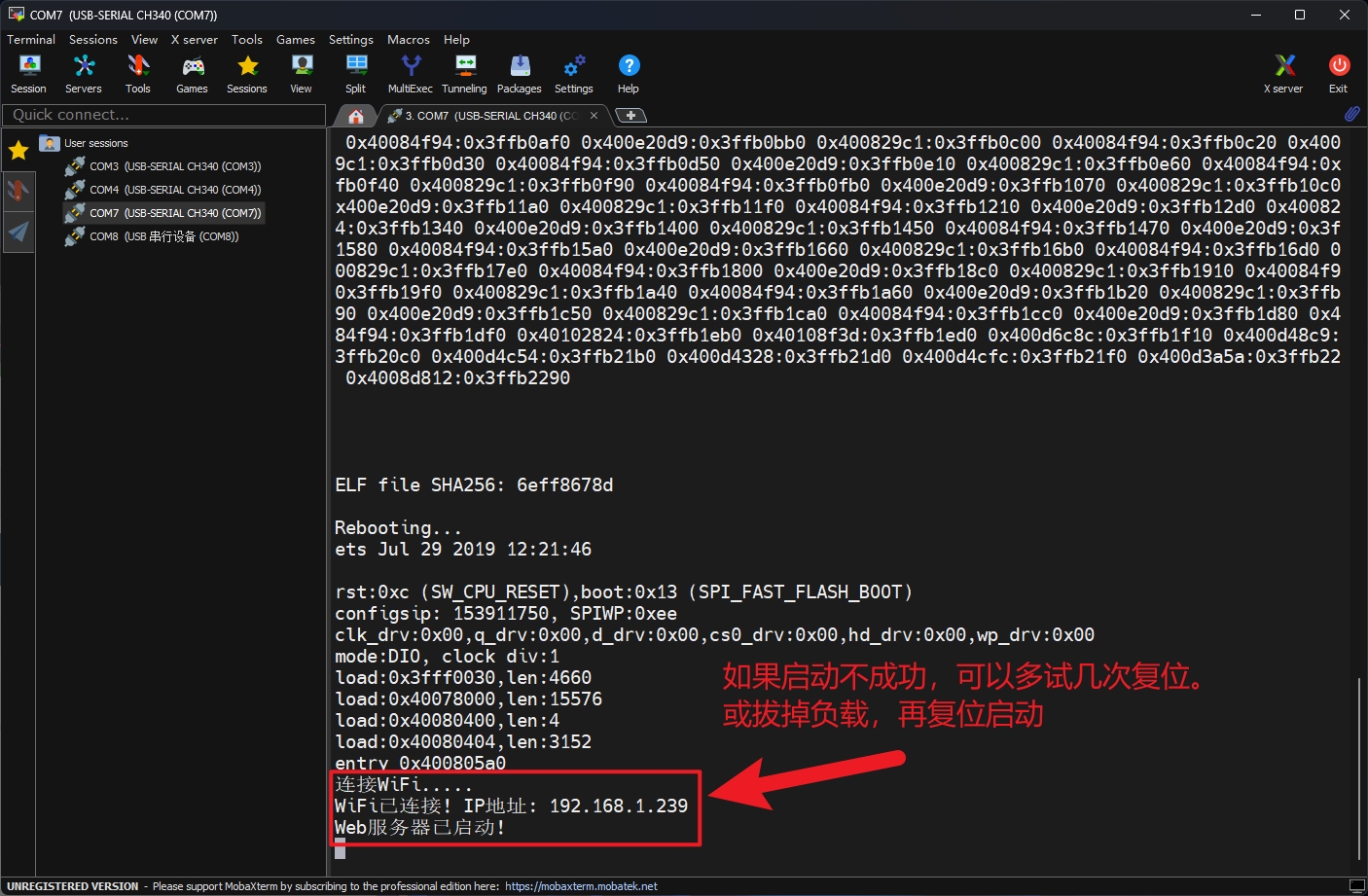

- 接下来，打开串口工具
- 查看开发板的网络 ip 是多少
- 断电，接上负载
- gnd -> gnd
- 3.3v -> vcc
- io16 -> din
- 上电启动，等一下，灯板就会亮

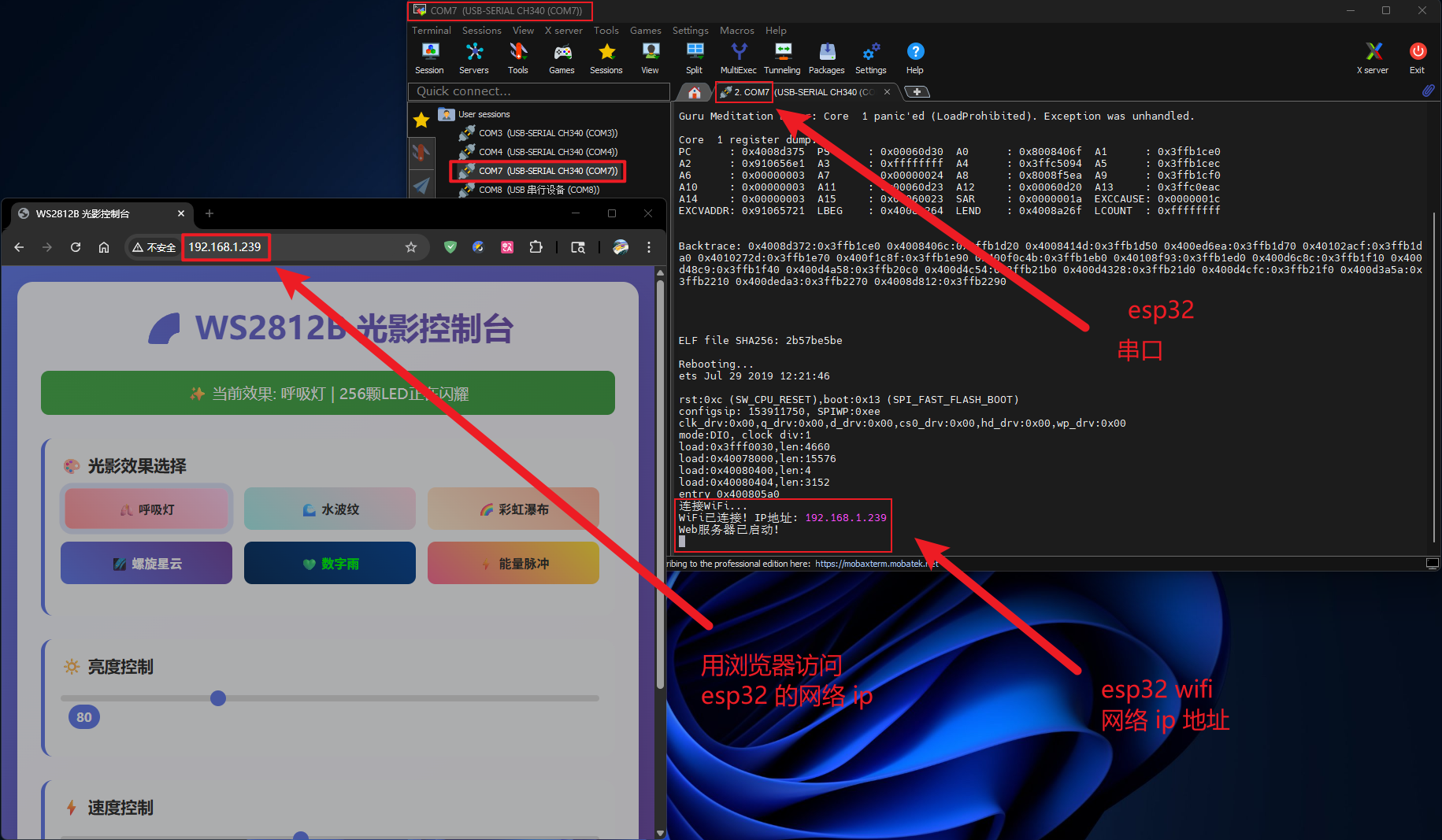

- 在浏览器打开刚刚查看的开发板网络 ip，192.168.1.239
- 现在就可以通过网页，选择预设好的光影效果了
扫一扫
1144
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
